Amana UCO-300.002

Model: UCO-300.002

Save Part Not Listed?
product name

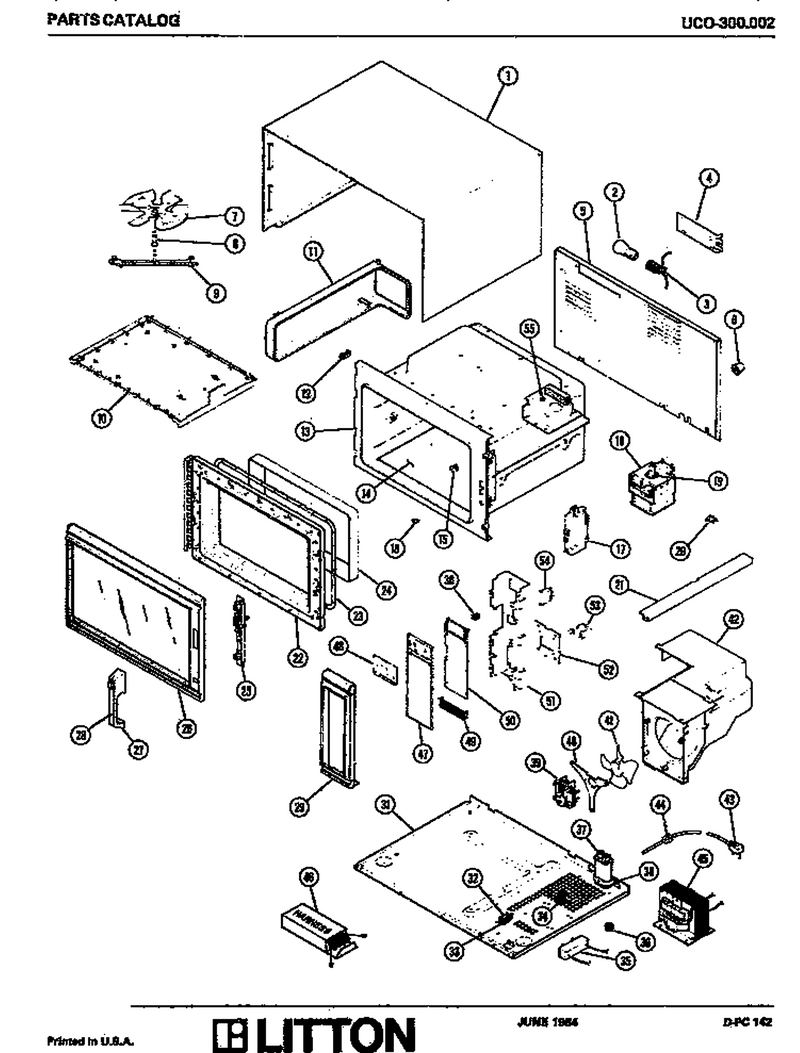

01 - Page 1

...
...
NI
Paint-Blac WPL-R0197056
...
1
Not Available WPL-M80D111
...
2
Light Bulb WPL-8009
...
3
Lamp Holder WPL-40082P01
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP489474
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Support-Stir WPL-M20D236
...
10
Poly Button WPL-M1D832
...
11
Exhaust Duct WPL-M65D282
...
12
Fuse- Ther WPL-59001951
...
13
Cavity Assy WPL-M77D132
...
14
Adhesive WPL-W10841140
...
15
Rack Support Set WPL-M2D601
...
16
Cavity Plug (10) WPL-M1D755
...
17
U-Clip WPL-M2D575
...
18
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
19
Gasket-Rf WPL-M2D296
...
20
Screw Thrm WPL-M1D666
...
21
Screw WPL-WP90767
...
22
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
23
Gasket-R.f. WPL-38874P01
...
24
Cap Inner Door Assy Kit WPL-M55D17
...
25
Bkg Plate Assy. WPL-M20D218
...
26
Clip-Dr M2d610 (25) WPL-38886P01
...
27
Door Handle Kit WPL-M11D62
...
28
Insert Kit WPL-M7D588
...
29
Screw (25) WPL-M1D902
...
30
Speed Clip WPL-41657P01
...
31
Rivet, Pop WPL-A4539629
...
32
Fuse 20 A WPL-WPM0805101
...
33
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
34
Nut WPL-WP488130
...
35
Nut WPL-WP488130
...
36
Nut WPL-WP488130
...
37
High Voltage Capacitor WPL-M10D87
...
38
Bracket WPL-10825501
...
39
Nut K WPL-M0282005
...
40
Bracket Blower WPL-M20D219
...
41
Fan Blade WPL-M35D40
...
42
Screw Plastc (25) WPL-M1D897
...
43
No.8 Spring Lockwasher (25) WPL-M1D57
...
44
Strain Relief WPL-Y0057183
...
45
No.10 T X 3/8`` Screw WPL-M1D479
...
46
M27d342 Harness, Wire WPL-92631P01
...
47
M7d632 Membrane, Touch Pnl WPL-96844P01
...
48
Display Window WPL-M2D599
...
49
Not Available WPL-M8D253
...
50
Electronic Circuit Board WPL-M32R34
...
51
Screw WPL-WP90767
...
52
Screw WPL-WP90767
...
53
Screw WPL-WP90767
...
54
Screw WPL-WP90767
...
55
Not Available WPL-M2D598
