Amana UCO-300.001

Model: UCO-300.001

Save Part Not Listed?
product name

Popular Parts

Popular Parts

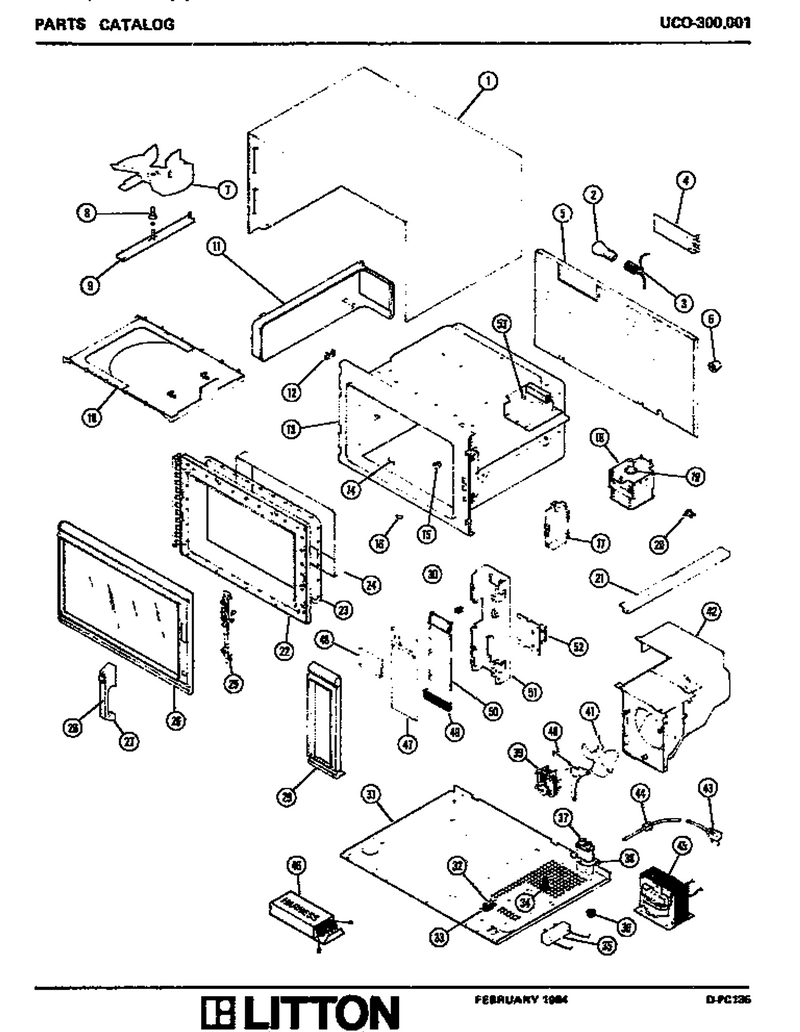

01 - Page 1

...
...
NI
Paint-Off- WPL-R0197018
...
1
Not Available WPL-M80D111
...
2
Light Bulb WPL-8009
...
3
Lamp Holder WPL-40082P01
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Foot, Outer Case WPL-C8960601
...
7
Stirrer Blade Kit WPL-M35D44
...
8
Insert Stirrer Kit WPL-M2D571
...
9
Stirrer Support Bar WPL-M20D233
...
10
M45d30 Stir Cover Assy WPL-M45D30
...
11
Screw Plastc (25) WPL-M1D897
...
12
Fuse- Ther WPL-59001951
...
13
Cavity Assembly WPL-M77D125
...
14
Shelf W/sealant Kit WPL-M50D40
...
15
Rack Support Set WPL-M2D601
...
16
Cavity Plug (10) WPL-M1D755
...
17
Switch, Interlock WPL-M14D253
...
18
Kit, Magnetron WPL-M57D36
...
19
Gasket-Rf WPL-M2D296
...
20
Cutout-Thermal-Control WPL-31866P01
...
21
Screw WPL-WP90767
...
22
Inner Door Assy M70d75 WPL-92521P01
...
23
Gasket-R.f. WPL-38874P01
...
24
Cap Inner Door Assy Kit WPL-M55D17
...
25
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
26
No.8 Ab X 3/8`` Screw WPL-M1D900
...
27
Door Handle Kit WPL-M11D62
...
28
Insert Kit WPL-M7D588
...
29
Screw (25) WPL-M1D902
...
30
Speed Clip WPL-41657P01
...
31
Screw WPL-WP90767
...
32
Fuse 20 A WPL-WPM0805101
...
33
Ia Screw WPL-M1D329
...
34
Kit, Diode WPL-M3D71
...
35
H.v. Relay Kit WPL-M16D88
...
36
Foot WPL-M2D179
...
37
High Voltage Capacitor WPL-M10D87
...
38
Bracket WPL-10825501
...
39
Motor, Blower WPL-46587P01
...
40
Bracket Blower WPL-M20D219
...
41
Fan Blade WPL-M35D40
...
42
Screw Plastc (25) WPL-M1D897
...
43
Power Cord WPL-1731300202
...
44
Bush, Strain Relf (10) WPL-M1D600
...
45
No.10 T X 3/8`` Screw WPL-M1D479
...
46
Wire Harness WPL-M27D327
...
47
M7d632 Membrane, Touch Pnl WPL-96844P01
...
48
Display Window WPL-M2D599
...
49
Not Available WPL-M8D253
...
50
Electronic Circuit Board WPL-M32R34
...
51
Screw WPL-WP90767
...
52
Screw (25) WPL-M1D590
...
53
Not Available WPL-M2D598
