Amana U23F (BOM: P6011704W)

Model: U23F (BOM: P6011704W)

Save Part Not Listed?
product name

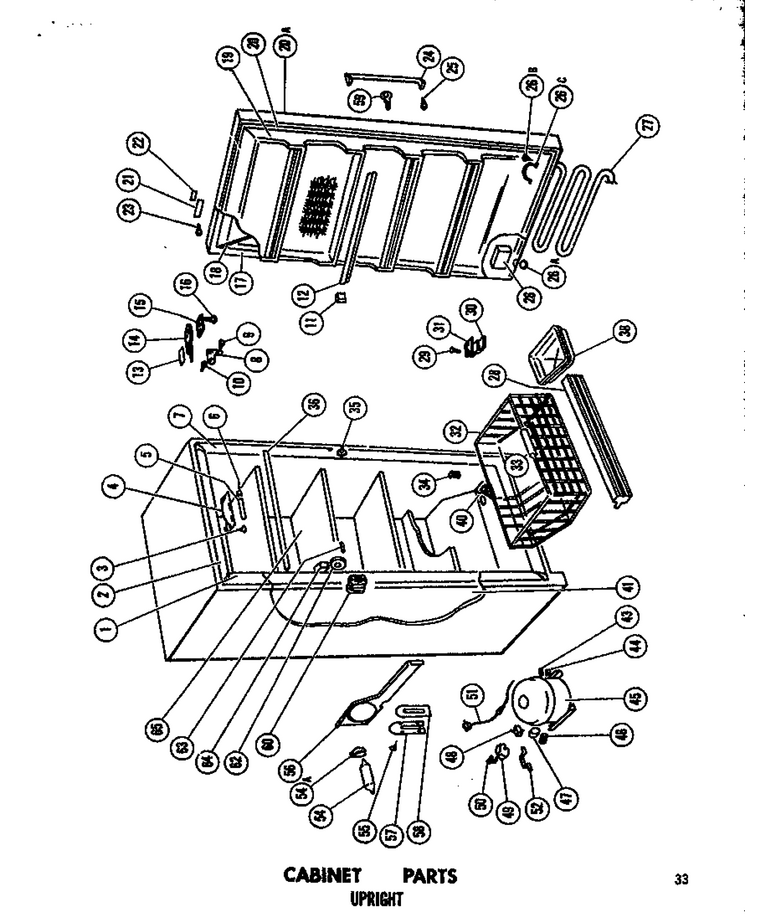

01 - Cabinet Parts

...
...
NI
Heat Exchanger WPL-D3912302
...
1
Breaker Frame WPL-D3914103
...
2
Breaker Frame WPL-D3710305
...
3
Screw WPL-M0217516
...
4
Light Housing WPL-C3540301
...
5
Light Bulb WPL-A0318001
...
6
Socket WPL-B0542702
...
7
Breaker Frame WPL-D7098601
...
8
Liner Gusset WPL-C3523801
...
9
Screw WPL-M0250531
...
10
Sems Fastner WPL-M0252047
...
11
Support WPL-D3976805
...
12
Package Retainer WPL-D3976703
...
14
Top Hinge Assy WPL-C3524001
...
15
Top Hinge Shim WPL-A3009801
...
16
Screw WPL-M0247058
...
17
Insulation WPL-B0573902
...
18
Tie Rod WPL-B0569803
...
19
Inner Dr Panel WPL-D3913504
...
20
Door W-Eu18f-U WPL-D7017012
...
21
Nameplate WPL-C3578003
...
22
Escutcheon WPL-C3577601
...
23
Stud WPL-M0550001
...
24
Handle, Door WPL-D3890301
...
25
Screw WPL-M0248231
...
26
Spring Clip WPL-B0544001
...
27
Wiring Harness WPL-C3643801
...
28
Grille-Toe WPL-C3574707
...
29
Screw WPL-WP67006715
...
30
Hinge, Bottom WPL-C3566701
...
31
Shim WPL-A3015201
...
32
Basket, Slide Out WPL-D3892002
...
33
Handle WPL-B0571801
...
34
Glide Basket WPL-B0543101
...
35
Switch, Light WPL-D7101301
...
36
Trim, Shelf WPL-B0560001
...
38
Drain Pan WPL-C3523101
...
40
Drain Screen WPL-A3113701
...
41
Insulation Ft. K WPL-B0572828
...
43
Clip WPL-M0111001
...
44
Grommet K WPL-A4002702
...
45
Kit, Compressor WPL-D3858101
...
46
Spring K WPL-A3043601
...
47
Xoverload WPL-C3556301
...
48
Relay WPL-C3553301
...
49
Terminal Cover WPL-B0551801
...
50
Strap K WPL-A3041801
...
51
Wiring Harness WPL-D7098322
...
52
Wall Spacer WPL-A3032901
...
54
Clamp WPL-M0102315
...
55
Screw WPL-M0216532
...
56
Fan Shroud WPL-D3768506
...
57
Cover Plate -G WPL-A0382904
...
58
Gasket WPL-A0382801
...
59
Insulation, Lock WPL-B0576001
...
60
Strike Pad WPL-D3913901
...
62
Knob, Control WPL-C3577902
...
63
Rivet Plastic WPL-A3032601
...
64
Cold Control WPL-B0543809
...
65
Assy., Liner And Tubing WPL-D7050973
