Amana U2100I.B

Model: U2100I.B

Save Part Not Listed?
product name

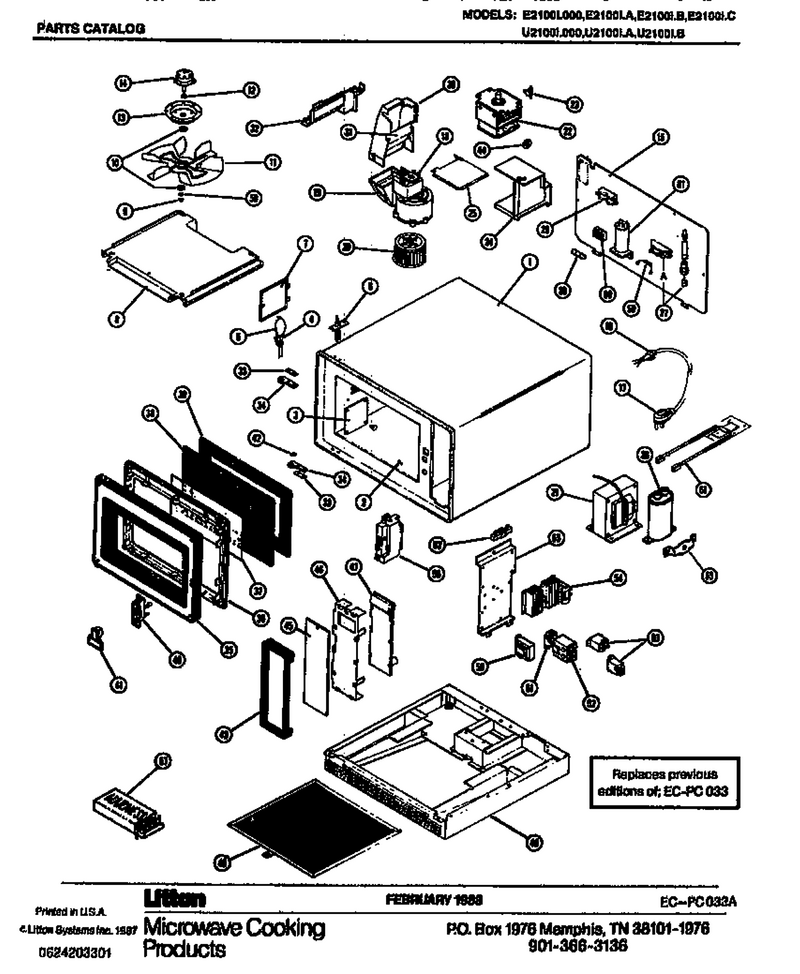

01 - Page 1

...
...
NI
U&c Mnl E2100i.a WPL-M94D573
...
1
Rivet, Pop WPL-A4539629
...
2
Adhesive WPL-W10841140
...
3
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
4
Light Holder WPL-46534P01
...
5
Light Bulb WPL-59002071
...
6
Screw WPL-WP90767
...
7
Gasket WPL-A3030302
...
8
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Screw (25) WPL-M1D638
...
14
Stirrer Motor Kit WPL-R0163263
...
15
No.8 U-Clip WPL-M1D93
...
16
Strain Relf WPL-26632P01
...
17
See Note Fuse -- (Model U21001 Only) Type Bs1362, 13 Amp (Purchase Locally) WPL-Y00000000
...
18
Screw WPL-WPW10001160
...
19
Ia No.8 T X 1`` Screw WPL-M1D943
...
20
Wheel, Blower M35d39 WPL-36300P01
...
21
Hv Xfmr 240v50hz 1kw M60d152 WPL-46374P01
...
22
Gasket-Rf WPL-M2D305
...
23
Cutout-Thermal-Control WPL-31866P01
...
24
Screw WPL-WP90767
...
25
Deflector-Air M65d344 WPL-46762P01
...
26
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
27
Rectifier WPL-WP13091701
...
28
Pop Rivet WPL-A4539625
...
29
Fuse WPL-WPM0805102
...
30
M65d345 Duct, Air WPL-45407P01
...
31
M65d346 Divider Air WPL-45402P01
...
32
Transition-Cav Exh Fs-10 WPL-45753P01
...
33
Shim-Hinge WPL-45540P01
...
34
Hinge WPL-M3D345
...
35
Fastener(10) WPL-43415P01
...
36
Door Filler Kit WPL-M55D18
...
37
Outer Window Kit WPL-M70D158
...
38
No.8 Ab X 3/8`` Screw WPL-M1D906
...
39
Window, Inner Door WPL-10785001
...
40
Door Latch Kit WPL-R0163256
...
41
Inlay Handle 2100i M7d852 WPL-43270P02
...
42
Ia Nylon Flat Washer WPL-40370P02
...
43
No.8-32 Captive Nut(25) WPL-M1D758
...
44
Toroid (Arc Suppressor) WPL-44780P01
...
45
Assy Memb Switch WPL-4100010317
...
46
Clip WPL-5522546002
...
47
Kit, Controller WPL-M31R51
...
48
Rail Assy WPL-M52D236
...
49
Filter Air WPL-45412P01
...
50
Screw WPL-WP90767
...
51
Screw WPL-WP90767
...
52
Relay Sec/intlk WPL-M16D105
...
53
Relay WPL-38806P01
...
54
Triac - Comm/jetwave Lst Iv WPL-4070001301
...
55
Nut WPL-WP488130
...
56
U-Clip WPL-M2D575
...
57
Wire Harness WPL-M27D463
...
58
Wshr-Rubber WPL-32383P01
...
59
Bleeder Resistor WPL-M3D62
...
60
Rivet, Block Mtg. WPL-M1D743
...
61
Lock Washer WPL-M0272803
...
62
Speed Clip WPL-M8D123
...
63
Bracket WPL-10825501
...
64
Protector, Trans Therm WPL-M4D128
