Amana U12F (BOM: P6011701W)

Model: U12F (BOM: P6011701W)

Save Part Not Listed?
product name

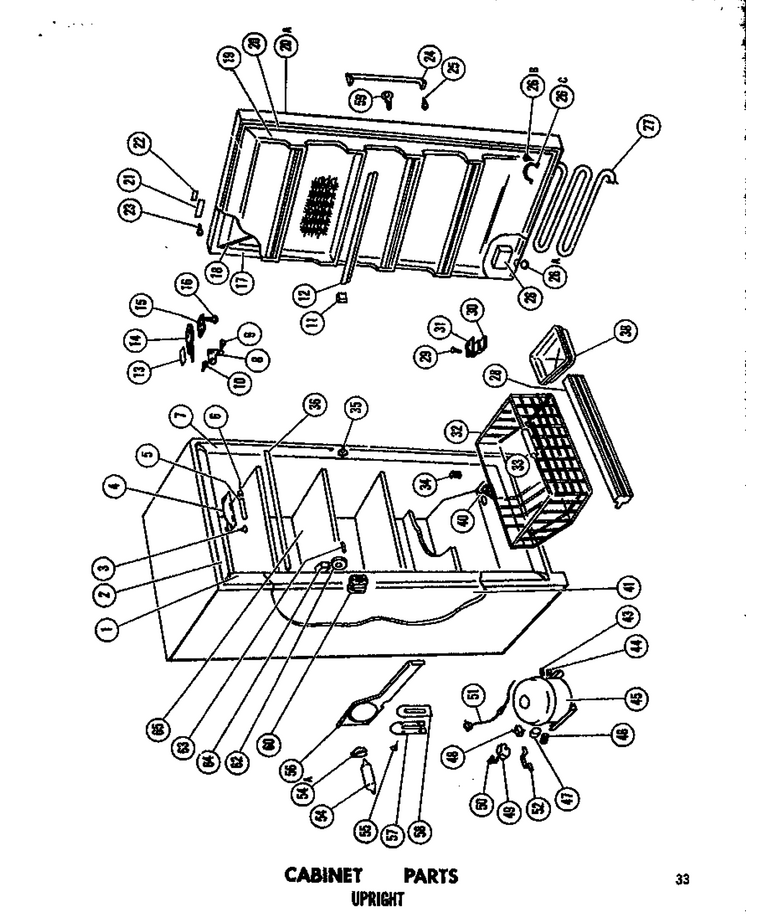

01 - Cabinet Parts

...
...
NI
Screw WPL-M0233116
...
1
Breaker Frame WPL-D3914202
...
2
Breaker Frame WPL-D3710305
...
7
Breaker Frame, Hinge Side WPL-D3914001
...
8
Liner Gusset WPL-C3523802
...
9
Screw WPL-M0250531
...
10
Sems Fastner WPL-M0252047
...
11
Support WPL-D3976805
...
12
Package Retainer WPL-D3976703
...
14
Top Hinge Plate WPL-B0525801
...
15
Top Hinge Shim WPL-A3009801
...
16
Screw WPL-M0247058
...
17
Insulation, Batt Filler WPL-B0523820
...
18
Tie Rods WPL-B0569801
...
19
Inner Dr Panel WPL-D3908304
...
20
Gasket, Door WPL-D3908101
...
21
Nameplate WPL-C3578003
...
22
Escutcheon WPL-C3577601
...
23
Stud WPL-M0550001
...
24
Handle, Door WPL-D3890301
...
25
Screw WPL-M0248231
...
26
Sems Fastner WPL-M0243037
...
27
Wiring Harness WPL-C3643801
...
28
Grille-Toe WPL-C3574707
...
29
Screw WPL-WP67006715
...
30
Hinge, Bottom WPL-C3566701
...
31
Shim WPL-A3015201
...
36
Trim, Shelf WPL-B0560001
...
38
Drain Pan WPL-C3523101
...
40
Drain Screen WPL-A3113701
...
41
Insulation Batt, Top WPL-B0535212
...
43
Clip WPL-M0111001
...
44
Grommet K WPL-A4002702
...
45
Compressor WPL-W10439652
...
46
Spring K WPL-A3043601
...
47
Overload WPL-C3561601
...
48
Relay WPL-C3561701
...
49
Cover K WPL-B0559501
...
50
Strap K WPL-A3041801
...
51
Wiring Harness WPL-D7098302
...
52
Wall Spacer WPL-A3032901
...
54
Clamp WPL-M0102315
...
55
Screw WPL-M0216532
...
57
Cover Plate -G WPL-A0382904
...
58
Gasket WPL-A0382801
...
59
Insulation, Lock WPL-B0576001
...
60
Strike Pad WPL-D3913901
...
62
Knob, Control WPL-C3577902
...
63
Rivet Plastic WPL-A3032601
...
64
Cold Control WPL-B0543809
...
65
Liner Assy WPL-D7035471
