Amana TZ21R2G (BOM: P1181501W G)

Model: TZ21R2G (BOM: P1181501W G)

Save Part Not Listed?
product name

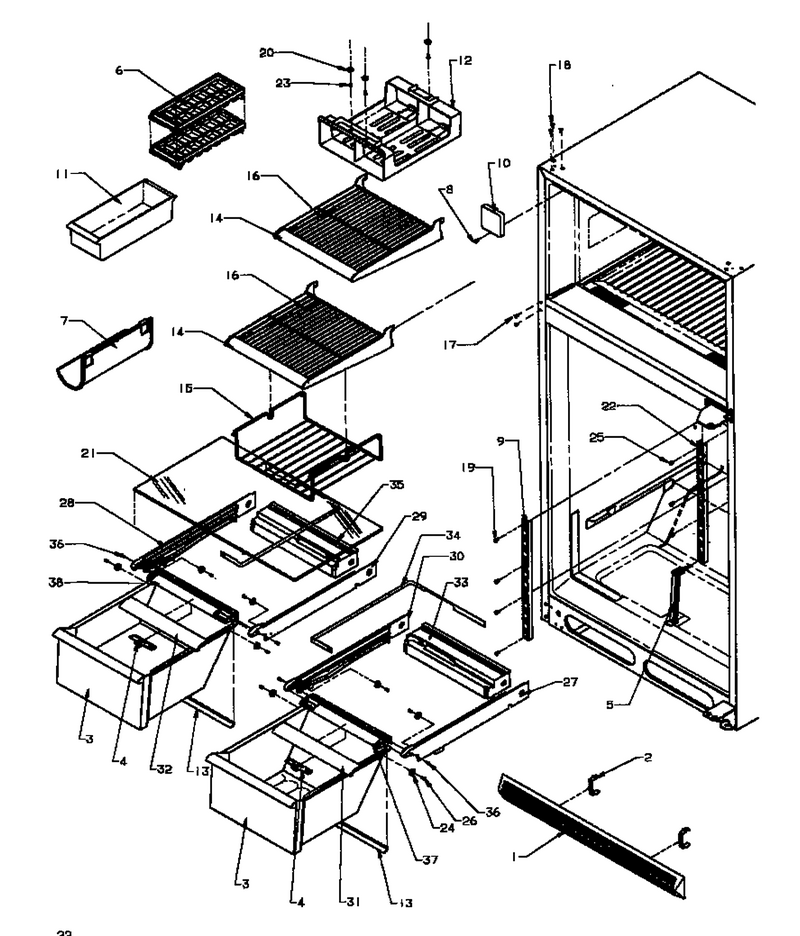

03 - Cabinet Shelving

...
...
NI
Assy- Cris WPL-10698501Q
...
1
Grille, Toe (Gold) WPL-10474803
...
2
Clip- Toe WPL-WP10551502
...
3
Pan-Crisper WPL-Y10430111
...
4
Slide, Crisper WPL-10797501
...
5
Post, Crisper Support WPL-10461901
...
6
Tray WPL-WP841180A
...
7
Rack, Wine WPL-10448901
...
8
Screw (3) WPL-67006425
...
9
Ladder, Center WPL-D7599002
...
10
Cover-Fl Tb/plug WPL-D7874402
...
11
Container WPL-WP10423131
...
12
Rack, Ice Service WPL-10423001
...
13
Seal- Cris WPL-WP10530204
...
14
Extr. Wire Shelf WPL-10505607
...
15
Rack, Freezer WPL-10250502
...
16
Shelf, Wire Frz WPL-10923701
...
17
Plug WPL-M0310724
...
18
Plug WPL-M0310720
...
19
Screw-Sm WPL-M0238636
...
20
Washer WPL-M0270519
...
21
Shelf, Glass WPL-10370012
...
22
Ladder, Side WPL-D7599105
...
23
Screw, Sm WPL-M0238823
...
24
Roller, Pan WPL-10481001
...
25
Screw (3) WPL-67006425
...
26
Screw WPL-67006692
...
27
Rail, Side Crisper WPL-10432701
...
28
Rail, Side Crisper WPL-10432704
...
29
Rail, Ctr. Crisper WPL-10432803
...
30
Rail, Ctr. Crisper WPL-10432804
...
31
Extr. R. Crisper Frt WPL-10688014
...
32
Extr L Crisper Frt WPL-10688017
...
33
Rail, Crisper Back WPL-10433804
...
34
Band- Cris WPL-67006989
...
35
Rail, Crisper Back WPL-10435604
...
36
Screw WPL-67006692
...
37
Rail, R. Crisper Frt WPL-10687801
...
38
Rail, L. Crisper Frt WPL-10687802

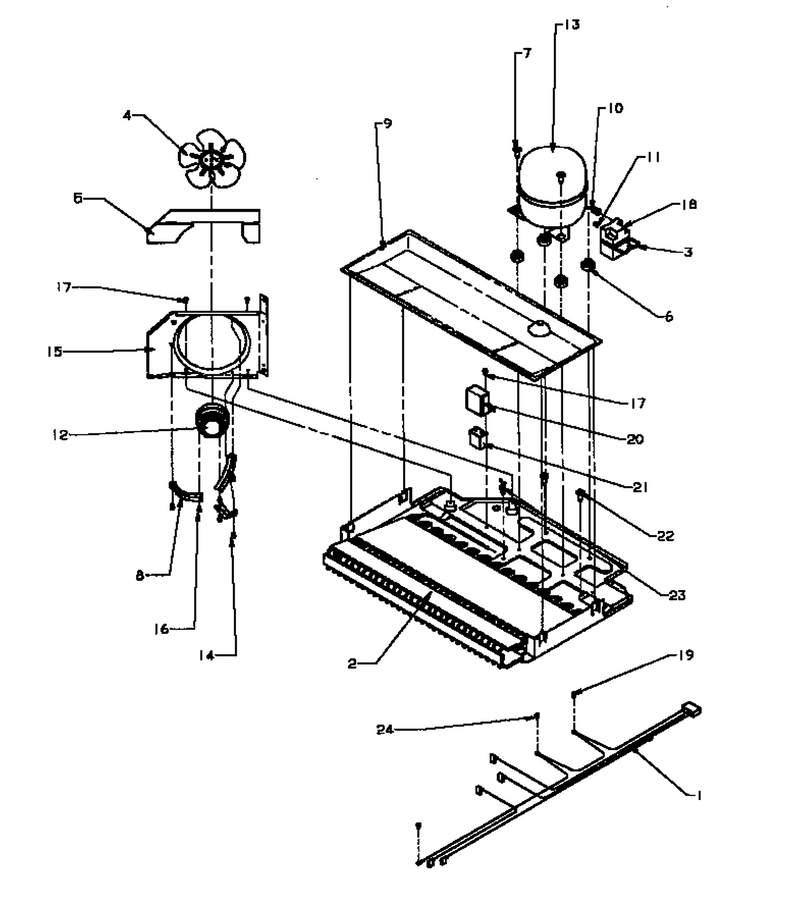

05 - Compressor Compartment

...
...
1
Harness, Mach. Comp. WPL-10705801
...
2
Assy, Cond Pan WPL-10481204
...
3
Bale Strap WPL-YB8358601
...
4
Blade, Fan WPL-B5742602
...
5
Gasket, Cond. Fan WPL-10442702
...
6
Grommet, Compressor WPL-67003493
...
7
Screw, Shoulder WPL-M0221548
...
8
Bracket, Cond. Motor WPL-10582501
...
9
Pan, Drain WPL-10427405
...
10
Overload WPL-10377004
...
11
Relay WPL-2154436
...
12
Motor-Cond WPL-833697
...
13
Compressor WPL-W10439652
...
14
Screw, Sm WPL-M0227217
...
15
Cond Fan Shrd-E Ct WPL-10426911
...
16
Screw WPL-M0223803
...
17
Screw WPL-WP12990527
...
18
Term Cover WPL-C8960801
...
19
Screw WPL-M0253916
...
20
Shield, Capacitor WPL-10266402
...
21
Capacitor WPL-WPW10662129
...
22
Screw, Shoulder WPL-M0221548
...
23
Wire Clip WPL-B5667304
...
24
Screw WPL-WP489399

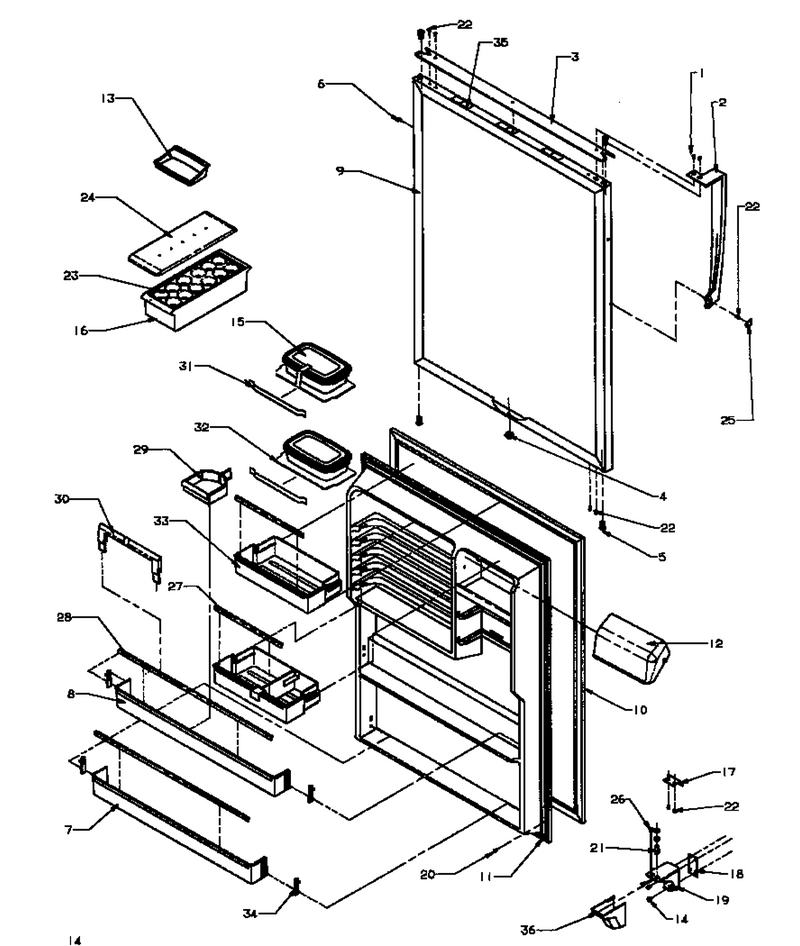

10 - Ref Door

...
...
1
Screw WPL-WPW10348409
...
2
Ref Handle Assembly, Gold WPL-10253512
...
3
Cap, Door WPL-10201507
...
4
Plug, Button Gold WPL-M0310337
...
5
Bushing, Door (Wht) WPL-10393802
...
6
Plug WPL-M0310724
...
7
Retainer,ref/fz Dr WPL-10419020
...
8
Retainer- WPL-WP10183120
...
9
Assy Rfr Dr Gld Cfc11 WPL-10481901GQ
...
10
Gasket- Re WPL-WP12550111Q
...
11
Liner, Refrig Door WPL-10440801
...
12
Door, Dairy WPL-10423411
...
13
Tray, Butter WPL-10310901
...
14
Screw WPL-WP67006715
...
15
Container Sec. Ser. WPL-D7806405
...
16
Container WPL-WP10423131
...
17
Stop, Door WPL-10447102
...
18
Shim Hinge WPL-10447902
...
19
Hinge, Bottom White WPL-10433208
...
20
Screw WPL-WPM0219730
...
21
Pin Hinge Bottom WPL-67007018
...
22
Screw WPL-WPW10348409
...
23
Tray-Egg WPL-1036504
...
24
Lid, Utility WPL-10436404
...
25
Cover-Handle Screw G WPL-10201804
...
27
Trim, Door Shelf WPL-10183933
...
28
Trim, Door Shelf WPL-10183969
...
29
Hugger, Bottle (Shelf Divider) WPL-10441102
...
30
Retainer, Tall Pkg WPL-12106902
...
31
Retainer, Package WPL-10425301
...
32
Shelf, Service WPL-10425101
...
33
Shelf, Ref Door WPL-10416901
...
34
Clip, Retainer WPL-10202001
...
35
Tape Per Roll WPL-M0275163
...
36
Cover, Hinge Lower (Gold) WPL-10462803

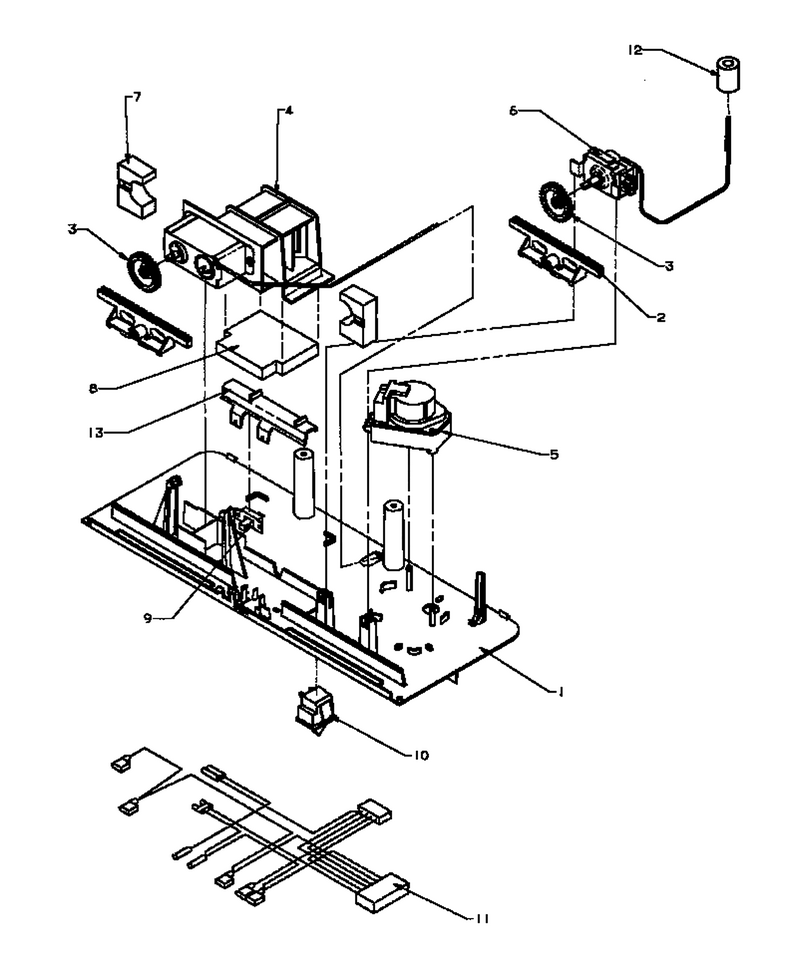

06 - Control Panel

...
...
NI
Assy, Damper Control WPL-R0161072
...
1
Housing, Control WPL-10439202
...
2
Rack, Control WPL-10439601
...
3
Pinion, Control WPL-10442601
...
4
Assy, Damper Control WPL-R0161072
...
5
Timer-Def WPL-R0168027
...
6
Assy, Frz Control WPL-R9700006
...
7
Insert,damper WPL-10442801
...
8
Insulation, Damper WPL-10442901
...
9
Switch, St WPL-M0350201
...
10
Switch WPL-W11384469
...
11
Harness, Control WPL-10573401
...
12
Insulation, Cap WPL-10673603
...
13
Shield, Wire WPL-10565101

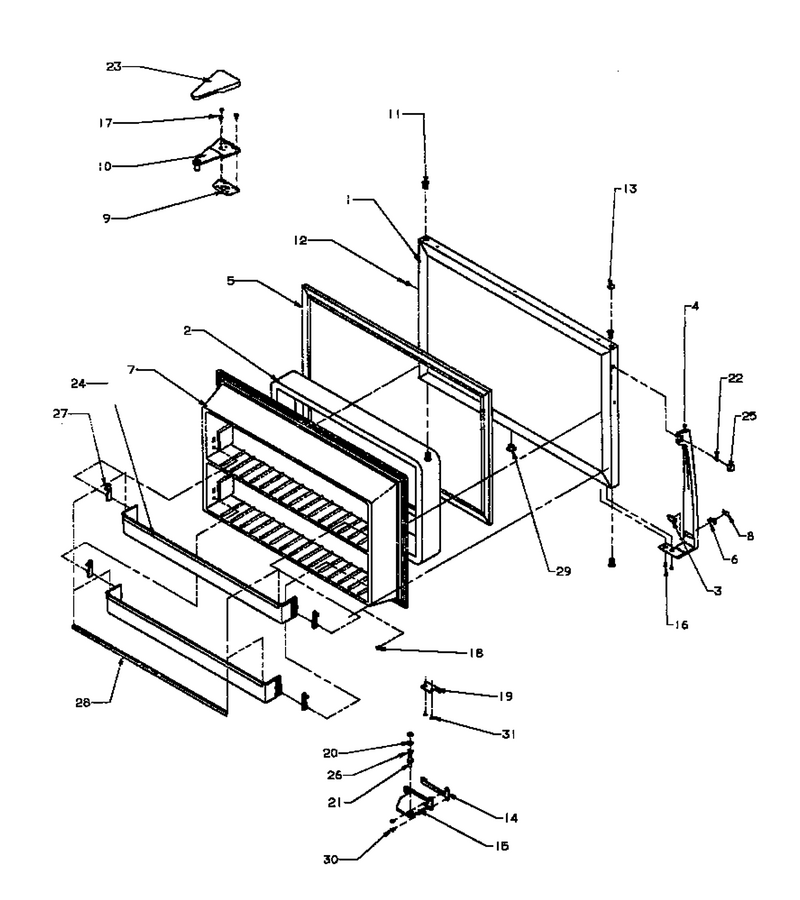

09 - Fz Door

...
...
1
Assy Frz Dr Gld Cfc11 WPL-10482001GQ
...
2
Insulation, Batt Frz. Dr. WPL-B0523593
...
3
Plug-Nameplate G WPL-10184302
...
4
Handle-Fz Door Assembly, Gold WPL-10253511
...
5
Gasket- Fr WPL-WP12550112Q
...
6
Pad Nameplate WPL-10184501
...
7
Liner, Frz Dr WPL-10415501Q
...
8
Nameplate, Handle WPL-10184401
...
9
Shim, Top Hinge WPL-10448501
...
10
Assy- Top WPL-R0000231
...
11
Bushing, Door (Wht) WPL-10393802
...
12
Plug WPL-M0310724
...
13
Plug, Button WPL-10686403
...
14
Shim, Center Hinge WPL-10562201
...
15
Hinge-Ctr Chrome WPL-10433403
...
16
Screw WPL-WPW10348409
...
17
Kit, Screw WPL-R9800670
...
18
Screw WPL-WPM0219730
...
19
Stop, Door WPL-10447102
...
20
Shim- Non WPL-WPM0274057
...
21
Pin- Cente WPL-WP67006744
...
22
Screw WPL-WPW10348409
...
23
Cover, Hinge (Gold) WPL-10444702
...
24
Retainer,ref/fz Dr WPL-10419020
...
25
Cover-Handle Screw G WPL-10201803
...
26
Shim- Non WPL-WPM0274058
...
27
Clip, Retainer WPL-10202001
...
28
Trim, Door Shelf WPL-10183969
...
29
Plug, Button Gold WPL-M0310337
...
31
Screw WPL-WPW10348409

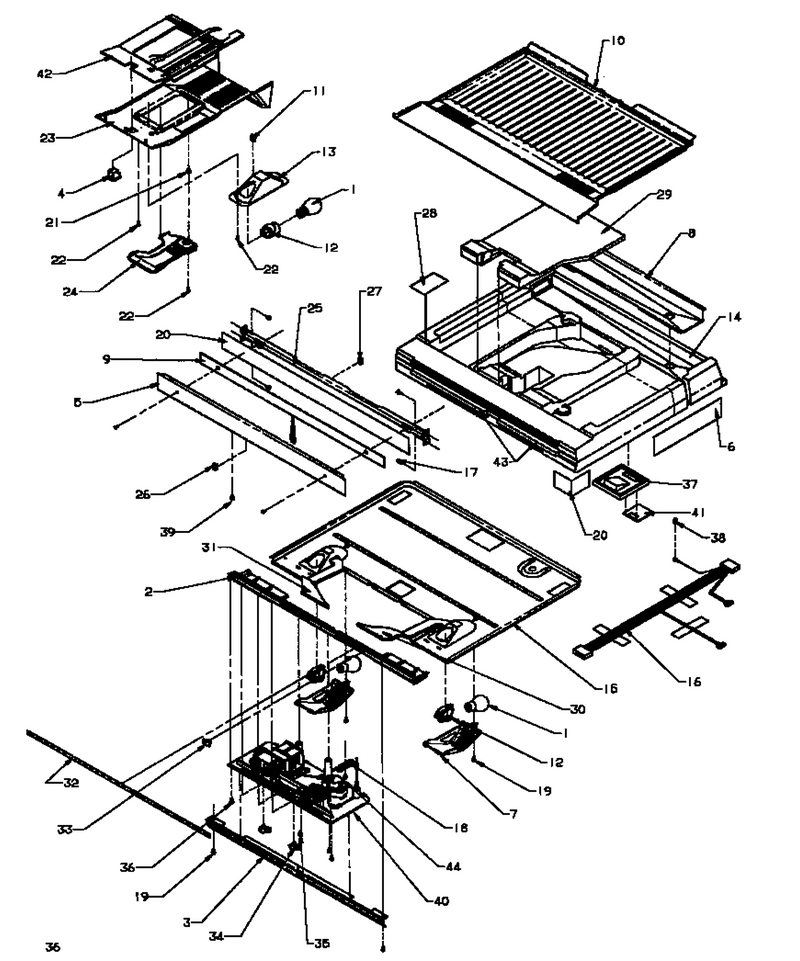

07 - Divider Block

...
...
1
Light Bulb WPL-8009
...
2
Frame, Ref Top Brk WPL-10435505
...
3
Extrusion, Rear Light WPL-10645602
...
4
Switch WPL-W11384469
...
5
Mullion, Center (Gold) WPL-10433334
...
6
Gasket, Sealing WPL-10685509
...
7
Shield, Refrig. Light WPL-10508701
...
8
Tray, Drip WPL-10435911
...
9
Heater, Mullion WPL-10543602
...
10
Freezer Bottom WPL-10430605
...
11
Clip, Ground WPL-B5733302
...
12
Socket, Light WPL-D7714408
...
13
Shield, Light WPL-R0176034
...
14
Kit, Drain Blk/frz Floor WPL-10582001
...
15
Top, Refrig. (E-Coat) WPL-10437104
...
16
Harness-Mullion WPL-10573502
...
17
Kit, Screw WPL-R9800670
...
18
Clamp, Cap. Tube WPL-10587101
...
20
Insulation Per Ft. WPL-B0523584
...
21
Grommet, Screw WPL-M0580007
...
22
Screw (3) WPL-67006425
...
23
Duct, Frz Air WPL-10440405
...
24
Shield, Frz Light WPL-10678401
...
25
Plate, Center Tap WPL-10433611
...
26
Clip, Grounding WPL-10481401
...
27
Clip Ground WPL-B5733301
...
28
Gasket, Sealing WPL-B5759626
...
29
Insert, Drain Block WPL-10476402
...
30
Pipe, Light WPL-10467701
...
31
Pipe, Light WPL-10467702
...
32
Membrane, Breaker WPL-10450810
...
33
Cap, Switch WPL-10453001
...
34
Knob, Control WPL-10565401
...
35
Screw WPL-WP489464
...
36
Screw WPL-M0211530
...
37
Insert, Mt. Kpr. Air Sup WPL-10479202
...
38
Screw WPL-WP489399
...
39
Screw - Sm WPL-M0211520
...
41
Gasket, Mk Air Supply WPL-10594901
...
42
Insul. Air Duct WPL-10779601
...
43
Insulation WPL-10772301
...
44
Screw WPL-W11233072

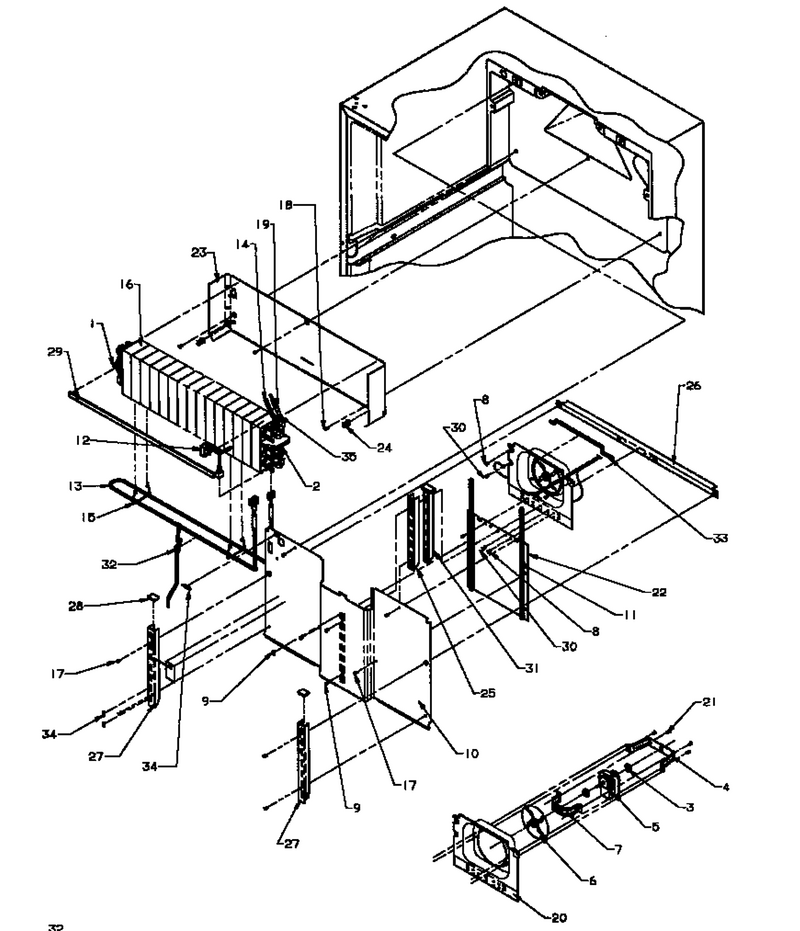

08 - Evap Area

...
...
NI
Sleeve, Vinyl WPL-M0321041
...
1
Block, Evap. L. WPL-10428301
...
2
Block, Evap. R WPL-10428202
...
3
Grommet WPL-WP2264462
...
4
Brkt, Up Evap. Fan WPL-10492801
...
5
Motor-Evap WPL-WP10449501
...
6
Blade-Fan WPL-W10116797
...
7
Brakt-Mtr WPL-WP10492701
...
8
Screw WPL-WP489464
...
9
Screw (3) WPL-67006425
...
10
Cover, Evaporator WPL-10432408
...
11
Gasket (1=1ft.) WPL-10839713
...
12
Thermostat WPL-WP10442410
...
13
Heater, Evaporator WPL-10428402
...
14
Assy- Ht E WPL-10686312
...
15
Clip WPL-W11673433
...
16
Assy,low Side WPL-R0170067
...
17
Screw WPL-M0230924
...
18
Screw (3) WPL-67006425
...
19
Tie-Wire WPL-WPW10339879
...
20
Shroud, Evap. Fan WPL-10422304
...
21
Screw WPL-WP12990527
...
22
Cover, Evaporator WPL-10440710
...
23
Shield, Evap. WPL-10427712
...
24
Clip, Evaporator WPL-10442301
...
25
Ladder, Evap WPL-10439302
...
26
Ladder, Ctr. Support WPL-10439701
...
27
Ladder R. Side Evap WPL-10439401
...
28
Cap Frz Ladder WPL-10562401
...
29
Gasket, Foam WPL-A3189358
...
30
Screw WPL-WP489399
...
31
Insert, Frz. Ladder WPL-10584701
...
32
Clip, Ht Transfer WPL-10586601
...
33
Gasket WPL-A3030354
...
35
Tie-Wire WPL-WPM0321209

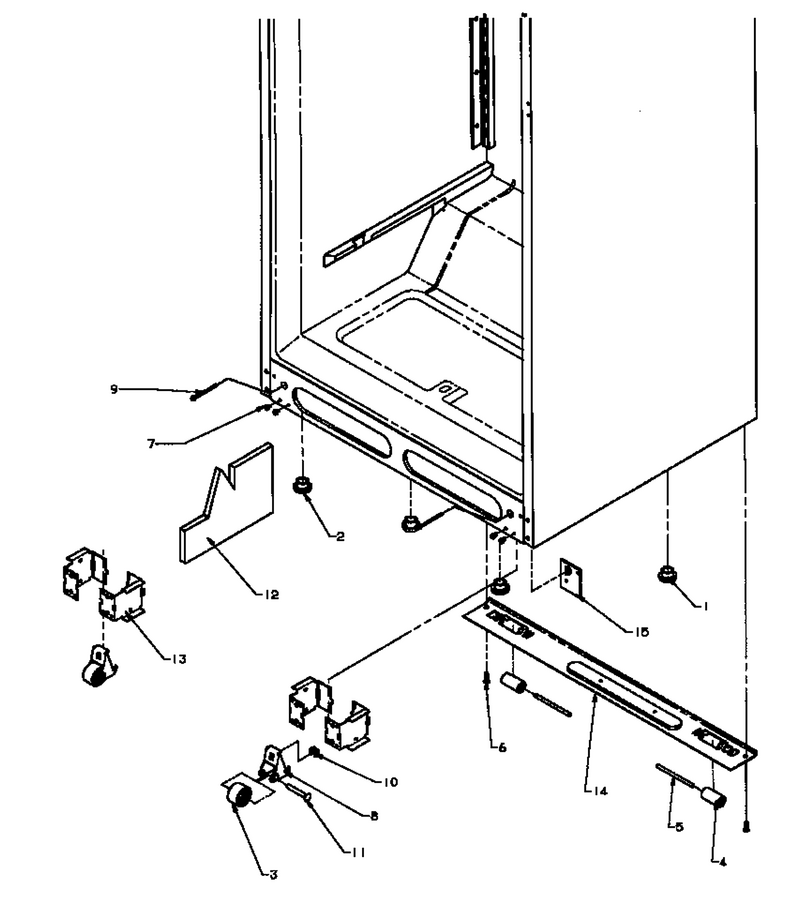

02 - Cabinet Bottom

...
...
NI
Assy, Roller Brkt WPL-10476101Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Vent (Wht) WPL-10712401
...
3
Roller WPL-WP10450603
...
4
Roller, Rear WPL-10450701
...
5
Axle, Roller WPL-10450901
...
6
Screw, Tf WPL-M0260242
...
7
Screw WPL-WP98165
...
8
Assy, Roller Brkt WPL-10476101Q
...
9
Screw, Mach WPL-M0204338
...
10
Nut, Speed WPL-M0286708
...
11
Rivet WPL-M1205302
...
12
Insul., L. Foot WPL-10663002
...
13
Housing-Roller WPL-10427204
...
14
Brace WPL-10427104
...
15
Kit, Lw Hinge Plate WPL-R0194687

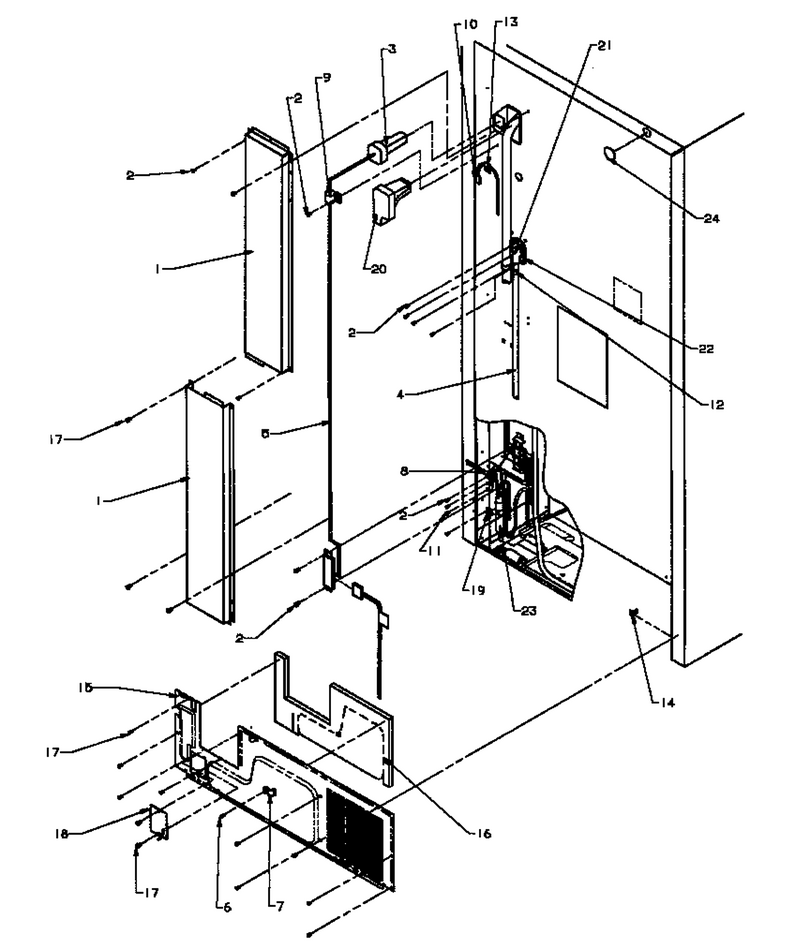

01 - Cabinet Back

...
...
1
Cover, Heat Exch. WPL-10442202Q
...
2
Screw, Sm WPL-M0227217
...
3
Grommet WPL-10699301
...
4
Tube, Drain WPL-10442502
...
5
Harness, Cab. Wire WPL-10573602
...
6
Screw, Sm WPL-M0227217
...
7
Clip, Tube WPL-10547101
...
8
Clamp, Speed WPL-M0103904
...
9
Clamp WPL-M0105509
...
10
Cord, Power WPL-10678501
...
11
Screw, Spextite WPL-M0232330
...
12
Clamp WPL-B8372901
...
13
Clip WPL-WPM0104106
...
14
Clip WPL-B5720303
...
15
Back, Machine Comp. WPL-10467914
...
16
Insul, M.c. Back WPL-10584602
...
17
Screw WPL-WP12990527
...
18
Cover, Water Valve WPL-10541403
...
19
Clip, Drier WPL-10547001
...
20
Plug, Ht Exch V WPL-10428001
...
21
Elbow Drain Tube WPL-10163201
...
22
Gasket WPL-A3132301
...
23
Drier WPL-WPB2150504
...
24
Plug, Im Tunnel WPL-10544301

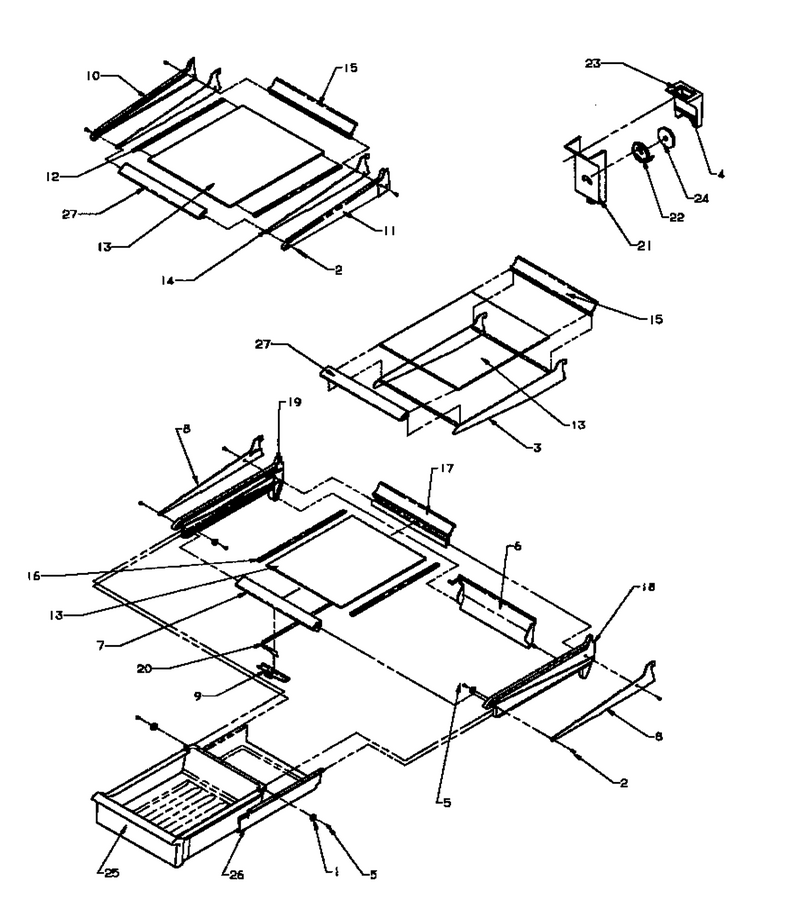

04 - Cabinet Shelving

...
...
NI
Assy, Shelf WPL-10480705
...
1
Roller, Pan WPL-10481001
...
2
Screw WPL-WPW10348409
...
4
Gasket Foam WPL-A3189340
...
5
Screw WPL-67006692
...
6
Scoop, Air V WPL-10445701
...
7
Extr., Meat Kpr. Front WPL-10450307
...
8
Rail, Pntd WPL-10681402
...
9
Slide, Mtkp Cont. WPL-10588201
...
10
Cover, Glass Shelf Rail WPL-10436603
...
11
Cover, Glass Shelf Rail WPL-10436604
...
12
Ext, Gl Shelf Side WPL-10562504
...
13
Shelf, Glass WPL-10370010
...
14
Rail, Pntd WPL-10681402
...
15
Extr, Gl Shelf Rear WPL-10436905
...
16
Ext, Gl Shelf Side WPL-10562504
...
17
Extr Mk Rear WPL-10451401
...
18
Glide, Meat Kpr. WPL-10417301
...
19
Glide, Meat Kpr. WPL-10432101
...
20
Band, Meat Kpr. Cont. WPL-10454002
...
21
Cover, Mk Air Sply WPL-10642101
...
22
Control, Mt. Kpr. Air Sup WPL-10479401
...
24
Insert, Mk Control WPL-10565701
...
25
Pan,meatkeeper WPL-10417012
...
26
Sleeve, Mk WPL-10437305
...
27
Ext, Gl Shelf Front WPL-10436807
