Amana TWA-202 (BOM: P7575302W)

Model: TWA-202 (BOM: P7575302W)

Save Part Not Listed?
product name

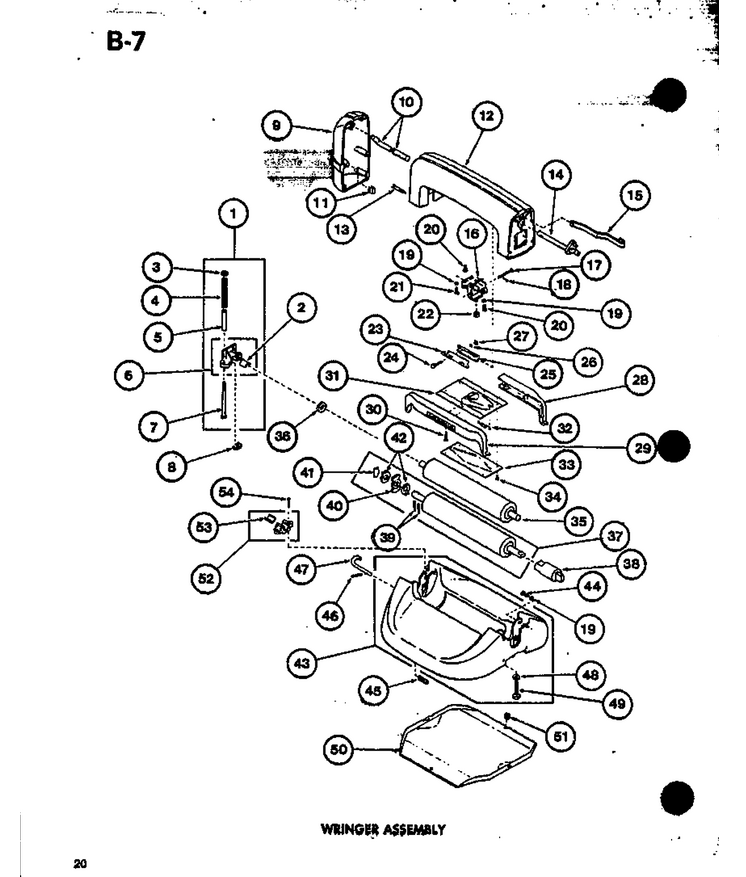

08 - Wringer Assy

...
...
NI
Assembly, Wringer WPL-R0610037
...
1
Bearing Spring WPL-R0610039
...
2
Brg Insert WPL-Y04076
...
3
Nut WPL-R0601030
...
4
Spring WPL-R0605667
...
5
Sleeve WPL-R0605669
...
6
Roll Bearing, Upper Wringer WPL-Y02881
...
7
Bolt WPL-R0600085
...
8
Clip WPL-R0601538
...
9
End Casting White WPL-Y02385W
...
10
Crank WPL-R0605654
...
11
Clip WPL-R0601535
...
12
Top Bar Casting-W WPL-R0605648
...
13
Screw WPL-R0600084
...
14
Crank WPL-R0605655
...
15
Lock Release Bar WPL-R0605649
...
16
Lock WPL-R0605650
...
17
Lock Release Pin WPL-R0600087
...
18
Cotter Pin WPL-R0600064
...
19
Lockwasher WPL-R0600520
...
20
Screw WPL-R0600077
...
21
Screw WPL-R0600088
...
22
Roller WPL-R0605663
...
23
Crank Lock WPL-R0605664
...
24
Screw WPL-R0600078
...
25
Coupling WPL-R0605656
...
26
Lockwasher WPL-R0600503
...
27
Nut WPL-R0601003
...
28
Release Bar Lh Wh WPL-R0605657
...
29
Release Bar Rh Wh WPL-R0605658
...
30
Screw WPL-R0600083
...
31
Plate WPL-R0605666
...
32
Spring WPL-R0605651
...
33
Cover Plate WPL-R0605652
...
34
Screw WPL-R0600082
...
35
Wringer Roller WPL-R0606538
...
36
Washer WPL-R0600550
...
37
Wringer Roll, Lower WPL-R0606537
...
38
Coupling WPL-R0605653
...
39
Pin WPL-R0600086
...
40
Shifter WPL-R0605665
...
41
Spring WPL-R0605662
...
42
Washer WPL-R0600551
...
43
Board, Drain WPL-R0610038
...
44
Screw WPL-R0600081
...
45
Spring WPL-R0605584
...
46
Groove Pin WPL-R0600072
...
47
Shift Shaft WPL-R0605660
...
48
Nut WPL-R0601029
...
49
Adj Screw WPL-R0600080
...
50
Tilt Board WPL-R0605659
...
51
Bumper WPL-R0606536
...
52
Bearing WPL-R0605661
...
53
Brg Insert WPL-Y04076
...
54
Screw WPL-R0600079

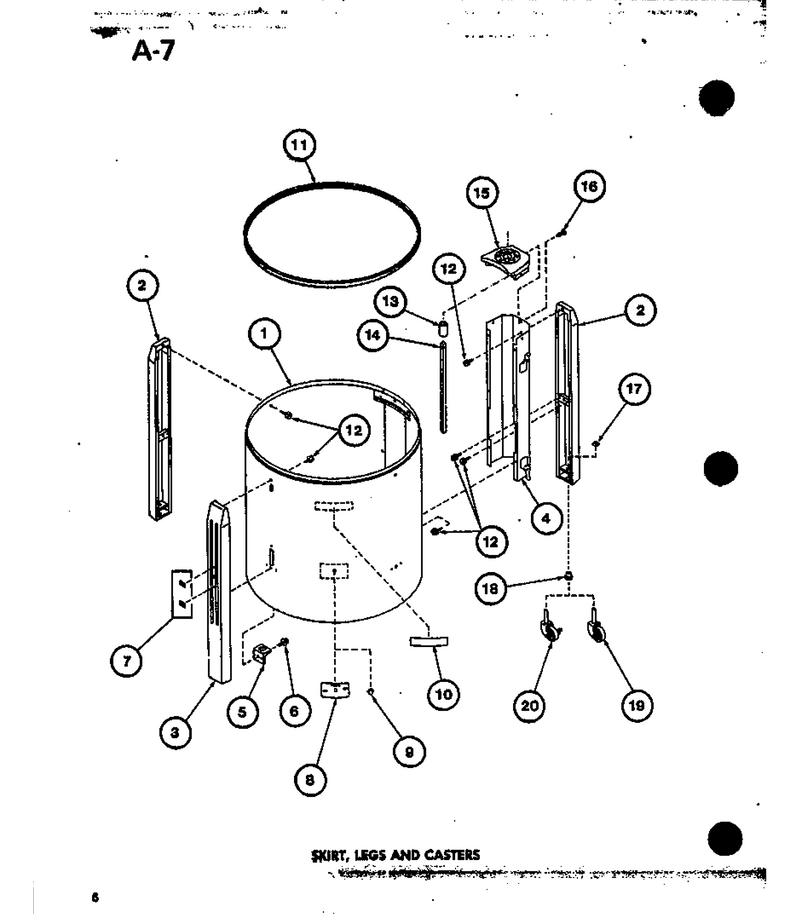

05 - Skirt

...
...
1
Skirt White WPL-R0603043
...
2
Leg White WPL-R0605580
...
3
Leg White WPL-R0605582
...
4
Shroud White WPL-R0605581
...
5
Bracket WPL-R0605577
...
6
Screw WPL-R0600056
...
7
``on`` And ``off`` Sticker Set WPL-R0613002
...
8
Plate, Pump Control WPL-R0613003
...
10
Nameplate WPL-R0613001
...
11
Gasket WPL-R0604513
...
12
Screw WPL-WP27001200
...
13
Coupling WPL-R0605575
...
14
Drive Shaft, Wringer WPL-R0605578
...
15
Support Casting WPL-R0605579
...
16
Screw WPL-WP3351614
...
17
Pushnut WPL-R0601023
...
18
Bushing WPL-R0605576
...
19
Caster WPL-R0610027
...
20
Caster,locking WPL-R0610028

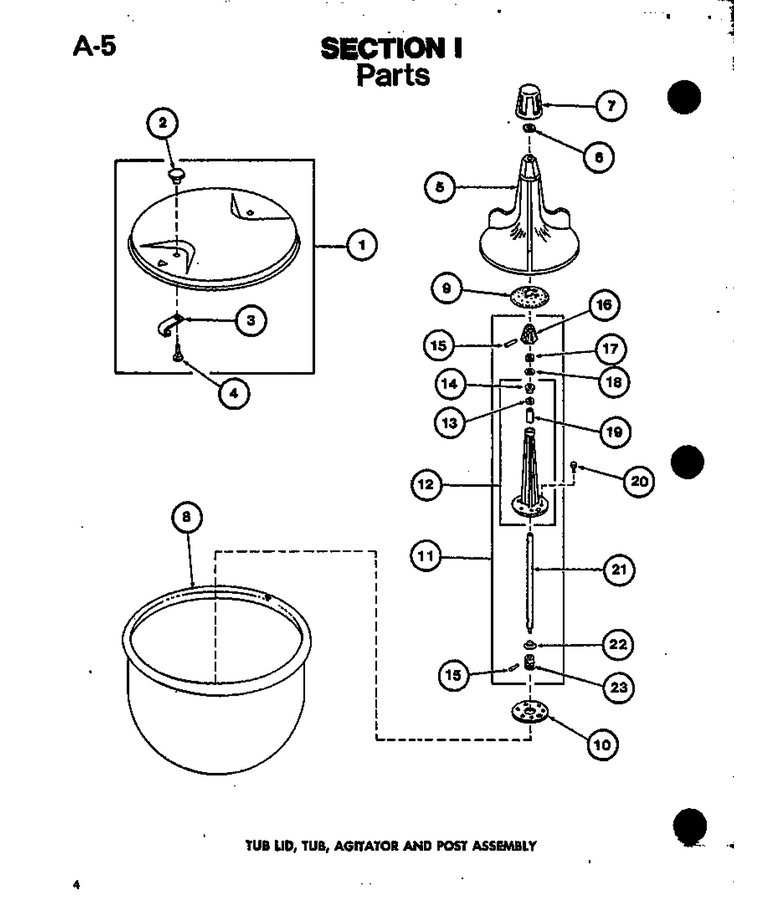

07 - Tub Lid

...
...
1
Assembly, Tub Lid WPL-R0610025
...
2
Knob, Black WPL-R0603533
...
3
Lid Hook WPL-R0605568
...
4
Bolt WPL-Y02505
...
5
Agitator WPL-R0603534
...
6
Washer WPL-R0600515
...
7
Hold-Down Cap WPL-R0603514
...
8
Tub Porcelain WPL-R0603042
...
9
Drain Screen WPL-R0604511
...
10
Gasket WPL-R0604512
...
11
Assembly, Agitator Post WPL-R0610026
...
12
Casting Agitator Post WPL-R0605574
...
13
Seal WPL-R0606527
...
14
Thrust Bearing WPL-R0605570
...
15
Taper Pin WPL-R0601510
...
16
Block, Drive WPL-20056
...
17
Washer WPL-R0600511
...
18
Washer WPL-R0600512
...
19
Bearing, Sleeve WPL-R0605571
...
20
Screw WPL-R0600053
...
21
Drive Shaft WPL-R0605572
...
22
Washer WPL-R0600531
...
23
Spline WPL-R0605573

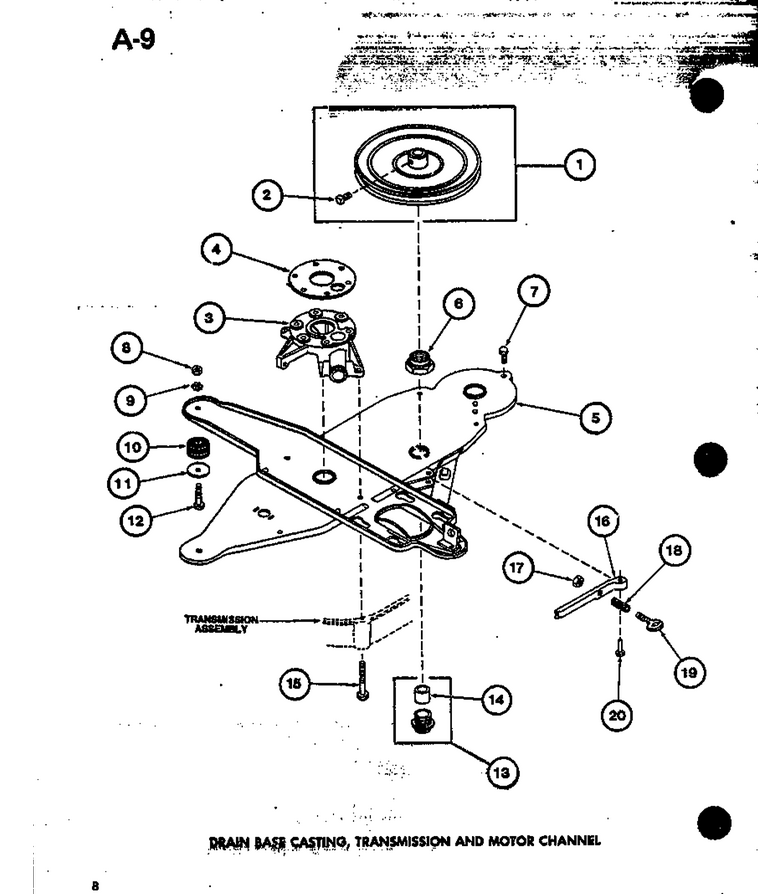

01 - Drain Base Casting

...
...
1
Pulley WPL-R0609506
...
2
Set Screw WPL-R0600057
...
3
Casting, Drain Base WPL-R0605589
...
4
Gasket WPL-R0604514
...
5
Transmission & Motor Channel WPL-R0603044
...
6
Nut WPL-R0601024
...
7
Screw WPL-R0600058
...
8
Nut WPL-WPW10139757
...
9
Lockwasher WPL-R0600520
...
10
Grommet WPL-R0606528
...
11
Plug WPL-R0600532
...
12
Screw,cap-1/4-20 X 1`` WPL-20253
...
13
Bearing WPL-R0610029
...
14
Bearing WPL-R0605585
...
15
Bolt WPL-R0600059
...
16
Adjusting Arm WPL-R0605583
...
17
Nut WPL-R0601026
...
18
Spring WPL-R0605584
...
19
Clamp Screw WPL-R0600060
...
20
Rivet WPL-R0600061

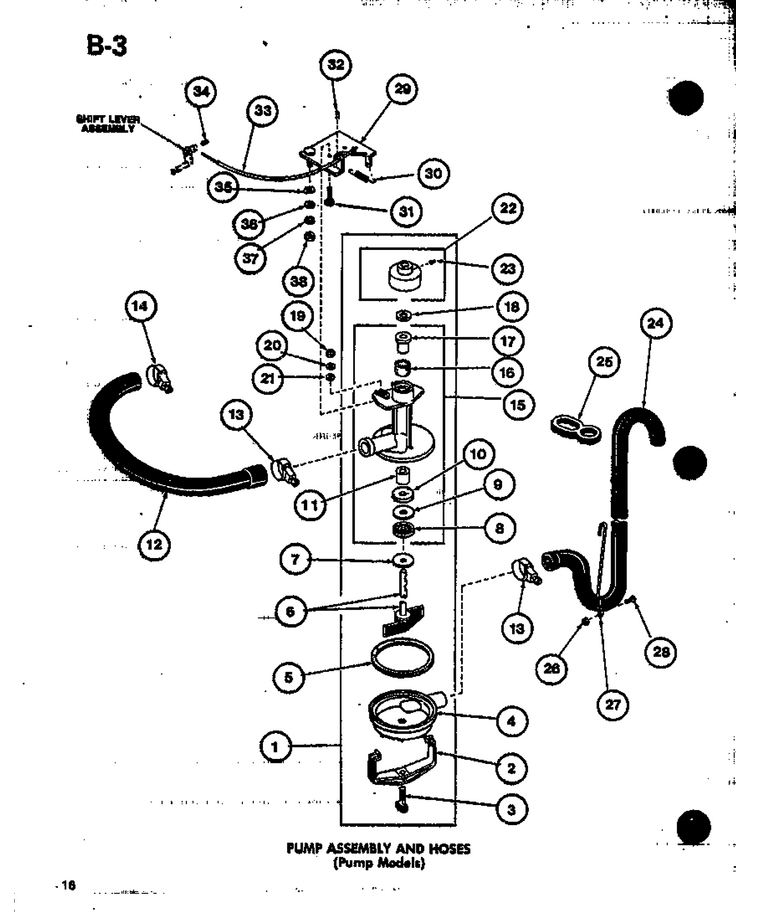

03 - Pump Assy And Hoses (pump Models)

...
...
NI
Repair Kit, Pump WPL-R0610034
...
1
Assembly, Pump WPL-R0610502
...
2
Cover Clamp WPL-R0601533
...
3
Clamp Screw WPL-R0600060
...
4
Pump Cover WPL-R0605617
...
5
Gasket WPL-20097
...
6
Impeller & Shaft WPL-R0605619
...
7
Thrust Washer WPL-R0600541
...
8
Water Seal WPL-R0606534
...
9
Washer WPL-R0600543
...
10
Packing WPL-R0604519
...
11
Pump Bearing WPL-R0605616
...
12
Hose WPL-R0606533
...
13
Hose Clamp WPL-R0601529
...
14
Hose Clamp WPL-R0601530
...
15
Pump Body WPL-R0605618
...
16
Oil Wick WPL-R0606535
...
17
Pump Bearing WPL-R0605615
...
18
Thrust Washer WPL-R0600542
...
19
Nut WPL-WPW10139757
...
20
Lockwasher WPL-R0600540
...
21
Washer WPL-R0600529
...
22
Pulley Assy WPL-R0609505
...
23
Set Screw WPL-R0600067
...
24
Drain Hose WPL-Y04393
...
25
Hose Hanger WPL-R0606529
...
26
Nut WPL-R0601003
...
27
Hose Support WPL-R0601531
...
28
Screw,10-24 X 3/8 Round WPL-20267
...
29
Mtg Bracket WPL-R0605613
...
30
Spring WPL-R0605614
...
31
Screw,cap-1/4-20 X 1`` WPL-20253
...
32
Pin Clip WPL-R0601532
...
33
Control Cable WPL-R0605043
...
34
Set Screw WPL-R0600063
...
35
Spring Washer WPL-R0600537
...
36
Washer,21/64idx3/4odx1 WPL-Q6066
...
37
Lockwasher WPL-R0600538
...
38
Nut WPL-R0601029

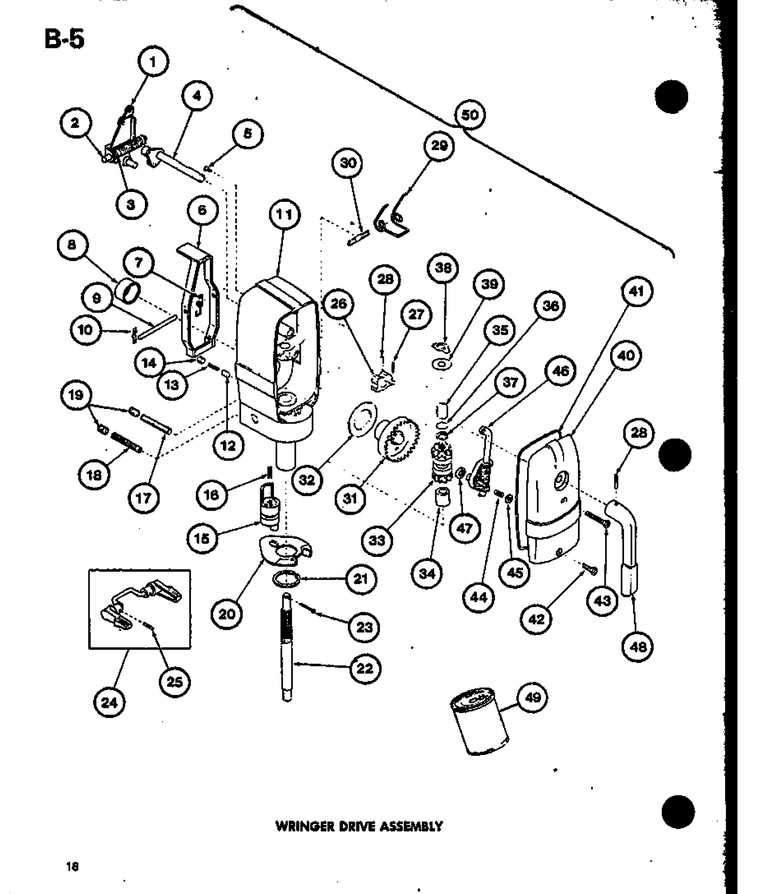

09 - Wringer Drive Assy

...
...
1
Toggle Assy WPL-R0605632
...
2
Pin WPL-R0600076
...
3
Spring WPL-R0605633
...
4
Shift Shaft WPL-R0605631
...
5
Screw WPL-R0600074
...
6
Release Lever WPL-R0605630
...
7
Torsion Spring WPL-R0605635
...
8
Bearing WPL-R0605634
...
9
Rivot Pin WPL-R0600075
...
10
Retainer Clip WPL-R0601537
...
11
Reverse Hsg White WPL-R0605645
...
12
Indent Latch WPL-R0605646
...
13
Indent Latch Spring WPL-R0605642
...
14
Set Screw WPL-R0600062
...
15
Release Cam WPL-R0605639
...
16
Cam Spring WPL-R0605638
...
17
Spring Black WPL-R0605640
...
18
Spring Red WPL-R0605641
...
19
Set Screw WPL-R0600073
...
20
Cam Plate WPL-R0605620
...
21
Retainer Ring WPL-R0601536
...
22
Wgr Drive Shaft WPL-R0605621
...
23
Cotter Pin WPL-R0600069
...
24
Ues 04805wp WPL-R0610036
...
25
Pin WPL-R0600068
...
26
Collar WPL-R0605636
...
27
Cotter Pin WPL-R0600064
...
28
Groove Pin WPL-R0600072
...
29
Spring WPL-R0605629
...
30
Retainer WPL-R0601534
...
31
Gear WPL-R0605626
...
32
Bearing WPL-R0605627
...
33
Pinion WPL-R0605625
...
34
Bearing WPL-R0605622
...
35
Bearing WPL-R0605628
...
36
Washer WPL-R0600548
...
37
Washer WPL-R0600549
...
38
Washer WPL-R0600546
...
39
Washer WPL-R0600547
...
40
Cover WPL-R0605644
...
41
Gasket WPL-R0604520
...
42
Screw WPL-R0600070
...
43
Screw WPL-R0600071
...
44
Spring WPL-R0605624
...
45
Washer WPL-R0600545
...
46
Shift Assy WPL-R0605623
...
47
Washer WPL-R0600544
...
48
Lever, Shift WPL-R0605643
...
49
Wringer Drive Lube WPL-Y03637P
...
50
Assembly, Wringer Drive WPL-R0610035

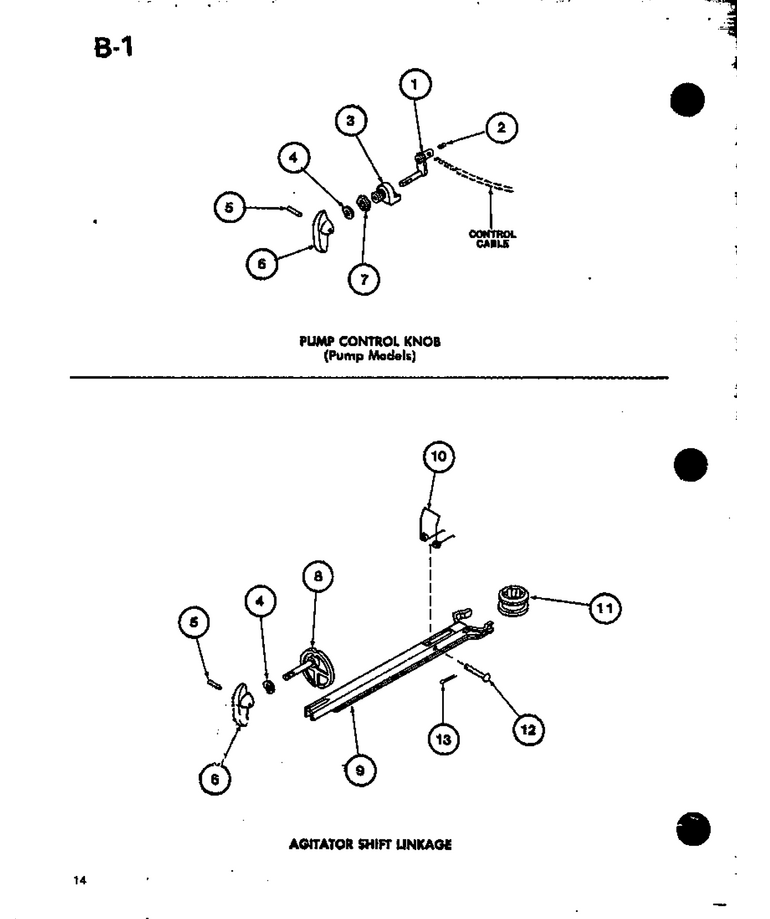

04 - Pump Ctrl Knob /agitator Shift Linkage

...
...
1
Pump Control Lever WPL-R0605607
...
2
Set Screw WPL-R0600063
...
3
Control Block WPL-R0605608
...
4
Spring Washer WPL-R0600536
...
5
Pin WPL-R0600066
...
6
Knob Black WPL-R0603535
...
7
Nut WPL-R0601028
...
8
Cam WPL-R0605612
...
9
Shift Fork WPL-R0605611
...
10
Spring WPL-R0605609
...
11
Spline WPL-R0605610
...
12
Pivot Pin WPL-R0600065
...
13
Cotter Pin WPL-R0600064

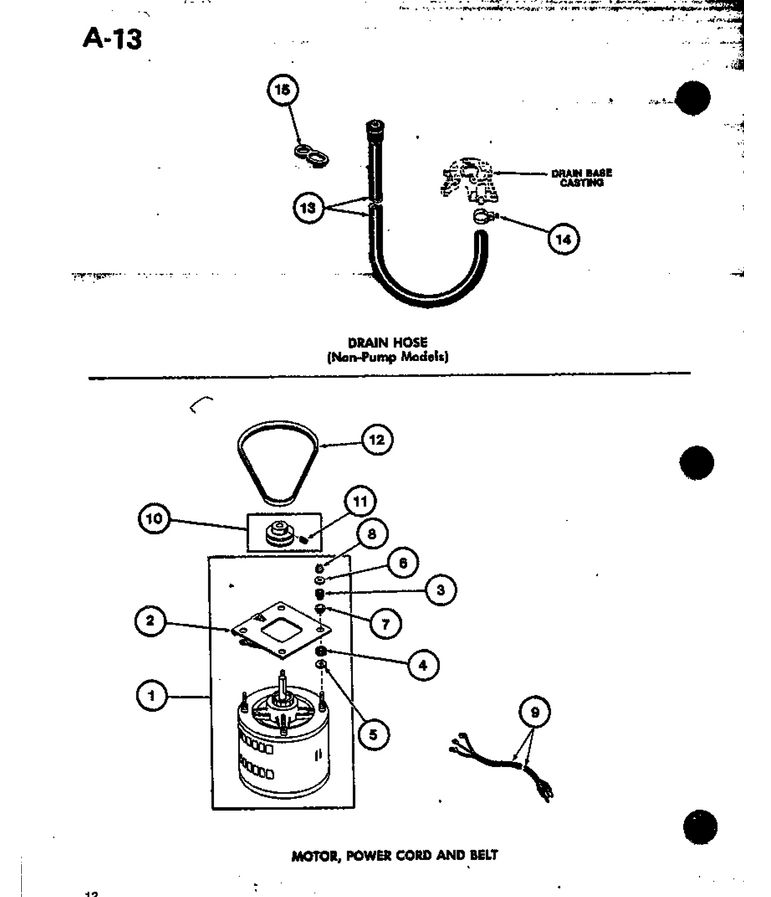

02 - Drain Hose (non-Pump Models)/motor

...
...
1
Motor WPL-R0607004
...
2
Motor Base WPL-R0605606
...
3
Rubber Mtg WPL-R0606509
...
4
Rubber Mtg WPL-R0606510
...
5
Washer WPL-R0600510
...
6
Washer WPL-R0600534
...
7
Washer WPL-R0600535
...
8
Nut,hex 10-32 Lock WPL-23604
...
9
Power Cord WPL-R0605042
...
10
Pulley WPL-R0609507
...
11
Set Screw WPL-R0600062
...
12
Belt WPL-R0606531
...
13
Hose WPL-R0606530
...
14
Hose Clamp WPL-R0601529
...
15
Hose Hanger WPL-R0606529

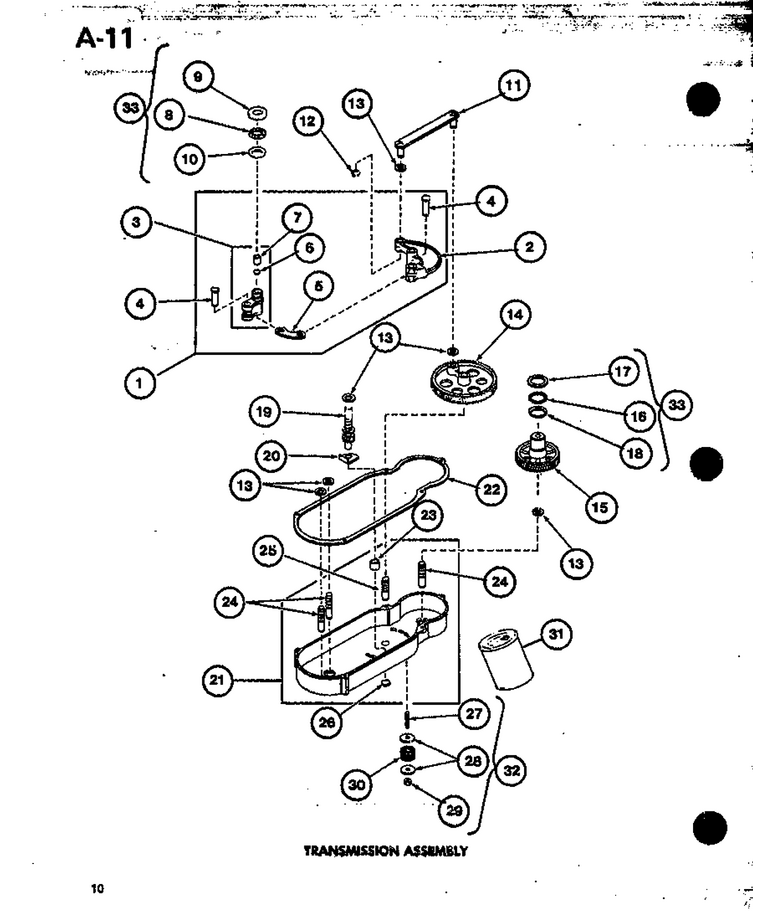

06 - Transmission Assy

...
...
1
Link Assy WPL-R0610030
...
2
Assy,rocker Arm WPL-R0610032
...
3
Clutch Arm WPL-Y02616P
...
4
Link Pin WPL-R0600090
...
5
Coupling WPL-R0605595
...
6
Plug WPL-R0605594
...
7
Bearing WPL-R0605593
...
8
Gasket WPL-R0604515
...
9
Retainer WPL-R0605591
...
10
Lower Gasket Retainer WPL-R0605592
...
11
Connecting Rod WPL-R0605590
...
12
Retainer Ring WPL-R0601528
...
13
Washer WPL-R0600533
...
14
Gear WPL-R0605596
...
15
Wgr Drive Gear WPL-R0605597
...
16
Gasket WPL-R0604517
...
17
Retainer WPL-R0605602
...
18
Retainer WPL-R0605601
...
19
Pinion WPL-R0605598
...
20
Washer WPL-R0605599
...
21
Transmission Case WPL-R0607503
...
22
Gasket WPL-R0604516
...
23
Bearing WPL-R0605585
...
24
Shaft WPL-R0605604
...
25
Shaft WPL-R0605605
...
26
Plug WPL-R0605603
...
27
Stud WPL-R0600089
...
28
Plug WPL-R0600532
...
29
Nut WPL-WPW10139757
...
30
Grommet WPL-R0606528
...
31
Transmission Lub WPL-R0608006
...
32
Transmission Assy WPL-R0607502
...
33
Repair Kit, Transmission WPL-R0610033
