Amana TV18S3L (BOM: P1194901W L)

Model: TV18S3L (BOM: P1194901W L)

Save Part Not Listed?
product name

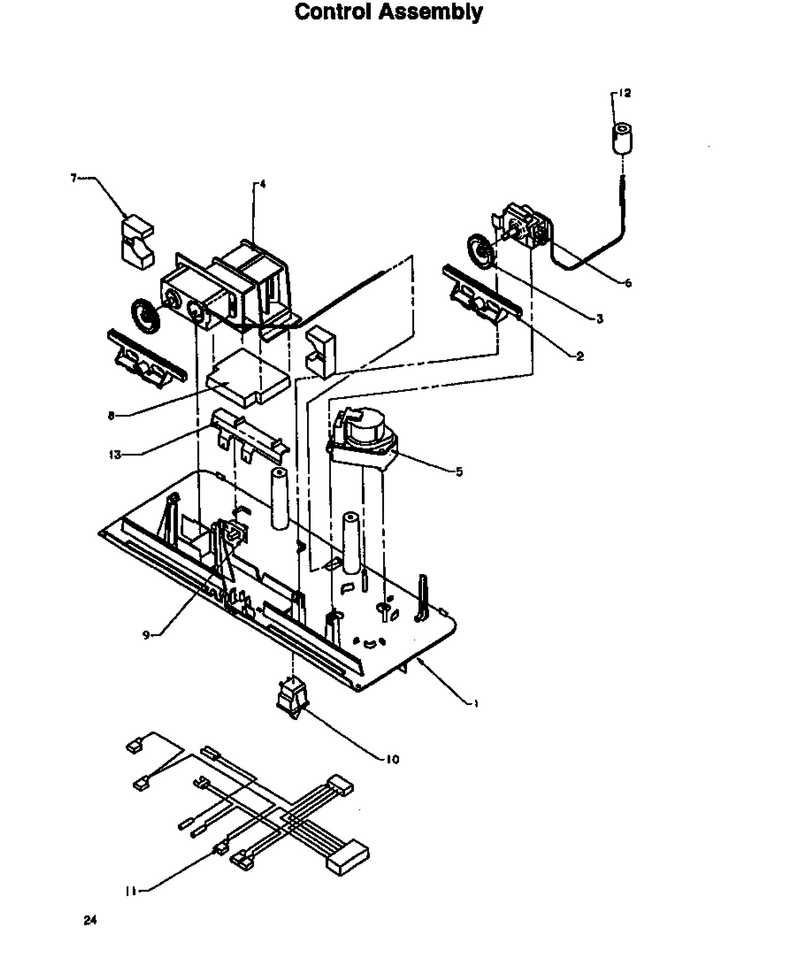

08 - Control Assy

...
...
1
Housing, Control WPL-10880601
...
2
Rack, Control WPL-10439601
...
3
Pinion, Control WPL-10442601
...
4
Assy, Damper Control WPL-R0161074
...
5
Timer-Def WPL-R0168027
...
6
Assy, Frz Control WPL-R9700006
...
7
Insert,damper WPL-10442801
...
8
Insulation, Damper WPL-10442901
...
9
Switch, St WPL-M0350201
...
11
Harness, Control WPL-10573401
...
12
Insulation, Cap WPL-10673603
...
13
Shield, Wire WPL-10565101

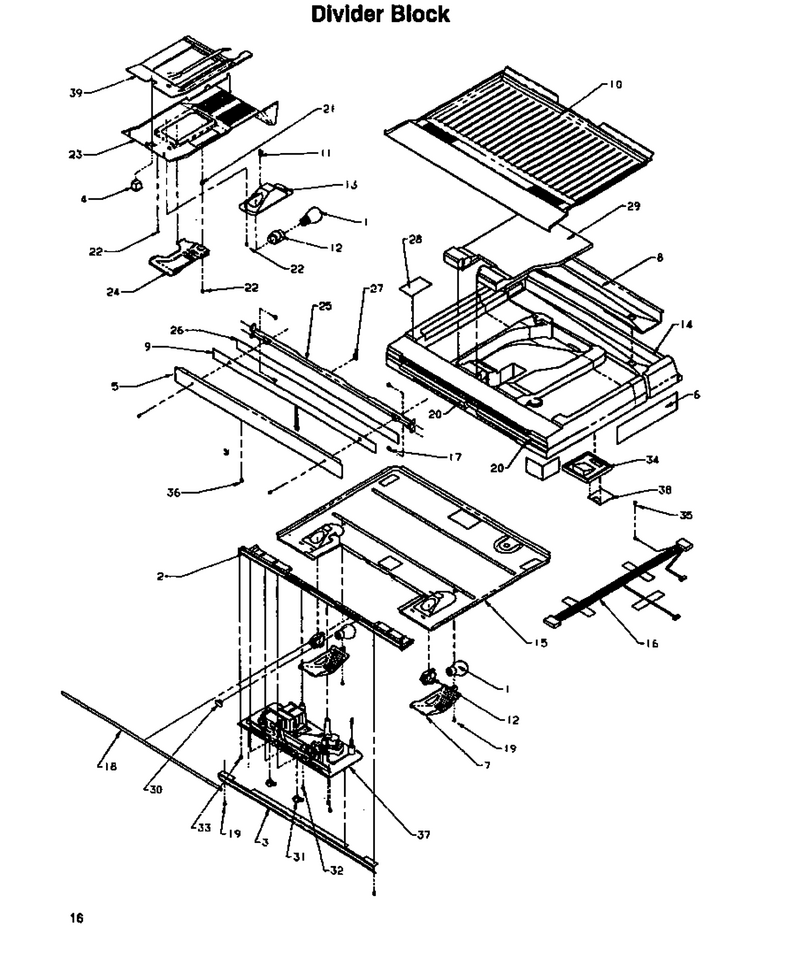

09 - Divider Block

...
...
1
Light Bulb WPL-8009
...
2
Frame, Ref Top Brk WPL-10435513
...
4
Switch WPL-W11384469
...
5
Mullion, Center (White) WPL-10433346
...
6
Gasket, Sealing WPL-10685506
...
7
Shield, Refrig. Light WPL-10508701
...
8
Tray, Drip WPL-10435911
...
9
Heater Mull. WPL-10543601
...
10
Bottom, Frz WPL-10995001
...
14
Assy Drain Block WPL-R0156897
...
15
Ref Top-E Ct WPL-12035214
...
16
Harness, Mullion WPL-10573505
...
17
Kit, Screw WPL-R9800670
...
18
Membrane, Breaker WPL-10450830
...
19
Screw WPL-WP489069
...
20
Insulation WPL-10772301
...
22
Screw (3) WPL-67006425
...
23
Duct, Frz Air WPL-10440404
...
25
Plate, Center Top WPL-10433610
...
26
Insulation Per Ft. WPL-B0523584
...
28
Gasket, Sealing WPL-B5759626
...
29
Insert, Drain Block WPL-10476402
...
30
Cap, Switch WPL-10453001
...
31
Knob, Control WPL-10565401
...
32
Screw WPL-WP489464
...
33
Screw WPL-M0211530
...
34
Insert-Mk Air Sply WPL-10995201
...
35
Screw WPL-WP489399
...
36
Screw - Sm WPL-M0211520
...
37
See Note Control Assembly -- (See Page 24 And 25 For Parts Breakdown) WPL-Y00000000
...
38
Gasket, Mk Air Supply WPL-10594901
...
39
Insul. Air Duct WPL-10779602

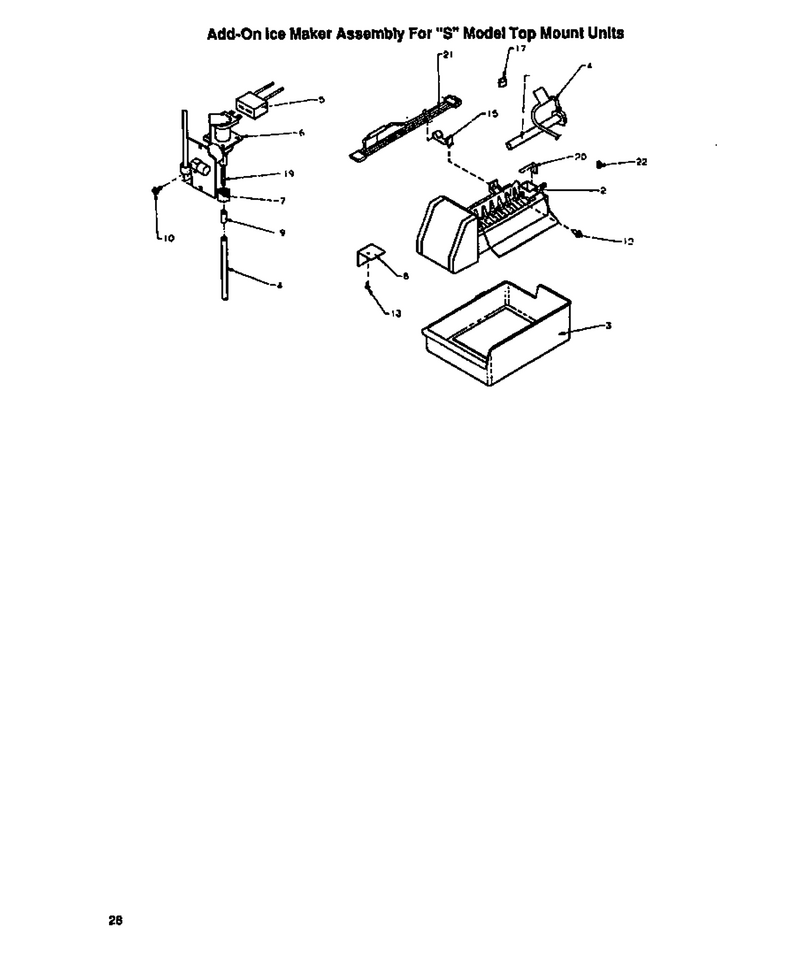

02 - Add-On Ice Maker

...
...
NI
Plug Button WPL-M0311301
...
1
Tube-Water WPL-W11176463
...
2
Ice Maker Assy. WPL-D7824706Q
...
3
Pan-Ice WPL-WP67001255
...
4
Tube WPL-WPB5705307
...
5
Harness, Water Valve WPL-10525901
...
6
Valve-Inlt WPL-W10833899
...
7
Nut WPL-WP627018
...
8
Bracket, I/m WPL-B8391802
...
9
Insert- Pl WPL-WPA3223101
...
10
Screw, 8-32 X 3/8 WPL-681390
...
12
Screw WPL-WP98165
...
13
Screw WPL-WP90767
...
15
Clamp, Wire WPL-10526701
...
17
Clip WPL-WPM0104106
...
19
Spring WPL-WPA1055105
...
20
Clip WPL-B5720301
...
21
Harns-Wire WPL-WPD7813010
...
22
Clip WPL-WP628379

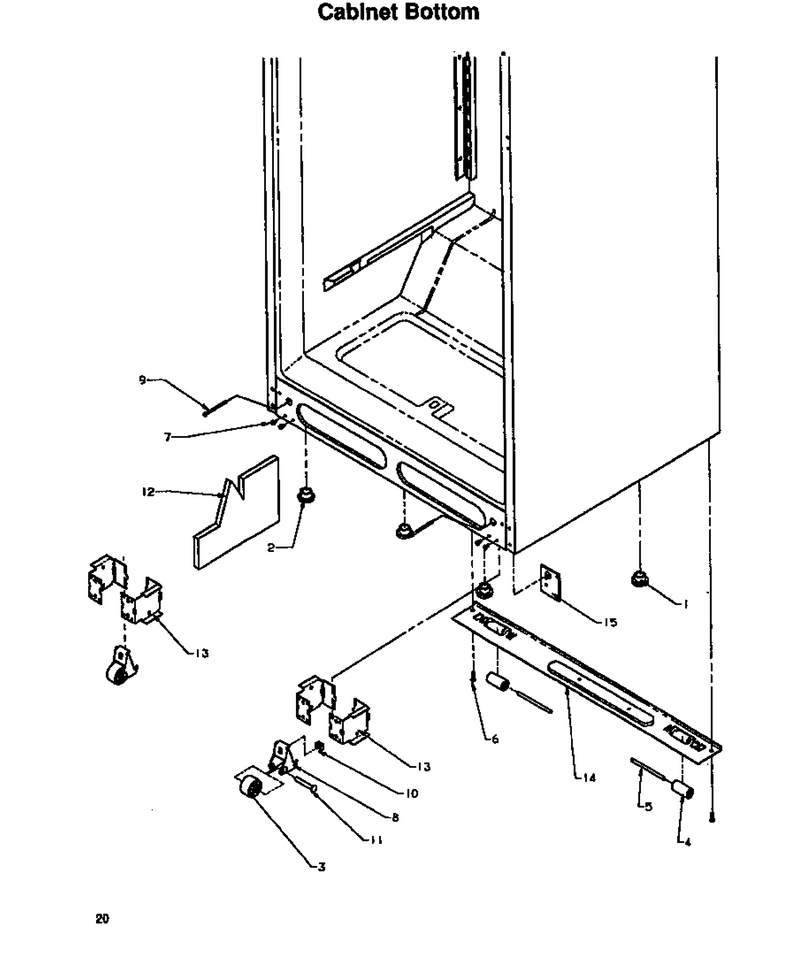

04 - Cabinet Bottom

...
...
NI
Assy, Roller Brkt WPL-10476101Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Vent (Wht) WPL-10712401
...
3
Roller WPL-WP10450603
...
4
Roller, Rear WPL-10450701
...
5
Axle, Roller WPL-10450901
...
6
Screw, Tf WPL-M0260242
...
7
Screw WPL-WP98165
...
8
Assy, Roller Brkt WPL-10476101Q
...
9
Screw, Mach WPL-M0204338
...
10
Nut, Speed WPL-M0286708
...
11
Rivet WPL-M1205302
...
12
Insul., L. Foot WPL-10663002
...
13
Housing-Roller WPL-10427204
...
14
Cabinet Brace-Pnt WPL-10427110
...
15
Kit, Lw Hinge Plate WPL-R0194687

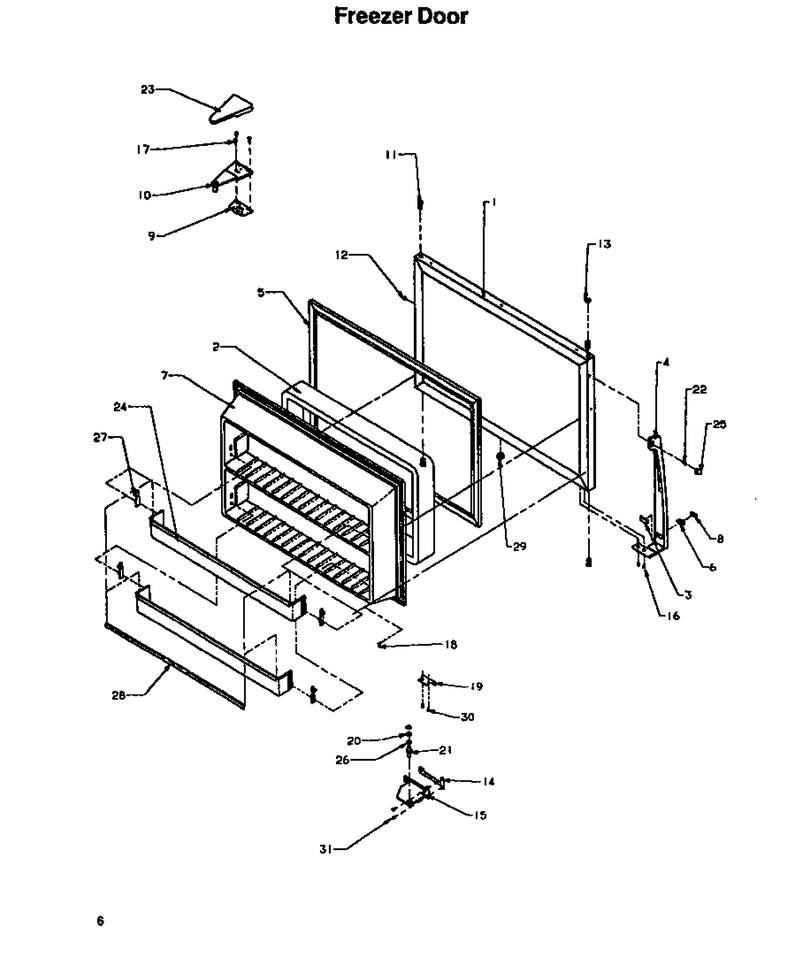

11 - Fz Door

...
...
1
Assy Frz Dooor Fm WPL-10925604W
...
2
Insulation, Batt Frz. Dr. WPL-B0523593
...
3
Plug-L Nameplate WPL-10184306
...
4
Handle WPL-WP10253524Q
...
5
Gasket- Fr WPL-WP12550110Q
...
6
Pad Nameplate WPL-10184501
...
7
Liner, Frz Door (18) WPL-10461001Q
...
8
Nameplate, Handle WPL-10184401
...
9
Shim, Top Hinge WPL-10448501
...
10
Assy- Top WPL-R0000231
...
11
Bushing, Door (Wht) WPL-10393802
...
12
Plug Button (Almond) WPL-M0310730
...
13
Plug,button(Bisque) WPL-10686407
...
14
Shim, Center Hinge WPL-10562201
...
15
Hinge-Ctr Chrome WPL-10433403
...
16
Screw WPL-WPW10348409
...
17
Kit, Screw WPL-R9800670
...
18
Screw WPL-WPM0219730
...
19
Stop, Door WPL-10447102
...
20
Shim- Non WPL-WPM0274057
...
21
Pin- Cente WPL-WP67006744
...
22
Screw WPL-WPW10348409
...
23
Cover-Hing WPL-R0000229
...
24
Retainer, Ref Door WPL-10419207
...
25
Cover-Handle Screw W WPL-10201801
...
26
Shim- Non WPL-WPM0274058
...
27
Clip, Retainer WPL-10202001
...
28
Trim, Door Shelf WPL-10183966
...
29
Plug, Button (Wht) WPL-M0310308
...
30
Screw WPL-WPW10348409
...
31
Screw WPL-WP67006380

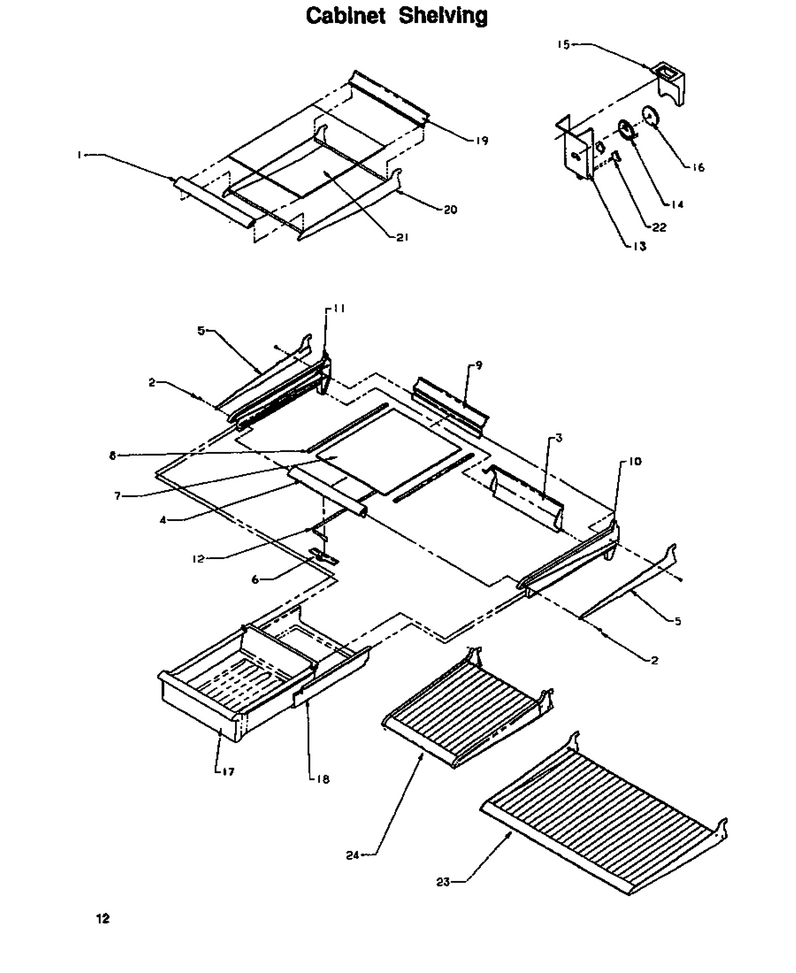

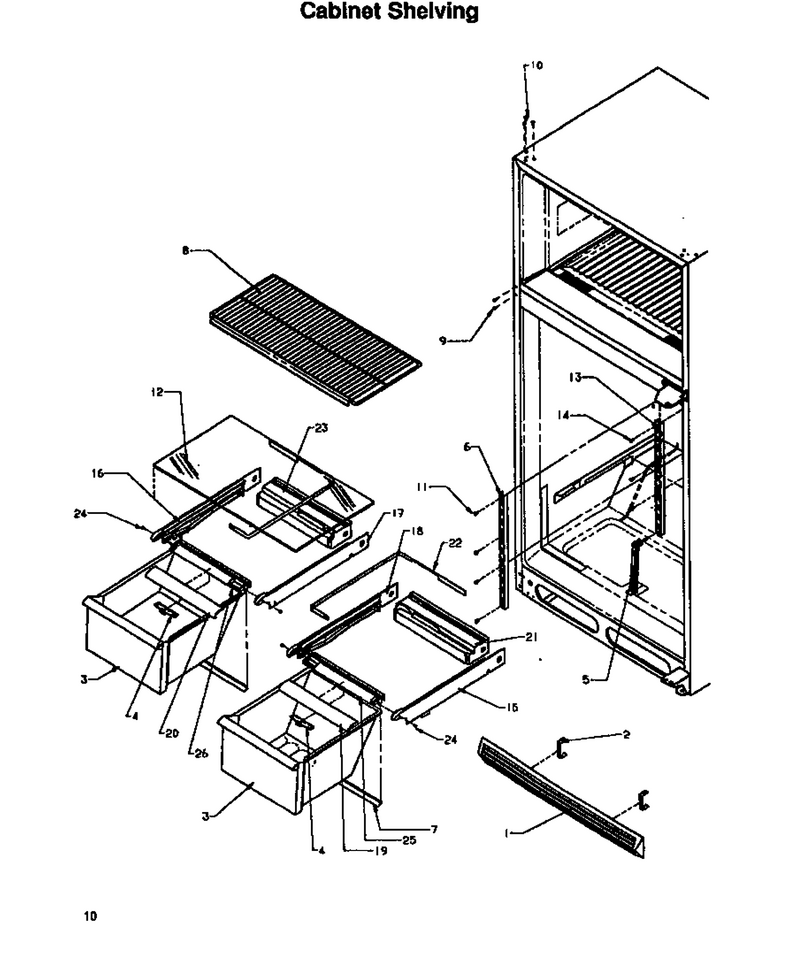

06 - Cabinet Shelving

...
...
1
Extr, Front Shelf WPL-10459918
...
4
Extr, Front Shelf WPL-10459918
...
7
Glass, Split Shelf WPL-10370097
...
9
Extr, Rear Shelf WPL-10946009
...
10
Glide, R Deli WPL-10884902
...
11
Glide, L Deli WPL-10884802
...
17
Pan,meatkeeper WPL-10417119
...
20
Shelf, Glass Frame WPL-10460106
...
21
Glass, Shelf (18) WPL-10370016
...
23
Shelf, Wire Ref WPL-10897601
...
24
Shelf, Wire Ref WPL-10897602

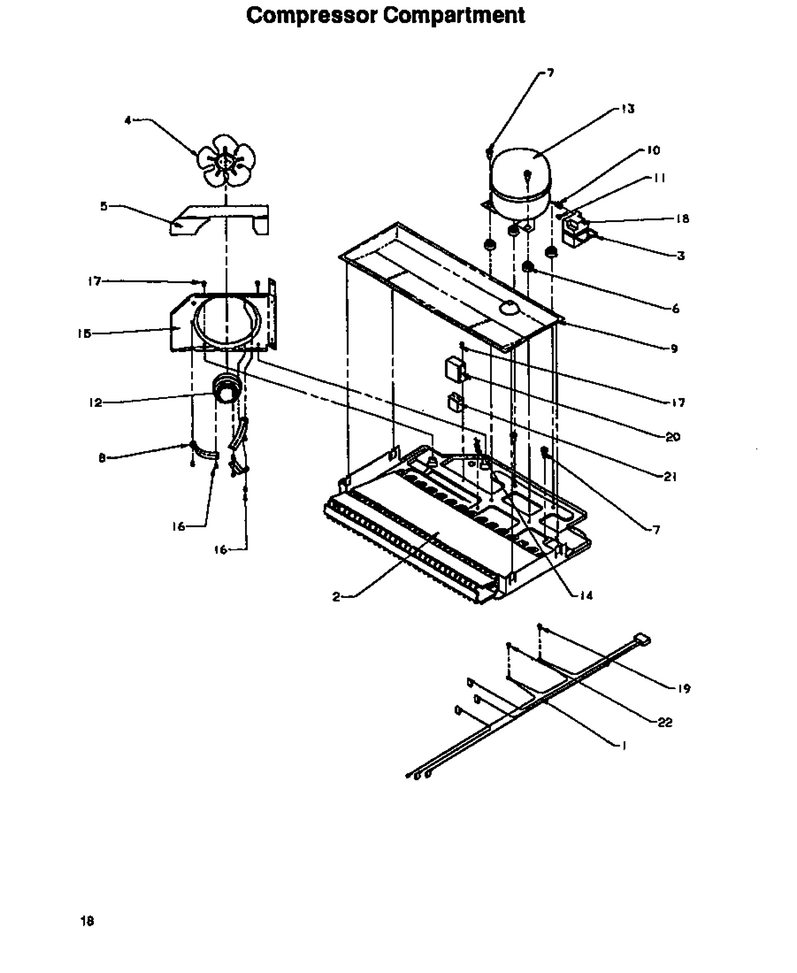

07 - Compressor Compartment

...
...
1
Harness, Mach Comp WPL-10705804
...
2
Condenser & Pan Assembly WPL-8170515
...
3
Bale Strap WPL-YB8358601
...
4
Blade, Fan WPL-B5742602
...
5
Gasket, Cond. Fan WPL-10442702
...
6
Grommet, Compressor WPL-67003493
...
7
Screw, Shldr WPL-M0221523
...
8
Bracket, Cond. Motor WPL-10582501
...
9
Pan, Drain WPL-10427404
...
10
Overload WPL-10377016
...
11
Relay WPL-2154436
...
12
Motor-Cond WPL-833697
...
13
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
14
Wire Clip WPL-B5667304
...
15
Cond Fan Shrd-E Ct WPL-10426911
...
16
Screw WPL-M0223803
...
17
Screw WPL-WP90767
...
18
Term Cover WPL-C8960801
...
19
Screw WPL-M0253916
...
20
Shield, Capacitor WPL-10266402
...
21
Capacitor WPL-WPW10662129
...
22
Screw WPL-WP489399

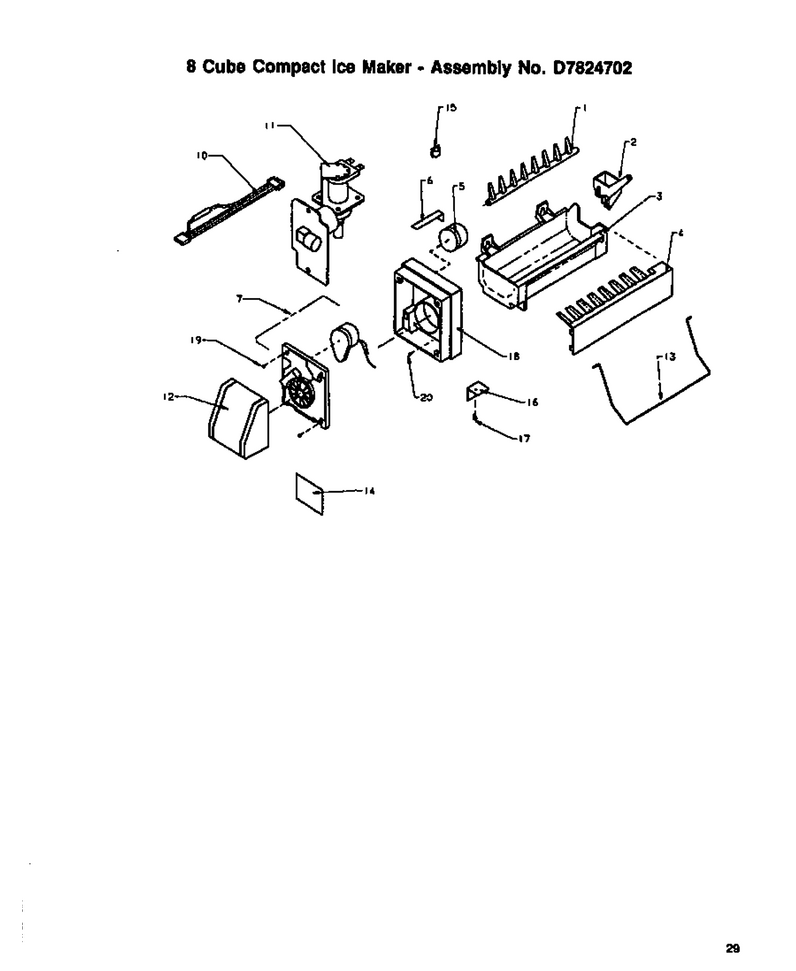

01 - 8 Cube Compact Ice Maker

...
...
NI
Ice Maker Assy. WPL-D7824706Q
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Ice Maker Assy. WPL-D7824706Q
...
4
Arm-Stripr WPL-WP2182124
...
5
Bimetl-Def WPL-WP627985
...
6
Clip WPL-WP2315522
...
7
Motor-Modl WPL-W10190935
...
10
Harns-Wire WPL-WPD7813010
...
11
Valve-Inlt WPL-W10833899
...
12
Cover-Frnt WPL-WPW10289690
...
13
Arm-Shut WPL-WP67004028
...
14
Label Diagnostic Im WPL-C8979501
...
15
Clip WPL-WP628379
...
16
Bracket, I/m WPL-B8391802
...
17
Screw WPL-WP90767
...
18
Housing-Im WPL-WP2195914
...
19
Screw WPL-R0186041
...
20
Screw WPL-R0186040

05 - Cabinet Shelving

...
...
NI
Ass`y, Crsp Frame WPL-10698518
...
1
Grille, L Toe WPL-10474905
...
2
Clip- Toe WPL-WP10551502
...
3
Pan-Crisper WPL-10430216
...
4
Slide, Crisper WPL-10797501
...
5
Post, Crisper Support WPL-10461901
...
6
Ladder, Center WPL-D7599002
...
7
Seal, Crisper WPL-10530202
...
8
Shelf, Wire Frz. (18) WPL-Y10440001
...
9
Plug Button (Almond) WPL-M0310730
...
10
Plug Button (Almond) WPL-M0310730
...
11
Screw-Sm WPL-M0238636
...
12
Glass, Shelf (18) WPL-10370016
...
13
Ladder, Side WPL-D7599105
...
14
Screw (3) WPL-67006425
...
15
Rail, Side Crisper WPL-10432701
...
16
Rail, Side Crisper WPL-10432704
...
17
Rail, Ctr. Crisper WPL-10432803
...
18
Rail, Ctr. Crisper WPL-10432804
...
19
Extr-R Cri WPL-67003088
...
20
Extr-L Crisp Fr WPL-10688026
...
21
Rail, Crisper Back WPL-10433805
...
22
Band, Crisper Control (18-19) WPL-10467802
...
23
Rail, Crisper Back WPL-10435605
...
24
Screw WPL-67006692
...
25
Rail, Crisper Fr0nt(R) WPL-10687701
...
26
Rail, Crisper Front(L) WPL-10687702

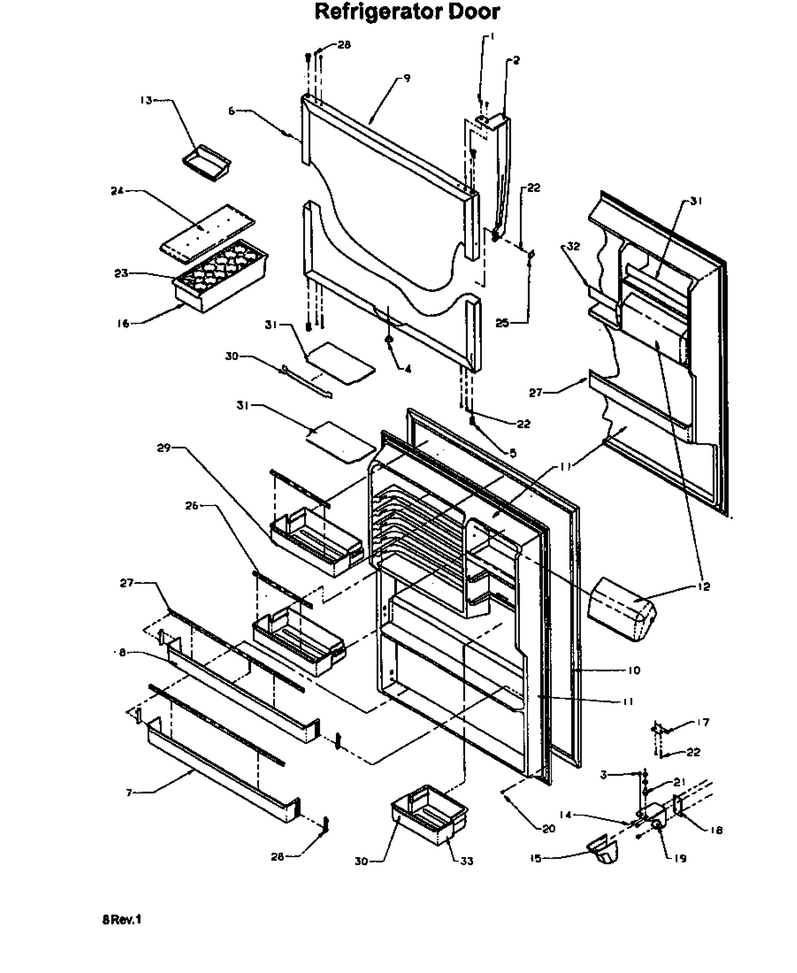

12 - Ref Door

...
...
1
Screw WPL-WPW10348409
...
2
Handle WPL-WP10253523Q
...
3
Plug, Button White WPL-M0310330
...
4
Plug, Button (Wht) WPL-M0310308
...
5
Bushing, Door (Wht) WPL-10393802
...
6
Button- Pl WPL-WP67001130
...
7
Retainer, Ref Door WPL-10419207
...
8
Retainer, Ref Door WPL-10419101
...
9
Assy, Ref Dr(Alm) WPL-10481909L
...
10
Gasket- Re WPL-WP12550109Q
...
11
Liner,ref Door WPL-10461705
...
12
Door,dairy WPL-10423420
...
13
Tray, Butter WPL-10310901
...
14
Screw WPL-WP67006715
...
15
Cover, Hinge Lower (White) WPL-10462802
...
16
Container WPL-WP10423131
...
17
Stop, Door WPL-10447102
...
18
Shim, Btm Hinge WPL-10447901
...
19
Hinge, Bottom White WPL-10433208
...
20
Screw WPL-WPM0219730
...
21
Pin Hinge Bottom WPL-67007018
...
22
Screw WPL-WPW10348409
...
23
Tray, Egg WPL-10436504
...
24
Lid, Utility WPL-10436404
...
25
Cover- Hndl Screw Almond WPL-10201806
...
26
Trim, Door Shelf WPL-10183964
...
27
Trim, Door Shelf WPL-10183966
...
28
Clip, Retainer WPL-10202001
...
29
Shelf, Ref Door WPL-10419707
...
30
Trim-Door Shelf WPL-10183978
...
33
Bucket, Ref Door (Plain) WPL-10502911

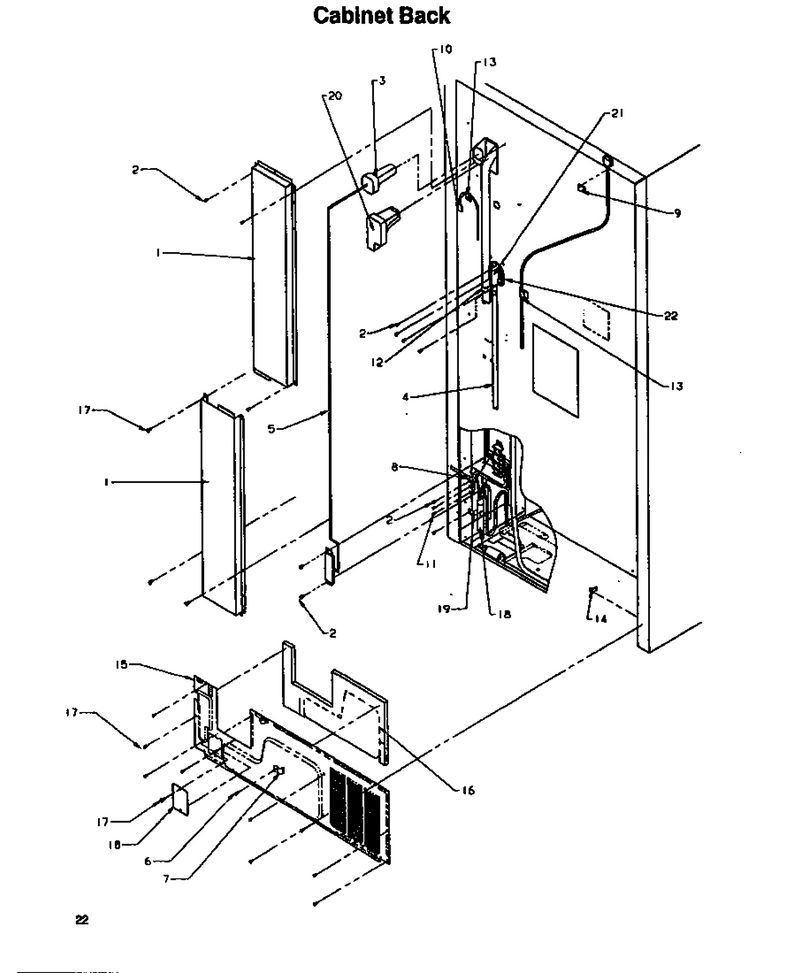

03 - Cabinet Back

...
...
NI
Cover, Water Valve WPL-10541403
...
1
Cover, Heat Exch. WPL-10442202Q
...
2
Screw, Sm WPL-M0227217
...
3
Grommet WPL-10699301
...
4
Tube, Drain WPL-10908101
...
5
Harness, Cabinet WPL-12172601
...
6
Screw, Sm WPL-M0227217
...
7
Clip, Tube WPL-10547101
...
8
Clamp, Speed WPL-M0103904
...
10
Cord, Power WPL-10916501
...
11
Screw, Spextite WPL-M0232330
...
12
Clamp WPL-B8372901
...
13
Clip WPL-WPM0104106
...
14
Clip WPL-B5720303
...
15
Mc Back, E Ct WPL-10467924
...
16
Insulation, Mach Comp Bk WPL-10584601
...
17
Screw WPL-WP90767
...
18
Drier WPL-WPB2150504
...
19
Clip, Drier WPL-10547001
...
20
Plug, Ht Exch V WPL-10428001
...
21
Elbow Drain Tube WPL-10163201
...
22
Gasket WPL-A3132301

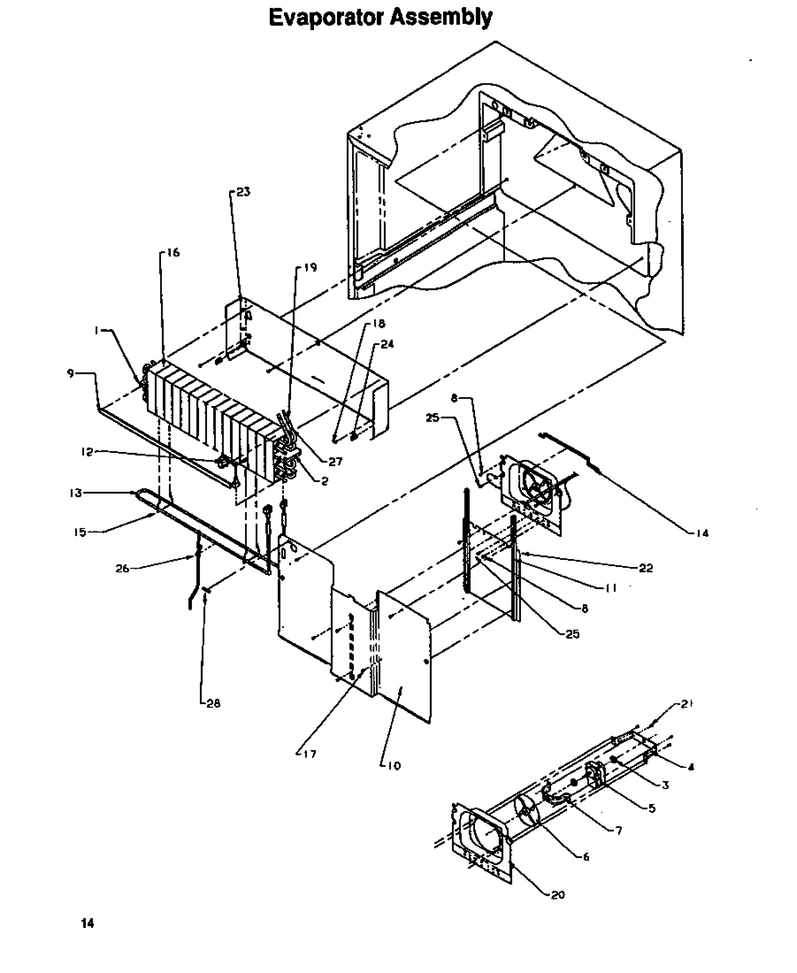

10 - Evap Assy

...
...
NI
Sleeve, Vinyl WPL-M0321041
...
1
Block, Evap. L. WPL-10428301
...
2
Block, Evap. R WPL-10428202
...
3
Grommet WPL-WP2264462
...
4
Brkt, Up Evap. Fan WPL-10492801
...
5
Motor-Evap WPL-WP10449501
...
6
Blade-Fan WPL-W10116797
...
7
Brakt-Mtr WPL-WP10492701
...
8
Screw WPL-WP489464
...
9
Gasket, Foam WPL-A3189358
...
10
Cover, Evaporator WPL-10432402
...
11
Gasket WPL-A3030356
...
12
Thermostat WPL-WP10442410
...
13
Heater, Evap WPL-10428407
...
14
Gasket WPL-A3030354
...
15
Clip WPL-W11673433
...
16
Assy,low Side WPL-R0170060
...
17
Screw (3) WPL-67006425
...
18
Screw (3) WPL-67006425
...
19
Wire Tie WPL-M0321204
...
20
Shroud, Evap. Fan WPL-10422304
...
21
Screw WPL-WP90767
...
22
Cover, Evaporator WPL-10440713
...
23
Shield, Evap. WPL-10427710
...
24
Clip, Evaporator WPL-10442301
...
25
Screw WPL-WP489399
...
26
Clip, Ht Transfer WPL-10586601
...
27
Tie-Wire WPL-WPM0321209
