Amana TSC18EC (BOM: P7456803W C)

Model: TSC18EC (BOM: P7456803W C)

Save Part Not Listed?
product name

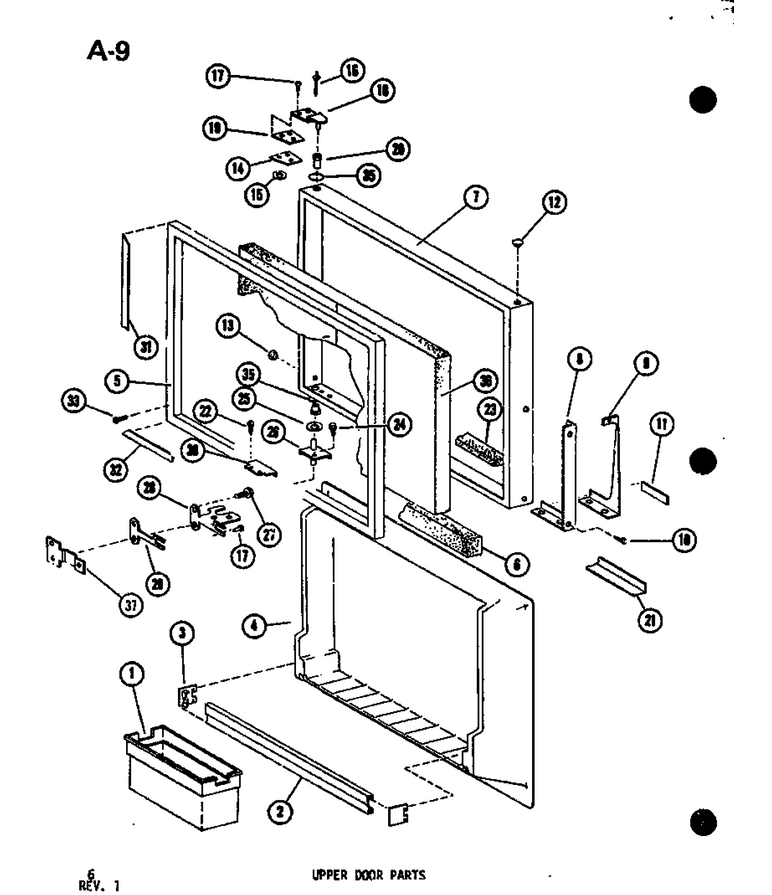

06 - Upper Door Parts

...
...
1
Ice Container WPL-D7442301
...
2
Retainer Package WPL-D7439801
...
3
Support WPL-C3680907
...
4
Inner Door Panel WPL-D7430902
...
5
Gasket WPL-D7431901
...
6
Insulation WPL-B0523574
...
7
Door Fr W-T-Tsc18e WPL-D7504102
...
8
Pad Handle K WPL-D7422403
...
9
Handle K WPL-D7570201
...
10
Screw WPL-M0203458
...
11
Nameplate WPL-C8894201
...
12
Plug WPL-M0310607
...
13
Plug Button (Almond) WPL-M0310730
...
14
Tap Strip-Hinge WPL-A3259001
...
15
Washer WPL-M0270502
...
16
Pop Rivet-Av WPL-C8839603
...
17
Kit, Screw WPL-R9800670
...
18
Hinge, Top WPL-B5744302
...
19
Shim-Top Hinge K WPL-A3270302
...
20
Bushing, Hinge Pin WPL-C3652901
...
21
Cap-Door WPL-C8833704
...
22
Machine Screw WPL-M0205631
...
23
Insulation Ft. K WPL-B0523563
...
24
Screw K WPL-M0205441
...
25
Washer Hinge K WPL-B5779601
...
26
Center Hinge Assy WPL-B5750901
...
27
Screw WPL-M0226831
...
28
Center Hinge Assy WPL-C8800201
...
29
Shim K WPL-A3143501
...
30
Door Stop WPL-C8894801
...
31
Retainer Gasket WPL-D3928121
...
32
Retainer Gasket WPL-D3928102
...
33
Screw WPL-WP98165
...
35
O Ring WPL-M0500902
...
36
Foam Slab WPL-D7349403
...
37
Kit- Tap P WPL-R0194684

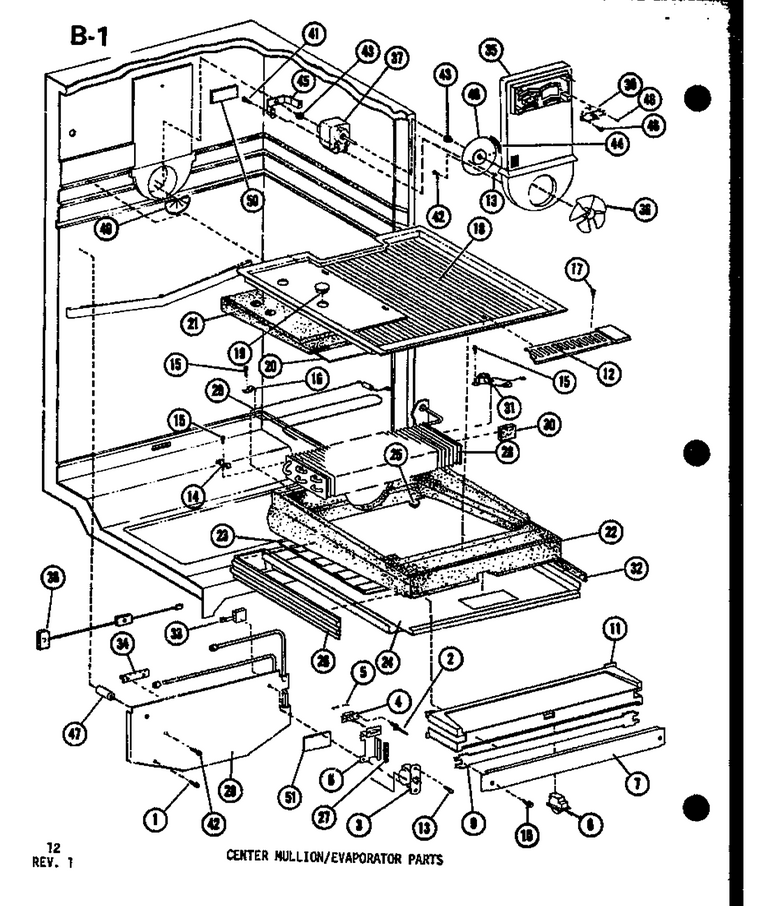

01 - Center Mullion/evap Parts

...
...
NI
Wiring Harness WPL-D7470601
...
1
Screw K WPL-M0236721
...
2
Rivet A WPL-M0010202
...
3
Control K WPL-C3615023
...
4
Switch WPL-M0341202
...
5
Diode WPL-M0305301
...
6
Bracket WPL-C8850501
...
7
Center Mullion, Almond WPL-C8842505
...
8
Switch WPL-W11384469
...
9
Heater Mullion WPL-D7577103
...
10
Kit, Screw WPL-R9800670
...
11
Breaker Center Mulli WPL-D7502001
...
12
Grille WPL-D7505601
...
13
Screw WPL-WP90767
...
14
Clamp WPL-A3253803
...
15
Screw WPL-M0212932
...
16
Clamp WPL-M0104801
...
17
Screw WPL-WP59002061
...
18
Bottom, Freezer WPL-D7505501
...
19
Plug WPL-A3069103
...
20
Barrier Sheet WPL-A3126003
...
21
Top Drain Block WPL-D7506901
...
22
Drain Block Evap. WPL-D7505401
...
23
Heater Ref Top WPL-D7532301
...
24
Top Ref WPL-D7502201
...
25
Drain Screen WPL-A3113702
...
26
Gasket WPL-B5757802
...
27
Gasket-Per Ft WPL-A30303-35
...
28
Evap Assy WPL-R0170014
...
29
Heater Evap WPL-D7505801
...
30
Block Evap. Coil WPL-B8322901
...
31
Thermostat-Defrost WPL-C8731901
...
32
Gasket-Per Ft WPL-A3030305
...
34
Clamp-Cont Bulb WPL-C8899701
...
35
Shroud Evap Fan WPL-D7504501
...
36
Fan-Evap WPL-C8795501
...
37
Motor WPL-C8853101
...
38
Heater, Ref Evaporator WPL-D7618601
...
39
Cold Control WPL-C8859801
...
40
Plate Fan Motor WPL-C8872801
...
41
Screw WPL-M0211020
...
42
Screw WPL-WP489464
...
43
Grommet WPL-WP2264462
...
44
Gasket (Per Foot) WPL-A3030313
...
45
Bracket Evap. Motor WPL-C8874301
...
46
Screw WPL-WP489349
...
47
Spacer WPL-A3268102
...
48
Screw WPL-M0216539
...
49
Barrier, Fan Sump WPL-C8894701
...
50
Barrier Hx Foil WPL-C8912701
...
51
Barrier Hx Foil WPL-C8912801

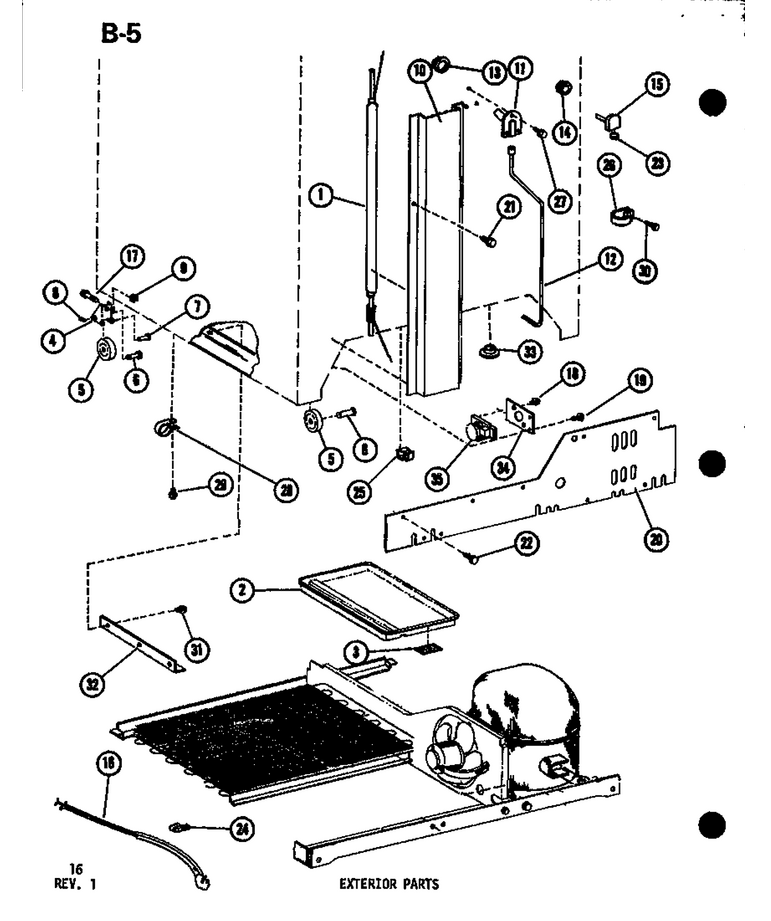

03 - Exterior Parts

...
...
1
Heat Ex-Assy WPL-D7507001
...
2
Net-Pan,drain WPL-D7497301
...
3
Pad A WPL-B5691701
...
4
Assy, Roller Bracket WPL-12452602Q
...
5
Roller WPL-M0520102
...
6
Pin K WPL-M1200202
...
7
Rivet WPL-M1205302
...
8
Cotter Pin K WPL-M1200004
...
9
Nut, Speed WPL-M0286708
...
10
Cover, O.c. Back, White WPL-C8807001
...
11
Elbow WPL-C3630903
...
12
Drain Tube WPL-D7531101
...
13
Plug, Button WPL-A3076901
...
14
Plug, Button (Wht) WPL-A3080002
...
15
Fill Tube WPL-R0182123
...
16
Wiring Harness WPL-D7618001
...
17
Screw, Mach WPL-M0206313
...
18
Screw WPL-8169474
...
19
Screw WPL-WP90767
...
20
Mach Comp Cover WPL-C8884401
...
21
Screw WPL-W11233072
...
22
Screw-Sm WPL-M0241118
...
23
Plub Button WPL-M0310315
...
24
Clamp WPL-M0103901
...
25
Clip-Cable WPL-M0110505
...
26
Clamp WPL-M0102303
...
27
Screw WPL-W11233072
...
28
Clamp, Tube WPL-M0102305
...
29
Screw WPL-WP90767
...
30
Screw WPL-M0210916
...
31
Screw WPL-WP489464
...
32
Glide, Front Rail WPL-C8870201
...
33
Plug, Button (Blk) WPL-A3080001
...
34
Bracket A-K WPL-C8918701
...
35
Timer WPL-D7004117

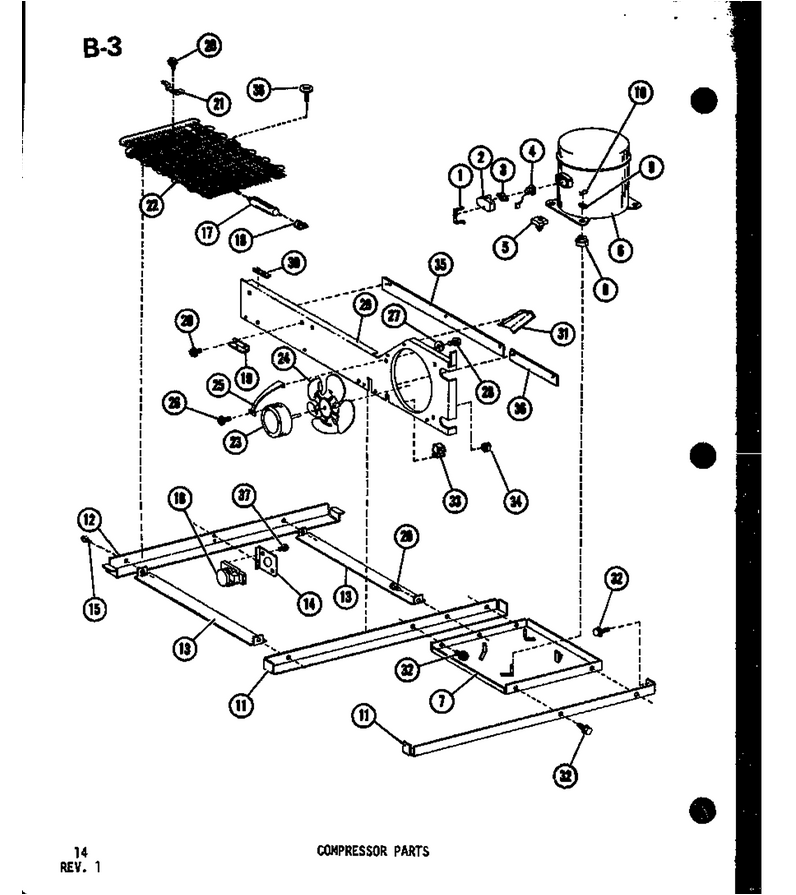

02 - Compressor Parts

...
...
1
Strap K WPL-A3041801
...
2
Cover K WPL-B0559501
...
3
Spring K WPL-A3043601
...
4
Overload WPL-C8866903
...
6
Compressor Ae1360d WPL-D7466502
...
7
Support Compressor WPL-D7497001
...
8
Grommet, Compressor WPL-67003493
...
9
Washer WPL-B8337601
...
10
Clip K WPL-A3140801
...
11
Side Rail M.c. WPL-C8870501
...
12
Rail, Front WPL-D7484501
...
13
Rail, Side WPL-C8870302
...
14
Brkt-Def Timer WPL-C8791502
...
15
Screw WPL-WP90767
...
16
Timer Defrost WPL-D7466801
...
17
Drier WPL-WPB2150504
...
18
Clamp-Drier WPL-M0104002
...
19
Support Cond. WPL-B8337901
...
20
Screw WPL-WP90767
...
21
Clip-Cond WPL-A3054502
...
22
Condenser Assy WPL-D7532202
...
23
Motor-Cond WPL-833697
...
24
Fan Blade K WPL-B5772301
...
25
Bracket, Cond Motor WPL-B0598701
...
26
Screw WPL-WPM0223816
...
27
Grommet K WPL-M0500107
...
28
Screw Shoulder WPL-M0238833
...
29
Fan Shroud Pntd WPL-D7532402
...
30
Gasket WPL-A3189318
...
31
Air Baffle Shroud WPL-C8884201
...
32
Screw WPL-M0294459
...
33
Clip-Cable WPL-M0110505
...
34
Clip WPL-M0113401
...
35
Seal Fan Shroud WPL-B8314103
...
36
Seal Fan Shroud WPL-B8314104
...
37
Screw WPL-8169474
...
38
Screw WPL-M0241132

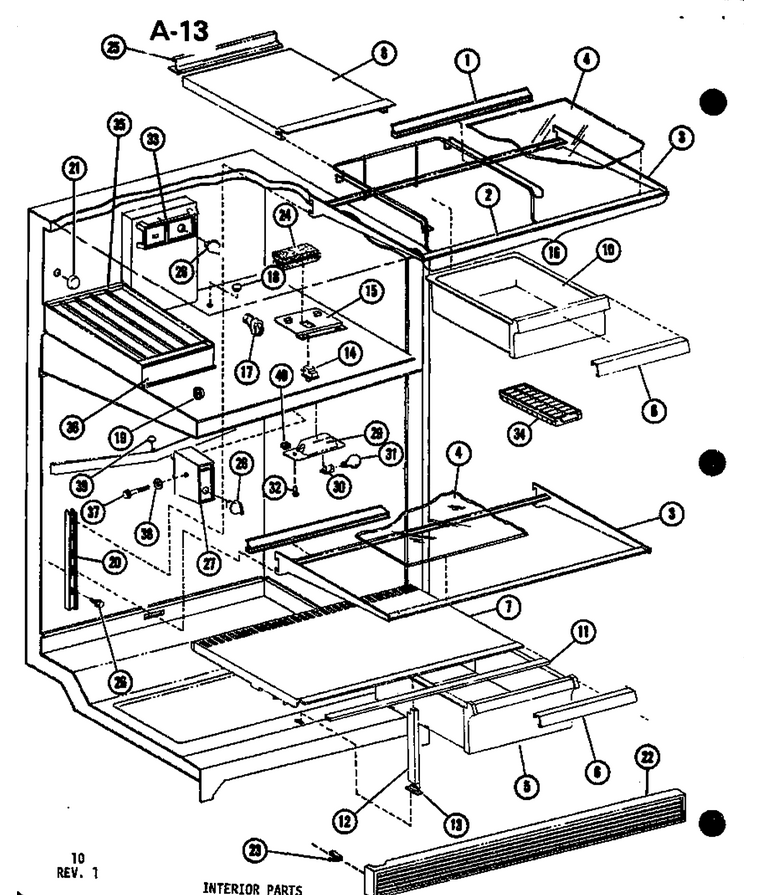

04 - Interior Parts

...
...
1
Trim Shelf WPL-D7415109
...
2
Trim Front WPL-C8835406
...
3
Frame WPL-D7535001
...
4
Glass Shelf WPL-D7421210
...
5
Pan, Crisper WPL-D7506501
...
6
Trim-Handle A WPL-C8831704
...
7
Crisper Top WPL-D7503501
...
8
Top-Mt Kpr WPL-D7343603
...
10
Pan, Meat Keeper WPL-D7425301
...
11
Trim A WPL-B0570904
...
12
Support Post WPL-B0571006
...
13
Support Post WPL-B5749401
...
14
Switch WPL-C3680306
...
15
Cover WPL-D7502501
...
16
Glass Shelf Assy WPL-D7421414
...
17
Tunnel-Heat Ex WPL-B5749501
...
18
Plug WPL-M0310718
...
19
Cap WPL-B5636301
...
20
Ladder WPL-C8874201
...
21
Cap Fill Tube WPL-B5631801
...
22
Grille-Toe WPL-D7520501
...
23
Clip WPL-WPM0117303
...
24
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
25
Trim-Mtrpr Top WPL-C8831805
...
26
Screw WPL-M0231117
...
27
Escut Cont. WPL-D7278008
...
28
Knob WPL-D7009801
...
29
Shield, Light WPL-R0176034
...
30
Socket-Light WPL-D7714407
...
31
Light Bulb WPL-8009
...
32
Screw (3) WPL-67006425
...
33
Deflector, Air WPL-D7559501
...
34
Tray WPL-WP841180A
...
35
Tunnel Ice Tray WPL-D7504901
...
36
Door Ice Tunnel K WPL-C8847604
...
37
Screw WPL-M0230926
...
38
Washer WPL-M0270519
...
39
Screen, Drain WPL-C8876101
...
40
Clip, Ground WPL-B5733302

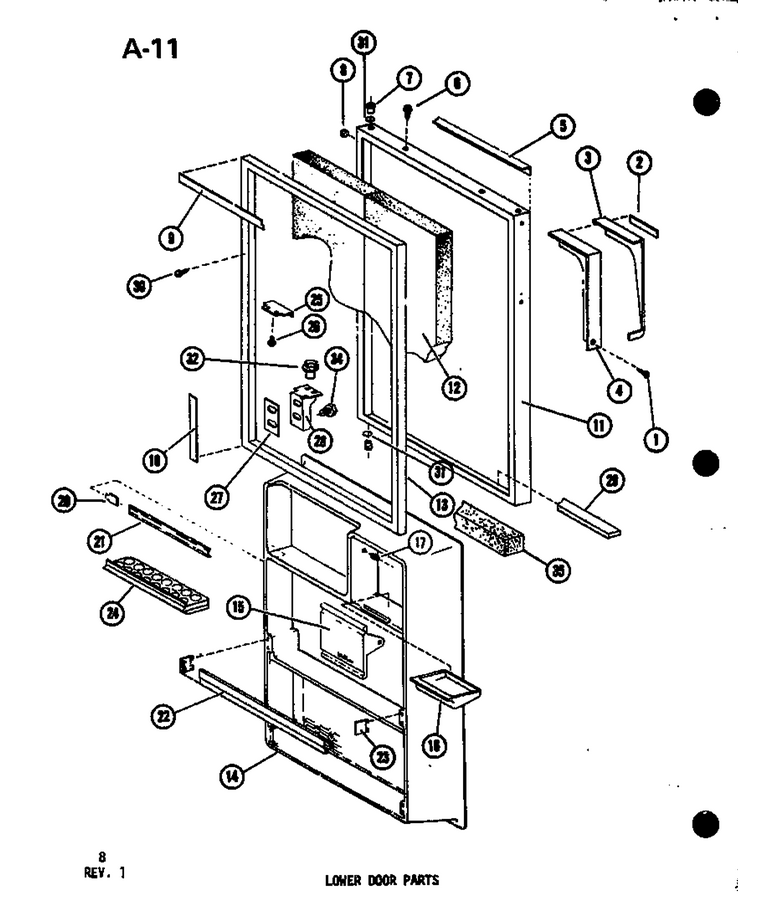

05 - Lower Door Parts

...
...
1
Screw WPL-M0203458
...
2
Nameplate WPL-C8894301
...
3
Handle K WPL-D7570202
...
4
Pad Handle K WPL-D7422404
...
5
Door Cap WPL-C8833703
...
6
Screw WPL-M0203216
...
7
Bushing, Hinge Pin WPL-C3652901
...
8
Plug WPL-M0310719
...
9
Retainer Gasket WPL-D3928102
...
10
Retainer Gasket WPL-D3928106
...
11
Door,ref Av-T-Tc20c WPL-D7394514
...
12
Foam Slab WPL-D7349404
...
13
Gasket WPL-D3928207
...
14
Inner Door Panel WPL-D7500701
...
15
Butter Door WPL-D7417701
...
16
Buttertray WPL-67004412A
...
17
Pivot WPL-A3084701
...
20
Support K WPL-B0530006
...
21
Retainer Package WPL-B8322601
...
22
Retainer Package WPL-D7439802
...
23
Support- -Cream Rh WPL-B5631706
...
24
Egg Tray WPL-D7466601
...
25
Door Stop WPL-C8894801
...
26
Machine Screw WPL-M0205631
...
27
Shim WPL-B5744802
...
28
Bracket Lower Hinge WPL-10163605
...
29
Insulation Ft. K WPL-B0523563
...
30
Screw WPL-WP98165
...
31
O Ring WPL-M0500902
...
32
Pin, Hinge K WPL-C8814901
...
34
Screw WPL-WP67006715
...
35
Insulation WPL-B0523574
