Amana TS25TW (BOM: P1308001W W)

Model: TS25TW (BOM: P1308001W W)

Save Part Not Listed?
product name

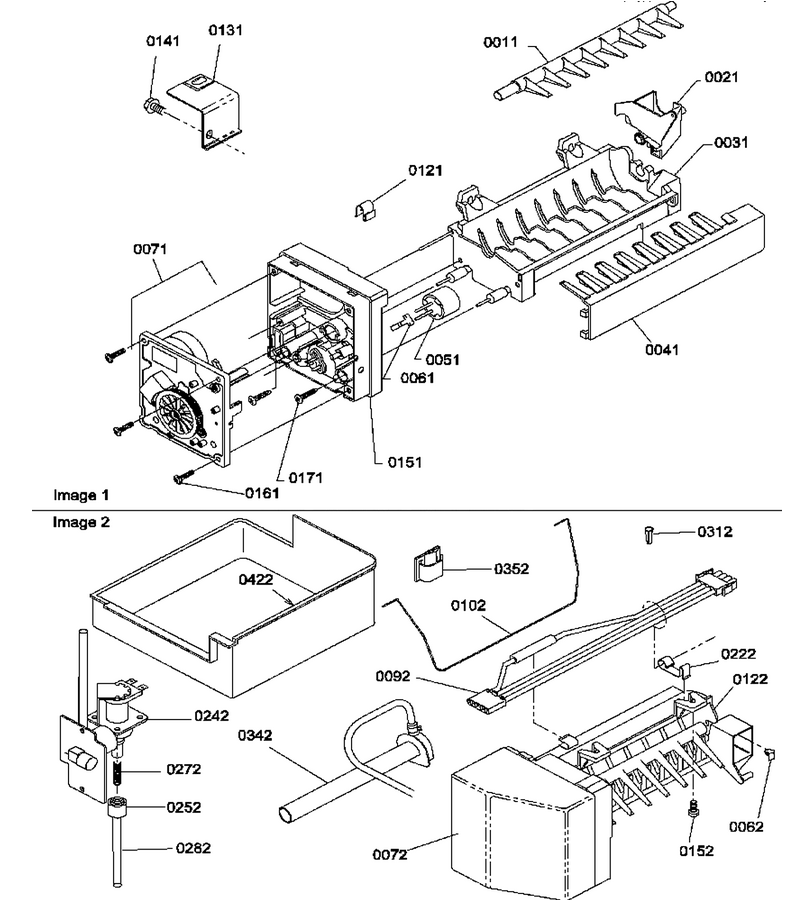

05 - Ice Maker Assy And Parts

...
...
NI
Clamp, Tube WPL-M0108001
...
11
Arm-Ejectr WPL-WP627843
...
21
Cup-Fill WPL-WP628356
...
31
Ice Maker Assy. WPL-D7824706Q
...
41
Arm-Stripr WPL-WP2182124
...
51
Bimetl-Def WPL-WP627985
...
61
Clip WPL-WP2315522
...
62
Clip WPL-B5720301
...
71
Motor-Modl WPL-W10190935
...
72
Cover-Frnt WPL-WPW10289690
...
92
Harns-Wire WPL-WPD7813010
...
102
Arm-Shut WPL-WP67004028
...
121
Clip WPL-WP628379
...
122
Ice Maker Assy. WPL-D7824706Q
...
131
Bracket, I/m WPL-B8391802
...
141
Screw (3) WPL-67006425
...
151
Housing-Im WPL-WP2195914
...
152
Screw WPL-WP98165
...
161
Screw WPL-R0186041
...
171
Screw WPL-R0186040
...
222
Clamp, Wire WPL-10526701
...
242
Valve-Inlt WPL-W10833899
...
252
Nut WPL-WP627018
...
272
Spring WPL-WPA1055105
...
282
Tubing, Plastic WPL-B5705325
...
312
Insert- Pl WPL-WPA3223101
...
342
Tube-Water WPL-W11176463
...
352
Clip WPL-WPM0104106
...
422
Pan-Ice WPL-WP67001255

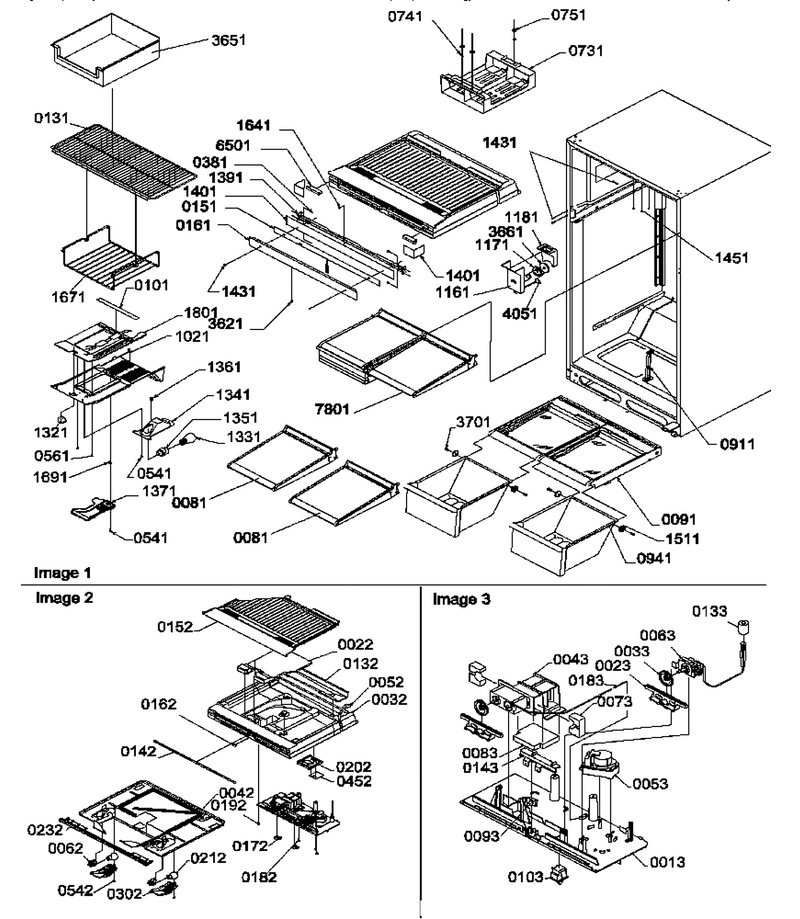

06 - Interior Cabinet And Drain Block Assy

...
...
NI
Harness, Control WPL-10573401
...
13
Housing, Control WPL-12035107
...
22
Insert, Drain Block WPL-10476402
...
23
Rack, Control WPL-10439601
...
32
Kit, Drain Blk/ Frz Floor WPL-10996201
...
33
Pinion, Control WPL-10442601
...
42
Ref Top- E Ct WPL-12035218
...
43
Assy, Damper Control WPL-R0161072
...
52
Harness, Mullion WPL-10573505
...
53
Timer-Def WPL-R0168027
...
62
Socket, Light WPL-D7714408
...
63
Assy, Frz Control WPL-R9700006
...
73
Insert,damper WPL-10442801
...
81
Assy, Spl Prf Shelf WPL-10480716Q
...
83
Insulation, Damper WPL-10442901
...
91
Assy, Crisp Frame WPL-10698521Q
...
93
Switch, St WPL-M0350201
...
101
Gasket WPL-B8386613
...
103
Switch WPL-W11384469
...
131
Shelf-Wire Fz WPL-12291301
...
132
Drip Tray WPL-10671702
...
133
Insulation, Cap WPL-10673603
...
142
Membrane, Breaker WPL-10450832
...
143
Shield, Wire WPL-10565101
...
151
Heater, Mullion WPL-10543603
...
152
Bottom, Frz WPL-10995901
...
161
Mullion,center-W Ect WPL-10433363WD
...
162
Cap, Switch WPL-10453001
...
172
Knob, Control WPL-10565401
...
182
Screw (3) WPL-67006425
...
183
Tube-Plastic WPL-A3012543
...
192
Screw WPL-W10856125
...
202
Insert-Mk Air Sply WPL-10995201
...
212
Light Bulb WPL-8009
...
232
Frame-Ref Top Brk WPL-10673704
...
302
Shield, Refrig. Light WPL-10508701
...
381
Screw WPL-WP489349
...
452
Gasket, Mk Air Supply WPL-10594901
...
541
Screw WPL-WP98165
...
542
Screw WPL-WP90767
...
561
Screw WPL-WP98165
...
731
Rack, Ice Service WPL-10423001
...
741
Screw, Sm WPL-M0238823
...
751
Washer WPL-M0270519
...
911
Post, Crisper Support WPL-10461901
...
941
Pan, Crisper WPL-10629103
...
1021
Duct, Frz Air WPL-10440405
...
1171
Control, Mt. Kpr. Air Sup WPL-10479401
...
1181
Tunnel, Mt Kpr WPL-10479103
...
1321
Switch WPL-W11384469
...
1331
Light Bulb WPL-8009
...
1341
Housing-Light WPL-C8730103
...
1351
Socket, Light WPL-D7714408
...
1361
Clip, Ground WPL-B5733302
...
1371
Shield, Frz Light WPL-10678401
...
1391
Plate, Center Tap WPL-10433612
...
1401
Insulation Per Ft. WPL-B0523584
...
1431
Button- Pl WPL-WP67001130
...
1511
Roller, Pan WPL-10481001
...
1641
Screw WPL-M0253916
...
1671
Rack, Freezer WPL-10250502
...
1691
Grommet, Screw WPL-M0580007
...
1801
Insul. Air Duct WPL-10779601
...
3621
Screw - Sm WPL-M0211520
...
3661
Insert, Mk Control WPL-10565701
...
3701
Screw WPL-67006692
...
4051
Gasket, Mt Kpr Duct WPL-10852401
...
6501
Insulation WPL-10772301
...
7801
Assy, Glide Shelf WPL-12120403Q

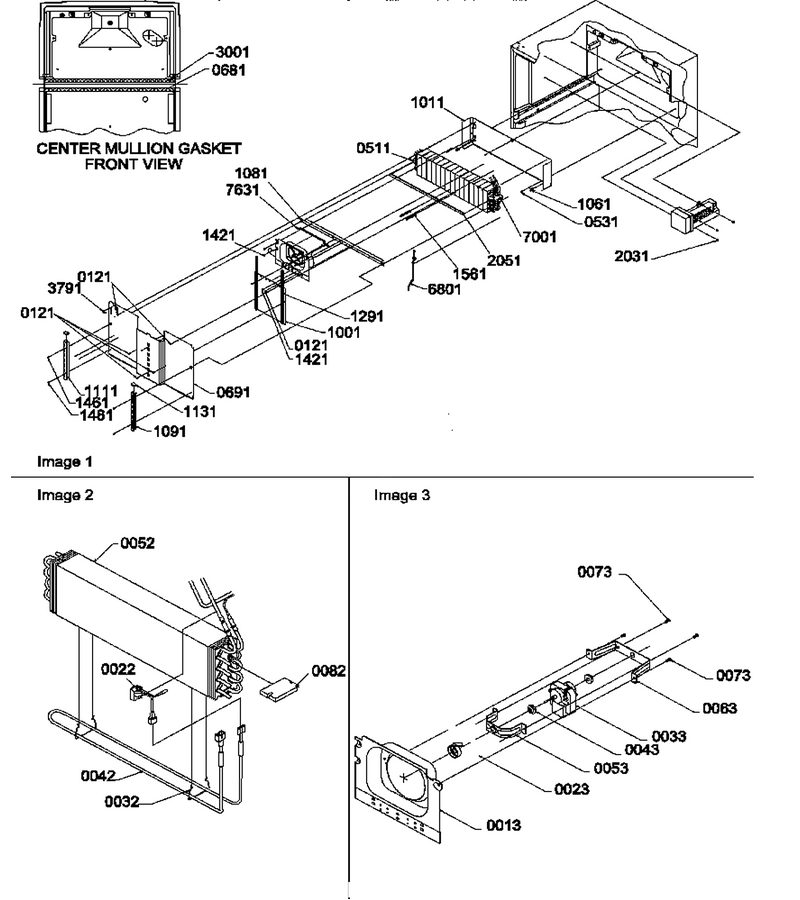

04 - Evap And Fan Motor Assy

...
...
13
Shroud, Evap. Fan WPL-10422304
...
22
Thermostat WPL-WP10442410
...
23
Blade-Fan WPL-W10116797
...
32
Clip WPL-W11673433
...
33
Motor-Evap WPL-WP10449501
...
42
Heater, Evaporator WPL-10991103
...
43
Grommet WPL-WP2264462
...
52
Assy,low Side WPL-R0170061
...
53
Brkt, Up Evap. Fan WPL-10492801
...
63
Brakt-Mtr WPL-WP10492701
...
73
Screw WPL-WP90767
...
82
Block-R Evap WPL-10991001
...
121
Screw (3) WPL-67006425
...
511
Block, Evap. L. WPL-10428301
...
531
Screw (3) WPL-67006425
...
681
Gasket, Sealing WPL-10685509
...
691
Cover-Evap-Pnt WPL-10432414
...
1001
Cover, Evaporator WPL-10440712
...
1011
Shield, Evap WPL-10427714
...
1061
Clip, Evaporator WPL-10442301
...
1081
Supp-Ctr Ladder WPL-10439704
...
1091
Ladder R. Side Evap WPL-10439401
...
1111
Ladder, L. Side Evap. WPL-10439402
...
1131
Cap Frz Ladder WPL-10562401
...
1291
Gasket WPL-A3030356
...
1421
Screw WPL-WP489399
...
1461
Screw, Sm WPL-M0238637
...
1481
Screw, Sm WPL-M0238921
...
1561
Support, Frz Ladder WPL-10481102
...
2051
Gasket, Foam WPL-A3189358
...
3001
Gasket, Sealing WPL-B5759626
...
6801
Clip, Ht Transfer WPL-10586601
...
7001
Tie-Wire WPL-WPW10339879
...
7631
Gasket WPL-A3030354

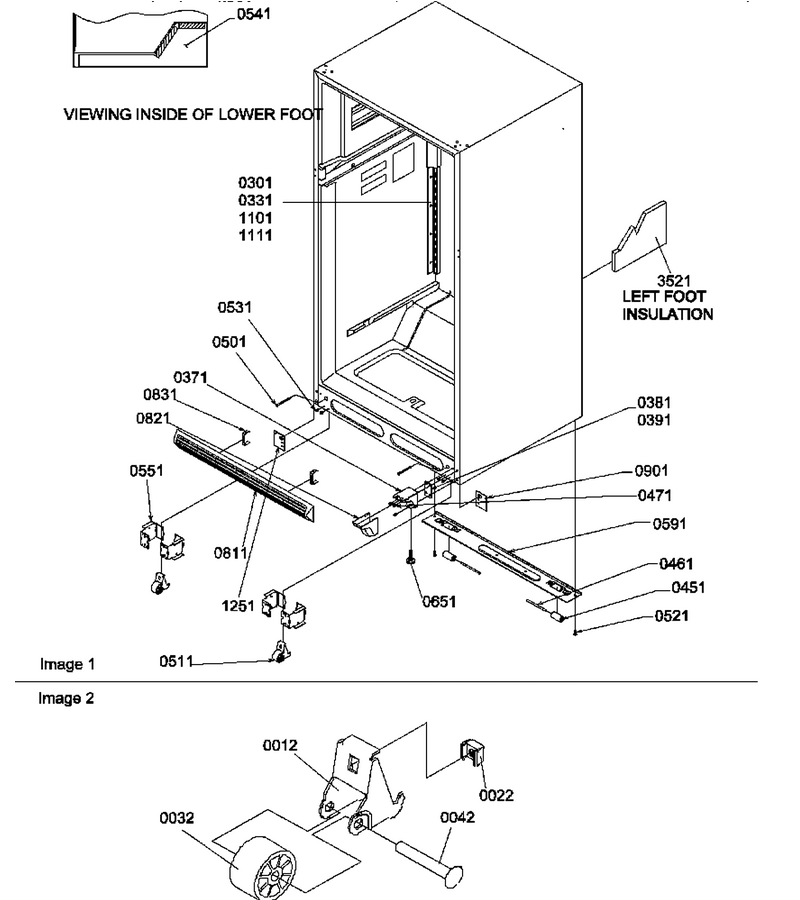

07 - Ladders, Lower Cabinet And Rollers

...
...
12
Assy, Roller Brkt WPL-10476101Q
...
22
Nut, Speed WPL-M0286708
...
32
Roller WPL-WP10450603
...
42
Rivet WPL-M1205302
...
301
Screw (3) WPL-67006425
...
331
Ladder, Side WPL-D7599106
...
371
Hinge, Btm (White) WPL-10825301
...
381
Shim Hinge WPL-10447904
...
391
Shim, Btm Hinge WPL-10447903
...
451
Roller, Rear WPL-10450701
...
461
Axle, Roller WPL-10450901
...
471
Screw WPL-WP67006715
...
501
Screw, Mach WPL-M0204338
...
511
Assy, Roller Brkt WPL-10476101Q
...
521
Screw, Tf WPL-M0260242
...
531
Screw WPL-W11573574
...
541
Insul., R. Foot WPL-10663001
...
551
Housing-Roller WPL-10427204
...
591
Cabinet Brace-Pnt WPL-10427114
...
651
Feet-Lvlng WPL-W11177593
...
811
Grille, Toe (White) WPL-10629402
...
821
Cover, Hinge Lower (White) WPL-10462702
...
831
Clip- Toe WPL-WP10551502
...
901
Plate-Lw Hng Tap WPL-10567205
...
1101
Ladder, Center WPL-D7599004
...
1111
Screw-Sm WPL-M0238636
...
1251
Plate-Lw Hng Tap WPL-10567206
...
3521
Insul., L. Foot WPL-10663002

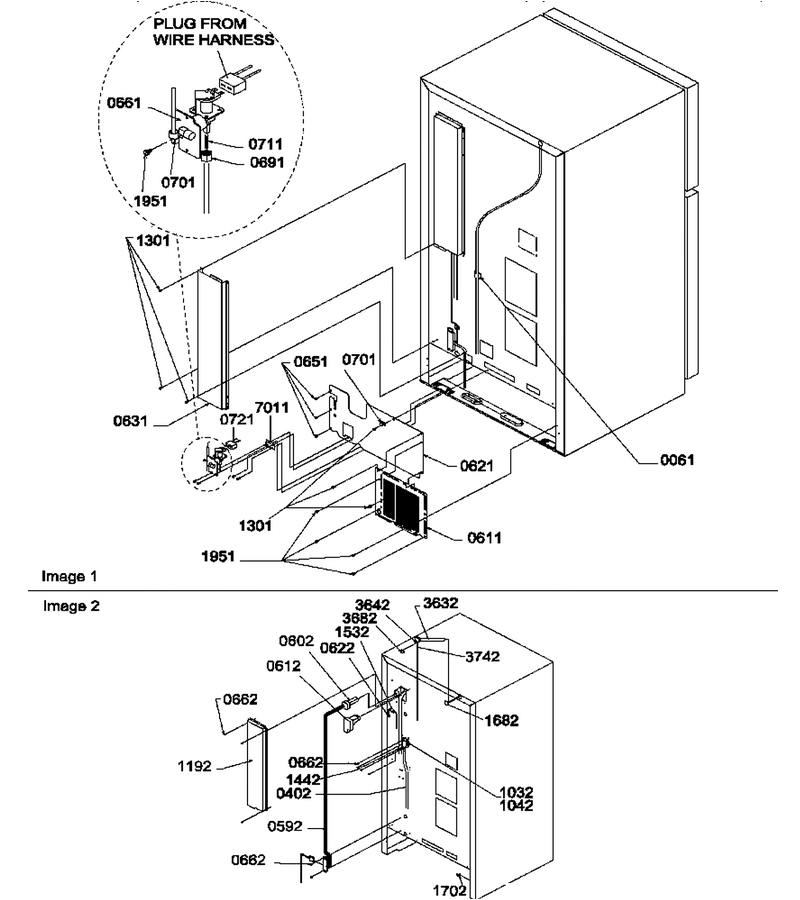

01 - Cabinet Back

...
...
402
Tube, Drain WPL-10442503
...
592
Harness, Cabinet WPL-12172705
...
602
Grommet WPL-10699301
...
611
Back, Mach Comp WPL-12039807
...
612
Plug, Ht Exch V WPL-10428001
...
621
Mc Back Assy WPL-12041845
...
622
Cord, Power WPL-10916501
...
631
Cover, Ht Exch WPL-10442205
...
651
Screw WPL-WP489464
...
662
Screw, Sm WPL-M0227217
...
1032
Elbow, Drain Tube WPL-10163203
...
1042
Gasket WPL-A3132301
...
1192
Cover, Ht Exch WPL-10442205
...
1301
Screw, Sm WPL-M0227217
...
1442
Clamp WPL-B8372901
...
1532
Clip WPL-WPM0104106
...
1682
Plug, Im Tunnel WPL-10544301
...
1951
Screw WPL-WP90767
...
7011
Plate-Water Valve WPL-12047201

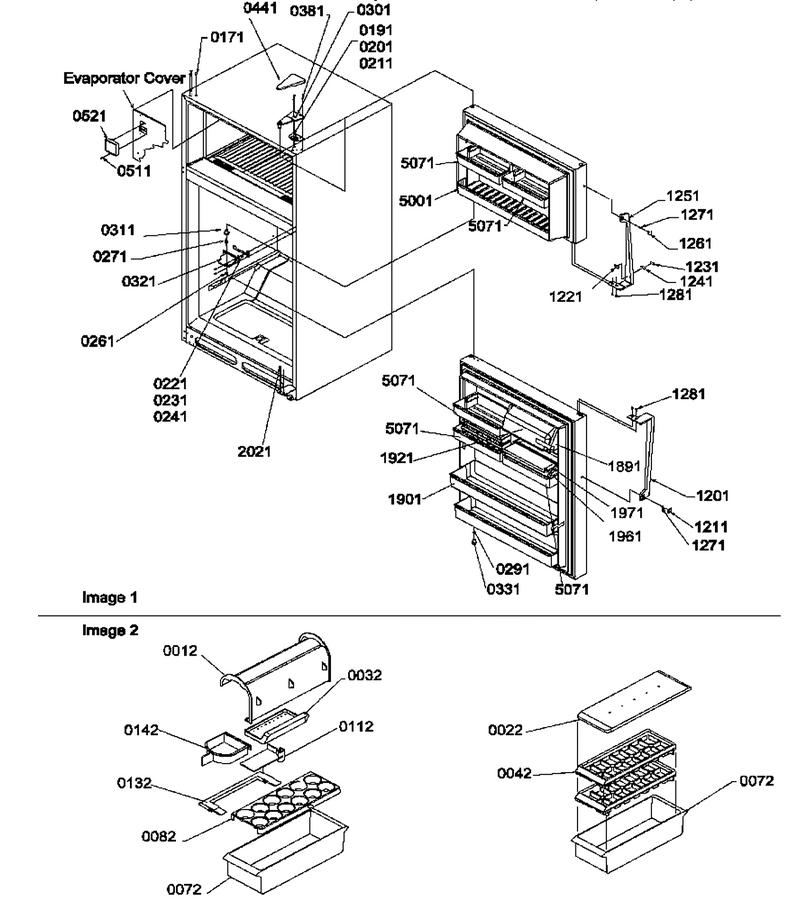

03 - Door, Hinges And Accessories

...
...
12
Rack, Wine WPL-10448901
...
32
Tray, Butter WPL-10310901
...
42
Tray WPL-WP841180A
...
72
Container WPL-WP10423131
...
82
Tray, Egg WPL-10436505
...
112
Snugger, Door Shelf (Shelf Div WPL-10467501
...
132
Retainer, Tall Pkg WPL-12106902
...
142
Hugger, Bottle (Shelf Divider) WPL-10441102
...
171
Button- Pl WPL-WP67001130
...
191
Shim, Top Hinge WPL-10451301
...
201
Shim, Top Hinge WPL-10451302
...
211
Shim, Top Hinge WPL-10451303
...
221
Shim, Center Hinge WPL-10562201
...
231
Shim, Center Hinge WPL-10562202
...
241
Shim, Center Hinge WPL-10562203
...
261
Shim- Non WPL-WPM0274057
...
271
Pin, Hinge (Ctr) WPL-10351002
...
291
Shim- Non WPL-WPM0274058
...
301
Hinge, Top WPL-12077305
...
311
Closure, Door (Wht) WPL-12028501
...
321
Hinge-Center WPL-10433512
...
331
Pin Hinge Bottom WPL-67007018
...
381
Screw WPL-WP489349
...
441
Cover, Hinge (White) WPL-10444808
...
511
Screw (3) WPL-67006425
...
521
Cover-Fl Tb/plug WPL-D7874403
...
1201
Handle WPL-WP10253510Q
...
1211
Cover-Handle Screw W WPL-10201802
...
1221
Plug-Nameplate W WPL-10184301
...
1231
Nameplate, Handle WPL-10184401
...
1241
Pad Nameplate WPL-10184501
...
1251
Handle Assy Fz W WPL-10253509
...
1261
Cover-Handle Screw W WPL-10201801
...
1271
Screw WPL-WPW10348409
...
1281
Screw WPL-WPW10348409
...
1891
Shelf, Dairy WPL-12163202
...
1901
Retainer, Ref Door WPL-10609803
...
1921
Door, Dairy WPL-12163301
...
1961
Shelf, Snack Stop WPL-10431701
...
1971
Door, Snack Stop WPL-10431004
...
2021
Plug, Button White WPL-M0310330
...
5001
Retainer, Ref Door WPL-10609304
...
5071
Shelf, Ref Door WPL-10420005

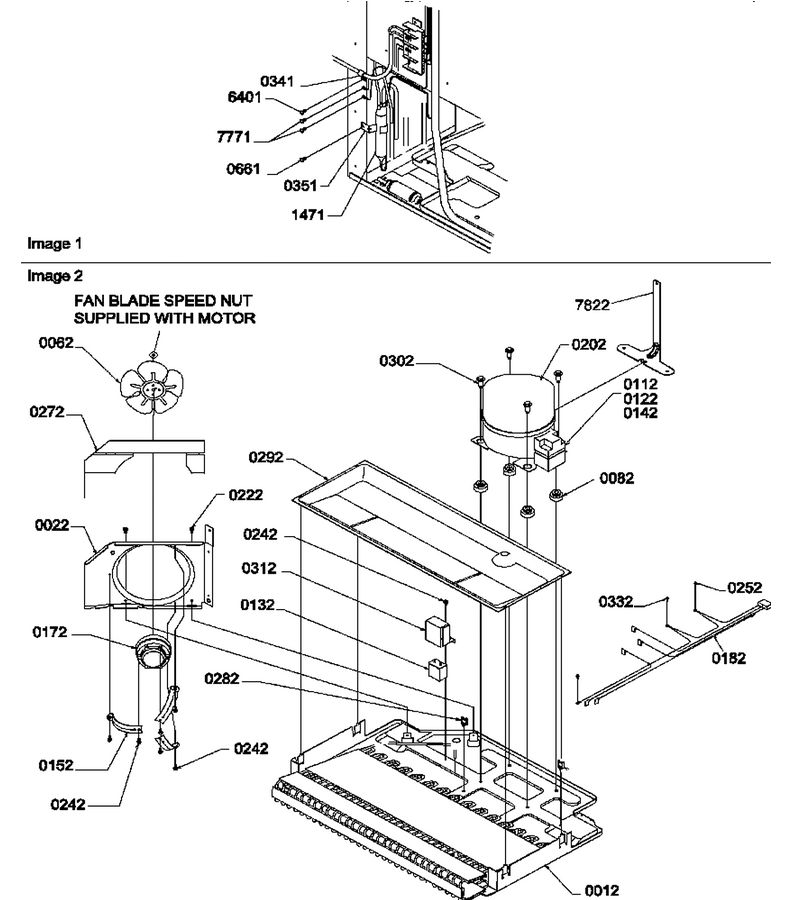

08 - Machine Compartment

...
...
12
Assy,cond/pan-E Ct WPL-10481212
...
22
Cond Fan Shrd-E Ct WPL-10426911
...
62
Blade, Fan WPL-B5742604
...
82
Grommet, Compressor WPL-67003493
...
112
Overload WPL-10377015
...
122
Start-Dev WPL-WP10097202
...
132
Capacitor WPL-WP65889-4
...
142
Cover-Term WPL-4344043
...
152
Bracket, Cond. Motor WPL-10582501
...
172
Motor-Cond WPL-833697
...
182
Harness, Mach Comp WPL-10705804
...
202
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
222
Screw WPL-WP90767
...
242
Screw WPL-M0223803
...
252
Screw WPL-12992301
...
272
Gasket, Cond. Fan WPL-10442702
...
282
Wire Clip WPL-B5667304
...
292
Pan, Drain WPL-10427406
...
302
Screw, Shldr WPL-M0221523
...
312
Shield, Capacitor WPL-10266402
...
332
Screw WPL-WP489399
...
341
Clamp, Speed WPL-M0103904
...
351
Clip, Drier WPL-10547001
...
661
Screw, Sm WPL-M0227217
...
1471
Drier WPL-WPB2150504
...
6401
Screw WPL-WP489069
...
7771
Screw, Spextite WPL-M0232330
...
7822
Brace, Back Oc WPL-R0000019

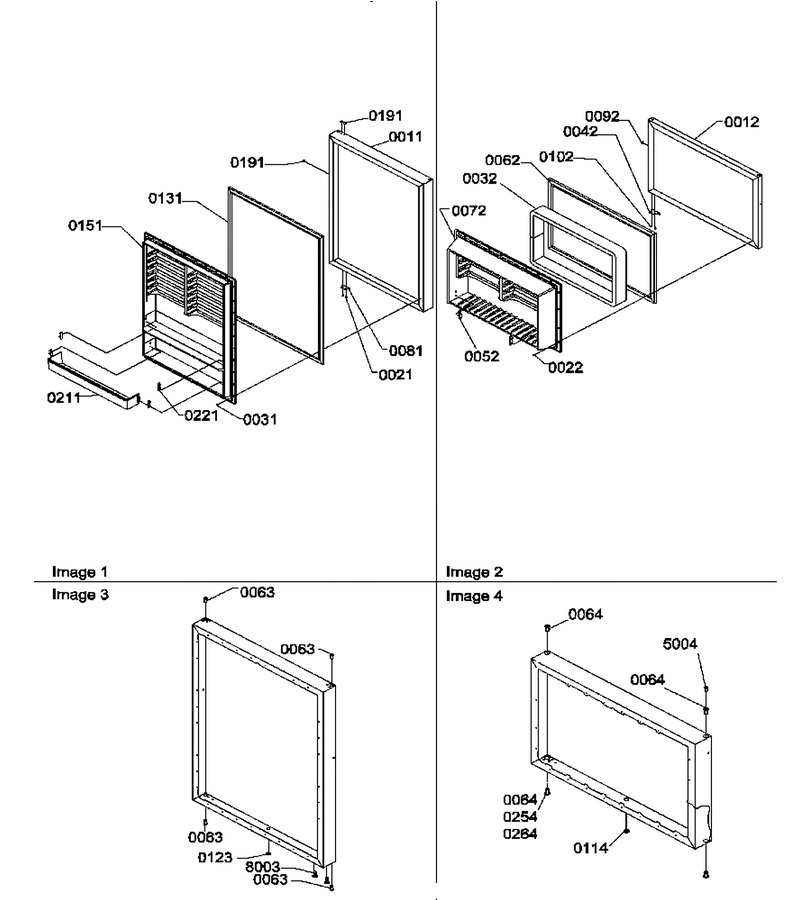

02 - Door Assemblies

...
...
11
Door WPL-10928303W
...
12
Assy Frz Dr Fm WPL-10928403W
...
21
Screw WPL-WPW10348409
...
22
Screw WPL-WPM0219730
...
31
Screw WPL-WPM0219730
...
32
Insulation, Batt Frz. Dr. WPL-B0523593
...
42
Stop, Door WPL-10447102
...
52
Clip, Retainer WPL-10202001
...
62
Gasket,fz Dr(White) WPL-10456806
...
63
Bushing, Door (Wht) WPL-10961001
...
64
Bushing, Door (Wht) WPL-10961001
...
72
Liner, Frz Door WPL-10609201Q
...
81
Stop, Door WPL-10447102
...
92
Button- Pl WPL-WP67001130
...
102
Screw WPL-WPW10348409
...
114
Plug, Button (Wht) WPL-M0310308
...
123
Plug, Button (Wht) WPL-M0310308
...
131
Gasket-Ref WPL-WP12550113Q
...
151
Liner, Refrig Door WPL-10609701
...
191
Button- Pl WPL-WP67001130
...
211
Retainer, Ref Door WPL-10609304
...
221
Clip, Retainer WPL-10202001
...
254
Bushing, Door (Wht) WPL-12028601
...
264
Filter, Bushing WPL-10252903
...
5004
Plug Button WPL-10686401
...
8003
Screw WPL-WPW10348409

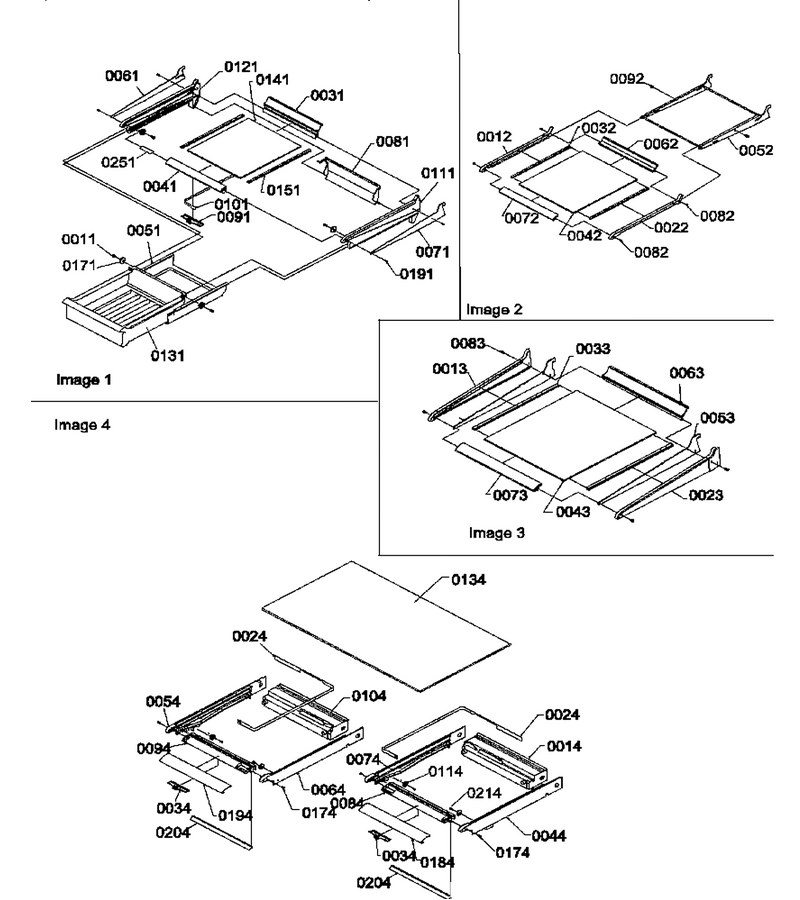

09 - Shelving Assemblies

...
...
11
Screw WPL-67006692
...
12
Glide-Lh Shlf Side WPL-12120001
...
13
Cover, Glass Shelf Rail WPL-10436603
...
14
Rail, Crisper Back WPL-10433803
...
22
Glide-Rh Shlf Side WPL-12120002
...
23
Cover, Glass Shelf Rail WPL-10436604
...
24
Band, Crisper Cont WPL-10467806
...
31
Extr, Mt Kpr Rear WPL-10451403
...
32
Ext, Gl Shelf Side WPL-10562504
...
33
Ext, Gl Shelf Side WPL-10562504
...
34
Slide, Crisper WPL-10797501
...
41
Extr-Mk Front WPL-10450322
...
42
Glass, Shelf WPL-Y10370062
...
43
Glass, Shelf WPL-Y10370062
...
44
Rail, Side Crisper WPL-10432701
...
51
Sleeve, Mk WPL-10629301
...
52
Frm-Spl Svr Rear WPL-12120203
...
53
Rail, Pntd WPL-10681402
...
54
Rail, Side Crisper WPL-10432704
...
61
Rail, Pnt WPL-10681403
...
62
Ext-Gl Shlf Rear WPL-12120303
...
63
Extr, Glass Shelf Rear WPL-10436903
...
64
Rail, Ctr. Crisper WPL-10432803
...
71
Rail, Pntd WPL-10681402
...
72
Ext-Gl Shlf Front WPL-10436818
...
73
Ext-Gl Shlf Front WPL-10436818
...
74
Rail, Ctr. Crisper WPL-10432804
...
81
Scoop, Air WPL-10445704
...
82
Screw WPL-WPW10348409
...
83
Screw WPL-WPW10348409
...
84
Rail, Crisper Fr (R) WPL-10687901
...
91
Slide, Mtkp Cont. WPL-10588201
...
92
Stop, Shelf WPL-10875101
...
94
Rail, Crisper Fr (L) WPL-10687902
...
101
Band, Mk Control WPL-10454005
...
104
Rail, Crisper Back WPL-10435603
...
111
Glide, Meat Kpr. WPL-10417301
...
114
Roller, Pan WPL-10481001
...
121
Glide, Meat Kpr. WPL-10432101
...
131
Pan, Mk WPL-10629203
...
134
Glass, Shelf WPL-Y10370063
...
141
Glass, Shelf WPL-Y10370062
...
151
Ext, Gl Shelf Side WPL-10562504
...
171
Roller, Pan WPL-10481001
...
174
Screw WPL-67006692
...
184
Extr-R Crisp Front WPL-10688050
...
191
Screw WPL-WPW10348409
...
194
Extr-L Crisp Front WPL-10688049
...
204
Seal, Crisper WPL-10530206
...
214
Screw WPL-67006692
...
251
Spacer-Mk Slide WPL-Y12019303
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
