Amana TR25S5W (BOM: P1196402W W)

Model: TR25S5W (BOM: P1196402W W)

Save Part Not Listed?
product name

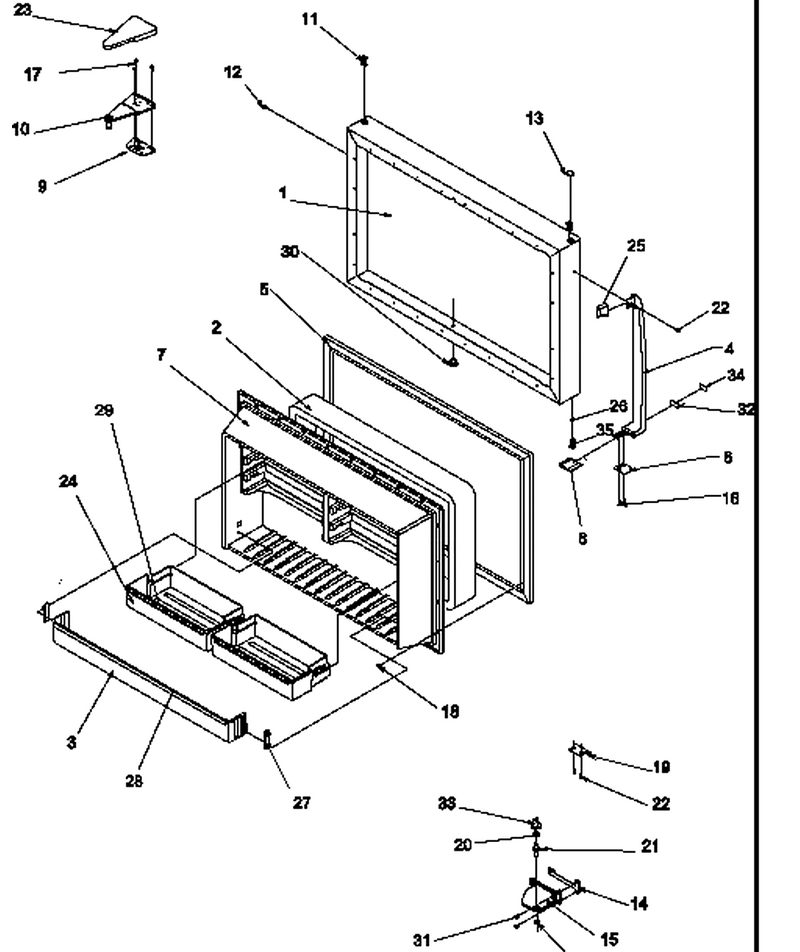

09 - Fz Door

...
...
1
Assy Frz Dr Fm WPL-10928403W
...
2
Insulation, Batt Frz. Dr. WPL-B0523593
...
3
Retainer, Ref Door WPL-10609302
...
4
Kit, W Fz Handle WPL-R0179261
...
5
Gasket,fz Dr(White) WPL-10456806
...
6
Clip-Door Cap WPL-12044401
...
7
Liner, Frz Door WPL-10609201Q
...
8
Cap, W Dr Handle WPL-10913501
...
9
Shim, Top Hinge WPL-10451303
...
10
Hinge, Top WPL-12077305
...
11
Bushing, Door (Wht) WPL-10961001
...
12
Button- Pl WPL-WP67001130
...
13
Plug Button WPL-10686401
...
14
Shim, Center Hinge WPL-10562201
...
15
Hinge-Center WPL-10433512
...
16
Screw-Sm Shldr WPL-M0221744
...
17
Kit, Screw WPL-R9800670
...
18
Screw WPL-WPM0219730
...
19
Stop, Door WPL-10447102
...
20
Shim- Non WPL-WPM0274057
...
21
Pin, Hinge (Ctr) WPL-10351002
...
22
Screw WPL-WPW10348409
...
23
Cover, Hinge (White) WPL-10444808
...
24
Shelf, Ref Door WPL-10420003
...
25
Cap, W Dr Handle WPL-10907402
...
26
Filter, Bushing WPL-10252903
...
27
Clip, Retainer WPL-10202001
...
28
Trim-Door Shelf WPL-10183984
...
29
Trim-Door Shelf WPL-10183983
...
30
Plug, Button (Wht) WPL-M0310308
...
31
Screw WPL-WP67006380
...
32
Insert, Nameplate WPL-10992117
...
33
Closure, Door (Wht) WPL-12028501
...
34
Nameplate, Handle WPL-10926601
...
35
Bushing, Door (Wht) WPL-12028601

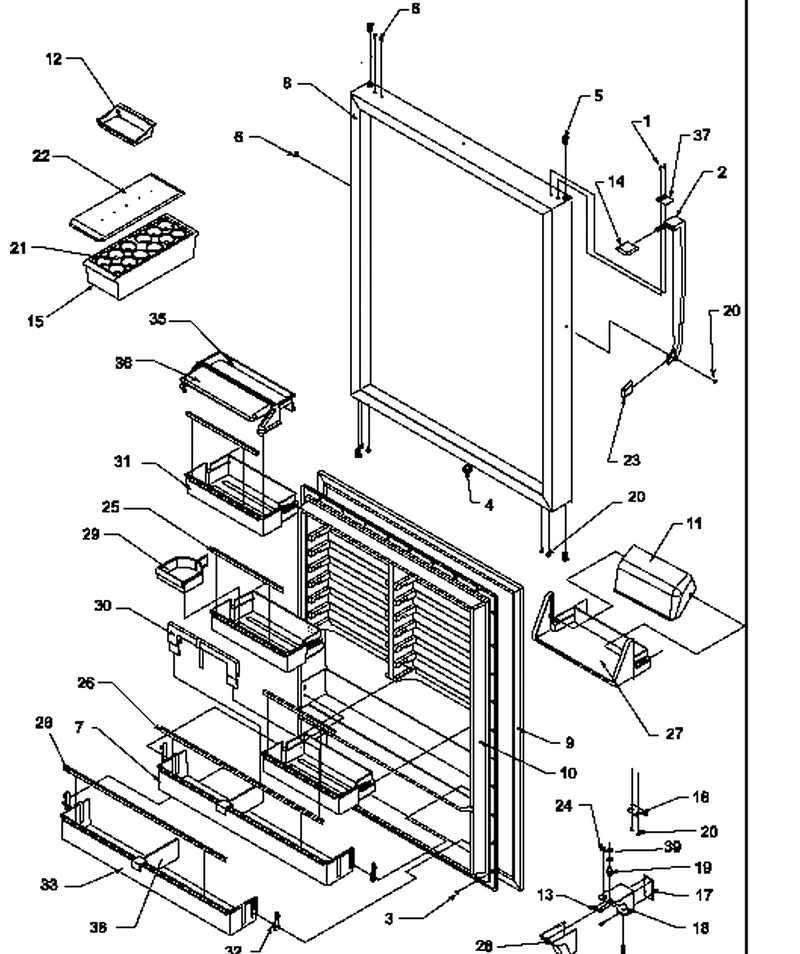

10 - Ref Door

...
...
1
Screw-Sm Shldr WPL-M0221744
...
2
Handle, W Ref WPL-10903101
...
3
Screw WPL-WPM0219730
...
4
Plug, Button (Wht) WPL-M0310308
...
5
Bushing, Door (Wht) WPL-10961001
...
6
Button- Pl WPL-WP67001130
...
7
Retainer, Ref Door WPL-10609802
...
8
Assy Ref Dr Fm WPL-10928301W
...
9
Gasket-Ref WPL-WP12550113Q
...
10
Liner, Refrig Door WPL-10609701
...
11
Door,dairy WPL-10422701
...
12
Tray, Butter WPL-10310901
...
13
Screw WPL-WP67006715
...
14
Cap, W Dr Handle WPL-10913501
...
15
Container WPL-WP10423131
...
16
Stop, Door WPL-10447102
...
17
Shim, Btm Hinge WPL-10447903
...
18
Hinge, Btm (White) WPL-10825301
...
19
Pin Hinge Bottom WPL-67007018
...
20
Screw WPL-WPW10348409
...
21
Tray, Egg WPL-10436505
...
22
Lid, Utility WPL-10436404
...
23
Cap, W Dr Handle WPL-10907401
...
24
Plug, Button White WPL-M0310330
...
25
Trim-Door Shelf WPL-10183983
...
26
Trim-Door Shelf WPL-10183984
...
27
Shelf, Dairy WPL-12163202
...
28
Cover, Hinge Lower (White) WPL-10462702
...
29
Hugger, Bottle (Shelf Divider) WPL-10441102
...
30
Retainer, Tall Pkg WPL-12106902
...
31
Shelf, Ref Door WPL-10420003
...
32
Clip, Retainer WPL-10202001
...
33
Retainer, Ref Door WPL-10609302
...
34
Feet-Lvlng WPL-W11177593
...
35
Shelf, Snack Stop WPL-10431701
...
36
Door, Snack Stop WPL-10431004
...
37
Clip-Door Cap WPL-12044401
...
38
Snugger, Door Shelf (Shelf Div WPL-10467501
...
39
Shim- Non WPL-WPM0274058

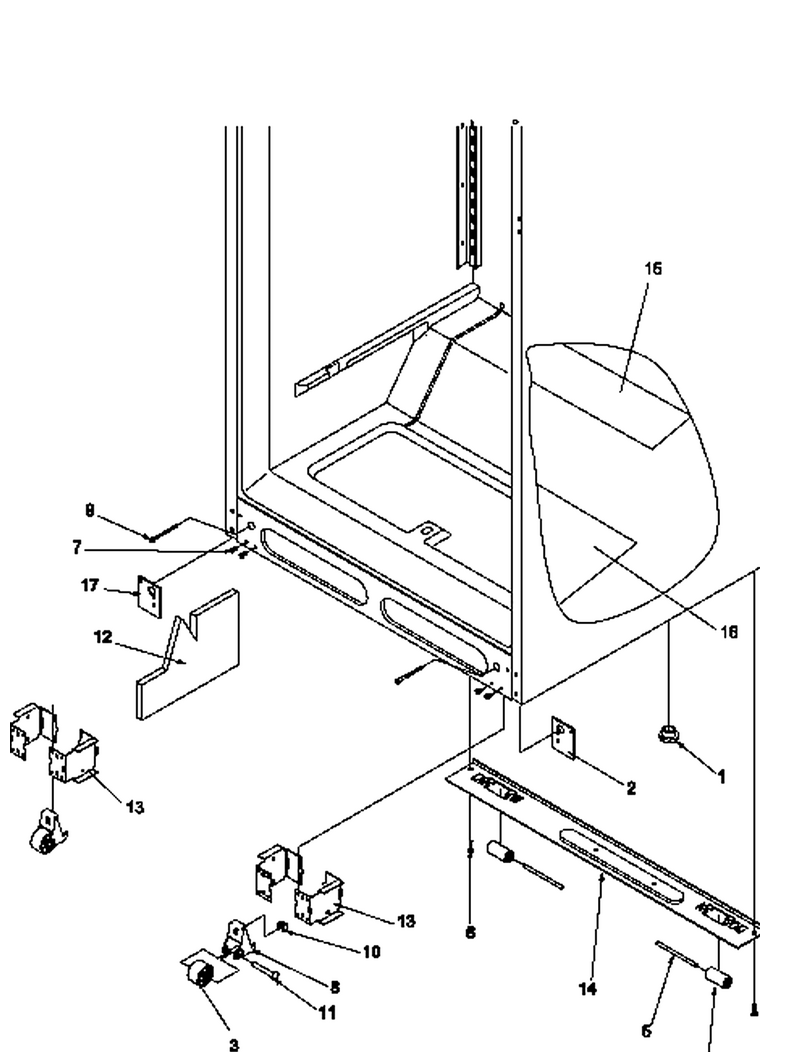

02 - Cabinet Bottom

...
...
NI
Assy, Roller Brkt WPL-10476101Q
...
1
Plug, Button WPL-A3076901
...
2
Plate-Lw Hng Tap WPL-10567205
...
3
Roller WPL-WP10450603
...
4
Roller, Rear WPL-10450701
...
5
Axle, Roller WPL-10450901
...
6
Screw, Tf WPL-M0260242
...
7
Screw WPL-W11573574
...
8
Assy, Roller Brkt WPL-10476101Q
...
9
Screw, Mach WPL-M0204338
...
10
Nut, Speed WPL-M0286708
...
11
Rivet WPL-M1205302
...
12
Insulation WPL-10987514
...
13
Housing-Roller WPL-10427204
...
14
Cabinet Brace-Pnt WPL-10427114
...
15
Insulation WPL-10987520
...
16
Insulation WPL-10987517
...
17
Plate-Lw Hng Tap WPL-10567206

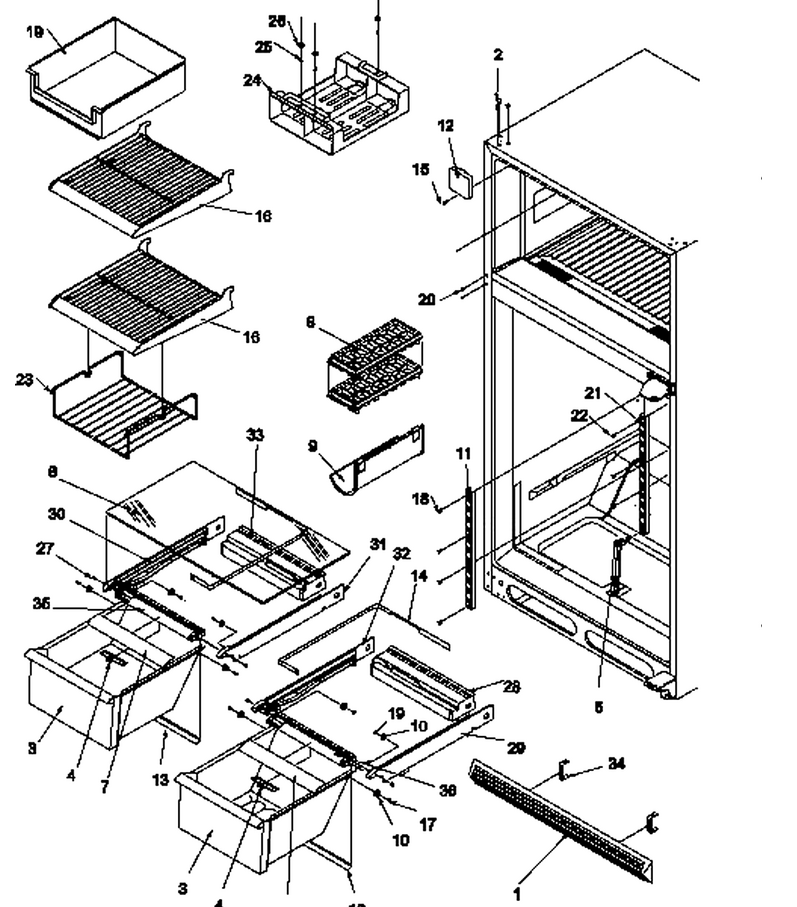

03 - Cabinet Shelving

...
...
NI
Assy, Crisp Frame WPL-10698521Q
...
1
Grille, Toe (White) WPL-10629402
...
2
Button- Pl WPL-WP67001130
...
3
Pan, Crisper WPL-10629103
...
4
Slide, Crisper WPL-10797501
...
5
Post, Crisper Support WPL-10461901
...
6
Glass, Shelf WPL-Y10370063
...
7
Extr-L Crisp Front WPL-10688049
...
8
Tray WPL-WP841180A
...
9
Rack, Utility WPL-10992303
...
10
Roller, Pan WPL-10481001
...
11
Ladder, Center WPL-D7599004
...
12
Cover-Fl Tb/plug WPL-D7874403
...
13
Seal, Crisper WPL-10530206
...
14
Band, Crisper Cont WPL-10467806
...
15
Screw (3) WPL-67006425
...
16
Shelf, Wire Frz WPL-10923702
...
17
Screw WPL-67006692
...
18
Screw-Sm WPL-M0238636
...
19
Pan, Ice WPL-D7806201
...
20
Button- Pl WPL-WP67001130
...
21
Ladder, Side WPL-D7599106
...
22
Screw (3) WPL-67006425
...
23
Rack, Freezer WPL-10250502
...
24
Rack, Ice Service WPL-10423001
...
25
Screw, Sm WPL-M0238823
...
26
Washer WPL-M0270519
...
27
Screw WPL-67006692
...
28
Rail, Crisper Back WPL-10433803
...
29
Rail, Side Crisper WPL-10432701
...
30
Rail, Side Crisper WPL-10432704
...
31
Rail, Ctr. Crisper WPL-10432803
...
32
Rail, Ctr. Crisper WPL-10432804
...
33
Rail, Crisper Back WPL-10435603
...
34
Clip- Toe WPL-WP10551502
...
35
Rail, Crisper Fr (L) WPL-10687902
...
36
Rail, Crisper Fr (R) WPL-10687901

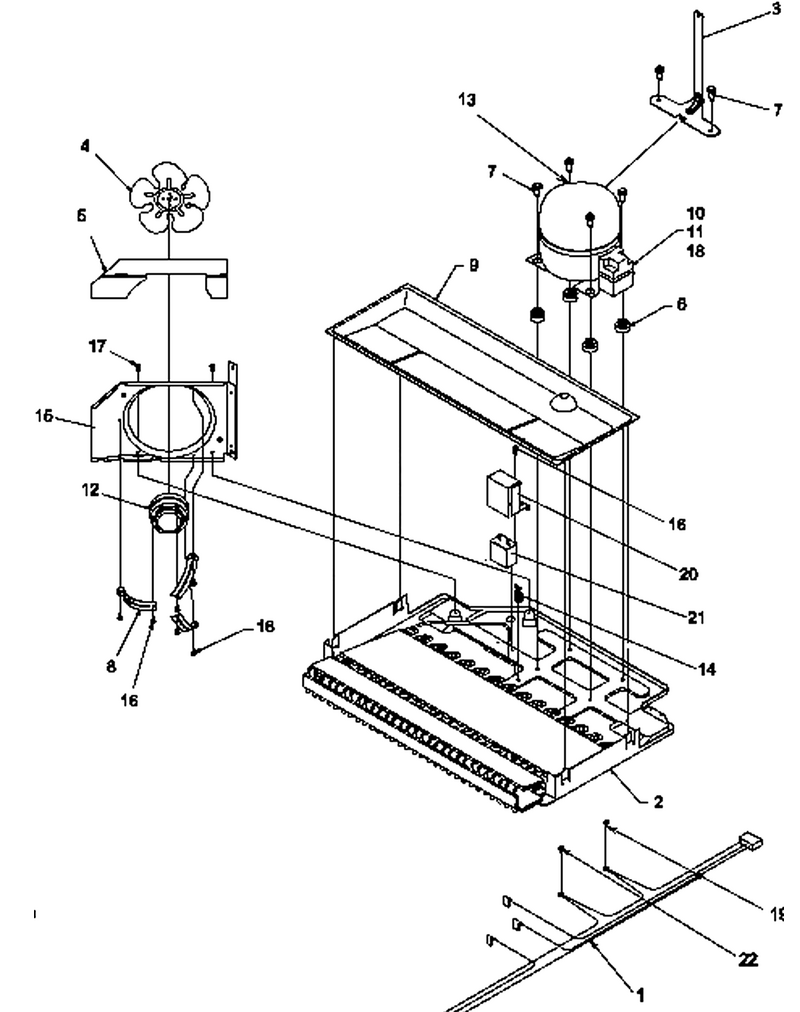

05 - Compressor Compartment

...
...
1
Harness, Mach Comp WPL-10705804
...
2
Assy,cond/pan-E Ct WPL-10481212
...
3
Brace, Back Oc WPL-R0000019
...
4
Blade, Fan WPL-B5742604
...
5
Gasket, Cond. Fan WPL-10442702
...
6
Grommet, Compressor WPL-67003493
...
7
Screw, Shldr WPL-M0221523
...
8
Bracket, Cond. Motor WPL-10582501
...
9
Pan, Drain WPL-10427406
...
10
Overload WPL-10377015
...
11
Start-Dev WPL-WP10097202
...
12
Motor-Cond WPL-833697
...
13
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
14
Wire Clip WPL-B5667304
...
15
Cond Fan Shrd-E Ct WPL-10426911
...
16
Screw WPL-M0223803
...
17
Screw WPL-WP90767
...
18
Cover-Term WPL-4344043
...
19
Screw WPL-12992301
...
20
Shield, Capacitor WPL-10266402
...
21
Capacitor WPL-WP65889-4
...
22
Screw WPL-WP489399

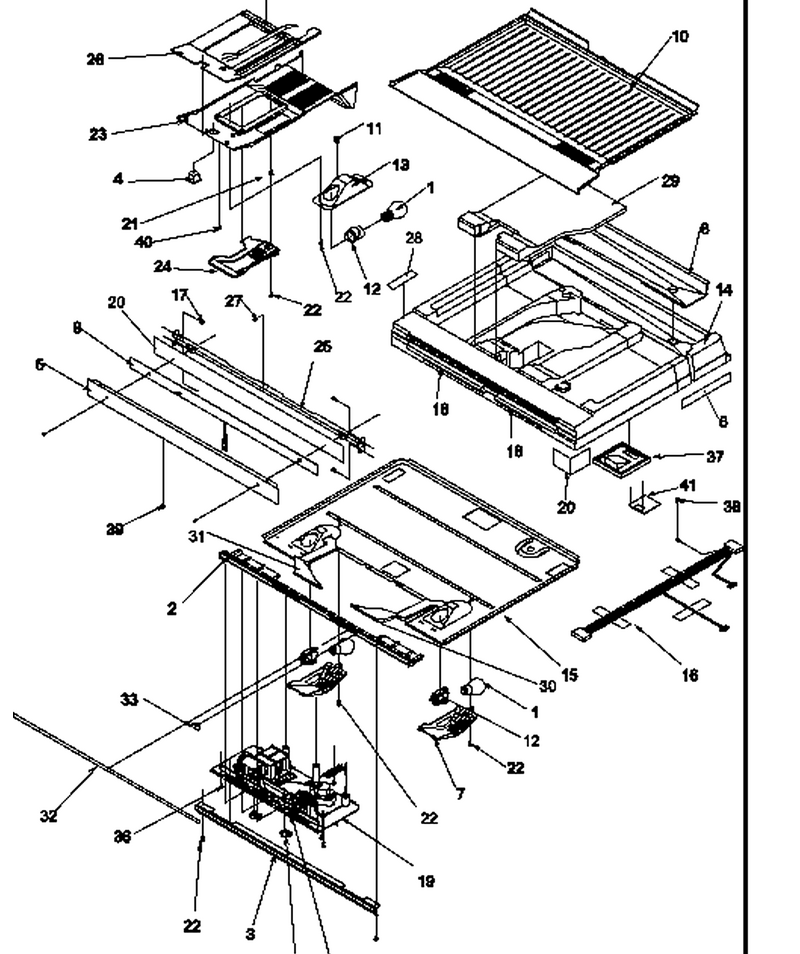

07 - Divider Block

...
...
1
Light Bulb WPL-8009
...
2
Frame-Ref Top Brk WPL-10673704
...
3
Extr, Refrig Light WPL-10645603
...
4
Switch WPL-W11384469
...
5
Mullion,center-W Ect WPL-10433363WD
...
6
Gasket, Sealing WPL-10685509
...
7
Shield, Refrig. Light WPL-10508701
...
8
Drip Tray WPL-10671702
...
9
Heater, Mullion WPL-10543603
...
10
Bottom, Frz WPL-10995901
...
11
Clip, Ground WPL-B5733302
...
12
Socket, Light WPL-D7714408
...
13
Housing-Light WPL-C8730103
...
14
Kit, Drain Blk/ Frz Floor WPL-10996201
...
15
Ref Top- E Ct WPL-12035204
...
16
Harness, Mullion WPL-10573505
...
17
Kit, Screw WPL-R9800670
...
18
Insulation WPL-10772301
...
19
See Note Control Assembly -- (See Page 24 For Parts Breakdown) WPL-Y00000000
...
20
Insulation Per Ft. WPL-B0523584
...
21
Grommet, Screw WPL-M0580007
...
22
Screw WPL-WP90767
...
23
Duct, Frz Air WPL-10440405
...
24
Shield, Frz Light WPL-10678401
...
25
Plate, Center Tap WPL-10433612
...
26
Insul. Air Duct WPL-10779601
...
27
Screw WPL-M0253916
...
28
Gasket, Sealing WPL-B5759626
...
29
Insert, Drain Block WPL-10476402
...
30
Pipe, Light WPL-10467701
...
31
Pipe, Light WPL-10467702
...
32
Membrane, Breaker WPL-10450832
...
33
Cap, Switch WPL-10453001
...
34
Knob, Control WPL-10565401
...
35
Screw WPL-WP489464
...
36
Screw WPL-W10856125
...
37
Insert-Mk Air Sply WPL-10995201
...
38
Screw WPL-WP489399
...
39
Screw - Sm WPL-M0211520
...
40
Screw WPL-WP98165
...
41
Gasket, Mk Air Supply WPL-10594901

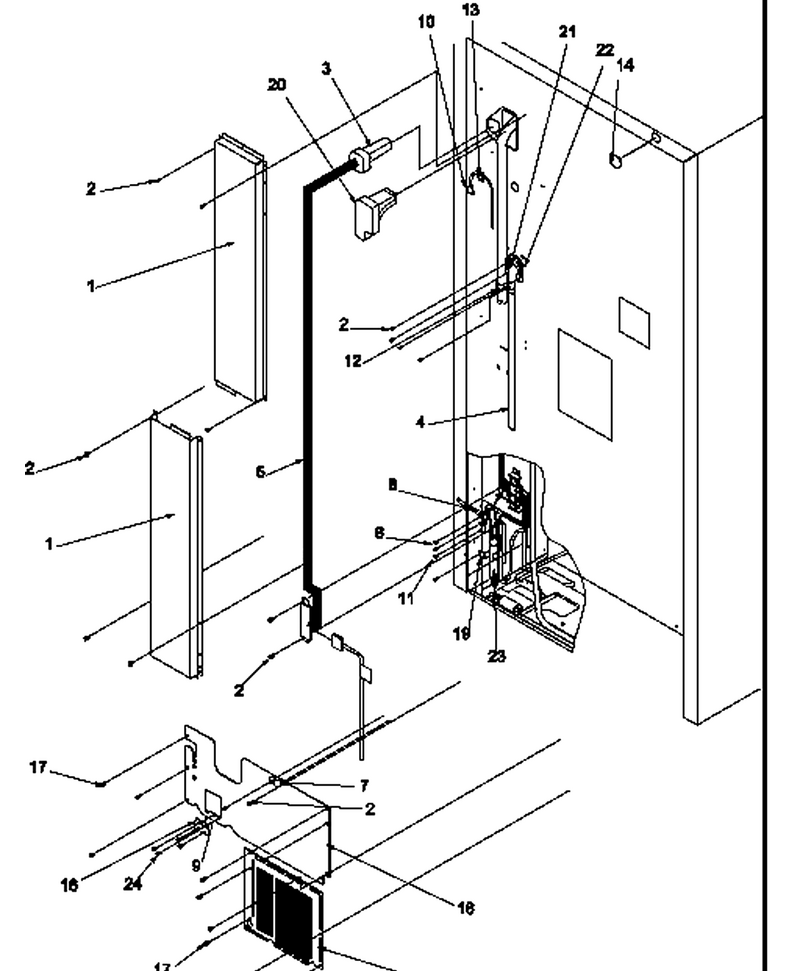

01 - Cabinet Back

...
...
1
Cover, Ht Exch WPL-10442205
...
2
Screw, Sm WPL-M0227217
...
3
Grommet WPL-10699301
...
4
Tube, Drain WPL-10442503
...
5
Harness, Cab. WPL-12075603
...
6
Screw, Sm WPL-M0227217
...
7
Clip, Tube WPL-10547101
...
8
Clamp, Speed WPL-M0103904
...
10
Cord, Power WPL-10916501
...
11
Screw, Spextite WPL-M0232330
...
12
Clamp WPL-B8372901
...
13
Clip WPL-WPM0104106
...
14
Plug, Im Tunnel WPL-10544301
...
15
Back, Mach Comp WPL-12039807
...
16
Mc Back Assy WPL-12041845
...
17
Screw WPL-WP489464
...
18
Plate-Water Valve WPL-12047201
...
19
Clip, Drier WPL-10547001
...
20
Plug, Ht Exch V WPL-10428001
...
21
Elbow, Drain Tube WPL-10163203
...
22
Gasket WPL-A3132301
...
23
Drier WPL-WPB2150504
...
24
Screw WPL-WP90767

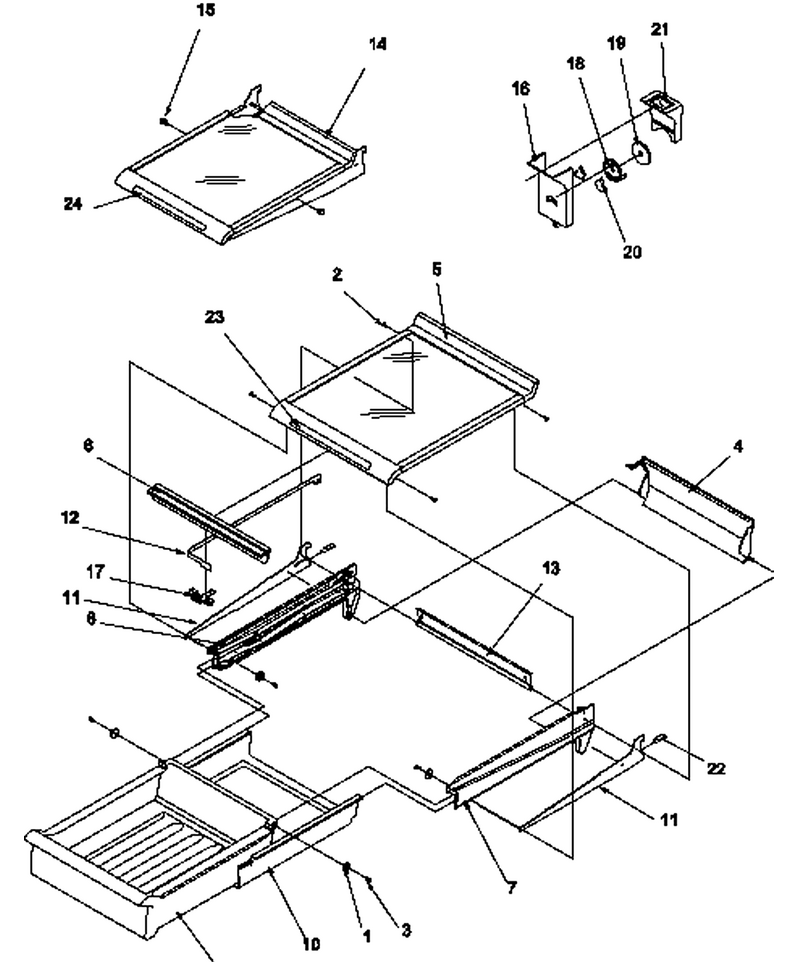

04 - Cabinet Shelving

...
...
NI
Ass`y, Shelf/insert WPL-10926202
...
1
Roller, Pan WPL-10481001
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-67006692
...
4
Scoop, Air WPL-10445704
...
5
Shelf Glide WPL-10895802
...
6
Extrusion-Mk Fr WPL-10920302
...
7
Glide, Mk R WPL-10880201
...
8
Glide, Mk L WPL-10897101
...
9
Pan, Mk WPL-10629203
...
10
Sleeve, Mk WPL-10629301
...
11
Blank-Side Rail WPL-10992407
...
12
Band, Mk Control WPL-10920102
...
13
Extr, Mk Rear WPL-10920204
...
14
Shelf Glide WPL-10895806
...
15
Stop, Shelf WPL-10875101
...
16
Cover, Mk Air Sply WPL-10642103
...
17
Slide, Mk Control WPL-10920401
...
18
Control, Mt. Kpr. Air Sup WPL-10479401
...
19
Insert, Mk Control WPL-10565701
...
20
Gasket, Mt Kpr Duct WPL-10852401
...
21
Tunnel, Mt Kpr WPL-10479103
...
22
Clip-Sta Shelf WPL-12016601
...
23
Insert, Shelf WPL-12085815
...
24
Insert, Shelf WPL-12085814

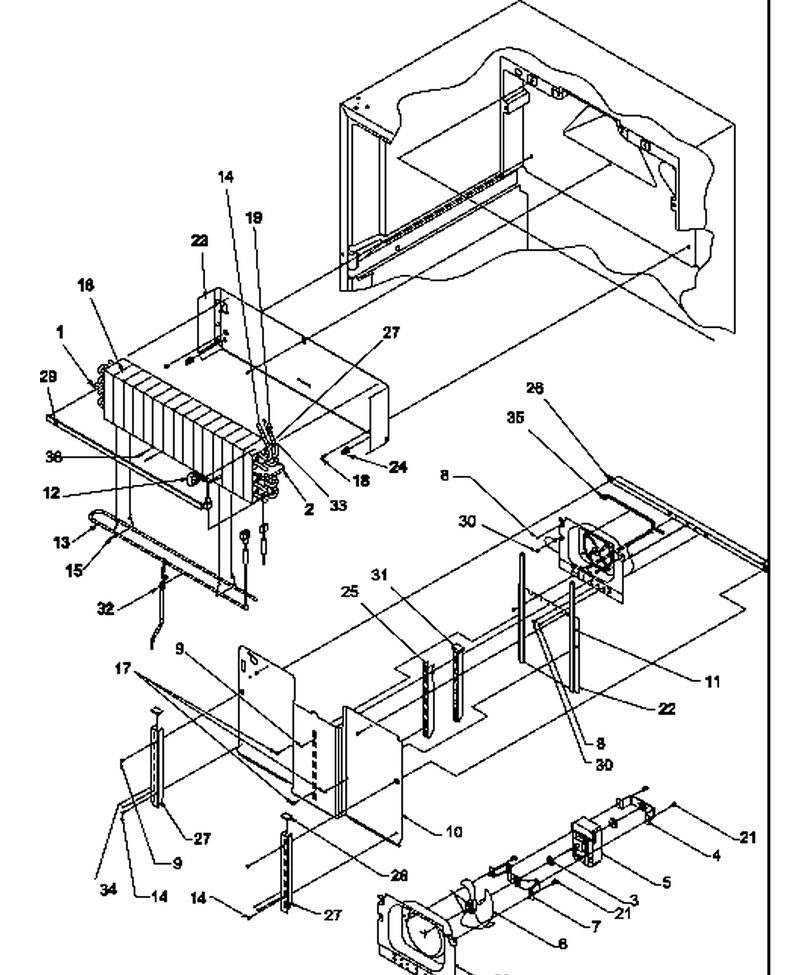

08 - Evap Assy

...
...
NI
Wire Tie WPL-M0321204
...
1
Block, Evap. L. WPL-10428301
...
2
Block-R Evap WPL-10991001
...
3
Grommet WPL-WP2264462
...
4
Brkt, Evap. Fan WPL-10771701
...
5
Motor, Evap Fan WPL-10654206
...
6
Blade-Fan WPL-W10116797
...
7
Brkt, Mtr/shroud WPL-10771801
...
8
Screw WPL-WP489464
...
9
Screw WPL-M0230924
...
10
Cover, Evap WPL-10432412
...
11
Gasket WPL-A3030356
...
12
Thermostat WPL-WP10442410
...
13
Heater, Evaporator WPL-10991103
...
14
Screw, Sm WPL-M0238921
...
15
Clip WPL-W11673433
...
16
Assy,low Side WPL-R0170061
...
17
Screw (3) WPL-67006425
...
18
Screw (3) WPL-67006425
...
19
Tape Per Roll WPL-M0275150
...
20
Shroud, Evap. Fan WPL-10422304
...
21
Screw WPL-WP90767
...
22
Cover, Evap WPL-10440704
...
23
Shield, Evap WPL-10427714
...
24
Clip, Evaporator WPL-10442301
...
25
Ladder, Center WPL-10439305
...
26
Supp-Ctr Ladder WPL-10439704
...
27
Ladder, L. Side Evap. WPL-10439402
...
28
Cap Frz Ladder WPL-10562401
...
29
Gasket, Foam WPL-A3189358
...
30
Screw WPL-WP489399
...
31
Insert, Frz. Ladder WPL-10584701
...
32
Clip, Ht Transfer WPL-10586601
...
33
Tie-Wire WPL-WPM0321209
...
35
Gasket WPL-A3030354
...
36
Support, Frz Ladder WPL-10481102

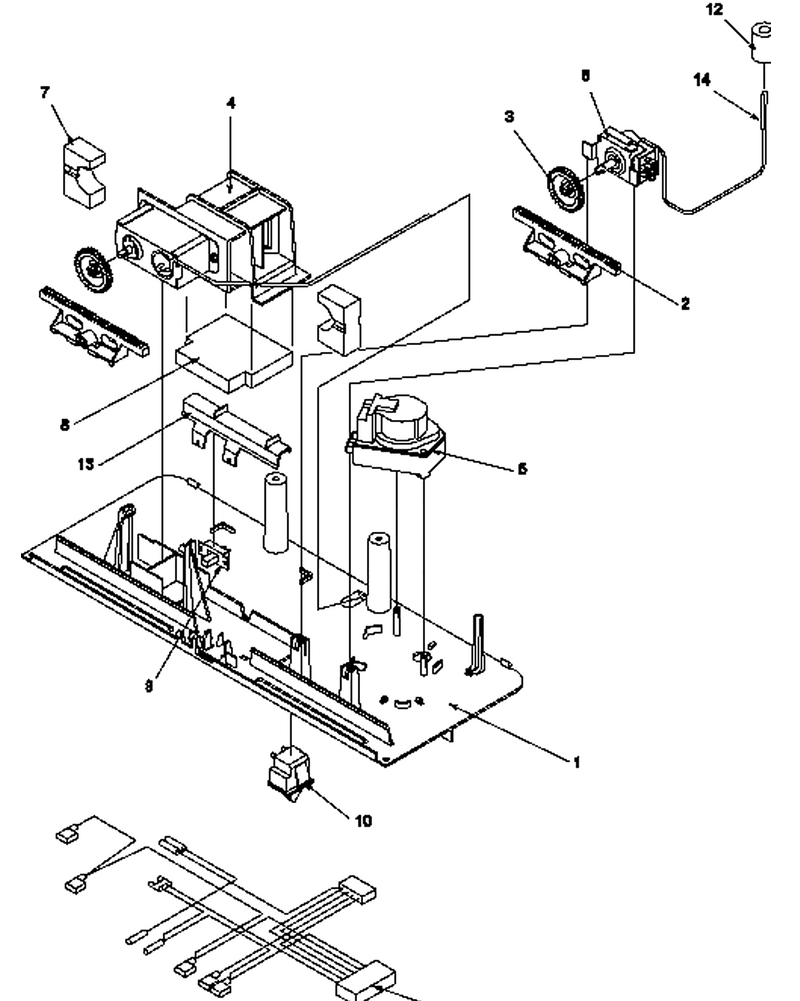

06 - Control Panel Assy

...
...
1
Kit, Housing Control WPL-R9800612
...
2
Rack, Control WPL-10439601
...
3
Pinion, Control WPL-10442601
...
4
Assy, Damper Control WPL-R0161072
...
5
Timer-Def WPL-R0168027
...
6
Assy, Frz Control WPL-R9700006
...
7
Insert,damper WPL-10442801
...
8
Insulation, Damper WPL-10442901
...
9
Switch, St WPL-M0350201
...
10
Switch WPL-W11384469
...
11
Harness, Control WPL-10573401
...
12
Insulation, Cap WPL-10673603
...
13
Shield, Wire WPL-10565101
...
14
Tube-Plastic WPL-A3012542
