Amana TR22S4L (BOM: P1196201W L)

Model: TR22S4L (BOM: P1196201W L)

Save Part Not Listed?
product name

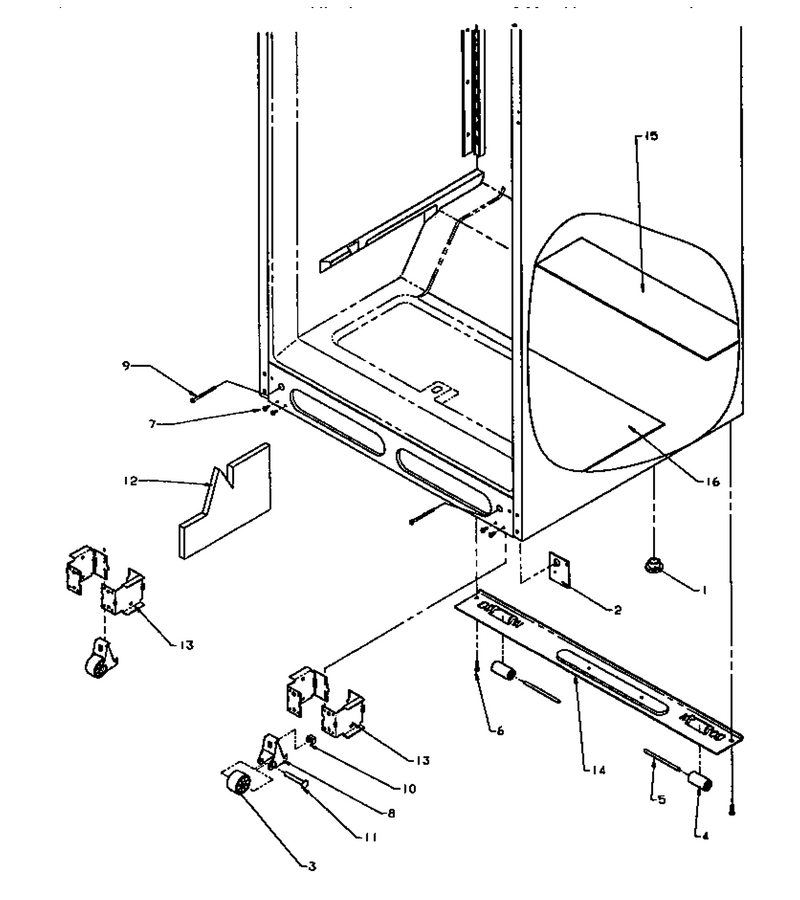

02 - Cabinet Bottom

...
...
NI
Assy, Roller Brkt WPL-10476101Q
...
1
Plug, Button WPL-A3076901
...
2
Kit, Lw Hinge Plate WPL-R0194687
...
3
Roller WPL-WP10450603
...
4
Roller, Rear WPL-10450701
...
5
Axle, Roller WPL-10450901
...
6
Screw, Tf WPL-M0260242
...
7
Screw WPL-WP98165
...
8
Assy, Roller Brkt WPL-10476101Q
...
9
Screw, Mach WPL-M0204338
...
10
Nut, Speed WPL-M0286708
...
11
Rivet WPL-M1205302
...
12
Insulation WPL-10987514
...
13
Housing-Roller WPL-10427204
...
14
Brace WPL-10427104
...
15
Insulation WPL-10987519
...
16
Insul-Mach Top WPL-10987516

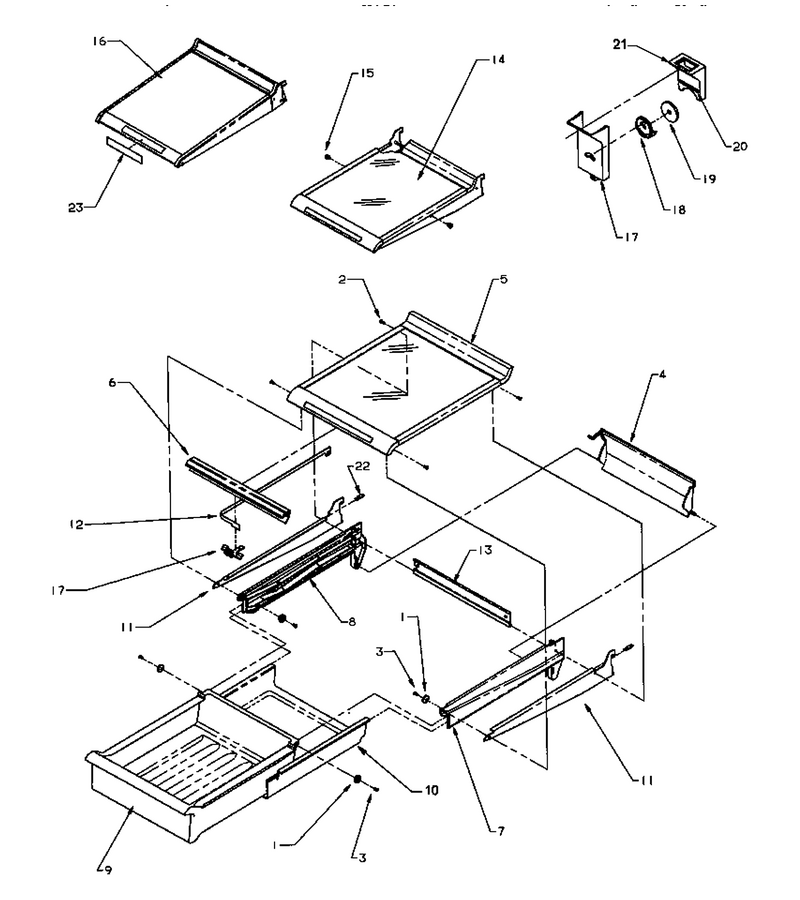

04 - Cabinet Shelving

...
...
NI
Ass`y, Shelf/insert WPL-10926201
...
1
Roller, Pan WPL-10481001
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-67006692
...
4
Scoop, Air V WPL-10445701
...
5
Shelf, Stationary WPL-10895705
...
6
Extrusion, Mk Frt WPL-10920303
...
7
Glide, Mk R WPL-10880201
...
8
Glide, Mk L WPL-10897101
...
9
Pan,meatkeeper WPL-10417013
...
10
Sleeve, Mk WPL-10437305
...
12
Band, Mk Control WPL-10920101
...
13
Extr, Mk Rear WPL-10920203
...
14
Shelf Guide WPL-10895805
...
15
Stop, Shelf WPL-10875101
...
17
Cover, Mk Air Sply WPL-10642103
...
18
Control, Mt. Kpr. Air Sup WPL-10479401
...
19
Insert, Mk Control WPL-10565701
...
20
Gasket, Mt Kpr Duct WPL-10852401
...
21
Tunnel, Mt Kpr WPL-10479103

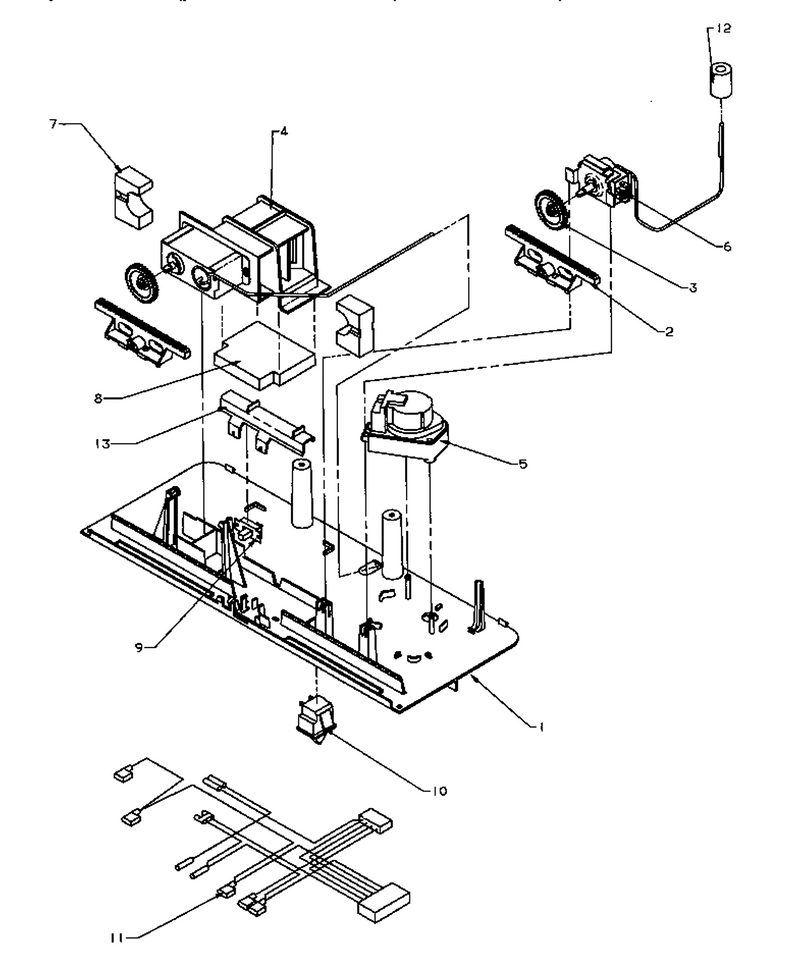

06 - Control Panel Assy

...
...
1
Housing, Control WPL-10880602
...
2
Rack, Control WPL-10439601
...
3
Pinion, Control WPL-10442601
...
4
Assy, Damper Control WPL-R0161072
...
5
Timer-Def WPL-R0168027
...
6
Assy, Frz Control WPL-R9700006
...
7
Insert,damper WPL-10442801
...
8
Insulation, Damper WPL-10442901
...
9
Switch, St WPL-M0350201
...
10
Switch WPL-W11384469
...
11
Harness, Control WPL-10573401
...
12
Insulation, Cap WPL-10673603
...
13
Shield, Wire WPL-10565101

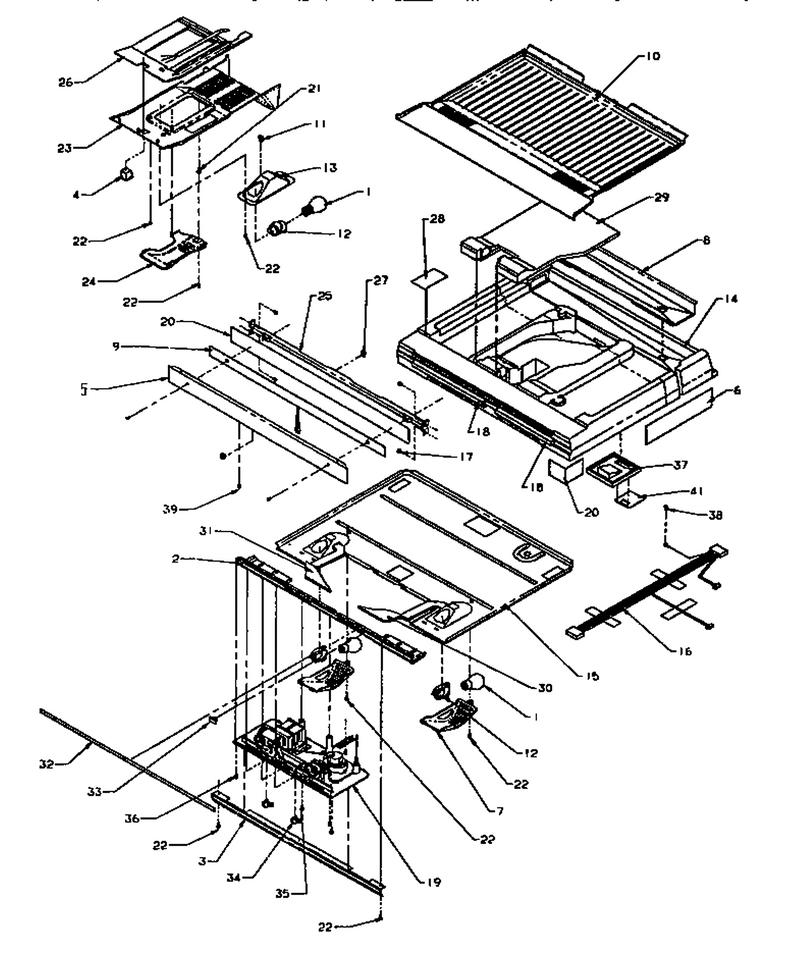

07 - Divider Block

...
...
1
Light Bulb WPL-8009
...
2
Frame, 21 Breaker WPL-10435516
...
3
Extrusion, Rear Light WPL-10645602
...
4
Switch WPL-W11384469
...
5
L Center Mull-Pnt WPL-10433344
...
6
Gasket, Sealing WPL-10685509
...
7
Shield, Refrig. Light WPL-10508701
...
8
Tray, Drip WPL-10435912
...
9
Heater, Mullion WPL-10543602
...
10
Freezer Bottom WPL-10995002
...
11
Clip, Ground WPL-B5733302
...
12
Socket, Light WPL-D7714408
...
13
Shield, Light WPL-R0176034
...
14
Block-Drain WPL-10996101
...
15
Top, Refrig. (E-Coat) WPL-10437122
...
16
Harness, Mullion WPL-10573505
...
17
Kit, Screw WPL-R9800670
...
18
Insulation WPL-10772301
...
19
See Note Control Assy -- (See Control Panel Assy Page For Parts Breakdown) WPL-Y00000000
...
20
Insulation Per Ft. WPL-B0523584
...
21
Grommet, Screw WPL-M0580007
...
22
Screw WPL-WP90767
...
23
Duct, Frz Air WPL-10440405
...
24
Shield, Frz Light WPL-10678401
...
25
Plate, Center Tap WPL-10433611
...
26
Insul. Air Duct WPL-10779601
...
27
Gasket, Mk Air Supply WPL-10594901
...
28
Gasket, Sealing WPL-B5759626
...
29
Insert, Drain Block WPL-10476402
...
30
Pipe, Light WPL-10467701
...
31
Pipe, Light WPL-10467702
...
32
Membrane, Breaker WPL-10450833
...
33
Cap, Switch WPL-10453001
...
34
Knob, Control WPL-10565401
...
35
Screw WPL-WP489464
...
36
Screw WPL-WPW10348409
...
37
Insert-Mk Air Sply WPL-10995201
...
38
Screw WPL-WP489399
...
39
Screw - Sm WPL-M0211520

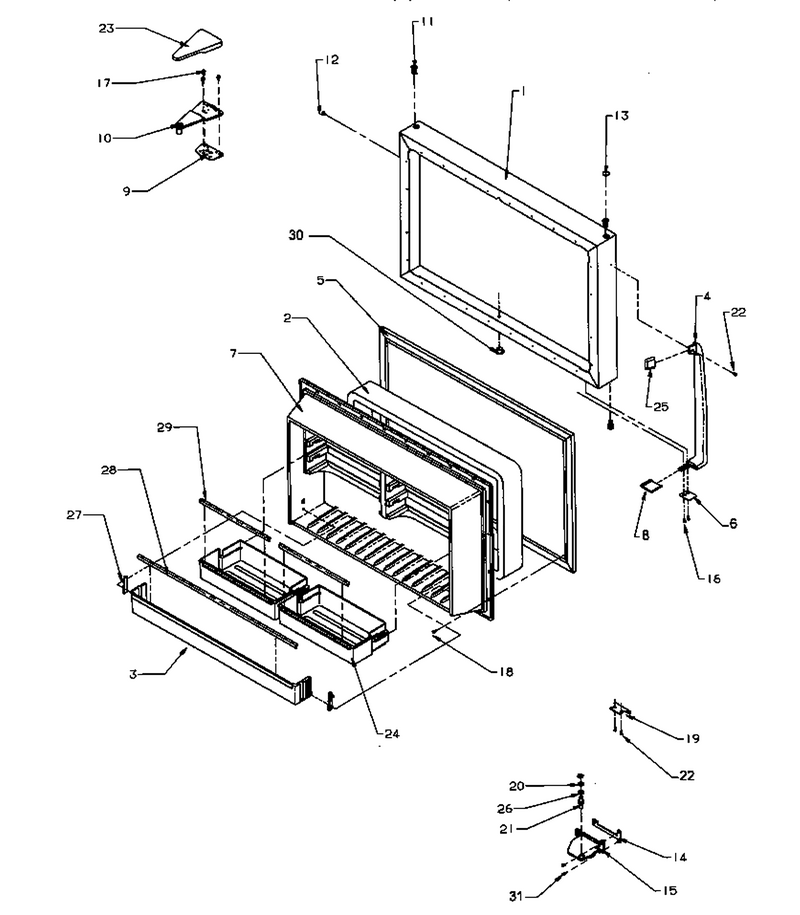

09 - Fz Door Assy

...
...
1
Assy Frz. Dr Fm WPL-10925602L
...
2
Insulation, Batt Frz. Dr. WPL-B0523593
...
3
Retainer,ref/fz Dr WPL-10419020
...
4
Handle, L Frz WPL-12325503
...
5
Gasket- Fr WPL-WP12550112Q
...
6
Clip-Door Cap WPL-10917301
...
7
Liner, Frz Door WPL-10447501
...
8
Cap-L Dr Handle WPL-10913502
...
9
Shim, Top Hinge WPL-10451301
...
10
Hinge, Top WPL-12077305
...
11
Bushing, Door (Wht) WPL-10961001
...
12
Plug Button (Almond) WPL-M0310730
...
13
Plug,button(Bisque) WPL-10686407
...
14
Shim, Center Hinge WPL-10562202
...
15
Hinge-Center WPL-10433503
...
16
Screw-Sm Shldr WPL-M0221744
...
17
Kit, Screw WPL-R9800670
...
18
Screw WPL-WPM0219730
...
19
Stop, Door WPL-10447102
...
20
Shim- Non WPL-WPM0274057
...
21
Pin- Cente WPL-WP67006744
...
22
Screw WPL-WPW10348409
...
23
Cover, Hinge (Almond) WPL-10444809
...
24
Shelf, Ref Door WPL-10183021
...
25
Cap-L Fz Hndl WPL-10907404
...
26
Shim- Non WPL-WPM0274058
...
27
Clip, Retainer WPL-10202001
...
28
Trim Door Shelf WPL-10183971
...
29
Trim-Door Shelf WPL-10183987
...
30
Plug Button Almond WPL-M0310338
...
31
Screw WPL-WP67006380

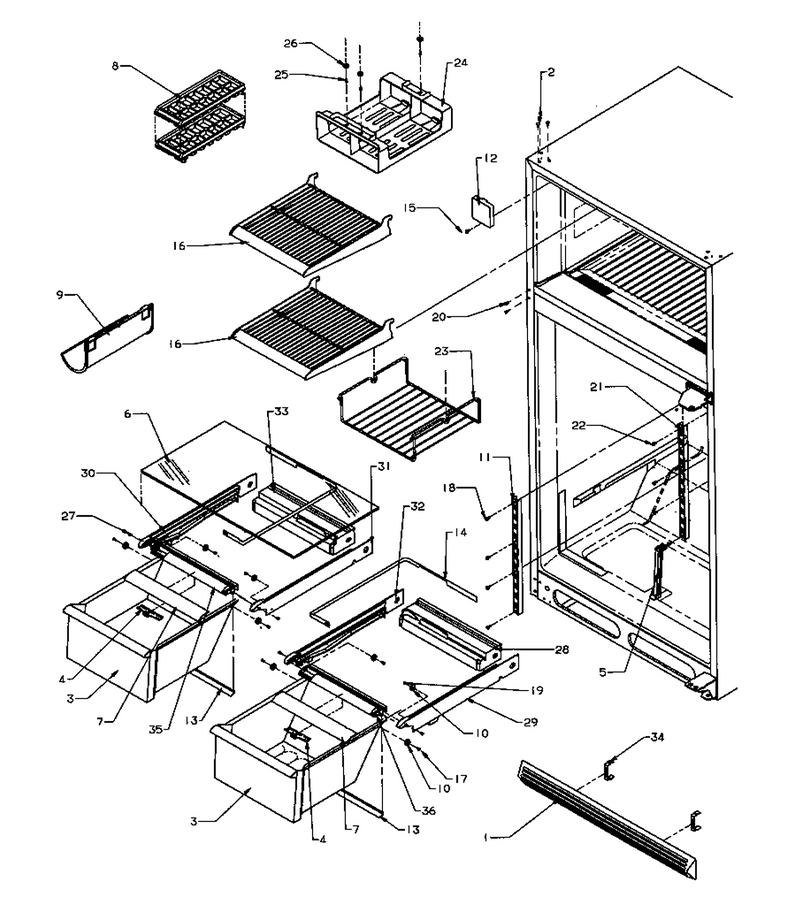

03 - Cabinet Shelving

...
...
NI
Assy- Cris WPL-10698501Q
...
1
Grille- L Toe V WPL-10474804
...
2
Plug Button (Almond) WPL-M0310730
...
3
Pan-Crisper WPL-Y10430111
...
4
Slide, Crisper WPL-10797501
...
5
Post, Crisper Support WPL-10461901
...
6
Shelf, Glass WPL-10370012
...
7
Extr, L Crisp Front WPL-10688054
...
8
Tray WPL-WP841180A
...
9
Rack, Utility WPL-10992303
...
10
Roller, Pan WPL-10481001
...
11
Ladder, Center WPL-D7599002
...
12
Cover-Fl Tb/plug WPL-D7874403
...
13
Seal- Cris WPL-WP10530204
...
14
Band- Cris WPL-67006989
...
15
Screw (3) WPL-67006425
...
16
Shelf, Wire Frz WPL-10923701
...
17
Screw WPL-67006692
...
18
Screw-Sm WPL-M0238636
...
19
Screw WPL-67006692
...
20
Plug Button (Almond) WPL-M0310730
...
21
Ladder, Side WPL-D7599105
...
22
Screw (3) WPL-67006425
...
23
Rack, Freezer WPL-10250502
...
24
Rack, Ice Service WPL-10423001
...
25
Screw, Sm WPL-M0238823
...
26
Washer WPL-M0270519
...
27
Screw WPL-67006692
...
28
Rail, Crisper Back WPL-10433804
...
29
Rail, Side Crisper WPL-10432701
...
30
Rail, Side Crisper WPL-10432704
...
31
Rail, Ctr. Crisper WPL-10432803
...
32
Rail, Ctr. Crisper WPL-10432804
...
33
Rail, Crisper Back WPL-10435604
...
34
Clip- Toe WPL-WP10551502
...
35
Rail, L. Crisper Frt WPL-10687802
...
36
Rail, R. Crisper Frt WPL-10687801

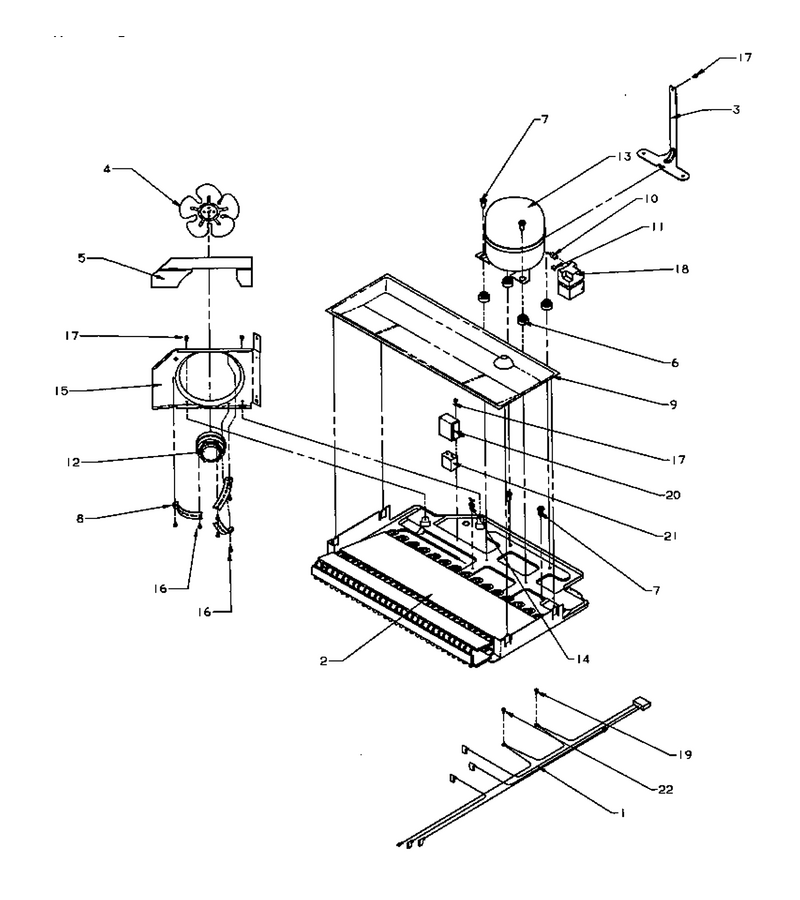

05 - Compressor Compartment

...
...
1
Harness, Mach Comp WPL-10705804
...
2
Assy, Cond Pan WPL-10481210
...
4
Blade, Fan WPL-B5742602
...
5
Gasket, Cond. Fan WPL-10442702
...
6
Grommet, Compressor WPL-67003493
...
7
Screw, Shoulder WPL-M0221548
...
8
Bracket, Cond. Motor WPL-10582501
...
9
Pan, Drain WPL-10427405
...
10
Overload WPL-10377015
...
11
Start-Dev WPL-WP10097202
...
12
Motor-Cond WPL-833697
...
13
Compressor (Includes Items 81, 82, 83, 84, 85, 86, & 87) Also Order WPL-4388009
...
14
Wire Clip WPL-B5667304
...
15
Cond Fan Shrd-E Ct WPL-10426911
...
16
Screw WPL-M0223803
...
17
Screw WPL-WP12990527
...
18
Cover-Term WPL-4344043
...
19
Screw WPL-M0253916
...
20
Shield, Capacitor WPL-10266402
...
21
Capacitor WPL-WP65889-4
...
22
Screw WPL-WP489399

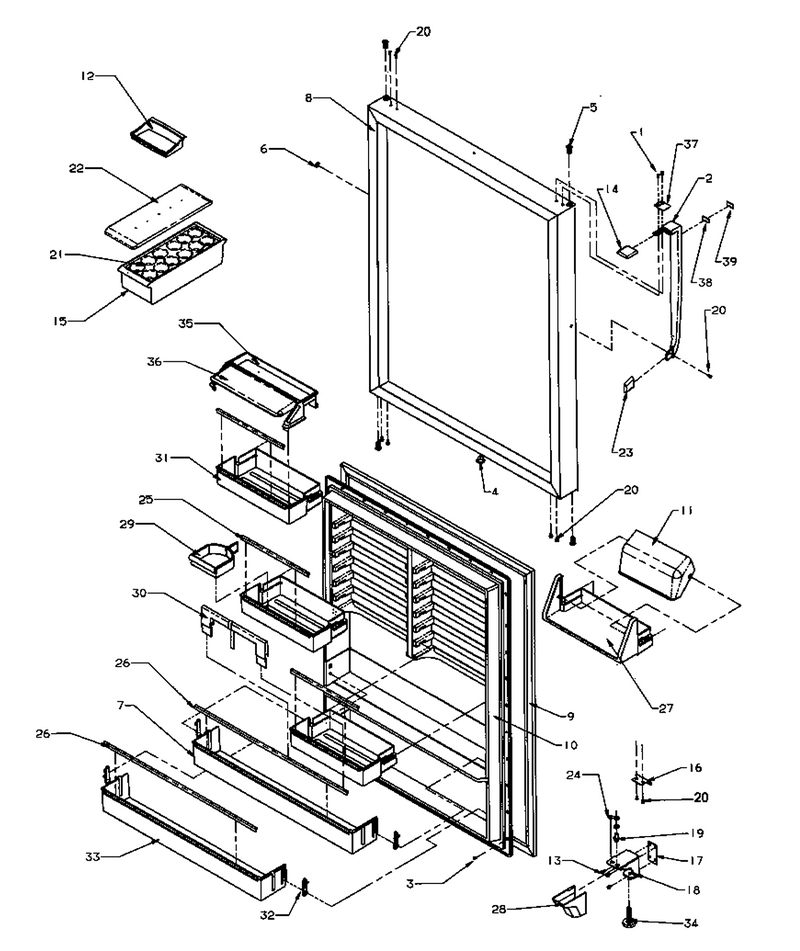

10 - Ref Door Assy

...
...
1
Screw-Sm Shldr WPL-M0221744
...
2
Handle, L Ref WPL-12325504
...
3
Screw WPL-WPM0219730
...
4
Plug Button Almond WPL-M0310338
...
5
Bushing, Door (Wht) WPL-10961001
...
6
Plug Button (Almond) WPL-M0310730
...
7
Retainer- WPL-WP10183120
...
8
Use 10925414l WPL-10925402L
...
9
Gasket- Re WPL-WP12550111Q
...
10
Liner, Refrig. Door WPL-10444601
...
11
Door- Dairy WPL-12348101
...
12
Tray, Butter WPL-10310901
...
13
Screw WPL-WP67006715
...
14
Cap-L Dr Handle WPL-10913502
...
15
Container WPL-WP10423131
...
16
Stop, Door WPL-10447102
...
17
Shim, Btm Hinge WPL-10447901
...
18
Hinge, Bottom WPL-10575307
...
19
Pin Hinge Bottom WPL-67007018
...
20
Screw WPL-WPW10348409
...
21
Tray, Egg WPL-10436504
...
22
Lid, Utility WPL-10436404
...
23
Cap-L Ref Hndl WPL-10907403
...
24
Plug, Button Almond WPL-M0310331
...
25
Trim-Door Shelf WPL-10183987
...
26
Trim Door Shelf WPL-10183971
...
27
Shelf, Dairy WPL-10182702
...
28
Cover-L Hinge Lw WPL-10462704
...
29
Hugger, Bottle (Shelf Divider) WPL-10441102
...
30
Retainer, Tall Pkg WPL-12106902
...
31
Shelf, Ref Door WPL-10183021
...
32
Clip, Retainer WPL-10202001
...
33
Retainer,ref/fz Dr WPL-10419020
...
34
Feet-Lvlng WPL-W11177593
...
35
Shelf, Snack Stop WPL-10431101
...
36
Door, Snack Stop WPL-10431007
...
37
Clip-Door Cap WPL-10917301
...
38
Insert, Nameplate WPL-10992118
...
39
Nameplate, Handle WPL-10926601

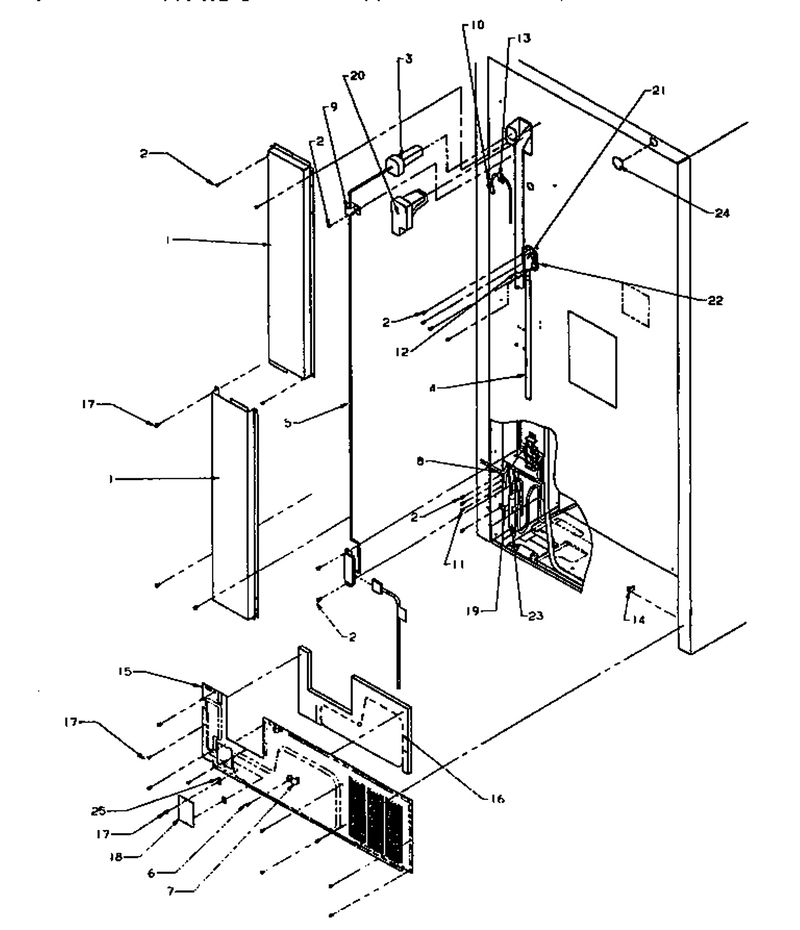

01 - Cabinet Back

...
...
1
Cover, Heat Exch. WPL-10442202Q
...
2
Screw, Sm WPL-M0227217
...
3
Grommet WPL-10699301
...
4
Tube, Drain WPL-10442502
...
5
Harness, Cab WPL-12004002
...
6
Screw, Sm WPL-M0227217
...
7
Clip, Tube WPL-10547101
...
8
Clamp, Speed WPL-M0103904
...
9
Clamp WPL-M0105509
...
10
Cord, Power WPL-10916501
...
11
Screw, Spextite WPL-M0232330
...
12
Clamp WPL-B8372901
...
13
Clip WPL-WPM0104106
...
14
Clip WPL-B5720303
...
15
Back, Mc WPL-10467926
...
16
Insul, Mach Back WPL-10987510
...
17
Screw WPL-WP12990527
...
18
Cover, Water Valve WPL-10541403
...
19
Clip, Drier WPL-10547001
...
20
Plug, Ht Exch V WPL-10428001
...
21
Elbow Drain Tube WPL-10163201
...
22
Gasket WPL-A3132301
...
23
Drier WPL-WPB2150504
...
24
Plug, Im Tunnel WPL-10544301
...
25
Nut-Speed Clip WPL-M0288306

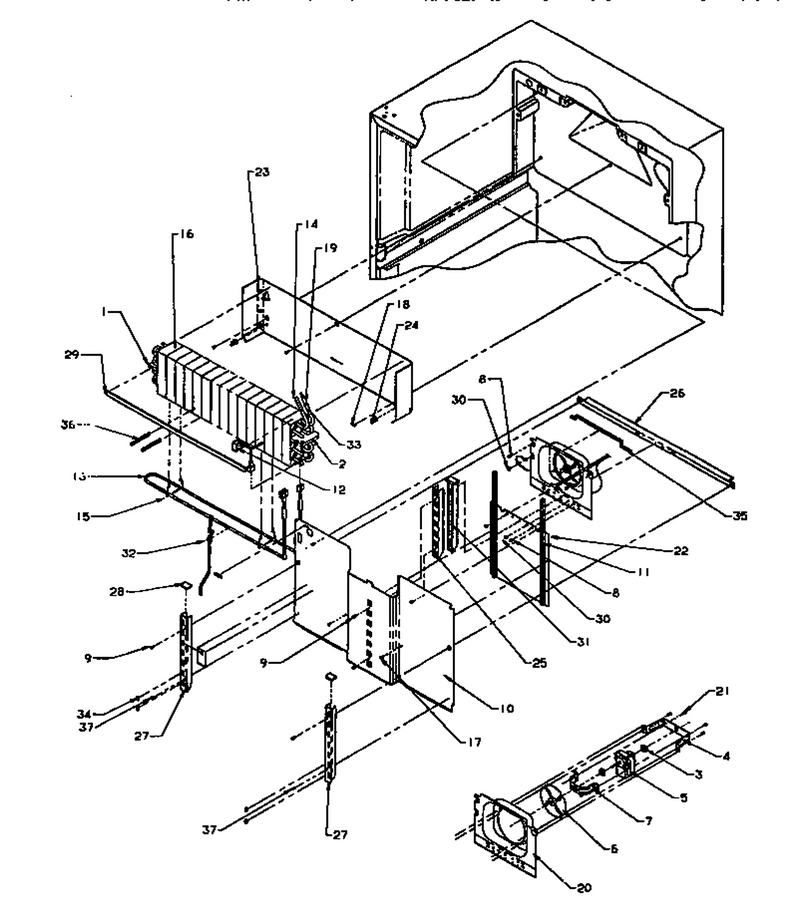

08 - Evap Area

...
...
NI
Sleeve, Vinyl WPL-M0321041
...
1
Block, Evap. L. WPL-10428301
...
2
Block-R Evap WPL-10991001
...
3
Grommet WPL-WP2264462
...
4
Brkt, Evap. Fan WPL-10771701
...
5
Motor, Evap Fan WPL-10654206
...
6
Blade-Fan WPL-W10116797
...
7
Brkt, Mtr/shroud WPL-10771801
...
8
Screw WPL-WP489464
...
9
Screw WPL-M0230924
...
10
Cover, Evaporator WPL-10432408
...
11
Gasket WPL-A3030356
...
12
Thermostat WPL-WP10442410
...
13
Heater, Evaporator WPL-10991102
...
14
Ass`y, Ht Ex WPL-10686306
...
15
Clip WPL-W11673433
...
16
Assy,low Side WPL-R0170062
...
17
Screw (3) WPL-67006425
...
18
Screw (3) WPL-67006425
...
19
Wire Tie WPL-M0321204
...
20
Shroud, Evap. Fan WPL-10422304
...
21
Screw WPL-WP12990527
...
22
Cover, Evaporator WPL-10440710
...
23
Shield, Evap. WPL-10427712
...
24
Clip, Evaporator WPL-10442301
...
25
Ladder, Center WPL-10439305
...
26
Ladder, Ctr. Support WPL-10439701
...
27
Ladder R. Side Evap WPL-10439401
...
28
Cap Frz Ladder WPL-10562401
...
29
Gasket, Foam WPL-A3189358
...
30
Screw WPL-WP489399
...
31
Insert, Frz. Ladder WPL-10584701
...
32
Clip, Ht Transfer WPL-10586601
...
33
Tie-Wire WPL-WPM0321209
...
37
Screw, Sm WPL-M0238921
