Amana TR21V2W (BOM: P1315904W W)

Model: TR21V2W (BOM: P1315904W W)

Save Part Not Listed?
product name

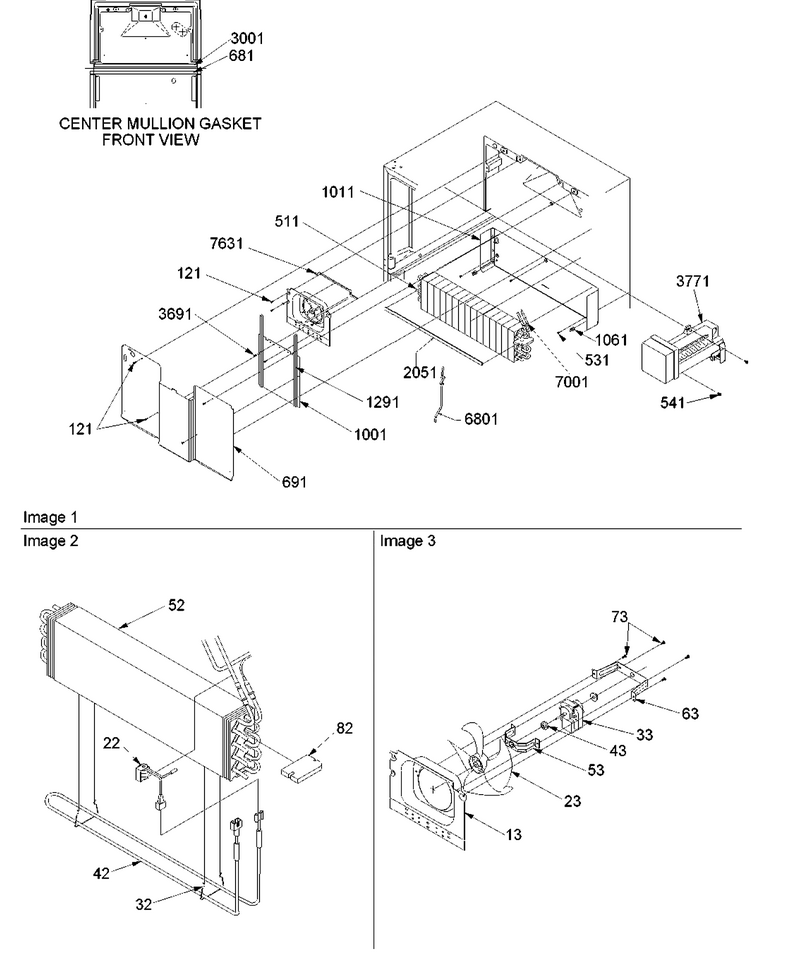

06 - Evaporator And Fan Motor Assy

...
...
13
Shroud, Evap. Fan WPL-10422304
...
22
Thermostat WPL-WP10442410
...
23
Blade-Fan WPL-W10116797
...
32
Clip WPL-W11673433
...
33
Motor-Evap WPL-WP10449501
...
42
Heater, Evaporator WPL-10991109
...
43
Grommet WPL-WP2264462
...
52
Assy,low Side WPL-R0170068
...
53
Brkt, Up Evap. Fan WPL-10492801
...
63
Brakt-Mtr WPL-WP10492701
...
73
Screw WPL-WP90767
...
82
Block, R Evap. WPL-10991002
...
121
Screw (3) WPL-67006425
...
511
Block, Evap. L. WPL-10428301
...
531
Screw (3) WPL-67006425
...
541
Screw WPL-WP98165
...
681
Gasket, Sealing WPL-10685509
...
691
Cover, Evaporator WPL-10432406
...
1001
Cover, Evaporator WPL-10440714
...
1011
Shield, Evap. WPL-10427712
...
1061
Clip, Evaporator WPL-10442301
...
1291
Gasket WPL-A3030356
...
2051
Gasket, Foam WPL-A3189358
...
3001
Gasket, Sealing WPL-B5759626
...
3691
Screw WPL-WP489399
...
6801
Clip, Ht Transfer WPL-10586601
...
7001
Tie-Wire WPL-WPW10339879
...
7631
Gasket WPL-A3030354

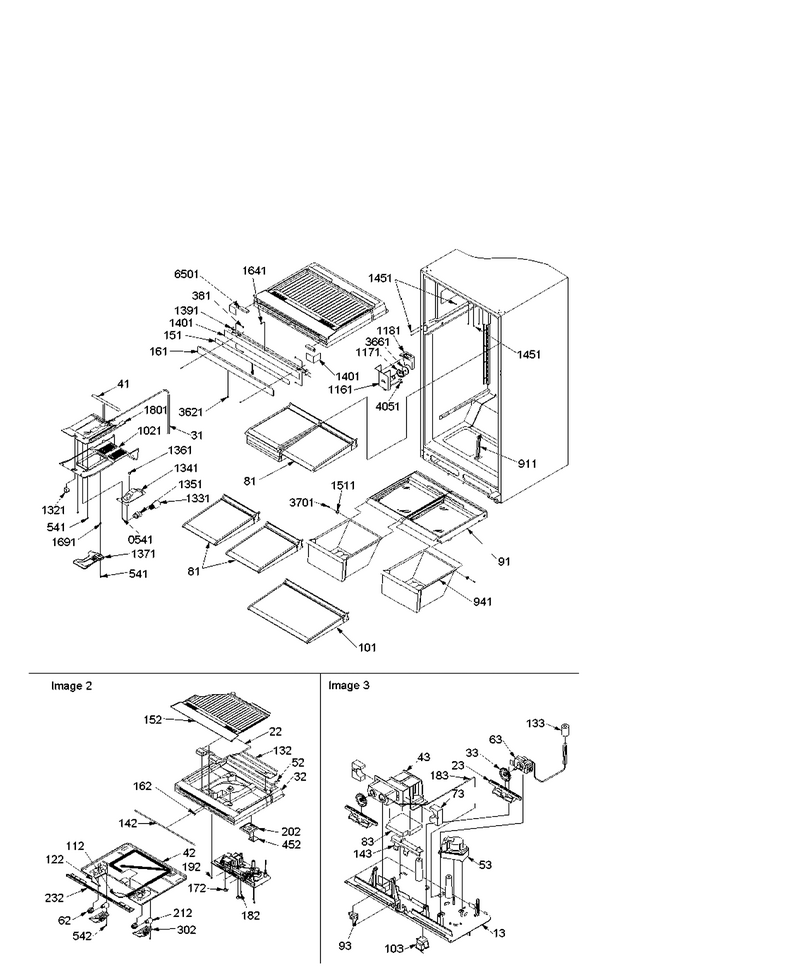

08 - Interior Cabinet And Drain Block Assy

...
...
NI
Harness, Control WPL-10573402
...
13
Housing, Control WPL-12035107
...
22
Insert, Drain Block WPL-10476402
...
23
Rack, Control WPL-10439601
...
31
Harness, Cabinet WPL-12509102
...
32
Block-Drain WPL-10996101
...
33
Pinion, Control WPL-10442601
...
41
Gasket WPL-B8386613
...
42
Ref Top- E Ct WPL-12035216
...
43
Assy, Damper Control WPL-R0161072
...
52
Harness, Drain Block WPL-10573506
...
53
Timer-Def WPL-R0168027
...
62
Socket, Light WPL-D7714408
...
63
Assy, Frz Control WPL-R9700005
...
73
Insert,damper WPL-10442801
...
81
Assy, Shelf Hlf Gls WPL-10926204Q
...
83
Insulation, Damper WPL-10442901
...
91
Assy- Cris WPL-10698501Q
...
93
Switch, St WPL-M0350201
...
101
Shelf, Stationary WPL-10895714
...
103
Switch WPL-W11384469
...
112
Pipe, Light WPL-10467701
...
122
Pipe, Light WPL-10467702
...
132
Tray, Drip WPL-10435911
...
133
Insulation, Cap WPL-10673603
...
142
Membrane, 21 Breaker WPL-10450848
...
143
Shield, Wire WPL-10565101
...
151
Heater, Mullion WPL-10543614
...
152
Freezer Bottom WPL-10995004
...
161
Mullion, Center (White) WPL-10433347
...
162
Cap, Switch WPL-10453001
...
172
Knob, Control WPL-10565401
...
182
Screw (3) WPL-67006425
...
183
Tube-Plastic WPL-A3012543
...
192
Screw WPL-W10856125
...
202
Insert-Mk Air Sply WPL-10995201
...
212
Light Bulb WPL-8009
...
232
Frame, 21 Breaker WPL-10435516
...
302
Shield, Refrig. Light WPL-10508701
...
381
Screw WPL-WP489349
...
452
Gasket, Mk Air Supply WPL-10594901
...
541
Screw WPL-WP90767
...
542
Screw WPL-WP90767
...
911
Post, Crisper Support WPL-10461901
...
941
Pan-Crisper WPL-Y10430111
...
1021
Duct, Frz Air WPL-10440405
...
1161
Cover, Mk Air Sply WPL-10642103
...
1171
Control, Mt. Kpr. Air Sup WPL-10479401
...
1181
Tunnel, Mt Kpr WPL-10479103
...
1321
Switch WPL-W11384469
...
1331
Light Bulb WPL-8009
...
1341
Housing-Light WPL-C8730103
...
1351
Socket, Light WPL-D7714408
...
1361
Clip, Ground WPL-B5733302
...
1371
Shield, Frz Light WPL-10678401
...
1391
Plate, Center Tap WPL-10433611
...
1401
Insulation Per Ft. WPL-B0523584
...
1451
Plug, Button (Wht) WPL-M0311605
...
1511
Roller, Pan WPL-10481001
...
1641
Screw WPL-M0253916
...
1691
Grommet, Screw WPL-M0580007
...
1801
Insul. Air Duct WPL-10779601
...
3621
Screw - Sm WPL-M0211520
...
3661
Insert, Mk Control WPL-12411301
...
3701
Screw WPL-67006692
...
4051
Gasket, Mt Kpr Duct WPL-10852401
...
6501
Insulation WPL-10772301

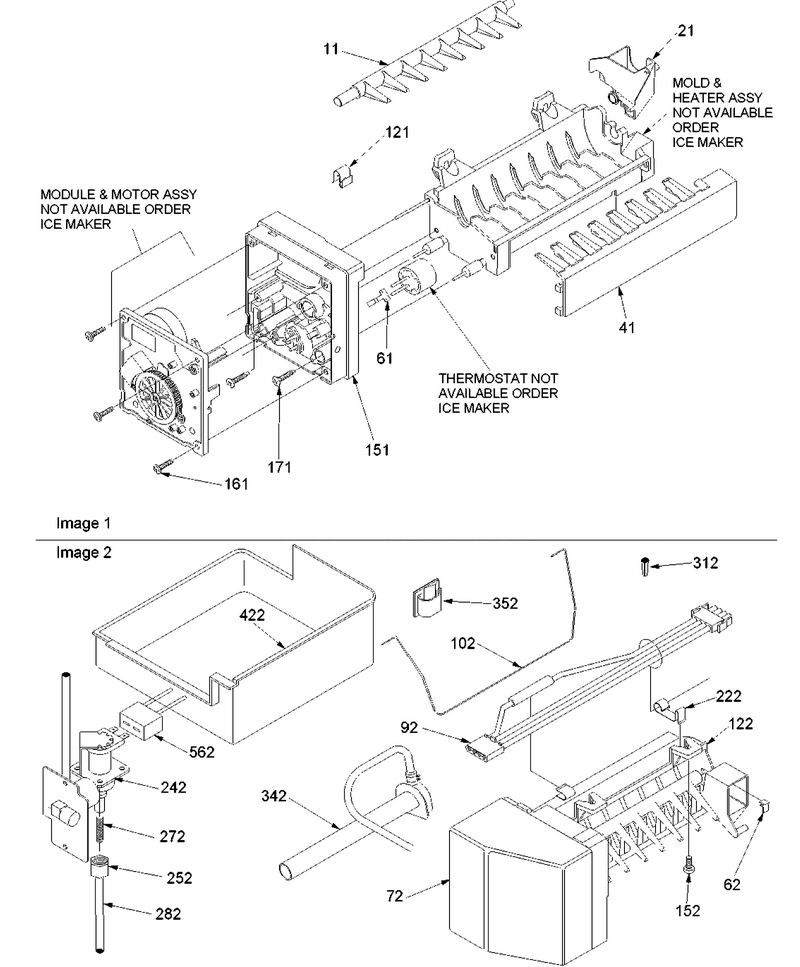

07 - Ice Maker Assy Parts

...
...
NI
Coupling WPL-W11033771
...
11
Arm-Ejectr WPL-WP627843
...
21
Cup-Fill WPL-WP628356
...
41
Arm-Stripr WPL-WP2182124
...
61
Clip WPL-WP2315522
...
62
Clip WPL-B5720302
...
72
Cover-Frnt WPL-WPW10289690
...
92
Harns-Wire WPL-WPD7813010
...
102
Arm-Shut WPL-WP67004028
...
121
Clip WPL-WP628379
...
122
Ice Maker Assy. WPL-D7824706Q
...
151
Housing-Im WPL-WP2195914
...
152
Screw WPL-WP98165
...
161
Screw WPL-R0186041
...
171
Screw WPL-R0186040
...
222
Clamp, Wire WPL-10526701
...
242
Valve-Inlt WPL-W10833899
...
252
Nut WPL-WP627018
...
272
Spring WPL-WPA1055105
...
282
Tube WPL-WPB5705307
...
312
Insert- Pl WPL-WPA3223101
...
342
Tube-Water WPL-W11176463
...
352
Clip WPL-WPM0104106
...
422
Pan-Ice WPL-WP67001255
...
562
Harness, Water Valve WPL-10525901

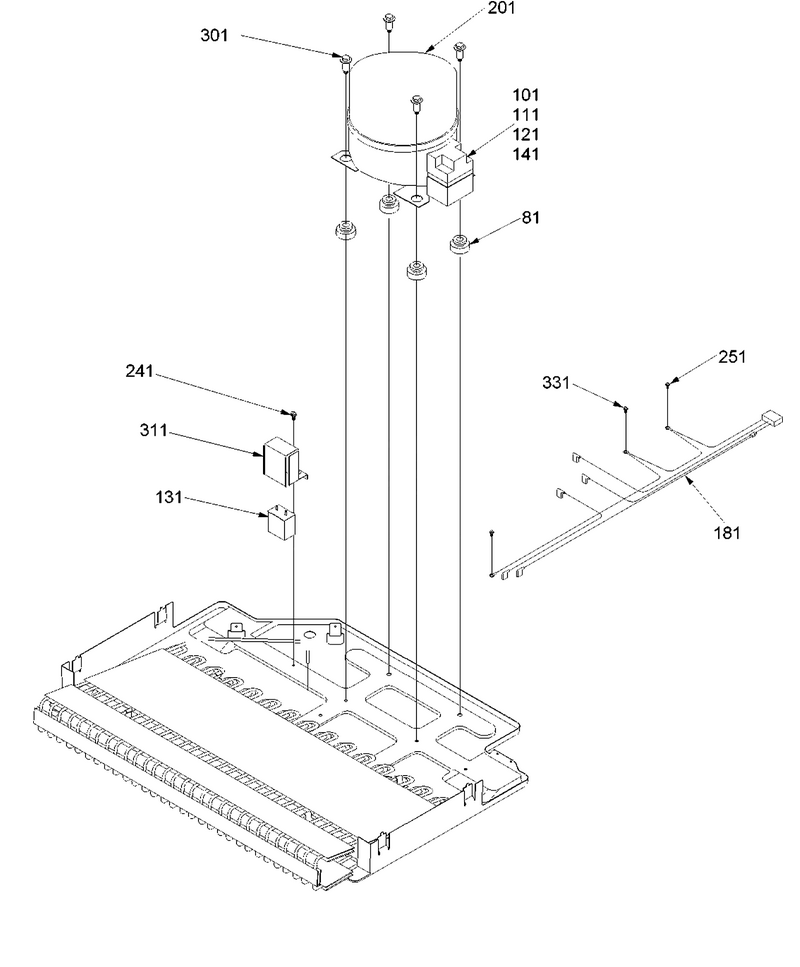

02 - Compressor Parts

...
...
81
Grommet, Compressor WPL-67003493
...
111
Overload WPL-10377015
...
121
Start-Dev WPL-WP10097202
...
131
Capacitor WPL-WP65889-4
...
141
Cover-Term WPL-4344043
...
181
Harness, Mach Comp WPL-10705804
...
201
Compressor WPL-W10309990
...
241
Screw WPL-WPM0223816
...
251
Screw WPL-12992301
...
301
Screw, Shldr WPL-M0221523
...
311
Shield, Capacitor WPL-10266402
...
331
Screw WPL-WP489399

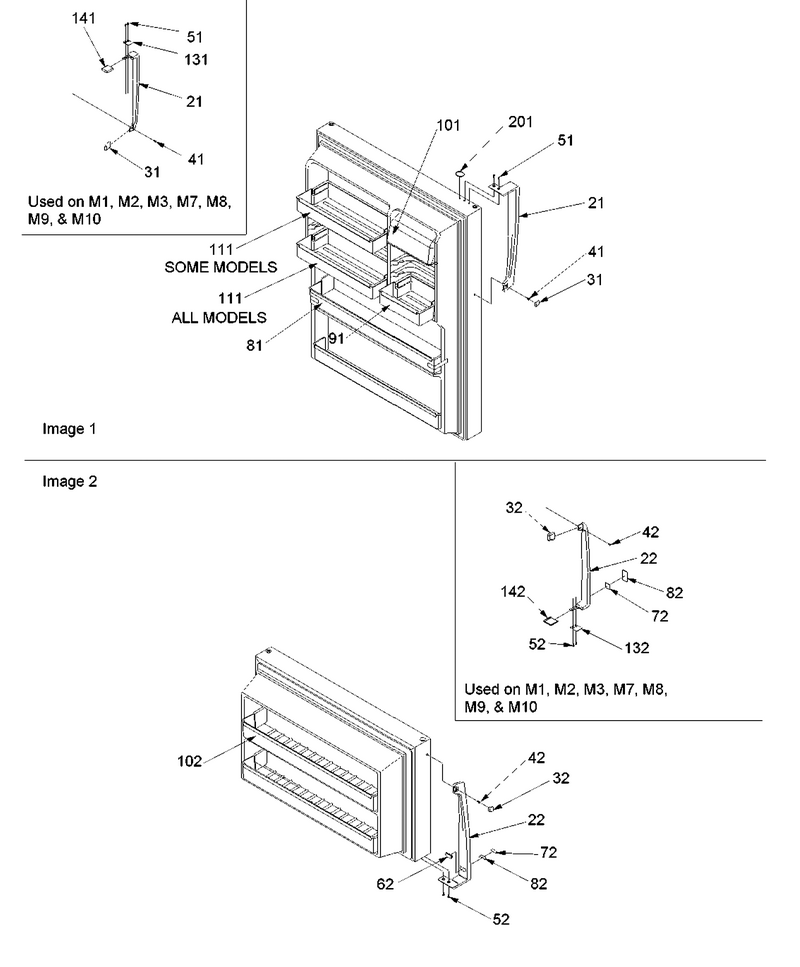

04 - Door Handles And Door Shelves

...
...
21
Handle, W Ref WPL-12325502
...
22
Kit, W Fz Handle WPL-R0179261
...
31
Cap, W Dr Handle WPL-10907401
...
32
Cap, W Dr Handle WPL-10907402
...
41
Screw WPL-WPW10348409
...
42
Screw WPL-WPW10348409
...
51
Screw-Sm Shldr WPL-M0221744
...
52
Screw-Sm Shldr WPL-M0221744
...
72
Nameplate, Handle WPL-10926601
...
81
Retainer- WPL-WP10183120
...
82
Insert, Nameplate WPL-10992117
...
91
Bucket, Ref Door (Plain) WPL-10502911
...
101
Door,dairy WPL-10423420
...
102
Retainer, Ref Door WPL-10419015
...
111
Shelf, Ref Door WPL-10416911
...
131
Clip-Door Cap WPL-12044401
...
132
Clip-Door Cap WPL-12044401
...
141
Cap, W Dr Handle WPL-10913501
...
142
Cap, W Dr Handle WPL-10913501
...
201
Button- Pl WPL-WP67001130

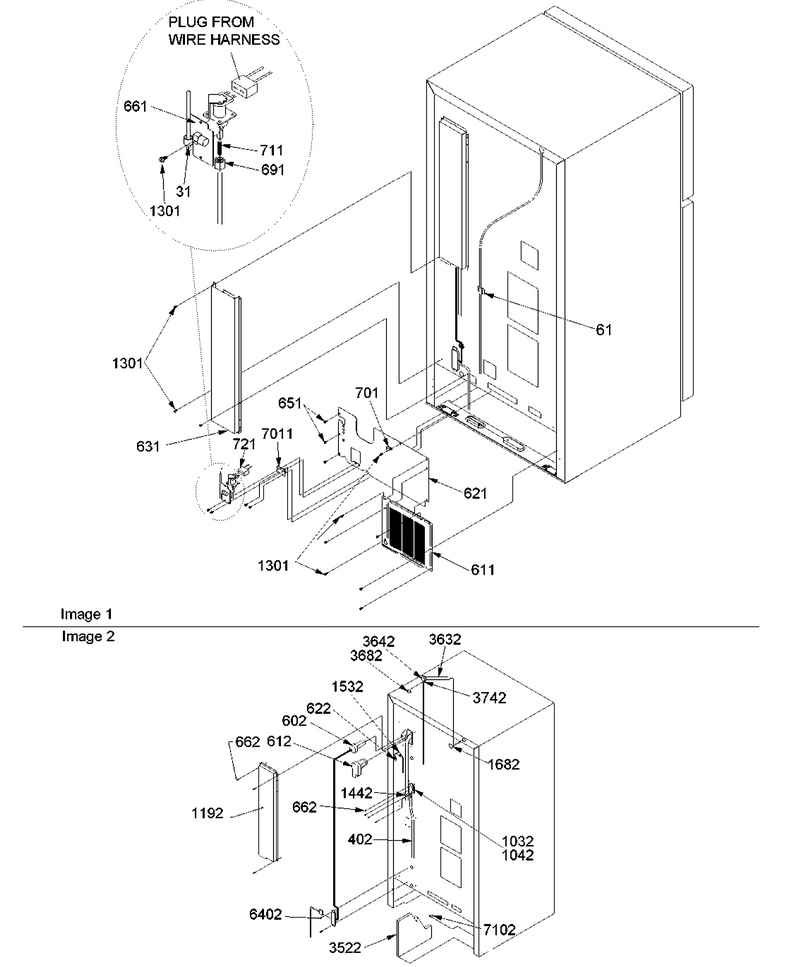

01 - Cabinet Back

...
...
31
Clamp WPL-W10833902
...
61
Clip WPL-WPM0104106
...
402
Tube, Drain WPL-10442502
...
602
Grommet WPL-10699301
...
611
Back, Mach Comp WPL-12039807
...
612
Plug, Ht Exch V WPL-10428001
...
621
Assy, Mc Back WPL-12041843
...
622
Cord, Power WPL-10916502
...
631
Cover, Ht Exch WPL-10442205
...
651
Screw WPL-WP489464
...
661
Valve-Inlt WPL-W10833899
...
662
Screw, Sm WPL-M0227217
...
691
Nut WPL-WP627018
...
701
Clamp, Tube WPL-M0108001
...
711
Spring WPL-WPA1055105
...
721
Harness, Water Valve WPL-10525901
...
1032
Elbow Drain Tube WPL-10163201
...
1042
Gasket WPL-A3132301
...
1192
Cover, Ht Exch WPL-10442205
...
1301
Screw, Sm WPL-M0227217
...
1442
Clamp WPL-B8372901
...
1532
Clip WPL-WPM0104106
...
1682
Plug, Im Tunnel WPL-10544301
...
3632
Tube-Water WPL-W11176463
...
3642
Tube WPL-WPB5705307
...
3682
Clip- Spee WPL-WPM0114003
...
3742
Insert- Pl WPL-WPA3223101
...
6402
Screw WPL-WP489069
...
7011
Plate-Water Valve WPL-12047201
...
7102
Clip WPL-B5720303

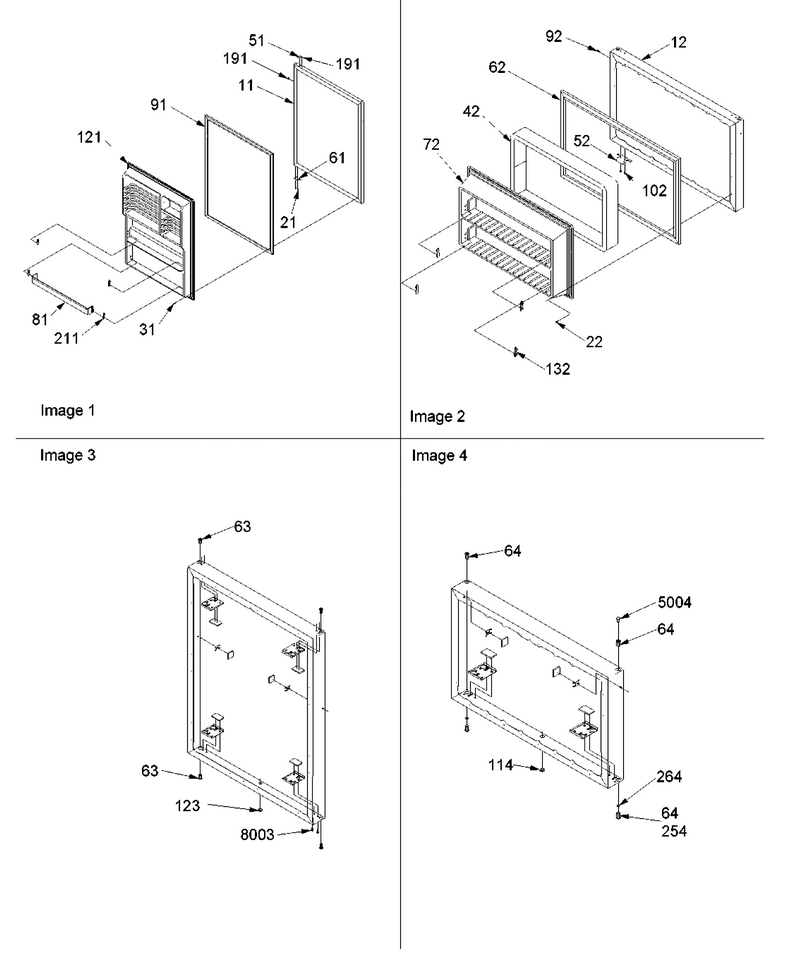

03 - Door Assy

...
...
11
Assy, Ref Door (White) Btm WPL-10925415W
...
12
Assy. Frz Door Fm WPL-10925609W
...
21
Screw WPL-WPW10348409
...
22
Screw WPL-WPM0219730
...
31
Screw WPL-WPM0219730
...
42
Insulation, Batt Frz. Dr. WPL-B0523593
...
51
Plug Button (Wh) WPL-12470501
...
52
Stop, Door (White) WPL-12968202W
...
61
Stop, Door (White) WPL-12968202W
...
62
Gasket- Fr WPL-WP12550112Q
...
63
Bushing, Door (Wht) WPL-10961001
...
64
Bushing, Door (Wht) WPL-10961001
...
72
Liner, Frz Dr WPL-10415501Q
...
81
Retainer, Ref Door WPL-10419015
...
91
Gasket- Re WPL-WP12550111Q
...
92
Button- Pl WPL-WP67001130
...
102
Screw WPL-WPW10348409
...
114
Plug, Button (Wht) WPL-M0310308
...
121
Liner, Ref Door WPL-10440804
...
123
Plug, Button (Wht) WPL-M0310308
...
132
Clip, Retainer WPL-10202001
...
191
Button- Pl WPL-WP67001130
...
211
Clip, Retainer WPL-10202001
...
254
Bushing, Door (Wht) WPL-12028601
...
264
Filter, Bushing WPL-10252903
...
5004
Plug Button WPL-10686401
...
8003
Screw WPL-WPW10348409

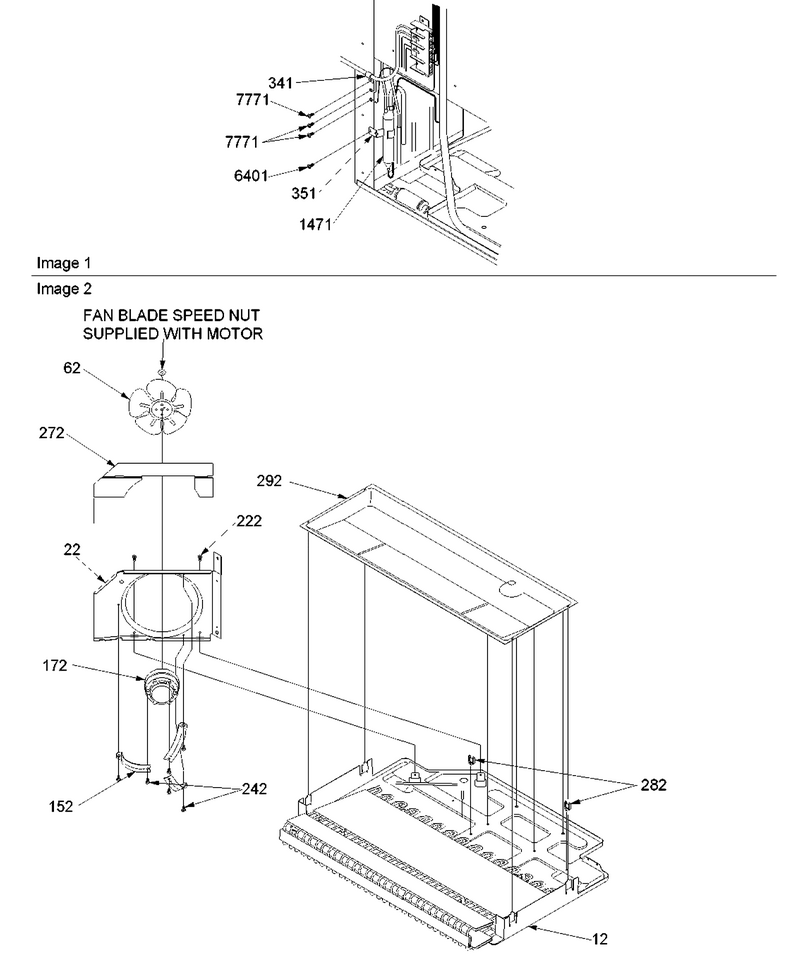

10 - Machine Compartment

...
...
12
Assy, Cond Pan WPL-10481210
...
22
Cond Fan Shrd-E Ct WPL-10426911
...
62
Blade, Fan WPL-B5742604
...
152
Bracket, Cond. Motor WPL-10582501
...
172
Motor, Condenser WPL-10884503
...
222
Screw WPL-WP90767
...
242
Screw WPL-WPM0223816
...
272
Gasket, Cond. Fan WPL-10442702
...
282
Wire Clip WPL-B5667304
...
292
Pan, Drain WPL-10427405
...
341
Clamp, Speed WPL-M0103904
...
351
Clip, Drier WPL-10547001
...
1471
Drier WPL-WPB2150504
...
6401
Screw WPL-WP489069
...
7771
Screw WPL-WP489399

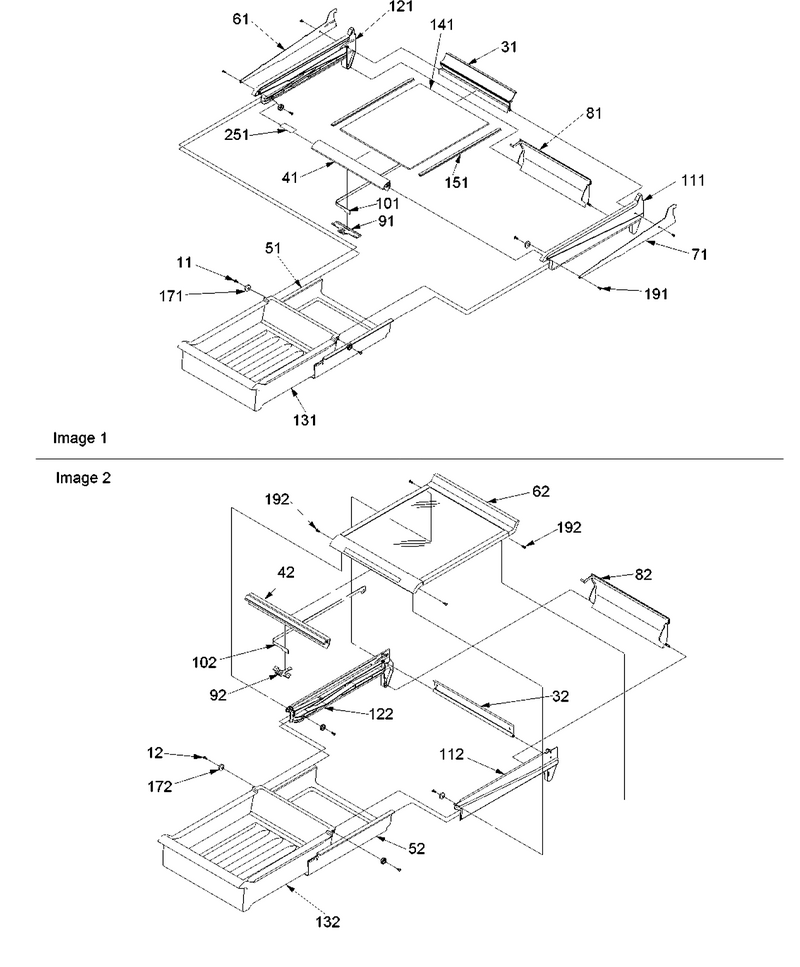

11 - Meatkeeper Assy

...
...
12
Screw WPL-67006692
...
32
Extr, Mk Rear WPL-10920203
...
42
Extrusion, Mk Frt WPL-10920303
...
51
Sleeve, Mk WPL-10437305
...
52
Sleeve, Mk WPL-10437305
...
62
Shelf-Sta WPL-10895708
...
81
Scoop, Air V WPL-10445701
...
82
Scoop, Air V WPL-10445701
...
92
Slide, Mk Control WPL-10920401
...
102
Band, Mk Control WPL-10920101
...
112
Glide, Mk R WPL-10880201
...
122
Glide, Mk L WPL-10897101
...
131
Pan,meatkeeper WPL-10417013
...
132
Pan,meatkeeper WPL-10417013
...
172
Roller, Pan WPL-10481001
...
191
Screw WPL-WPW10348409
...
192
Screw WPL-WPW10348409

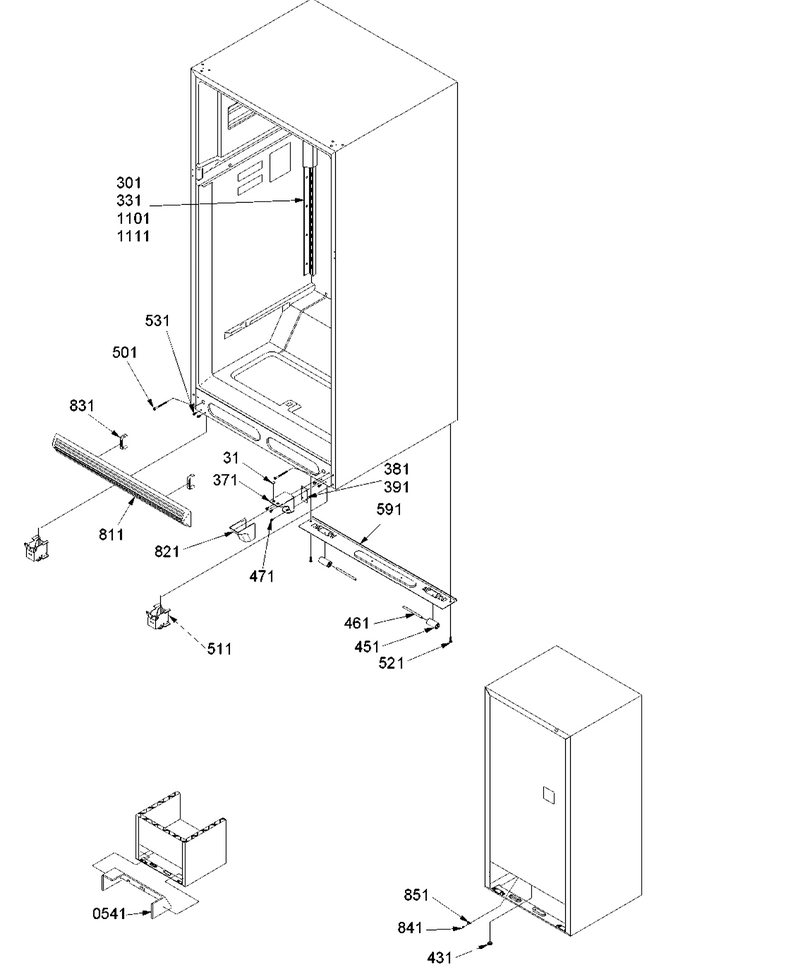

09 - Ladders, Lower Cabinet

...
...
31
Plug, Button White WPL-M0310330
...
301
Screw (3) WPL-67006425
...
331
Ladder, Side (L/r) WPL-12435701
...
371
Hinge, Bottom WPL-10585505
...
381
Shim Hinge WPL-10447904
...
391
Shim, Btm Hinge WPL-10447903
...
431
Plug, Button WPL-A3076901
...
451
Roller, Rear WPL-10450701
...
461
Axle, Roller WPL-10450901
...
471
Screw WPL-WP67006715
...
501
Screw, Adj Roller WPL-M0204336
...
511
Assy, Roller Bracket WPL-12452601Q
...
521
Screw, Tf WPL-M0260242
...
531
Screw WPL-W11573574
...
541
Insulation, Sound WPL-12403606
...
591
Brace WPL-10427112
...
811
Grille, Toe (White) WPL-10474802
...
821
Cover, Lower Hinge (White) WPL-10584802
...
831
Clip- Toe WPL-WP10551502
...
841
Screw, Sm WPL-M0227217
...
851
Clip, Tube WPL-10547101
...
1101
Ladder, Center WPL-12435801
...
1111
Screw-Sm WPL-M0238636

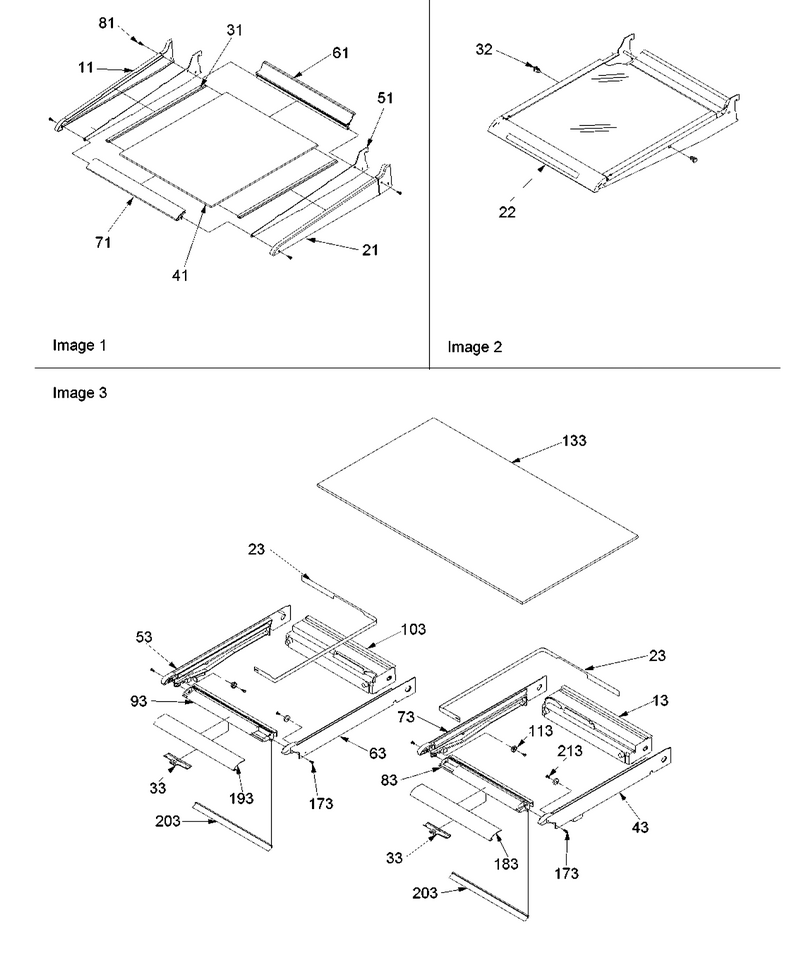

12 - Shelving & Crisper Frame Assy

...
...
13
Rail, Crisper Back WPL-10433804
...
22
Assy, Shelf Hlf Gls WPL-10926204Q
...
23
Band- Cris WPL-67006989
...
32
Stop, Shelf WPL-10875101
...
33
Slide, Crisper WPL-10797501
...
43
Rail, Side Crisper WPL-10432703
...
53
Rail, Side Crisper WPL-10432704
...
63
Rail, Ctr. Crisper WPL-10432805
...
73
Rail, Ctr. Crisper WPL-10432806
...
83
Rail, R. Crisper Frt WPL-10687801
...
93
Rail, L. Crisper Frt WPL-10687802
...
103
Rail, Crisper Back WPL-10435604
...
113
Roller, Pan WPL-10481001
...
133
Shelf, Glass WPL-10370012
...
173
Screw WPL-67006692
...
183
Extr, R Crisp Front WPL-10688055
...
193
Extr, L Crisp Front WPL-10688054
...
203
Seal- Cris WPL-WP10530204
...
213
Screw WPL-67006692

05 - Door Hinges And Accessories

...
...
12
Container WPL-WP10423131
...
22
Lid, Utility WPL-10436404
...
32
Rack, Utility WPL-10992303
...
42
Tray, Egg WPL-10436506
...
52
Tray, Butter WPL-10310901
...
62
Snugger, Door Shelf WPL-12103905
...
82
Retainer, Tall Pkg WPL-10468004
...
92
Hugger, Bottle (Shelf Divider) WPL-10441102
...
102
Tray WPL-WP841180A
...
111
Screw WPL-WP67006380
...
131
Shelf, Freezer Wire WPL-Y10440002
...
191
Shim, Top Hinge WPL-10448501
...
201
Shim, Top Hinge WPL-10448502
...
211
Shim, Top Hinge WPL-10448503
...
221
Shim, Center Hinge WPL-10562201
...
231
Shim, Center Hinge WPL-10562202
...
241
Shim, Center Hinge WPL-10562203
...
261
Shim- Non WPL-WPM0274057
...
271
Pin, Hinge (Ctr) WPL-10351002
...
291
Shim- Non WPL-WPM0274058
...
301
Assy- Top WPL-R0000231
...
311
Closure, Door (Wht) WPL-12028501
...
321
Hinge,ctr-E Ct(White) WPL-12446503
...
331
Pin Hinge Bottom WPL-67007018
...
381
Screw WPL-WP489349
...
441
Cover-W Hinge WPL-10444708
...
511
Screw (3) WPL-67006425
...
521
Cover-Fl Tb/plug WPL-D7874403
...
1431
Button- Pl WPL-WP67001130
...
1671
Rack, Freezer WPL-10250502
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
