Amana TR19G (BOM: P6010903W)

Model: TR19G (BOM: P6010903W)

Save Part Not Listed?
product name

01 - Door Assy 19 Cu. Ft.

...
...
NI
Plug WPL-M0310712
...
1
Ice Container WPL-D3959403
...
2
Support WPL-D3976808
...
3
Retainer WPL-D3976711
...
4
Retainer WPL-B5632003
...
5
Inner Dr Panel WPL-D7074902
...
6
Gasket, Door WPL-D3973702
...
7
Insulation, Batt WPL-A3073011
...
8
From Door Slab WPL-B5612001
...
9
Insulation Batt, 31`` Wide WPL-A3073012
...
10
Kit, Screw WPL-R9800670
...
11
Hinge, Top WPL-B5640704
...
12
Tap Strip WPL-A3139701
...
13
Washer WPL-M0270502
...
14
Shim WPL-A3143702
...
15
Bushing, Hinge Pin WPL-C3652901
...
16
Outer Door Shell, Fz, Avocado WPL-D7057813
...
17
Plug Button, Hinge Bushing Avo WPL-M0310603
...
18
Screw-Sm WPL-M0241118
...
19
Pad, Door Handle WPL-D7056601
...
20
Handle, Door WPL-D7057101
...
21
Nameplate WPL-C3633801
...
22
Plug Button, Door Side, Autumn WPL-M0310904
...
23
Insulation, 14-3/8`` Wide WPL-A3073013
...
24
Screw, Nylock WPL-M0205442
...
25
Bushing, Hinge Pin WPL-C3652901
...
26
Shim K WPL-A3143502
...
27
Center Hinge Assy WPL-B5640501
...
28
Center Hinge Assy WPL-B5640401
...
29
Kit, Screw WPL-R9800670
...
30
Nameplate WPL-C3633802
...
31
Handle WPL-D7057102
...
32
Handle Pad Kit WPL-D7056602
...
33
Outer Door Shell, Ref, Coppert WPL-D7057731
...
34
Insulation WPL-A3073010
...
36
Gasket, Door WPL-D3974202
...
37
Plug Button, Hinge Bushing Aut WPL-M0310604
...
38
Inner Dr Panel Ref WPL-D7072201
...
39
Screw-Sm WPL-M0241118
...
40
Stop Door WPL-A3139801
...
41
Screw WPL-8169479
...
42
Support WPL-D3976806
...
44
Hinge Kit WPL-B5640201
...
45
Shim WPL-A3143601
...
46
Hinge Kit WPL-B5640901
...
47
Screw, Nylock WPL-M0205442
...
48
Retainer WPL-D3976710
...
49
Hinge Rod K WPL-A3056207
...
50
Buttertray WPL-67004412A
...
52
Egg WPL-D7025701
...
53
Retainer K WPL-B5632005
...
54
Support WPL-A3147702
...
55
Support WPL-C3638501
...
56
Support Wire, 3/4 To 1/4 Shelf WPL-B5647101
...
57
Support WPL-B0597802
...
58
Support WPL-B0595101
...
59
Trim WPL-C3622902
...
60
Clip A WPL-A3083401
...
61
Support WPL-M0560001
...
62
Grommet, Screw WPL-M0580007
...
63
Screw (3) WPL-67006425
...
64
Frame-Glide Out WPL-D3917302
...
66
Frame-Glide Out WPL-D3917301
...
67
Shelf WPL-D3982901
...
69
Shelf Support WPL-C3638101
...
70
Shelf,stationary WPL-D7072501
...
71
Support WPL-M0560001
...
73
Trim A WPL-B0570904
...
74
Support WPL-B0597601
...
76
Grommet, Screw WPL-M0580007
...
77
Clip WPL-M0113004
...
78
Backer Plate WPL-D7058201
...
79
Control-Temp WPL-B0592304
...
80
Screw WPL-WP90767
...
81
Thin Plate WPL-B5634501
...
82
Air Deflector, Fz & Ref WPL-D3953303
...
83
Knob WPL-D7009801
...
84
Tray WPL-WP841180A
...
85
Rod, Hinge WPL-A3099801
...
86
Door,tunnel WPL-C3625001
...
87
Light Bulb WPL-A0318001
...
88
Socket WPL-B5637101
...
89
Cap K WPL-C3617201
...
91
Trim WPL-C3622702
...
92
Pan, Meat WPL-D3975702
...
93
Gasket (Per Foot) WPL-A3030313
...
94
Trim, Handle WPL-C3623002
...
95
Pan, Crisper WPL-D3966910
...
96
Trim,crisper Handle WPL-C3623708
...
97
Front,crisper Pan WPL-D7101801
...
98
Support WPL-B0571002
...
99
Support WPL-B0571201
...
101
Sleeve, Meat Keeper WPL-D7001302
...
102
Grommet WPL-A3102801
...
103
Screw (3) WPL-67006425
...
104
Escutheon WPL-C3612002
...
105
Switch WPL-A3116201
...
106
Cover, Linkage WPL-B5617301
...
107
Grommet, Screw WPL-M0580007
...
108
Screw WPL-M0219233
...
109
Slide Assy WPL-A0074301
...
110
Air Tube Assy WPL-D3974801
...
111
Clip WPL-M0113001
...
112
Escutcheon WPL-B5615402
...
113
Screw WPL-M0218116
...
114
Control, Damper WPL-C8876602
...
115
Backer Plate WPL-D7058201
...
116
Clip WPL-M0113001
...
117
Gasket WPL-A3104502
...
118
Spring WPL-A3100002
...
119
Tunnel WPL-D3969403
...
120
Grille WPL-C3601801

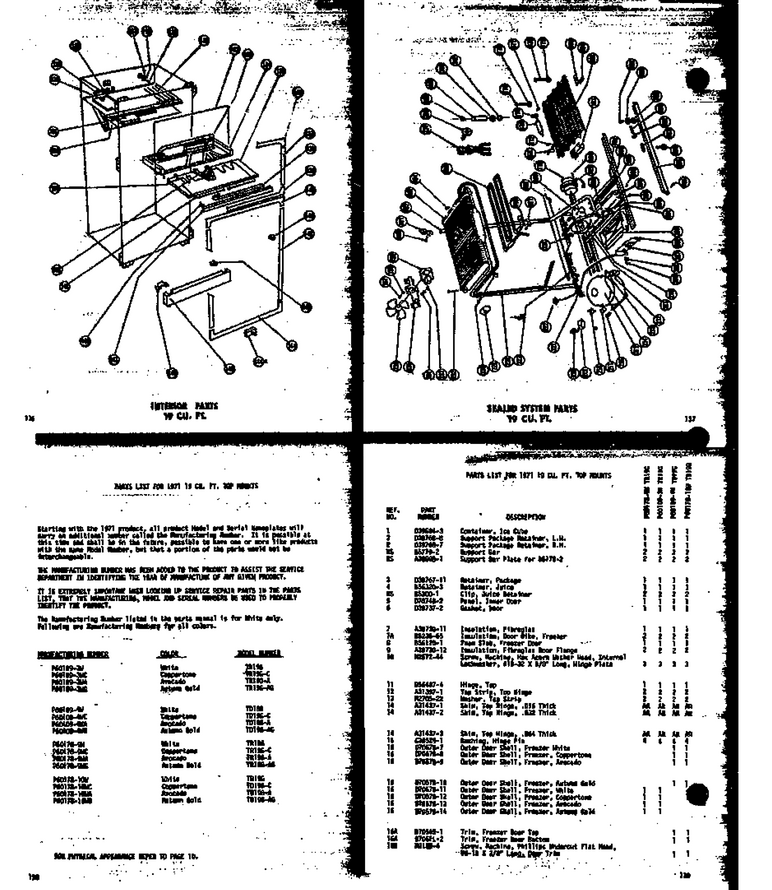

02 - Interior Parts 19 Cu.

...
...
NI
Plug WPL-M0310301
...
124
Plug WPL-A3069101
...
125
Insulation WPL-B5609201
...
126
Gasket,air Duct WPL-B5668201
...
127
Screw (3) WPL-67006425
...
128
Clip WPL-M0116901
...
129
Screw WPL-M0211530
...
131
Freezer Bottom WPL-D7026001
...
132
Heater, Fz Flange WPL-D7132301
...
133
Heater-Drip Tray WPL-C8708201
...
134
Drain Block K WPL-D7092801
...
135
Top Refrig. K WPL-D3982202
...
136
Breaker Frame, Fz Top WPL-D3981001
...
137
Breaker Frame, Fz Sides WPL-D3951713
...
138
Drier, Mullion WPL-B5636001
...
139
Breaker Frame, Fz Bottom WPL-D3981201
...
140
Breaker Frame WPL-D3981002
...
141
Clip WPL-M0113402
...
142
Breaker Frame WPL-D3951712
...
143
Clip WPL-WPM0117303
...
144
Switch, Light WPL-C3658601
...
145
Grille-Toe WPL-D7070202
...
146
Grille-Toe WPL-B5641301
...
147
Center Mullion, White WPL-C3633301
...
148
Screw WPL-WP489069
...
149
Heater-Ref Top K WPL-D7058301
...
150
Gasket (Per Foot) WPL-A3030313
...
151
Screw WPL-M0215617
...
152
Barrier WPL-A3126001
...
153
Insulation WPL-B5612801
...
157
Screw WPL-M0202642
...
158
Washer WPL-M0272605
...
159
Motor WPL-D7115701
...
160
Screw WPL-M0214618
...
161
Elbow,drain Tube WPL-C3630901
...
162
Tube, Drain WPL-B5638801
...
163
Evaporator WPL-D7115920
...
164
Screw WPL-M0214731
...
165
Heater Def K WPL-C3660003
...
166
Screw WPL-M0214618
...
167
Clamp, Drier WPL-M0102316
...
168
Rail, Rear WPL-C3611301
...
169
Blade, Fan WPL-B5742603
...
170
Motor-Cond WPL-833697
...
171
Clip-Cond WPL-A3054502
...
172
Kit, Screw WPL-R9800670
...
173
Drier WPL-WPB2150504
...
174
Clamp,drier WPL-M0104001
...
175
Sems Fastner WPL-M0257037
...
176
Spacer WPL-A3013906
...
177
Rivet-Pop WPL-59002054
...
178
Sems Fastner WPL-M0257039
...
179
Spacer WPL-A3013907
...
180
Bracket, Support WPL-A3085401
...
181
Nut A WPL-M0286003
...
182
Condenser Assy Pnt WPL-D7010701
...
183
Spacer WPL-B0544101
...
184
See Note Screw, Shoulder, Slotted Hex Head -- No.8-36 X 3/8`` Long, Bracket To Motor WPL-Y00000000
...
185
Bracket, Cond Motor WPL-B0598701
...
186
Deflector WPL-A3116301
...
188
Screw WPL-M0267101
...
189
Bracket K WPL-A3125201
...
190
Roller WPL-M0520101
...
191
Rivet WPL-M1205302
...
192
Fastener WPL-M0289401
...
193
Wing Nut WPL-A3122601
...
194
Foot-Levelling WPL-M0266712
...
195
Screw WPL-M0294459
...
196
Screw WPL-WP90767
...
197
Retainer WPL-B0599701
...
198
Seal WPL-B0599603
...
199
Screw WPL-WP489464
...
200
Fan Shroud WPL-C3617601
...
201
Screw WPL-M0294459
...
203
Screw WPL-M0211530
...
204
Screw WPL-WP489069
...
205
Pan, Drain WPL-D7001001
...
206
Bracket, Timer WPL-C3647901
...
207
Timer, Defrost WPL-D7004106
...
208
Clamp WPL-M0102406
...
209
Screw WPL-M0211532
...
210
Screw WPL-M0221132
...
211
Clip, Waterline WPL-12454802
...
212
Grommet K WPL-A3026101
...
213
Vinyl Sleeve WPL-A3164301
...
214
Washer, Nylon K WPL-M0590101
...
215
Compressor-Ae1410a-1/4 WPL-D3871901
...
216
Spring K WPL-A3043601
...
217
Overload WPL-C3552901
...
218
Relay WPL-C3553401
...
219
Terminal Cover WPL-B0551801
...
220
Strap K WPL-A3041801
...
221
Grommet, Cord WPL-211881
...
222
Wiring Harness WPL-D7098802
...
224
Back, Mach Compt K WPL-B5641201
...
227
Cotter Pin K WPL-M1200001
...
228
Heat Exchanger WPL-D7030302
...
229
Thermostat,defrost WPL-B5666201
...
230
Grommet WPL-A4568701
...
232
X$x Nail WPL-M0010510
...
233
Screw WPL-WP98165
...
234
Clip, Waterline WPL-12454802
...
235
Bracket WPL-C3536203
...
236
Fan Blade WPL-B5622101
...
237
Wire Harness, Ice Motor WPL-D7112301
...
238
Cap WPL-B5636301
...
239
Plug WPL-M0310309
...
240
Fill Tube Assy WPL-B5630501
...
241
Grommet WPL-A3138301
...
242
Cap Fill Tube WPL-B5631801
