Amana TR16J (BOM: P6017802W)

Model: TR16J (BOM: P6017802W)

Save Part Not Listed?
product name

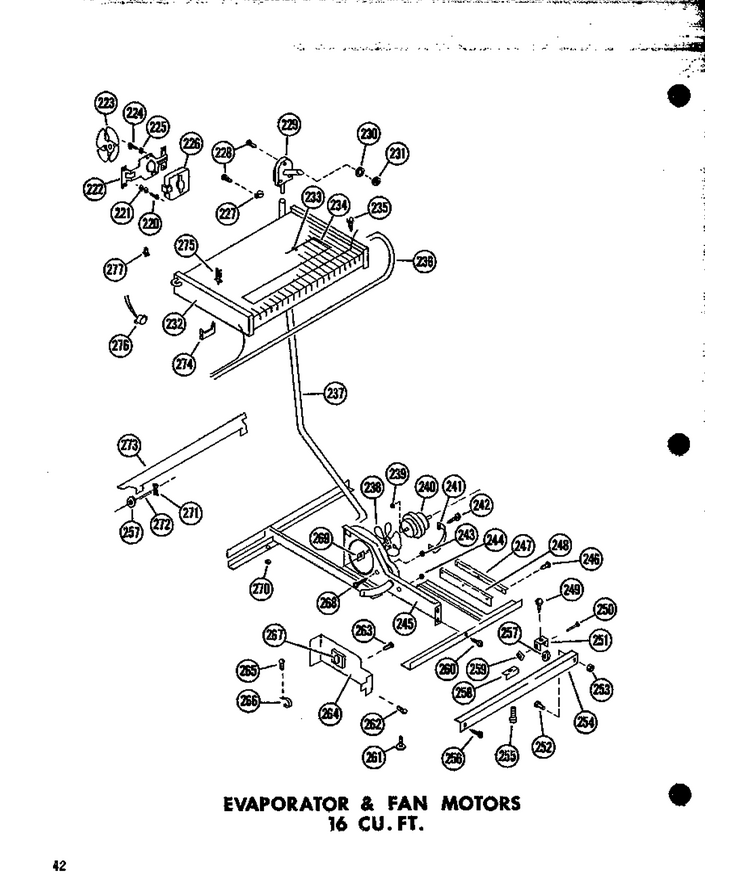

02 - Evap & Fan Motor 16 Cu. Ft.

...
...
220
Screw WPL-WP98165
...
221
Clip, Waterline WPL-12454802
...
222
Bracket WPL-C3536203
...
223
Fan Blade WPL-B5622101
...
224
Screw WPL-M0202642
...
225
Washer WPL-M0272605
...
226
Motor WPL-D7115701
...
227
Clamp, Drier WPL-M0102316
...
228
Screw WPL-M0214618
...
229
Elbow WPL-C3630902
...
230
Gasket WPL-A3132301
...
231
Grommet WPL-A3128101
...
232
Evaporator WPL-D7143120
...
233
Clip WPL-M0110301
...
234
Heater Def K WPL-C3660003
...
235
Screw WPL-M0214731
...
236
Heat Exchanger WPL-D7030302
...
237
Tube, Drain WPL-B5638801
...
238
Blade, Fan WPL-B5742603
...
239
Washer K WPL-M0274015
...
240
Motor-Cond WPL-833697
...
241
Bracket, Cond Motor WPL-B0598701
...
242
Screw WPL-WPM0223816
...
243
Clip, Waterline WPL-12454802
...
244
Grommet WPL-M0500102
...
245
Fan Shroud WPL-C3617601
...
246
Screw WPL-WP90767
...
247
Retainer WPL-B0599701
...
248
Seal WPL-B0599603
...
249
Screw WPL-M0267101
...
250
Rivet WPL-M1205302
...
251
Bracket K WPL-A3125201
...
252
Roller Bracket Kit WPL-M0222240
...
253
Nut, Self Thread WPL-M0283801
...
254
Front Rail WPL-B5627601
...
255
Foot-Levelling WPL-B1601601
...
256
Screw WPL-M0294459
...
257
Roller WPL-M0520102
...
258
Wing Nut WPL-A3122601
...
259
Fastener WPL-M0289401
...
260
Screw WPL-WP489464
...
262
Screw WPL-WP489464
...
263
Screw WPL-M0216617
...
264
Bracket, Timer WPL-C3647901
...
265
Screw WPL-M0211532
...
266
Clamp WPL-M0102406
...
267
Timer, Defrost WPL-D7004106
...
268
Screw WPL-M0221132
...
269
Nut WPL-WP486692
...
270
Washer WPL-A4094001
...
271
Cotter Pin K WPL-M1200001
...
272
Pivot Pin K WPL-M1210001
...
273
Rail, Rear WPL-C3611301
...
274
Guide-Wiring WPL-B5670801
...
275
Clip,wire WPL-B5667401
...
276
Thermostat K WPL-C3686602
...
277
Clip,wire WPL-B5667301

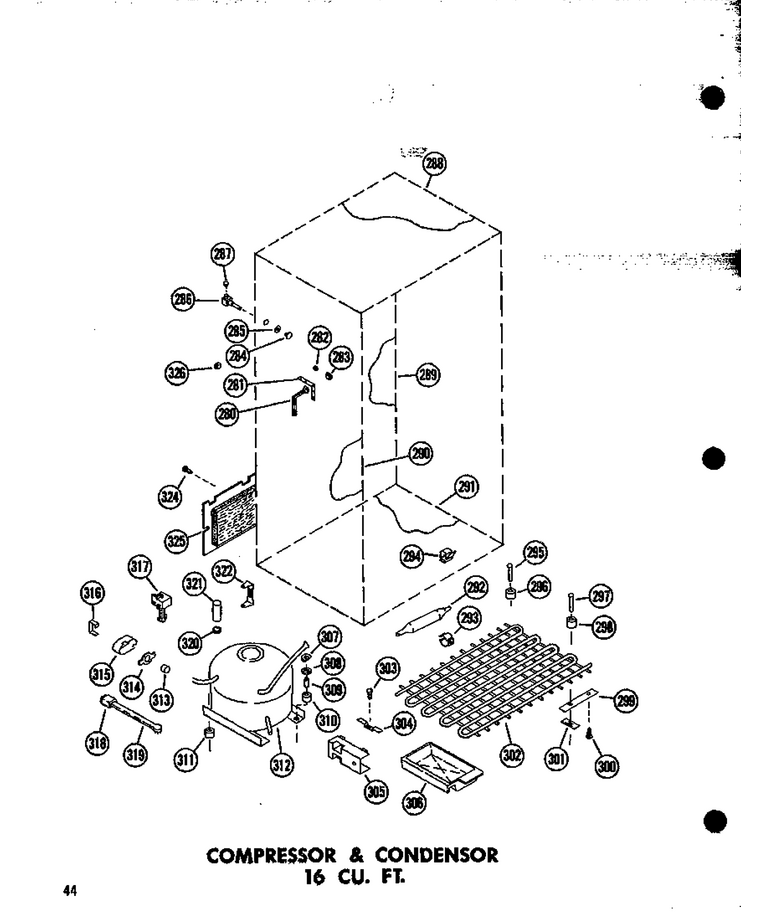

01 - Compressor & Condensor 16 Cu. Ft.

...
...
280
Wiring Harness WPL-D7117301
...
281
Tap Plate,i.m. WPL-B5639801
...
282
Button- Pl WPL-WP67001130
...
283
Cap WPL-B5636301
...
284
Cap Fill Tube WPL-B5631801
...
285
Grommet WPL-A3138301
...
286
Fill Tube WPL-R0182123
...
287
Plug WPL-M0310309
...
288
Insulation WPL-B0524011
...
289
Insulation, Back WPL-B5680801
...
290
Insulation, Side WPL-B5618702
...
291
Insulation WPL-B5610501
...
292
Drier WPL-WPB2150504
...
293
Clamp,drier WPL-M0104001
...
294
Clip WPL-M0110503
...
295
Sems Fastner WPL-M0257037
...
296
Spacer WPL-A3013906
...
297
Sems Fastner WPL-M0257039
...
298
Spacer WPL-A3013907
...
299
Bracket, Support WPL-A3085401
...
300
Screw-Sm WPL-M0241118
...
301
Nut A WPL-M0286003
...
302
Condenser Assy Pnt WPL-D7010701
...
303
Kit, Screw WPL-R9800670
...
304
Clip-Cond WPL-A3054502
...
305
Spacer WPL-B0544101
...
306
Pad A WPL-A3063101
...
307
Clip K WPL-A3140801
...
311
Vinyl Sleeve WPL-A3164301
...
312
Compressor-Ae1410a-1/4 WPL-D3871901
...
313
Overload WPL-C3678001
...
314
Spring K WPL-A3043601
...
315
Terminal Cover WPL-B0551801
...
316
Strap K WPL-A3041801
...
317
Relay WPL-C3553401
...
318
Strain Relief WPL-8536977
...
319
Wiring Harness WPL-D7098802
...
324
Screw-Sm WPL-M0241118
...
325
Back, Mach Compt K WPL-C3655001
...
326
Plug, Button (Blk) WPL-A3080001

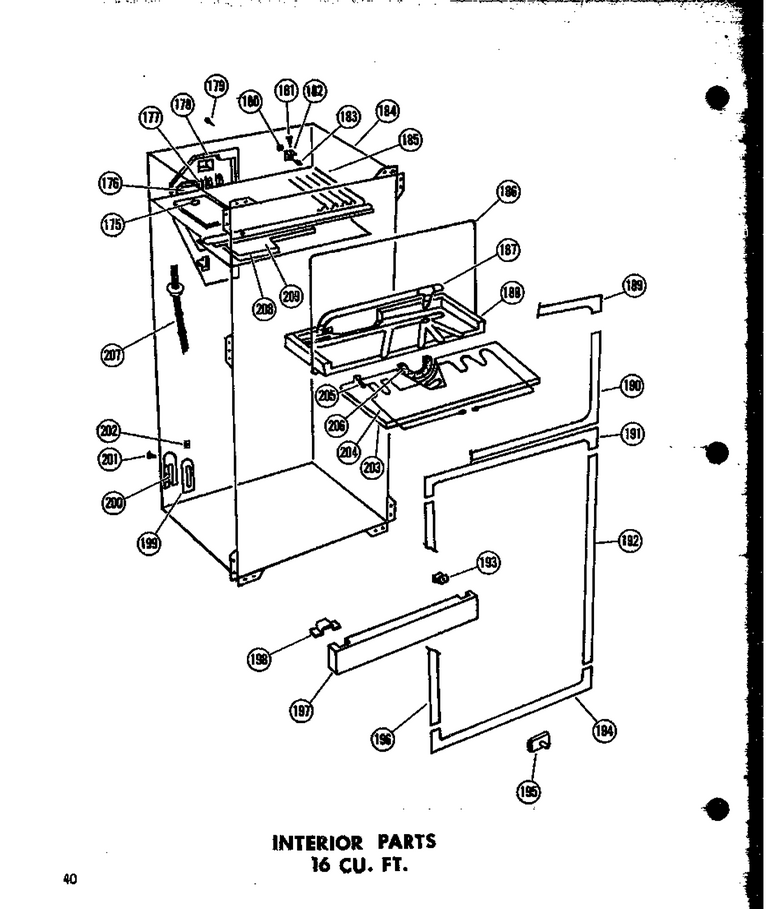

06 - Interior Parts 16 Cu. Ft.

...
...
175
Plug WPL-A3069101
...
176
Insulation WPL-B5609201
...
177
Gasket,air Duct WPL-B5668201
...
178
Air Duct WPL-D7048101
...
179
Screw WPL-M0211530
...
180
Grommet WPL-A0288701
...
181
Screw (3) WPL-67006425
...
182
Clip WPL-M0116901
...
183
Screw WPL-M0211530
...
184
X$x Liner Assy WPL-N6027405
...
185
Bottom-Fr WPL-D7143001
...
186
Heater WPL-C3661401
...
187
Heater-Drip Tray WPL-C8708201
...
188
Drain Block WPL-D7141001
...
189
Breaker Frame WPL-D3917001
...
190
Breaker Frame WPL-D3916801
...
191
Breaker Frame, Top Ref WPL-D3916701
...
192
Breaker Frame WPL-D3914515
...
193
Clip WPL-WPM0117303
...
194
Breaker Frame WPL-D3916301
...
195
Switch, Light WPL-C3658601
...
196
Breaker Frame WPL-D3914516
...
197
Grille-Toe WPL-D7070202
...
198
Grille-Toe WPL-B5641301
...
199
Gasket WPL-A0382801
...
200
Cover Plate WPL-A0382902
...
201
Screw WPL-WP90767
...
202
Grommet, Screw WPL-M0580007
...
203
Top, Ref WPL-D7142901
...
204
Heater-Ref Top K WPL-D7058301
...
205
Screw WPL-M0215617
...
206
Gasket (Per Foot) WPL-A3030313
...
207
Wiring Harness-Liner WPL-D7108001
...
208
Barrier WPL-A3126001
...
209
Insulation WPL-B5682901

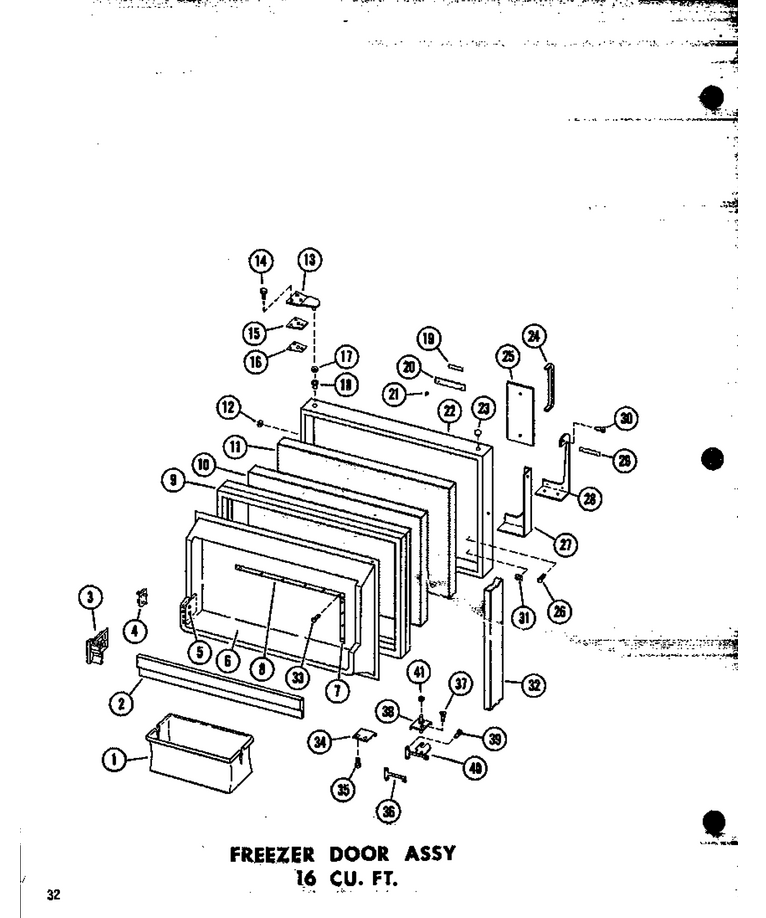

03 - Fz Door Assy 16 Cu. Ft.

...
...
1
Ice Container WPL-D3959403
...
2
Retainer WPL-D3976709
...
3
Support WPL-D3976807
...
4
Tie Bar WPL-B0577902
...
5
Support Bar Plate WPL-A3069801
...
6
Door Panel Assy Kit WPL-R0157104
...
7
Retainer WPL-D3928101
...
8
Retainer Gasket WPL-D3928102
...
9
Gasket WPL-D3928206
...
10
Insulation, Batt WPL-A3073027
...
11
Insulation WPL-B0566707
...
12
Plug WPL-M0310707
...
13
Hinge, Top WPL-B5640704
...
14
Kit, Screw WPL-R9800670
...
15
Shim WPL-A3143702
...
16
Tap Strip WPL-A3139701
...
17
Washer WPL-M0270502
...
18
Bushing, Hinge Pin WPL-C3652901
...
22
Door Fr C Tm18n WPL-D7057801
...
23
Plug Button, Hinge Bushing Avo WPL-M0310603
...
27
Pad-Handle WPL-D7146001
...
28
Handle K WPL-D7145801
...
29
Nameplate Q WPL-C3675302
...
30
Screw WPL-M0203458
...
32
Insulation Ft. K WPL-A3195002
...
33
Screw WPL-WP98165
...
34
Stop Door WPL-A3139801
...
35
Machine Screw WPL-M0205631
...
36
Shim K WPL-A3143501
...
37
Screw, Nylock WPL-M0205442
...
38
Center Hinge Assy WPL-B5640401
...
39
Screw Phillips WPL-M0205731
...
40
Center Hinge Assy WPL-B5640501
...
41
Washer WPL-M0274049

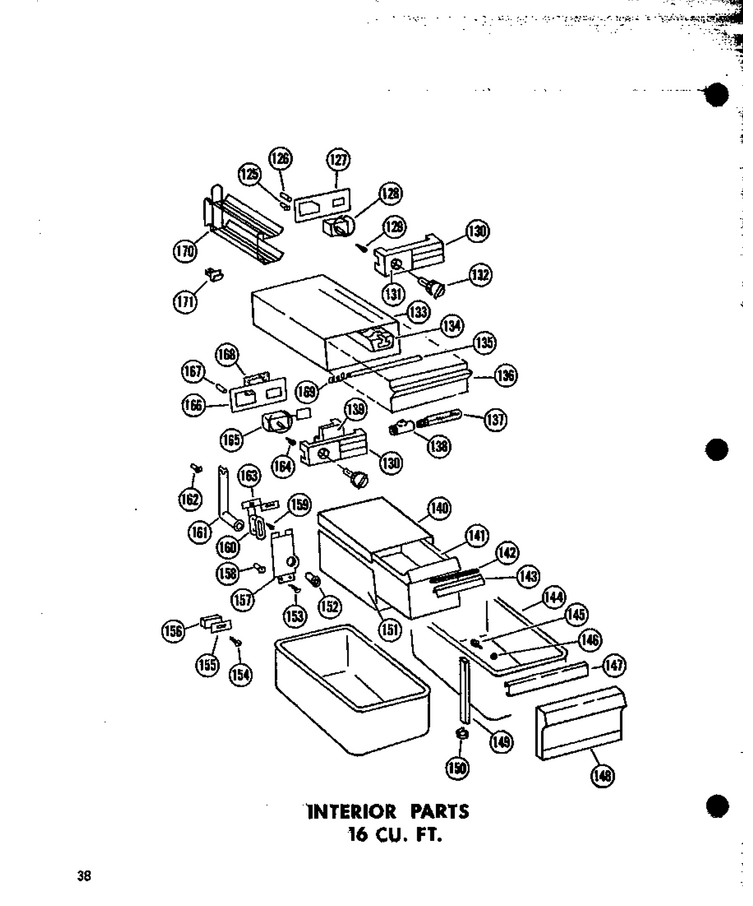

05 - Interior Parts 16 Cu. Ft.

...
...
125
Grommet, Screw WPL-M0580007
...
126
Clip WPL-M0113004
...
127
Backer Plate WPL-D7058201
...
128
Control-Temp WPL-B0592304
...
129
Screw WPL-WP90767
...
130
Air Deflector, Fz & Ref WPL-D3953303
...
131
Thin Plate WPL-B5634501
...
132
Knob WPL-D7009801
...
133
Tunnel WPL-D3969403
...
134
Tray WPL-WP841180A
...
135
Rod, Hinge WPL-A3099801
...
136
Door,tunnel WPL-C3625001
...
137
Light Bulb WPL-A0318001
...
138
Socket WPL-B5637101
...
139
Cap K WPL-C3617201
...
140
Top, Meat Keeper WPL-D7001102
...
141
Pan, Meat WPL-D3975702
...
142
Gasket (Per Foot) WPL-A3030313
...
143
Trim, Handle WPL-C3623002
...
144
Pan, Crisper WPL-D3937610
...
145
Screw WPL-M0212703
...
146
Washer, Fiber (.188 Id/.500 Od WPL-31750016
...
147
Trim,crisper Handle WPL-C3623707
...
148
Front,crisper Pan WPL-D7101901
...
149
Support WPL-B0571005
...
150
Support WPL-B0571201
...
151
Sleeve, Meat Keeper WPL-D7001302
...
152
Grommet WPL-B5640802
...
153
Screw (3) WPL-67006425
...
154
Screw WPL-M0215004
...
155
Escutheon WPL-C3612002
...
156
Switch WPL-A3116201
...
157
Cover, Linkage WPL-B5617301
...
158
Grommet, Screw WPL-M0580007
...
159
Screw WPL-M0219233
...
160
Slide Assy WPL-A0074301
...
161
Air Tube Assy WPL-D3974806
...
162
Clip WPL-M0113001
...
163
Escutcheon WPL-B5615402
...
164
Screw WPL-M0218116
...
165
Control, Damper WPL-C8876602
...
166
Backer Plate WPL-D7058201
...
167
Clip WPL-M0113004
...
168
Gasket WPL-A3104502
...
169
Spring WPL-A3100002

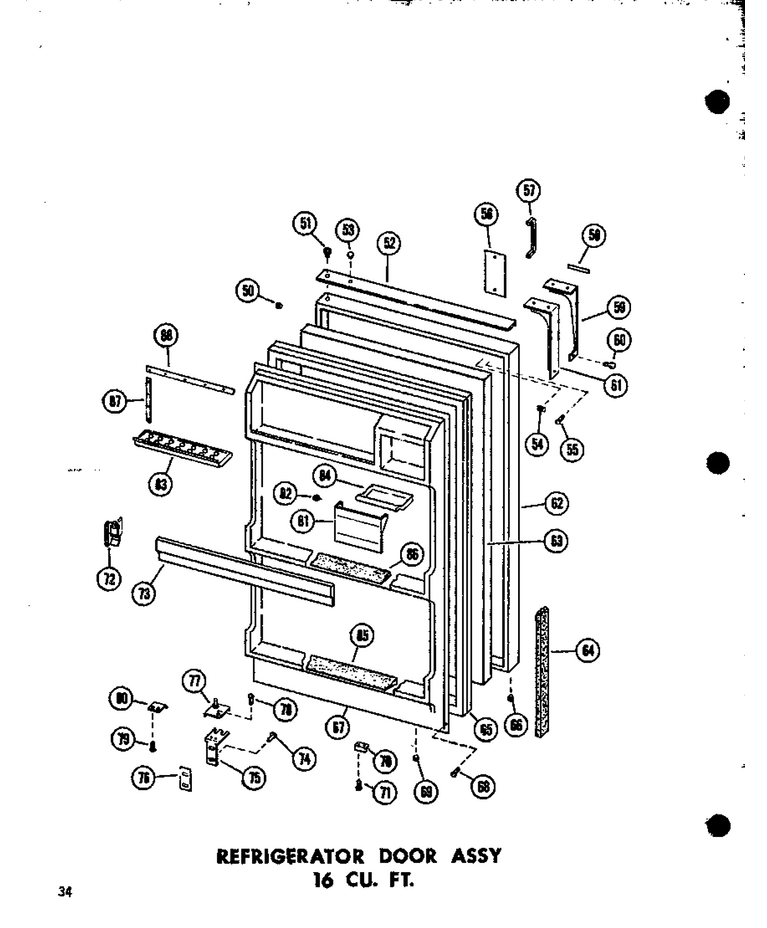

07 - Ref Door Assy 16 Cu. Ft.

...
...
50
Plug WPL-M0310708
...
51
Bushing, Hinge Pin WPL-C3652901
...
52
Door Cap WPL-D3958303
...
53
Plug WPL-M0310713
...
58
Nameplate K WPL-C3675306
...
59
Handle K WPL-D7145802
...
60
Screw WPL-M0203458
...
61
Handle Pad Kit WPL-D7146002
...
62
Outer Door Shell, Refrig, Copp WPL-D7057804
...
63
Insulation WPL-B5639606
...
64
Insulation (1 = 1ft.) WPL-A3195001
...
65
Gasket WPL-D3928205
...
66
Plug Button, Hinge Bushing Avo WPL-M0310603
...
67
Panel, Inner Door WPL-D7142301
...
68
Screw WPL-WP98165
...
69
Plug, Button (Wht) WPL-M0310308
...
70
Strike WPL-B5666401
...
71
Screw WPL-M0241205
...
72
Support WPL-D3976805
...
73
Retainer WPL-D3976709
...
74
Screw WPL-WP67006715
...
75
Hinge Kit WPL-B5640201
...
76
Shim WPL-A3143603
...
77
Hinge Kit WPL-B5640901
...
78
Screw, Nylock WPL-M0205442
...
79
Machine Screw WPL-M0205631
...
80
Stop Door WPL-A3139801
...
81
Butter Door WPL-D7026401
...
82
Pivot WPL-A3084701
...
83
Egg WPL-D7025701
...
84
Buttertray WPL-67004412A
...
85
Block, Shelf Support WPL-B5680701
...
86
Block, Shelf Support WPL-D7145101
...
87
Retainer Gasket WPL-D3928105
...
88
Retainer Gasket WPL-D3928102

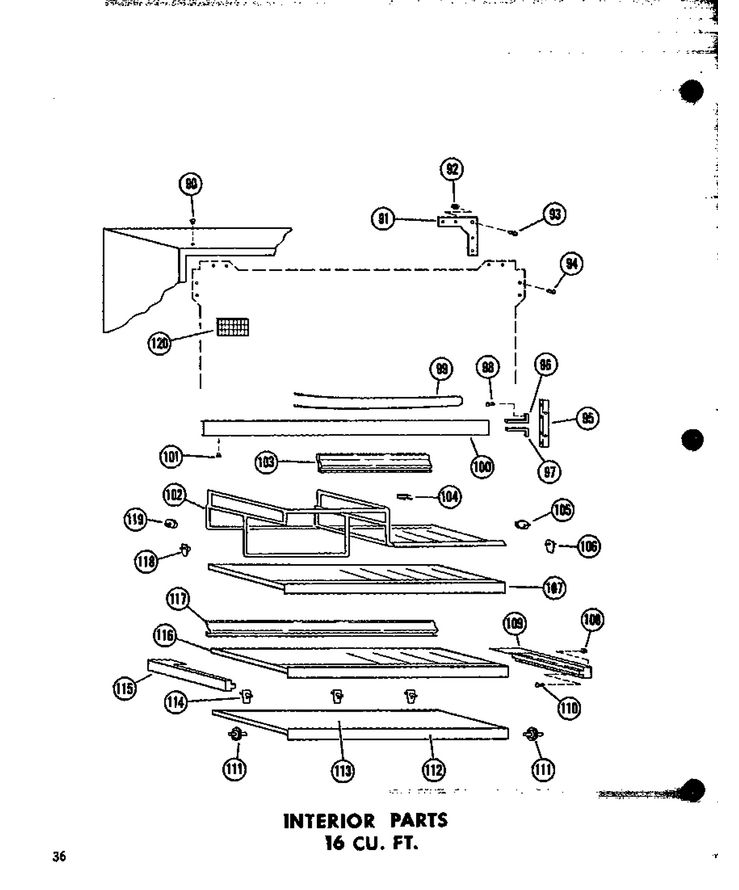

04 - Interior Parts 16 Cu. Ft.

...
...
90
Plug WPL-M0310710
...
91
Gusset WPL-C3576901
...
92
Grommet WPL-A0381801
...
93
Sems Fastner WPL-M0252147
...
94
Screw WPL-M0250531
...
95
Top Strip Hinge WPL-B8353401
...
96
Angle,center Mullion WPL-B5645601
...
97
Angle,center Mullion WPL-B5645602
...
98
Screw WPL-M0250531
...
99
Drier, Mullion WPL-B5636001
...
100
Center Mullion,av WPL-C3633507
...
101
Button- Pl WPL-WP67001130
...
102
Shelf-Step WPL-D7142701
...
103
Trim WPL-C3622502
...
104
Clip A WPL-A3083401
...
105
Support WPL-B5633002
...
106
Shelf Support WPL-B5620401
...
108
Grommet WPL-A0288701
...
109
Frame-Glide Out WPL-D3917302
...
110
Screw (3) WPL-67006425
...
111
Support WPL-B0570501
...
112
Trim WPL-B0570901
...
113
Crisper Top WPL-D3915103
...
114
Support WPL-B5680001
...
115
Frame-Glide Out WPL-D3917301
...
116
Shelf, Glide Out WPL-D7143402
...
117
Trim WPL-C3622501
...
118
Support WPL-B5642101
...
119
Support WPL-B5633001
...
120
Grille WPL-C3601801
