product name

Amana TR16G (BOM: P7553508W)

Model: TR16G (BOM: P7553508W)

Save Part Not Listed?
product name

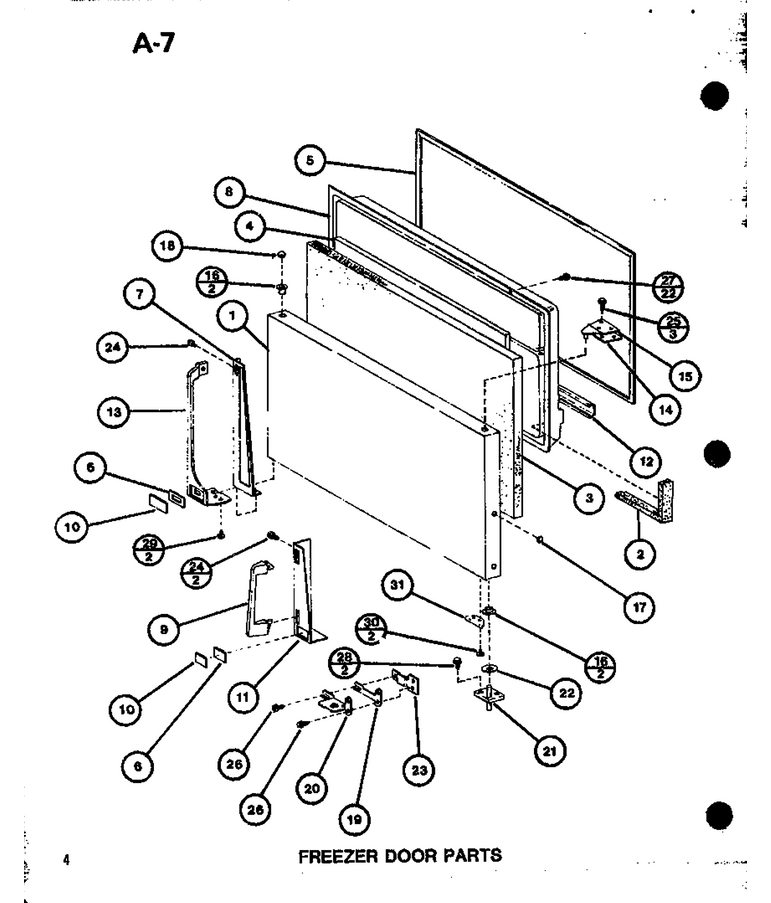

02 - Fz Door Parts

...
...
1
Upper Door Pan, Avocado WPL-D7554533
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5683512
...
4
Insulation WPL-B5683514
...
5
Gasket WPL-D7605101Q
...
6
Pad, Nameplate WPL-C8920501
...
7
Handle, Pad WPL-D7609802
...
8
Inner Door Frz WPL-D7583901
...
10
Nameplate WPL-C8915801
...
12
Retainer, Package WPL-C8907202
...
13
Handle, Door WPL-D7610601
...
14
Shim, Top Hinge WPL-B8389007
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug WPL-M0310717
...
18
Plug WPL-M0310608
...
19
Shim K WPL-A3143501
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750901
...
22
Washer Hinge K WPL-B5779601
...
23
Kit- Tap P WPL-R0194684
...
24
Screw WPL-M0222317
...
25
Kit, Screw WPL-R9800670
...
26
Screw WPL-M0226831
...
27
Screw WPL-WPM0219730
...
28
Screw K WPL-M0205441
...
29
Screw WPL-M0203458
...
30
Machine Screw WPL-M0205631
...
31
Door Stop WPL-C8894801

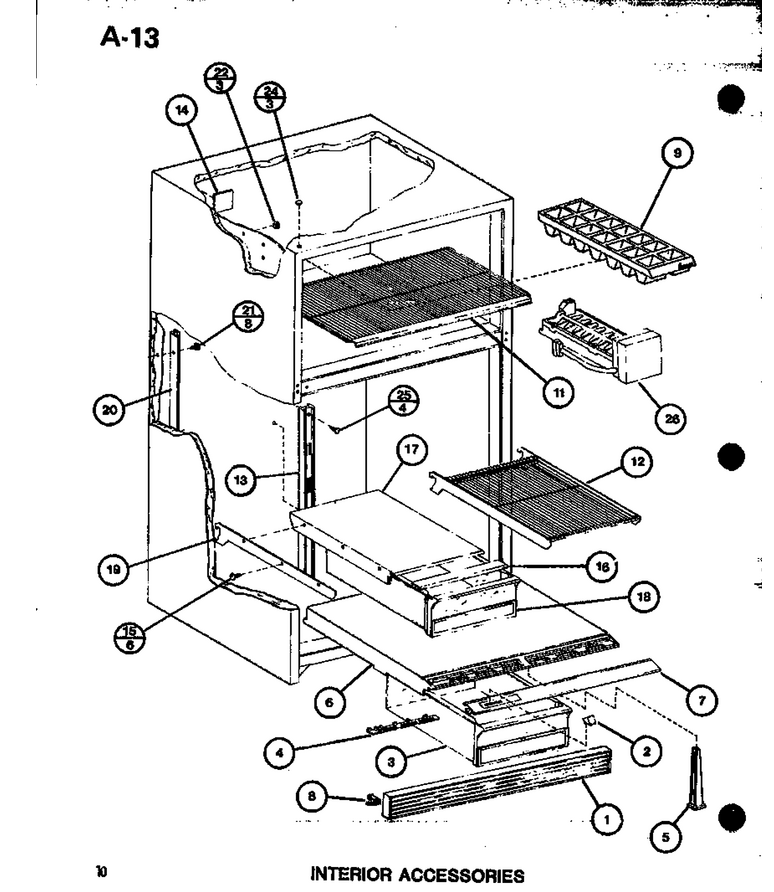

03 - Interior Accessories

...
...
NI
Crisper Top Assy WPL-R0179063
...
1
Grille-Toe-B K WPL-D7520510
...
2
Knob Humidity A-K WPL-C8908301
...
3
Net Crisper Pan WPL-D7581002
...
4
Slide Humidity K WPL-D7587701
...
5
Crisper Support Post WPL-D7602202
...
6
Top, Crisper A-K WPL-D7616501
...
7
Trim, Crisper Top Front WPL-D7616602
...
8
Clip WPL-WPM0117303
...
9
Tray WPL-WP841180A
...
11
Shelf, Fz WPL-D7580701
...
12
Shelf Wire WPL-D7654901
...
13
Ladder Center WPL-D7599001
...
14
Cover, Ice Maker WPL-D7604901
...
15
Screw WPL-W10856125
...
16
Trim, Shelf A WPL-C8913501
...
17
Top, Meat Keeper WPL-D7653401
...
18
Meat Pan WPL-D7579302
...
19
Side Plate M K WPL-D7600011
...
20
Ladder Side WPL-D7599103
...
21
Screw WPL-WP98165
...
22
Button- Pl WPL-WP67001130
...
24
Plug WPL-M0310720
...
25
Screw-Sm WPL-M0238636
...
26
See Note Model Ic3, Mfg. No. P76213-1w Add-On Ice Maker -- (Available From Sales) See Page 18 WPL-Y00000000

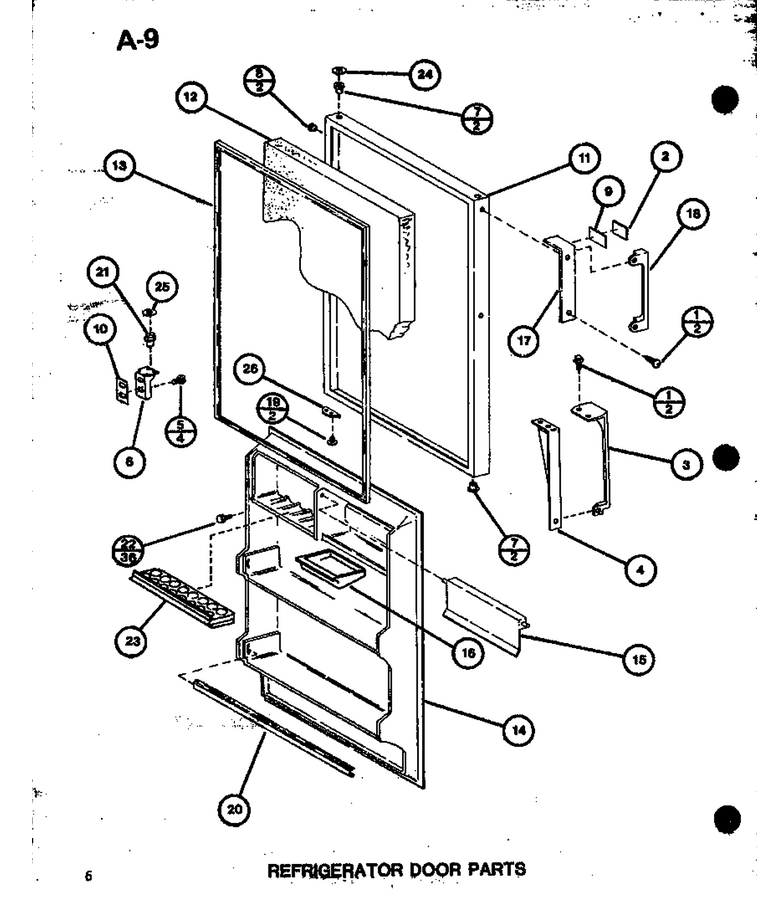

05 - Ref Door Parts

...
...
1
Screw WPL-M0222317
...
2
Nameplate, Handle WPL-C8915804
...
3
Handle Door WPL-D7610602
...
4
Handle, Pad WPL-D7609804
...
5
Screw WPL-WP67006715
...
6
Bracket Lower Hinge WPL-10163605
...
7
Bushing, Hinge Pin WPL-C3652901
...
8
Plug Button (Almond) WPL-M0310730
...
9
Pad, Nameplate WPL-C8920501
...
10
Shim WPL-B5744802
...
11
Lower Door Pan, Ref, Gold WPL-D7554504
...
12
Insulation WPL-B5683511
...
13
Gasket WPL-D7605103
...
14
Inner Dr Panel-Ref WPL-D7652401
...
15
Dairy Door WPL-D7604402
...
16
Butter Tray WPL-D3799802
...
19
Machine Screw WPL-M0205631
...
20
Retainer-Pkg WPL-C8907203
...
21
Pin, Hinge K WPL-C8814901
...
22
Screw WPL-WPM0219730
...
23
Egg Tray WPL-D7587802
...
24
Washer WPL-M0274049
...
25
Washer WPL-M0274050
...
26
Door Stop WPL-C8894801

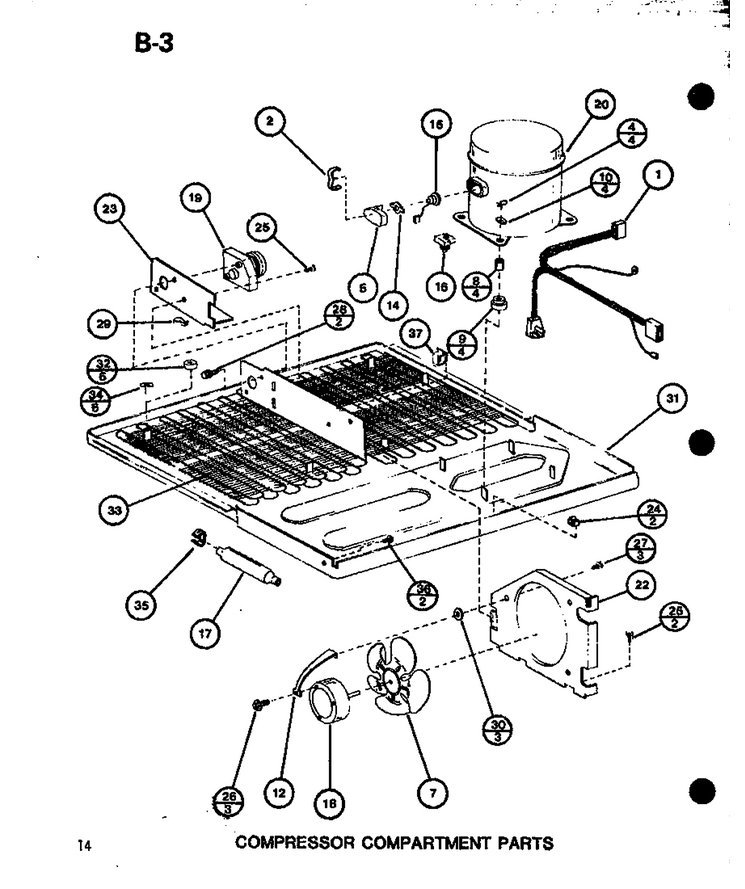

01 - Compressor Compartment Parts

...
...
1
Harness Mc WPL-D7559901
...
2
Strap K WPL-A3041801
...
4
Clip K WPL-A3140801
...
5
Cover K WPL-B0559501
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Washer WPL-B8365301
...
12
Bracket, Cond Motor WPL-B0598701
...
14
Spring K WPL-C8916701
...
15
Overload WPL-C8866901
...
16
Relay WPL-C3553401
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-WP10129301
...
20
Compressor WPL-W10439652
...
22
Condenser Shroud WPL-D7595302
...
23
Bracket, Timer WPL-D7653101
...
24
Clip WPL-M0110509
...
25
Screw WPL-WP90767
...
26
Screw WPL-WPM0223816
...
27
Screw Shoulder WPL-M0238833
...
28
Screw,tc WPL-M0230017
...
29
Wire Tie WPL-M0321204
...
30
Grommet K WPL-M0500107
...
31
Base Pan, Machine Compartment WPL-D7595403
...
32
Spacer, Cond WPL-B8364801
...
33
Condenser WPL-D7654201
...
34
Nut Speed WPL-M0293701
...
35
Clamp-Drier WPL-M0104002
...
36
Screw WPL-M0294459
...
37
Clip WPL-M0113401

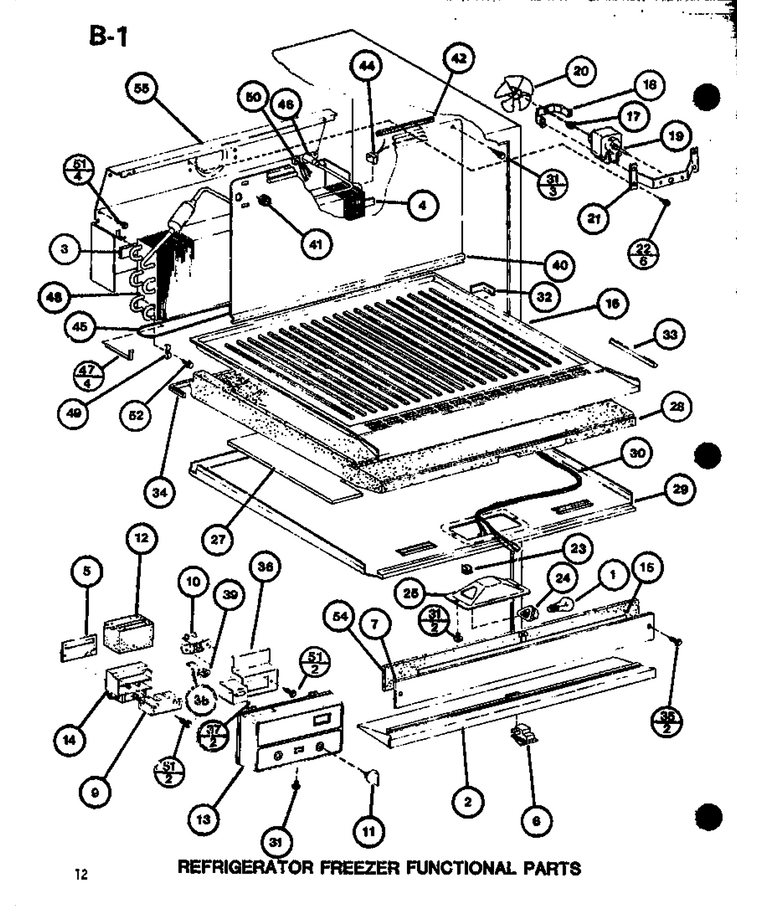

06 - Ref Fz Functional Parts

...
...
1
Light Bulb WPL-8009
...
2
Breaker Strip K WPL-D7653001
...
3
Block Evap. Coil WPL-B8322902
...
4
Block Evap Coil WPL-B8361701
...
5
Gasket, Damper WPL-B8345401
...
6
Switch WPL-W11384469
...
7
Center Mullion WPL-C8842503
...
9
Insert, Control WPL-C8902601
...
10
Cold Control WPL-C8907301
...
11
Knob WPL-D7009802
...
12
Insulation Damper WPL-D7543201
...
13
Cover, Control WPL-D7545002
...
14
Damper Ctrl, Warm 24 F., Norm WPL-D7547401
...
15
Heater, Mullion WPL-D7654501
...
16
Bottom, Freezer WPL-D7714706
...
17
Grommet WPL-WP2264462
...
18
Brkt Evap Fan WPL-C8881301
...
19
Motor-Evap WPL-WPC8891605
...
20
Blade, Evap Fan WPL-C8927801
...
21
Brkt Evap Fan Shroud WPL-D7524501
...
22
Screw WPL-WP90767
...
23
Clip, Ground WPL-B5733302
...
24
Socket-Light WPL-D7714407
...
25
Shield, Light WPL-R0176034
...
27
Insulation WPL-C8887901
...
28
Drain Block Kit WPL-R0156845
...
29
Top Ref. WPL-D7539301
...
30
Harness Mullion WPL-D7649601
...
31
Screw (3) WPL-67006425
...
32
Tape WPL-M0275114
...
33
Gasket, Air Block WPL-B5757703
...
34
Gasket WPL-B5757808
...
35
Kit, Screw WPL-R9800670
...
36
Bracket, Control WPL-D7543101
...
37
Rivet A WPL-M0010202
...
38
Diode WPL-M0305301
...
39
Switch WPL-M0341202
...
40
Evap Cover WPL-D7539801
...
41
Grommet WPL-A3138301
...
42
Gasket, Bottom WPL-A3189394
...
44
Thermostat WPL-WP10442411
...
45
Heater Evap. WPL-D7549701
...
46
Heat Exchanger WPL-D7554901
...
48
See Svs Ltr F-674 WPL-R0170015
...
49
Clamp WPL-A3253803
...
50
Harness Liner WPL-D7656301
...
51
Screw WPL-WP98165
...
52
Screw WPL-M0212932
...
54
Insulation Ft. K WPL-B0523563
...
55
Shroud, Evaporator Fan WPL-D7593501

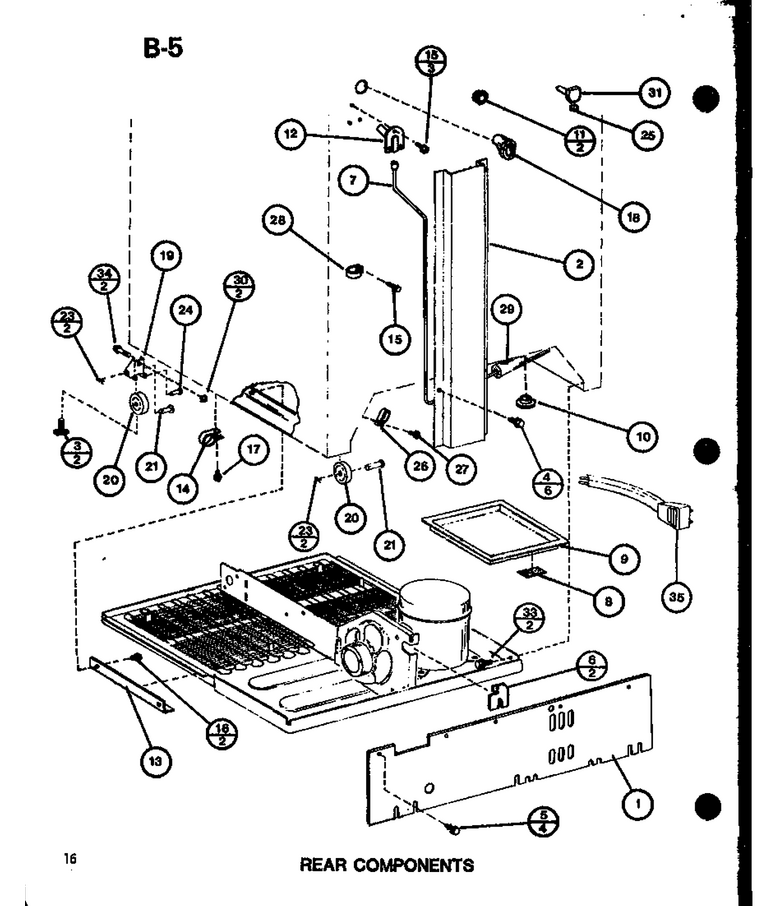

04 - Rear Components

...
...
1
Mc Back Assy WPL-C8890206
...
2
Cover Heat Exchanger K WPL-D7539407
...
4
Screw WPL-M0233716
...
5
Screw-Sm WPL-M0241118
...
6
Retainer Suction Lin WPL-B5791401
...
7
Tube, Drain WPL-D7462101
...
8
Pad A WPL-B5691701
...
9
Net-Pan,drain WPL-D7546601
...
10
Plug, Button WPL-A3076901
...
11
Plug, Button (Blk) WPL-A3080001
...
12
Elbow,drain Tube WPL-C3630901
...
13
Support, Mc WPL-C8913701
...
14
Clamp, Tube WPL-M0102305
...
15
Screw WPL-M0210916
...
16
Screw WPL-M0211530
...
17
Screw WPL-M0233716
...
18
Tunnel-Heat Ex WPL-B5749501
...
19
Assy, Roller Bracket WPL-12452602Q
...
20
Roller WPL-M0520102
...
21
Pin K WPL-M1200202
...
23
Cotter Pin K WPL-M1200004
...
24
Rivet WPL-M1205302
...
25
Plub Button WPL-M0310315
...
26
Clamp WPL-M0103901
...
27
Screw WPL-WP90767
...
28
Clamp WPL-M0102303
...
29
Insul Tubing 1=12`` WPL-A0329806
...
30
Nut, Speed WPL-M0286708
...
31
Fill Tube WPL-R0182123
...
33
Screw WPL-M0294459
...
34
Screw, Mach WPL-M0206313
...
35
Power Cord WPL-R0157154
