product name

Amana TR16B (BOM: P7350003W)

Model: TR16B (BOM: P7350003W)

Save Part Not Listed?
product name

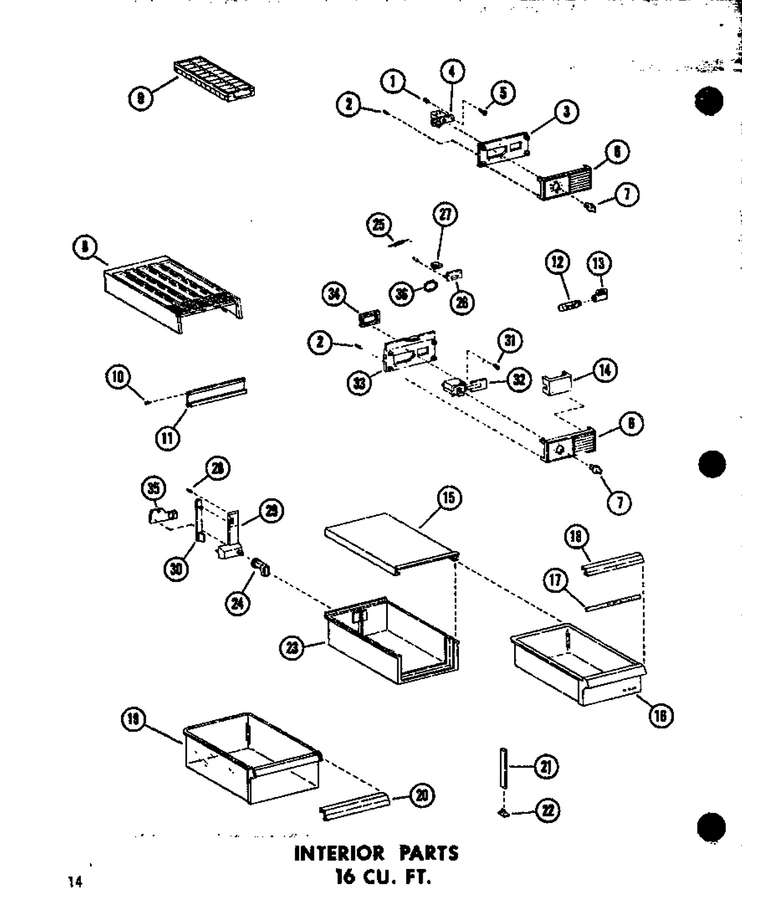

06 - Interior Parts 16 Cu. Ft.

...
...
1
Grommet WPL-M0580003
...
2
Clip WPL-M0113004
...
3
Back Plate WPL-D7160901
...
4
Control-Temp WPL-B0592304
...
5
Screw WPL-WP90767
...
6
Deflector WPL-D7272503
...
7
Knob WPL-D7009801
...
8
Net Tunnel, Ice Tray WPL-D7193001
...
9
Tray WPL-WP841180A
...
10
Hinge Pin WPL-A3214701
...
11
Door, Tunnel WPL-C8706101
...
12
Bulb-Light WPL-WPA3073101
...
13
Socket WPL-B5637601
...
14
Cap K WPL-C3617201
...
15
Top, Meat Keeper WPL-D7001104
...
16
Pan, Meat Keeper WPL-D3975703
...
17
Gasket (Per Foot) WPL-A3030313
...
18
Trim, Handle WPL-C3623002
...
19
Pan, Crisper WPL-D7186701
...
20
Trim A WPL-C3696502
...
21
Support WPL-B0571005
...
22
Support WPL-B0571201
...
23
Sleeve, Meat Keeper WPL-D7001302
...
24
Grommet WPL-C3614904
...
25
Diode WPL-M0305301
...
26
Escutcheon-Htr Sw WPL-C8705702
...
27
Switch WPL-M0341202
...
28
Clip WPL-M0113004
...
29
Escutcheon WPL-B5656703
...
30
Slide-Mt Kpr WPL-B5622803
...
31
Screw WPL-M0218116
...
32
Control, Damper WPL-C8876602
...
33
Backer Plate WPL-D7058201
...
34
Gasket WPL-A3104502
...
35
Gasket Slide K WPL-A3258401
...
36
Gasket, P.s. Switch WPL-B5668202

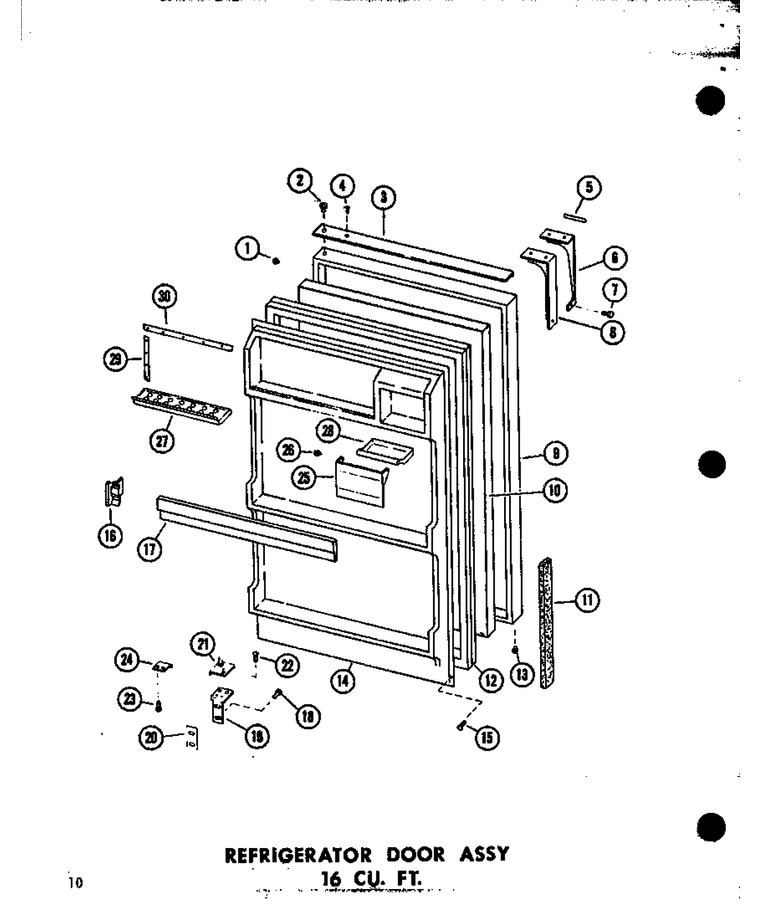

08 - Ref Door Assy 16 Cu. Ft.

...
...
1
Plug Button (Almond) WPL-M0310730
...
2
Bushing, Hinge Pin WPL-C3652901
...
3
Door Cap WPL-D3958303
...
4
Screw WPL-M0203216
...
5
Nameplate K WPL-C3675306
...
6
Handle K WPL-D7145802
...
7
Screw WPL-M0203458
...
8
Handle Pad Kit WPL-D7146002
...
9
Door Ref-G-P-Tc18b WPL-D7370520
...
10
Insulation WPL-B5639609
...
11
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
12
Gasket WPL-D3928205
...
13
Button- Pl WPL-WP67001130
...
14
Door Panel K WPL-D7246301
...
15
Screw WPL-WP98165
...
16
Support- -Cream Rh WPL-B5631706
...
17
Pkg Retainer K WPL-D3976724
...
18
Screw WPL-WP67006715
...
19
Hinge Kit WPL-C8800401
...
20
Shim WPL-A3143601
...
21
Hinge Kit WPL-B5640902
...
22
Screw K WPL-M0205441
...
23
Machine Screw WPL-M0205631
...
24
Stop Door WPL-A3139801
...
25
Butter Door WPL-D7026401
...
26
Pivot WPL-A3084701
...
27
Egg WPL-D7025701
...
28
Buttertray WPL-67004412A
...
29
Retainer Gasket WPL-D3928104
...
30
Retainer Gasket WPL-D3928102

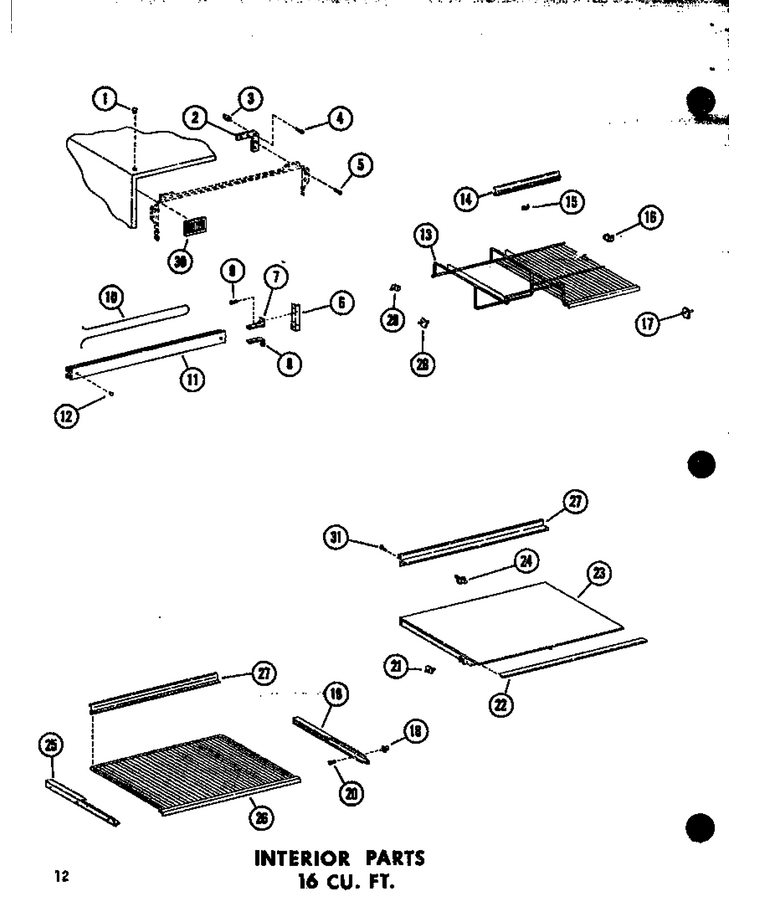

05 - Interior Parts 16 Cu. Ft.

...
...
1
Plug WPL-M0310718
...
2
Gusset WPL-C3576901
...
3
Grommet WPL-A0381802
...
4
Sems Fastner WPL-M0252047
...
5
Screw WPL-M0250531
...
6
Top Strip Hinge WPL-B8353401
...
7
Angle,center Mullion WPL-B5645601
...
8
Angle,center Mullion WPL-B5645602
...
9
Screw WPL-M0250531
...
10
Drier, Mullion WPL-B5636001
...
11
Ctr Mullion WPL-C8808004
...
12
Plug WPL-M0310723
...
13
Step Shelf WPL-D7142702
...
14
Trim WPL-C3622502
...
15
Clip A WPL-A3083401
...
16
Support WPL-B5633002
...
17
Shelf Support WPL-B5620401
...
18
Grommet WPL-A0288701
...
19
Frame-Glide Out WPL-D3917303
...
20
Screw (3) WPL-67006425
...
21
Support WPL-B0570501
...
22
Trim WPL-B0570901
...
23
Crisper Top WPL-D3915103
...
24
Support WPL-B5680001
...
25
Frame-Glide Out WPL-D3917303
...
26
Shelf, Glide Out WPL-D7143402
...
27
Trim WPL-C3622501
...
28
Support WPL-B5642101
...
29
Support WPL-B5633001
...
30
Grille WPL-C3601801
...
31
Screw K WPL-M0205441

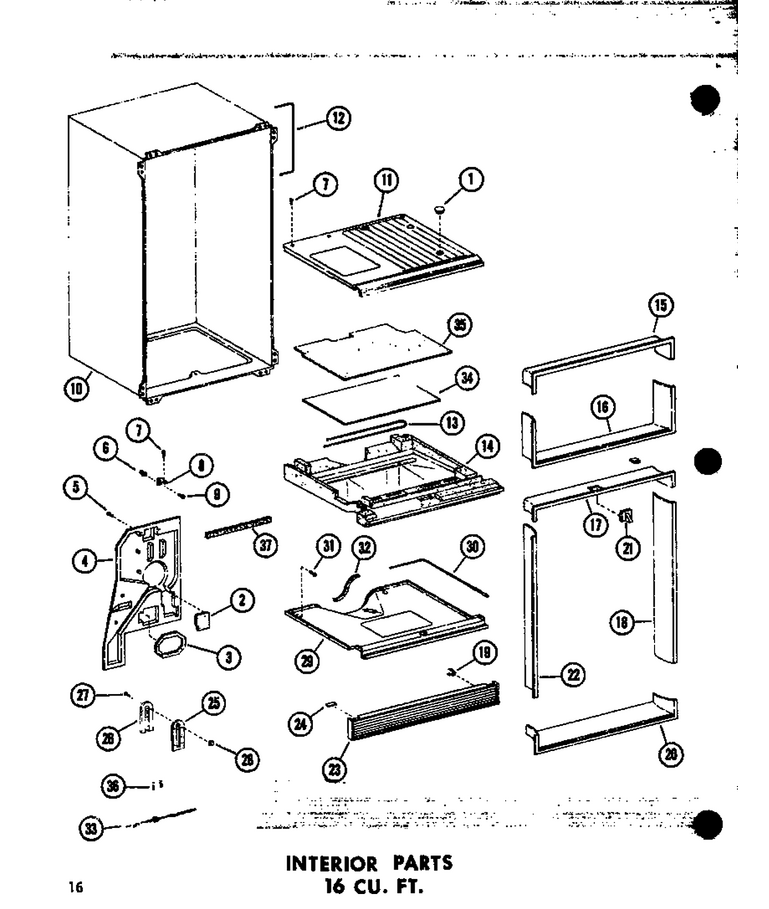

07 - Interior Parts 16 Cu. Ft.

...
...
1
Plug WPL-A3069103
...
2
Insulation WPL-B5609201
...
3
Gasket,air Duct WPL-B5668201
...
4
Air Duct WPL-D7166403
...
5
Screw WPL-W11233072
...
6
Grommet WPL-A0288701
...
7
Screw (3) WPL-67006425
...
8
Clip WPL-M0116901
...
9
Screw WPL-WP90767
...
10
Liner Shell Assembly WPL-D7331105
...
11
Bottom-Fr WPL-D7143001
...
12
Heater WPL-C3661401
...
13
Heater-Drip Tray WPL-C8708201
...
14
Drain Block WPL-D7246701
...
15
Breaker Frame WPL-D3917001
...
16
Breaker Frame WPL-D3916801
...
17
Breaker Frame K WPL-D7246601
...
18
Breaker Frame WPL-D3914515
...
19
Clip WPL-WPM0117303
...
20
Breaker Frame WPL-D3916301
...
21
Switch, Light WPL-C3680305
...
22
Breaker Frame WPL-D3914516
...
23
Grille-Toe WPL-D7070211
...
24
Grille-Toe WPL-B5641301
...
25
Gasket WPL-A0382801
...
26
Cover Plate -G WPL-A0382904
...
27
Screw WPL-WP90767
...
28
Grommet, Screw WPL-M0580007
...
29
Ref Top WPL-D7244401
...
30
Heater-Ref Top WPL-D7269301
...
31
Screw WPL-WP489464
...
32
Gasket (Per Foot) WPL-A3030313
...
33
Wiring Harness, Liner WPL-D7268804
...
34
Barrier WPL-A3126001
...
35
Insulation WPL-B5682901
...
36
Clamp-Wiring WPL-A3195601
...
37
Insulation, Air Duct WPL-A3202701

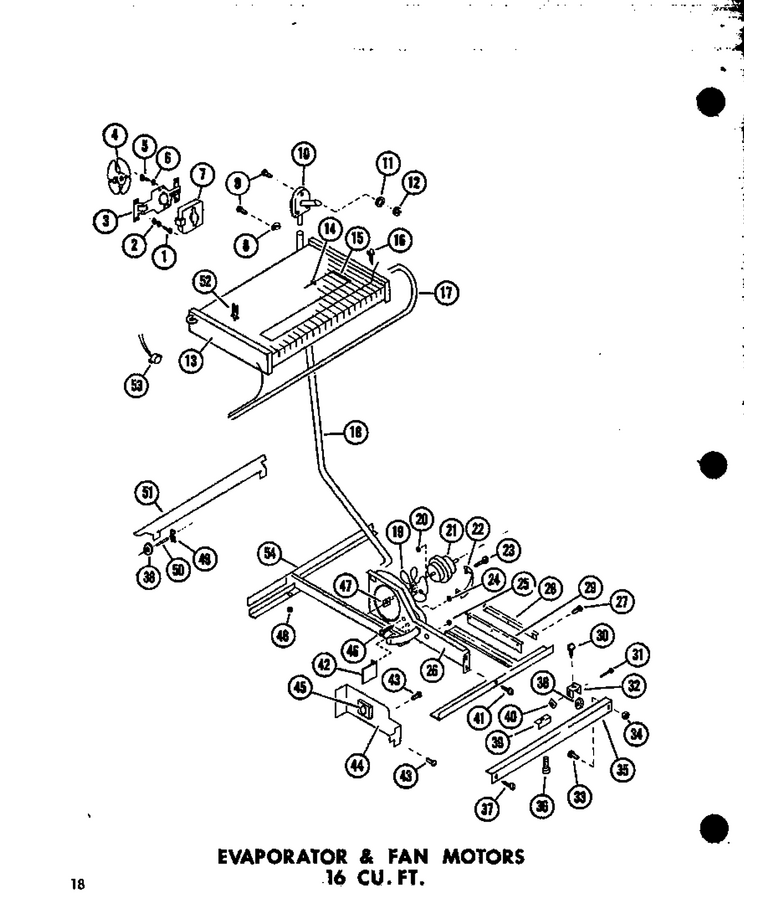

03 - Evap & Fan Motors 16 Cu. Ft.

...
...
1
Screw WPL-WP98165
...
2
Clip, Waterline WPL-12454802
...
3
Bracket WPL-C3536203
...
4
Fan Blade WPL-B5622101
...
5
Screw WPL-M0202642
...
6
Washer WPL-M0272605
...
7
Motor WPL-D7256201
...
8
Clamp WPL-M0102303
...
9
Screw WPL-M0214618
...
10
Elbow WPL-C3630902
...
11
Gasket WPL-A3132301
...
12
Grommet WPL-A3128101
...
13
Evaporator WPL-D7143121
...
14
Clip WPL-M0110301
...
15
Heater Def K WPL-C3660003
...
16
Screw WPL-W11233072
...
17
Heat Exchanger WPL-D7030302
...
18
Tube-Drain WPL-C8721201
...
19
Blade, Fan WPL-B5742603
...
20
Washer K WPL-M0274015
...
21
Motor-Cond WPL-833697
...
22
Bracket, Cond Motor WPL-B0598701
...
23
Screw WPL-WPM0223816
...
24
Grommet K WPL-M0500107
...
25
Strain Relief WPL-A3245101
...
26
Fan Shroud WPL-C3617602
...
27
Screw WPL-WP90767
...
28
Retainer WPL-B0599701
...
29
Seal WPL-B0599603
...
30
Screw WPL-M0267101
...
31
Rivet WPL-M1205302
...
32
Bracket K WPL-A3125201
...
33
Roller Bracket Kit WPL-M0222240
...
34
Nut, Self Thread WPL-M0283801
...
35
Front Rail WPL-B5627601
...
36
Foot-Levelling WPL-B1601601
...
37
Screw WPL-M0294459
...
38
Roller WPL-M0520102
...
39
Wing Nut WPL-A3122601
...
40
Fastener WPL-M0289401
...
41
Screw WPL-WP489464
...
42
Stop,drain Pan WPL-A3125701
...
43
Screw,tc WPL-M0230017
...
44
Timer Bracket WPL-C3647902
...
45
Timer-Def WPL-R0131577
...
46
Screw Shoulder WPL-M0238833
...
47
Nut WPL-WP486692
...
48
Washer WPL-M0274038
...
49
Cotter Pin K WPL-M1200001
...
50
Pivot Pin K WPL-M1210001
...
51
Rail, Rear WPL-C3611301
...
52
Clip,wire WPL-B5667401
...
53
Thermostat-Defrost WPL-C8731901
...
54
Weld Comp Supt Pnt WPL-C8820412

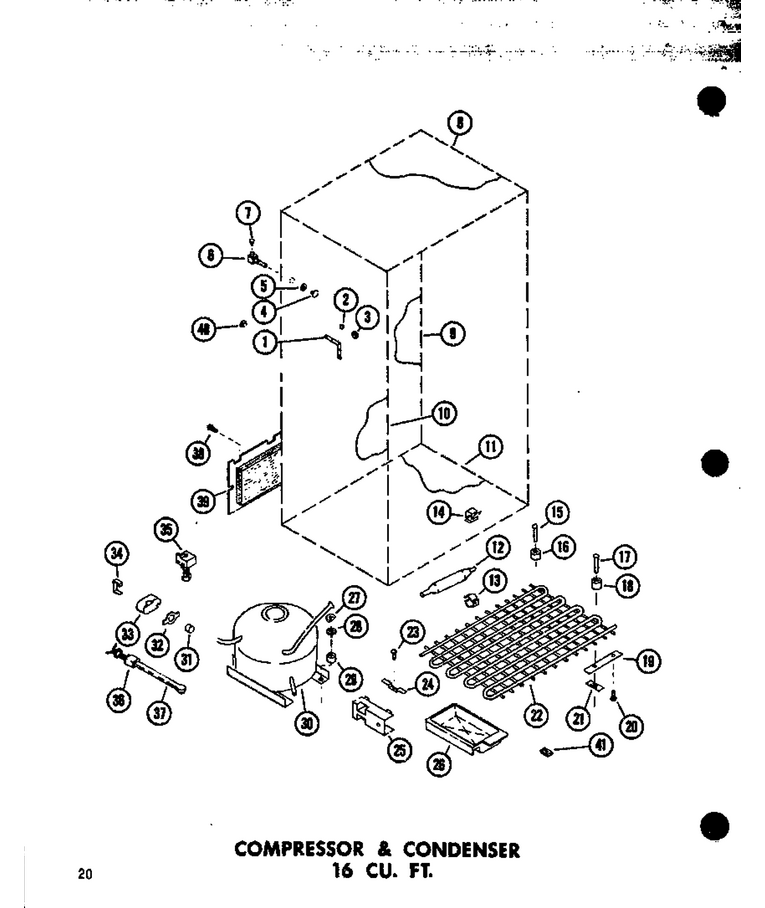

02 - Compressor & Condenser 16 Cu. Ft.

...
...
1
Tap Plate,i.m. WPL-B5639801
...
2
Button- Pl WPL-WP67001130
...
3
Cap WPL-B5636301
...
4
Cap Fill Tube WPL-B5631801
...
5
Grommet WPL-A3138301
...
6
Fill Tube WPL-R0182123
...
7
Plug Button WPL-A3243201
...
8
Insulation WPL-B0524012
...
9
Insulation WPL-B5680802
...
10
Insulation, Side WPL-B5618703
...
11
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
12
Drier WPL-WPB2150504
...
13
Clamp-Drier WPL-M0104002
...
14
Clip-Cable WPL-M0110505
...
15
Sems Fastner WPL-M0257037
...
16
Spacer WPL-A3013906
...
17
Sems Fastner WPL-M0257039
...
18
Spacer WPL-A3013907
...
19
Bracket, Support WPL-A3085401
...
20
Screw WPL-M0241131
...
21
Nut A WPL-M0286003
...
22
Condenser Assy Pnt WPL-D7010701
...
23
Kit, Screw WPL-R9800670
...
24
Clip-Cond WPL-A3054502
...
25
Spacer WPL-B0544101
...
26
Pan, Drain WPL-D7001001
...
27
Clip K WPL-A3140801
...
28
Washer, Nylon K WPL-M0590101
...
29
Grommet K WPL-A3026101
...
30
Compressor WPL-C3667101H
...
31
Overload WPL-C3689102
...
32
Spring K WPL-A3043601
...
33
Terminal Cover WPL-B0551801
...
34
Strap K WPL-A3041801
...
35
Relay WPL-C3689201
...
36
Grommet, Cord WPL-211881
...
37
Wiring Harness WPL-D7314402
...
38
Screw-Sm WPL-M0241118
...
39
Back, Mach Compt K WPL-C3655001
...
40
Plug, Button (Blk) WPL-A3080001
...
41
Pad A WPL-B5691701

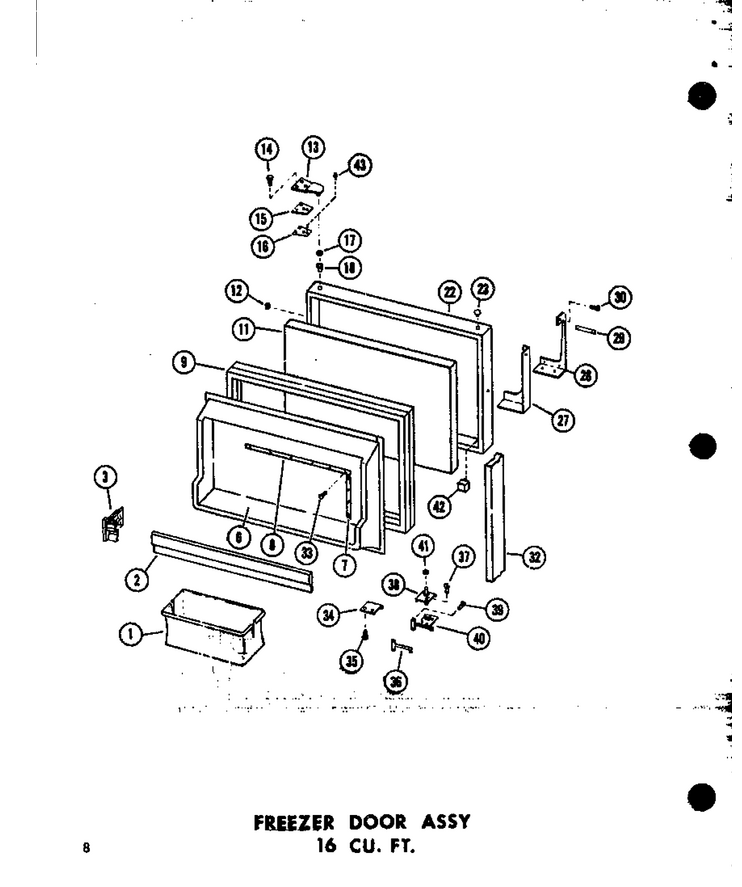

04 - Fz Door Assy 16 Cu. Ft.

...
...
1
Ice Container WPL-D3959403
...
2
Retainer K WPL-D3976725
...
3
Support K WPL-C3680903
...
6
Inner Dr Panel K WPL-D7165402
...
7
Retainer WPL-D3928101
...
8
Retainer Gasket WPL-D3928102
...
9
Gasket, Door WPL-D3928225
...
11
Insulation WPL-B0566708
...
12
Plug Button (Almond) WPL-M0310730
...
13
Hinge WPL-B5744301
...
14
Kit, Screw WPL-R9800670
...
15
Shim Kit WPL-A3270303
...
16
Tap Strip WPL-A3139701
...
17
Washer WPL-M0270502
...
18
Bushing, Hinge Pin WPL-C3652901
...
22
Door Fr-G-P-Tc18b WPL-D7370504
...
23
Plug WPL-M0310606
...
27
Pad-Handle WPL-D7146001
...
28
Handle K WPL-D7145801
...
29
Nameplate Q WPL-C3675302
...
30
Screw WPL-M0203458
...
32
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
33
Screw WPL-WP98165
...
34
Stop Door WPL-A3139801
...
35
Machine Screw WPL-M0205631
...
36
Shim K WPL-A3143501
...
37
Screw K WPL-M0205441
...
38
Center Hinge Assy WPL-B5750901
...
39
Screw Phillips WPL-M0205731
...
40
Center Hinge Assy WPL-C8800201
...
41
Washer Hinge K WPL-B5779601
...
42
Insulation WPL-A3257701
...
43
Pop Rivet-C WPL-B5642911

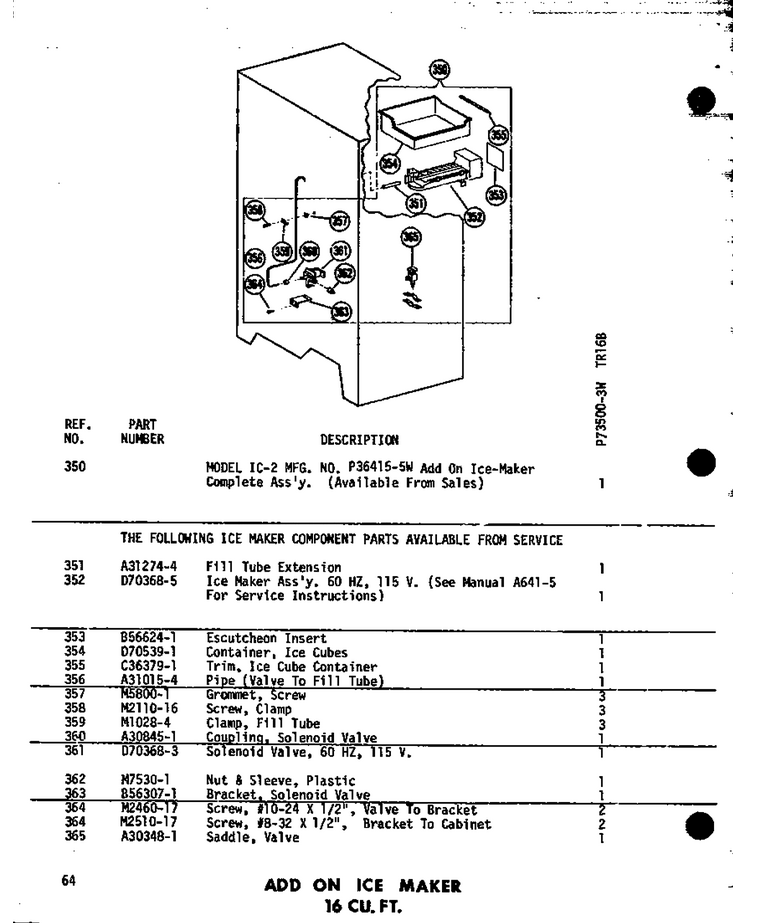

01 - Add On Ice Maker 16 Cu. Ft.

...
...
350
See Note Model Ic-2 Mfg No P36415-5w Add On Ice-Maker Completete Assy -- (Available Fromsales) WPL-Y00000000
...
351
Tube WPL-A3127404
...
352
Ic2-(Ice Maker) WPL-D7036805
...
353
Insert-Im WPL-B5662401
...
354
Pan-Ice WPL-WP67001255
...
355
Trim K WPL-C3637901
...
356
Pipe WPL-A3101504
...
357
Grommet, Screw WPL-M0580007
...
358
Screw WPL-WP90767
...
359
Clamp WPL-M0102804
...
360
Coupling, Solenoid Valve And H WPL-A3084501
...
361
Valve-Inlt WPL-4318047
...
362
Nut WPL-WP627018
...
363
Bracket WPL-B5630701
...
364
Screw WPL-M0251017
...
365
Saddle Valve WPL-A3034801
