Amana TM518E (BOM: P7528802W)

Model: TM518E (BOM: P7528802W)

Save Part Not Listed?
product name

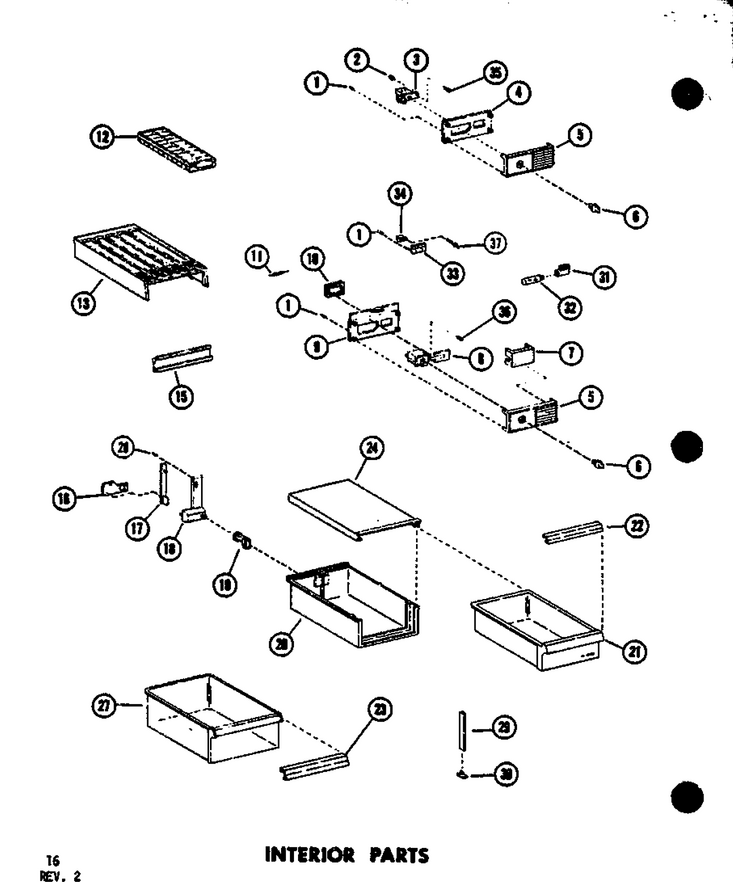

04 - Interior Parts

...
...
1
Clip WPL-M0113004
...
2
Grommet A WPL-M0580002
...
3
Control-Temp WPL-B0592309
...
4
Back Plate WPL-D7160902
...
5
Air Deflector, Fz And Ref WPL-D7417605
...
6
Knob WPL-D7009801
...
7
Cap K WPL-C3617201
...
8
Control, Damper WPL-C8876602
...
9
Back Plate WPL-D7058202
...
10
Gasket WPL-A3104502
...
11
Diode WPL-M0305301
...
12
Tray WPL-WP841180A
...
13
Net Tunnel, Ice Tray WPL-D7193001
...
15
Door-Fast Freeze WPL-C8847603
...
21
Pan, Meat Keeper WPL-D7425301
...
23
Trim-Handle WPL-C8831707
...
24
Top-Mt Kpr WPL-D7343603
...
27
Pan, Crisper WPL-D7425603
...
28
Clip WPL-M0113004
...
29
Support WPL-B0571002
...
30
Support WPL-B0571201
...
31
Socket WPL-B5637601
...
32
Light Bulb Q (25w/230v) WPL-A3079005
...
33
Escutcheon WPL-D7350802
...
34
Switch WPL-M0341801
...
35
Screw (3) WPL-67006425
...
36
Screw WPL-WP489349
...
37
Pop Rivet WPL-A4539616

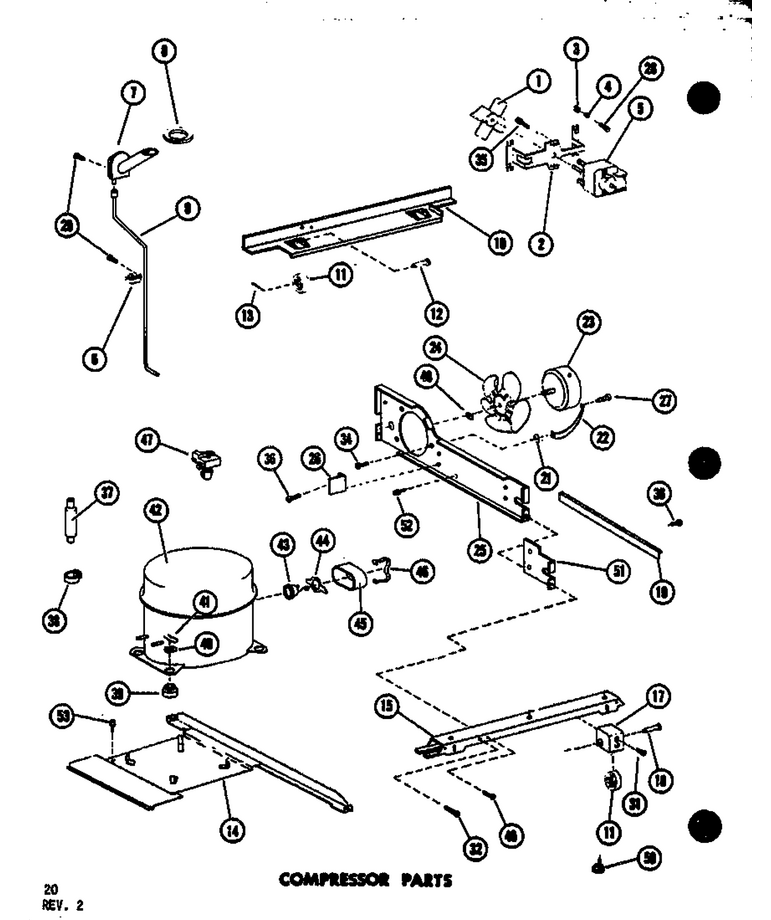

01 - Compressor Parts

...
...
1
Fan Blade WPL-B5622101
...
2
Bracket WPL-C3536203
...
3
Clip, Waterline WPL-12454802
...
4
Eyelet K WPL-A0381401
...
5
Motor 50 Cy WPL-D7115707
...
6
Clamp WPL-M0102303
...
7
Elbow,drain Tube WPL-C3630901
...
8
Gasket WPL-A3132301
...
9
Tube-Drain WPL-C8721201
...
10
Rail Rear WPL-C3611303
...
11
Roller WPL-M0520102
...
12
Pivot Pin K WPL-M1210001
...
13
Cotter Pin K WPL-M1200001
...
14
Weld Comp Supt Pnt WPL-C8820412
...
15
Rail, Front WPL-D7003305
...
17
Roller Kit WPL-C8836303
...
18
Rivet WPL-M1205302
...
19
Seal-Fan Shroud Q WPL-B8314102
...
21
Grommet K WPL-M0500107
...
22
Bracket, Cond Motor WPL-B0598701
...
23
Fan Motor Assy Cond. WPL-C8736902
...
24
Blade, Fan WPL-B5742603
...
25
Shroud, Fan WPL-D7446702
...
26
Stop,drain Pan WPL-A3125701
...
27
Screw WPL-WPM0223816
...
28
Screw WPL-WP98165
...
29
Screw WPL-M0210916
...
31
Screw K WPL-M0236230
...
32
Screw WPL-M0294459
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-WP3400094
...
36
Screw WPL-WP90767
...
37
Drier WPL-WPB2150504
...
38
Clamp-Drier WPL-M0104002
...
39
Grommet K WPL-A3026101
...
40
Washer, Nylon K WPL-M0590101
...
41
Clip K WPL-A3140801
...
42
Compressor, 220 V., 50 Hz, Ae1 WPL-D7351003
...
43
Overload WPL-C3689109
...
44
Spring K WPL-A3043601
...
45
Terminal Cover WPL-B0551801
...
46
Strap K WPL-A3041801
...
47
Relay WPL-C3689205
...
48
Nut A WPL-M0286003
...
49
Screw WPL-WP489464
...
50
Glider Bolt WPL-M0266510

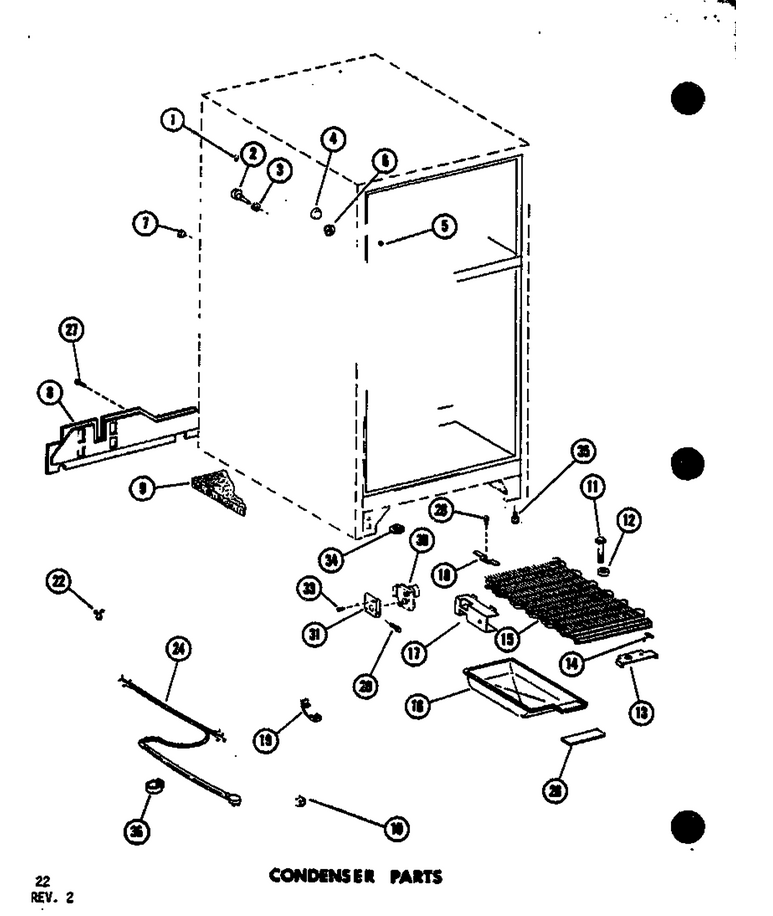

02 - Condenser Parts

...
...
NI
Wiring Harness WPL-D7537601
...
1
Plug WPL-M0310309
...
2
Fill Tube WPL-R0182123
...
3
Grommet WPL-A3138301
...
4
Cap Fill Tube WPL-B5631801
...
5
Button- Pl WPL-WP67001130
...
6
Cap WPL-B5636301
...
7
Plug, Button (Wht) WPL-A3080002
...
8
Back, Mach Compt K WPL-C3655001
...
9
Insulation M.c. A-K WPL-D7525101
...
10
Clip-Cable WPL-M0110505
...
11
Sems Fastner WPL-M0257037
...
12
Spacer WPL-A3013907
...
13
Bracket, Support WPL-A3085401
...
14
Nut A WPL-M0286003
...
15
Condenser Assy Pnt WPL-C8860803
...
16
Pan, Drain WPL-D7001001
...
17
Spacer WPL-B0544101
...
18
Clip-Cond WPL-A3054502
...
20
Screw WPL-WP489464
...
22
Lock, Purse WPL-74007369
...
24
Wiring Harness M.c WPL-D7530001
...
26
Pad A WPL-B5691701
...
27
Screw-Sm WPL-M0241118
...
28
Kit, Screw WPL-R9800670
...
30
Kit- Defro WPL-R0168028
...
31
Timer Bracket WPL-C3647902
...
33
Screw WPL-8169474

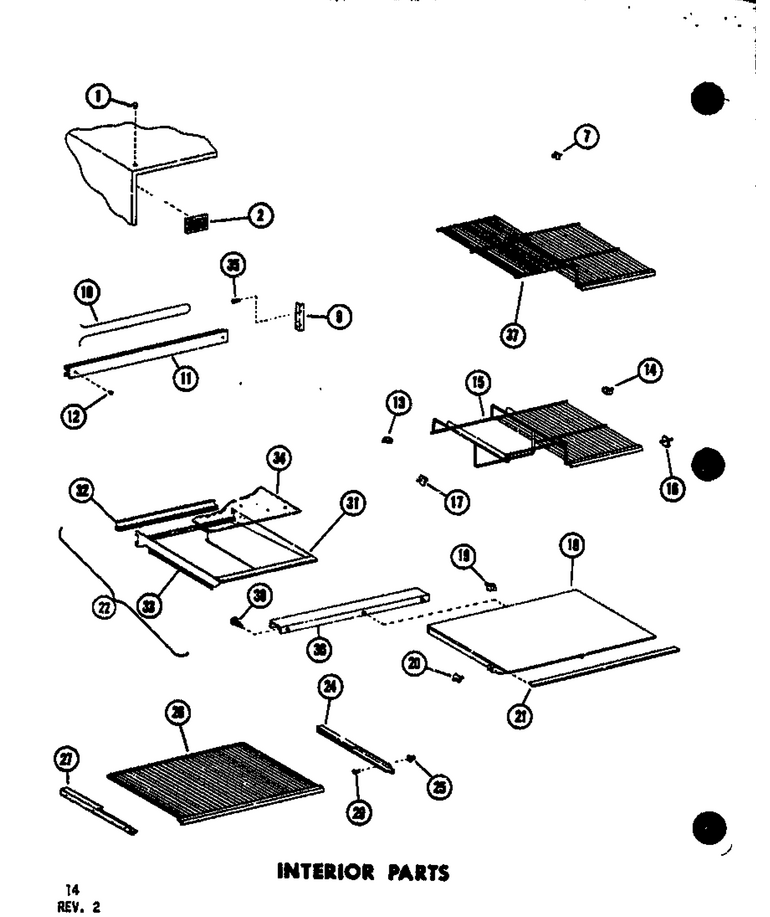

03 - Interior Parts

...
...
1
Plug WPL-M0310718
...
2
Grille WPL-C3601801
...
9
Tap Strip-Hinge WPL-A3140702
...
10
Drier Mullion WPL-D7541703
...
11
Ctr Mullion-L WPL-C8807505
...
12
Button- Pl WPL-WP67001130
...
13
Support WPL-B5633001
...
14
Support WPL-B5633002
...
15
Shelf-Stationary WPL-D7141502
...
16
Shelf Support WPL-B5620401
...
17
Support WPL-B5642101
...
18
Top, Crisper WPL-D7497501
...
19
Support WPL-B5680001
...
20
Support WPL-B0597601
...
24
Frame-Glide Out WPL-D3917304
...
25
Grommet, Screw WPL-M0580007
...
26
Shelf-Glide Out WPL-D7141402
...
27
Frame-Glide Out WPL-D3917303
...
29
Screw (3) WPL-67006425

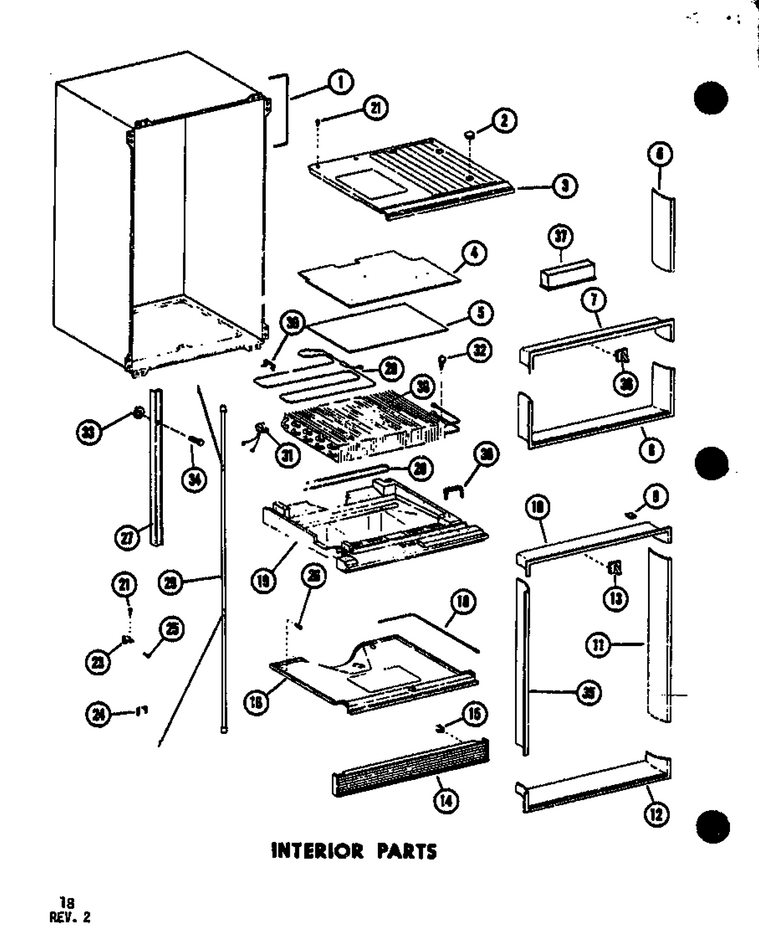

05 - Interior Parts

...
...
1
Heater, Fz Flange WPL-D7132302
...
2
Plug WPL-A3069103
...
3
Bottom-Fr WPL-D7143601
...
4
Insulation WPL-B5682901
...
5
Barrier WPL-A3126001
...
6
Breaker Frame WPL-D7424104
...
7
Frame-Breaker WPL-D7462902
...
8
Frame-Breaker-Rb WPL-D7463003
...
9
Clip WPL-M0113401
...
10
Frame-Breaker-Frt WPL-D7462901
...
11
Breaker Frame WPL-D7424105
...
12
Br Frame WPL-D7463101
...
13
Switch WPL-W11384469
...
14
Grille-Toe WPL-D7415404
...
15
Clip WPL-WPM0117303
...
16
Ref Top WPL-D7244301
...
18
Heater-Ref Top WPL-D7347902
...
19
Drain Block Evaporator WPL-D7437701
...
20
Heater-Drip Tray WPL-C8708202
...
21
Screw (3) WPL-67006425
...
23
Clip WPL-M0116901
...
24
Clamp-Wiring WPL-A3195601
...
25
Screw WPL-WP489464
...
26
Screw WPL-WP90767
...
28
Heater-Defrost WPL-C3660004
...
29
Heat Exchanger WPL-D7582201
...
30
Evaporator WPL-D7143121
...
31
Thermostat-Defrost WPL-C8731901
...
32
Screw WPL-W11233072
