Amana TM20FC (BOM: P7528804W C)

Model: TM20FC (BOM: P7528804W C)

Save Part Not Listed?
product name

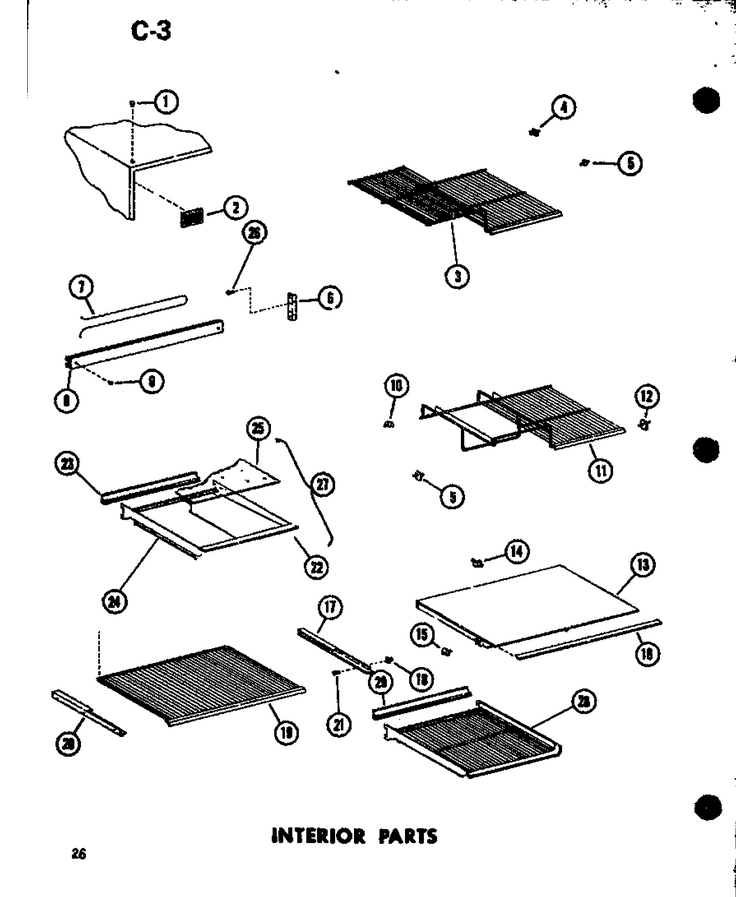

03 - Interior Parts

...
...
1
Plug WPL-M0310720
...
2
Grille WPL-C3601801
...
5
Support, Shelf WPL-12258501
...
6
Tap Strip-Hinge WPL-A3140702
...
7
Drier, Mullion WPL-D7541701
...
8
Ctr Mullion WPL-C8807501
...
9
Plug WPL-M0310723
...
10
Support WPL-B5633001
...
11
Shelf-Stationary WPL-D7141502
...
12
Shelf Support WPL-B5620401
...
13
Top, Crisper WPL-D7497501
...
15
Support WPL-B0597601
...
17
Frame-Glide Out WPL-D3917304
...
18
Grommet, Screw WPL-M0580007
...
19
Shelf-Glide Out WPL-D7141402
...
20
Frame-Glide Out WPL-D3917303
...
21
Screw (3) WPL-67006425
...
28
Shelf, Wire Cantilever With Re WPL-D7556802
...
29
Trim WPL-D7415110

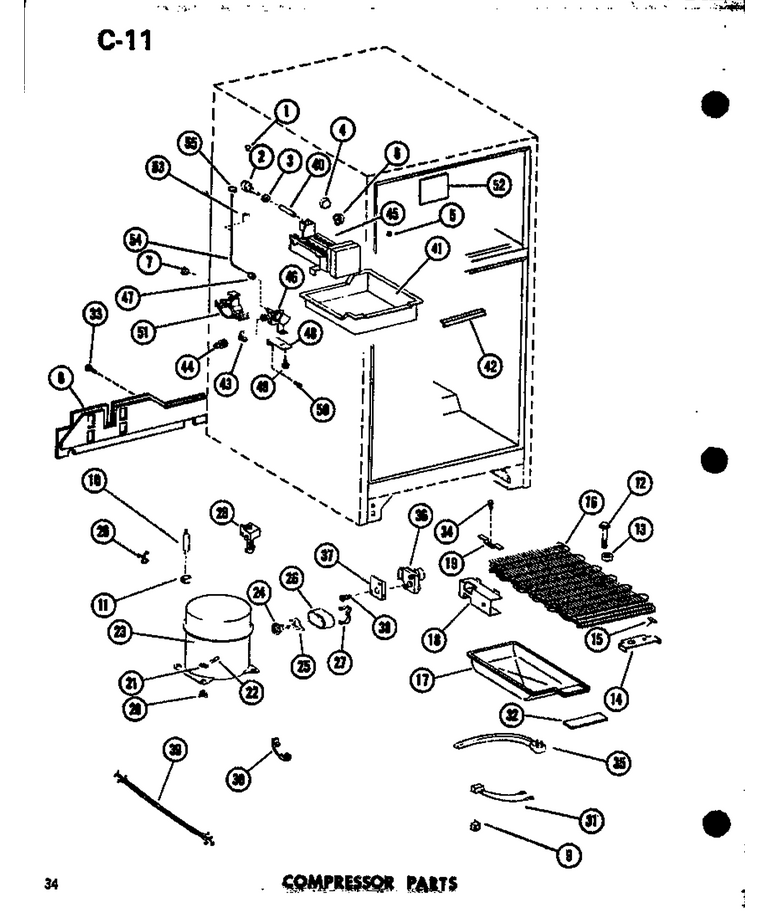

01 - Compressor Parts

...
...
NI
Wire Harness Liner WPL-D7550901
...
1
Plub Button WPL-M0310315
...
2
Fill Tube WPL-R0182123
...
3
Grommet WPL-A3138301
...
4
Cap Fill Tube WPL-B5631801
...
5
Button- Pl WPL-WP67001130
...
6
Cap WPL-B5636301
...
7
Plug, Button (Wht) WPL-A3080002
...
8
Back, Mach Compt K WPL-C3655001
...
9
Clip-Cable WPL-M0110505
...
10
Drier WPL-WPB2150504
...
11
Clamp-Drier WPL-M0104002
...
12
Sems Fastner WPL-M0257037
...
13
Spacer WPL-A3013907
...
14
Bracket, Support WPL-A3085401
...
15
Nut A WPL-M0286003
...
16
Condenser Assy Pnt WPL-C8860803
...
17
Pan, Drain WPL-D7001001
...
18
Spacer WPL-B0544101
...
19
Clip-Cond WPL-A3054502
...
20
Grommet K WPL-A3026101
...
21
Washer, Nylon K WPL-M0590101
...
22
Clip K WPL-A3140801
...
23
Compressor WPL-C3667102H
...
24
Overload WPL-C3689105
...
25
Spring K WPL-A3043601
...
26
Terminal Cover WPL-B0551801
...
27
Strap K WPL-A3041801
...
28
Relay K WPL-C3689202
...
29
Lock, Purse WPL-74007369
...
30
Grommet, Cord WPL-211881
...
31
Wiring Harness WPL-B5730802
...
32
Pad A WPL-B5691701
...
34
Kit, Screw WPL-R9800670
...
35
Power Cord WPL-R0157154
...
36
Timer-Def WPL-R0131577
...
37
Timer Bracket WPL-C3647902
...
38
Screw,tc WPL-M0230017
...
39
Wiring Harness, Machine Compar WPL-D7528102
...
52
Insert-Im WPL-B5662401

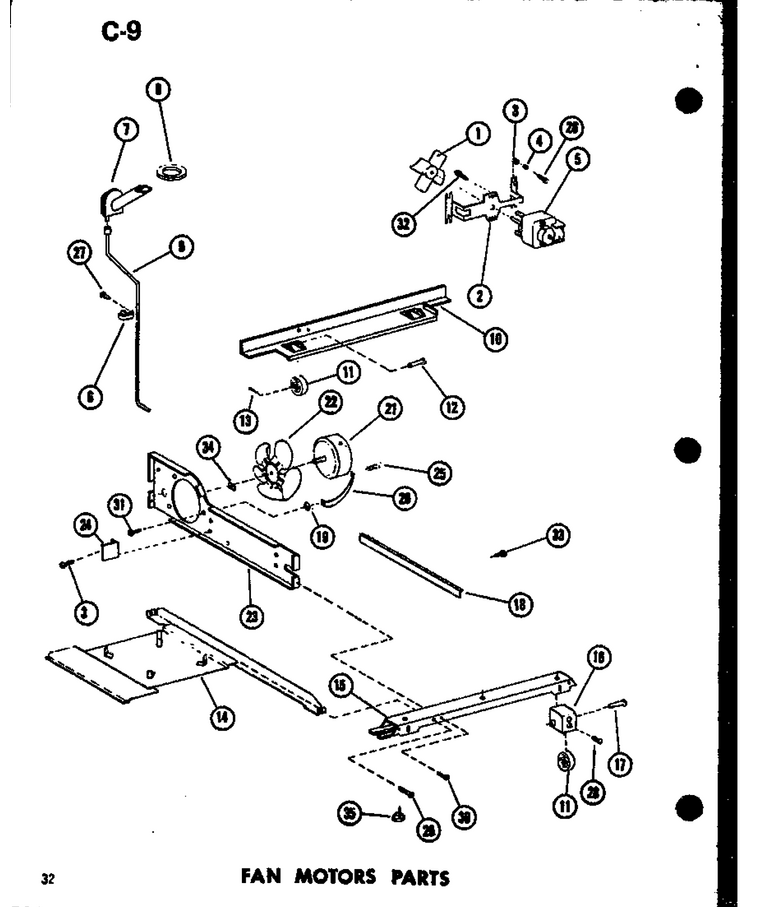

02 - Fan Motors Parts

...
...
1
Fan Blade WPL-B5622101
...
2
Bracket WPL-C3536203
...
3
Clip, Waterline WPL-12454802
...
4
Eyelet K WPL-A0381401
...
5
Motor WPL-D7256203
...
6
Clamp WPL-M0102303
...
7
Elbow,drain Tube WPL-C3630901
...
8
Gasket WPL-A3132301
...
9
Tube-Drain WPL-C8721203
...
10
Rail, Rear WPL-C3611301
...
11
Roller WPL-M0520102
...
12
Pivot Pin K WPL-M1210001
...
13
Cotter Pin K WPL-M1200001
...
14
Weld Comp Supt Pnt WPL-C8820412
...
15
Front Rail WPL-D7003301
...
16
Roller Kit WPL-C8836302
...
17
Rivet WPL-M1205302
...
18
Seal-Fan Shroud Q WPL-B8314102
...
19
Grommet K WPL-M0500107
...
20
Bracket, Cond Motor WPL-B0598701
...
21
Motor-Cond WPL-833697
...
22
Blade, Fan WPL-B5742603
...
23
Shroud, Fan WPL-D7446701
...
24
Stop,drain Pan WPL-A3125701
...
25
Screw WPL-WPM0223816
...
26
Screw WPL-WP98165
...
27
Screw WPL-M0210916
...
28
Screw K WPL-M0236230
...
29
Screw WPL-M0294459
...
30
Screw WPL-WP489464
...
31
Screw Shoulder WPL-M0238833
...
32
Screw WPL-WP3400094
...
34
Nut A WPL-M0286003
...
35
Glider Bolt WPL-M0266510

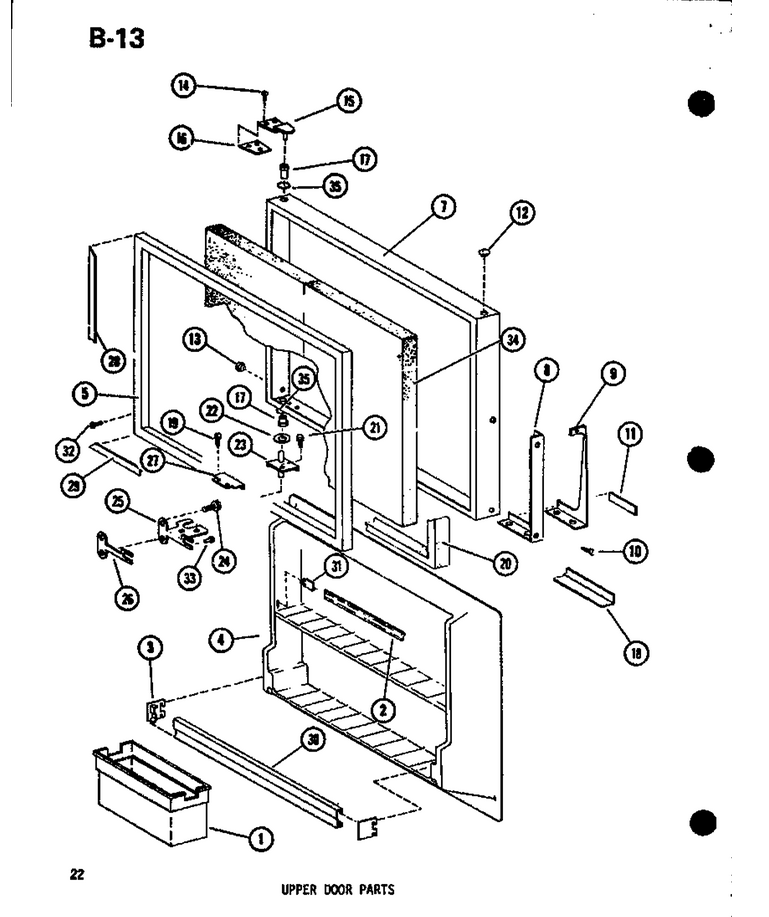

07 - Upper Door Parts

...
...
2
Retainer WPL-B8302606
...
3
Support WPL-C3680907
...
4
Net Inner Door Panel WPL-D7165003
...
5
Gasket WPL-D7431909Q
...
7
Door Fr W-T Tm20e WPL-D7437011
...
8
Pad Handle K WPL-D7257906
...
9
Handle WPL-D7254201
...
10
Screw WPL-M0203458
...
11
Nameplate WPL-C8894002
...
12
Plug WPL-M0310607
...
13
Plug WPL-M0310717
...
14
Kit, Screw WPL-R9800670
...
15
Hinge WPL-B5744301
...
16
Shim-Top Hinge K WPL-A3270302
...
20
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
21
Screw K WPL-M0205441
...
22
Washer Hinge K WPL-B5779601
...
23
Center Hinge Assy WPL-B5750901
...
24
Screw Phillips WPL-M0205731
...
25
Center Hinge Assy WPL-C8800201
...
26
Shim K WPL-A3143501
...
28
Retainer Gasket WPL-D3928108
...
29
Retainer Gasket WPL-D3928102
...
30
Retainer-Package WPL-D7415715
...
31
Support K WPL-B0530006
...
32
Screw WPL-WP98165
...
34
Foam Slab WPL-D7349401
...
35
O Ring WPL-M0500902

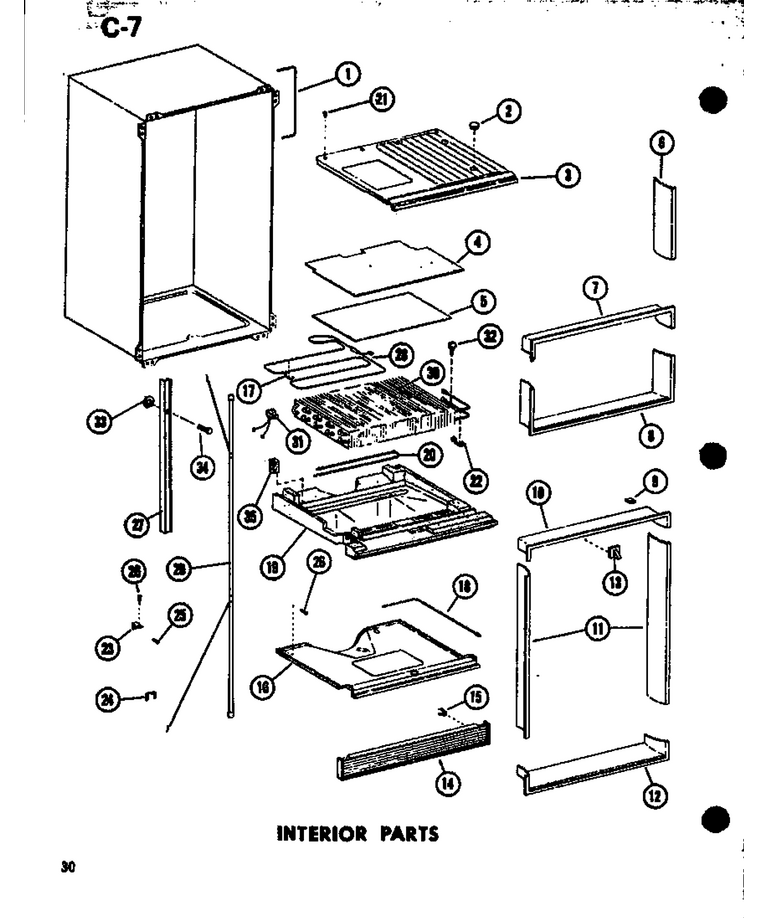

04 - Interior Parts

...
...
1
Grommet A WPL-M0580002
...
2
Control-Temp WPL-B0592304
...
3
Black Plate WPL-D7160904
...
4
Air Defector K WPL-D7557304
...
5
Knob WPL-D7009816
...
6
Cap K WPL-C3617201
...
7
Control, Damper WPL-C8876602
...
8
Back Plate WPL-D7058204
...
9
Gasket WPL-A3104502
...
11
Tray WPL-WP841180A
...
12
Tunnel WPL-D7552903
...
13
Hinge Pin WPL-A3214701
...
14
Door Ice Tunnel K WPL-C8847604
...
20
Pan, Meat Keeper WPL-D7425301
...
21
Gasket (Per Foot) WPL-A3030313
...
22
Trim-Handle WPL-C8831707
...
23
Top-Mt Kpr WPL-D7343603
...
24
Pan, Crisper WPL-D7425604
...
25
Clip WPL-M0113004
...
26
Support WPL-B0571002
...
27
Support WPL-B0571201
...
28
Escutcheon WPL-D7350802
...
29
Switch WPL-M0341801
...
31
Socket WPL-B5637601
...
32
Bulb-Light WPL-WPA3073101
...
33
Screw WPL-WP90767
...
34
Screw WPL-WP489349
...
35
Trim WPL-C8831708
...
36
Pop Rivet WPL-A4539616

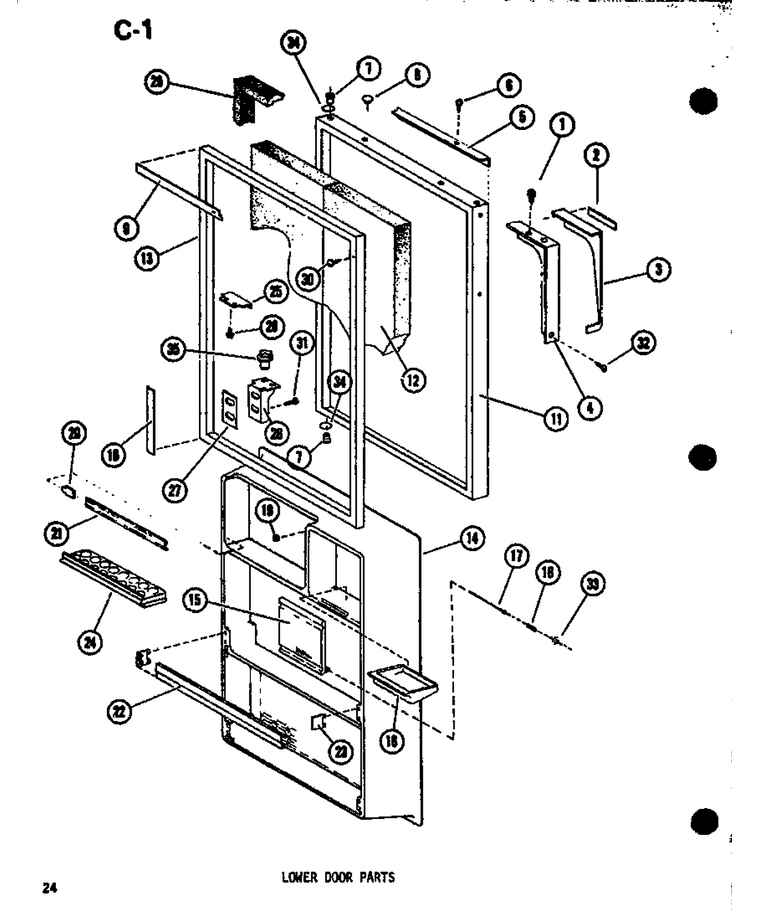

06 - Lower Door Parts

...
...
1
Screw WPL-M0203458
...
2
Name Plate Handle WPL-C8894401
...
3
Handle WPL-D7254202
...
4
Pad Handle K WPL-D7257905
...
7
Bushing WPL-C3652902
...
8
Plug WPL-M0310717
...
9
Retainer Gasket WPL-D3928102
...
10
Retainer Gasket WPL-D3928106
...
11
Door Ref. W-T Tm20d WPL-D7437016
...
12
Insulation WPL-B5683503
...
13
Gasket, Door WPL-D3928228
...
14
Inner Door Panel WPL-D7165103
...
15
Butter Door WPL-C8832804
...
16
Buttertray WPL-67004412A
...
17
Hinge Rod K WPL-A3056207
...
18
Spring A/k WPL-A3065201
...
19
Bumper WPL-A3059003
...
20
Support K WPL-B0530006
...
21
Retainer WPL-B8302607
...
22
Retainer-Package WPL-D7415716
...
23
Support- -Cream Rh WPL-B5631706
...
24
Egg Tray WPL-D7466605
...
27
Shim WPL-A3143603
...
28
Bracket Hinge K WPL-C8814804
...
29
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
30
Screw WPL-WP98165
...
31
Screw WPL-WP67006715
...
32
Screw WPL-M0222317
...
34
O Ring WPL-M0500902
...
35
Pin, Hinge K WPL-C8814901

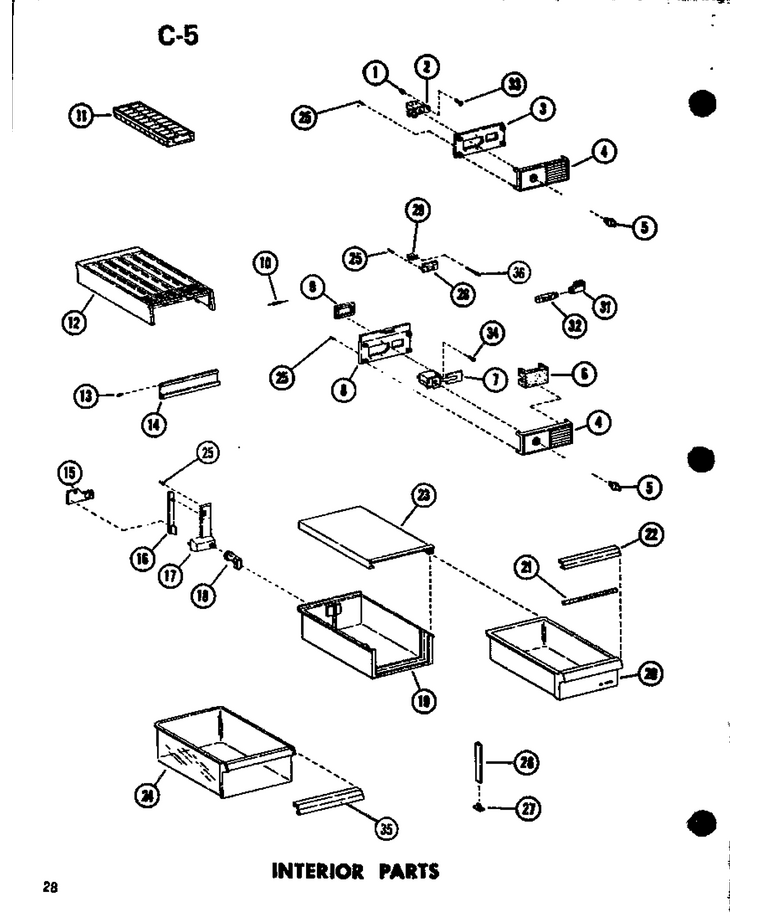

05 - Interior Parts

...
...
1
Heater-Fr Flange WPL-D7350401
...
2
Plug WPL-A3069103
...
3
Bottom-Fr WPL-D7143601
...
4
Insulation WPL-B5682901
...
5
Barrier WPL-A3126001
...
6
Breaker Frame WPL-D7424103
...
7
Frame-Breaker WPL-D7462902
...
8
Frame-Breaker-Rb WPL-D7463003
...
9
Clip WPL-M0113401
...
10
Frame-Breaker-Frt WPL-D7462901
...
11
Breaker Frame WPL-D7424102
...
12
Br Frame WPL-D7463101
...
13
Switch WPL-W11384469
...
14
Grille-Toe-B K WPL-D7520510
...
15
Clip WPL-WPM0117303
...
16
Ref Top WPL-D7244301
...
18
Heater Ref. Top WPL-D7347904
...
19
Drain Block Evaporator WPL-D7437701
...
20
Heater-Drip Tray WPL-C8708201
...
21
Screw (3) WPL-67006425
...
23
Clip WPL-M0116901
...
24
Clamp-Wiring WPL-A3195601
...
25
Screw WPL-WP489464
...
26
Screw WPL-WP90767
...
28
Heater Def K WPL-C3660003
...
29
Heat Exchanger WPL-D7030302
...
30
Evaporator WPL-D7413121
...
31
Thermostat-Defrost WPL-C8731901
...
32
Screw WPL-W11233072
...
33
Nut WPL-WP486255
...
34
Stud WPL-M0258801
...
35
Gasket-Cavity Top WPL-10839709
