Amana TM18SPG (BOM: P7651202W)

Model: TM18SPG (BOM: P7651202W)

Save Part Not Listed?
product name

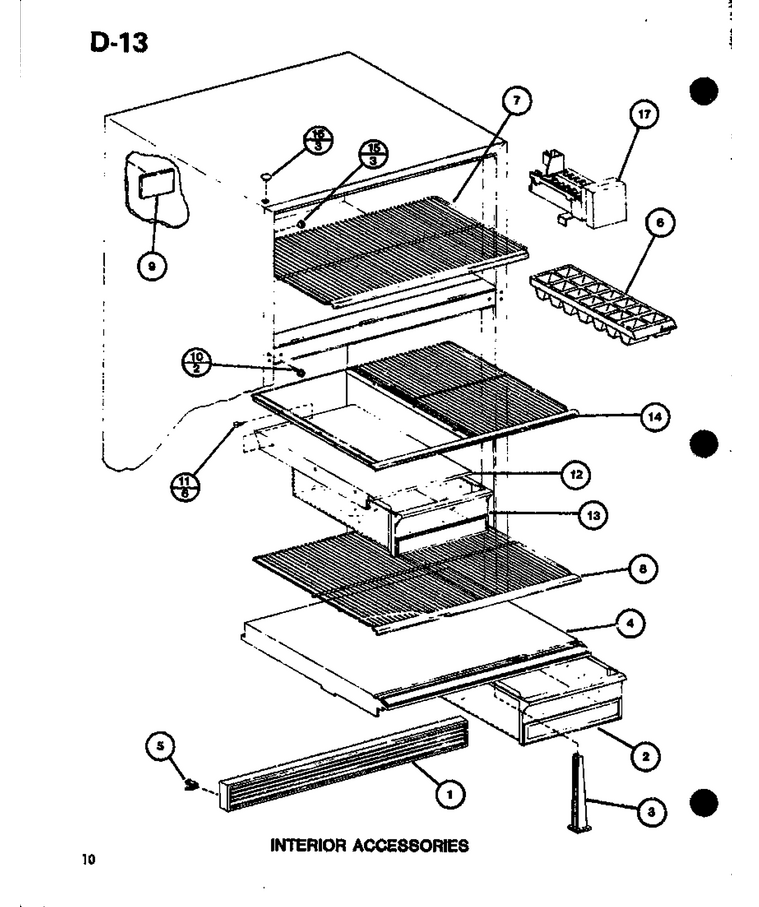

03 - Interior Accessories

...
...
1
Grille-Toe-B K WPL-D7520510
...
2
Net Crisper Pan WPL-D7581006
...
3
Crisper Support Post WPL-D7602202
...
4
Top, Crisper WPL-D7616507
...
5
Clip WPL-WPM0117303
...
6
Tray WPL-WP841180A
...
7
Shelf, Frz WPL-D7580702
...
8
Wire Shelf WPL-D7583802
...
9
Cover-Fl Tb/plug WPL-D7604903
...
10
Kit, Screw WPL-R9800670
...
11
Screw WPL-W10856125
...
12
Top M.k WPL-D7653404
...
13
Meat Pan WPL-D7579306
...
14
Shelf M.k. Wire WPL-D7584202
...
15
Button- Pl WPL-WP67001130
...
16
Plug WPL-M0310718
...
17
See Note Mdl Ic-3, Mfgno. P76213-1w & Cic4, Mfgno. P76213-2w Ice Maker -- (Available From Sales) See Page 20 WPL-Y00000000

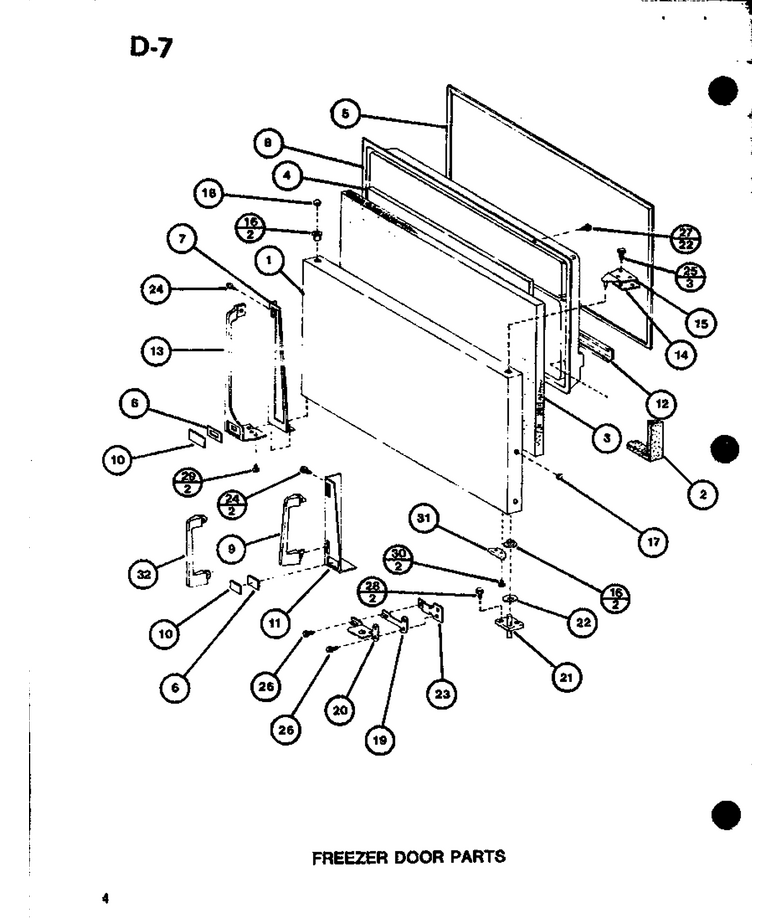

02 - Fz Door Parts

...
...
1
Door Fr G-T-Tm16j WPL-D7728212
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5683512
...
4
Insulation WPL-B5683514
...
5
Gasket WPL-D7605106
...
6
Pad, Nameplate WPL-C8920501
...
8
Panel, Inner Door WPL-D7583903
...
10
Nameplate WPL-C8931701
...
11
Pad, Handle WPL-D7623501
...
12
Retainer, Package WPL-C8907207
...
14
Shim Kit WPL-A3270303
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug WPL-M0310717
...
18
Plug WPL-M0310608
...
19
Shim K WPL-A3143501
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750901
...
22
Washer Hinge K WPL-B5779601
...
23
Kit- Tap P WPL-R0194684
...
24
Screw WPL-M0222317
...
25
Kit, Screw WPL-R9800670
...
26
Screw WPL-M0226831
...
27
Screw WPL-WPM0219730
...
28
Screw K WPL-M0205441
...
32
Handle Kit WPL-R0156551

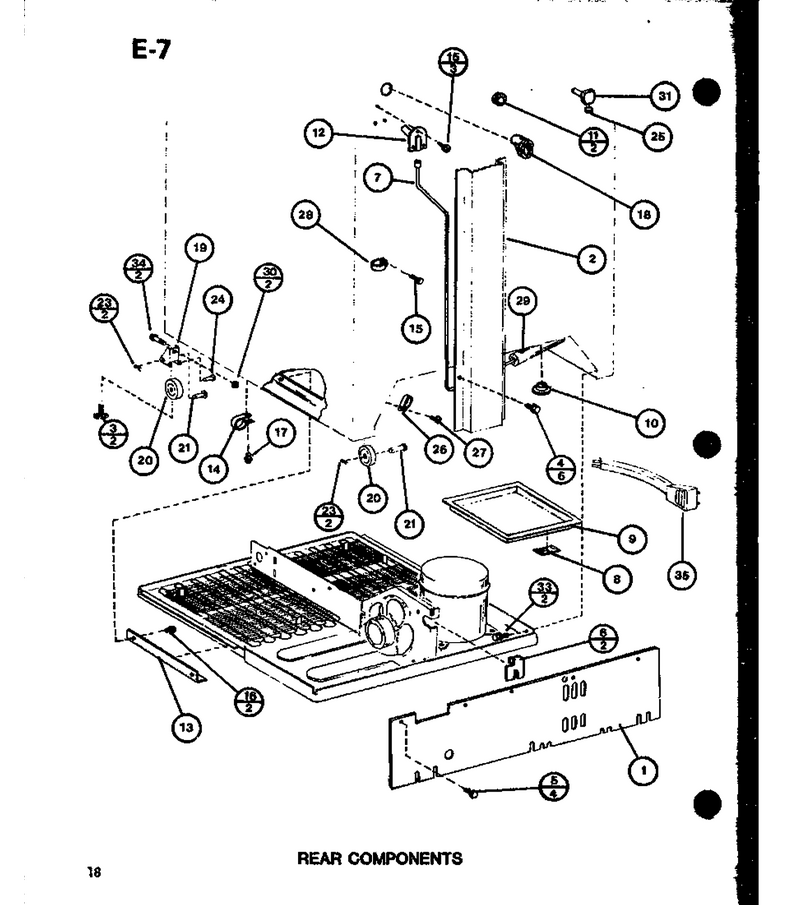

04 - Rear Components

...
...
1
Mc Back Assy WPL-C8890206
...
2
Cover Heat Exchanger K WPL-D7539407
...
3
Glider Bolt WPL-M0266510
...
4
Screw WPL-M0233716
...
5
Screw-Sm WPL-M0241118
...
6
Retainer Suction Lin WPL-B5791401
...
7
Tube, Drain WPL-D7462102
...
8
Pad A WPL-B5691701
...
9
Net-Pan,drain WPL-D7546601
...
10
Plug, Button WPL-A3076901
...
11
Plug, Button (Blk) WPL-A3080001
...
12
Elbow,drain Tube WPL-C3630901
...
13
Support, Mc WPL-C8913701
...
14
Clamp, Tube WPL-M0102305
...
15
Screw WPL-M0210916
...
16
Screw WPL-M0211530
...
17
Screw WPL-M0233716
...
18
Tunnel-Heat Ex WPL-B5749501
...
20
Roller WPL-M0520102
...
21
Pin K WPL-M1200202
...
23
Cotter Pin K WPL-M1200004
...
24
Rivet WPL-M1205302
...
25
Plub Button WPL-M0310315
...
26
Clamp WPL-M0103901
...
27
Screw WPL-WP90767
...
28
Clamp WPL-M0102303
...
29
Insul Tubing 1=12`` WPL-A0329806
...
31
Fill Tube WPL-R0182123
...
33
Screw WPL-M0294459
...
35
Power Cord WPL-R0157154

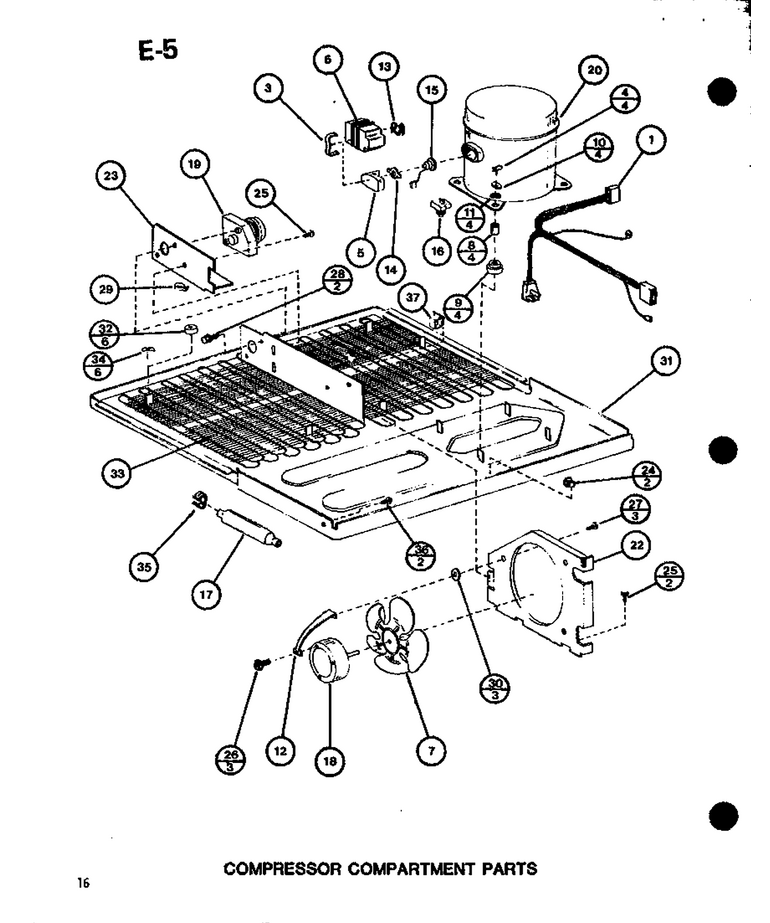

01 - Compressor Compartment Parts

...
...
1
Harness Mc WPL-D7559901
...
3
Strap K WPL-A3041801
...
4
Clip K WPL-A3140801
...
5
Cover K WPL-B0559501
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Washer WPL-B8365302
...
12
Bracket, Cond Motor WPL-B0598701
...
14
Spring K WPL-C8916701
...
15
Overload WPL-C8866901
...
16
Relay WPL-C3553401
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-WP10129301
...
20
Compressor WPL-W10439652
...
22
Condenser Shroud WPL-D7595302
...
23
Bracket, Timer WPL-D7656701
...
24
Clip WPL-M0110509
...
25
Screw WPL-WP90767
...
26
Screw WPL-WPM0223816
...
27
Screw Shoulder WPL-M0238833
...
28
Screw,tc WPL-M0230017
...
29
Wire Tie WPL-M0321204
...
30
Grommet K WPL-M0500107
...
31
Base Pan, Machine Compartment WPL-D7595405
...
32
Spacer, Cond WPL-B8364801
...
33
Condenser Pntd WPL-D7654301
...
34
Nut Speed WPL-M0293701
...
35
Clamp-Drier WPL-M0104002
...
36
Screw WPL-M0294459
...
37
Clip WPL-M0113401

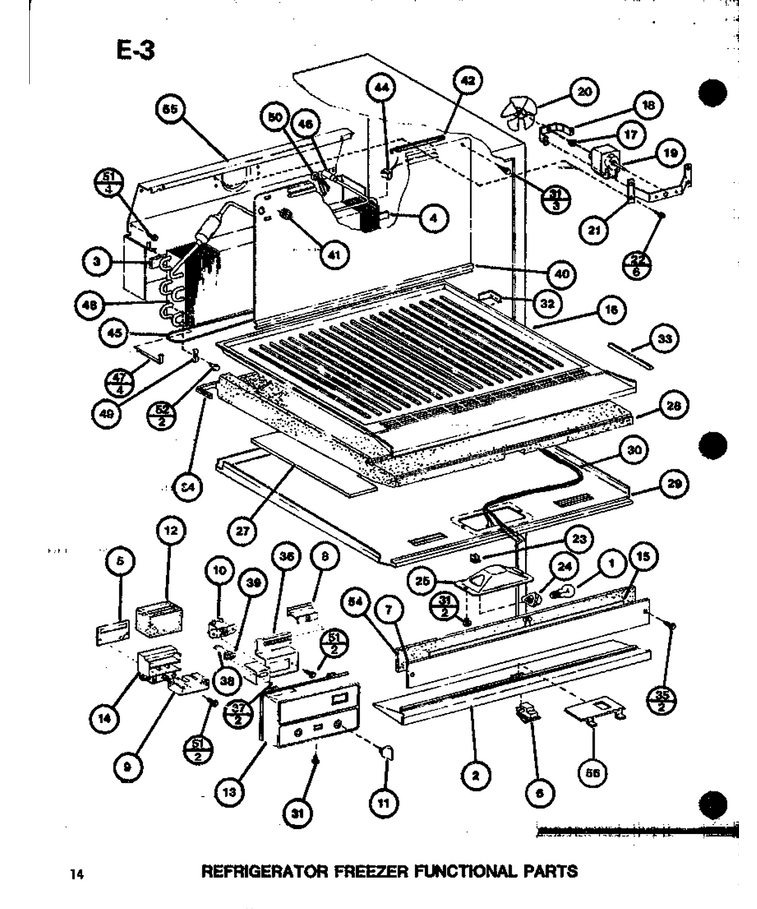

06 - Ref Fz Functional Parts

...
...
1
Light Bulb WPL-8009
...
2
Breaker Strip K WPL-D7653001
...
3
Block Evap. Coil WPL-B8322902
...
4
Block Evap Coil WPL-B8361701
...
5
Gasket, Damper WPL-B8345401
...
6
Switch WPL-W11384469
...
7
Center Mullion WPL-C8842503
...
9
Insert, Control WPL-C8902601
...
10
Cold Control WPL-C8907301
...
11
Knob, Cont. WPL-D7009817
...
12
Insulation Damper WPL-D7543201
...
13
Cover Control WPL-D7545003
...
14
Damper Ctrl, Warm 24 F., Norm WPL-D7547401
...
15
Heater, Mullion WPL-D7654501
...
16
Bottom; Freezer WPL-D7714704
...
17
Grommet WPL-WP2264462
...
18
Brkt Evap Fan WPL-C8881301
...
19
Motor-Evap WPL-WPC8891605
...
20
Blade, Evap Fan WPL-C8927801
...
21
Brkt Evap Fan Shroud WPL-D7524501
...
22
Screw WPL-WP90767
...
23
Clip, Ground WPL-B5733302
...
24
Socket-Light WPL-D7714407
...
25
Shield, Light WPL-R0176034
...
27
Insulation WPL-C8887902
...
28
Drain Block Kit WPL-D7521802
...
29
Top Ref. WPL-D7539302
...
30
Harness Mullion WPL-D7649601
...
31
Screw (3) WPL-67006425
...
32
Tape WPL-M0275114
...
33
Gasket, Air Block WPL-B5757703
...
34
Gasket WPL-B5757808
...
35
Kit, Screw WPL-R9800670
...
36
Bracket, Control WPL-D7543101
...
37
Rivet A WPL-M0010202
...
38
Diode WPL-M0305301
...
39
Switch WPL-M0341202
...
40
Evap Cover WPL-D7539801
...
41
Grommet WPL-A3138301
...
42
Gasket, Bottom WPL-A3189394
...
44
Thermostat WPL-WP10442411
...
45
Heater Evap. WPL-D7549701
...
46
Heat Exchanger WPL-D7554901
...
47
Clamp WPL-M0103502
...
48
See Svs Ltr F-674 WPL-R0170015
...
49
Clamp WPL-A3253803
...
50
Harness Liner WPL-D7656301
...
51
Screw WPL-WP98165
...
52
Screw WPL-M0212932
...
54
Insulation Ft. K WPL-B0523563
...
55
Shroud, Evaporator Fan WPL-D7593501
...
56
Barrier Lt-Sw K WPL-C8932201

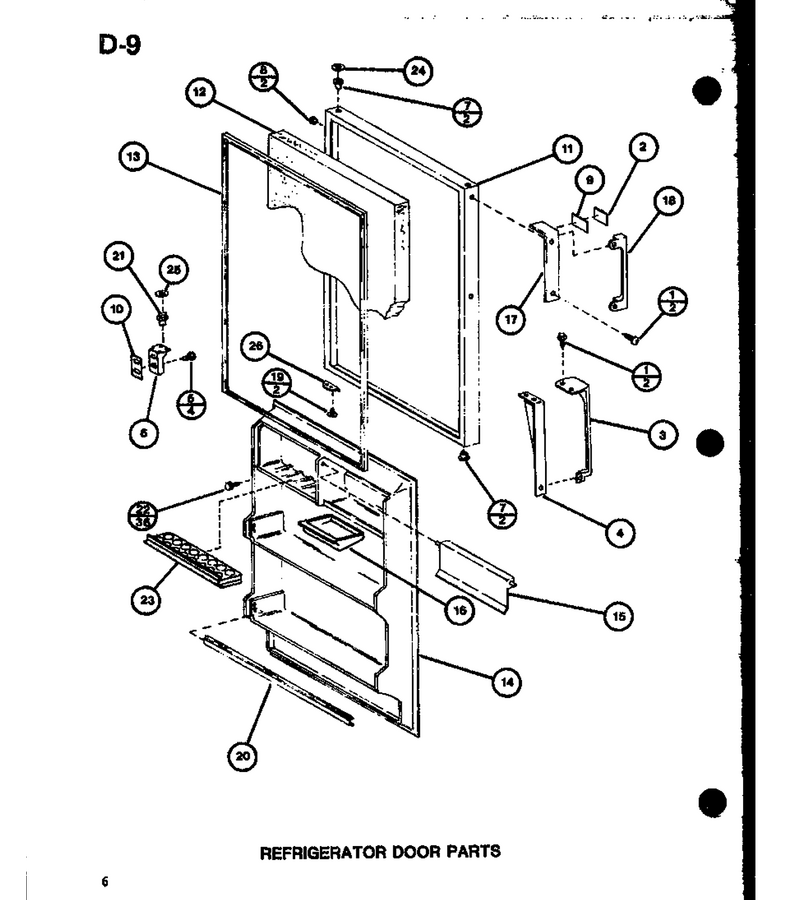

05 - Ref Door Parts

...
...
1
Screw WPL-M0222317
...
2
Nameplate WPL-C8931702
...
5
Screw WPL-WP67006715
...
6
Bracket Lower Hinge WPL-10163605
...
7
Bushing, Hinge Pin WPL-C3652901
...
8
Plug WPL-M0310717
...
9
Pad, Nameplate WPL-C8920501
...
10
Shim WPL-B5744802
...
11
Door Ref A WPL-D7728340LQ
...
12
Insulation WPL-B5683507
...
13
Gasket WPL-D7605107Q
...
14
Inner Dr Panel-Ref WPL-D7652303
...
15
Dairy Door WPL-D7604404
...
16
Butter Tray WPL-D3799802
...
17
Pad Handle WPL-D7623502
...
18
Handle Kit WPL-R0156551
...
20
Retainer, Pkg WPL-C8907208
...
21
Pin, Hinge K WPL-C8814901
...
22
Screw WPL-WPM0219730
...
24
Washer WPL-M0274049
...
25
Washer WPL-M0274050
