Amana TM18D (BOM: P7466001W)

Model: TM18D (BOM: P7466001W)

Save Part Not Listed?
product name

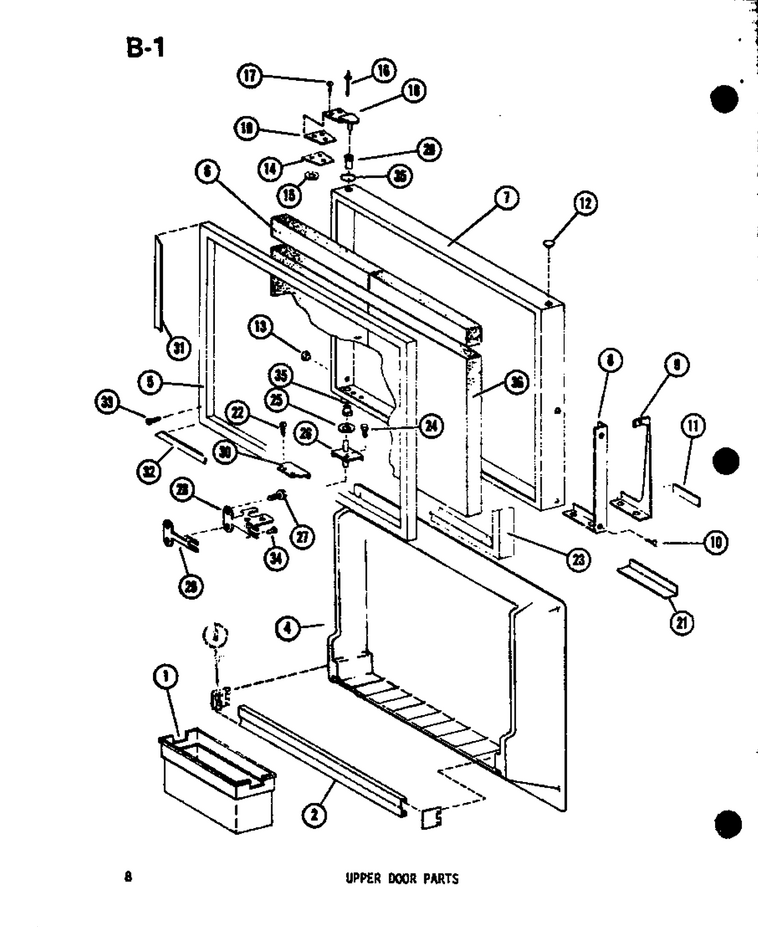

07 - Upper Door Parts

...
...
1
Ice Container WPL-D7442301
...
2
Retainer-Package WPL-D7415715
...
3
Support WPL-C3680907
...
4
Inner Dr Panel WPL-D7165203
...
5
Gasket, Door WPL-D3928225
...
6
Insulation WPL-B0523574
...
7
Door Fr L-T Tm18d WPL-D7437005
...
8
Handle Pad Kit WPL-D7257904
...
9
Handle WPL-D7254201
...
10
Screw WPL-M0222317
...
11
Nameplate WPL-C8836704
...
12
Plug WPL-M0310601
...
13
Plug WPL-M0310717
...
14
Tap Strip WPL-A3139701
...
15
Washer WPL-M0270502
...
16
Pop Rivet, Coppertone WPL-C8839602
...
17
Kit, Screw WPL-R9800670
...
18
Hinge WPL-B5744301
...
19
Shim-Top Hinge K WPL-A3270302
...
20
Bushing, Hinge Pin WPL-C3652901
...
23
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
24
Screw K WPL-M0205441
...
25
Washer Hinge K WPL-B5779601
...
26
Center Hinge Assy WPL-B5750901
...
27
Screw Phillips WPL-M0205731
...
28
Center Hinge Assy WPL-C8800201
...
29
Shim K WPL-A3143501
...
31
Retainer WPL-D3928101
...
32
Retainer Gasket WPL-D3928102
...
33
Screw WPL-WP98165
...
34
Kit, Screw WPL-R9800670
...
35
O Ring WPL-M0500902
...
36
Foam Slab WPL-D7349402

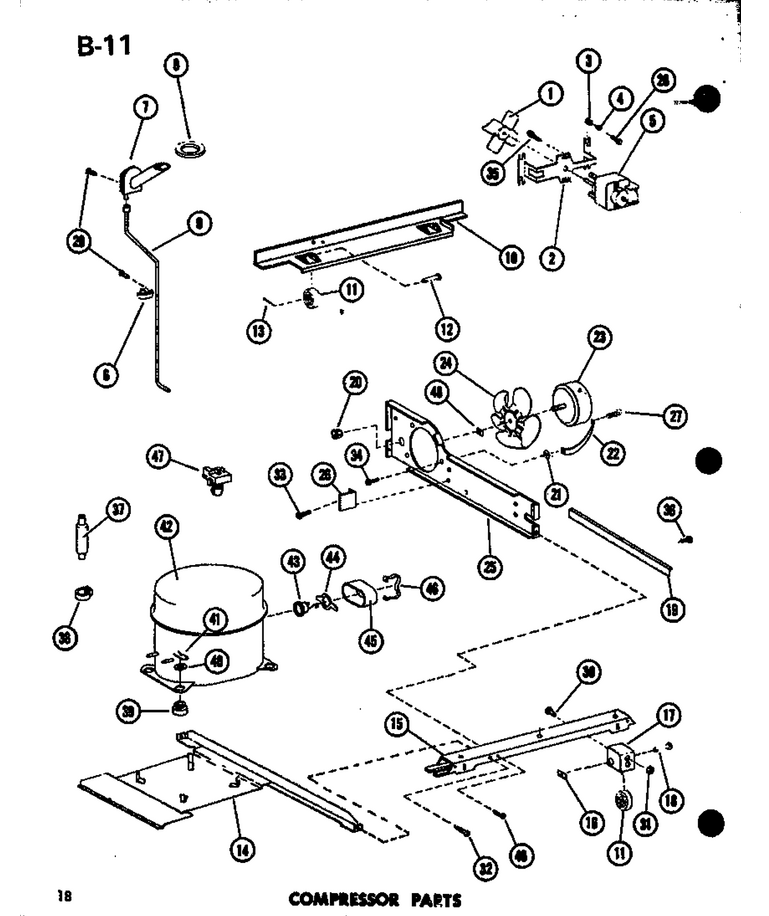

01 - Compressor Parts

...
...
1
Fan Blade WPL-B5622101
...
2
Bracket WPL-C3536203
...
3
Clip, Waterline WPL-12454802
...
4
Eyelet K WPL-A0381401
...
5
Motor WPL-D7256202
...
6
Clamp WPL-M0102303
...
7
Elbow,drain Tube WPL-C3630901
...
8
Gasket WPL-A3132301
...
9
Tube-Drain WPL-C8721201
...
10
Rail, Rear WPL-C3611301
...
11
Roller WPL-M0520102
...
12
Pivot Pin K WPL-M1210001
...
13
Cotter Pin K WPL-M1200001
...
14
Weld Comp Supt Pnt WPL-C8820412
...
15
Front Rail WPL-C8820503
...
16
Fastener WPL-M0289401
...
17
Roller Kit WPL-C8836302
...
18
Rivet WPL-M1205302
...
19
Seal-Fan Shroud Q WPL-B8314102
...
20
Strain Relief WPL-A3245101
...
21
Grommet K WPL-M0500107
...
22
Bracket, Cond Motor WPL-B0598701
...
23
Motor-Cond WPL-833697
...
24
Blade, Fan WPL-B5742603
...
25
Shroud, Fan WPL-D7446701
...
26
Stop,drain Pan WPL-A3125701
...
27
Screw WPL-WPM0223816
...
28
Screw WPL-WP98165
...
29
Screw WPL-M0210916
...
30
Roller Bracket Kit WPL-M0222240
...
31
Nut, Self Thread WPL-M0283801
...
32
Screw WPL-M0294459
...
33
Screw WPL-WP12990527
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-WP3400094
...
36
Screw WPL-WP90767
...
37
Drier WPL-WPB2150504
...
38
Clamp-Drier WPL-M0104002
...
39
Grommet K WPL-A3026101
...
40
Washer, Nylon K WPL-M0590101
...
41
Clip K WPL-A3140801
...
42
Compressor WPL-C3667102H
...
43
Overload WPL-C3689102
...
44
Spring K WPL-A3043601
...
45
Terminal Cover WPL-B0551801
...
46
Strap K WPL-A3041801
...
47
Relay WPL-C3689201
...
48
Nut A WPL-M0286003
...
49
Screw WPL-WP489464

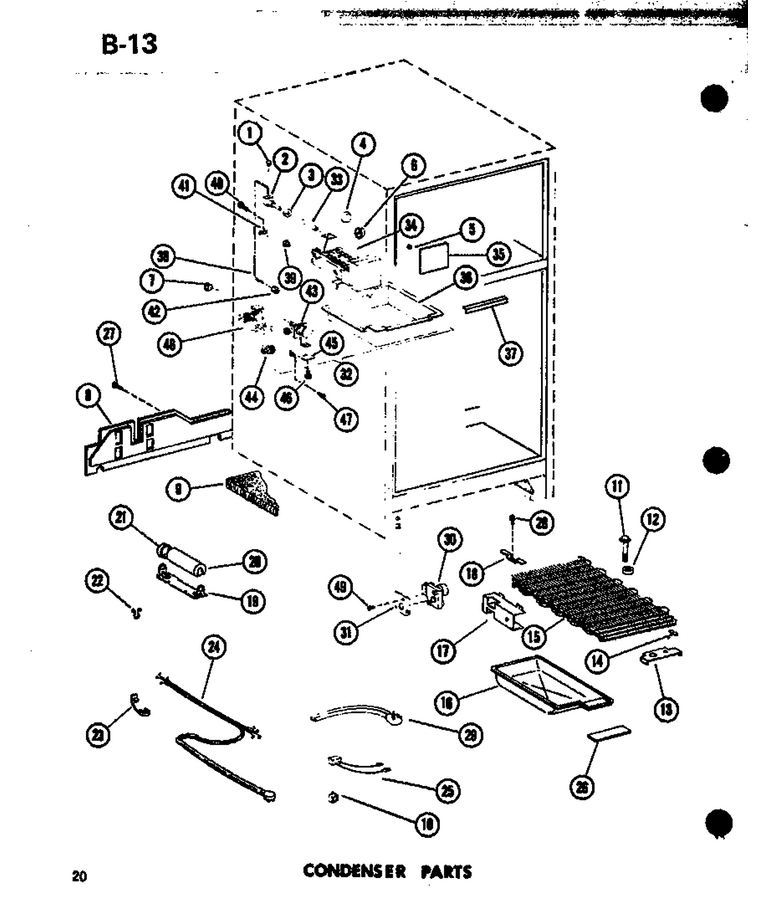

02 - Condenser Parts

...
...
NI
Wiring Harn-Liner WPL-D7463301
...
1
Plug WPL-M0310309
...
2
Fill Tube WPL-R0182123
...
3
Grommet WPL-A3138301
...
4
Cap Fill Tube WPL-B5631801
...
5
Button- Pl WPL-WP67001130
...
6
Cap WPL-B5636301
...
7
Plug, Button (Wht) WPL-A3080002
...
8
Back, Mach Compt K WPL-C3655001
...
9
Insulation Ft. K WPL-B0523510
...
10
Clip-Cable WPL-M0110505
...
11
Sems Fastner WPL-M0257037
...
12
Spacer WPL-A3013907
...
13
Bracket, Support WPL-A3085401
...
14
Nut A WPL-M0286003
...
15
Condenser Assy Pnt WPL-D7010701
...
16
Pan, Drain WPL-D7001001
...
17
Spacer WPL-B0544101
...
18
Clip-Cond WPL-A3054502
...
22
Lock, Purse WPL-74007369
...
23
Grommet, Cord WPL-211881
...
24
Wiring Harness WPL-D7512201
...
25
Wiring Harness WPL-B5730802
...
26
Pad A WPL-B5691701
...
27
Screw-Sm WPL-M0241118
...
28
Kit, Screw WPL-R9800670
...
29
Power Cord WPL-R0157154
...
30
Timer-Def WPL-R0131577
...
31
Timer Bracket WPL-C3647902
...
32
See Note Model Ic-2, Mfg No P36415-5w, Add On Ice-Maker Complete Assy -- (Available From Sales) (See Page 50) WPL-Y00000000
...
49
Screw WPL-WP489464

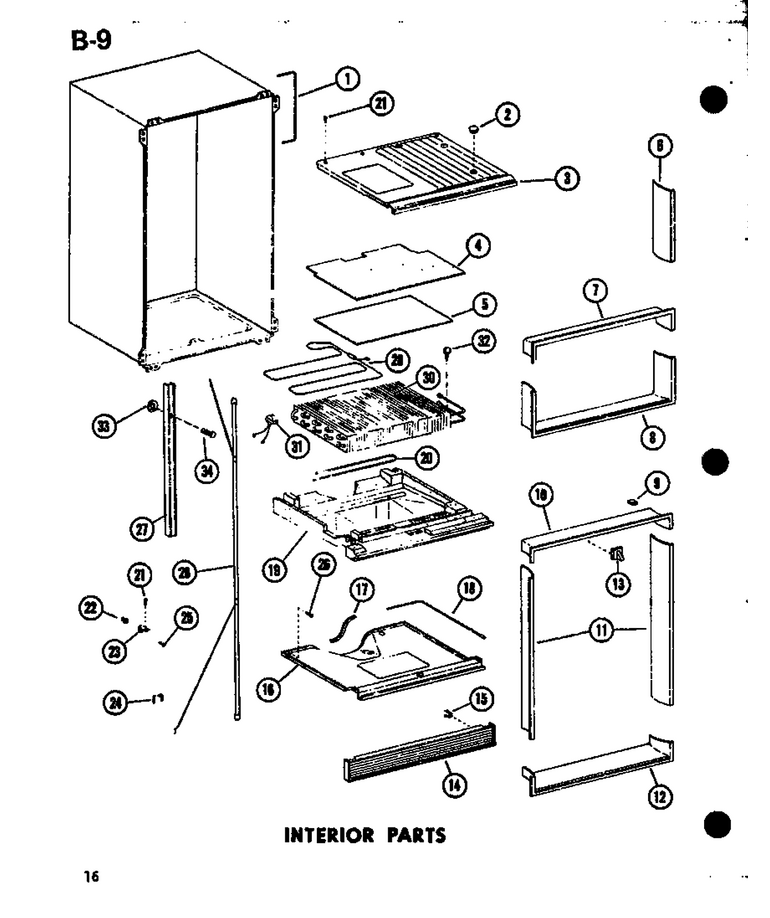

05 - Interior Parts

...
...
1
Heater-Fr Flange WPL-D7350402
...
2
Plug WPL-A3069103
...
3
Bottom-Fr WPL-D7143601
...
4
Insulation WPL-B5682901
...
5
Barrier WPL-A3126001
...
6
Breaker Frame WPL-D7424104
...
7
Frame-Breaker WPL-D7462902
...
8
Frame-Breaker-Rb WPL-D7463003
...
9
Clip WPL-M0113401
...
10
Frame-Breaker-Frt WPL-D7462901
...
11
Breaker Frame WPL-D7424105
...
12
Br Frame WPL-D7463101
...
13
Switch WPL-W11384469
...
14
Grille-Toe WPL-D7415404
...
15
Clip WPL-WPM0117303
...
16
Ref Top WPL-D7244301
...
17
Gasket (Per Foot) WPL-A3030313
...
18
Heater-Ref Top K WPL-D7347903
...
19
Drain Block Evaporator WPL-D7437701
...
20
Heater-Drip Tray WPL-C8708201
...
21
Screw (3) WPL-67006425
...
22
Grommet WPL-A0288701
...
23
Clip WPL-M0116901
...
24
Clamp-Wiring WPL-A3195601
...
25
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
26
Screw WPL-WP489464
...
28
Heater Def K WPL-C3660003
...
29
Heat Exchanger WPL-D7030302
...
30
Evaporator WPL-D7143121
...
31
Thermostat-Defrost WPL-C8731901
...
32
Screw WPL-W11233072

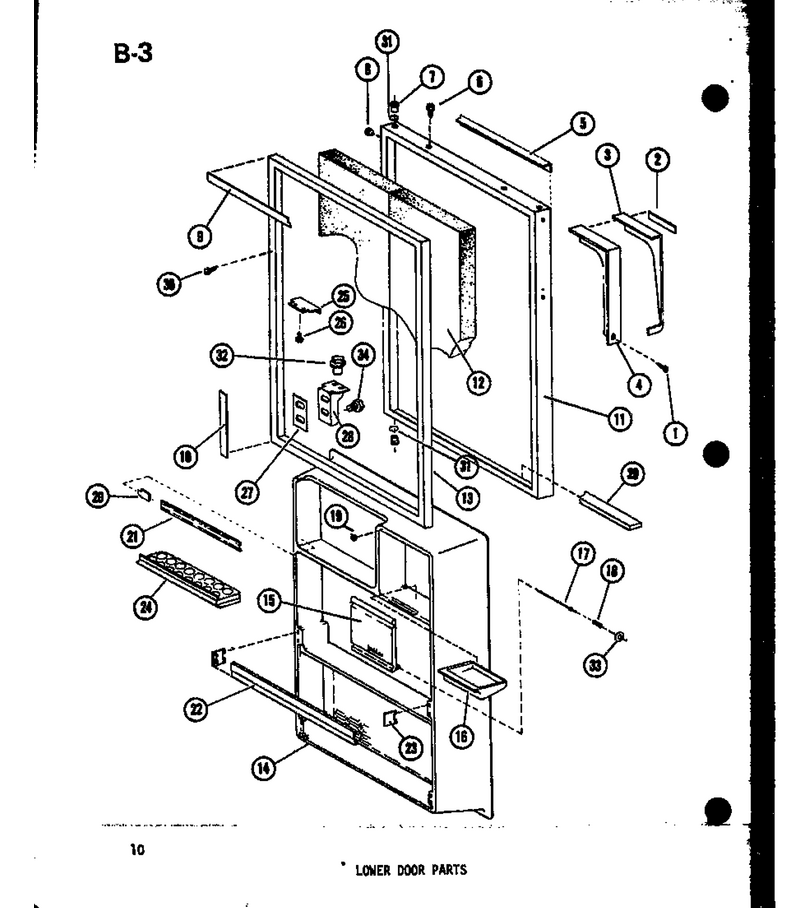

06 - Lower Door Parts

...
...
1
Screw WPL-M0222317
...
2
Name Plate Handle WPL-C8835801
...
3
Handle WPL-D7254202
...
4
Handle Pad Kit WPL-D7257903
...
7
Bushing WPL-C3652902
...
8
Plug WPL-M0310719
...
9
Retainer Gasket WPL-D3928102
...
10
Retainer Gasket WPL-D3928105
...
11
Door Ref. G-T Tm18e WPL-D7437009
...
12
Insulation WPL-B5683504
...
13
Gasket WPL-D3928205
...
14
Inner Dr Panel WPL-D7165306
...
15
Butter Door WPL-C8832804
...
16
Buttertray WPL-67004412A
...
17
Hinge Rod K WPL-A3056207
...
18
Spring A/k WPL-A3065201
...
19
Bumper WPL-A3059003
...
22
Retainer-Package WPL-D7415716
...
23
Support - Cream Lh WPL-B5631705
...
27
Shim WPL-A3143603
...
28
Bracket Hinge K WPL-C8814804
...
29
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
30
Screw WPL-WP98165
...
31
O Ring WPL-M0500902
...
32
Pin, Hinge K WPL-C8814901
...
33
Washer WPL-M0270501
...
34
Screw WPL-WP67006715

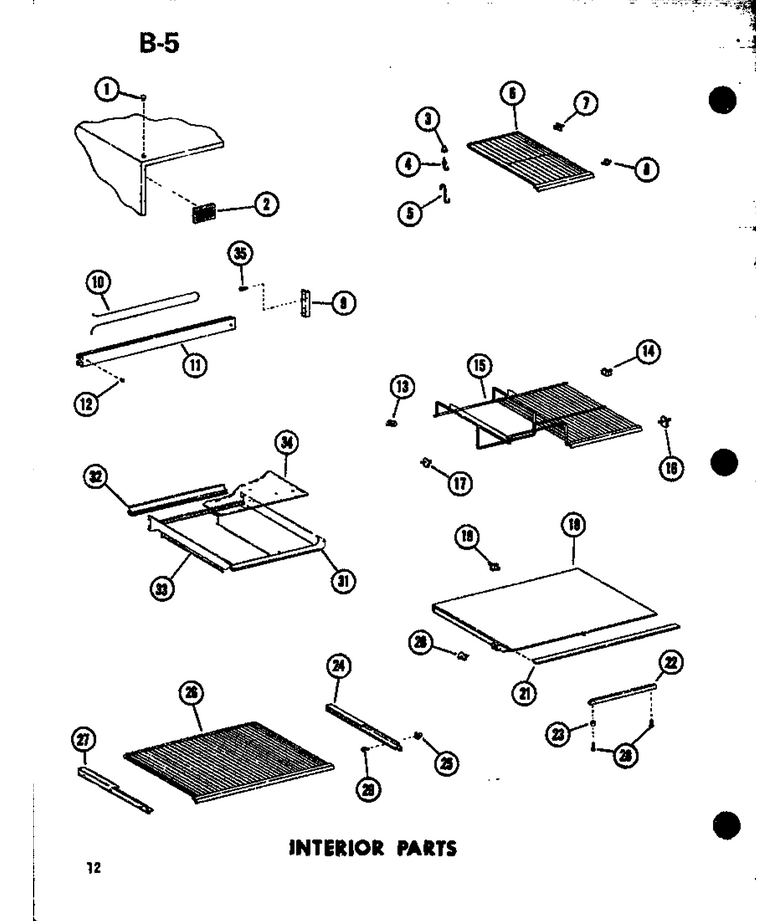

03 - Interior Parts

...
...
1
Plug Button (Almond) WPL-M0310730
...
2
Grille WPL-C3601801
...
9
Tap Strip-Hinge WPL-A3140702
...
10
Drier, Mullion WPL-B5636001
...
11
Ctr Mullion WPL-C8807501
...
12
Plug WPL-M0310724
...
13
Support WPL-B5633001
...
14
Support WPL-B5633002
...
15
Shelf-Stationary WPL-D7141502
...
16
Shelf Support WPL-B5620401
...
17
Support WPL-B5642101
...
18
Crisper Top WPL-D3984505
...
19
Support WPL-B5680001
...
20
Support WPL-B0597601
...
22
Angle-Crisper Top WPL-C3697202
...
23
Glide WPL-A3213401
...
24
Frame-Glide Out WPL-D3917304
...
25
Grommet, Screw WPL-M0580007
...
26
Shelf-Glide Out WPL-D7141402
...
27
Frame-Glide Out WPL-D3917303
...
28
Screw WPL-M0230727
...
29
Screw (3) WPL-67006425

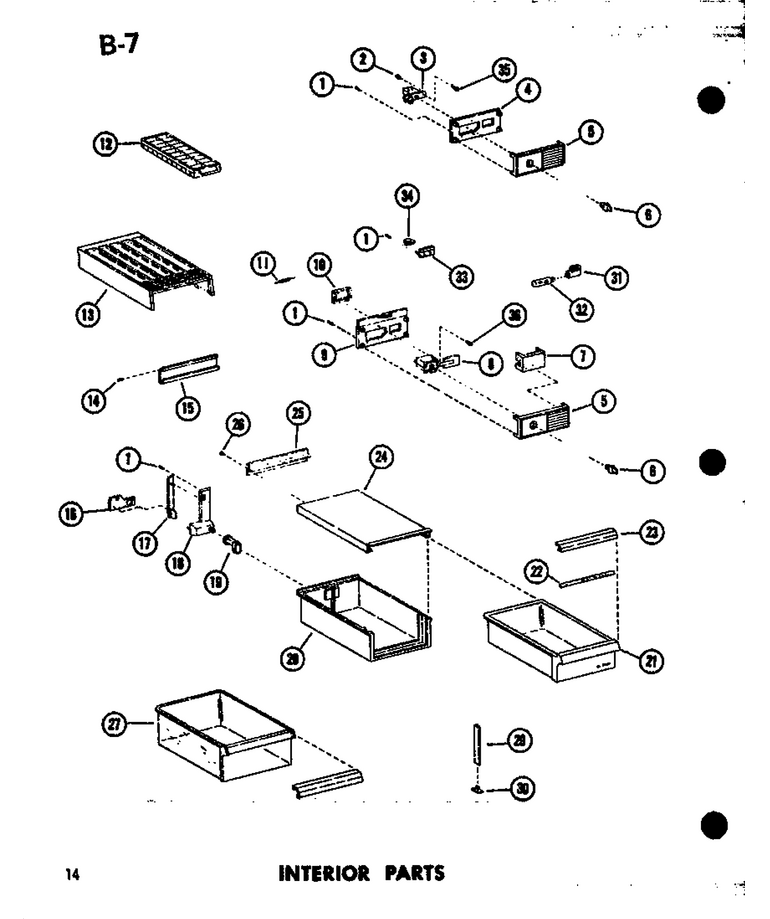

04 - Interior Parts

...
...
1
Clip WPL-M0113004
...
2
Grommet A WPL-M0580002
...
3
Control-Temp WPL-B0592303
...
4
Back Plate WPL-D7160902
...
5
Air Deflector, Fz And Ref WPL-D7417605
...
6
Knob WPL-D7009801
...
7
Cap K WPL-C3617201
...
8
Control, Damper WPL-C8876602
...
9
Back Plate WPL-D7058202
...
10
Gasket WPL-A3104502
...
11
Diode WPL-M0305301
...
12
Tray WPL-WP841180A
...
13
Net Tunnel, Ice Tray WPL-D7193001
...
14
Hinge Pin WPL-A3214701
...
15
Door-Fast Freeze WPL-C8847603
...
24
Top-Mt Kpr WPL-D7343603
...
27
Pan, Crisper WPL-D7425603
...
29
Support WPL-B0571002
...
30
Support WPL-B0571201
...
31
Socket WPL-B5637601
...
32
Bulb-Light WPL-WPA3073101
...
33
Escutcheon WPL-D7350802
...
34
Switch WPL-M0341801
...
35
Screw WPL-WP90767
...
36
Screw WPL-M0218116
