Amana TM18B (BOM: P7350005W)

Model: TM18B (BOM: P7350005W)

Save Part Not Listed?
product name

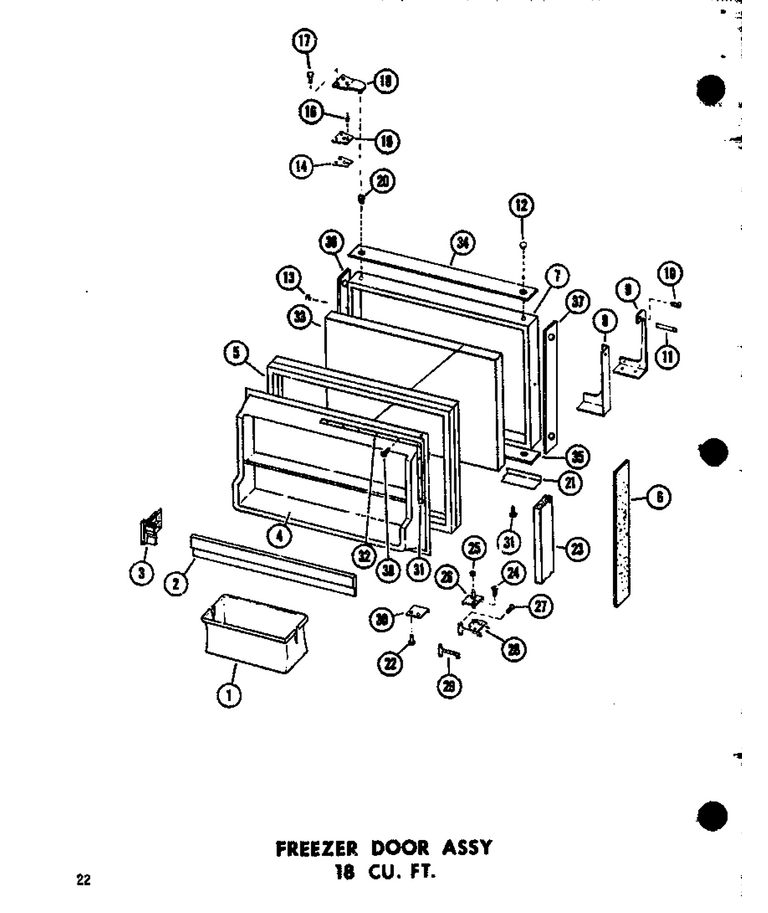

04 - Fz Door Assy 18 Cu. Ft.

...
...
1
Ice Container WPL-D3959403
...
2
Pkg Retainer K WPL-D3976719
...
3
Support K WPL-C3680903
...
4
Inner Dr Panel K WPL-D7165202
...
5
Gasket, Door WPL-D3928225
...
6
Insulation WPL-B5629038
...
7
Door Fr-L-P-Tc18b WPL-D7370505
...
8
Pad-Handle WPL-D7146001
...
9
Handle K WPL-D7145801
...
10
Screw WPL-M0203458
...
11
Nameplate WPL-C3675304
...
12
Plug WPL-M0310607
...
13
Plug WPL-M0310725
...
14
Tap Strip WPL-A3139701
...
16
Pop Rivet-Av WPL-B5642909
...
17
Kit, Screw WPL-R9800670
...
18
Hinge WPL-B5744301
...
19
Shim, Top Hinge WPL-B8389007
...
20
Bushing, Hinge Pin WPL-C3652901
...
21
Trim WPL-D7145902
...
22
Machine Screw WPL-M0205631
...
23
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
24
Screw K WPL-M0205441
...
25
Washer Hinge K WPL-B5779601
...
26
Center Hinge Assy WPL-B5750901
...
27
Screw Phillips WPL-M0205731
...
28
Center Hinge Assy WPL-C8800201
...
29
Shim K WPL-A3143501
...
30
Stop Door WPL-A3139801
...
31
Retainer WPL-D3928101
...
32
Retainer Gasket WPL-D3928102
...
33
Foam Slab WPL-D7349402
...
38
Screw WPL-WP98165

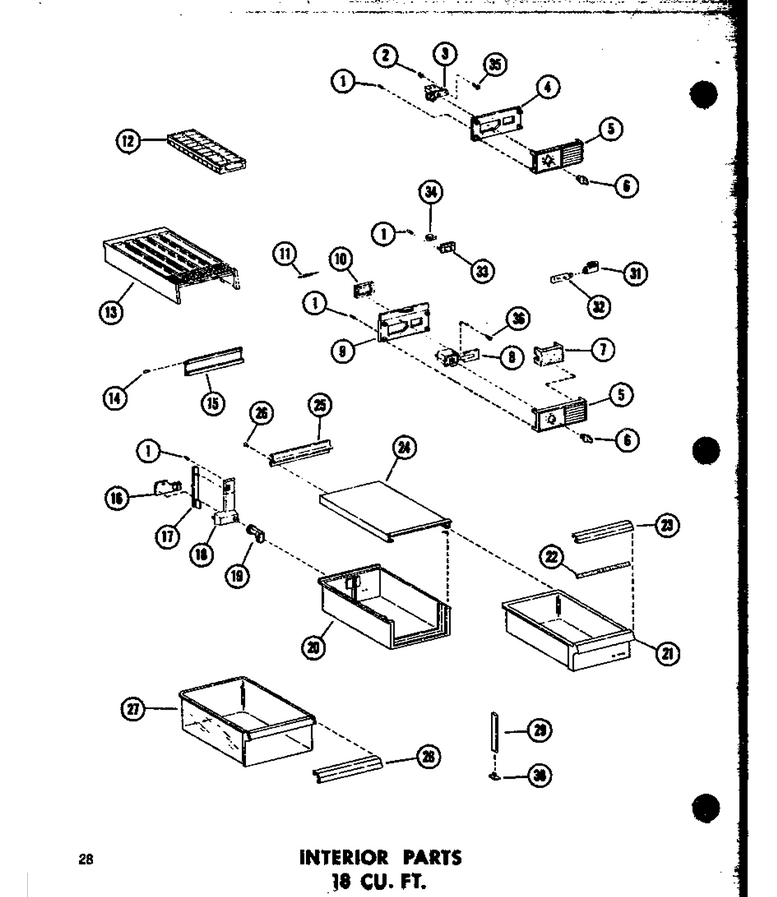

06 - Interior Parts 18 Cu. Ft.

...
...
1
Clip WPL-M0113004
...
2
Grommet WPL-M0580003
...
3
Control-Temp WPL-B0592304
...
4
Back Plate WPL-D7160901
...
5
Deflector WPL-D7272503
...
6
Knob WPL-D7009801
...
7
Cap K WPL-C3617201
...
8
Control, Damper WPL-C8876602
...
9
Backer Plate WPL-D7058201
...
10
Gasket WPL-A3104502
...
11
Diode WPL-M0305301
...
12
Tray WPL-WP841180A
...
13
Net Tunnel, Ice Tray WPL-D7193001
...
14
Hinge Pin WPL-A3214701
...
15
Door, Tunnel WPL-C8706101
...
21
Pan, Meat WPL-D3976704
...
22
Gasket (Per Foot) WPL-A3030313
...
23
Trim, Handle WPL-C3623002
...
24
Top, Meat Keeper WPL-D7001104
...
25
Trim WPL-C3622702
...
26
Rivot WPL-M0550401
...
27
Pan, Crisper WPL-D7184202
...
28
Trim-Handle WPL-C3696501
...
29
Support WPL-B0571002
...
30
Support WPL-B0571201
...
31
Socket WPL-B5637601
...
32
Bulb-Light WPL-WPA3073101
...
33
Escutcheon WPL-D7350801
...
34
Switch WPL-M0341801
...
35
Screw WPL-WP90767
...
36
Screw WPL-M0218116

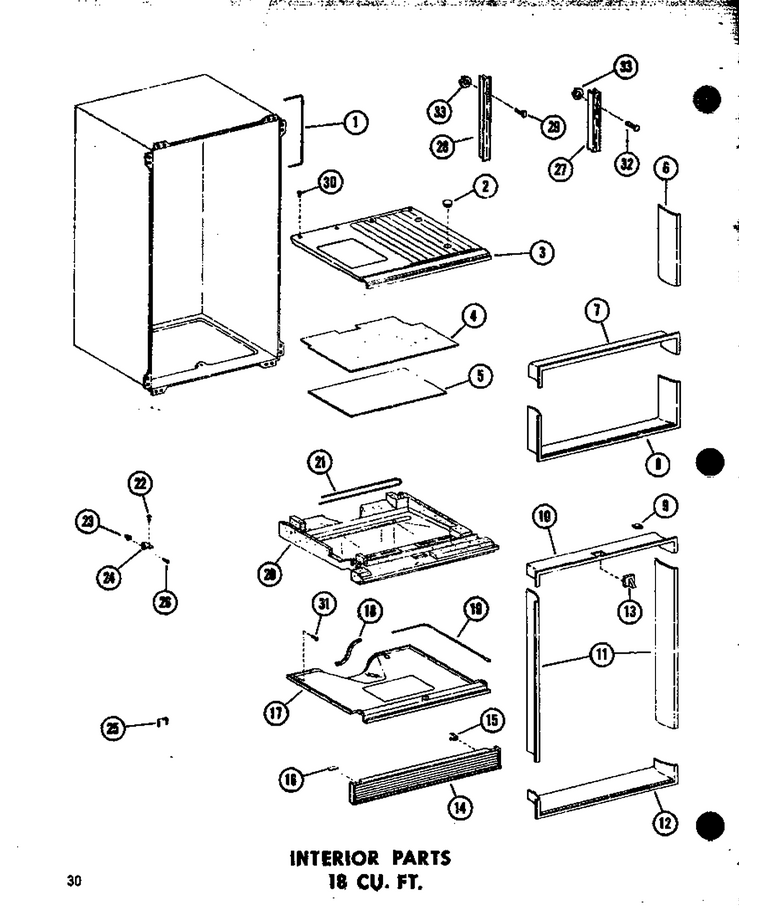

07 - Interior Parts 18 Cu. Ft.

...
...
1
Heater-Fr Flange WPL-D7350402
...
2
Plug WPL-A3069103
...
3
Bottom-Fr WPL-D7143601
...
4
Insulation WPL-B5682901
...
5
Barrier WPL-A3126001
...
6
Breaker Frame WPL-D3951715
...
7
Breaker Frame, Fz Top WPL-D7157202
...
8
Breaker Frame, Fz Bottom WPL-D3981201
...
9
Clip WPL-M0113401
...
10
Breaker Frame, Ref Top WPL-D7157201
...
11
Breaker Frame WPL-D7424105
...
12
Br Frame WPL-D3980601
...
13
Switch, Light WPL-C3680305
...
14
Grille-Toe WPL-D7070211
...
15
Clip WPL-WPM0117303
...
16
Grille-Toe WPL-B5641301
...
17
Ref Top WPL-D7244301
...
18
Gasket (Per Foot) WPL-A3030313
...
19
Heater-Ref Top K WPL-D7347903
...
20
Drain Block, Evaporator WPL-D7246801
...
21
Heater-Drip Tray WPL-C8708201
...
22
Screw (3) WPL-67006425
...
23
Grommet WPL-A0288701
...
24
Clip WPL-M0116901
...
25
Clamp-Wiring WPL-A3195601
...
26
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
30
Screw (3) WPL-67006425
...
31
Screw WPL-WP489464
...
32
Screw, Machine WPL-M0209119
...
33
Nut WPL-WP486255

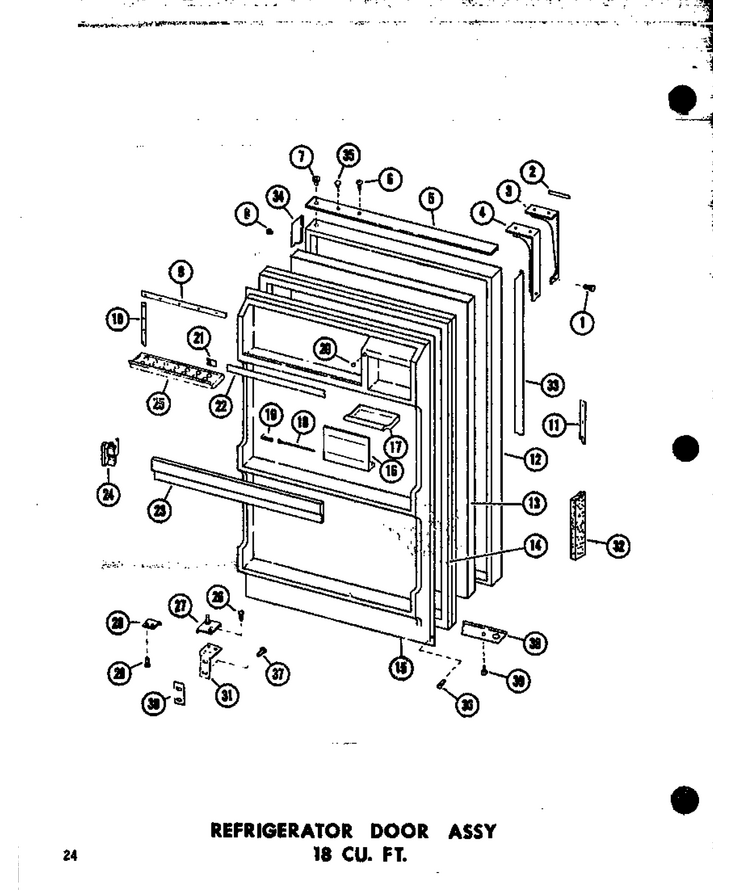

08 - Ref Door Assy 18 Cu. Ft.

...
...
1
Screw WPL-M0203458
...
2
Nameplate K WPL-C3675306
...
3
Handle K WPL-D7145802
...
4
Handle Pad Kit WPL-D7146002
...
5
Door Cap WPL-D7145901
...
6
Screw WPL-M0203216
...
7
Bushing, Hinge Pin WPL-C3652901
...
8
Plug WPL-M0310717
...
9
Retainer Gasket WPL-D3928102
...
10
Retainer Gasket WPL-D3928105
...
11
Retainer Gasket WPL-D3928104
...
12
Door Ref-G-P-Tc18b WPL-D7370520
...
13
Insulation WPL-B5683504
...
14
Gasket WPL-D3928205
...
15
Inner Dr Panel K WPL-D7165304
...
16
Butter Door K WPL-C3622103
...
17
Buttertray WPL-67004412A
...
18
Hinge Rod K WPL-A3056207
...
19
Spring A/k WPL-A3065201
...
20
Rubber Bumper WPL-A3059002
...
23
Pkg Retainer K WPL-D3976722
...
24
Support - Cream Lh WPL-B5631705
...
26
Screw K WPL-M0205441
...
27
Hinge Kit WPL-B5640902
...
28
Stop Door WPL-A3139801
...
29
Machine Screw WPL-M0205631
...
30
Shim WPL-A3143601
...
31
Hinge Kit WPL-C8800401
...
32
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
36
Screw WPL-WP98165
...
37
Screw WPL-WP67006715

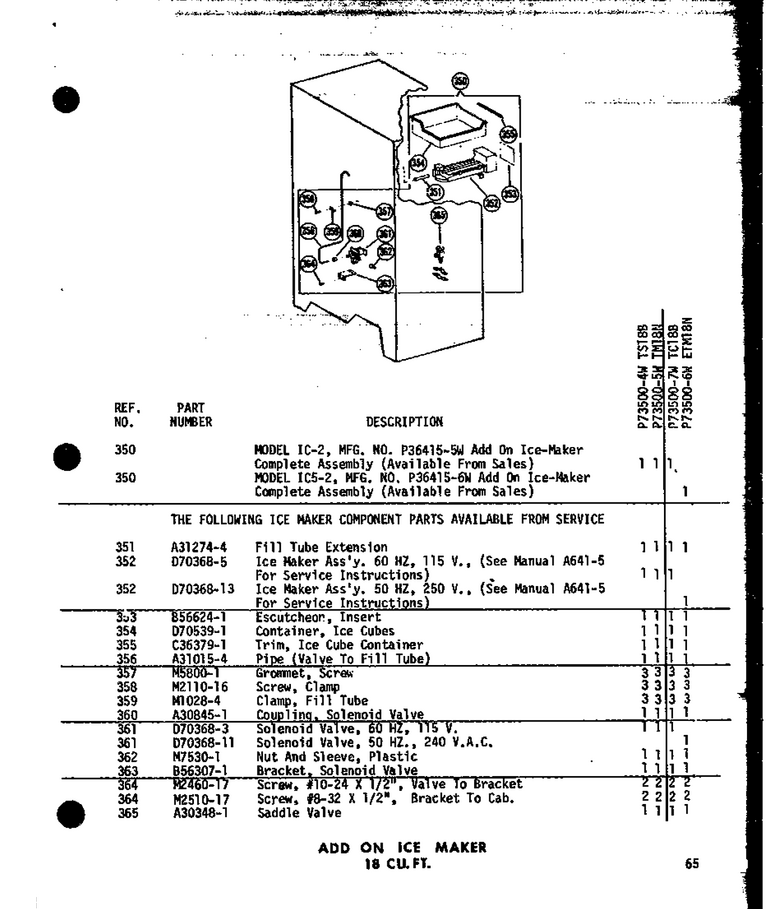

01 - Add On Ice Maker 18 Cu. Ft.

...
...
350
See Note Model Ic-2 Mfg. No. P36415-5w Add On Ice-Maker Completeassy -- (Availabe Fromsales) WPL-Y00000000
...
351
Tube WPL-A3127404
...
352
Ic2-(Ice Maker) WPL-D7036805
...
353
Insert-Im WPL-B5662401
...
354
Pan-Ice WPL-WP67001255
...
355
Trim K WPL-C3637901
...
356
Pipe WPL-A3101504
...
357
Grommet, Screw WPL-M0580007
...
358
Screw WPL-WP90767
...
359
Clamp WPL-M0102804
...
360
Coupling, Solenoid Valve And H WPL-A3084501
...
361
Valve-Inlt WPL-4318047
...
362
Nut WPL-WP627018
...
363
Bracket WPL-B5630701
...
364
Screw WPL-M0246017
...
365
Saddle Valve WPL-A3034801

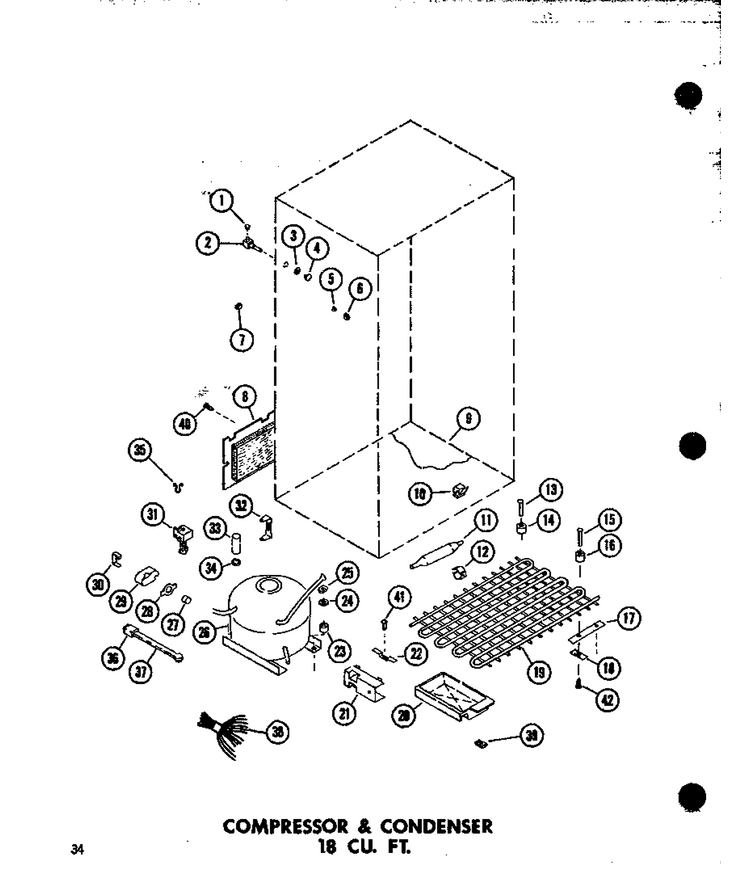

02 - Compressor & Condenser 18 Cu. Ft.

...
...
1
Plug Button WPL-A3243201
...
2
Fill Tube WPL-R0182123
...
3
Grommet WPL-A3138301
...
4
Cap Fill Tube WPL-B5631801
...
5
Button- Pl WPL-WP67001130
...
6
Cap WPL-B5636301
...
7
Plug, Button (Blk) WPL-A3080001
...
8
Back, Mach Compt K WPL-C3655001
...
9
Insulation,sound WPL-D7121301
...
10
Clip-Cable WPL-M0110505
...
11
Drier WPL-WPB2150504
...
12
Clamp-Drier WPL-M0104002
...
13
Sems Fastner WPL-M0257037
...
14
Spacer WPL-A3013906
...
15
Sems Fastner WPL-M0257039
...
16
Spacer WPL-A3013907
...
17
Bracket, Support WPL-A3085401
...
18
Nut A WPL-M0286003
...
19
Condenser Assy Pnt WPL-D7010701
...
20
Pan, Drain WPL-D7001001
...
21
Spacer WPL-B0544101
...
22
Clip-Cond WPL-A3054502
...
23
Grommet K WPL-A3026101
...
24
Bracket WPL-B0590101
...
25
Clip K WPL-A3140801
...
26
Compressor WPL-C3667101H
...
27
Overload WPL-C3689102
...
28
Spring K WPL-A3043601
...
29
Terminal Cover WPL-B0551801
...
30
Strap K WPL-A3041801
...
31
Relay WPL-C3689201
...
35
Lock, Purse WPL-74007369
...
36
Grommet, Cord WPL-211881
...
37
Wiring Harness WPL-D7314402
...
39
Pad A WPL-B5691701
...
40
Screw-Sm WPL-M0241118
...
41
Kit, Screw WPL-R9800670
...
42
Screw WPL-M0241131

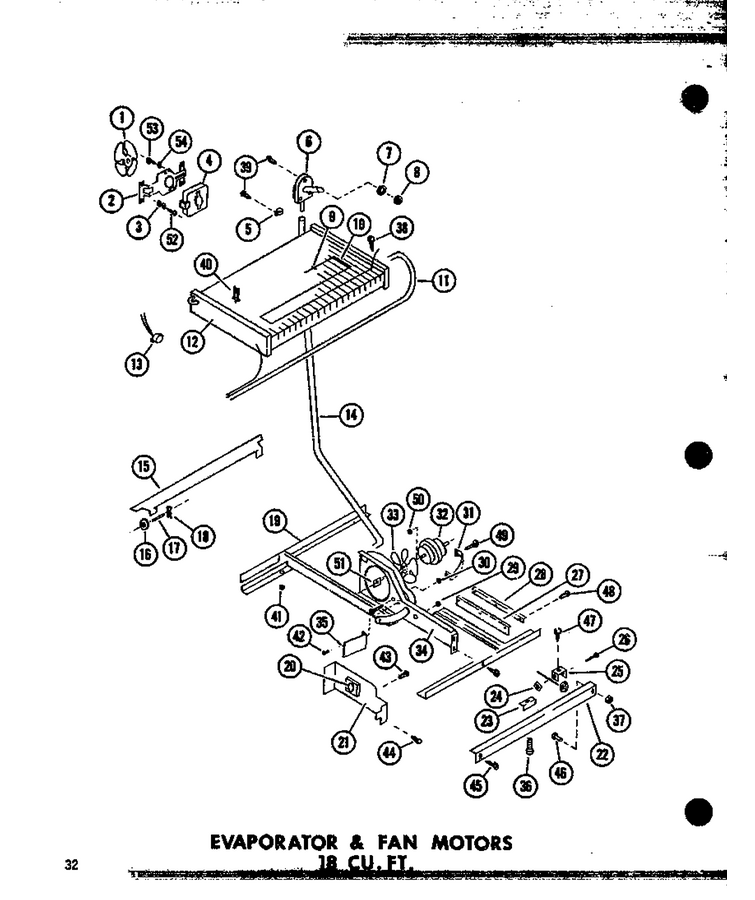

03 - Evap & Fan Motors 18 Cu. Ft.

...
...
1
Fan Blade WPL-B5622101
...
2
Bracket WPL-C3536203
...
3
Clip, Waterline WPL-12454802
...
4
Motor WPL-D7256201
...
5
Clamp WPL-M0102303
...
6
Elbow,drain Tube WPL-C3630901
...
7
Gasket WPL-A3132301
...
8
Grommet WPL-A3128101
...
9
Clip WPL-M0110301
...
10
Heater Def K WPL-C3660003
...
11
Heat Exchanger WPL-D7030302
...
12
Evaporator WPL-D7143121
...
13
Thermostat-Defrost WPL-C8731901
...
14
Tube-Drain WPL-C8721201
...
15
Rail, Rear WPL-C3611301
...
16
Roller WPL-M0520102
...
17
Pivot Pin K WPL-M1210001
...
18
Cotter Pin K WPL-M1200001
...
19
Weld Comp Supt Pnt WPL-C8820412
...
20
Timer-Def WPL-R0131577
...
21
Timer Bracket WPL-C3647902
...
22
Front Rail WPL-B5627601
...
23
Wing Nut WPL-A3122601
...
24
Fastener WPL-M0289401
...
25
Bracket K WPL-A3125201
...
26
Rivet WPL-M1205302
...
27
Seal WPL-B0599603
...
28
Retainer WPL-B0599701
...
29
Strain Relief WPL-A3245101
...
30
Grommet K WPL-M0500107
...
31
Bracket, Cond Motor WPL-B0598701
...
32
Motor-Cond WPL-833697
...
33
Blade, Fan WPL-B5742603
...
34
Fan Shroud WPL-C3617602
...
35
Stop,drain Pan WPL-A3125701
...
36
Foot-Levelling WPL-B1601601
...
37
Nut, Self Thread WPL-M0283801
...
38
Screw WPL-W11233072
...
39
Screw WPL-M0214618
...
40
Clip,wire WPL-B5667401
...
41
Washer WPL-M0274038
...
42
Screw WPL-WP12990527
...
43
Screw,tc WPL-M0230017
...
44
Screw WPL-WP489464
...
45
Screw WPL-M0294459
...
46
Roller Bracket Kit WPL-M0222240
...
47
Screw WPL-M0267101
...
48
Screw WPL-WP90767
...
49
Screw WPL-WPM0223816
...
50
Washer K WPL-M0274015
...
51
Nut WPL-WP486692
...
52
Screw WPL-WP98165
...
53
Screw WPL-M0202642
...
54
Washer WPL-M0272605

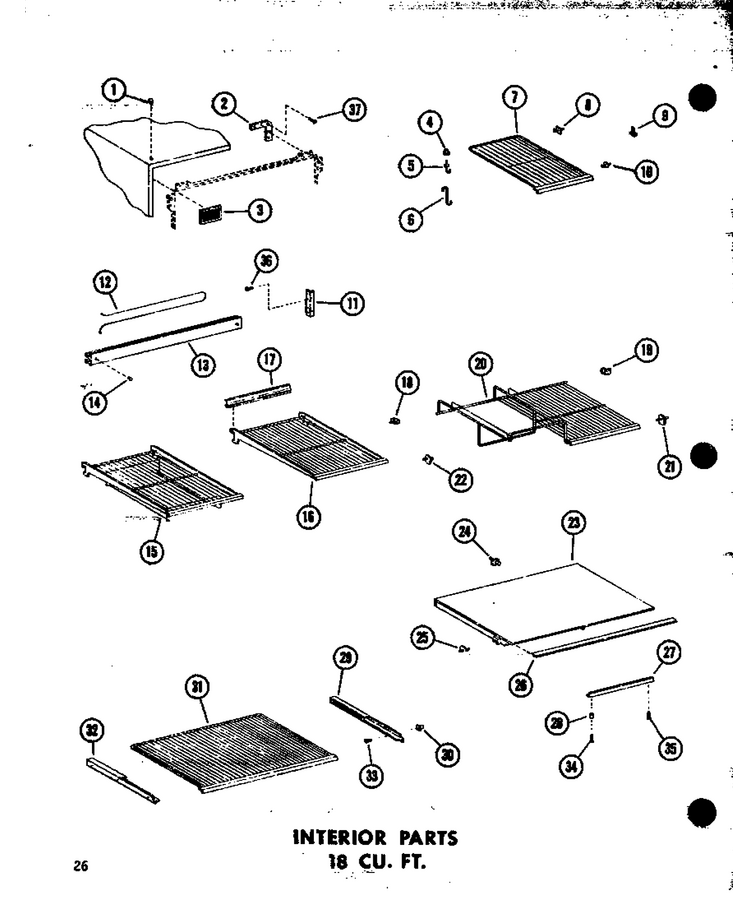

05 - Interior Parts 18 Cu. Ft.

...
...
1
Plug WPL-M0310720
...
2
Gussett WPL-B0598101
...
3
Grille WPL-C3601801
...
4
Support WPL-B5647201
...
6
Support-Shelf WPL-A3147705
...
7
Shelf-Stationary WPL-C3638405
...
8
Shelf Support WPL-C3638101
...
9
Hanger Liner WPL-B0593901
...
10
Trim, Shelf WPL-B0560001
...
11
Top Strip Hinge WPL-B8353401
...
12
Drier, Mullion WPL-B5636001
...
13
Ctr Mullion WPL-C8807501
...
14
Plug WPL-M0310723
...
18
Support WPL-B5633001
...
19
Support WPL-B5633002
...
20
Shelf-Stationary WPL-D7141502
...
21
Shelf Support WPL-B5620401
...
22
Support WPL-B5642101
...
23
Crisper Top WPL-D3984503
...
24
Support WPL-B5680001
...
25
Support WPL-B0597601
...
26
Trim A WPL-B0570904
...
27
Angle-Crisper Top WPL-C3697202
...
28
Glide WPL-A3213401
...
29
Frame-Glide Out WPL-D3917304
...
30
Grommet, Screw WPL-M0580007
...
31
Shelf-Glide Out WPL-D7141402
...
32
Frame-Glide Out WPL-D3917303
...
33
Screw (3) WPL-67006425
...
34
Screw K WPL-M0213517
...
35
Screw WPL-M0230814
...
36
Screw WPL-M0250531
...
37
Screw WPL-M0211530
