Amana TM16SP (BOM: P7565807W)

Model: TM16SP (BOM: P7565807W)

Save Part Not Listed?
product name

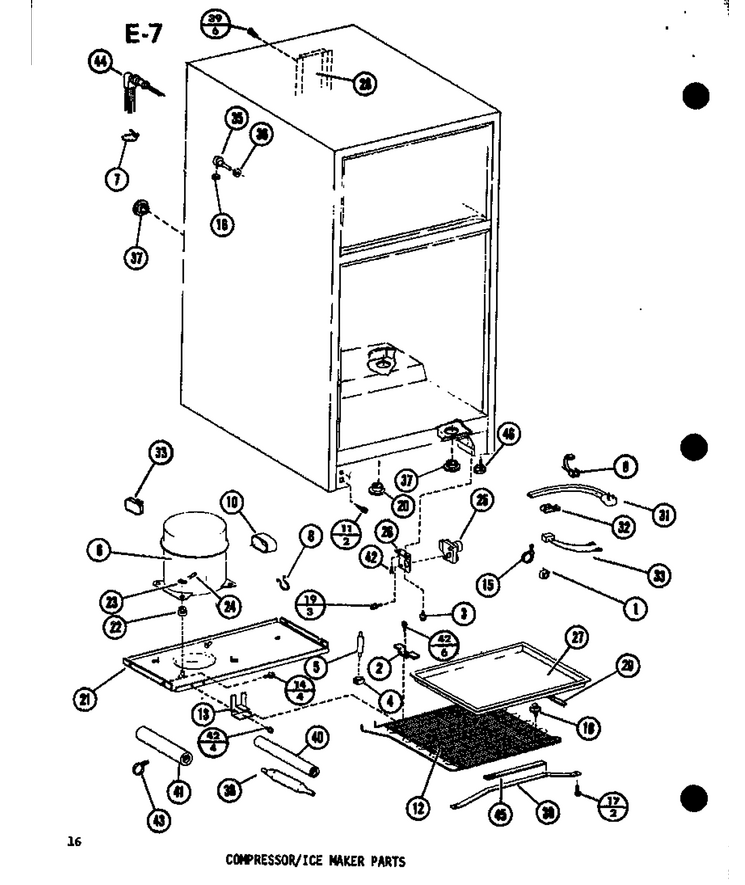

02 - Compressor/ice Maker Parts

...
...
NI
Wiring Harness WPL-C8744601
...
1
Clip-Cable WPL-M0110505
...
2
Clip-Cond WPL-A3054502
...
3
Screw WPL-WP489399
...
4
Clamp-Drier WPL-M0104002
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10439652
...
7
Tie-Wire WPL-WPW10339879
...
8
Lock, Purse WPL-74007369
...
9
Cord Relief WPL-B8355201
...
10
Term Cover K WPL-C8867701
...
11
Screw WPL-WP67006715
...
12
Pre-Cooler WPL-D7455001
...
13
Bracket WPL-B5747001
...
14
Screw WPL-M0294459
...
15
Tie-Wire WPL-WPW10339879
...
16
Plub Button WPL-M0310315
...
17
Screw WPL-WP489464
...
18
Screw WPL-M0241132
...
19
Screw,tc WPL-M0230017
...
20
Plug, Button WPL-A3076901
...
21
Support WPL-D7262802
...
22
Grommet K WPL-A3026101
...
23
Washer, Nylon K WPL-M0590101
...
24
Clip K WPL-A3140801
...
25
Timer-Def WPL-R0131577
...
26
Bracket-Timer WPL-C8821701
...
27
Drain Pan WPL-D3920001
...
28
Cover, O.c. Back, White WPL-C8807001
...
29
Gasket WPL-A3030327
...
30
Support WPL-D7308201
...
31
Wire Harness WPL-D7391301
...
32
Clamp WPL-M0103901
...
33
Ptc Device K WPL-B8315201
...
35
Fill Tube WPL-R0182123
...
36
Gasket WPL-A3278101
...
37
Plug, Button (Blk) WPL-A3080001
...
38
Accumulator K WPL-B0488001
...
39
Screw WPL-WP489464
...
40
Insul Tubing 1=12`` WPL-A0329806
...
41
Insulation Per Ft K WPL-A1004101
...
42
Screw WPL-WP90767
...
43
Tie-Wire WPL-WPW10339879
...
44
Wiring Harness WPL-D7274701
...
45
Felt Q WPL-A9008324
...
46
Glider Bolt WPL-M0266510

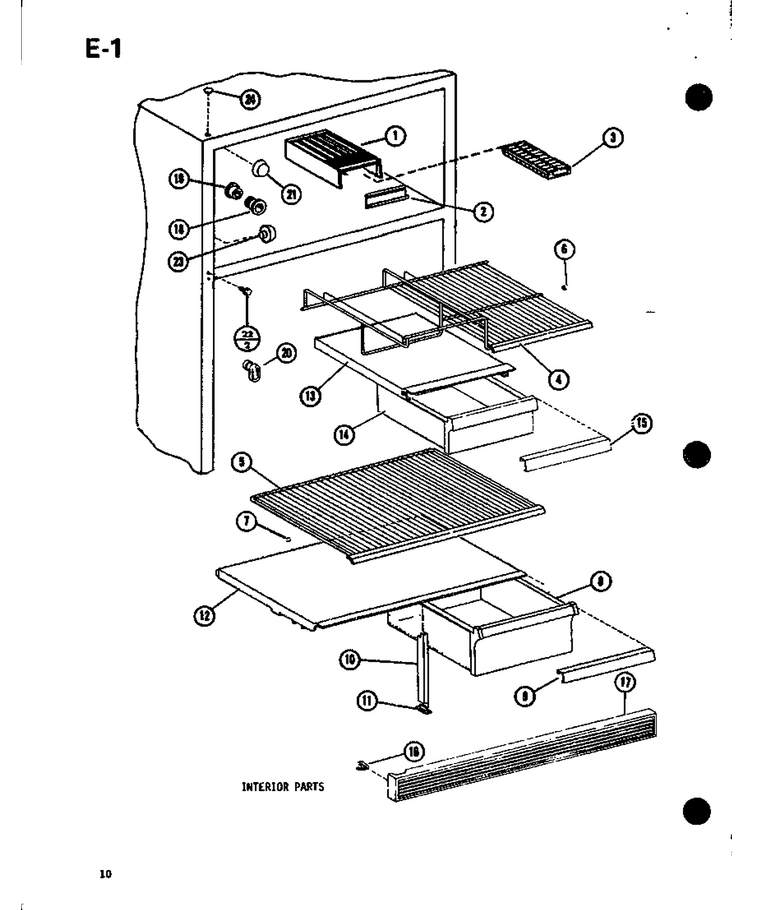

04 - Interior Parts

...
...
1
Tunnel WPL-D7552903
...
2
Door Ice Tunnel K WPL-C8847604
...
3
Tray WPL-WP841180A
...
4
Shelf-Mk WPL-D7381404
...
5
Shelf-Glideout WPL-D7256611
...
6
Cap WPL-B5753502
...
7
Cap WPL-B5753501
...
8
Pan, Crisper WPL-D7425601
...
9
Trim-Cr Handle WPL-C8831706
...
10
Support WPL-B0571002
...
11
Support Post WPL-B5749401
...
12
Top Crisper WPL-D7261309
...
13
Top-Meat Kpr WPL-D7343601
...
14
Pan, Meat Keeper WPL-D7425301
...
15
Trim-Handle WPL-C8831707
...
16
Clip WPL-WPM0117303
...
17
Grille Toe WPL-D7263306
...
18
Air Tunnel WPL-A3187701
...
19
Retainer WPL-A3187801
...
20
Tunnel-Heat Ex WPL-B5749501
...
21
Cap Fill Tube WPL-B5631801
...
22
Kit, Screw WPL-R9800670
...
23
Cap WPL-B5636301
...
24
Plug WPL-M0310718

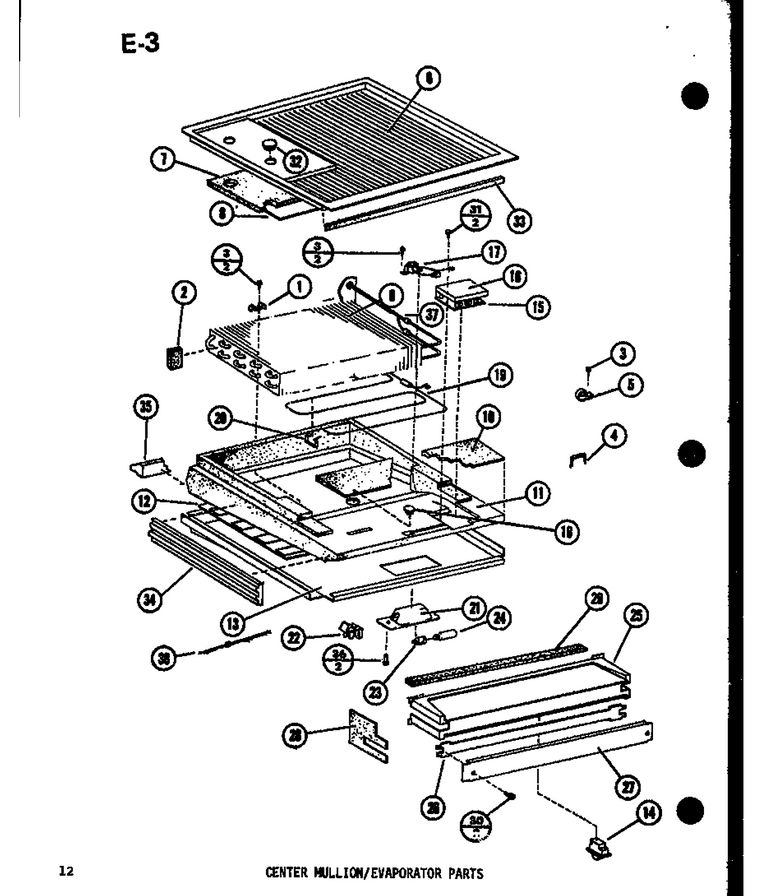

01 - Center Mullion/evap Parts

...
...
1
Clamp, Tube WPL-A3253801
...
2
Block-Evap Coil Lh WPL-A3281401
...
3
Screw WPL-M0212932
...
4
Clamp-Wiring WPL-A3195601
...
5
Clamp WPL-M0104801
...
6
Bottom Freezer WPL-D7255106
...
7
Insulation WPL-D7478101
...
8
Barrier Sheet WPL-A3126003
...
9
Evaporator WPL-D7316201
...
10
Insulation WPL-C8744801
...
11
Drain Block WPL-D7437602
...
12
Heater-Ref Top WPL-D7351201
...
13
Top-Ref WPL-D7257802
...
14
Switch WPL-W11384469
...
15
Term Bd Assy WPL-B8320001
...
16
Cover, Terminal Board WPL-B5762601
...
17
Thermostat WPL-C8731903
...
18
Drain Screen WPL-A3113702
...
19
Heater-Evap WPL-D7316501
...
20
Clip WPL-M0110301
...
21
Shield, Light WPL-R0176034
...
22
Clip, Ground WPL-B5733302
...
23
Socket-Light WPL-D7714407
...
24
Light Bulb WPL-8009
...
25
Breaker-Mullion WPL-D7275201
...
26
Heater Mullion K WPL-D7577101
...
27
Center Mull.-Pnt WPL-C8807105
...
28
Gasket Rh Mullion K WPL-B5762802
...
29
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
30
Kit, Screw WPL-R9800670
...
31
Screw WPL-WP3400886
...
32
Plug WPL-A3069103
...
33
Gasket WPL-B5759602
...
34
Gasket K WPL-B5757801
...
35
Gasket, Sealing, Divider Block WPL-B5757701
...
36
Screw (3) WPL-67006425
...
37
Heat Ex WPL-D7319503
...
38
Wiring Harness WPL-C8859001

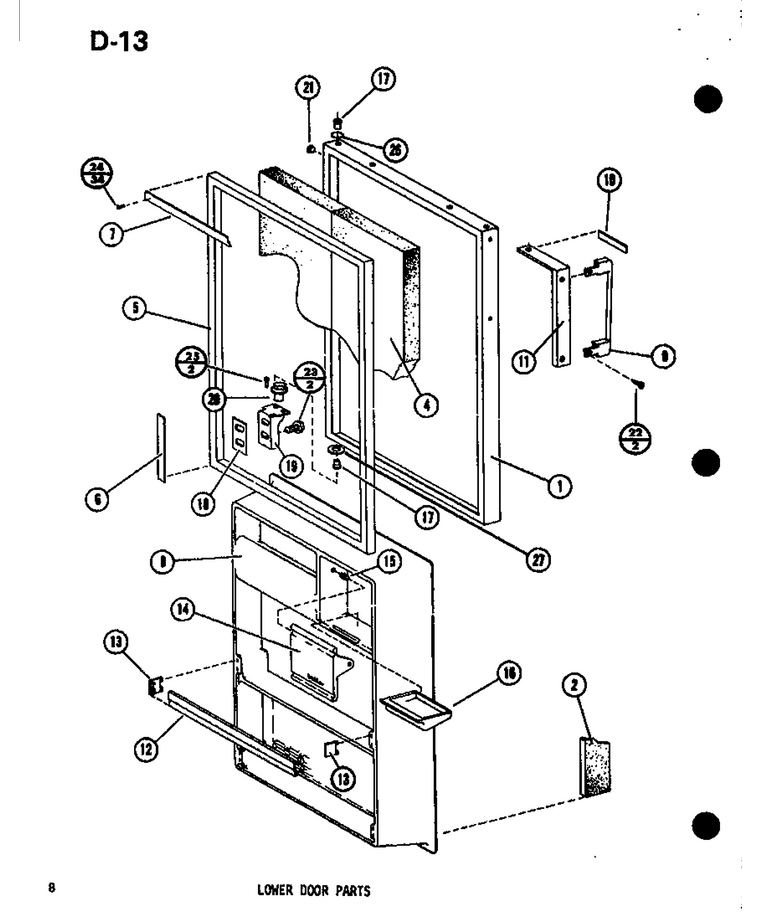

05 - Lower Door Parts

...
...
1
Door Ref G-T-Tm16d WPL-D7437519
...
2
Insulation Ft. K WPL-B0523563
...
4
Insulation WPL-B5683506
...
5
Gasket WPL-D7431906Q
...
6
Retainer-Gasket WPL-D3928117
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263205
...
9
Handle WPL-D7254202
...
10
Name Plate Handle WPL-C8894401
...
11
Pad Handle K WPL-D7257905
...
12
Retainer WPL-D7415713
...
13
Support - Cream Lh WPL-B5631705
...
14
Butter Door WPL-D7417702
...
15
Pivot WPL-A3084701
...
16
Butter Tray WPL-D3799802
...
17
Bushing WPL-C3652902
...
18
Shim WPL-B5744803
...
19
Bracket Lower Hinge WPL-10163605
...
20
Pin, Hinge K WPL-C8814901
...
21
Plug WPL-M0310725
...
22
Screw WPL-M0222317
...
23
Screw WPL-WP67006715
...
24
Screw WPL-WP98165
...
25
Screw K WPL-M0205441
...
26
O Ring WPL-M0500902
...
27
Washer WPL-M0274050

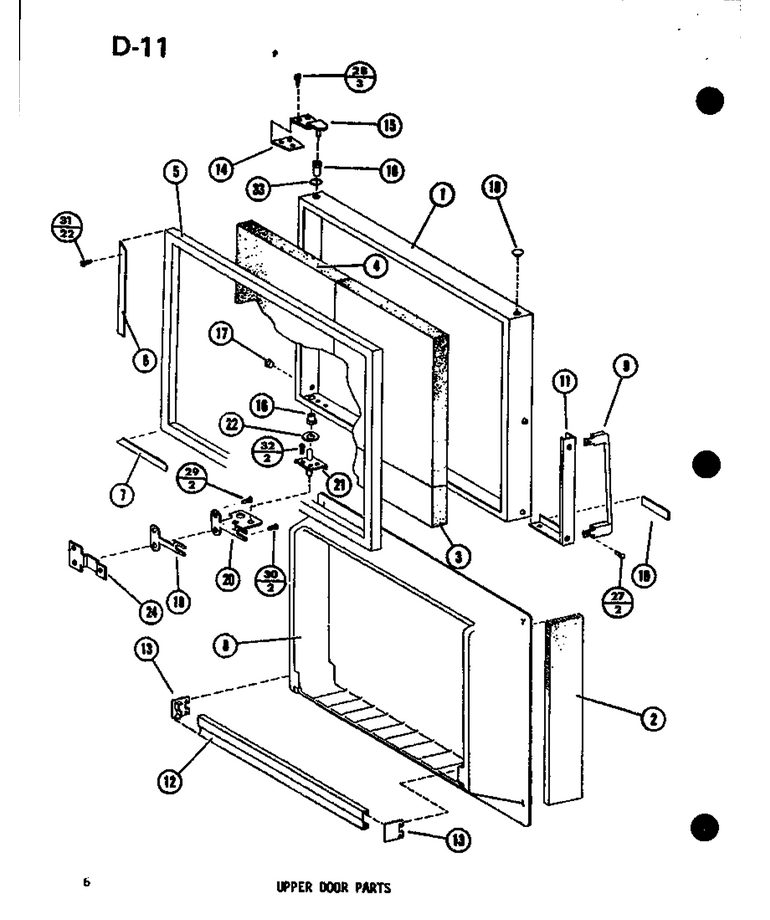

06 - Upper Door Parts

...
...
1
Door Fr L-T Tm16e WPL-D7437515
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767002
...
5
Gasket, Drnote 1: On Tm16sp-L WPL-D7431919
...
6
Retainer-Gasket WPL-D3928116
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel Frz WPL-D7263102
...
9
Handle WPL-D7254201
...
10
Name Plate Handle WPL-C8894004
...
11
Pad Handle K WPL-D7257906
...
12
Retainer WPL-D7415714
...
13
Support K WPL-C3680903
...
14
Shim, Top Hinge WPL-B8389007
...
15
Hinge, Top WPL-B5744302
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug Button (Almond) WPL-M0310730
...
18
Plug WPL-M0310608
...
19
Shim K WPL-A3143501
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750902
...
22
Washer Hinge K WPL-B5779601
...
24
Kit- Tap P WPL-R0194684
...
27
Screw WPL-M0222317
...
28
Kit, Screw WPL-R9800670
...
29
Screw WPL-M0226831
...
30
Screw Phillips WPL-M0205731
...
31
Screw WPL-WP98165
...
32
Screw K WPL-M0205441
...
33
O Ring WPL-M0500902

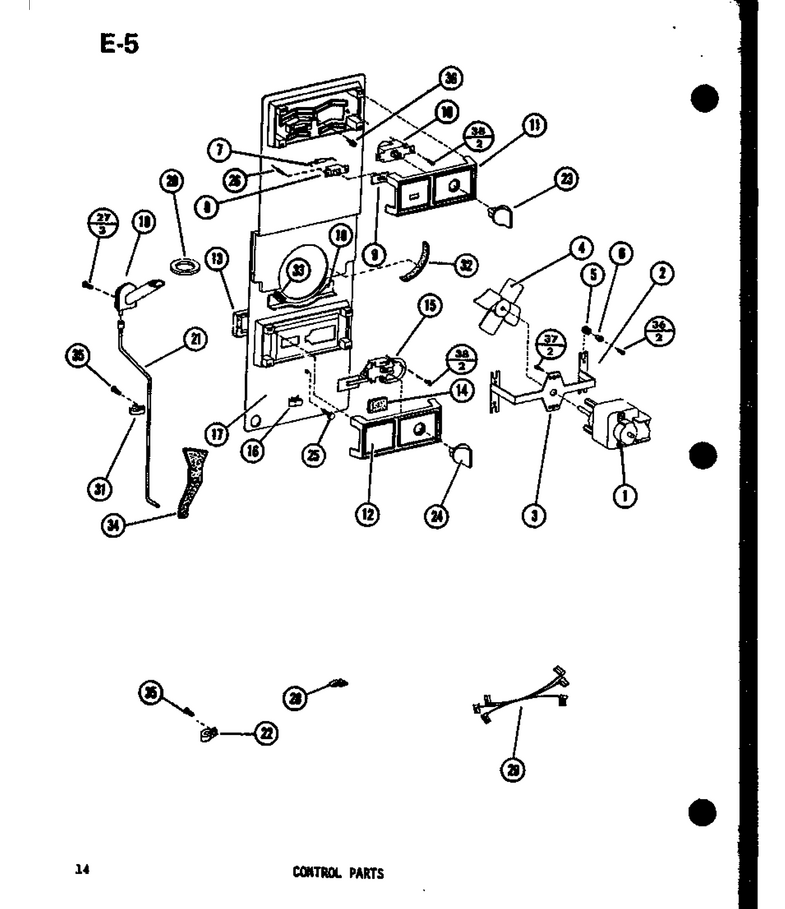

03 - Control Parts

...
...
1
Motor WPL-D7464903
...
2
Clip, Ground WPL-B5733302
...
3
Motor Mount WPL-C8722501
...
4
Fan Blade-Cw WPL-C8794901
...
5
Clip, Waterline WPL-12454802
...
6
Eyelet K WPL-A0381401
...
7
Diode WPL-M0305301
...
8
Switch WPL-M0341202
...
9
Plate-Switch Mtg WPL-A3259901
...
10
Control-Temp WPL-B0592307
...
11
Deflector, Ref WPL-D7561403
...
12
Deflector, Air, Fz WPL-D7273407
...
13
Gasket-Damper WPL-A3260901
...
14
Insulation WPL-B5756502
...
15
Control WPL-C8761103
...
16
Clip WPL-M0117701
...
17
Cover Air Duct WPL-D7272209
...
18
Drain Trough WPL-D7292901
...
19
Elbow WPL-C3630902
...
20
Gasket WPL-A3132301
...
21
Drain Tube WPL-C8743602
...
22
Clamp WPL-M0102303
...
23
Knob WPL-D7009816
...
24
Knob, Cont. WPL-D7009817
...
25
Screw-Sm WPL-M0238636
...
26
Rivet A WPL-M0010202
...
27
Screw WPL-W11233072
...
28
Clip-Cable WPL-M0110505
...
29
Wiring Harness WPL-C8743901
...
31
Clamp, Tube WPL-M0102305
...
32
Gasket WPL-B5759603
...
33
Gasket WPL-A3189314
...
34
Gasket-Air Duct WPL-C8763602
...
35
Screw WPL-M0210916
...
36
Screw WPL-M0216539
...
37
Screw WPL-WP3400094
...
38
Screw WPL-WP489349
