Amana TM14H (BOM: P7705203W)

Model: TM14H (BOM: P7705203W)

Save Part Not Listed?
product name

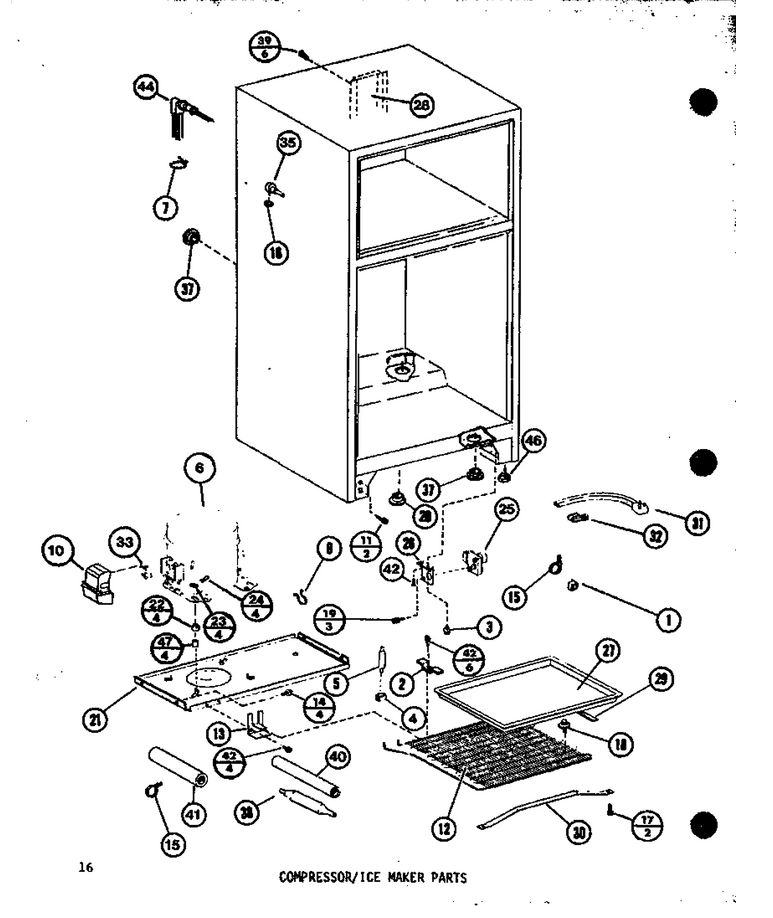

02 - Compressor/ice Maker Parts

...
...
NI
Wiring Harness WPL-C8744301
...
1
Clip-Cable WPL-M0110505
...
2
Clip-Cond WPL-A3054502
...
4
Clamp-Drier WPL-M0104002
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10439652
...
7
Tie-Wire WPL-WPW10339879
...
8
Lock, Purse WPL-74007369
...
10
Term Cover Assy K WPL-B5772901
...
11
Screw WPL-WP67006715
...
12
Pre-Cooler WPL-D7455001
...
13
Bracket WPL-B5747001
...
14
Screw WPL-M0294459
...
15
Tie-Wire WPL-WPW10339879
...
16
Plug Button WPL-M0310319
...
17
Screw WPL-WP489464
...
18
Screw WPL-M0241132
...
19
Screw,tc WPL-M0230017
...
20
Plug, Button WPL-A3076901
...
21
Support WPL-D7262802
...
22
Grommet K WPL-A3026101
...
23
Washer WPL-B8365302
...
24
Clip K WPL-A3140801
...
25
Timer, Defrost WPL-D7004118
...
26
Bracket-Timer WPL-C8821701
...
27
Drain Pan WPL-D3920001
...
28
Heat Exchanger Cover WPL-B5748310
...
29
Gasket WPL-A3030327
...
30
Support WPL-D7308201
...
31
Harness M.c WPL-D7708001
...
32
Clamp WPL-M0103901
...
33
Relay/overload Assy WPL-C8949502
...
35
Fill Tube WPL-R0182123
...
37
Plug, Button (Blk) WPL-A3080001
...
38
Accumulator K WPL-B0488001
...
39
Screw WPL-WP489464
...
40
Insul Tubing 1=12`` WPL-A0329806
...
41
Insulation Per Ft K WPL-A1004101
...
42
Screw WPL-WP90767
...
44
Wiring Harness WPL-D7274701
...
46
Glider Bolt WPL-M0266510
...
47
Sleeve K WPL-A3072001

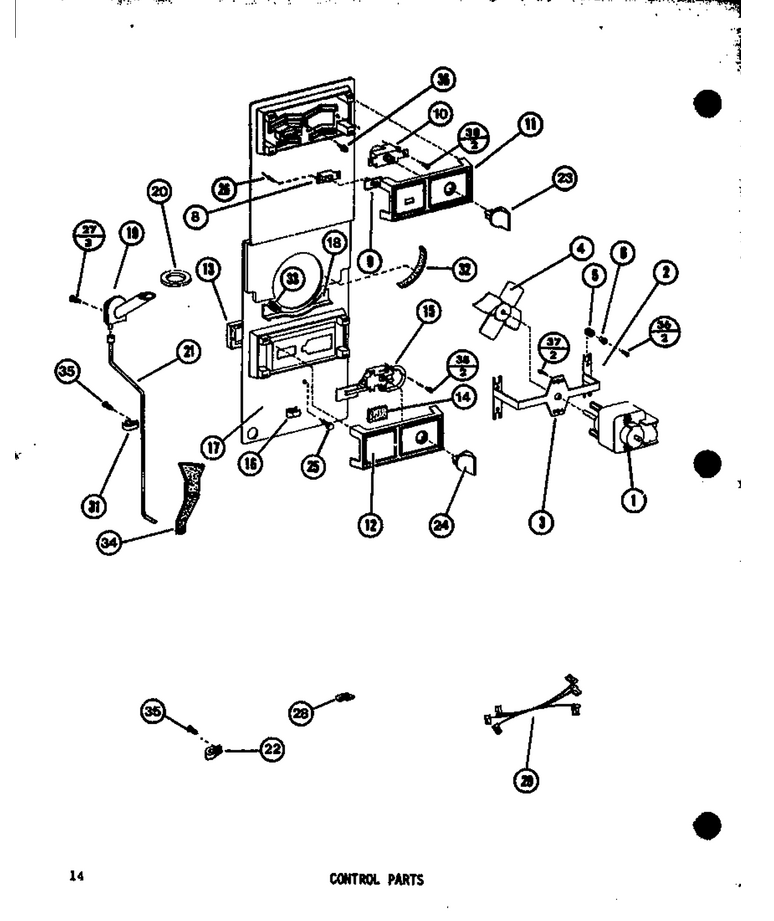

03 - Control Parts

...
...
1
Motor WPL-D7464903
...
2
Clip, Ground WPL-B5733302
...
3
Motor Mount WPL-C8722501
...
4
Fan Blade-Cw WPL-C8794901
...
5
Clip, Waterline WPL-12454802
...
6
Eyelet K WPL-A0381401
...
8
Switch WPL-M0350101
...
9
Plate Switch Mtg WPL-C8953401
...
10
Control-Temp WPL-B0592307
...
11
Deflector, Ref WPL-D7561403
...
12
Deflector, Air, Frz WPL-D7273408
...
13
Gasket-Damper WPL-A3260901
...
14
Insulation WPL-B5756502
...
15
Control WPL-C8761103
...
16
Clip WPL-M0117701
...
17
Cover Air Duct WPL-D7272209
...
18
Drain Trough WPL-D7292901
...
19
Elbow WPL-C3630902
...
20
Gasket WPL-A3132301
...
21
Drain Tube WPL-C8743601
...
22
Clamp WPL-M0102303
...
23
Knob WPL-D7009816
...
24
Knob, Cont. WPL-D7009817
...
25
Screw-Sm WPL-M0238636
...
26
Rivet A WPL-M0010202
...
27
Screw WPL-W11233072
...
28
Clip-Cable WPL-M0110505
...
29
Wire Harness WPL-D7715501
...
31
Clamp, Tube WPL-M0102305
...
32
Gasket WPL-B5759603
...
33
Gasket WPL-A3189314
...
34
Gasket-Air Duct WPL-C8763602
...
35
Screw WPL-M0210916
...
36
Screw WPL-M0216539
...
37
Screw WPL-WP3400094
...
38
Screw WPL-WP489349

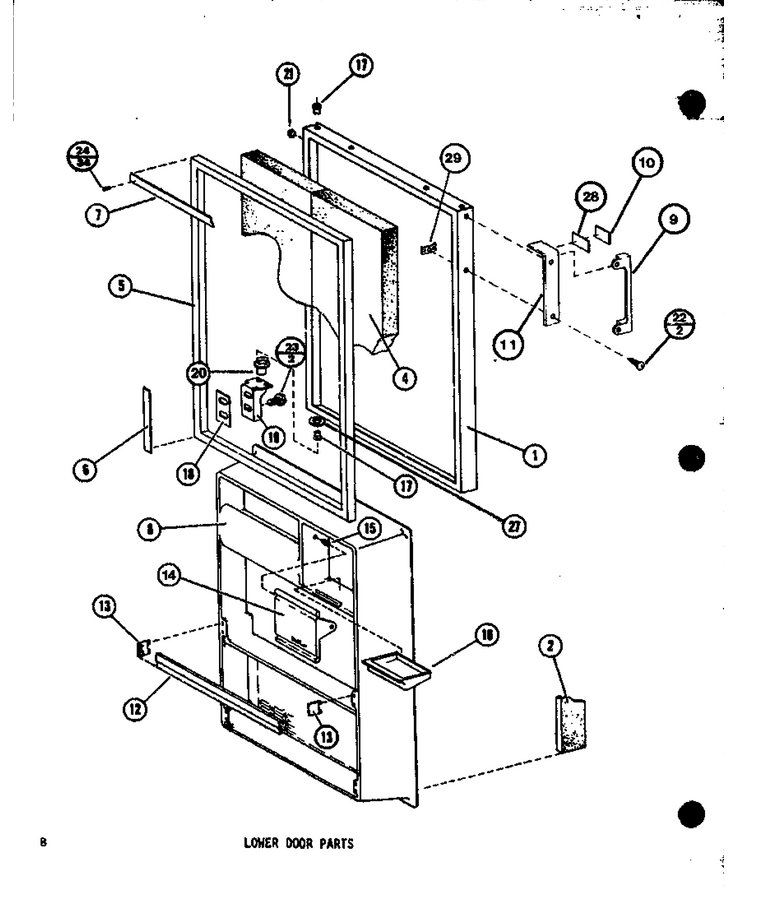

05 - Lower Door Parts

...
...
Cic3/p87358-3w Used In Canada WPL-NOTE:
...
1
Door Ref W-T-Tm14h1 WPL-D7731724WQ
...
2
Insulation Ft. K WPL-B0523563
...
4
Insulation WPL-B5683505
...
5
Gasket WPL-D7431904
...
6
Retainer-Gasket WPL-D3928115
...
7
Retainer-Gasket WPL-D3928118
...
8
Panel, Door WPL-D7263203
...
9
Handle, Door WPL-D7254205
...
10
Nameplate, Handle WPL-C8915808
...
11
Pad, Handle WPL-D7623504
...
12
Retainer WPL-D7415713
...
13
Support - Cream Lh WPL-B5631705
...
14
Door Butter WPL-D7417703
...
15
Pivot WPL-A3084701
...
16
Butter Tray WPL-D3799802
...
17
Bushing WPL-C3652902
...
18
Kit,btm Hinge Shim WPL-B5744801
...
19
Bracket Lower Hinge WPL-10163605
...
20
Pin, Hinge K WPL-C8814901
...
21
Button- Pl WPL-WP67001130
...
22
Screw WPL-M0222418
...
23
Screw WPL-WP67006715
...
24
Screw WPL-WPM0219730
...
27
Washer WPL-M0274049
...
28
Pad, Nameplate WPL-C8920501
...
29
Nut WPL-B8361401

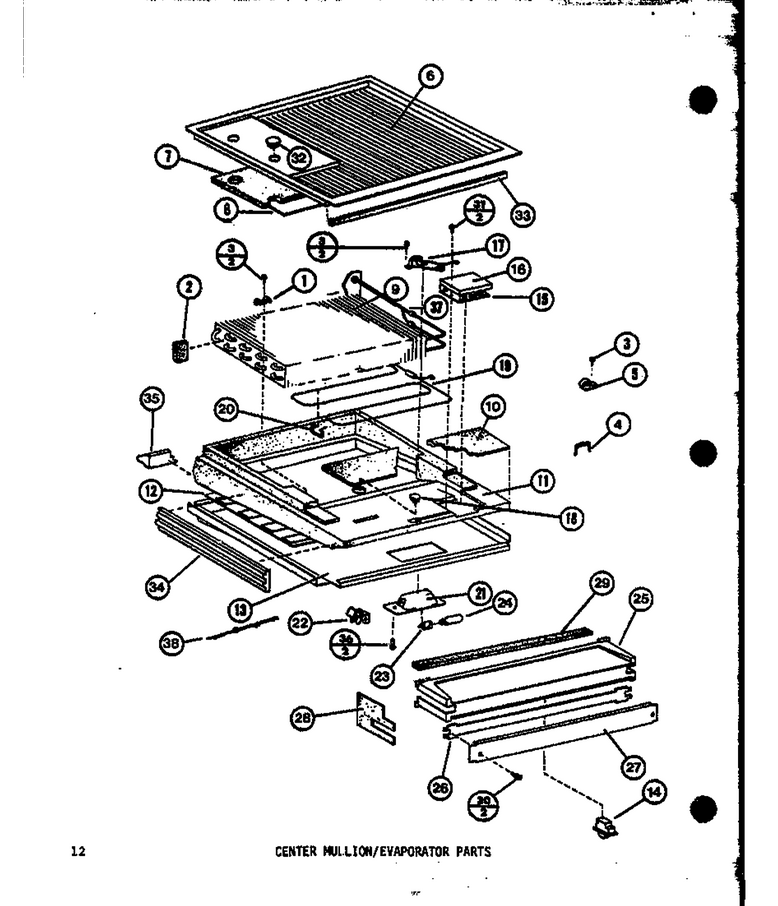

01 - Center Mullion/evap Parts

...
...
1
Clamp, Tube WPL-A3253801
...
2
Block-Evap Coil Rh WPL-A3281301
...
3
Screw WPL-M0212932
...
4
Clamp-Wiring WPL-A3195601
...
5
Clamp WPL-M0104801
...
6
Bottom Freezer WPL-D7255105
...
7
Insulation WPL-D7478101
...
8
Barrier Sheet WPL-A3126003
...
9
Evaporator WPL-D7316201
...
10
Insulation WPL-C8744801
...
11
Drain Block WPL-D7437601
...
12
Heater Ref Top WPL-D7351203
...
13
Top Ref Pnt. WPL-D7257804
...
14
Switch WPL-W11384469
...
15
Term Bd Assy WPL-C8953601
...
16
Cover, Terminal Board WPL-B5762601
...
17
Thermostat WPL-C8731903
...
18
Drain Screen WPL-A3113702
...
19
Heater-Evap WPL-D7316501
...
20
Clip WPL-M0110301
...
21
Shield, Light WPL-R0176034
...
22
Clip, Ground WPL-B5733302
...
23
Socket-Light WPL-D7714407
...
24
Light Bulb WPL-8009
...
25
Breaker-Mullion WPL-D7275201
...
26
Heater Mullion K WPL-D7577105
...
27
Center Mull.-Pnt WPL-C8807105
...
28
Gasket Rh Mullion K WPL-B5762802
...
29
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
30
Kit, Screw WPL-R9800670
...
31
Screw WPL-WP3400886
...
32
Plug WPL-A3069103
...
33
Gasket WPL-B5759602
...
34
Gasket K WPL-B5757801
...
35
Gasket, Sealing, Divider Block WPL-B5757701
...
36
Screw (3) WPL-67006425
...
37
Heat Ex WPL-D7319503
...
38
Wiring Harness WPL-C8859001

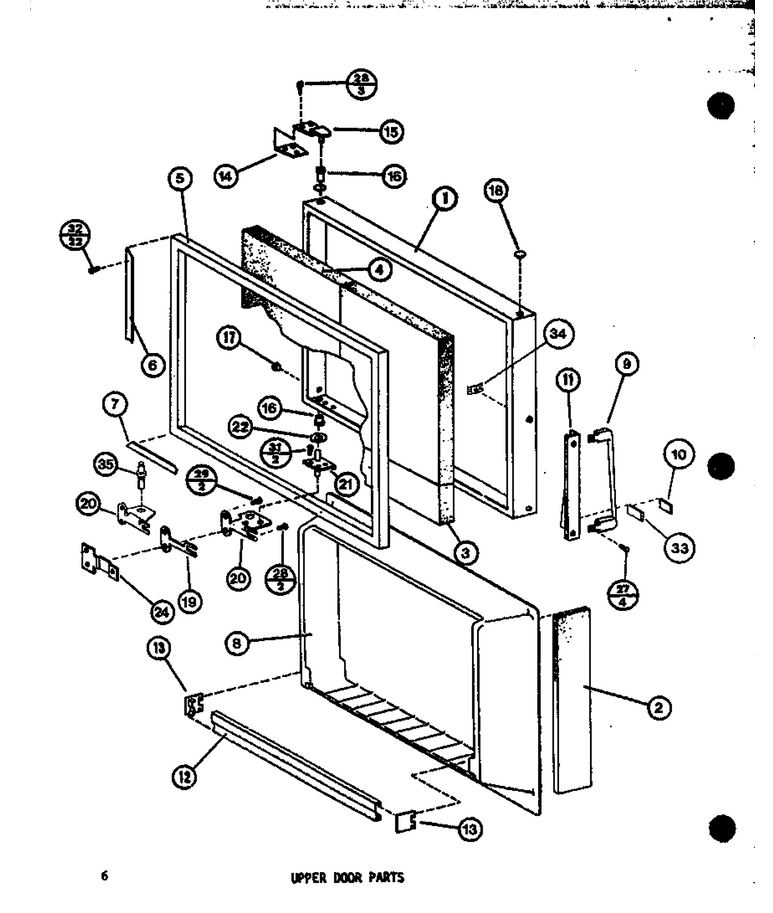

06 - Upper Door Parts

...
...
Ic-2/p36415-8w Used In U.s.a. WPL-NOTE:
...
1
Drr Fr W-T-Tm14h WPL-D7728245W
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767001
...
5
Gasket WPL-D7431903
...
6
Retainer-Gasket WPL-D3928114
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263103
...
9
Handle, Door WPL-D7254204
...
10
Nameplate, Handle WPL-C8915810
...
11
Pad, Handle WPL-D7623503
...
12
Retainer WPL-D7415714
...
13
Support WPL-C3680908
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug Button (Almond) WPL-M0310730
...
18
Plug WPL-M0310608
...
19
Shim K WPL-B8351402
...
20
Center Hinge Bracket WPL-C8948601
...
22
Washer Hinge K WPL-B5779601
...
24
Kit- Tap P WPL-R0194684
...
27
Screw WPL-M0222418
...
28
Kit, Screw WPL-R9800670
...
29
Screw WPL-M0226831
...
32
Screw WPL-WPM0219730
...
33
Pad, Nameplate WPL-C8920501
...
34
Nut WPL-B8361401
...
35
Center Pin Hinge WPL-B8373101

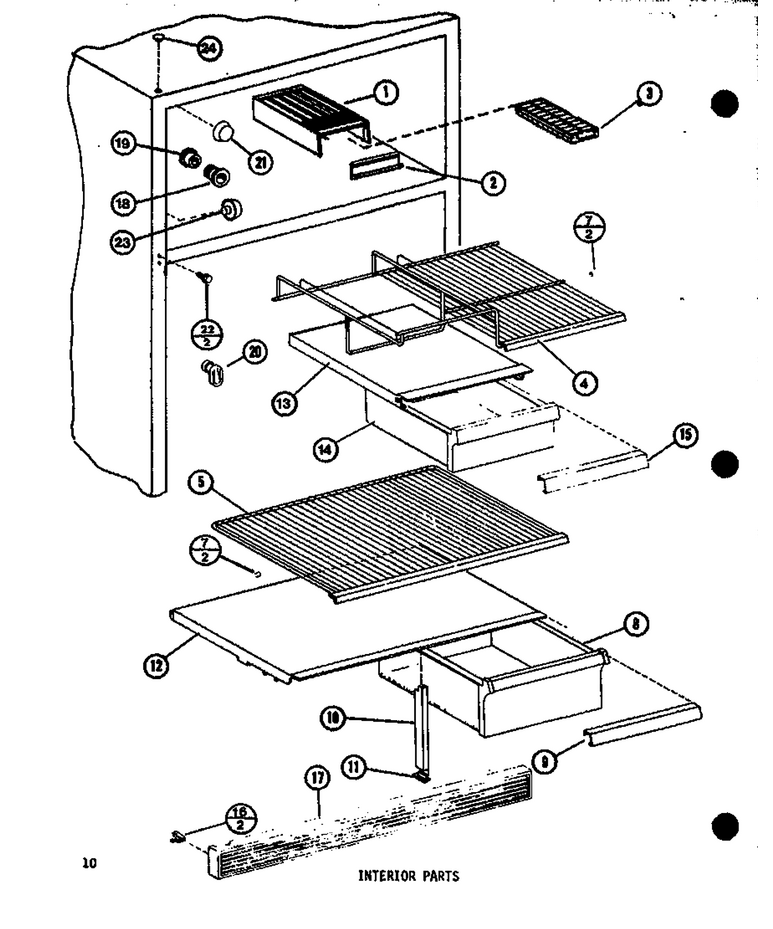

04 - Interior Parts

...
...
Cic-3/p87358-1w Used In Canada WPL-NOTE:
...
1
Tunnel WPL-D7552903
...
2
Door Ice Tunnel WPL-C8706106
...
3
Tray WPL-WP841180A
...
4
Shelf Meat Pan WPL-D7601701
...
5
Shelf Glide Out WPL-D7582701
...
7
Cap WPL-B5753501
...
8
Net Pan, Crisper WPL-D7425606
...
9
Trim-Cr Handle WPL-C8831706
...
10
Support WPL-B0571002
...
11
Support Post WPL-B5749401
...
12
Crisper Top WPL-D7261306
...
13
Top, Meat Keeper WPL-D7343604
...
14
Meat Pan WPL-D7427404
...
15
Trim-Handle WPL-C8831707
...
16
Clip WPL-WPM0117303
...
17
Grille Toe WPL-D7263306
...
18
Air Tunnel WPL-A3187701
...
19
Retainer WPL-A3187801
...
20
Tunnel-Heat Ex WPL-B5749501
...
21
Cap Fill Tube WPL-B5631801
...
22
Kit, Screw WPL-R9800670
...
23
Cap WPL-B5636301
...
24
Plug WPL-M0310720
