Amana TM14D (BOM: P7464502W)

Model: TM14D (BOM: P7464502W)

Save Part Not Listed?
product name

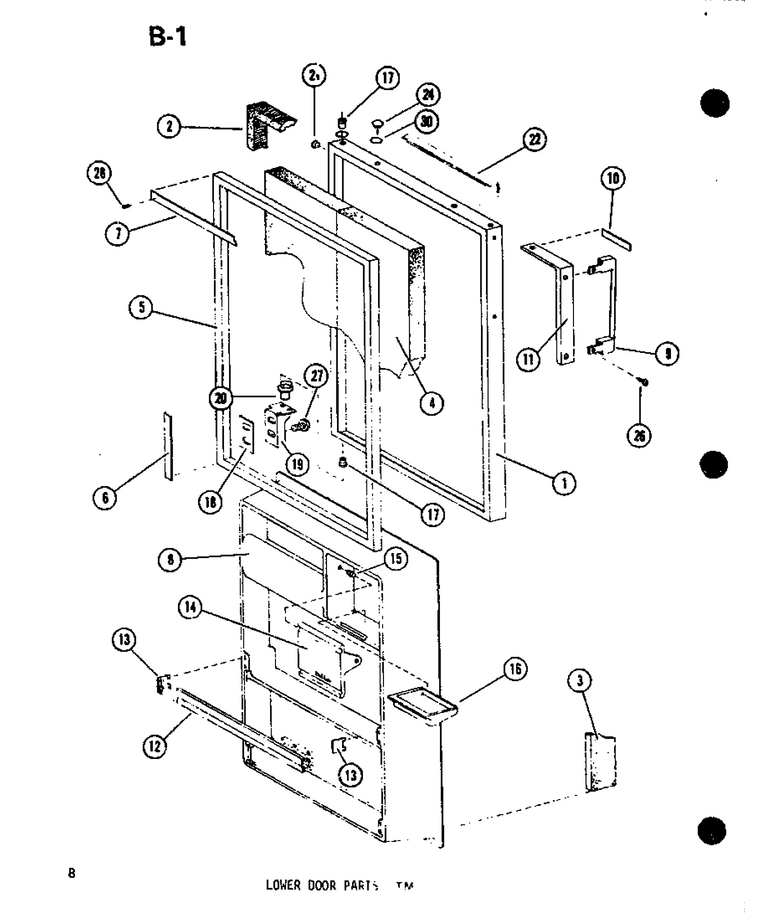

04 - Lower Door Parts Tm

...
...
1
Door Ref W-T-Tm14h1 WPL-D7731724WQ
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-D7293701
...
5
Gasket WPL-D3928220
...
6
Retainer-Gasket WPL-D3928115
...
7
Retainer-Gasket WPL-D3928118
...
8
Panel, Door WPL-D7263203
...
9
Handle WPL-D7254202
...
10
Name Plate Handle WPL-C8835801
...
11
Handle Pad Kit WPL-D7257903
...
12
Retainer WPL-D7415713
...
13
Support - Cream Lh WPL-B5631705
...
14
Butter Door WPL-D7417702
...
15
Pivot WPL-A3084701
...
16
Buttertray WPL-67004412A
...
17
Bushing WPL-C3652902
...
18
Kit,btm Hinge Shim WPL-B5744801
...
19
Bracket Lower Hinge WPL-10163605
...
20
Pin, Hinge K WPL-C8814901
...
21
Plug Button (Almond) WPL-M0310730
...
22
Door Cap WPL-C8833701
...
24
Plug WPL-M0310609
...
26
Screw WPL-M0222317
...
27
Screw WPL-WP67006715
...
28
Screw WPL-WP98165
...
30
O Ring WPL-M0500902

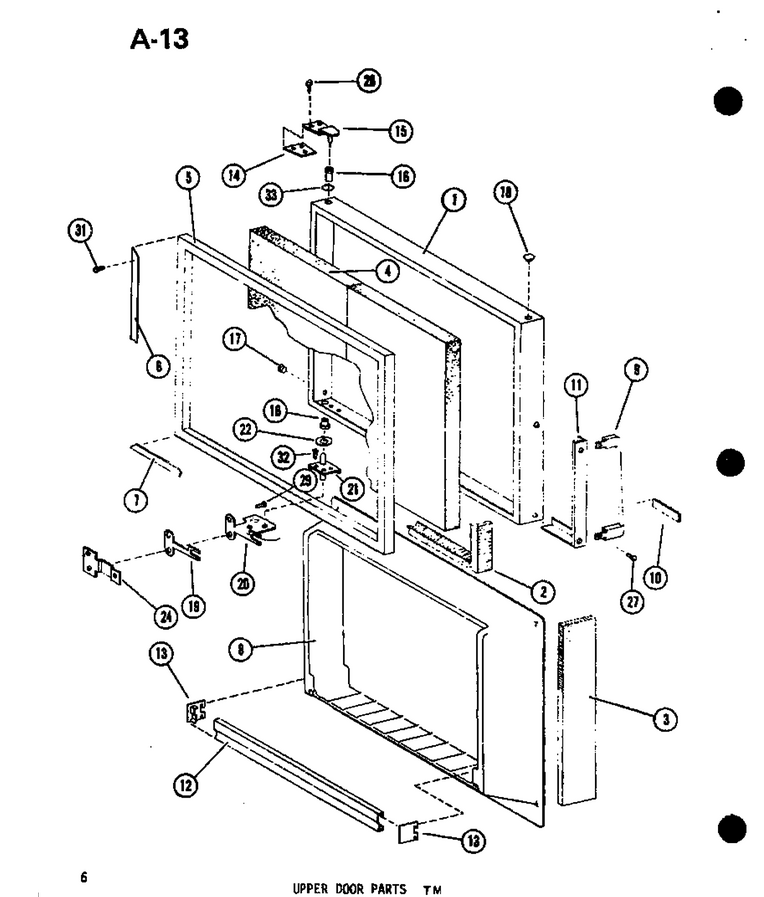

06 - Upper Door Parts Tm

...
...
1
Door Fr W-T-Tm14e WPL-D7437501
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767001
...
5
Gasket WPL-D3928219
...
6
Retainer-Gasket WPL-D3928114
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263103
...
9
Handle WPL-D7254201
...
10
Nameplate WPL-C8836702
...
11
Handle Pad Kit WPL-D7257904
...
12
Retainer WPL-D7415714
...
13
Support WPL-C3680908
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Hinge WPL-B5744301
...
16
Bushing WPL-C3652902
...
17
Plug WPL-M0310717
...
18
Plug WPL-M0310608
...
19
Shim K WPL-A3143501
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750901
...
22
Washer Hinge K WPL-B5779601
...
24
Kit- Tap P WPL-R0194684
...
27
Screw WPL-M0222317
...
28
Kit, Screw WPL-R9800670
...
29
Screw WPL-M0226831
...
31
Screw WPL-WP98165
...
33
O Ring WPL-M0500902

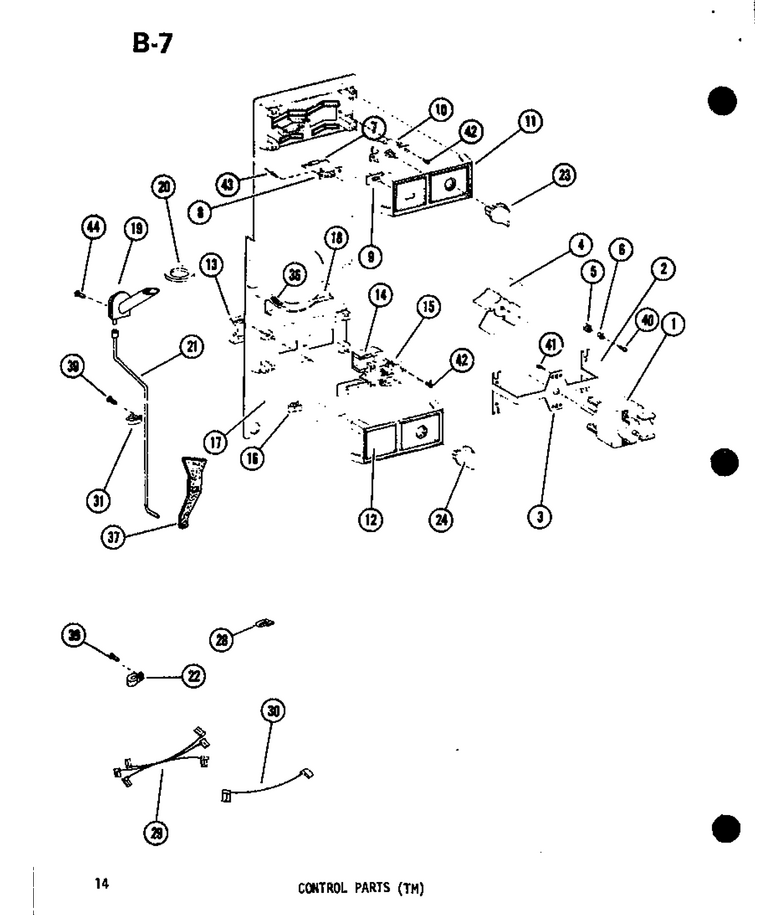

02 - Control Parts (tm)

...
...
1
Motor WPL-D7464903
...
2
Clip, Ground WPL-B5733302
...
3
Motor Mount WPL-C8722501
...
4
Fan Blade-Cw WPL-C8794901
...
5
Clip, Waterline WPL-12454802
...
6
Eyelet K WPL-A0381401
...
7
Diode WPL-M0305301
...
8
Switch WPL-M0341202
...
9
Plate-Switch Mtg WPL-A3259901
...
10
Control-Temp WPL-B0592307
...
11
Deflector WPL-D7417604
...
13
Gasket-Damper WPL-A3260901
...
14
Insulation WPL-B5756502
...
15
Control Damper WPL-C8761101
...
16
Clip WPL-M0117701
...
17
Cover-Air Duct WPL-D7272206
...
18
Drain Trough WPL-D7292901
...
19
Elbow WPL-C3630902
...
20
Gasket WPL-A3132301
...
21
Drain Tube WPL-C8743601
...
22
Clamp WPL-M0102303
...
23
Knob WPL-D7009801
...
24
Knob WPL-D7009802
...
28
Clip-Cable WPL-M0110505
...
29
Wiring Harness WPL-C8743901
...
30
Wire-Jumper WPL-A3221101
...
31
Clamp, Tube WPL-M0102305
...
36
Gasket WPL-A3189314
...
37
Gasket-Air Duct WPL-C8763602
...
39
Screw WPL-M0210916
...
40
Screw WPL-M0216539
...
41
Screw WPL-WP3400094
...
42
Screw WPL-WP489349
...
43
Rivet A WPL-M0010202
...
44
Screw WPL-W11233072

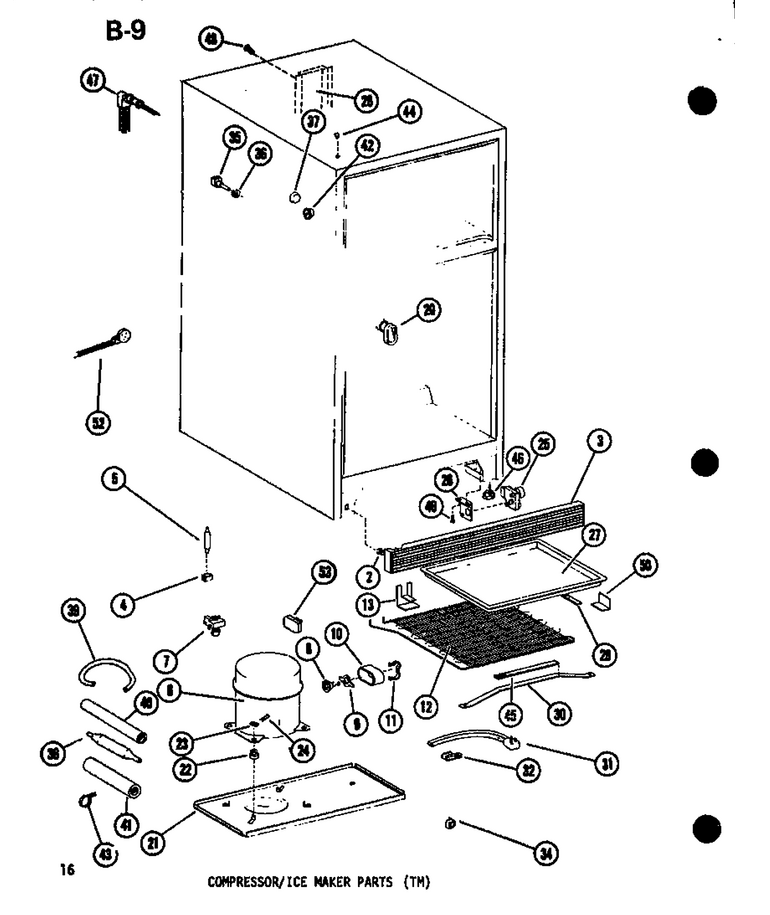

01 - Compressor/ice Maker Parts (tm)

...
...
NI
Power Cord WPL-R0157154
...
2
Clip WPL-WPM0117303
...
3
Grille Toe WPL-D7263304
...
4
Clamp-Drier WPL-M0104002
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10439652
...
10
Terminal Cover WPL-C8851101
...
12
Pre-Cooler WPL-C8860801
...
13
Bracket WPL-B5747001
...
20
Tunnel-Heat Ex WPL-B5749501
...
21
Support WPL-D7262802
...
22
Grommet K WPL-A3026101
...
23
Washer, Nylon K WPL-M0590101
...
24
Clip K WPL-A3140801
...
25
Timer-Def WPL-R0131577
...
26
Bracket-Timer WPL-C8821701
...
27
Drain Pan WPL-D3920001
...
28
Cover, O.c. Back, White WPL-C8807001
...
29
Gasket WPL-A3030327
...
30
Support WPL-D7308201
...
31
Wire Harness WPL-D7391301
...
32
Clamp WPL-M0103901
...
34
Clip-Cable WPL-M0110505
...
35
Fill Tube WPL-R0182123
...
36
Gasket WPL-A3278101
...
37
Cap Fill Tube WPL-B5631801
...
38
Accumulator K WPL-B0488001
...
41
Insulation Per Ft K WPL-A1004101
...
42
Cap WPL-B5636301
...
43
Tie-Wire WPL-WPW10339879
...
44
Plug WPL-M0310718
...
45
Felt Q WPL-A9008324
...
46
Glider Bolt WPL-M0266510
...
47
Wiring Harness WPL-D7274701
...
48
Screw WPL-WP489464
...
49
Screw WPL-WP90767
...
50
Bracket WPL-B5709102
...
52
Wiring Harness WPL-C8744301
...
53
Ptc Device K WPL-B8315201

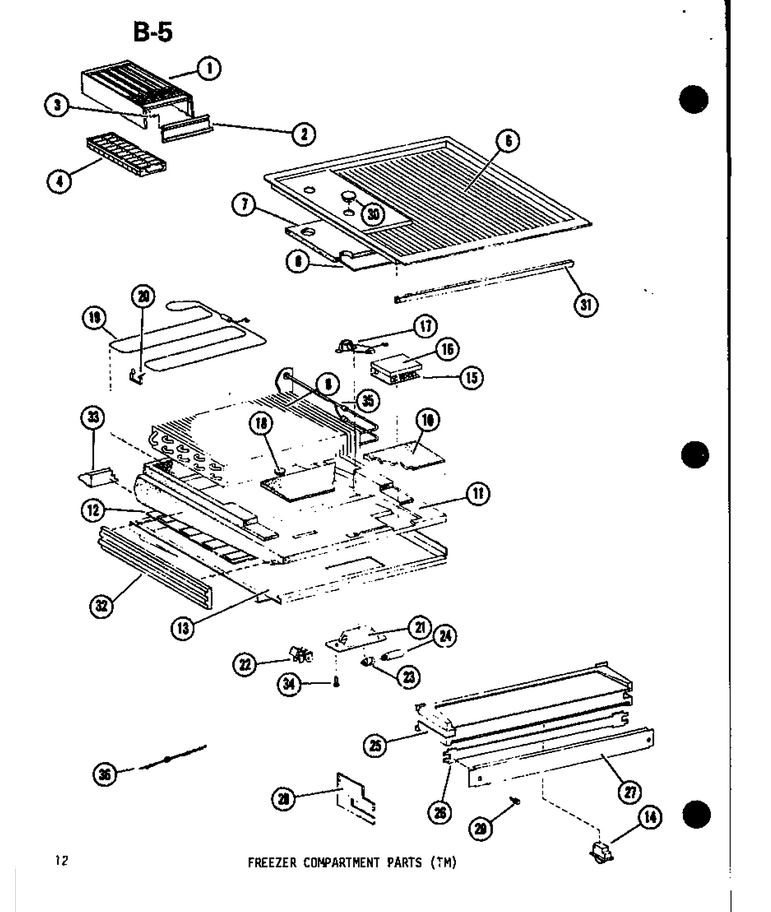

03 - Fz Compartment Parts (tm)

...
...
1
Net Tunnel, Ice Tray WPL-D7193001
...
2
Door, Tunnel WPL-C8706103
...
3
Hinge Pin WPL-A3214701
...
4
Tray WPL-WP841180A
...
6
Bottom Freezer WPL-D7255105
...
7
Insulation WPL-D7478101
...
8
Barrier Sheet WPL-A3126003
...
9
Evaporator WPL-D7316201
...
10
Insulation WPL-C8744801
...
11
Drain Block WPL-D7437601
...
12
Heater-Ref Top WPL-D7351201
...
13
Top-Ref WPL-D7257801
...
14
Switch WPL-W11384469
...
15
Term Bd Assy WPL-B8320001
...
16
Cover, Terminal Board WPL-B5762601
...
17
Thermostat WPL-C8731903
...
18
Drain Screen WPL-A3113702
...
19
Heater-Evap WPL-D7316501
...
20
Clip WPL-M0110301
...
21
Shield, Light WPL-R0176034
...
22
Clip, Ground WPL-B5733302
...
23
Socket-Light WPL-D7714407
...
24
Light Bulb WPL-8009
...
25
Breaker-Mullion WPL-D7275201
...
26
Center Heater Kit WPL-C8777701
...
27
Ctr Mullion-G WPL-C8807104
...
28
Gasket Lh Mullion K WPL-B5762801
...
29
Screw WPL-WP67006715
...
30
Plug WPL-A3069103
...
31
Gasket WPL-B5759602
...
32
Gasket K WPL-B5757801
...
33
Gasket, Sealing, Divider Block WPL-B5757701
...
34
Screw (3) WPL-67006425
...
35
Heat Ex WPL-D7319503
...
36
Wiring Harness WPL-C8859001

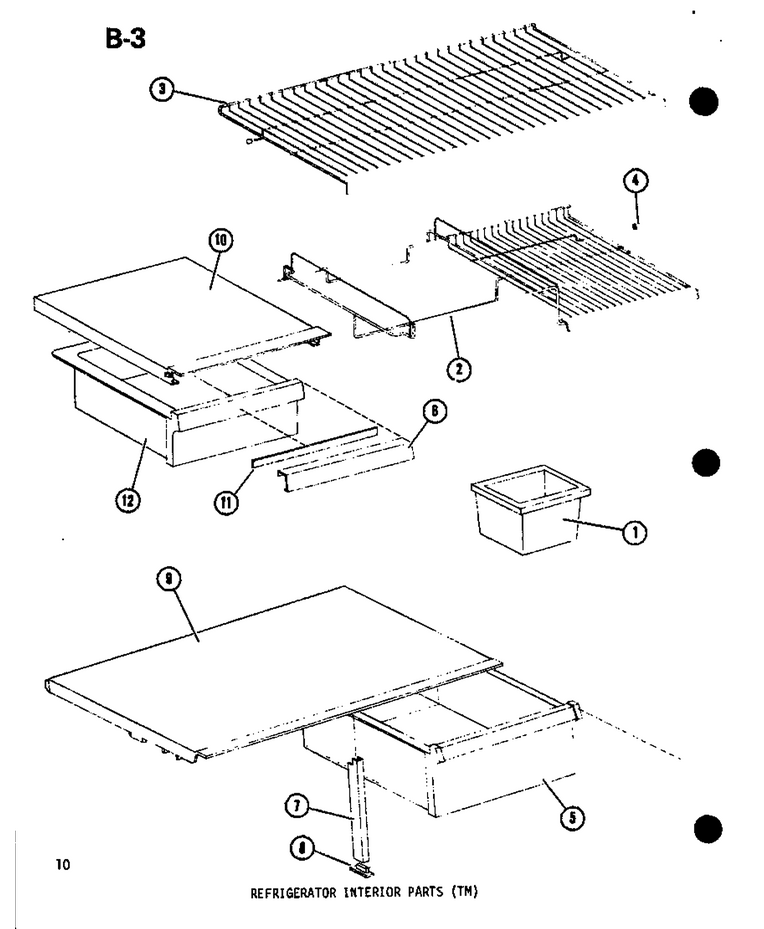

05 - Ref Interior Parts (tm)

...
...
1
Ice Container WPL-D7442301
...
2
Shelf-Stepped WPL-D7381403
...
3
Shelf-Glideout WPL-D7256609
...
4
Cap WPL-B5753501
...
5
Pan, Crisper WPL-D7425601
...
6
Trim-Cr Handle WPL-C8831706
...
7
Support WPL-B0571002
...
8
Support Post WPL-B5749401
...
9
Crisper Top WPL-D7261306
...
10
Top, Meat Keeper WPL-D7343604
...
11
Gasket (Per Foot) WPL-A3030313
...
12
Pan, Meat Keeper WPL-D7425301
