Amana TM-516F (BOM: P7565806W)

Model: TM-516F (BOM: P7565806W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

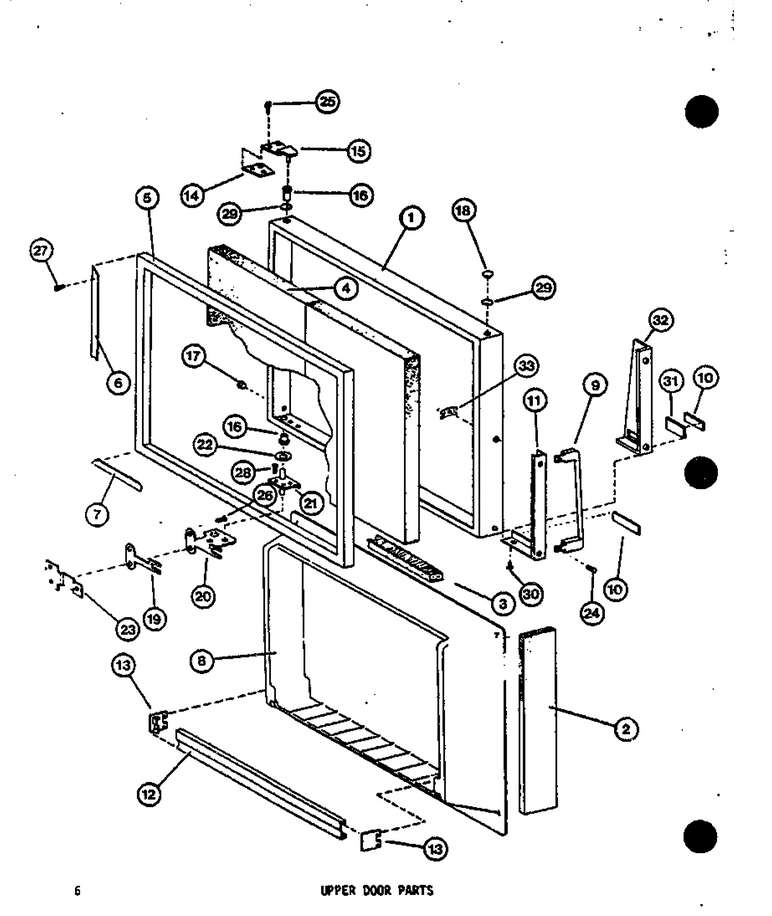

05 - Upper Door Parts

...
...
1
Door Fr A-Tm16e WPL-D7437513
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Foam Slab WPL-C8767002
...
5
Gasket WPL-D7431905
...
6
Retainer-Gasket WPL-D3928116
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263104
...
9
Handle WPL-D7254201
...
10
Nameplate WPL-C8836703
...
11
Pad Handle K WPL-D7257906
...
12
Retainer WPL-D7415714
...
13
Support WPL-C3680908
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Hinge, Top WPL-B5744302
...
16
Bushing WPL-C3652902
...
17
Plug WPL-M0310717
...
18
Plug WPL-M0310606
...
19
Shim K WPL-A3143503
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750901
...
22
Washer Hinge K WPL-B5779601
...
23
Kit- Tap P WPL-R0194684
...
24
Screw WPL-M0222317
...
25
Kit, Screw WPL-R9800670
...
26
Screw WPL-M0226831
...
27
Screw WPL-WP98165
...
28
Screw K WPL-M0205441
...
29
O Ring WPL-M0500902
...
30
Screw WPL-M0203458

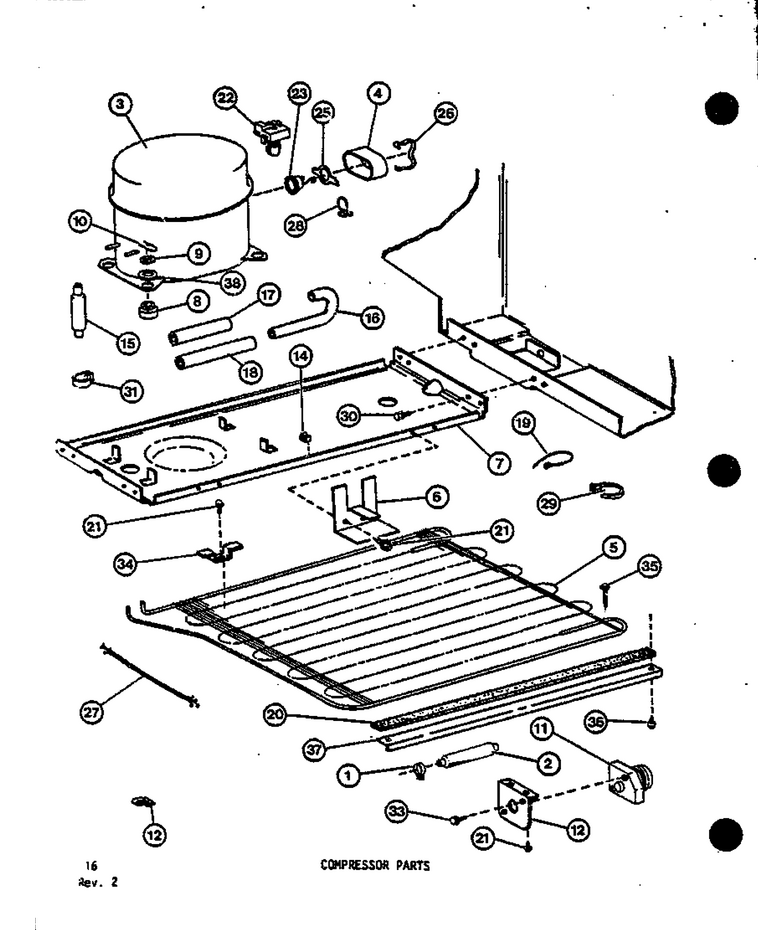

01 - Compressor Parts

...
...
1
Clamp-Drier WPL-M0104002
...
2
Drier WPL-WPB2150504
...
3
Compressor WPL-D7284203H
...
4
Cover K WPL-B0559501
...
5
Pre-Cooler WPL-D7455001
...
6
Bracket WPL-B5747002
...
7
Support WPL-D7262802
...
8
Grommet K WPL-A3026101
...
9
Washer, Nylon K WPL-M0590101
...
10
Clip K WPL-A3140801
...
11
Timer Defrost WPL-D7004108
...
12
Bracket-Timer WPL-C8821701
...
13
Clamp WPL-M0103901
...
14
Clip-Cable WPL-M0110505
...
15
Accumulator K WPL-B0488001
...
16
Tube K WPL-C8827201
...
17
Insul Tubing 1=12`` WPL-A0329806
...
18
Insulation Per Ft K WPL-A1004101
...
19
Tie-Wire WPL-WPW10339879
...
20
Felt Q WPL-A9008324
...
21
Screw WPL-WP90767
...
22
Relay WPL-C3584801
...
23
Overload WPL-B0589801
...
25
Spring K WPL-A3043601
...
26
Strap K WPL-A3041801
...
27
Wiring Harness WPL-B5730802
...
33
Screw,tc WPL-M0230017
...
37
Support WPL-D7308201

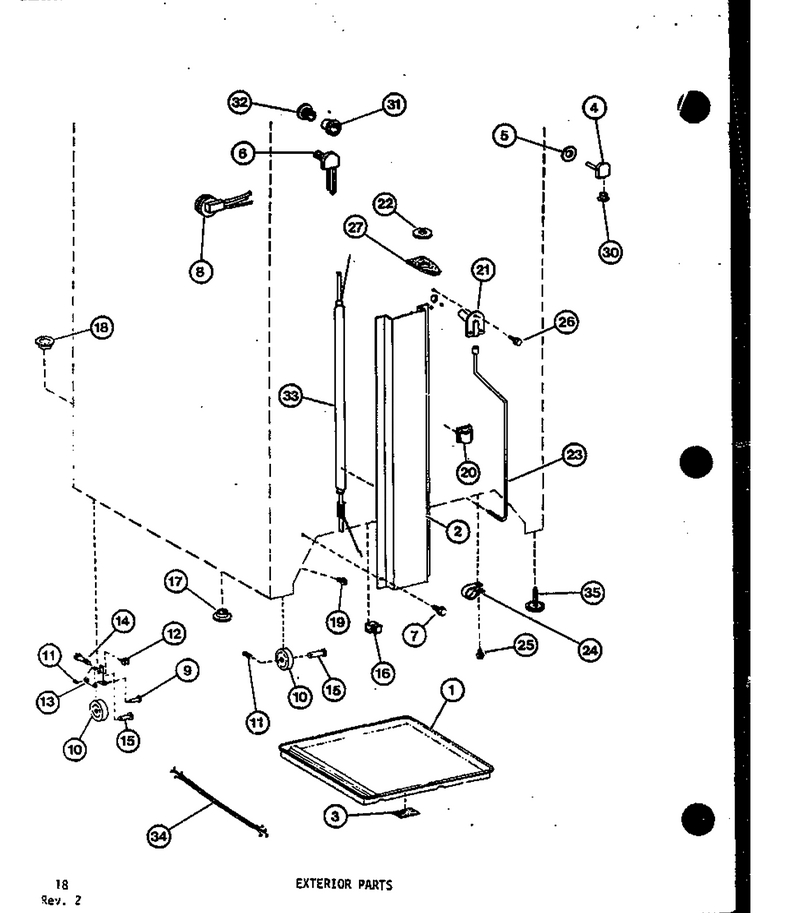

03 - Exterior Parts

...
...
1
Drain Pan WPL-D3920001
...
2
Cover, O.c. Back, White WPL-C8807001
...
3
Gasket WPL-A3030327
...
4
Fill Tube WPL-R0182123
...
5
Gasket WPL-A3278101
...
6
Wiring Harness WPL-D7274701
...
7
Screw WPL-WP489464
...
8
Wiring Harness WPL-C8744301
...
9
Pin K WPL-M1200202
...
10
Roller WPL-M0520102
...
11
Cotter Pin K WPL-M1200004
...
12
Nut, Speed WPL-M0286708
...
13
Assy, Roller Bracket WPL-12452602Q
...
14
Screw, Mach WPL-M0206313
...
15
Rivet WPL-M1205302
...
19
Screw WPL-WP489399
...
20
Clip WPL-WPM0104106
...
21
Elbow WPL-C3630902
...
22
Gasket WPL-A3132301
...
23
Drain Tube WPL-C8743602
...
24
Clamp, Tube WPL-M0102305
...
25
Screw WPL-M0210916
...
26
Screw WPL-W11233072
...
33
Heat Ex WPL-D7319504
...
34
Harness, M.c. WPL-D7567501
...
35
Glider Bolt WPL-M0266510

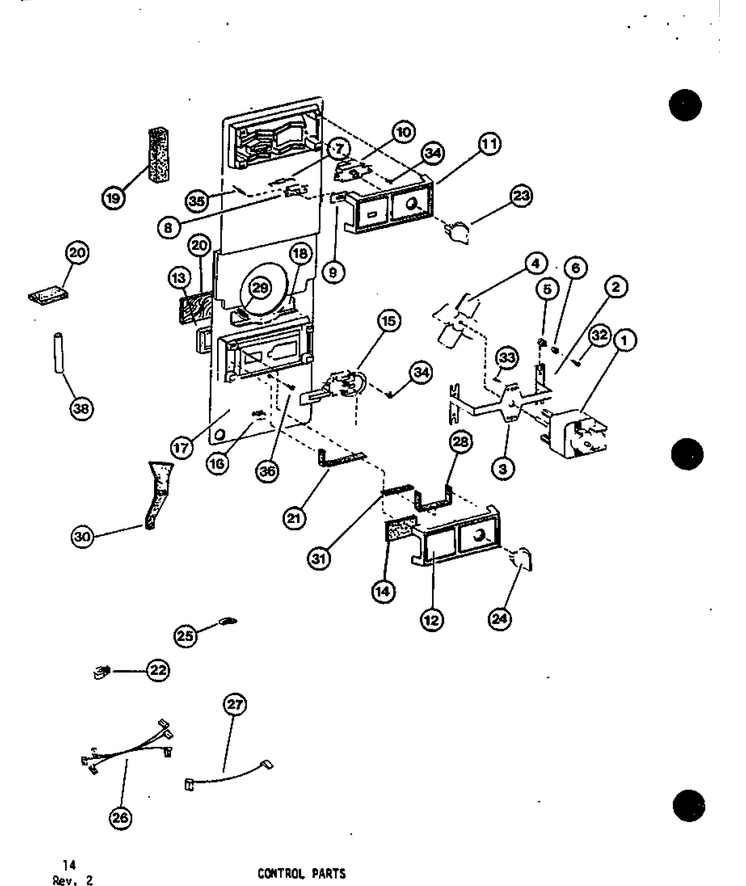

02 - Control Parts

...
...
1
Motor 50 Cy WPL-D7464902
...
2
Clip, Ground WPL-B5733302
...
3
Motor Mount WPL-C8722501
...
4
Fan Blade WPL-B5739301
...
5
Clip, Waterline WPL-12454802
...
6
Eyelet K WPL-A0381401
...
7
Diode WPL-M0305301
...
8
Switch WPL-M0341202
...
9
Plate-Switch Mtg WPL-A3259901
...
10
Control-Te WPL-WPB0592305
...
11
Air Deflector WPL-D7561401
...
12
Deflector WPL-D7273406
...
13
Gasket-Damper WPL-A3260901
...
14
Insulation WPL-B5756502
...
15
Control Damper WPL-C8761104
...
16
Clip WPL-M0117701
...
17
Cover Air Duct WPL-D7272208
...
18
Drain Trough WPL-D7292901
...
20
Insulation Ft. K WPL-B0523563
...
22
Clamp WPL-M0102303
...
23
Knob WPL-D7009801
...
24
Knob WPL-D7009802
...
25
Clip-Cable WPL-M0110505
...
26
Wire Harness WPL-C8760701
...
27
Wire-Jumper WPL-A3221101
...
29
Gasket WPL-A3189314
...
30
Gasket-Air Duct WPL-C8763602
...
32
Screw WPL-M0216539
...
33
Screw WPL-WP3400094
...
34
Screw WPL-WP489349
...
35
Rivet A WPL-M0010202
...
36
Screw-Sm WPL-M0238636
...
38
Tubing Plastic WPL-B5705314

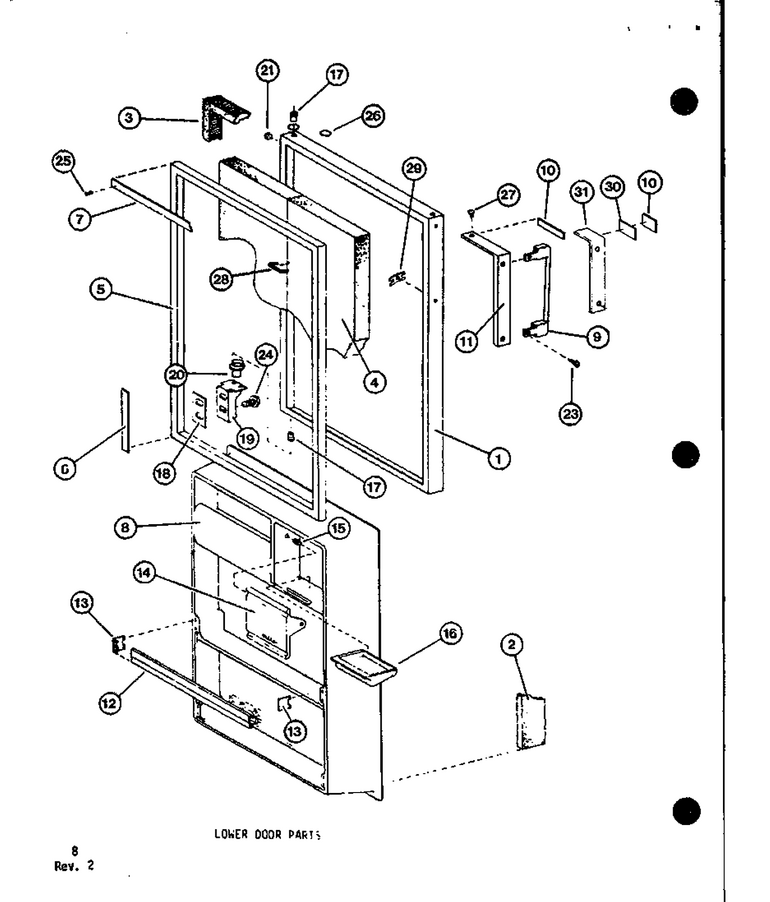

04 - Lower Door Parts

...
...
1
Door Ref A-T-Tm16d WPL-D7437518
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5629037
...
4
Insulation WPL-B5683506
...
5
Gasket WPL-D7431906Q
...
6
Retainer-Gasket WPL-D3928117
...
7
Retainer-Gasket WPL-D3928118
...
8
Inner Dr Panel WPL-D7263204
...
9
Handle WPL-D7254202
...
10
Name Plate Handle WPL-C8835801
...
11
Pad Handle K WPL-D7257905
...
12
Retainer WPL-D7415713
...
13
Support- -Cream Rh WPL-B5631706
...
14
Butter Door WPL-D7417702
...
15
Pivot WPL-A3084701
...
16
Buttertray WPL-67004412A
...
17
Bushing WPL-C3652902
...
18
Shim WPL-B5744802
...
19
Bracket Lower Hinge WPL-10163605
...
20
Pin, Hinge K WPL-C8814901
...
21
Plug WPL-M0310725
...
23
Screw WPL-M0222317
...
24
Screw WPL-WP67006715
...
25
Screw WPL-WP98165
...
26
O Ring WPL-M0500902
...
27
Screw WPL-M0203458
