Amana TLC16VW (BOM: P1311801W W)

Model: TLC16VW (BOM: P1311801W W)

Save Part Not Listed?
product name

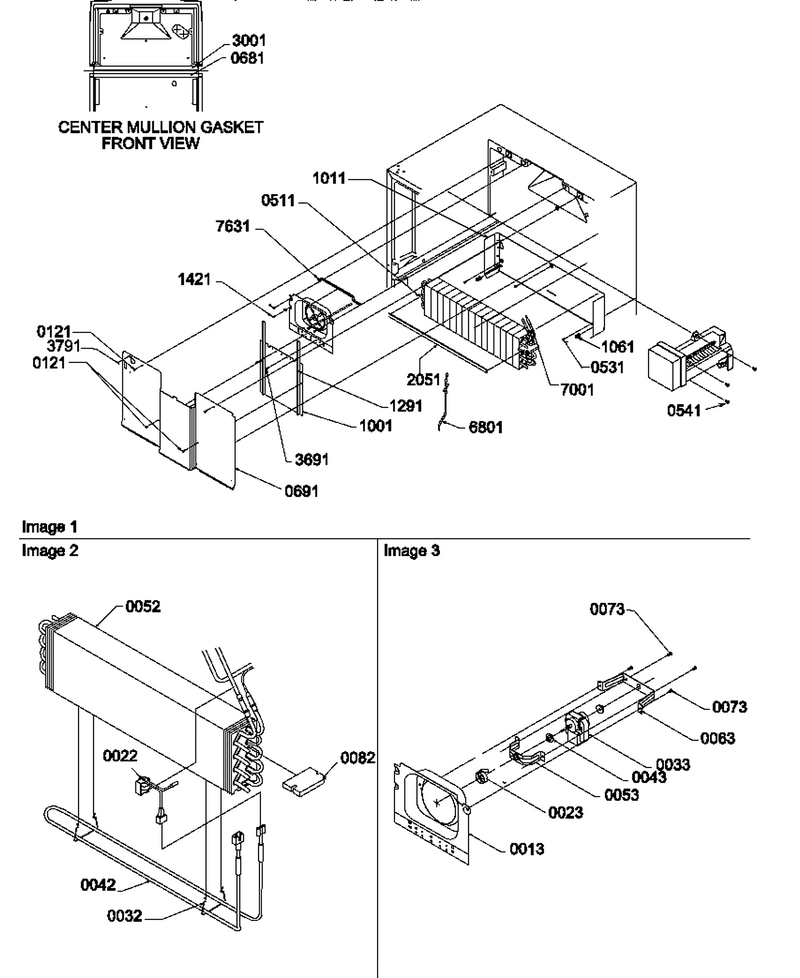

05 - Evap And Fan Motor Assemblies

...
...
13
Shroud, Evap. Fan WPL-10422304
...
22
Thermostat WPL-WP10442410
...
23
Blade-Fan WPL-W10116797
...
32
Clip WPL-W11673433
...
33
Motor-Evap WPL-WP10449501
...
42
Heater, Evaporator WPL-10991105
...
43
Grommet WPL-WP2264462
...
52
Assy,low Side(Tsi18a3) WPL-R0170058
...
53
Brkt, Up Evap. Fan WPL-10492801
...
63
Brakt-Mtr WPL-WP10492701
...
73
Screw WPL-WP90767
...
82
Block, R Evap. WPL-10991002
...
121
Screw (3) WPL-67006425
...
511
Block, Evap. L. WPL-10428301
...
531
Screw (3) WPL-67006425
...
541
Screw WPL-WP98165
...
681
Gasket, Sealing WPL-10685507
...
691
Evap Cover-Pnt WPL-10432416
...
1001
Cover, Evaporator WPL-10440713
...
1011
Shield, Evap. WPL-10427710
...
1061
Clip, Evaporator WPL-10442301
...
1291
Gasket WPL-A3030356
...
1421
Screw WPL-WP489399
...
2051
Gasket, Foam WPL-A3189358
...
3001
Gasket, Sealing WPL-B5759626
...
3691
Screw WPL-WP489399
...
6801
Clip, Ht Transfer WPL-10586601
...
7001
Tie-Wire WPL-WPW10339879
...
7631
Gasket WPL-A3030354

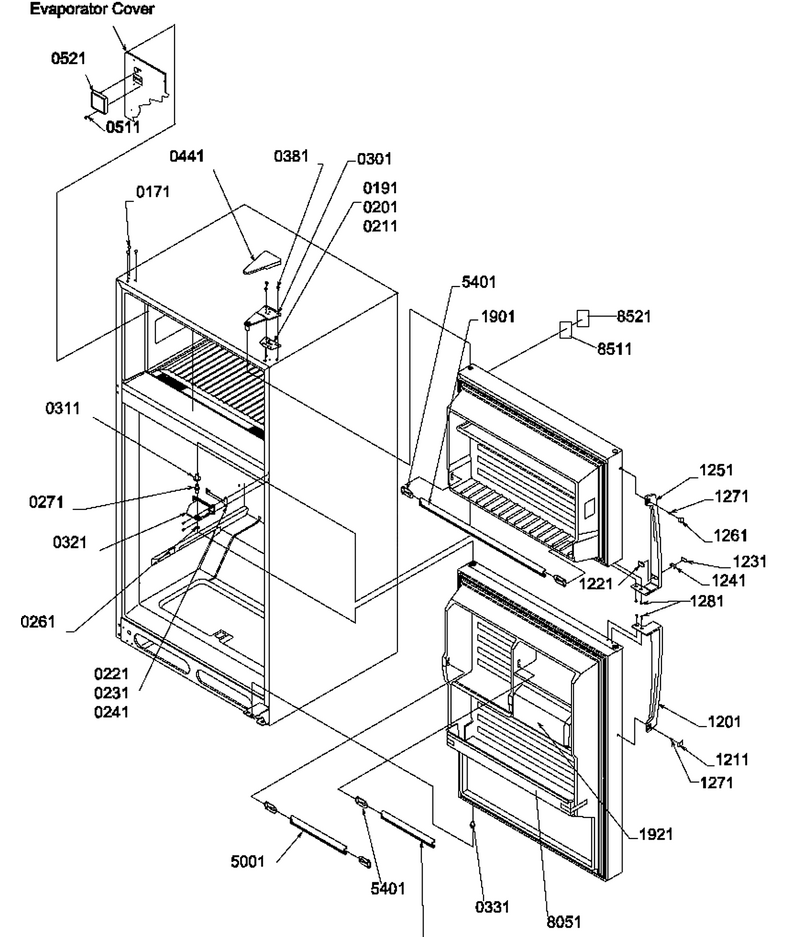

04 - Door, Hinges And Accessories

...
...
171
Button- Pl WPL-WP67001130
...
191
Shim, Top Hinge WPL-10448501
...
201
Shim, Top Hinge WPL-10448502
...
211
Shim, Top Hinge WPL-10448503
...
221
Shim, Center Hinge WPL-10562201
...
231
Shim, Center Hinge WPL-10562202
...
241
Shim, Center Hinge WPL-10562203
...
261
Shim- Non WPL-WPM0274057
...
271
Pin, Hinge (Ctr) WPL-10351002
...
301
Assy- Top WPL-R0000231
...
311
Closure, Door (Wht) WPL-12028501
...
321
Hinge-Ctr Chrome WPL-10433412
...
331
Pin Hinge Bottom WPL-67007018
...
381
Screw WPL-WP489349
...
441
Kit Hinge Cover (White) WPL-R0000228
...
511
Screw (3) WPL-67006425
...
1201
Kit- Tlc16 WPL-R9800024
...
1251
Kit- Tlc16 WPL-R9800024
...
1271
Screw WPL-WPW10348409
...
1901
Retainer, Pkg WPL-10423912
...
1911
Retainer-Package WPL-10423917
...
5001
Retainer, Pkg WPL-10423911
...
5401
Clip, Retaining WPL-10926101
...
8051
Retainer, Ref Door WPL-10419104

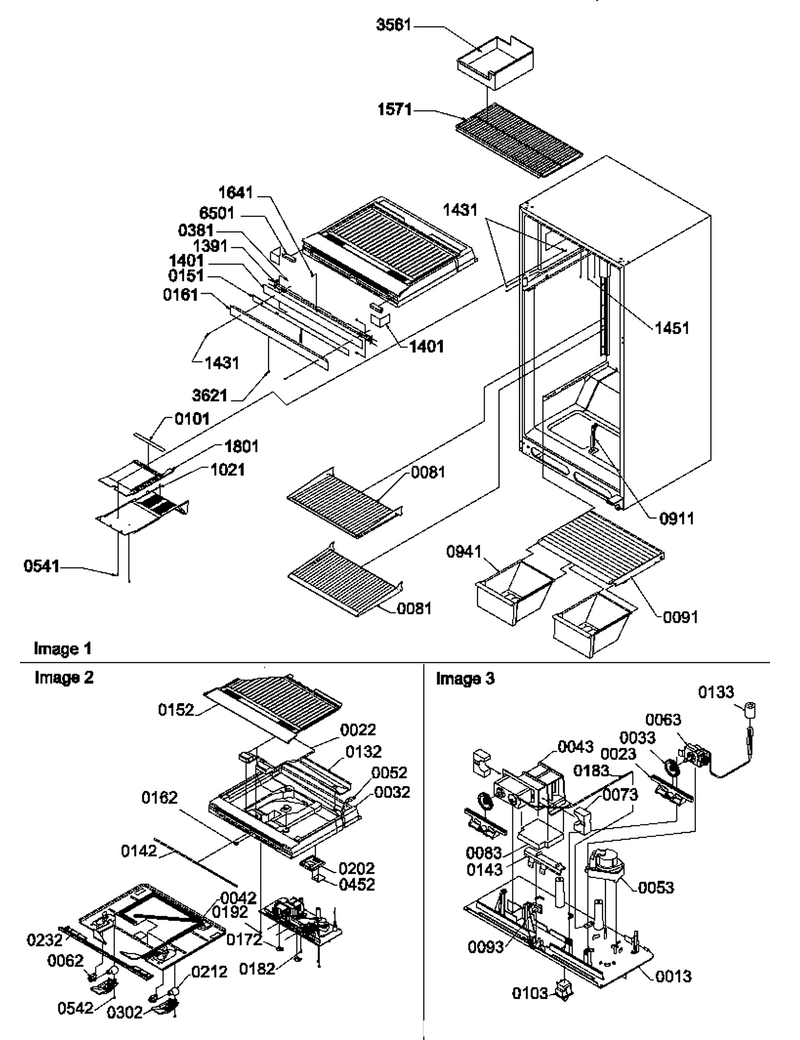

06 - Interior Cabinet And Drain Block Assy

...
...
NI
Harness, Control WPL-10573401
...
13
Housing, Control WPL-12035107
...
22
Insert, Drain Block WPL-10476402
...
23
Rack, Control WPL-10439601
...
32
Assy Drain Block WPL-R0156897
...
33
Pinion, Control WPL-10442601
...
42
Ref Top-E Ct WPL-12035214
...
43
Assy, Damper Control WPL-R0161074
...
52
Harness, Mullion WPL-10573505
...
53
Timer-Def WPL-R0168027
...
62
Socket, Light WPL-D7714408
...
63
Assy, Frz Control WPL-R9700006
...
73
Insert,damper WPL-10442801
...
81
Shelf, Wire Ref WPL-10897601
...
83
Insulation, Damper WPL-10442901
...
91
Crisper Frame Assy WPL-10698540Q
...
93
Switch, St WPL-M0350201
...
101
Gasket WPL-B8386613
...
103
Switch WPL-W11384469
...
132
Tray, Drip WPL-10435911
...
133
Insulation, Cap WPL-10673603
...
142
Membrane-Breaker WPL-10450836
...
143
Shield, Wire WPL-10565101
...
151
Heater Mull. WPL-10543601
...
152
Bottom, Frz WPL-10995003
...
161
Mullion, Center (White) WPL-10433346
...
162
Cap, Switch WPL-10453001
...
172
Knob, Control WPL-10565401
...
182
Screw (3) WPL-67006425
...
183
Tube-Plastic WPL-A3012543
...
192
Screw WPL-W10856125
...
202
Insert-Mk Air Sply WPL-10995201
...
212
Light Bulb WPL-8009
...
232
Frame, Ref Top Brk WPL-10435513
...
302
Shield, Refrig. Light WPL-10508701
...
381
Screw WPL-WP489349
...
452
Gasket, Mk Air Supply WPL-10594901
...
541
Screw WPL-WP98165
...
542
Screw WPL-WP90767
...
911
Post, Crisper Support WPL-10461901
...
941
Pan, Crisper (V) WPL-10430215
...
1021
Duct, Frz Air WPL-10440404
...
1391
Plate, Center Top WPL-10433610
...
1401
Insulation Per Ft. WPL-B0523584
...
1431
Button- Pl WPL-WP67001130
...
1451
Plug, Button (Wht) WPL-M0311605
...
1641
Screw WPL-M0253916
...
1801
Insul. Air Duct WPL-10779602
...
3621
Screw - Sm WPL-M0211520
...
6501
Insulation WPL-10772301

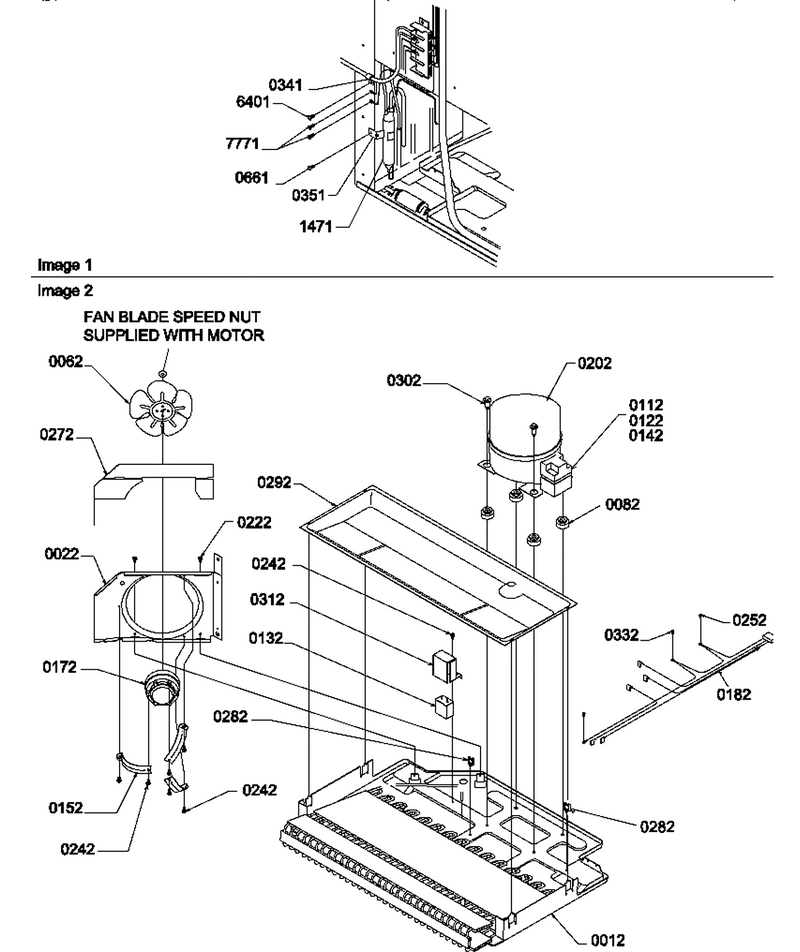

08 - Machine Compartment

...
...
12
Condenser & Pan Assembly WPL-8170515
...
22
Cond Fan Shrd-E Ct WPL-10426911
...
62
Blade, Fan WPL-B5742604
...
82
Grommet, Compressor WPL-67003493
...
112
Overload WPL-10377015
...
122
Start-Dev WPL-WP10097202
...
142
Cover-Term WPL-4344043
...
152
Bracket, Cond. Motor WPL-10582501
...
172
Motor-Cond WPL-833697
...
182
Harness, Mach Comp WPL-12346502
...
202
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
222
Screw WPL-WP90767
...
242
Screw WPL-M0223803
...
252
Screw WPL-12992301
...
272
Gasket, Cond. Fan WPL-10442702
...
282
Wire Clip WPL-B5667304
...
292
Pan, Drain WPL-10427404
...
302
Screw, Shldr WPL-M0221523
...
332
Screw WPL-WP489399
...
341
Clamp, Speed WPL-M0103904
...
351
Clip, Drier WPL-10547001
...
661
Screw, Sm WPL-M0227217
...
6401
Screw WPL-WP489069
...
7771
Screw WPL-WP489399

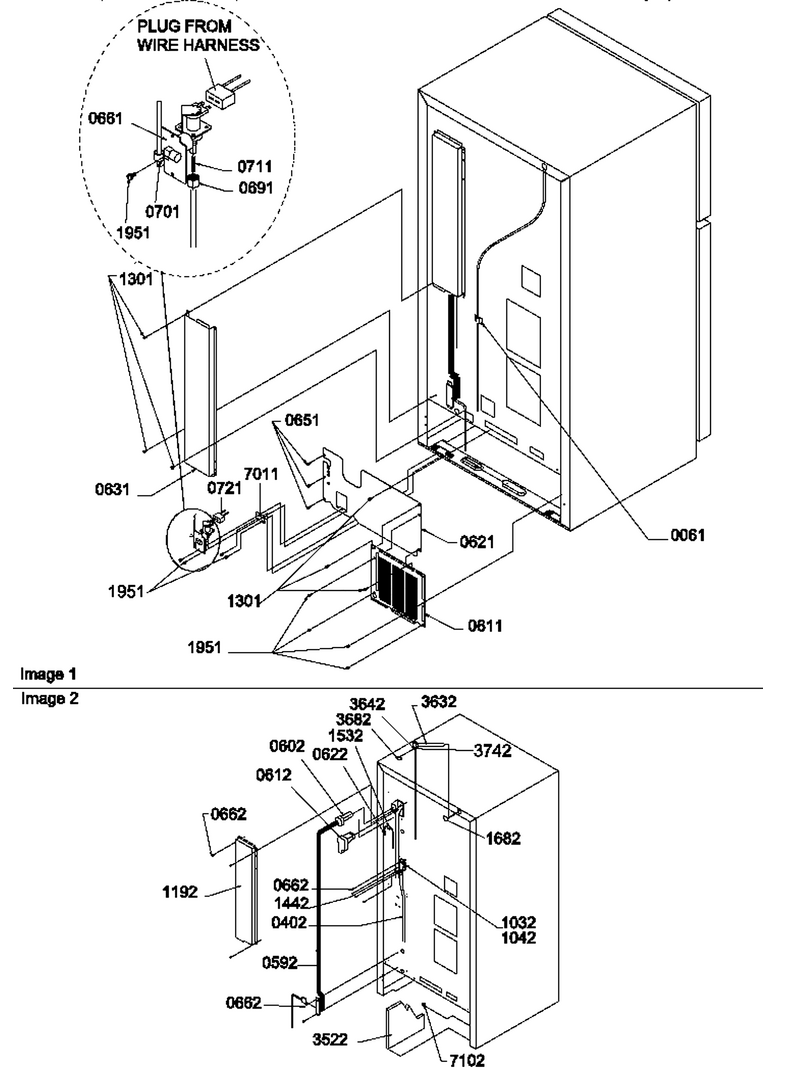

01 - Cabinet Back

...
...
61
Clip WPL-WPM0104106
...
402
Tube, Drain WPL-10908101
...
592
Harness-Cabinet WPL-12342201
...
602
Grommet WPL-10699301
...
611
Back, Mach Comp WPL-12039807
...
612
Plug, Ht Exch V WPL-10428001
...
621
Assy, M.c. Back WPL-12041819
...
622
Cord, Power WPL-10916501
...
631
Cover, Ht Exch WPL-10442205
...
651
Screw WPL-WP489464
...
662
Screw, Sm WPL-M0227217
...
1032
Elbow Drain Tube WPL-10163201
...
1042
Gasket WPL-A3132301
...
1192
Cover, Ht Exch WPL-10442205
...
1301
Screw, Sm WPL-M0227217
...
1442
Clamp WPL-B8372901
...
1532
Clip WPL-WPM0104106
...
1682
Plug, Im Tunnel WPL-10544301
...
1951
Screw WPL-WP90767
...
3522
Insul., L. Foot WPL-10663002
...
7102
Clip WPL-B5720303

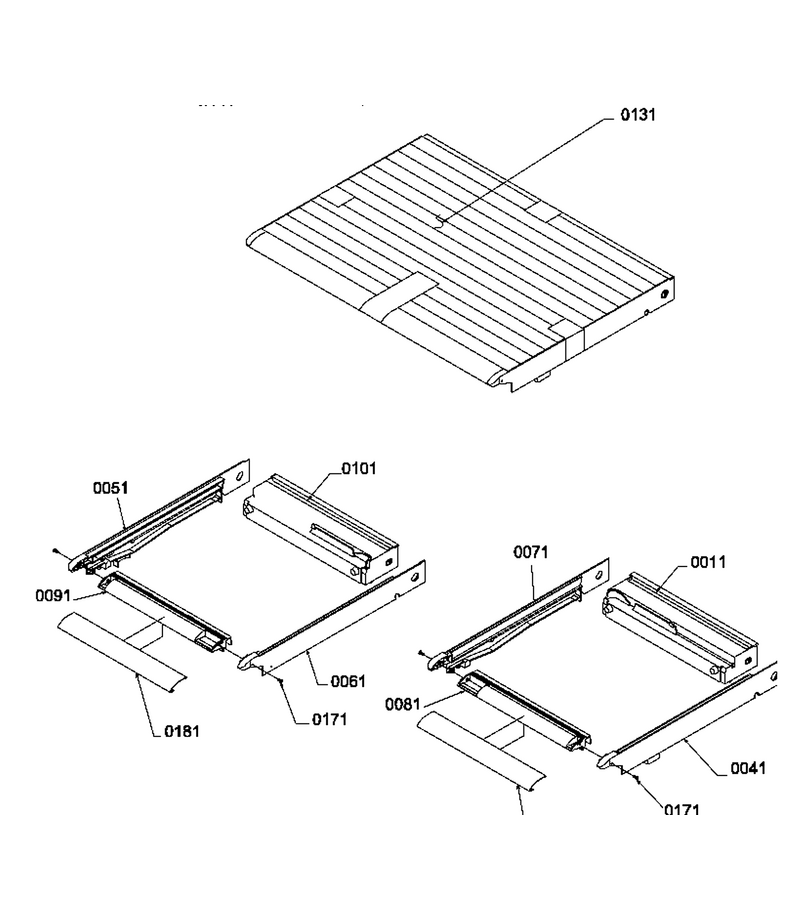

02 - Crisper Assy

...
...
11
Rail, Crisper Back WPL-10433805
...
41
Rail, Side Crisper WPL-10432701
...
51
Rail, Side Crisper WPL-10432704
...
61
Rail, Ctr. Crisper WPL-10432803
...
71
Rail, Ctr. Crisper WPL-10432804
...
81
Rail, Crisper Fr0nt(R) WPL-10687701
...
91
Rail, Crisper Front(L) WPL-10687702
...
101
Rail, Crisper Back WPL-10435605
...
131
Glass, Shelf (18) WPL-10370016
...
171
Screw WPL-67006692
...
181
Extr-L Crisp Front WPL-10688053

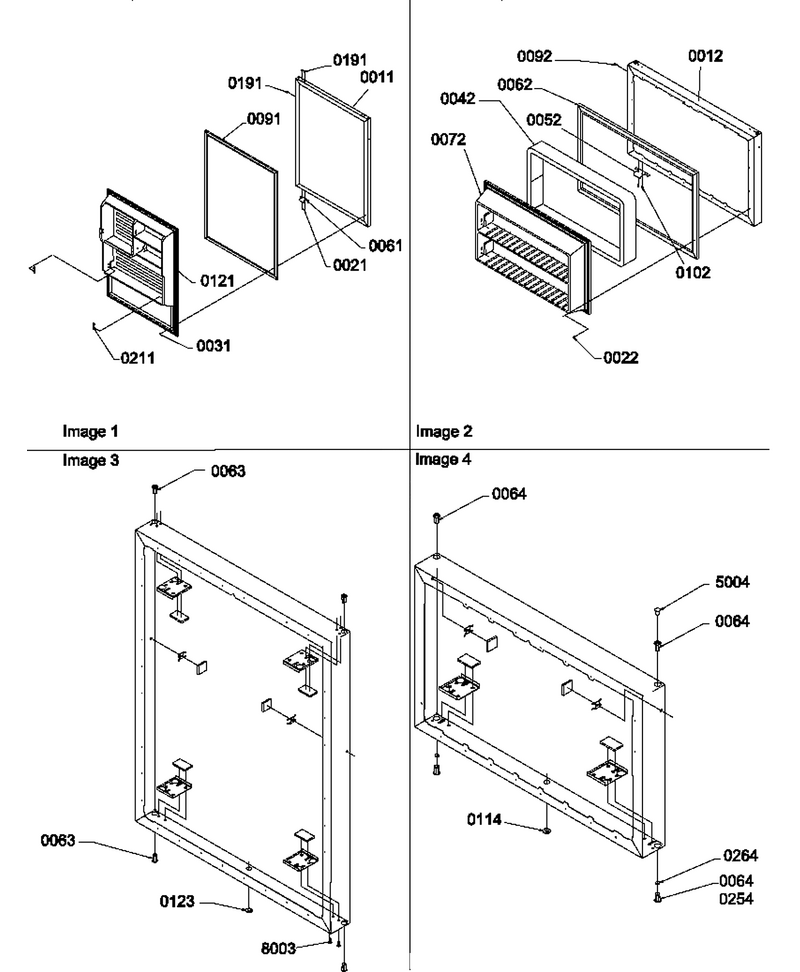

03 - Door Assemblies

...
...
11
Assy, Ref Dr Fm (White) WPL-10925412W
...
12
Assy, Fz Dr Fm (White) WPL-10925619W
...
21
Screw WPL-WPW10348409
...
22
Screw WPL-WPM0219730
...
31
Screw WPL-WPM0219730
...
42
Insulation, Batt Frz. Dr. WPL-B0523593
...
52
Stop, Door (White) WPL-12968202W
...
61
Stop, Door (White) WPL-12968202W
...
62
Gasket- Fr WPL-WP12550110Q
...
63
Bushing, Door (Wht) WPL-10961001
...
64
Bushing, Door (Wht) WPL-10961001
...
72
Liner, Frz Door WPL-10460902
...
91
Gasket- Re WPL-WP12550109Q
...
92
Plug, Button (Wht) WPL-M0311605
...
102
Screw WPL-WPW10348409
...
114
Plug, Button (Wht) WPL-M0310308
...
121
Liner, Ref Door WPL-10903901
...
123
Plug, Button (Wht) WPL-M0310308
...
191
Plug, Button (Wht) WPL-M0311605
...
211
Clip, Retainer WPL-10202001
...
254
Bushing, Door (Wht) WPL-12028601
...
264
Filter, Bushing WPL-10252903
...
5004
Plug Button WPL-10686401
...
8003
Screw WPL-WPW10348409

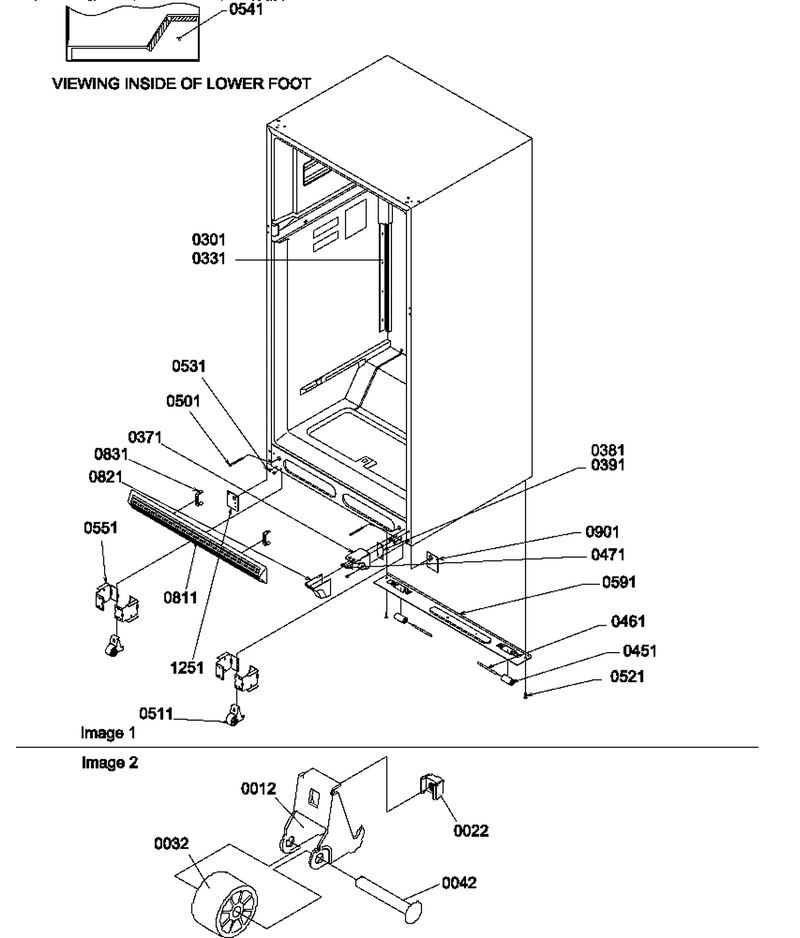

07 - Ladders, Lower Cabinet And Rollers

...
...
12
Assy, Roller Brkt WPL-10476101Q
...
22
Nut, Speed WPL-M0286708
...
32
Roller WPL-WP10450603
...
42
Rivet WPL-M1205302
...
301
Screw (3) WPL-67006425
...
331
Ladder, Side WPL-D7599105
...
371
Hinge, Bottom White WPL-10433208
...
381
Shim Hinge WPL-10447904
...
391
Shim, Btm Hinge WPL-10447903
...
451
Roller, Rear WPL-10450701
...
461
Axle, Roller WPL-10450901
...
471
Screw WPL-WP67006715
...
501
Screw, Mach WPL-M0204338
...
511
Assy, Roller Brkt WPL-10476101Q
...
521
Screw, Tf WPL-M0260242
...
531
Screw WPL-W11573574
...
541
Insul., R. Foot WPL-10663001
...
551
Housing-Roller WPL-10427204
...
591
Cabinet Brace-Pnt WPL-10427110
...
811
Grille, Toe (White) (19) WPL-10474902
...
821
Cover, Hinge Lower (White) WPL-10462802
...
831
Clip- Toe WPL-WP10551502
...
901
Plate-Lw Hng Tap WPL-10567205
...
1251
Plate-Lw Hng Tap WPL-10567206
