Amana TL20F (BOM: P7616402W)

Model: TL20F (BOM: P7616402W)

Save Part Not Listed?
product name

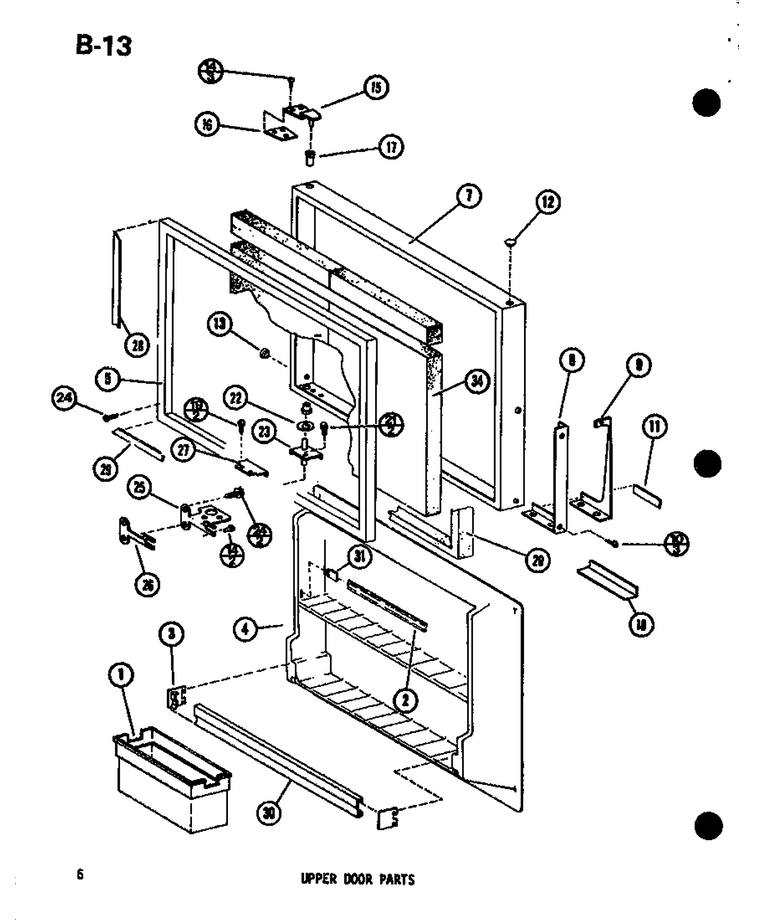

06 - Upper Door Parts

...
...
1
Ice Container WPL-D7442301
...
2
Retainer WPL-B8302613
...
3
Support K WPL-C3680904
...
4
Inner Door Panel K WPL-D7165002
...
5
Gasket WPL-D7431907Q
...
7
Door Fr-C-T-Tc20f WPL-D7626109
...
8
Handle Pad Kit WPL-R0157482
...
9
Handle K WPL-D7570201
...
10
Screw WPL-M0203458
...
11
Nameplate WPL-C8894204
...
12
Plug WPL-M0310609
...
13
Plug Button (Almond) WPL-M0310730
...
14
Kit, Screw WPL-R9800670
...
15
Hinge WPL-B5744301
...
16
Shim Kit WPL-A3270303
...
17
Bushing, Hinge Pin WPL-C3652901
...
19
Machine Screw WPL-M0205631
...
20
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
21
Screw K WPL-M0205441
...
22
Washer Hinge K WPL-B5779601
...
23
Center Hinge Assy WPL-B5750901
...
24
Screw Phillips WPL-M0205731
...
25
Center Hinge Assy WPL-C8800201
...
26
Shim K WPL-A3143501
...
27
Door Stop WPL-C8894801
...
28
Retainer Gasket WPL-D3928108
...
29
Retainer Gasket WPL-D3928102
...
30
Retainer WPL-D7415724
...
31
Support K WPL-B0530004
...
32
Screw WPL-WPM0219730
...
34
Foam Slab WPL-D7349401

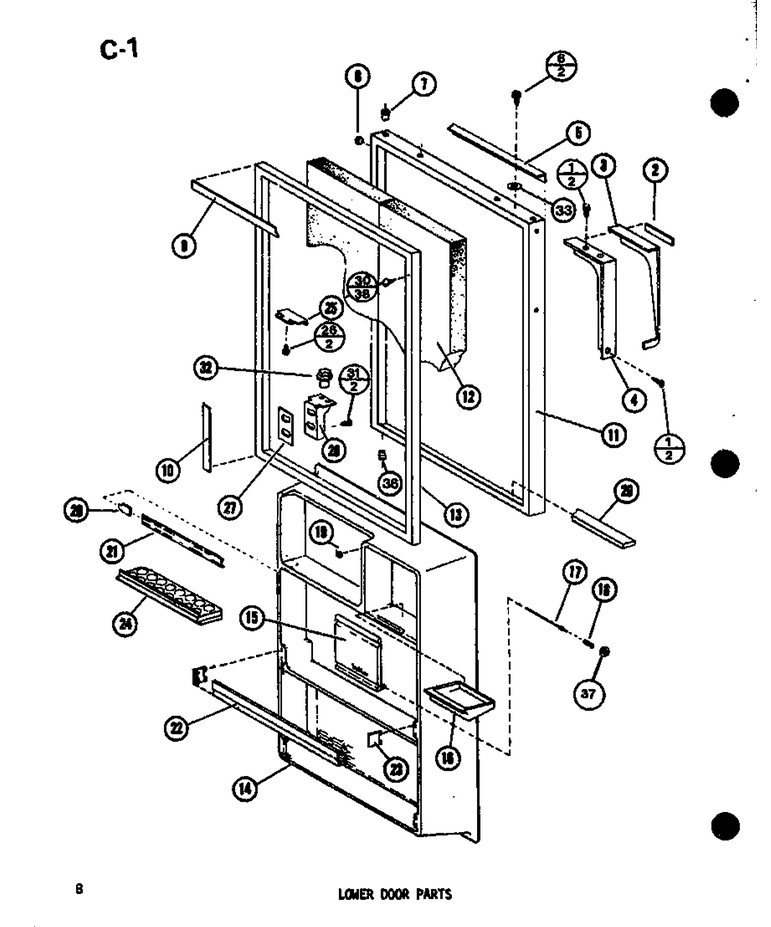

01 - Lower Door Parts

...
...
1
Screw WPL-M0203458
...
2
Nameplate WPL-C8894302
...
3
Handle K WPL-D7570202
...
4
Pad Handle WPL-D7422406
...
5
Door Cap WPL-D3958303
...
6
Screw WPL-M0203216
...
7
Bushing, Hinge Pin WPL-C3652901
...
8
Plug Button (Almond) WPL-M0310730
...
9
Retainer Gasket WPL-D3928102
...
10
Retainer Gasket WPL-D3928106
...
11
Door Ref-G-T-Tc20f WPL-D7626117
...
12
Insulation WPL-B5683503
...
13
Gasket WPL-D3928207
...
14
Panel, Inner Door WPL-D7165102
...
15
Butter Door WPL-C8832806
...
16
Buttertray WPL-67004412A
...
17
Hinge Rod K WPL-A3056207
...
18
Spring A/k WPL-A1044001
...
19
Rubber Bumper WPL-A3059002
...
20
Support K WPL-B0530004
...
21
Retainer WPL-B8302614
...
22
Retainer WPL-D7415725
...
23
Support- -Cream Rh WPL-B5631706
...
24
Egg Tray WPL-D7466605
...
25
Door Stop WPL-C8894801
...
26
Machine Screw WPL-M0205631
...
27
Shim WPL-A3143601
...
28
Bracket Hinge K WPL-C8814804
...
29
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
30
Screw WPL-WPM0219730
...
31
Screw WPL-WP67006715
...
32
Pin, Hinge K WPL-C8814901
...
33
Washer WPL-M0270501
...
36
Bearing, Hinge WPL-C8852202
...
37
Spacer K WPL-A3057004

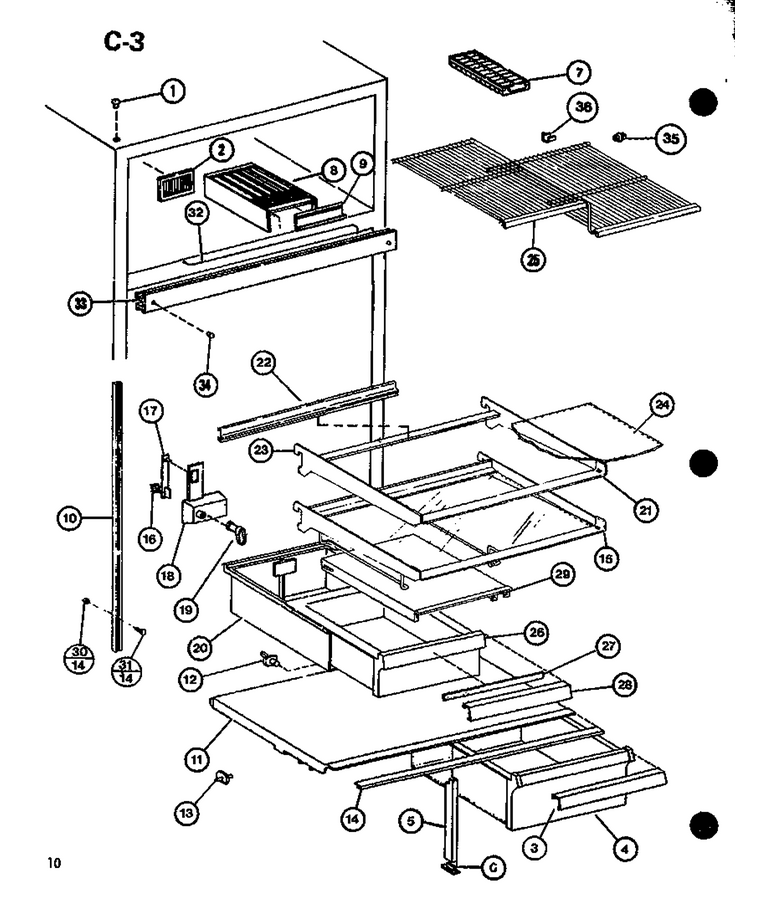

02 - Page 3

...
...
1
Plug Button (Almond) WPL-M0310730
...
2
Grille WPL-C3601801
...
3
Trim WPL-C8831712
...
4
Pan, Crisper WPL-D7425603
...
5
Support WPL-B0571002
...
6
Support WPL-B0571201
...
7
Tray WPL-WP841180A
...
8
Tunnel Ice Tray K WPL-D7552901
...
9
Door Ice Tunnel K WPL-C8847604
...
10
Ladder-Ctr WPL-C8852001
...
11
Top, Crisper WPL-D7497501
...
12
Support WPL-B5680001
...
13
Support WPL-B0597601
...
14
Trim A WPL-B0570904
...
15
Glass Shelf Assembly, Meat Kee WPL-D7421422
...
16
Gasket Slide K WPL-A3258401
...
17
Slide-Control WPL-B5622804
...
18
Meatkeeper Assy WPL-B5656708
...
19
Grommet WPL-C3614903
...
20
Sleeve M.k. WPL-D7001305
...
21
Trim A WPL-C8835402
...
22
Trim A WPL-D7567602
...
23
Frame A WPL-D7420704
...
24
Glass Shelf WPL-D7421214
...
25
Shelf WPL-D7387501
...
26
Pan, Meat Keeper WPL-D7425301
...
27
Gasket (Per Foot) WPL-A3030313
...
28
Trim Handle WPL-C8831711
...
29
Top-Meat Kpr WPL-D7343601
...
30
Nut WPL-WP486255
...
31
Stud WPL-M0258801
...
32
Drier, Mullion WPL-D7541701
...
33
Ctr Mullion-L WPL-C8807505
...
34
Plug WPL-M0310722
...
35
Shelf Support WPL-C3638101
...
36
Support, Shelf WPL-12258501

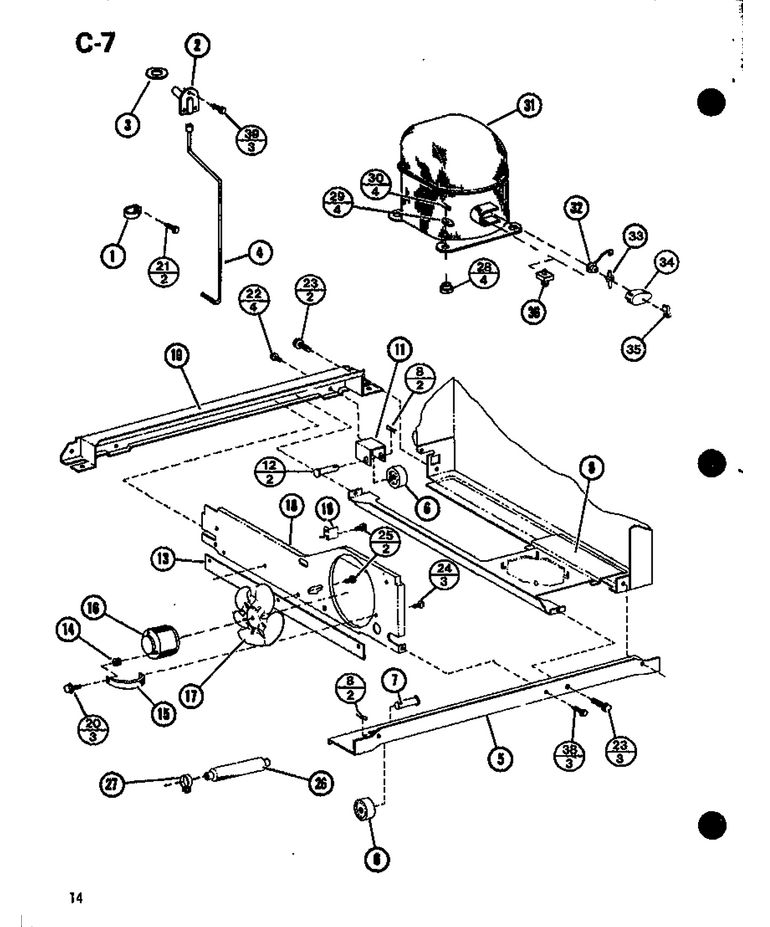

04 - Page 5

...
...
1
Clamp WPL-M0102303
...
2
Elbow,drain Tube WPL-C3630901
...
3
Gasket WPL-A3132301
...
4
Tube-Drain WPL-C8721203
...
5
Rail Rear WPL-C3611303
...
6
Roller WPL-M0520102
...
7
Pivot Pin K WPL-M1210001
...
8
Cotter Pin K WPL-M1200001
...
9
Weld Comp Supt Pnt WPL-C8820412
...
10
Rail, Front WPL-D7003305
...
11
Bracket, Roller WPL-C8836305
...
12
Rivet WPL-M1205302
...
13
Seal-Fan Shroud Q WPL-B8314102
...
14
Grommet K WPL-M0500107
...
15
Bracket, Cond Motor WPL-B0598701
...
16
Motor-Cond WPL-833697
...
17
Blade, Fan WPL-B5742603
...
18
Shroud, Fan WPL-D7446704
...
19
Stop,drain Pan WPL-A3125701
...
20
Screw WPL-WPM0223816
...
21
Screw WPL-M0210916
...
22
Screw K WPL-M0236230
...
23
Screw WPL-M0294459
...
24
Screw Shoulder WPL-M0238833
...
25
Screw WPL-WP90767
...
26
Drier WPL-WPB2150504
...
27
Clamp-Drier WPL-M0104002
...
28
Grommet K WPL-A3026101
...
29
Washer, Nylon K WPL-M0590101
...
30
Clip K WPL-A3140801
...
31
Compressor WPL-C3667102H
...
32
Overload WPL-C3689105
...
33
Spring K WPL-C8916701
...
34
Terminal Cover WPL-B0551801
...
35
Strap K WPL-A3041801
...
36
Relay K WPL-C3689202
...
38
Screw WPL-WP489464
...
39
Screw WPL-W11233072

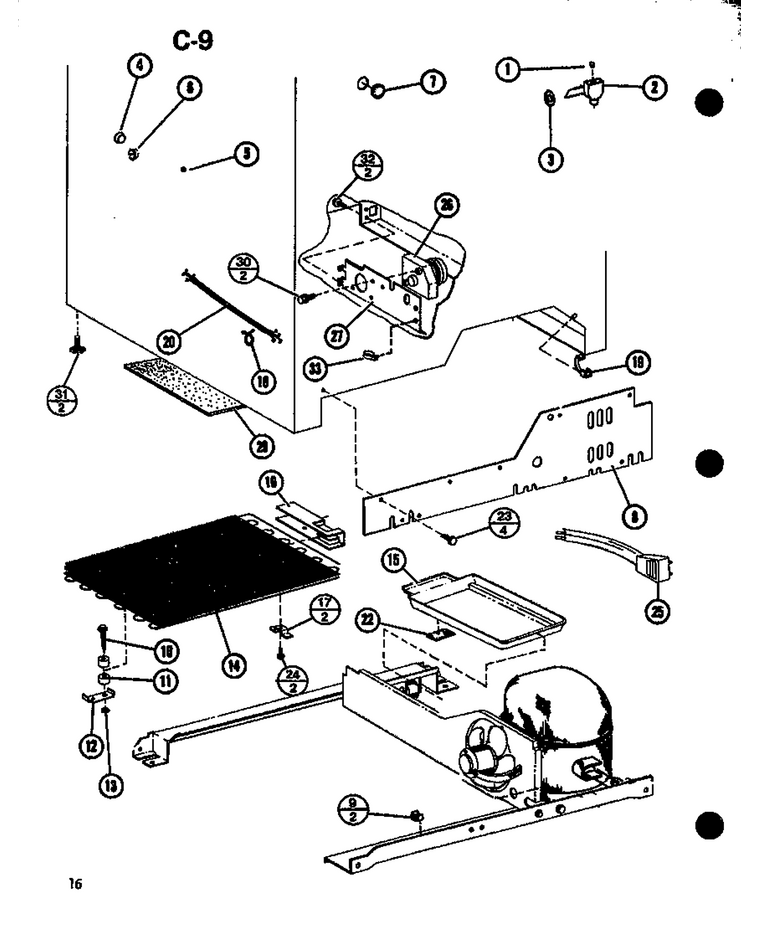

05 - Page 6

...
...
NI
Wiring Harness WPL-D7578501
...
1
Plub Button WPL-M0310315
...
2
Fill Tube WPL-R0182123
...
3
Grommet WPL-A3138301
...
4
Cap Fill Tube WPL-B5631801
...
5
Button- Pl WPL-WP67001130
...
6
Cap WPL-B5636301
...
7
Plug Button WPL-M0310317
...
8
Back, Mach Compt K WPL-C3655001
...
9
Clip-Cable WPL-M0110505
...
10
Sems Fastner WPL-M0257037
...
11
Spacer Cond. WPL-B8346301
...
12
Bracket, Support WPL-A3085401
...
13
Nut A WPL-M0286003
...
14
Condenser Assy Pnt WPL-D7455201
...
15
Pan, Drain WPL-D7001001
...
16
Spacer WPL-B0544101
...
17
Clip-Cond WPL-A3054502
...
18
Lock, Purse WPL-74007369
...
19
Grommet, Cord WPL-211881
...
20
Wiring Harness, Machine Compar WPL-D7608701
...
22
Pad A WPL-B5691701
...
23
Screw-Sm WPL-M0241118
...
24
Kit, Screw WPL-R9800670
...
25
Power Cord WPL-R0157154
...
26
Timer-Def WPL-R0131577
...
27
Timer Bracket WPL-C3647902
...
29
Insulation M.c. A-K WPL-D7525101
...
30
Screw,tc WPL-M0230017
...
31
Glider Bolt WPL-M0266510
...
32
Screw WPL-WP489464
...
33
Tie WPL-M0321401

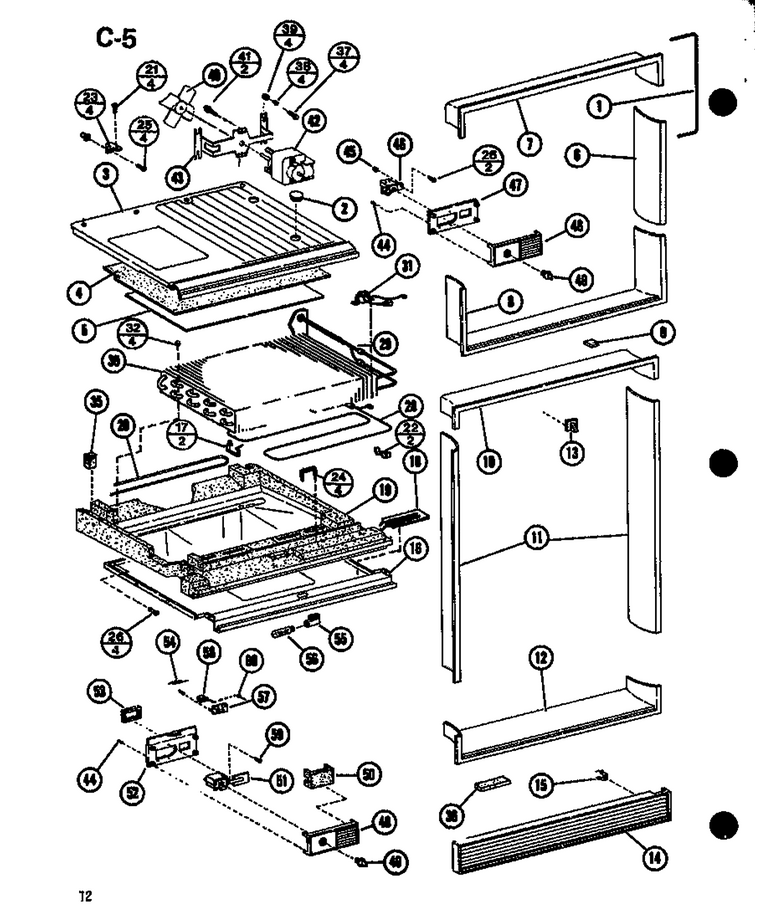

03 - Page 4

...
...
1
Heater-Fr Flange WPL-D7350401
...
2
Plug WPL-A3069103
...
3
Bottom-Fr WPL-D7143601
...
4
Insulation WPL-B5682901
...
5
Barrier WPL-A3126001
...
6
Breaker Frame WPL-D7424103
...
7
Frame-Breaker WPL-D7462902
...
8
Frame-Breaker-Rb WPL-D7463003
...
9
Clip WPL-M0113401
...
10
Frame-Breaker-Frt WPL-D7462901
...
11
Breaker Frame WPL-D7424102
...
12
Br Frame WPL-D7463101
...
13
Switch WPL-W11384469
...
14
Grille-Toe-B K WPL-D7520510
...
15
Clip WPL-WPM0117303
...
16
Ref Top WPL-D7244301
...
17
Clip WPL-M0110301
...
18
Heater Ref. Top WPL-D7347904
...
19
Drain Block Evaporator WPL-D7437701
...
20
Heater-Drip Tray WPL-C8708201
...
21
Screw (3) WPL-67006425
...
22
Clamp, Tube WPL-A3253801
...
23
Clip WPL-M0116901
...
24
Clamp-Wiring WPL-A3195601
...
25
Screw WPL-WP489464
...
26
Screw WPL-WP90767
...
28
Heater Def K WPL-C3660003
...
29
Heat Exchanger WPL-D7582201
...
30
Evaporator WPL-D7143121
...
31
Thermostat-Defrost WPL-C8731901
...
32
Screw WPL-W11233072
...
35
Gasket-Cavity Top WPL-10839709
...
36
Gasket WPL-B5757704
...
37
Screw WPL-WP98165
...
38
Eyelet K WPL-A0381401
...
39
Clip, Waterline WPL-12454802
...
40
Fan Blade WPL-B5622101
...
41
Screw WPL-WP3400094
...
42
Motor WPL-D7256203
...
43
Bracket WPL-C3536203
...
44
Clip WPL-M0113004
...
45
Grommet A WPL-M0580002
...
46
Control-Temp WPL-B0592304
...
47
Back Plate Defect WPL-D7160903
...
48
Air Deflector, Fz And Ref WPL-D7557302
...
49
Knob WPL-D7009801
...
50
Cap K WPL-C3617201
...
51
Control, Damper WPL-C8876602
...
52
Back Plate Defect WPL-D7058203
...
53
Gasket WPL-A3104502
...
54
Diode WPL-M0305301
...
55
Socket WPL-B5637601
...
56
Bulb-Light WPL-WPA3073101
...
57
Escutcheon WPL-D7350802
...
58
Switch WPL-M0341801
...
59
Screw WPL-WP489349
...
60
Pop Rivet WPL-A4539616
