Amana TL18G (BOM: P7651206W)

Model: TL18G (BOM: P7651206W)

Save Part Not Listed?
product name

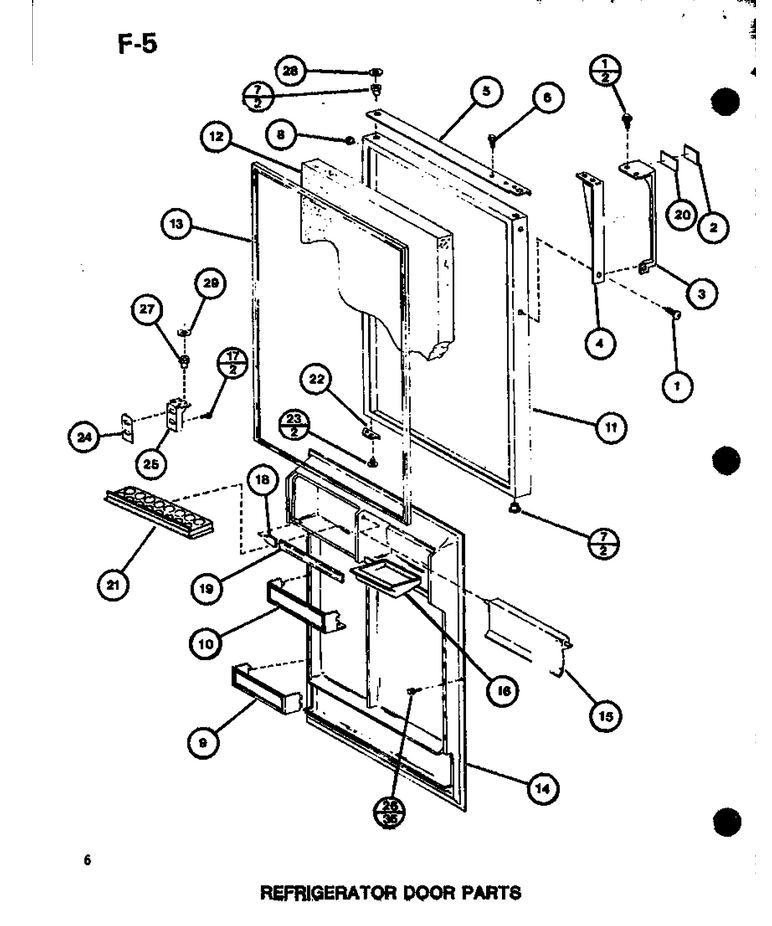

05 - Ref Door Parts

...
...
Cic-4/p76213-2w Canada WPL-NOTE:
...
1
Screw WPL-M0203458
...
2
Nameplate, Handle WPL-C8915808
...
3
Handle Door WPL-D7610602
...
4
Handle Pad WPL-D7609806
...
5
Door Cap WPL-D3958304
...
6
Screw WPL-WPW10348409
...
7
Bearing, Hinge WPL-C8852202
...
8
Plug Button (Almond) WPL-M0310730
...
9
Retainer- WPL-67003698
...
10
Shelf-Door V WPL-D7565403
...
11
Lower Door Pan, Ref, Almond WPL-D7686370
...
12
Insulation WPL-B5683507
...
13
Gasket WPL-D7605107Q
...
14
Inner Dr Panel-Ref WPL-D7567003
...
15
Dairy Door WPL-D7604403
...
16
Butter Tray WPL-D3799802
...
17
Screw WPL-WP67006715
...
18
Support K WPL-B0530004
...
19
Retainer Pkg WPL-C8907201
...
20
Pad, Nameplate WPL-C8920501
...
21
Egg Tray WPL-D7587805
...
22
Door Stop WPL-C8894801
...
23
Screw WPL-M0203458
...
24
Kit,btm Hinge Shim WPL-B5744801
...
25
Bracket Lower Hinge WPL-10163605
...
26
Screw WPL-WPM0219730
...
27
Pin, Hinge K WPL-C8814901
...
28
Washer WPL-M0274049
...
29
Washer WPL-M0274050
...
30
Nut WPL-B8361401
...
31
Nut WPL-B8363501

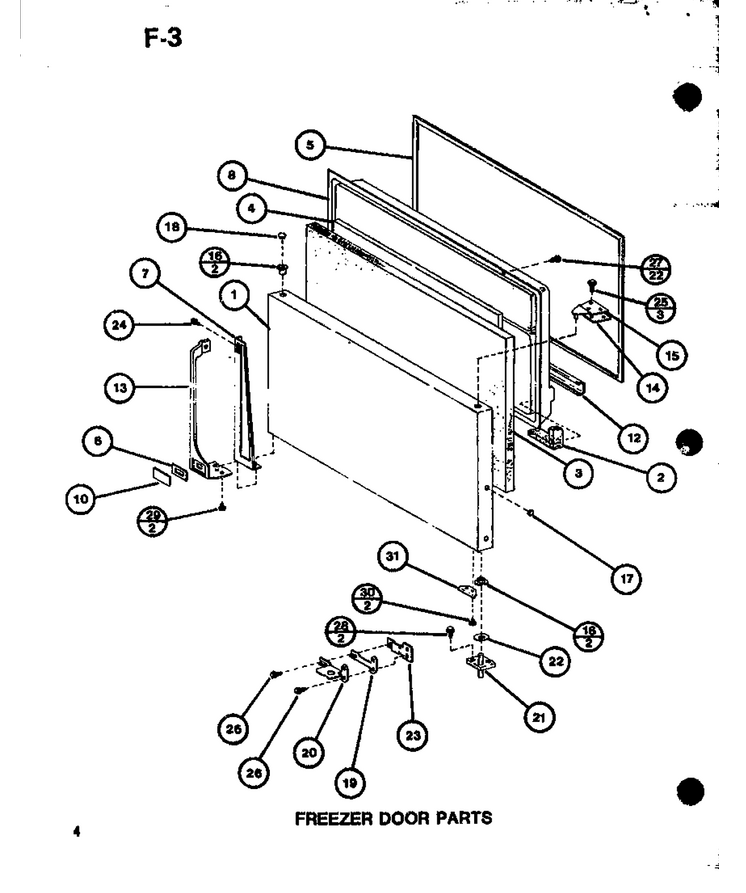

02 - Fz Door Parts

...
...
Ic-3/p76213-1w Usa WPL-NOTE:
...
1
Door Fr-L-T-Tr18h WPL-D7728221
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5683512
...
4
Insulation WPL-B5683514
...
5
Gasket WPL-D7605106
...
6
Pad, Nameplate WPL-C8920501
...
7
Handle, Pad WPL-D7609805
...
8
Panel, Inner Door WPL-D7583903
...
10
Nameplate WPL-C8915806
...
12
Retainer Pkg WPL-C8907206
...
13
Handle, Door WPL-D7610601
...
14
Shim Kit WPL-A3270303
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug Button (Almond) WPL-M0310730
...
18
Plug WPL-M0310606
...
19
Shim K WPL-A3143502
...
20
Center Hinge Assy WPL-C8800201
...
21
Center Hinge Assy WPL-B5750901
...
22
Washer Hinge K WPL-B5779601
...
23
Kit- Tap P WPL-R0194684
...
24
Screw WPL-M0222418
...
25
Kit, Screw WPL-R9800670
...
26
Screw WPL-M0226831
...
27
Screw WPL-WPM0219730
...
28
Screw K WPL-M0205441
...
29
Screw WPL-M0203458
...
30
Screw WPL-M0203458
...
31
Door Stop WPL-C8894801
...
32
Nut WPL-B8361401
...
33
Nut WPL-B8363501

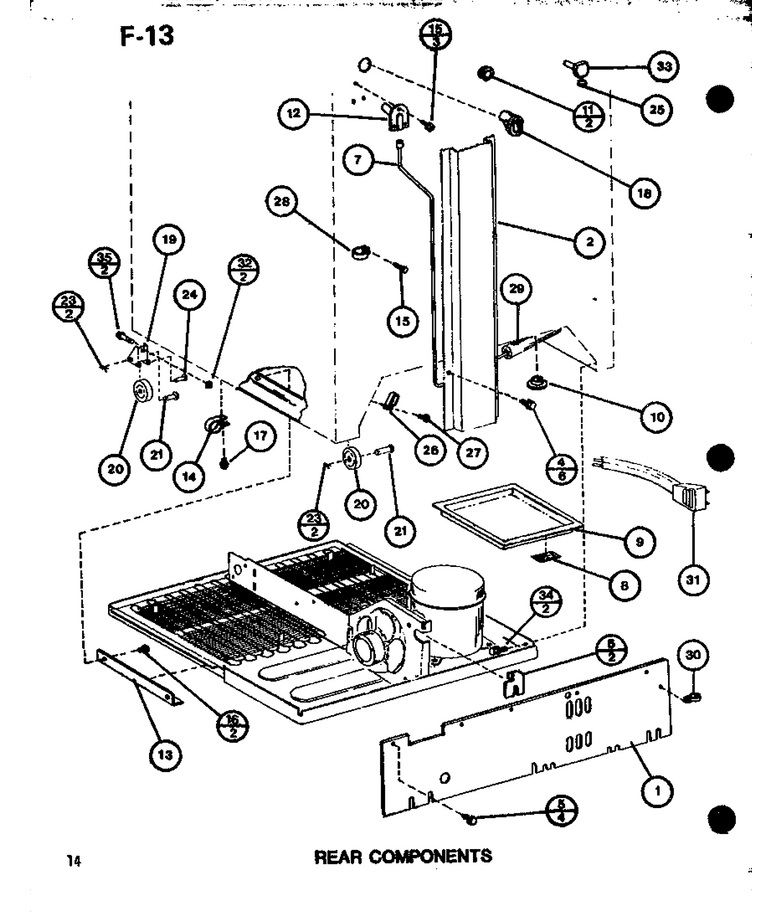

04 - Rear Components

...
...
1
Mc Back Assy WPL-C8890206
...
2
Cover Heat Exchanger K WPL-D7539407
...
4
Screw WPL-WP489464
...
5
Screw-Sm WPL-M0241118
...
7
Drain Tube WPL-D7653904
...
8
Pad A WPL-B5691701
...
9
Net-Pan,drain WPL-D7497301
...
10
Plug, Button WPL-A3076901
...
11
Plug, Button (Blk) WPL-A3080001
...
12
Elbow,drain Tube WPL-C3630901
...
13
Support, Mc WPL-C8913701
...
14
Clamp, Tube WPL-M0102305
...
15
Screw WPL-M0210916
...
16
Screw WPL-M0211530
...
17
Screw WPL-M0233716
...
18
Tunnel-Heat Ex WPL-B5749501
...
19
Assy, Roller Bracket WPL-12452602Q
...
20
Roller WPL-M0520102
...
21
Pin K WPL-M1200202
...
23
Cotter Pin K WPL-M1200004
...
24
Rivet WPL-M1205302
...
25
Plub Button WPL-M0310315
...
26
Clamp WPL-M0103901
...
27
Screw WPL-WP90767
...
28
Clamp WPL-M0102303
...
29
Insul Tubing 1=12`` WPL-A0329806
...
31
Power Cord WPL-R0157154
...
32
Nut, Speed WPL-M0286708
...
33
Fill Tube WPL-R0182123
...
34
Screw WPL-M0294459
...
35
Screw, Mach WPL-M0206313

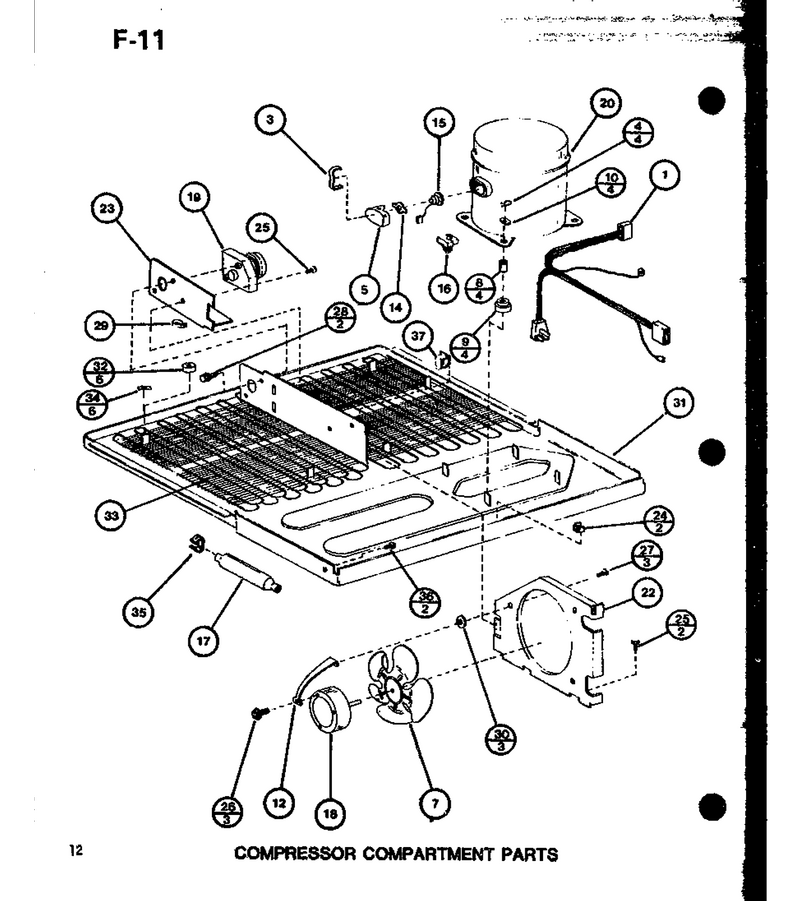

01 - Compressor Compartment Parts

...
...
1
Harness Mc WPL-D7708501
...
3
Strap K WPL-A3041801
...
4
Clip K WPL-A3140801
...
5
Cover K WPL-B0559501
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Washer WPL-B8365302
...
12
Bracket, Cond Motor WPL-C8938501
...
14
Spring K WPL-C8916701
...
15
Overload WPL-C8866901
...
16
Relay WPL-C3553401
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-WP10129301
...
20
Compressor WPL-W10439652
...
22
Cond. Fan Shrd WPL-D7691002
...
23
Bracket, Timer WPL-D7656701
...
24
Clip WPL-M0110509
...
25
Screw WPL-WP90767
...
26
Screw WPL-WPM0223816
...
27
Screw Shoulder WPL-M0238833
...
28
Screw WPL-M0218118
...
29
Wire Tie WPL-M0321204
...
30
Grommet K WPL-M0500107
...
31
Base Pan, Machine Compartment WPL-D7595405
...
32
Spacer, Cond WPL-B8364801
...
33
Condenser Pntd WPL-D7654301
...
34
Speednut WPL-M0293703
...
35
Clamp-Drier WPL-M0104002
...
36
Screw WPL-M0294459
...
37
Clip WPL-M0113401

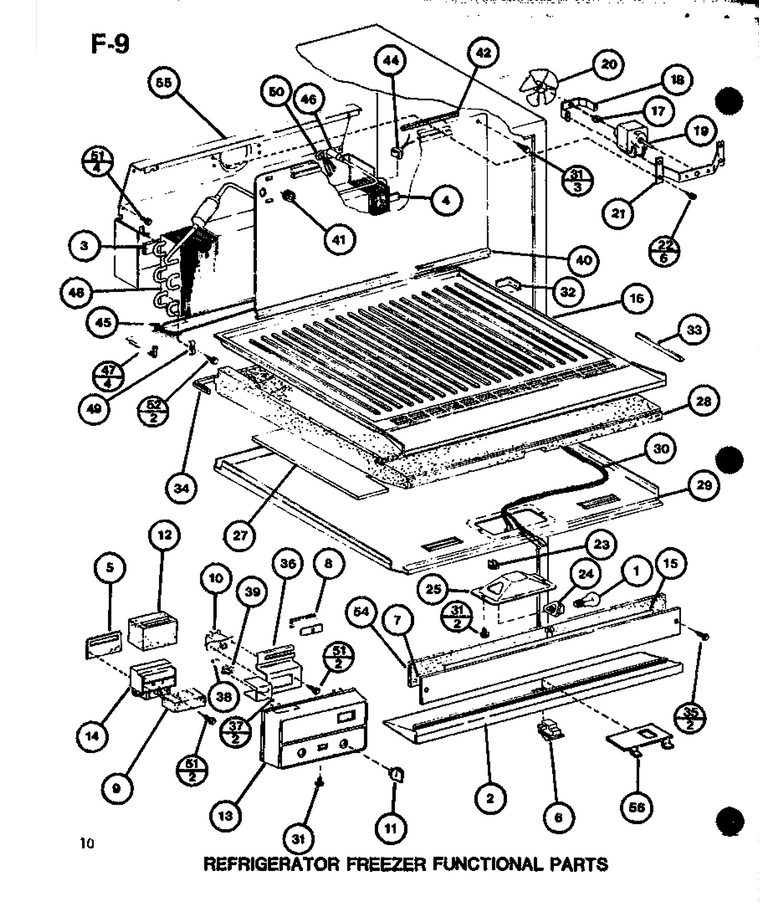

06 - Ref Fz Functional Parts

...
...
1
Light Bulb WPL-8009
...
2
Breaker Strip K WPL-D7653001
...
3
Block Evap. Coil WPL-B8322902
...
4
Block Evap Coil WPL-B8361701
...
5
Gasket, Damper WPL-B8345401
...
6
Switch WPL-W11384469
...
7
W Center Mull. -Pnt WPL-C8842501
...
8
Control M.k. WPL-C8889201
...
9
Insert, Control WPL-C8902601
...
10
Cold Control WPL-C8907301
...
11
Knob WPL-D7009802
...
12
Insulation Damper WPL-D7543201
...
13
Cover Control WPL-D7545004
...
14
Damper Control, Warm 26.5f, N WPL-D7547402
...
15
Heater, Mullion WPL-D7654501
...
16
Bottom; Freezer WPL-D7714704
...
17
Grommet WPL-WP2264462
...
18
Brkt Evap Fan WPL-C8881301
...
19
Motor-Evap WPL-WPC8891605
...
20
Blade, Evap Fan WPL-C8927801
...
21
Brkt Evap Fan Shroud WPL-D7524501
...
22
Screw WPL-WP90767
...
23
Clip, Ground WPL-B5733302
...
24
Socket-Light WPL-D7714407
...
25
Shield, Light WPL-R0176034
...
27
Insulation WPL-C8887902
...
28
Drain Block Kit WPL-D7521802
...
29
Top Ref. WPL-D7539302
...
30
Harness Mullion WPL-D7649601
...
31
Screw (3) WPL-67006425
...
32
Tape Per Roll A WPL-M0275117
...
33
Gasket, Air Block WPL-B5757703
...
34
Gasket WPL-B5757808
...
35
Kit, Screw WPL-R9800670
...
36
Bracket, Control WPL-D7543102
...
37
Rivet A WPL-M0010202
...
38
Diode WPL-M0305301
...
39
Switch WPL-M0341202
...
40
Evap Cover WPL-D7539801
...
41
Grommet WPL-A3138301
...
42
Gasket, Bottom WPL-A3189394
...
44
Thermostat WPL-C8898603
...
45
Heater Evap. WPL-D7549703
...
46
Heat Exchanger WPL-D7554901
...
47
Clamp WPL-M0103502
...
48
See Svs Ltr F-674 WPL-R0170015
...
49
Clamp WPL-A3253803
...
50
Harness, Liner WPL-D7664301
...
51
Screw WPL-WP98165
...
52
Screw WPL-M0212932
...
54
Insulation Ft. K WPL-B0523563
...
55
Shroud Fan WPL-D7691102
...
56
Barrier Lt-Sw K WPL-C8932201
...
57
Clip WPL-C8952001

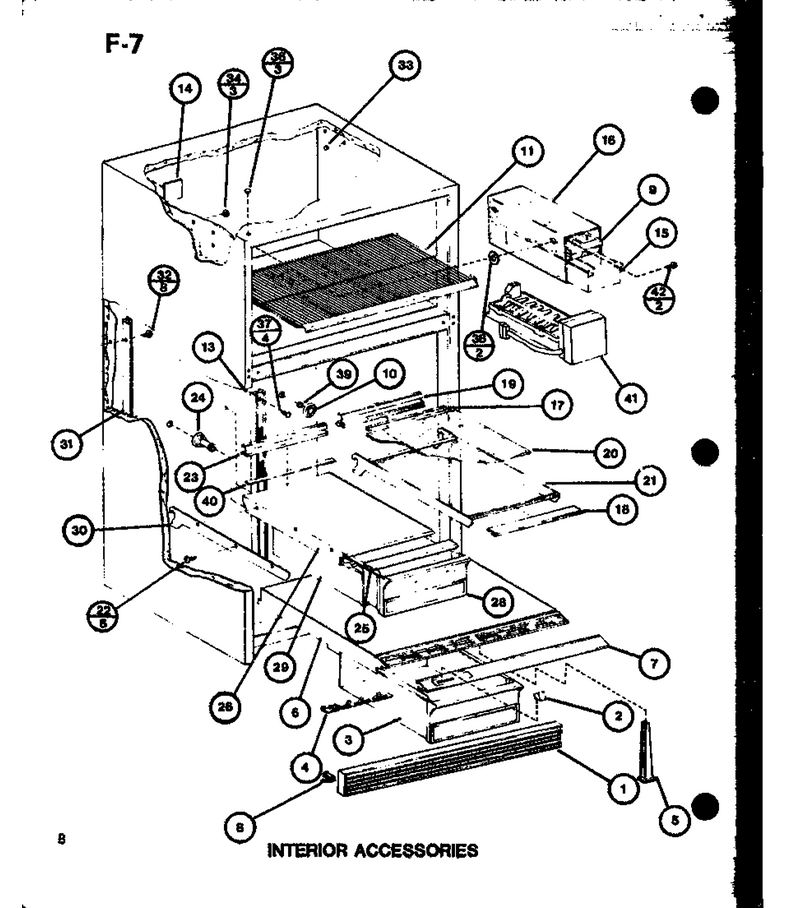

03 - Interior Accessories

...
...
NI
Glass Shelf Assy WPL-D7561208
...
1
Grille-Toe-B K WPL-D7520510
...
2
Knob Humidity A-K WPL-C8908301
...
3
Net-Pan,crisper WPL-D7581005
...
4
Slide Humidity K WPL-D7587703
...
5
Crisper Support Post WPL-D7602202
...
6
Top,crisper A-K WPL-D7616505
...
7
Trim, Crisper Top Front WPL-D7616602
...
8
Clip WPL-WPM0117303
...
9
Tray WPL-WP841180A
...
10
Plug M K Air Outlet WPL-C8889401
...
11
Shelf, Frz WPL-D7580702
...
13
Ladder Center WPL-D7599001
...
14
Cover-Fl Tb/plug WPL-D7604903
...
15
Ice Bin WPL-D7620003
...
16
Rack, Ice Service WPL-D7620101
...
17
Gasket-Per Ea WPL-A30303-36
...
18
Trim, Shelf A WPL-C8913501
...
19
Trim, Shelf WPL-C8913601
...
20
Glass Shelf WPL-D7421216
...
21
Assy, Glass Shelf WPL-D7602302
...
22
Screw WPL-74009538
...
23
Trim Shelf WPL-C8831808
...
24
Grommet WPL-C8889102
...
25
Trim, Shelf A WPL-C8913501
...
26
Top M.k WPL-D7698204
...
28
Net Pan, Meatkeeper WPL-D7698305
...
29
Sleeve M.k WPL-D7698101
...
30
Side Plate, Meat Keeper WPL-D7600012
...
31
Ladder Side WPL-D7599103
...
32
Screw WPL-WP98165
...
33
Plug Button WPL-M0311301
...
34
Button- Pl WPL-WP67001130
...
36
Plug Button (Almond) WPL-M0310730
...
37
Screw-Sm WPL-M0238636
...
38
Washer WPL-M0270519
...
39
Insul. Mk Plug WPL-B8362501
...
40
Tape Per Roll WPL-M0275163
...
41
See Note Mdl Ic-3,mfgno. P76213-1w & Cic-4, Mfgno. P76213-2w Ice Maker -- (Available From Sales) See Page 16 WPL-Y00000000
...
42
Screw Shoulder WPL-M0238833
