Amana TGA600 (BOM: P7575202W)

Model: TGA600 (BOM: P7575202W)

Save Part Not Listed?
product name

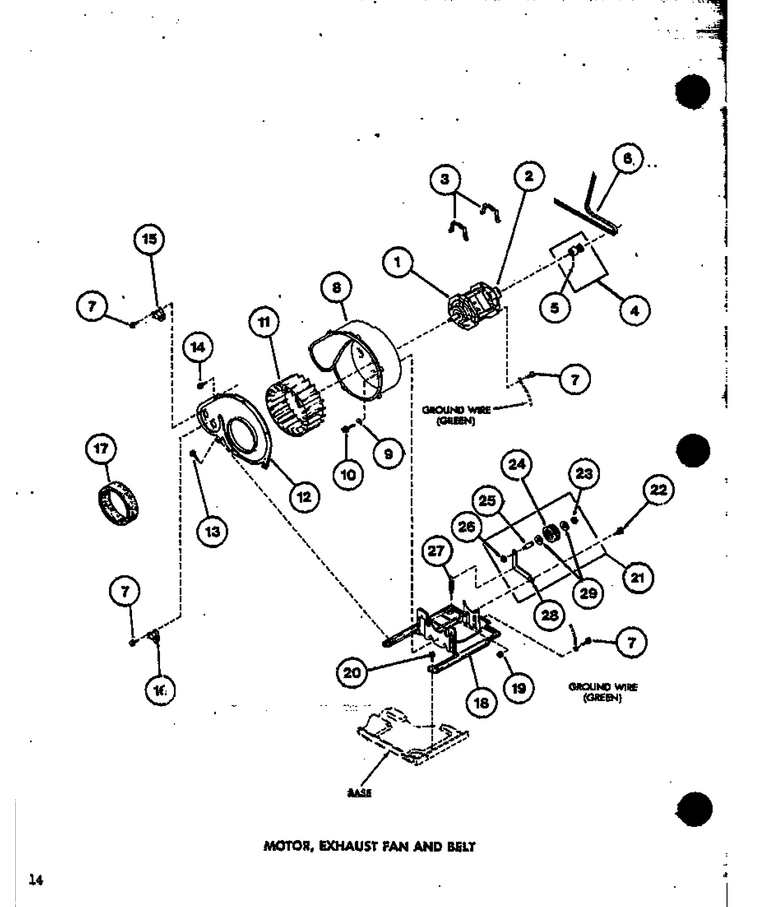

09 - Motor

...
...
1
Motor-Drve WPL-WP915P3
...
2
Motor Switch WPL-R0602516
...
3
Clamp WPL-WP660658
...
4
Kit-Motor WPL-56062P
...
5
Set Screw WPL-R0600042
...
6
Belt WPL-R0606524
...
7
Screw WPL-WP489464
...
8
Blower Hsg WPL-R0603034
...
9
Washer WPL-R0600529
...
10
Screw WPL-WP27001200
...
11
Assembly, Blower Fan WPL-56000
...
12
Hsg Cover WPL-R0603033
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Thermostat WPL-56410
...
16
Thermostat WPL-R0611002
...
17
Seal WPL-56065
...
18
Mount, Motor WPL-503613
...
19
Nut WPL-WPW10139757
...
20
Screw WPL-R0600017
...
21
Lever-Idl WPL-WP56170P
...
22
Screw WPL-R0600043
...
23
Ring- Reta WPL-WP23748
...
24
Pulley-Idr WPL-WPY54414
...
25
Shaft WPL-WP56461
...
26
Nut WPL-WP358160
...
27
Spring- Id WPL-WP56076
...
28
Lever, Idler WPL-R0605561
...
29
Washer WPL-WP233520

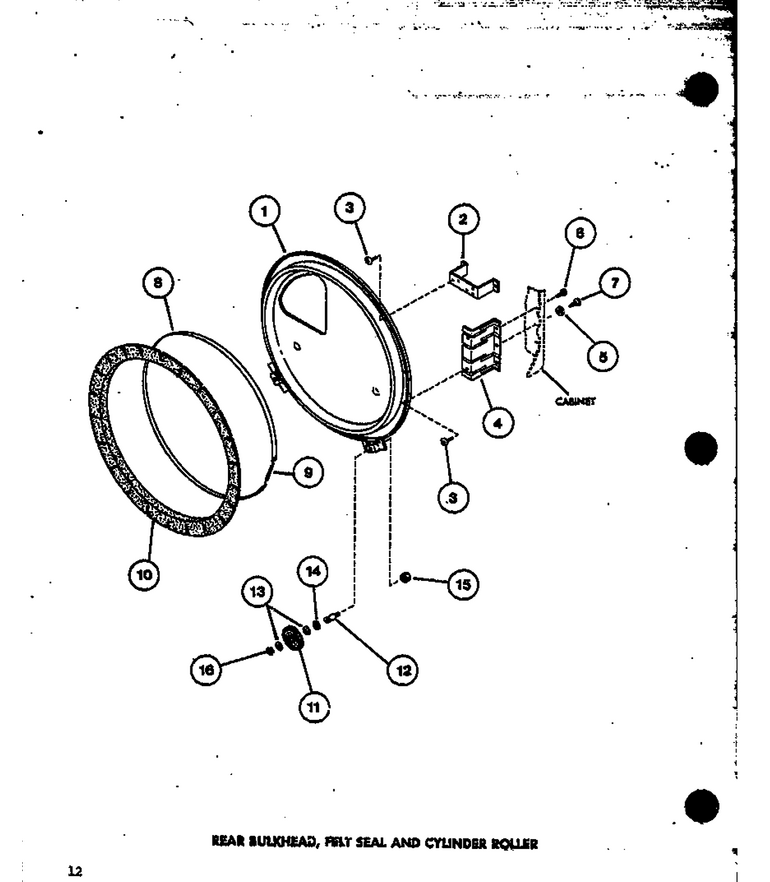

11 - Rear Bulkhead

...
...
1
Assy,rear Bulkhead WPL-61135P
...
2
Brkt WPL-R0605558
...
3
Screw WPL-R0600041
...
4
Bracket WPL-R0605557
...
5
Washer WPL-R0600527
...
6
Screw WPL-R0600017
...
7
Screw WPL-R0600040
...
8
Strap, Seal WPL-56090P
...
9
Spring WPL-52310
...
10
Seal Asm WPL-WP56088
...
11
Roller WPL-R0605559
...
12
Shaft WPL-WP56461
...
13
Washer WPL-WP233520
...
14
Washer,.578idx1.25odx1 WPL-23886
...
15
Nut WPL-WP358160
...
16
Ring- Reta WPL-WP23748

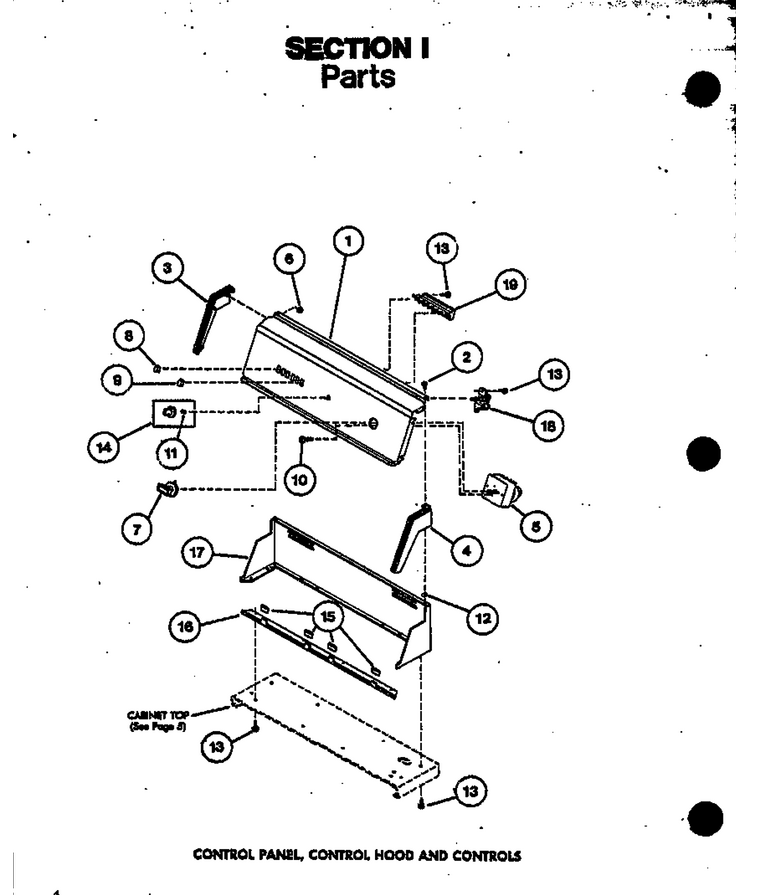

03 - Control Panel

...
...
1
Control Panel WPL-R0603019
...
2
Screw WPL-R0600002
...
3
End, Control Hood WPL-R0603005
...
4
Hood End Rh WPL-R0603004
...
5
Timer WPL-R0604003
...
6
Nut WPL-R0601001
...
7
Timer Knob Assy WPL-R0603528
...
8
Switch Button WPL-R0603501
...
9
Switch Button WPL-R0603527
...
10
Screw WPL-R0600003
...
11
Clip WPL-R0601501
...
12
Speed Nut WPL-R0601004
...
13
Screw WPL-WP90767
...
14
Control Knob Assy WPL-R0603007
...
15
Sleeve WPL-R0605503
...
16
Panel Support WPL-R0605549
...
17
Control Hood, Almond WPL-56014L
...
19
Switch, Selector WPL-R0602513

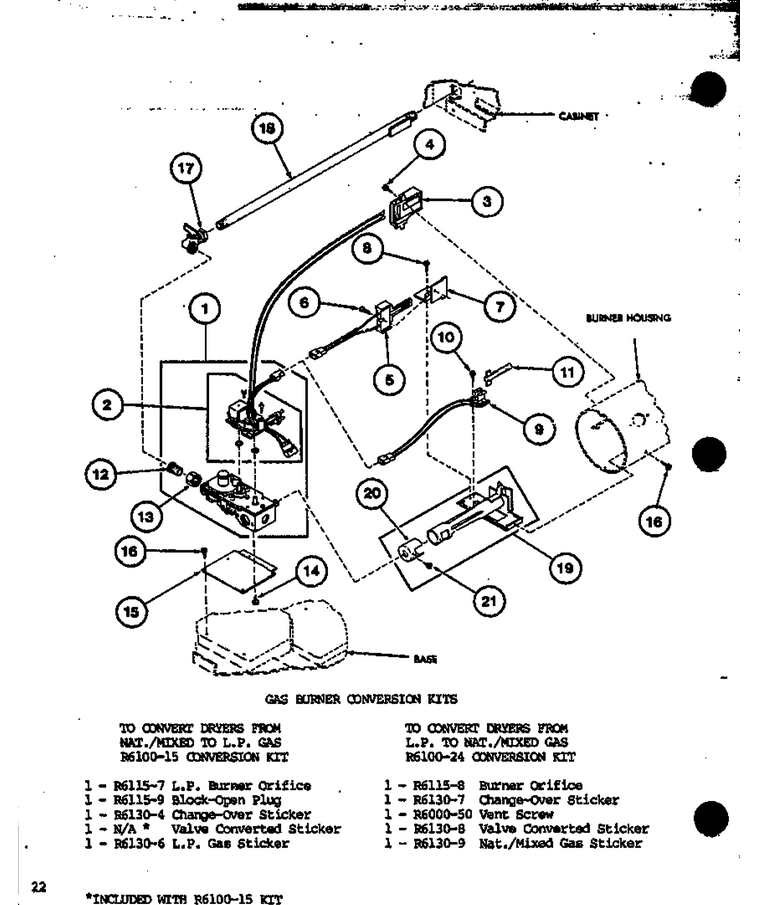

05 - Gas Burner Conversion Kits

...
...
1
Gas Valve WPL-R0606005
...
2
Kit,coil WPL-56225A
...
3
Sensor WPL-WP338906
...
4
Screw WPL-WP489464
...
5
Ignitor WPL-WP37001308
...
6
Screw WPL-WP8281196
...
7
Igniter Brkt WPL-R0605564
...
8
Screw WPL-R0600047
...
9
Assy,spring & Connector WPL-R0605565
...
10
Screw WPL-R0600048
...
11
Igniter,80 Volt WPL-R0611505
...
12
Nipple WPL-R0606526
...
13
Nut WPL-R0601020
...
14
Screw WPL-WP489128
...
15
Mtg Brkt WPL-R0605566
...
16
Screw WPL-WP27001200
...
17
Valve-Elbo WPL-510205
...
18
Lead In Pipe WPL-R0611501
...
19
Assembly, Burner WPL-R0610023
...
20
Air Shutter WPL-R0611506
...
21
Screw WPL-R0600049

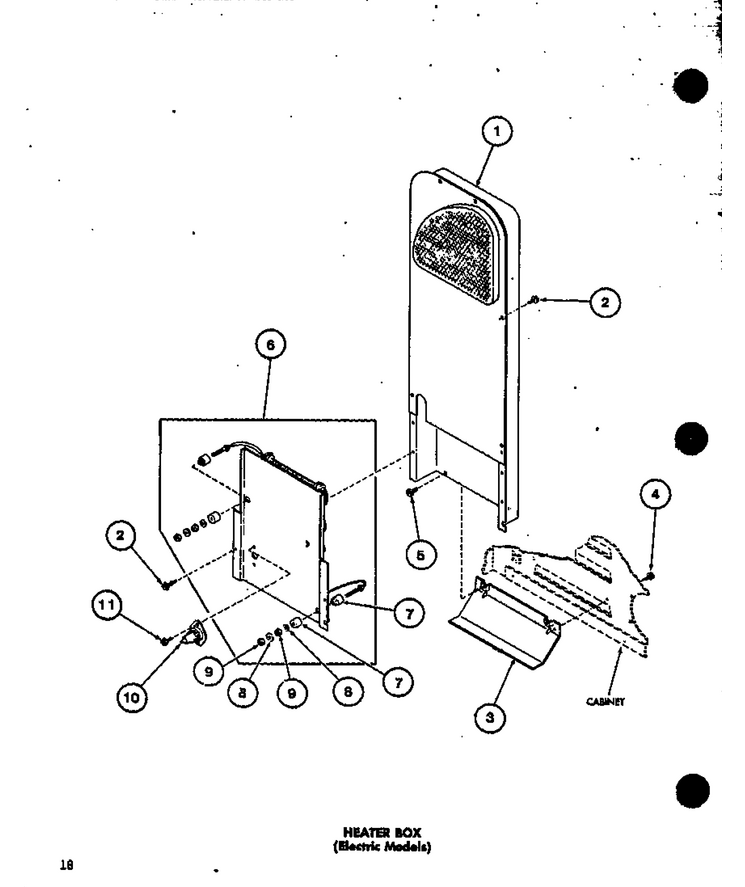

07 - Heater Box (electric Models)

...
...
1
Assembly, Heater Duct WPL-R0603035
...
2
Screw WPL-WP27001200
...
3
Shield WPL-R0603036
...
4
Screw WPL-R0600017
...
5
Screw WPL-WP27001200
...
6
Heater Assembly 208v WPL-R0610021
...
7
Insulator WPL-R0612501
...
8
Washer WPL-R0600530
...
9
Nut WPL-R0601019
...
10
Thermostat,limit WPL-R0611003
...
11
Screw WPL-WP489464

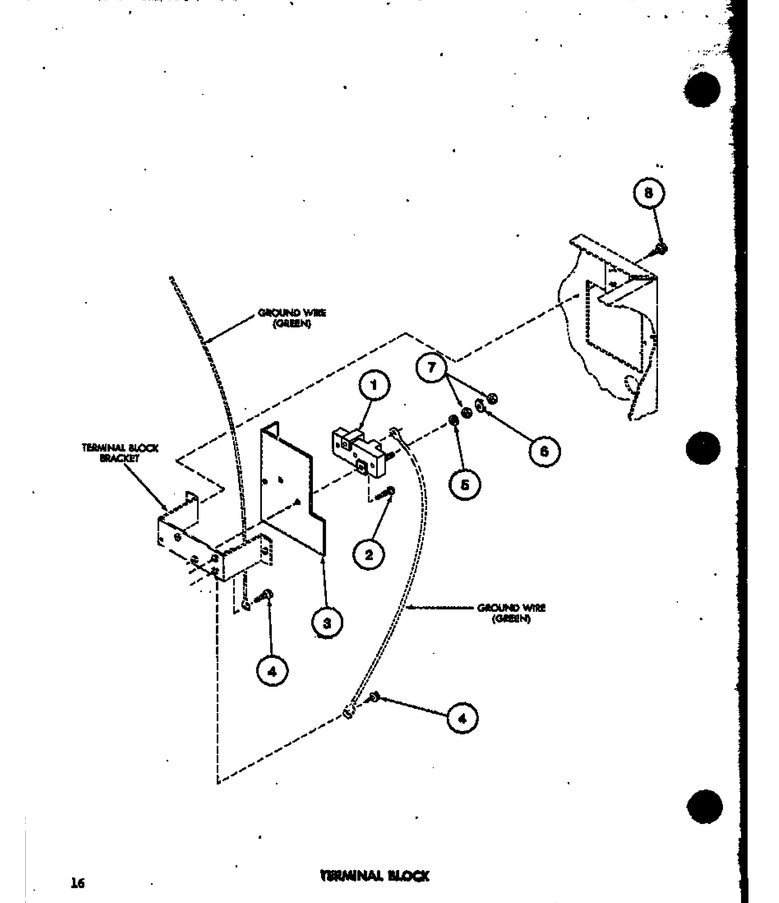

12 - Terminal Block

...
...
1
Block- Ter WPL-W11705611
...
2
Screw,10b-16 X 3/4 Rou WPL-Q6535
...
3
Shield WPL-R0604510
...
4
Screw WPL-WP27001200
...
5
Washer WPL-R0600530
...
6
Washer WPL-R0600527
...
7
Nut WPL-R0601022
...
8
Screw WPL-R0600017

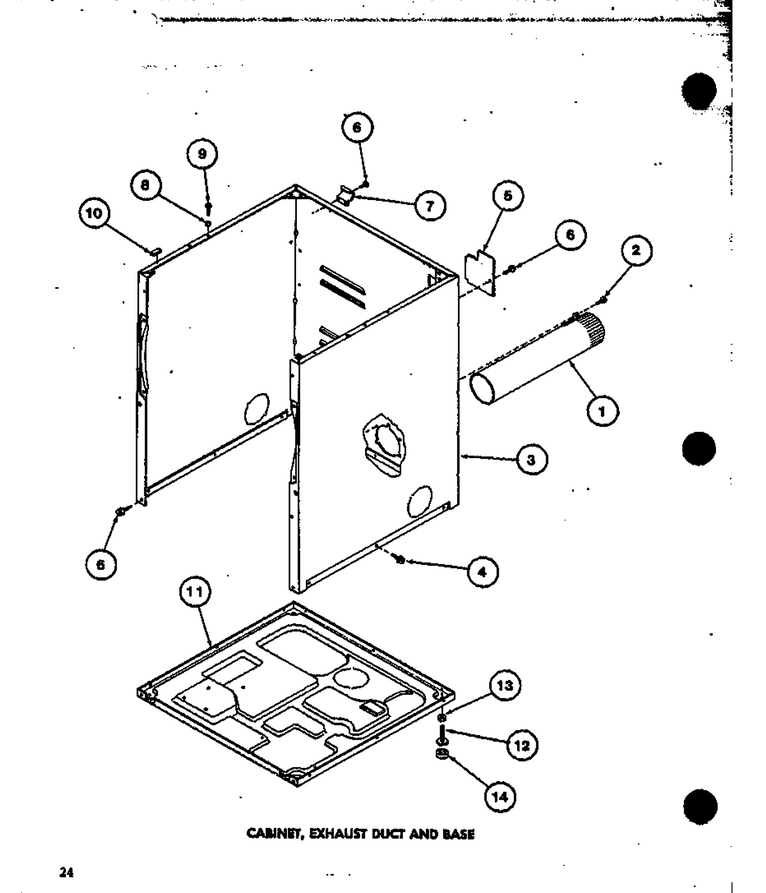

01 - Cabinet

...
...
1
Duct, Exhaust WPL-R0603041
...
2
Screw, Hex Head WPL-R0600052
...
3
Xxxassy,dryer Cabinet WPL-R0603068
...
4
Screw WPL-WP27001200
...
5
Plate, Access WPL-R0603040
...
6
Screw WPL-R0600017
...
7
Hinge WPL-R0605567
...
8
Locator, Panel WPL-505187
...
9
Screw WPL-WPY014874
...
10
Pad, Bumper WPL-Y56128
...
11
Base WPL-R0603028
...
12
Feet-Lvlng WPL-W10176519
...
13
Nut WPL-WP62739
...
14
Pad, Rubber WPL-R0606525

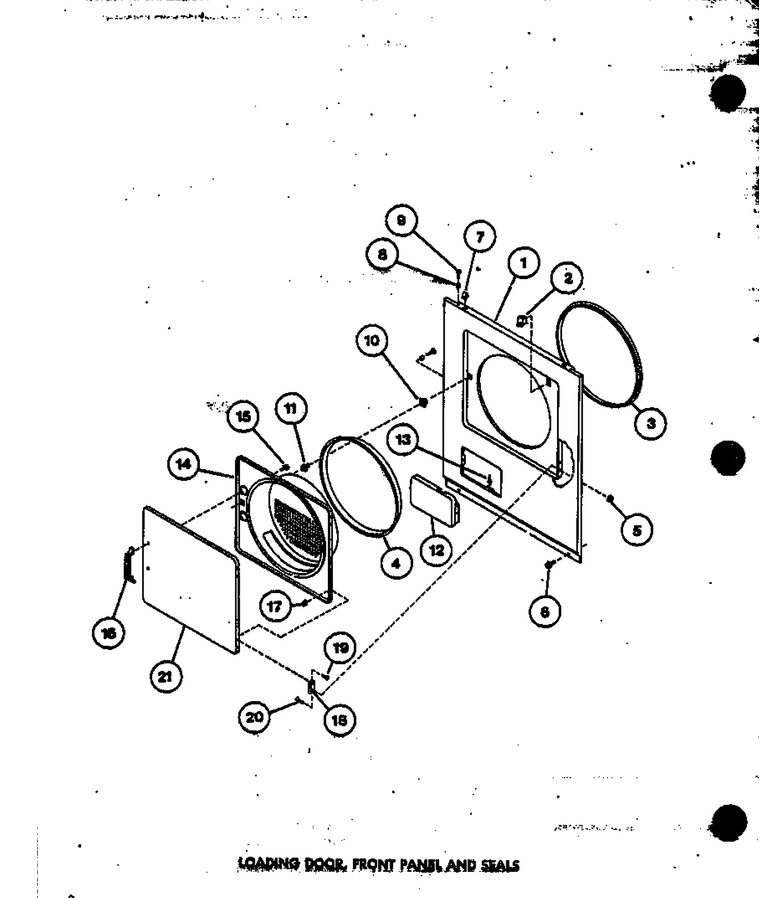

08 - Loading Door

...
...
1
Front Panel Almond WPL-R0603062
...
2
Switch-Dor WPL-W10169313
...
3
Seal,front Panel WPL-Y61380
...
4
Seal WPL-R0606522
...
5
Nut WPL-WP488130
...
6
Screw WPL-R0600017
...
7
Fastener- WPL-WP22001650
...
8
Locator, Panel WPL-505187
...
9
Screw WPL-WPY014874
...
10
Door Latch Kit WPL-306436
...
11
Door Catch La-1003 WPL-LA-1003
...
12
Door,access WPL-R0603066
...
13
Barrel,support WPL-56534
...
14
Door Liner WPL-R0603027
...
15
Screw WPL-WP489464
...
16
Pull,door WPL-54068P
...
17
Speed Nut WPL-R0601018
...
18
Hinge (Dryer) WPL-56045
...
19
Screw, 8b-16x5/8 Tap WPL-500226
...
20
Screw WPL-R0600007
...
21
Door Panel White WPL-R0603023

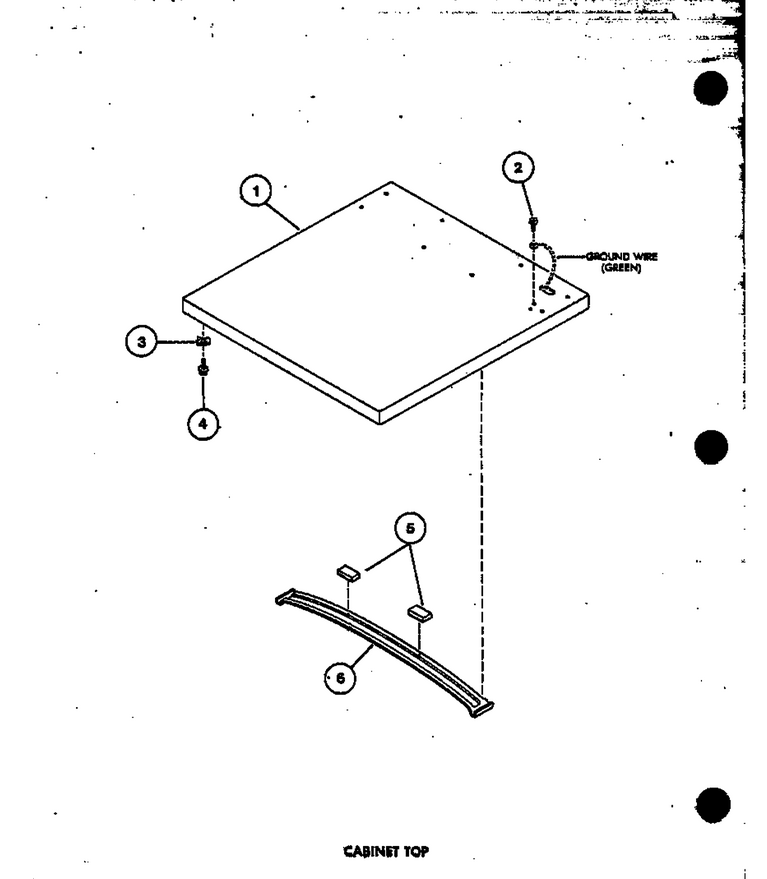

02 - Cabinet Top

...
...
1
Cabinet Top White WPL-R0603022
...
2
Screw WPL-R0600034
...
3
Nut-10-24 WPL-36020
...
4
Screw WPL-R0600010
...
5
Pad WPL-R0606520
...
6
Brace, Top WPL-56486

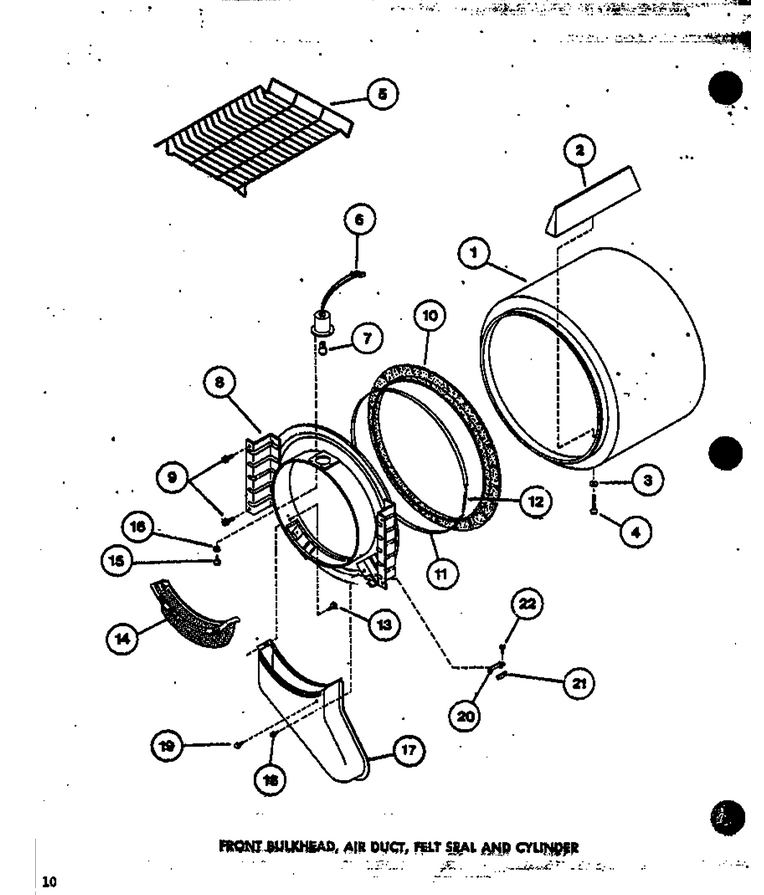

04 - Front Bulkhead

...
...
1
Assy,cylinder Pack WPL-R0603031
...
2
Baffle,cylinder-Short- WPL-Y61399
...
3
Washer WPL-M0270519
...
4
Screw WPL-R0600038
...
5
X$x Drying Rack WPL-R0603529
...
8
Assy Bulk Head WPL-R0603030
...
9
Screw WPL-R0600017
...
10
Seal Asm WPL-WP56088
...
11
Strap, Seal WPL-56090P
...
12
Spring WPL-52310
...
13
Screw WPL-WP489464
...
14
Screen WPL-61376
...
15
Screw WPL-R0600037
...
16
Lockwasher WPL-R0600525
...
17
Air Duct WPL-R0603531
...
18
Screw WPL-WP489464
...
19
Bumper WPL-R0606523
...
20
Bracket WPL-WP57005
...
21
Pad WPL-WP500121
...
22
Screw WPL-WP489464

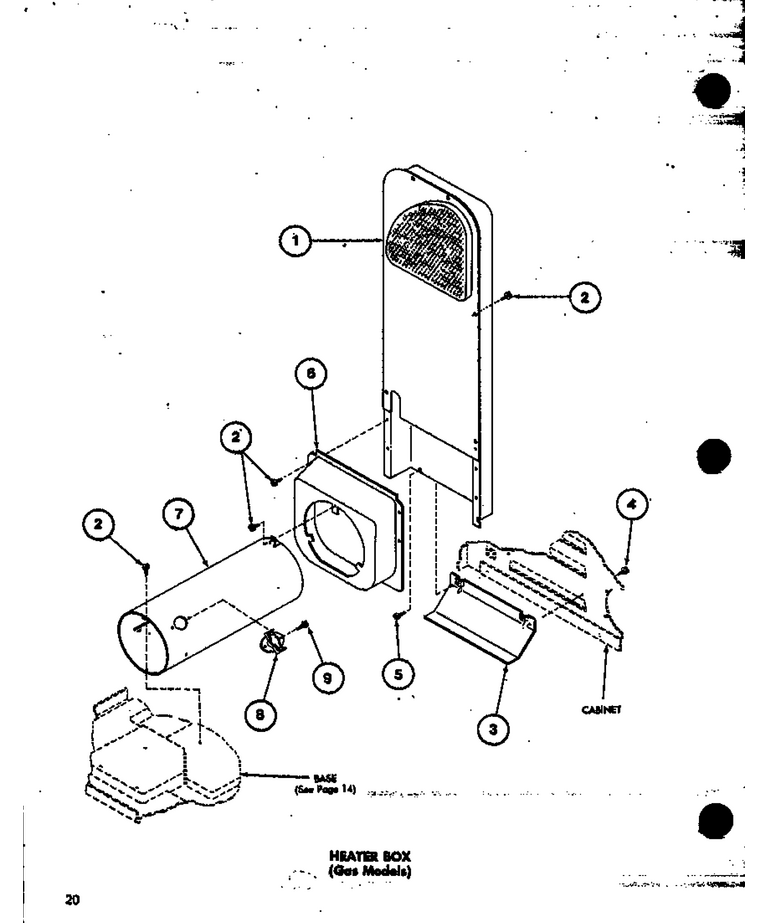

06 - Heater Box

...
...
1
Assembly, Heater Duct WPL-R0603035
...
2
Screw WPL-WP27001200
...
3
Shield WPL-R0603036
...
4
Screw WPL-R0600017
...
5
Screw WPL-WP27001200
...
6
Shroud, Heat Duct WPL-500122
...
7
Housing, Burner WPL-R0603038
...
8
Limit Thermostat WPL-R0611004
...
9
Screw WPL-WP489464

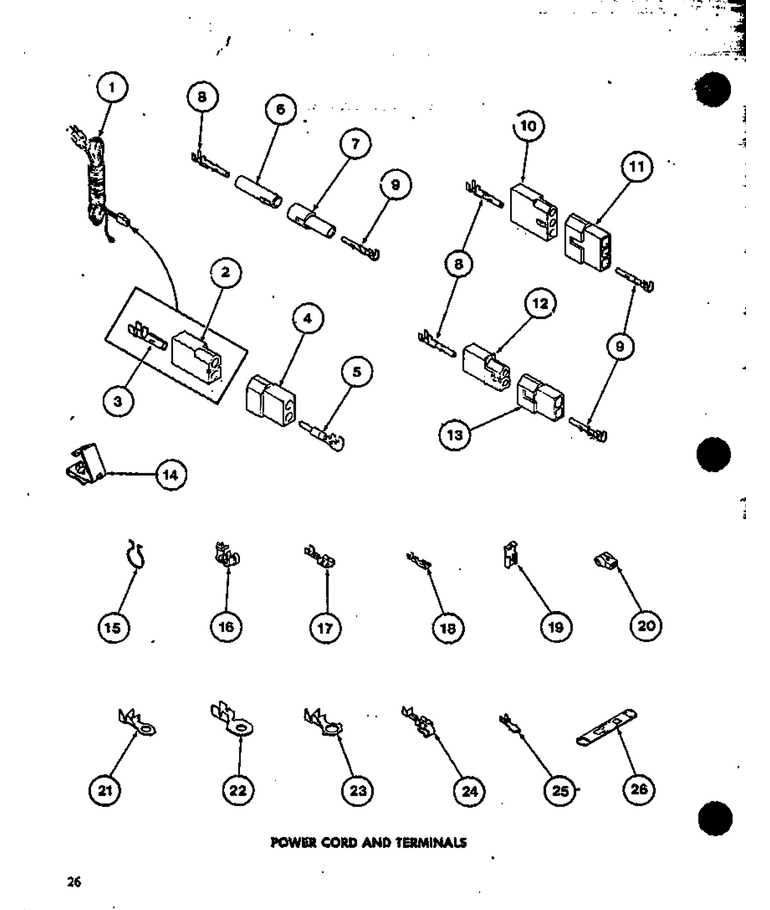

10 - Power Cord Terminals

...
...
1
Cord- Powe WPL-WP27001142
...
2
Receptacle,2 Circuit WPL-56265
...
3
Terminal WPL-R0605030
...
4
Plug WPL-56266
...
5
Terminal,pin-1/8 Male WPL-Y00127
...
6
Receptacle,molex WPL-26301
...
7
Connector WPL-R0605036
...
8
Terminal WPL-R0605004
...
9
Terminal WPL-R0605003
...
10
Receptacle WPL-R0605033
...
11
Plug, 3 Circuit WPL-23040
...
12
Receptacle WPL-R0605038
...
13
Plug 2 Circuit WPL-56448
...
14
Clip, Ground WPL-B5733302
...
15
Clip WPL-R0601522
...
16
Grommet, Cord WPL-211881
...
17
Terminal WPL-M0320585
...
18
Terminal,spade-3/16 Fe WPL-R0605002
...
19
Terminal,flag-1/4 Fema WPL-Y00120
...
20
Insulator, Pod K WPL-M0325501
...
21
Terminal WPL-R0605026
...
22
Terminal,ring-10 Stud WPL-Y00111
...
23
Terminal WPL-R0605007
...
24
Terminal,spade-1/4 Fem WPL-Y00114
...
25
Terminal,tab 1/4 Male WPL-Y00138
...
26
Connector WPL-WP75614
