Amana TE11185W2B

Model: TE11185W2B

product name

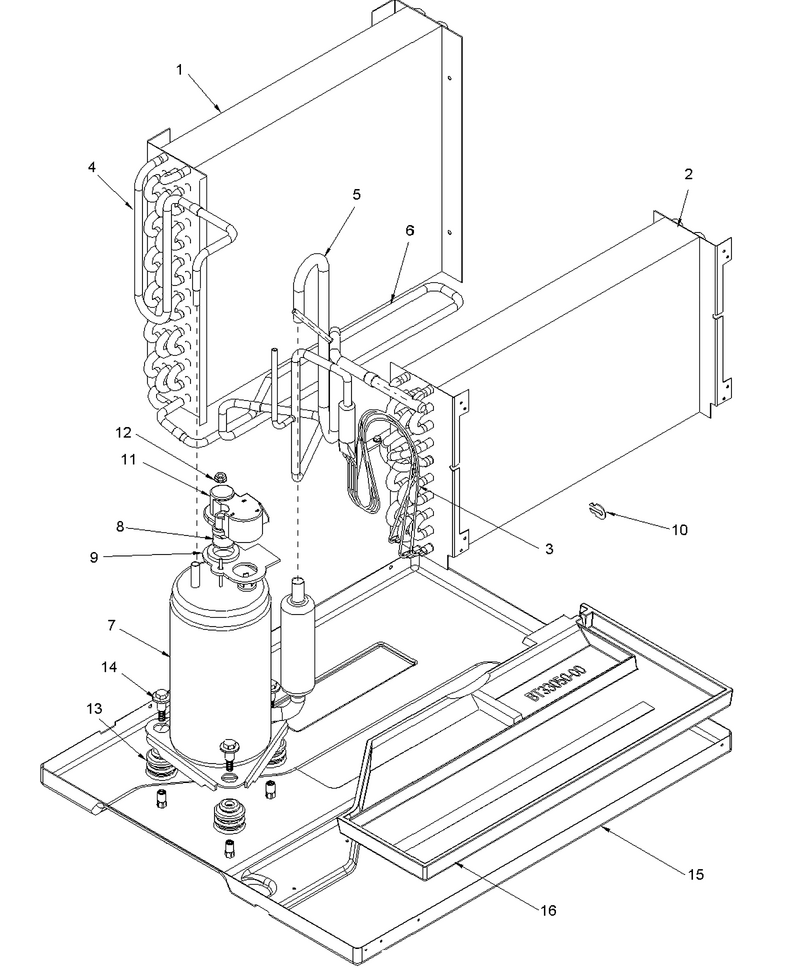

01 - Compressor Assy

...
...
Note: If Replacing Basepan On Older Models It Will Be Necessary To Order New Compressor Bolts. Evap Coil Tubing Assy Includes Cap Tube Assy. For Models With N WPL-NOTE:

...
1
Assy, Condenser Coil WPL-Y3396506

...
2
Assy, Tubing Evap Coil 10k WPL-3396001

...
3
Cap Weld - WPL-96001031

...
4
Tubing, Comp. Discharge WPL-Y3393621

...
5
Assy, Suction Line WPL-Y3393707

...
6
Assy, Liquid Line WPL-Y3393800

...
7
Compressor WPL-D9831804

...
8
Switch, Overload (serv) WPL-BT1243703

...
9
Gasket, Compressor (tec) WPL-BT1392604

...
11
Plastic Cover WPL-BT3055505

...
12
Nut, (tecumseh) WPL-BT1393000

...
13
Grommet. Comp WPL-A3448601

...
14
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704

...
15
Assy, Basepan WPL-3350200

...
16
Pan, Drain (styrofoam) WPL-BT3305000

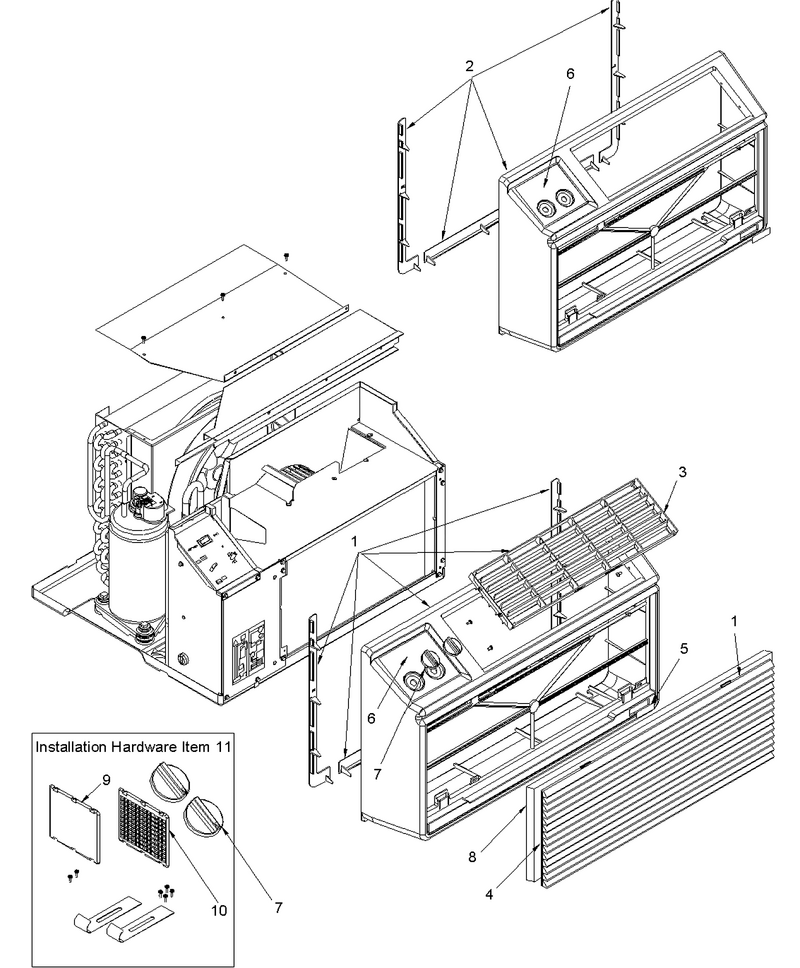

03 - Outer Case Assy

...
...
Note: If Complete Front Is Required, Order Front Assy, Control Label, Logo And Filter. When Ordering Front Frame Only Order Control Label And Logo Also. Hardw WPL-NOTE:

...
NI
Foam Gasket-.50 X .50, 4-5 Ft WPL-BT1392607

...
1
Frame, Front WPL-BT3375004

...
2
Frame W/ Trim/strips WPL-BT3375104

...
3
Grill Return Air WPL-BT3375200

...
4
Grill, Ttw WPL-BT3375600

...
5
Logo, Plastic (goodman) WPL-BT3075913

...
6
Label,control(ttw-El. Ht.) WPL-BT14933179

...
7

...
8
Air Filter WPL-BT1369603

...
9
Plug, Fresh Air WPL-BT3076001


...
11
Kit, Ttw Instal WPL-Y3352000

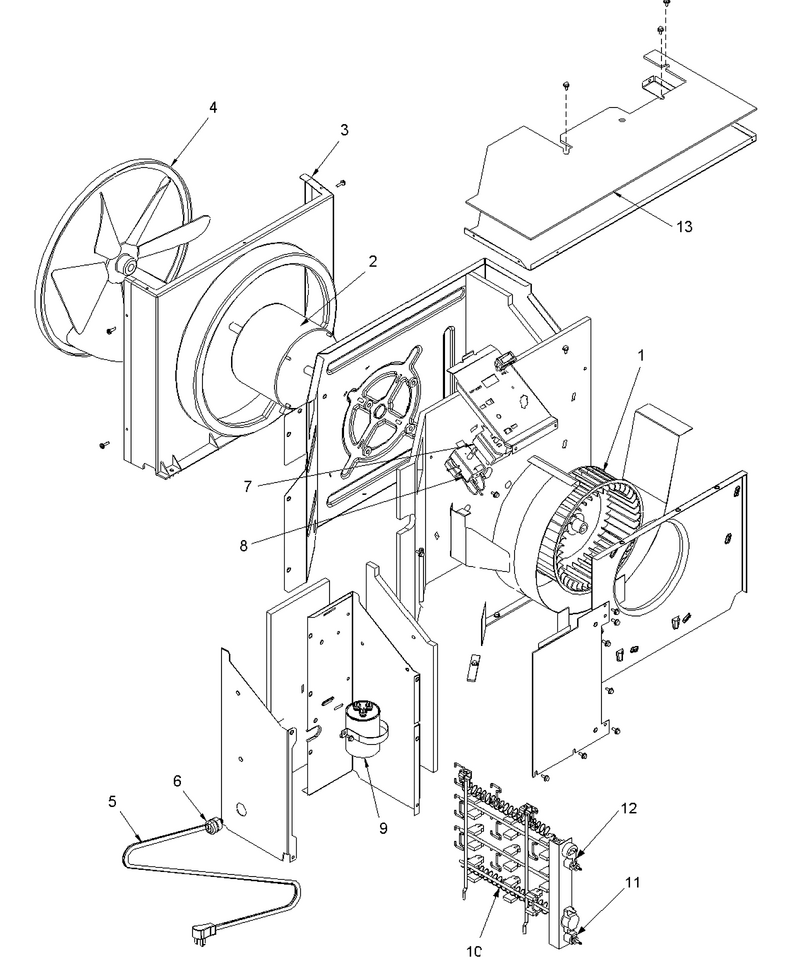

02 - Fan And Control Assy

...
...
1
Wheel, Blower WPL-BT1368005


...
3
Shroud, Fan WPL-BT3311000

...
4
Blade, Fan WPL-BT1086703

...
5
Cord, Power 230v 20 Amp 65`` WPL-BT1210006

...
6
Strain Relief WPL-8536977

...

...
8
Thermostat, Elec Heat WPL-BT1370807

...
9
Capacitor WPL-BT9457004

...
10
Element, Heat WPL-BT1420008

...

...

...
13
Insulation,top Cover WPL-BT3393010
