Amana TE11085W2 (BOM: PTE11085W2)

Model: TE11085W2 (BOM: PTE11085W2)

Save Part Not Listed?
product name

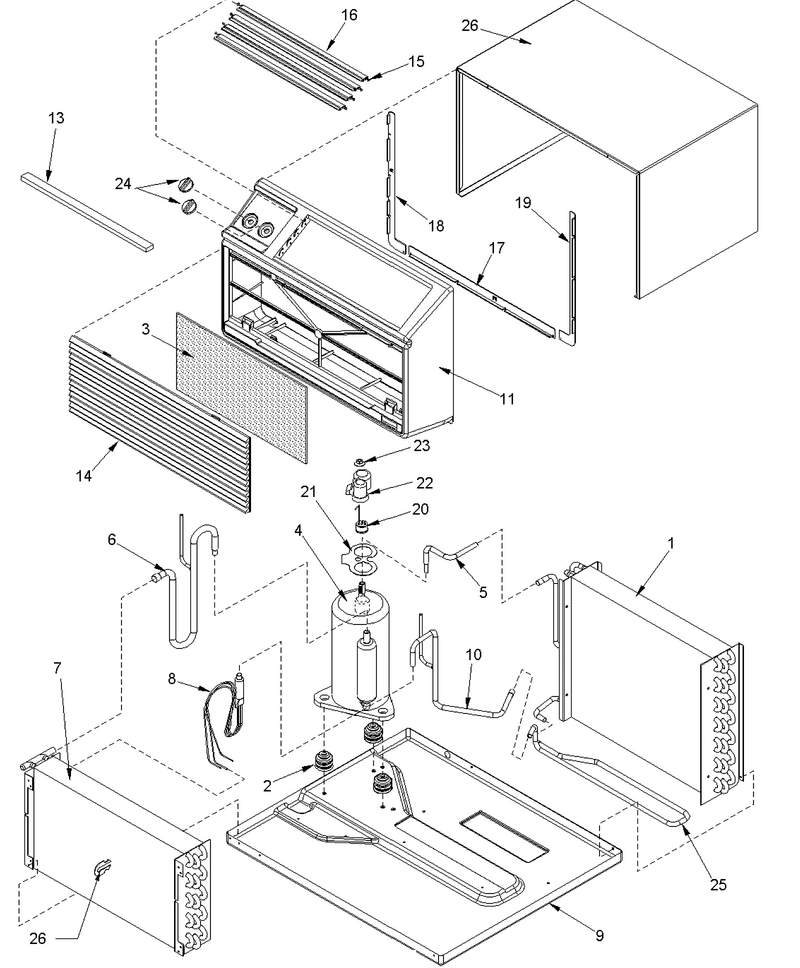

01 - Outer Case And Tubing

...
...
NI
Label, Control WPL-BT14933341
...
1
Assy, Cond Coil Tubing WPL-Y3396503
...
2
Grommet. Comp WPL-A3448601
...
3
Air Filter WPL-BT1369603
...
4
Compressor WPL-D9831804
...
8
Assy, Cap Tube/strainer WPL-Y3393805
...
9
Basepan, Thru-Wall WPL-3300000P
...
10
Line, Liquid WPL-3393602
...
11
Frame-Ttw WPL-BT3375100
...
13
Gasket, Foam WPL-BT1392616
...
14
Grill Return Air WPL-BT3375200
...
15
O-Ring WPL-BT1392910
...
16
Blade, Vent WPL-BT3375500
...
17
Spacer, Bottom WPL-BT3375300
...
18
Spacer Right WPL-BT3375301
...
19
Spacer, Left WPL-BT3375302
...
20
Switch, Overload (serv) WPL-BT1243703
...
21
Gasket, Compressor (tec) WPL-BT1392604
...
23
Nut, (tecumseh) WPL-BT1393000
...
24
Knob- Rac WPL-WPBT3075631
...
25
Assy, Liquid Line WPL-Y3393800
...
26
Assy, Sleeve WPL-SLV-26

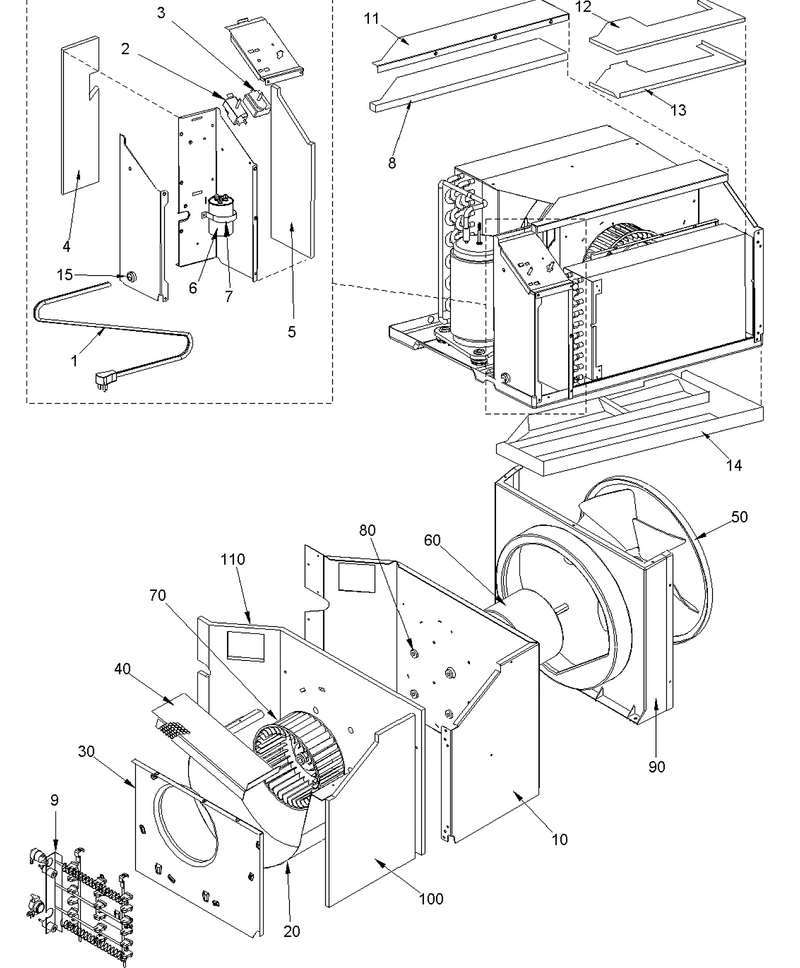

02 - Partition And Control Assy

...
...
1
Cord, Power 230v 20 Amp 65`` WPL-BT1210006
...
2
Thermostat, Elec Heat WPL-BT1370807
...
3
Power Switch, 6 Position, Delu WPL-BT1370819
...
4
Insulation WPL-BT3393005
...
5
Insul., Left Side WPL-BT3393000
...
6
Capacitor WPL-BT9457004
...
7
Strap, Capacitior WPL-3084801
...
8
Insulation, Cond. WPL-BT3393003
...
9
Element, Heat WPL-BT1420008
...
10
Center Partition WPL-3301001
...
11
Top Medium WPL-3301201
...
12
Insulation, Top, Large WPL-BT3393002
...
13
Top WPL-3301205
...
14
Pan, Drain (styrofoam) WPL-BT3305000
...
15
Strain Relief WPL-M0370007
...
20
Scroll, Blower WPL-3306000
...
30
Partition, Blower WPL-3306003
...
40
Blower Screen WPL-3306002
...
50
Blade, Fan WPL-BT1086703
...
70
Wheel, Blower WPL-BT1368005
...
80
Locknut, Nylon No.8-32 WPL-BT1393001
...
90
Shroud, Fan WPL-BT3311000
...
100
Insul., Right Side WPL-BT3393001
