Amana TE07090W1A REV (BOM: TE07090W1A A)

Model: TE07090W1A REV (BOM: TE07090W1A A)

Save Part Not Listed?
product name

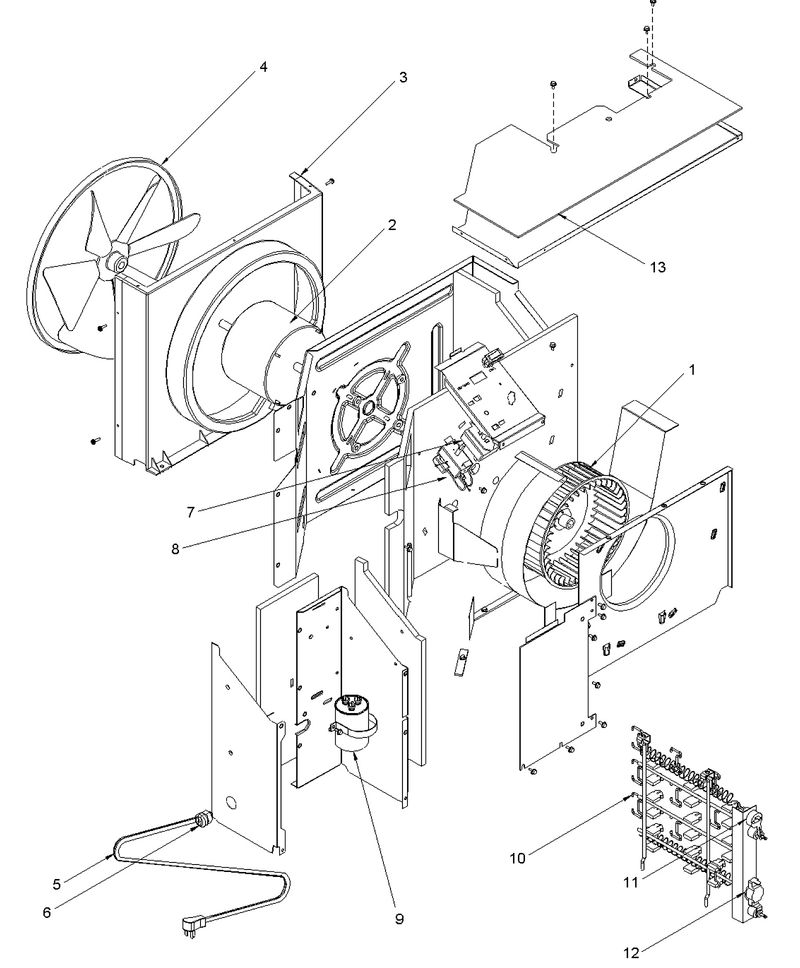

01 - Center Partition Assembly

...
...
NI
Kit, Hard Start (tec) WPL-3093201
...
1
Wheel, Blower WPL-BT1368006
...
2
Motor WPL-BT1340013
...
3
Shroud, Fan WPL-BT3311000
...
4
Blade, Fan WPL-BT1086703
...
5
Cord, Power WPL-Y20057501
...
6
Strain Relief 14/3 WPL-BT1392101
...
7
Switch WPL-BT1370832
...
8
Thermostat, Elec Heat WPL-BT1370807
...
9
Capacitor WPL-BT9457002
...
10
Element,heat 115v WPL-BT1420009
...
11
Limit WPL-BT1243735
...
12
Limit WPL-BT1243737
...
13
Insulation,top Cover WPL-BT3393010

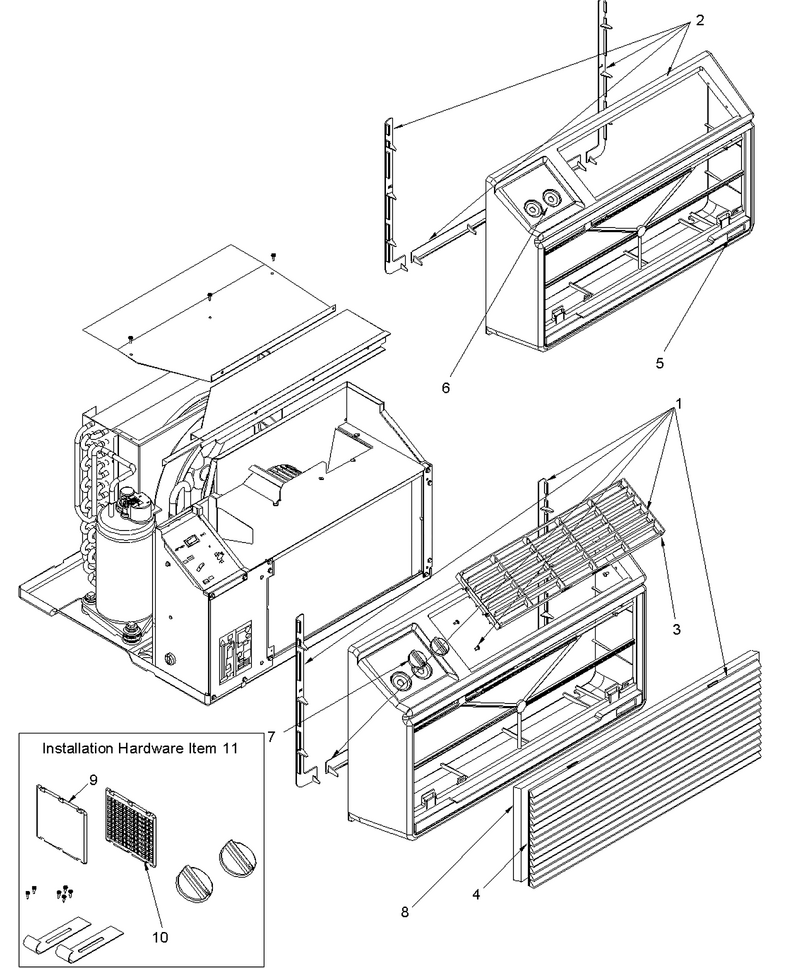

03 - Front Assembly

...
...
NI
Gasket-Cavity Top WPL-10839709
...
1
Frame, Front WPL-BT3375004
...
4
Grill Return Air WPL-BT3375200
...
5
Logo, Plastic (goodman) WPL-BT3075913
...
6
Label,control(ttw-El. Ht.) WPL-BT14933179
...
7
Knob- Rac WPL-WPBT3075631
...
8
Air Filter WPL-BT1369603
...
9
Plug, Fresh Air WPL-BT3076001
...
10
Plug WPL-BT3076003
...
11
Kit, Ttw Instal WPL-Y3352000

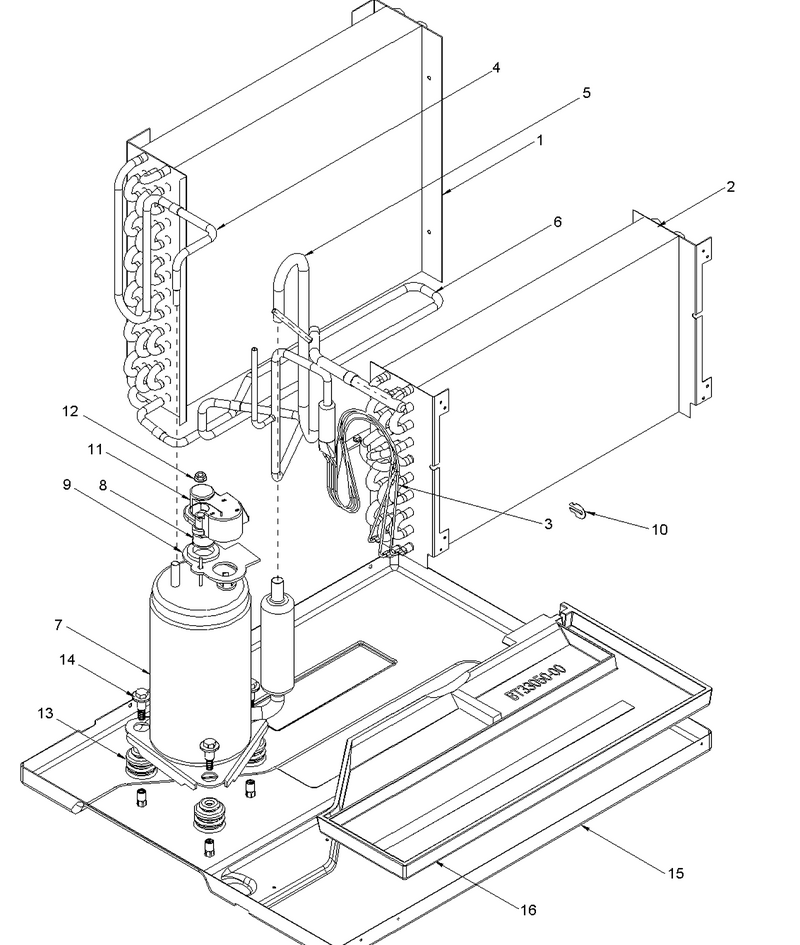

02 - Compressor, Tubing And Basepan

...
...
1
Assy, Condenser Coil WPL-Y3396506
...
2
Assy, Tubing Evap Coil 7k WPL-Y3396000
...
3
Assy, Cap Tube/strainer WPL-Y3393803
...
4
Tubing, Condenser WPL-Y3393623
...
5
Assy, Suction Line WPL-Y3393700
...
6
Assy, Liquid Line WPL-Y3393800
...
7
Compressor WPL-BT9266113S
...
8
Switch, Overload (compressor) WPL-BT1243712
...
9
Gasket, Compressor (tec) WPL-BT1392604
...
10
Clip, Bulb WPL-BT1531802
...
11
Plastic Cover WPL-BT3055505
...
12
Nut, (tecumseh) WPL-BT1393000
...
13
Grommet. Comp WPL-A3448601
...
14
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704
...
15
Assy, Basepan WPL-3350201
...
16
Pan, Drain (styrofoam) WPL-BT3305000
