Amana TD523E (BOM: P7528801W)

Model: TD523E (BOM: P7528801W)

Save Part Not Listed?
product name

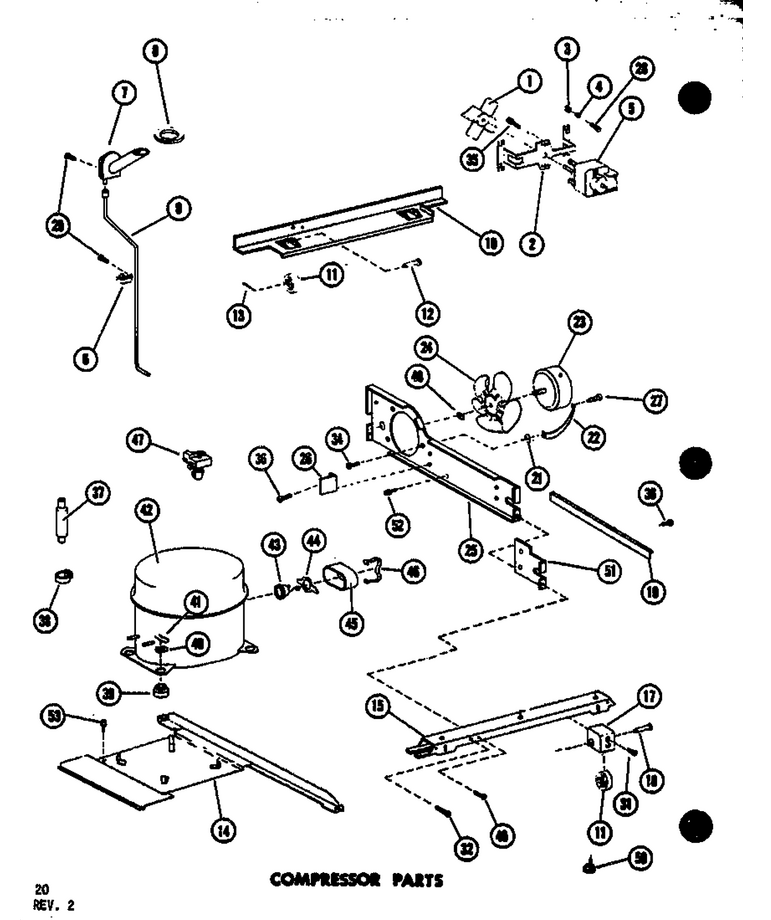

01 - Compressor Parts

...
...
1
Fan Blade WPL-B5622101
...
2
Bracket WPL-C3536203
...
3
Clip, Waterline WPL-12454802
...
4
Eyelet K WPL-A0381401
...
5
Motor 50 Cy WPL-D7241414
...
6
Clamp WPL-M0102303
...
7
Elbow,drain Tube WPL-C3630901
...
8
Gasket WPL-A3132301
...
9
Tube-Drain K WPL-C8721202
...
10
Rail Rear WPL-C3611303
...
11
Roller WPL-M0520102
...
12
Pivot Pin K WPL-M1210001
...
13
Cotter Pin K WPL-M1200001
...
14
Weld Comp Supt Pntd WPL-C8820410
...
15
Rail, Front WPL-D7003305
...
17
Roller Kit WPL-C8836302
...
18
Rivet WPL-M1205302
...
19
Seal-Fan Shroud Q WPL-B8314102
...
21
Grommet K WPL-M0500107
...
22
Bracket, Cond Motor WPL-B0598701
...
23
Fan Motor Assy Cond. WPL-C8736902
...
24
Blade, Fan WPL-B5742603
...
25
Shroud, Fan WPL-D7446702
...
26
Stop,drain Pan WPL-A3125701
...
27
Screw WPL-WPM0223816
...
28
Screw WPL-WP98165
...
29
Screw WPL-M0210916
...
31
Screw K WPL-M0236230
...
32
Screw WPL-M0294459
...
34
Screw Shoulder WPL-M0238833
...
35
Screw WPL-WP3400094
...
36
Screw WPL-WP90767
...
37
Drier WPL-WPB2150504
...
38
Clamp-Drier WPL-M0104002
...
39
Grommet K WPL-A4002702
...
40
Washer, Nylon K WPL-M0590101
...
41
Clip K WPL-A3140801
...
42
Compressor WPL-R0155070
...
43
Overload WPL-C8779806
...
44
Spring, Overload WPL-B8329601
...
45
Cover WPL-C8867301
...
46
Strap Bale WPL-B8329701
...
47
Relay WPL-C3689204
...
48
Nut A WPL-M0286003
...
49
Screw WPL-WP489464
...
50
Glider Bolt WPL-M0266510
...
51
Extension WPL-B5619802

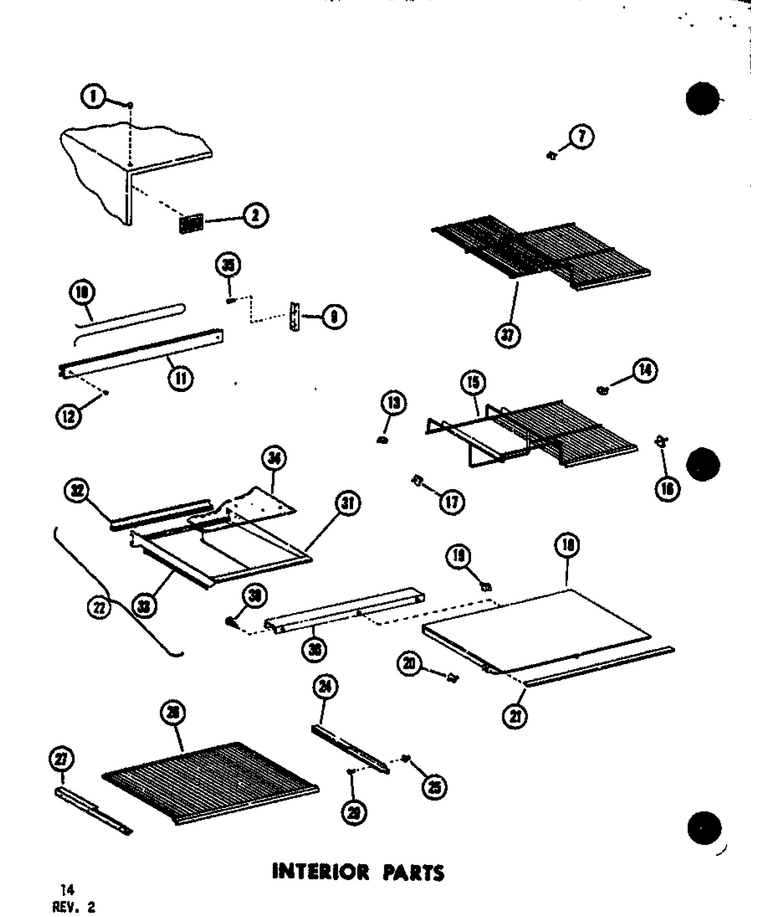

03 - Interior Parts

...
...
1
Plug WPL-M0310718
...
7
Shelf Support WPL-C3638101
...
9
Tap Strip-Hinge WPL-A3140702
...
10
Drier Mullion WPL-D7541703
...
11
Ctr Mullion WPL-C8807503
...
12
Plug WPL-M0310722
...
13
Support WPL-B5633001
...
14
Support WPL-B5633002
...
18
Top, Crisper WPL-D7497501
...
19
Support WPL-B5680001
...
21
Trim A WPL-B0570904
...
22
Glass Shelf Assy WPL-D7421403
...
31
Trim A WPL-C8835402
...
32
Trim-Shelf A WPL-D7415101
...
33
Frame WPL-D7420901
...
34
Glass Shelf WPL-D7421201
...
35
Screw WPL-M0250531
...
36
Ext-Top WPL-D7199302
...
37
Shelf WPL-D7387502
...
38
Screw K WPL-M0205441

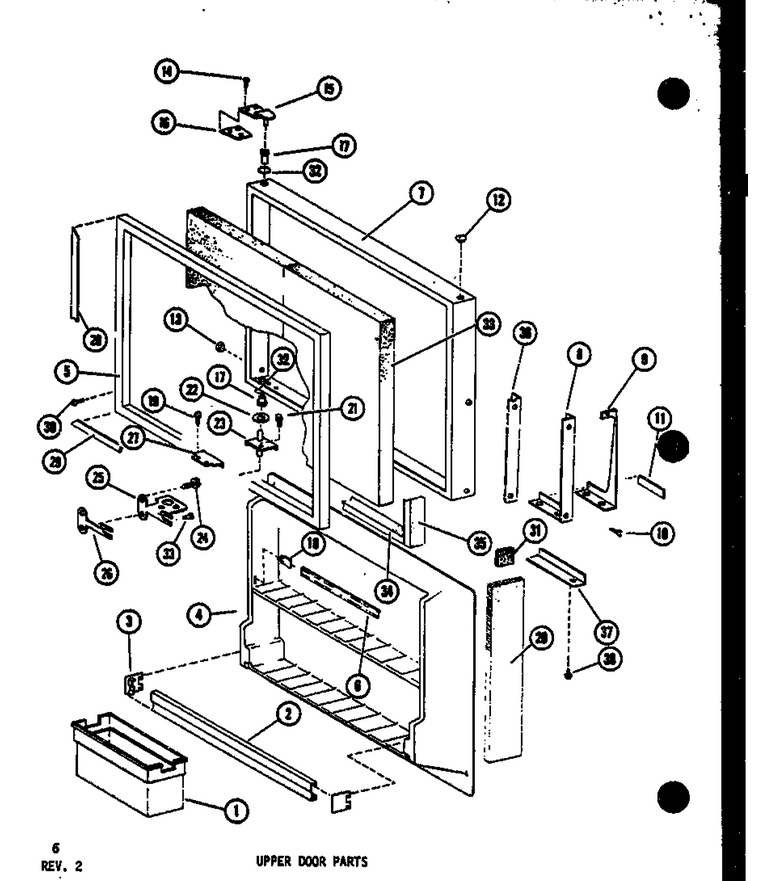

07 - Upper Door Parts

...
...
1
Ice Container WPL-D7442301
...
2
Retainer-Package WPL-D7415715
...
3
Support WPL-C3680907
...
4
Inner Dr Panel WPL-D7165203
...
5
Gasket, Door WPL-D3928225
...
7
Door Fr C-T-Tm18d WPL-D7437002
...
8
Handle Pad Kit WPL-D7257904
...
9
Handle WPL-D7254201
...
10
Screw WPL-M0203458
...
11
Nameplate WPL-C8836704
...
12
Plug WPL-M0310606
...
13
Plug Button (Almond) WPL-M0310730
...
14
Kit, Screw WPL-R9800670
...
15
Hinge WPL-B5744301
...
16
Shim-Top Hinge K WPL-A3270302
...
17
Bushing, Hinge Pin WPL-C3652901
...
20
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
21
Screw K WPL-M0205441
...
22
Washer Hinge K WPL-B5779601
...
23
Center Hinge Assy WPL-B5750901
...
24
Screw Phillips WPL-M0205731
...
25
Center Hinge Assy WPL-C8800201
...
26
Shim K WPL-A3143501
...
28
Retainer WPL-D3928101
...
29
Retainer Gasket WPL-D3928102
...
30
Screw WPL-WP98165
...
32
O Ring WPL-M0500902
...
33
Foam Slab WPL-D7349402

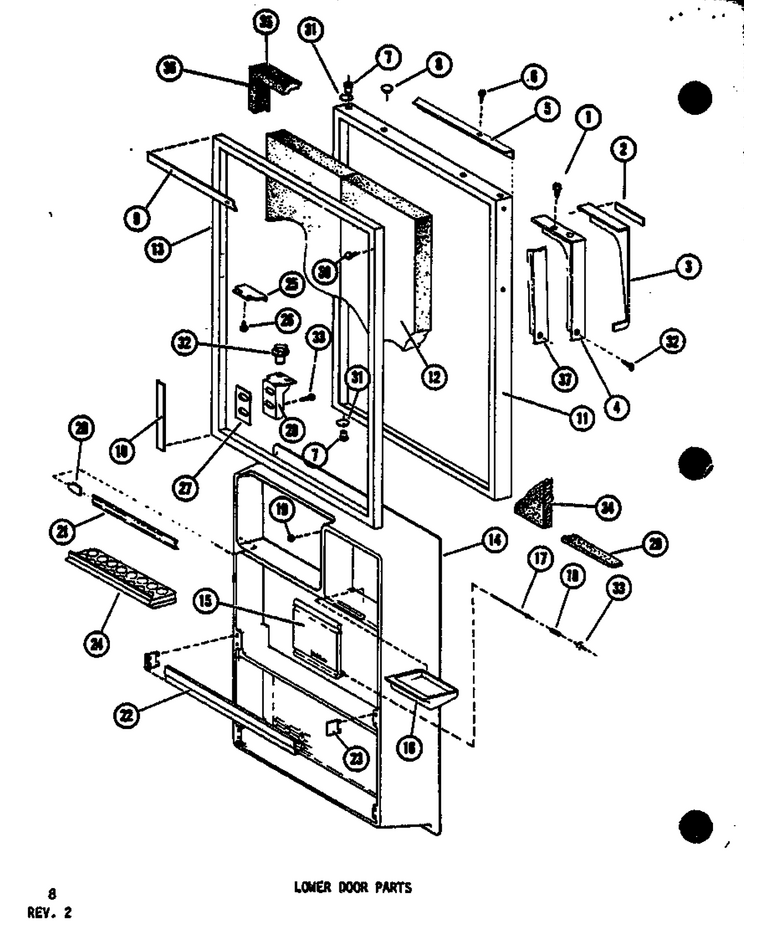

06 - Lower Door Parts

...
...
1
Screw WPL-M0222317
...
2
Name Plate Handle WPL-C8835801
...
3
Handle WPL-D7254202
...
4
Handle Pad Kit WPL-D7257903
...
7
Bushing WPL-C3652902
...
8
Plug Button (Almond) WPL-M0310730
...
9
Retainer Gasket WPL-D3928102
...
10
Retainer Gasket WPL-D3928104
...
11
Door Ref L-T Tm18d WPL-D7437010
...
12
Insulation WPL-B5683504
...
13
Gasket WPL-D3928205
...
14
Inner Dr Panel WPL-D7165306
...
15
Butter Door WPL-C8832804
...
16
Buttertray WPL-67004412A
...
17
Hinge Rod K WPL-A3056207
...
18
Spring A/k WPL-A3065201
...
19
Bumper WPL-A3059003
...
21
Retainer WPL-B8302604
...
22
Retainer-Package WPL-D7415716
...
23
Support- -Cream Rh WPL-B5631706
...
27
Shim WPL-A3143601
...
28
Bracket Hinge K WPL-C8814804
...
29
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
30
Screw WPL-WP98165
...
31
O Ring WPL-M0500902
...
32
Pin, Hinge K WPL-C8814901
...
33
Screw WPL-WP67006715

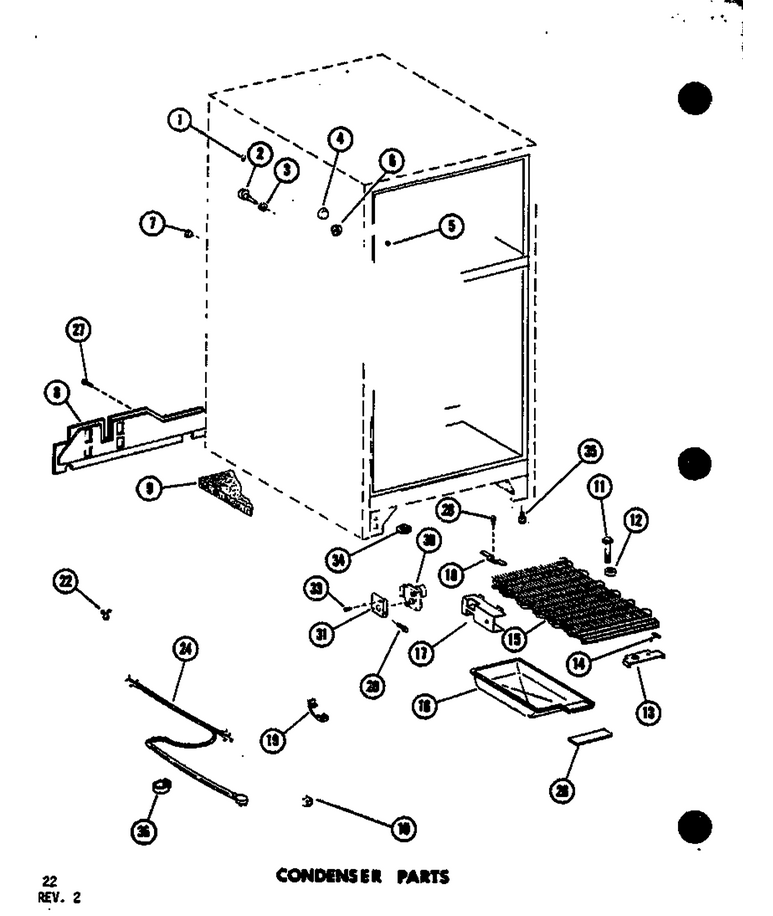

02 - Condenser Parts

...
...
NI
See Note Model Ic5-2 Mfg. No. P36415-6w Add On Ice-Maker Completeassy -- (Available From Sales) WPL-Y00000000
...
1
Plug WPL-M0310309
...
2
Fill Tube WPL-R0182123
...
3
Grommet WPL-A3138301
...
4
Cap Fill Tube WPL-B5631801
...
5
Button- Pl WPL-WP67001130
...
6
Cap WPL-B5636301
...
7
Plug, Button (Blk) WPL-A3080001
...
8
Back, Mach Compt K WPL-C3655001
...
9
Insulation M.c. A-K WPL-D7525101
...
10
Clip-Cable WPL-M0110505
...
11
Sems Fastner WPL-M0257039
...
12
Spacer WPL-A3013907
...
13
Bracket, Support WPL-A3085401
...
14
Nut A WPL-M0286003
...
15
Condenser Assy Pnt WPL-C8860803
...
16
Pan, Drain WPL-D7001001
...
17
Spacer WPL-B0544101
...
18
Clip-Cond WPL-A3054502
...
20
Screw WPL-WP489464
...
22
Lock, Purse WPL-74007369
...
24
Wiring Harness M.c WPL-D7530001
...
26
Pad A WPL-B5691701
...
27
Screw-Sm WPL-M0241118
...
28
Kit, Screw WPL-R9800670
...
30
Kit- Defro WPL-R0168028
...
31
Timer Bracket WPL-C3647902
...
33
Screw WPL-8169474

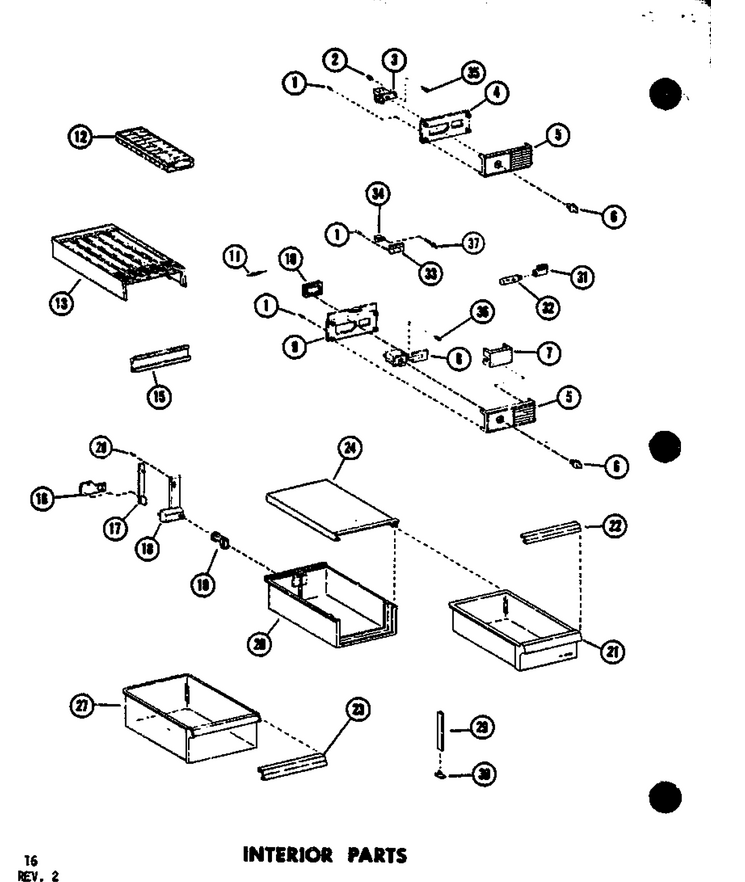

04 - Interior Parts

...
...
1
Clip WPL-M0113004
...
2
Grommet A WPL-M0580002
...
3
Control-Temp WPL-B0592309
...
4
Back Plate WPL-D7160902
...
5
Deflector WPL-D7417603
...
6
Knob WPL-D7009801
...
7
Cap K WPL-C3617201
...
8
Control, Damper WPL-C8876602
...
9
Back Plate WPL-D7058202
...
10
Gasket WPL-A3104502
...
11
Diode WPL-M0305301
...
12
Tray WPL-WP841180A
...
13
Net Tunnel, Ice Tray WPL-D7193001
...
15
Door-Fast Freeze WPL-C8847603
...
16
Gasket Slide K WPL-A3258401
...
17
Slide-Control WPL-B5622804
...
18
Escutcheon, Control WPL-B5656706
...
20
Sleeve, Meat Keeper WPL-D7001304
...
21
Pan, Meat Keeper WPL-D7425301
...
22
Trim-Handle A WPL-C8831704
...
23
Trim Crisper A WPL-C8831701
...
24
Top-Mt Kpr WPL-D7343603
...
27
Pan, Crisper WPL-D7425603
...
28
Clip WPL-M0113004
...
29
Support WPL-B0571002
...
30
Support WPL-B0571201
...
31
Socket WPL-B5637601
...
32
Light Bulb Q (25w/230v) WPL-A3079005
...
33
Escutcheon WPL-D7350802
...
34
Switch WPL-M0341801
...
35
Screw (3) WPL-67006425
...
36
Screw WPL-WP489349
...
37
Pop Rivet WPL-A4539616

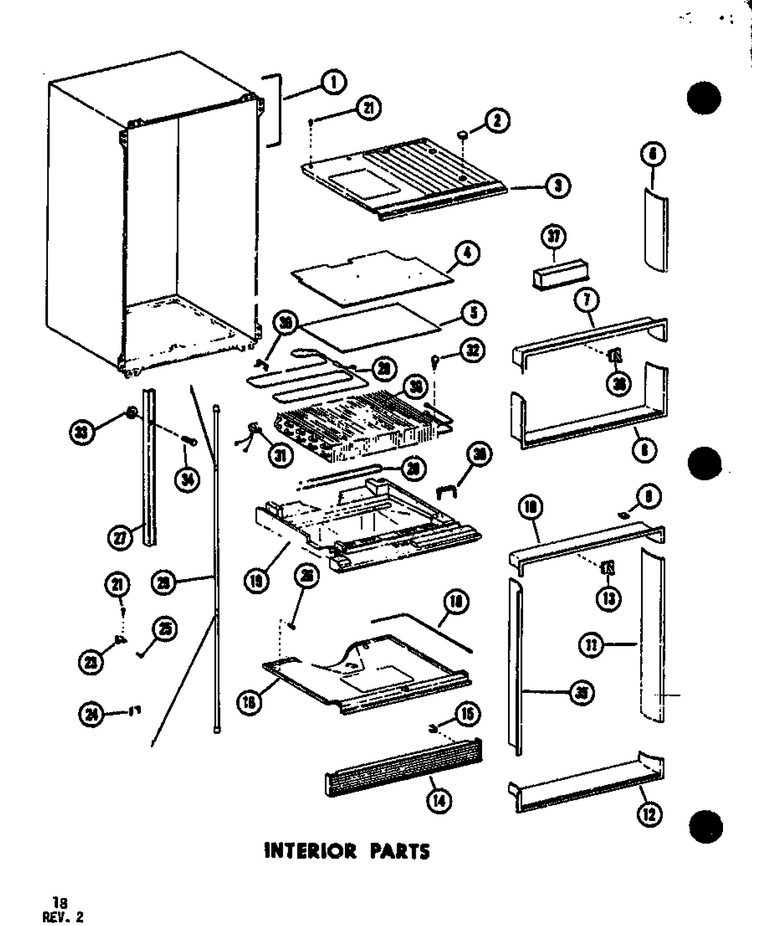

05 - Interior Parts

...
...
1
Heater Frz. Flange WPL-D7132304
...
2
Plug WPL-A3069103
...
3
Bottom Fz WPL-D7119101
...
4
Insulation WPL-B5682901
...
5
Barrier WPL-A3126001
...
8
Frame-Breaker-Rb WPL-D7463003
...
9
Clip WPL-M0113401
...
10
Frame-Breaker-Frt WPL-D7462901
...
11
Breaker Frame WPL-D7424102
...
12
Br Frame WPL-D7463101
...
13
Switch WPL-W11384469
...
14
Grille-Toe WPL-D7415402
...
15
Clip WPL-WPM0117303
...
16
Ref Top WPL-D7244302
...
18
Heater-Ref Top WPL-D7347902
...
19
Drain Block, Evaporator WPL-D7439101
...
20
Heater-Drip Tray WPL-C8708202
...
21
Screw (3) WPL-67006425
...
23
Clip WPL-M0116901
...
24
Clamp-Wiring WPL-A3195601
...
25
Screw WPL-WP489464
...
26
Screw WPL-WP90767
...
27
Ladder WPL-C8851801
...
28
Heater-Defrost WPL-C3660004
...
29
Heat Exchanger WPL-D7030302
...
30
Evaporator WPL-D7143121
...
31
Thermostat-Defrost WPL-C8731901
...
32
Screw WPL-W11233072
...
33
Nut WPL-WP486255
...
34
Stud WPL-M0258801
...
35
Breaker Frame WPL-D7424103
...
36
Switch WPL-C3680306
...
37
Cover-Switch WPL-B5743601
