Amana TD518E (BOM: P7528802W)

Model: TD518E (BOM: P7528802W)

Save Part Not Listed?
product name

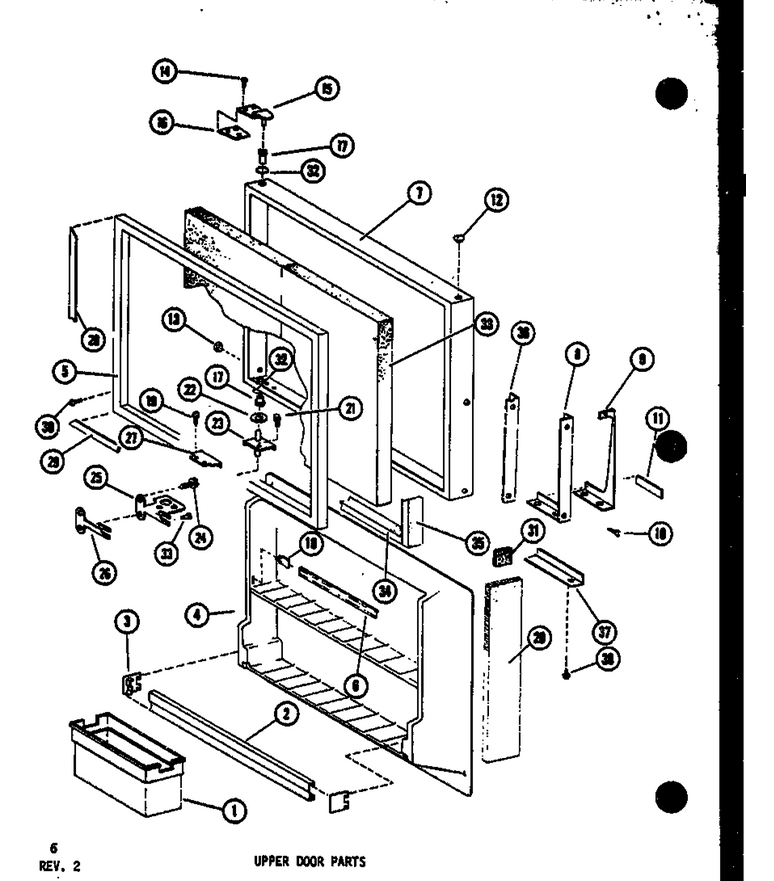

02 - Upper Door Parts

...
...
1
Ice Container WPL-D7442301
...
2
Retainer WPL-D7415706
...
3
Support WPL-C3680907
...
4
Inner Dr Panel WPL-D7213502
...
5
Gasket WPL-D7431907Q
...
6
Retainer WPL-B8302603
...
7
D00r Fr C-T Td23c WPL-D7394507
...
9
Handle K WPL-D7145801
...
10
Screw WPL-M0203458
...
11
Nameplate, Handle WPL-C8836803
...
12
Plug WPL-M0310609
...
13
Plug WPL-M0310717
...
14
Kit, Screw WPL-R9800670
...
15
Hinge WPL-B5744301
...
16
Shim-Top Hinge K WPL-A3270302
...
17
Bushing, Hinge Pin WPL-C3652901
...
18
Support K WPL-B0530006
...
19
Machine Screw WPL-M0205631
...
20
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
21
Screw K WPL-M0205441
...
22
Washer Hinge K WPL-B5779601
...
23
Center Hinge Assy WPL-B5750901
...
24
Screw Phillips WPL-M0205731
...
25
Center Hinge Assy WPL-C8800201
...
26
Shim K WPL-A3143501
...
27
Stop Door WPL-A3139801
...
28
Retainer Gasket WPL-D3928108
...
29
Retainer Gasket WPL-D3928102
...
30
Screw WPL-WP98165
...
31
Insulation WPL-A3257701
...
32
O Ring WPL-M0500902
...
33
Insulation WPL-B5612016
...
34
Insulation WPL-B5629025
...
35
Insulation WPL-B5629026
...
36
Trim WPL-B5640304
...
37
Trim WPL-D7056502
...
38
Screw WPL-M0214028

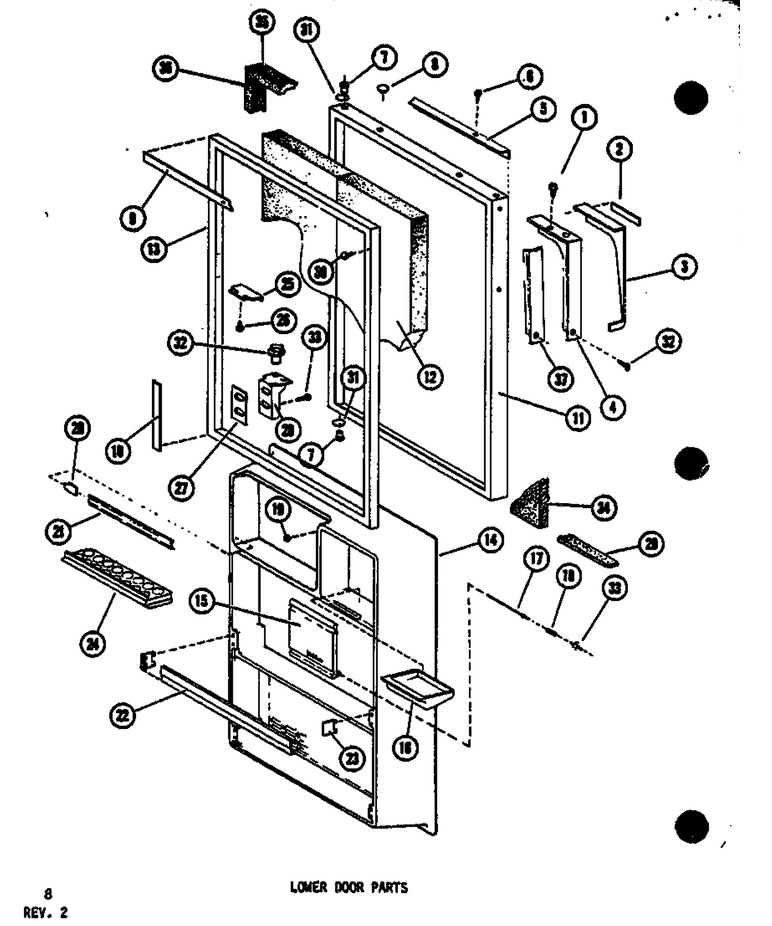

01 - Lower Door Parts

...
...
1
Screw WPL-M0203458
...
2
Nameplate WPL-C8835901
...
3
Handle K WPL-D7145802
...
5
Trim WPL-D7056502
...
6
Screw WPL-M0214028
...
7
Bushing, Hinge Pin WPL-C3652901
...
9
Retainer Gasket WPL-D3928102
...
10
Retainer Gasket WPL-D3928106
...
11
Door Ref G-T-Td23c WPL-D7394520
...
12
Insulation WPL-B5612017
...
13
Gasket WPL-D3928207
...
14
Inner Door Panel WPL-D7165103
...
15
Butter Door K WPL-C8832803
...
16
Buttertray WPL-67004412A
...
17
Hinge Rod K WPL-A3056207
...
18
Spring A/k WPL-A3065201
...
19
Bumper WPL-A3059003
...
20
Support K WPL-B0530006
...
21
Retainer WPL-B8302604
...
22
Retainer WPL-D7415709
...
23
Support- -Cream Rh WPL-B5631706
...
24
Egg Tray WPL-D7466601
...
25
Stop Door WPL-A3139801
...
26
Machine Screw WPL-M0205631
...
27
Shim WPL-A3143603
...
28
Bracket Hinge K WPL-C8814804
...
29
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
30
Screw WPL-WP98165
...
31
O Ring WPL-M0500902
...
32
Pin, Hinge K WPL-C8814901
...
33
Screw WPL-WP67006715
...
34
Insulation WPL-B5726102
...
35
Sub To B5629044 WPL-B5629024
...
36
Insulation WPL-B5629025
...
37
Trim WPL-B5640301
