Amana TD23F (BOM: P7528806W)

Model: TD23F (BOM: P7528806W)

Save Part Not Listed?
product name

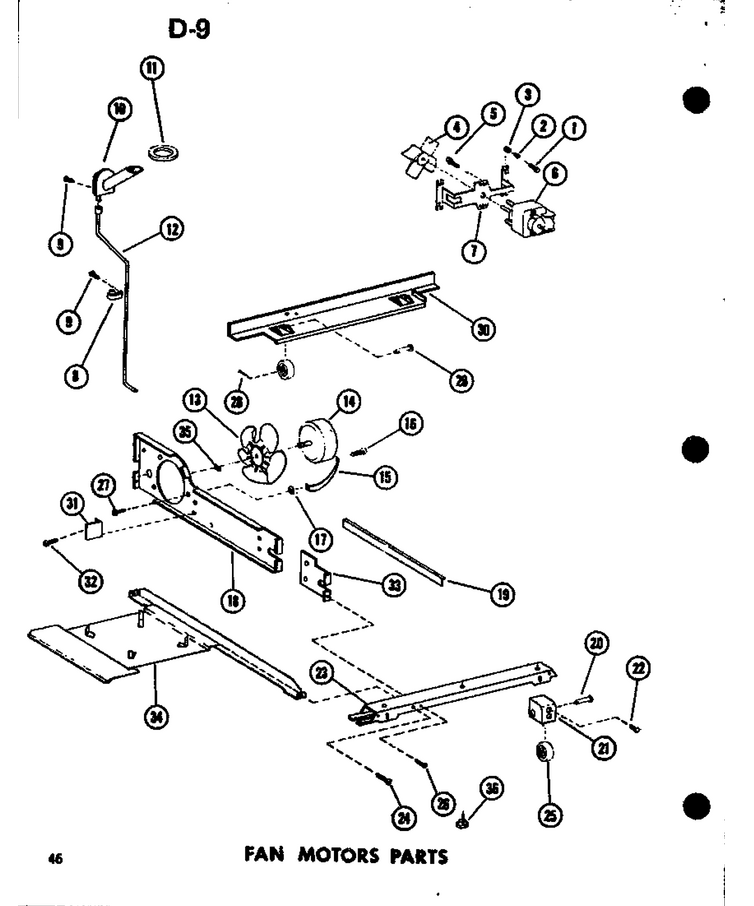

02 - Fan Motors Parts

...
...
1
Screw WPL-WP98165
...
2
Eyelet K WPL-A0381401
...
3
Clip, Waterline WPL-12454802
...
4
Fan Blade WPL-B5622101
...
5
Screw WPL-WP3400094
...
6
Motor WPL-D7256203
...
7
Bracket WPL-C3536203
...
8
Clamp WPL-M0102303
...
9
Screw WPL-M0210916
...
10
Elbow,drain Tube WPL-C3630901
...
11
Gasket WPL-A3132301
...
12
Tube-Drain K WPL-C8721202
...
13
Blade, Fan WPL-B5742603
...
14
Motor-Cond WPL-833697
...
15
Bracket, Cond Motor WPL-B0598701
...
16
Screw WPL-WPM0223816
...
17
Grommet K WPL-M0500107
...
18
Shroud, Fan WPL-D7446701
...
19
Seal-Fan Shroud Q WPL-B8314102
...
20
Rivet WPL-M1205302
...
21
Roller Kit WPL-C8836302
...
22
Screw K WPL-M0236230
...
23
Front Rail WPL-D7003301
...
24
Screw WPL-M0294459
...
25
Roller WPL-M0520102
...
26
Screw WPL-WP489464
...
27
Screw Shoulder WPL-M0238833
...
28
Cotter Pin K WPL-M1200001
...
29
Pivot Pin K WPL-M1210001
...
30
Rail, Rear WPL-C3611301
...
31
Stop,drain Pan WPL-A3125701
...
32
Screw WPL-WP90767
...
33
Extension WPL-B5619802
...
34
Weld Comp Supt Pntd WPL-C8820402
...
35
Nut A WPL-M0286003
...
36
Glider Bolt WPL-M0266510

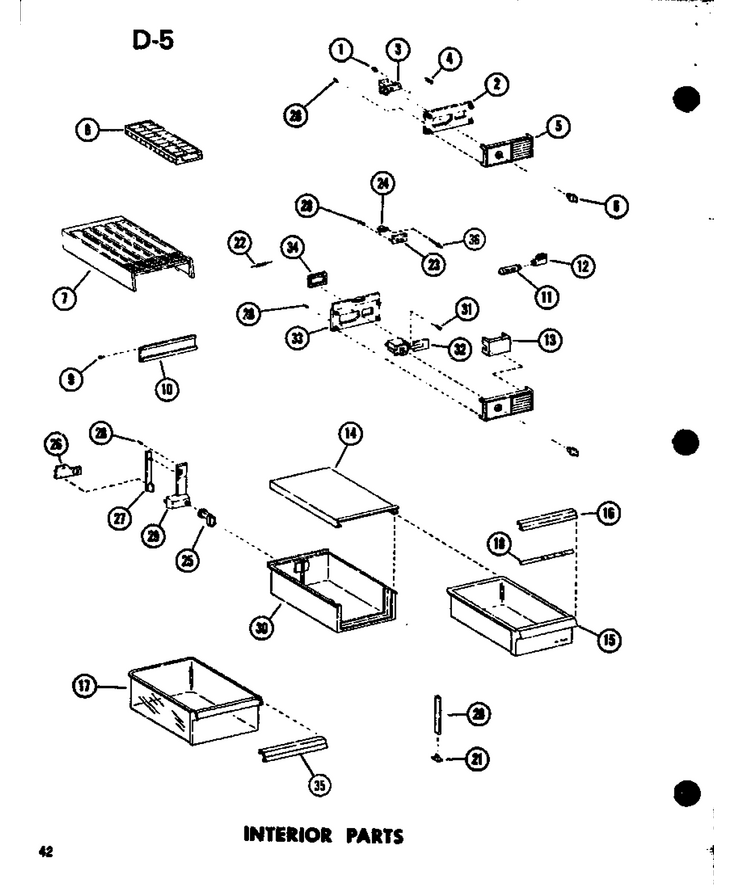

04 - Interior Parts

...
...
1
Grommet A WPL-M0580002
...
2
Back Plate Defect WPL-D7160903
...
3
Control-Temp WPL-B0592303
...
4
Screw WPL-WP90767
...
5
Deflector, Air WPL-D7557301
...
6
Knob WPL-D7009801
...
7
Tunnel Ice Tray K WPL-D7552901
...
8
Tray WPL-WP841180A
...
9
Hinge Pin WPL-A3214701
...
10
Door Ice Tunnel K WPL-C8847604
...
11
Bulb-Light WPL-WPA3073101
...
12
Socket WPL-B5637601
...
13
Cap K WPL-C3617201
...
14
Top-Mt Kpr WPL-D7343603
...
15
Pan, Meat Keeper WPL-D7425301
...
16
Trim-Handle A WPL-C8831704
...
17
Pan, Crisper WPL-D7425604
...
18
Gasket (Per Foot) WPL-A3030313
...
20
Support WPL-B0571002
...
21
Support, Crisper Post WPL-D0571201
...
22
Diode WPL-M0305301
...
23
Escutcheon WPL-D7350802
...
24
Switch WPL-M0341801
...
25
Grommet-Mt Kpr WPL-C8703301
...
26
Gasket Slide K WPL-A3258401
...
27
Slide-Control WPL-B5622804
...
28
Clip WPL-M0113004
...
29
Meatkeeper Assy WPL-B5656708
...
30
Sleeve, Meat Keeper WPL-D7001304
...
31
Screw WPL-WP489349
...
32
Control, Damper WPL-C8876602
...
33
Back Plate Defect WPL-D7058203
...
34
Gasket WPL-A3104502
...
35
Trim Crisper A WPL-C8831701
...
36
Pop Rivet WPL-A4539616

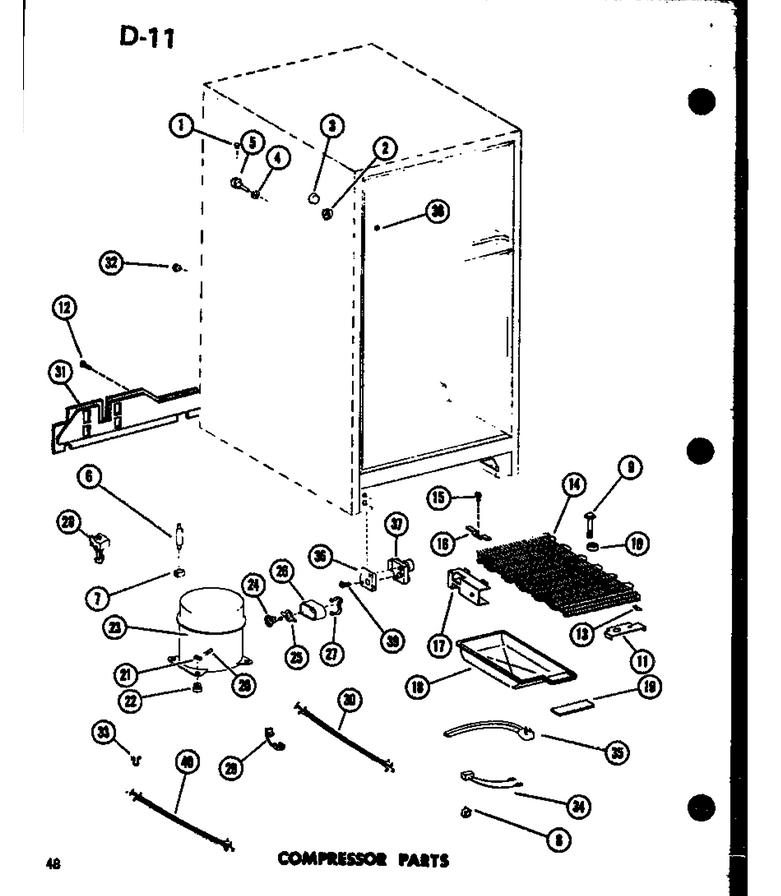

01 - Compressor Parts

...
...
NI
See Note Model Ic-2, Mfg No P36415-5w, Add On Ice-Maker Complete Assy -- (Available From Sales) (See Page 50) WPL-Y00000000
...
1
Plub Button WPL-M0310315
...
2
Cap WPL-B5636301
...
3
Cap Fill Tube WPL-B5631801
...
4
Grommet WPL-A3138301
...
5
Fill Tube WPL-R0182123
...
6
Drier WPL-WPB2150504
...
7
Clamp-Drier WPL-M0104002
...
8
Clip-Cable WPL-M0110505
...
9
Sems Fastner WPL-M0257039
...
10
Spacer WPL-A3013906
...
11
Bracket, Support WPL-A3085401
...
12
Screw-Sm WPL-M0241118
...
13
Nut A WPL-M0286003
...
14
Condenser Assy Pnt WPL-C8860803
...
15
Kit, Screw WPL-R9800670
...
16
Clip-Cond WPL-A3054502
...
17
Spacer WPL-B0544101
...
18
Pan, Drain WPL-D7001001
...
19
Pad A WPL-B5691701
...
20
Clip K WPL-A3140801
...
21
Washer, Nylon K WPL-M0590101
...
22
Grommet K WPL-A3026101
...
23
Compressor WPL-C3667102H
...
24
Overload WPL-C3689105
...
25
Spring K WPL-A3043601
...
26
Terminal Cover WPL-B0551801
...
27
Strap K WPL-A3041801
...
28
Relay K WPL-C3689202
...
29
Grommet, Cord WPL-211881
...
30
Wiring Harness WPL-D7549901
...
31
Back, Mach Compt K WPL-C3655001
...
32
Plug, Button (Wht) WPL-A3080002
...
33
Lock, Purse WPL-74007369
...
34
Wiring Harness WPL-B5730802
...
35
Power Cord WPL-R0157154
...
36
Bracket, Defrost Timer WPL-C3657902
...
37
Timer-Def WPL-R0131577
...
38
Button- Pl WPL-WP67001130
...
39
Screw,tc WPL-M0230017
...
40
Wiring Harness, Machine Compar WPL-D7528102

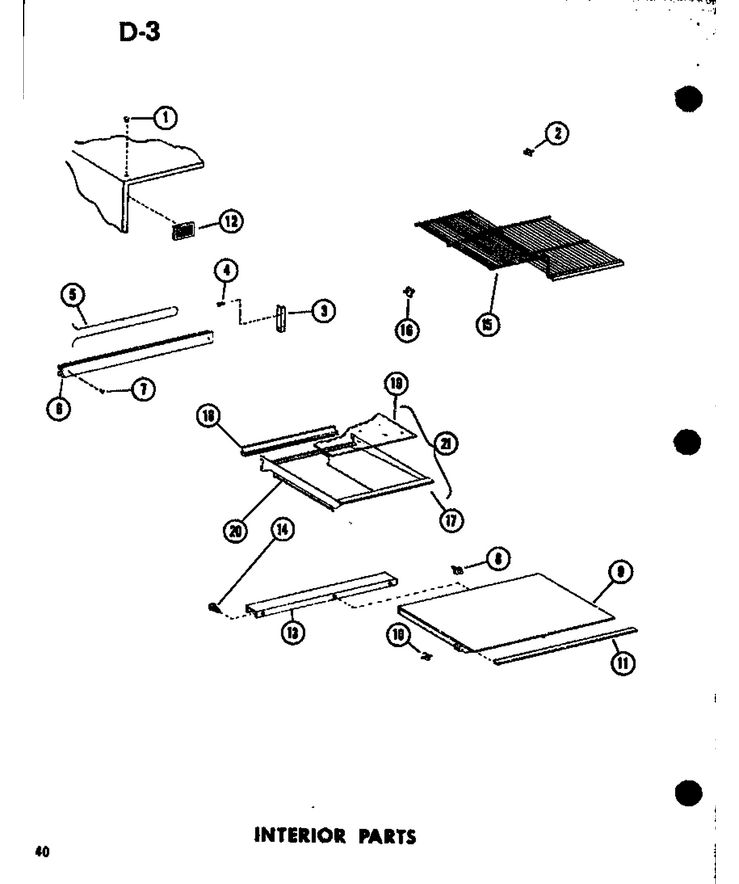

03 - Interior Parts

...
...
1
Plug WPL-M0310720
...
2
Shelf Support WPL-C3638101
...
3
Top Strip Hinge WPL-B8353401
...
4
Screw WPL-M0250531
...
5
Drier, Mullion WPL-D7541701
...
6
Ctr Mullion WPL-C8807503
...
7
Plug WPL-M0310722
...
8
Support WPL-B5680001
...
9
Top, Crisper WPL-D7497501
...
10
Support WPL-B0570501
...
11
Trim A WPL-B0570904
...
12
Grille WPL-C3601801
...
13
Ext-Top WPL-D7199302
...
14
Screw K WPL-M0205441
...
15
Shelf WPL-D7387502
...
16
Support, Shelf WPL-12258501
...
17
Trim A WPL-C8835402
...
18
Trim-Shelf A WPL-D7415101
...
19
Glass Shelf WPL-D7421202
...
20
Frame WPL-D7420702
...
21
Glass Shelf Assy WPL-D7421401

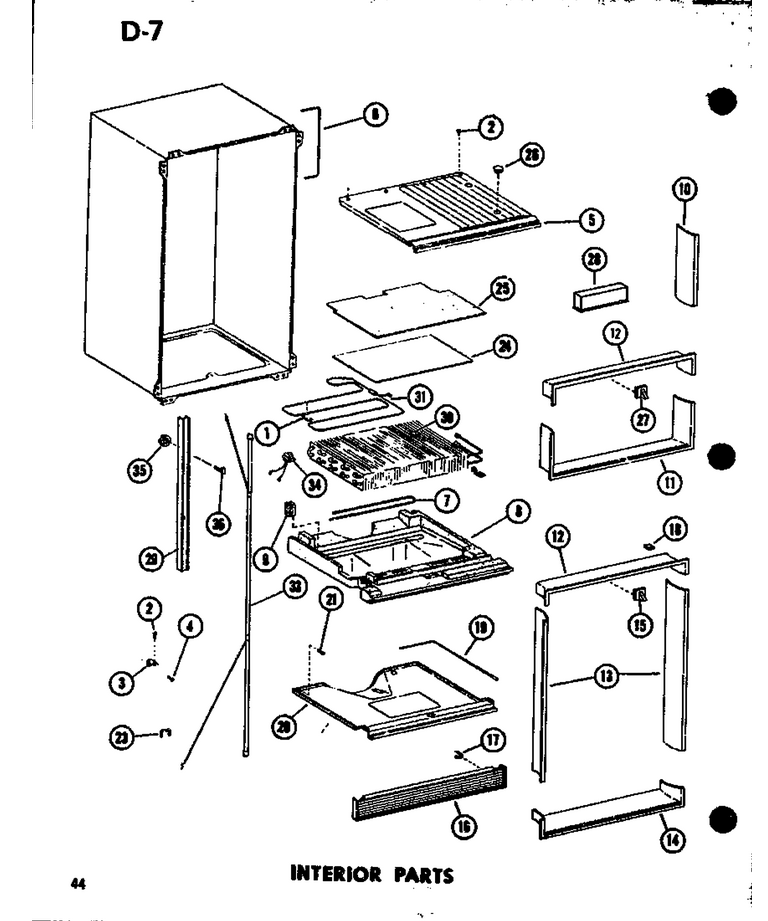

05 - Interior Parts

...
...
1
Clip WPL-M0110301
...
2
Screw (3) WPL-67006425
...
3
Clip WPL-M0116901
...
4
Screw WPL-WP489464
...
5
Freezer Bottom WPL-D7199101
...
6
Heater-Fr Flange WPL-D7350401
...
7
Heater-Drip Tray WPL-C8708201
...
8
Drain Block, Evaporator WPL-D7439101
...
9
Gasket-Cavity Top WPL-10839709
...
10
Breaker Frame WPL-D7424103
...
11
Frame-Breaker-Rb WPL-D7463003
...
12
Frame-Breaker-Frt WPL-D7462901
...
13
Breaker Frame WPL-D7424102
...
14
Br Frame WPL-D7463101
...
15
Switch WPL-W11384469
...
16
Grille-Toe WPL-D7415412
...
17
Clip WPL-WPM0117303
...
18
Clip WPL-M0113401
...
19
Heater Ref. Top WPL-D7347904
...
20
Ref Top WPL-D7244302
...
21
Screw WPL-WP90767
...
22
Clamp, Tube WPL-A3253801
...
23
Clamp-Wiring WPL-A3195601
...
24
Barrier WPL-A3126001
...
25
Insulation WPL-B5682901
...
26
Plug WPL-A3069103
...
27
Switch WPL-C3680306
...
28
Cover-Switch WPL-B5743601
...
29
Ladder WPL-C8851801
...
30
Evaporator WPL-D7143121
...
31
Heater Def K WPL-C3660003
...
32
Screw WPL-W11233072
...
33
Heat Exchanger WPL-D7030302
...
34
Thermostat-Defrost WPL-C8731901
...
35
Nut WPL-WP486255
...
36
Stud WPL-M0258801

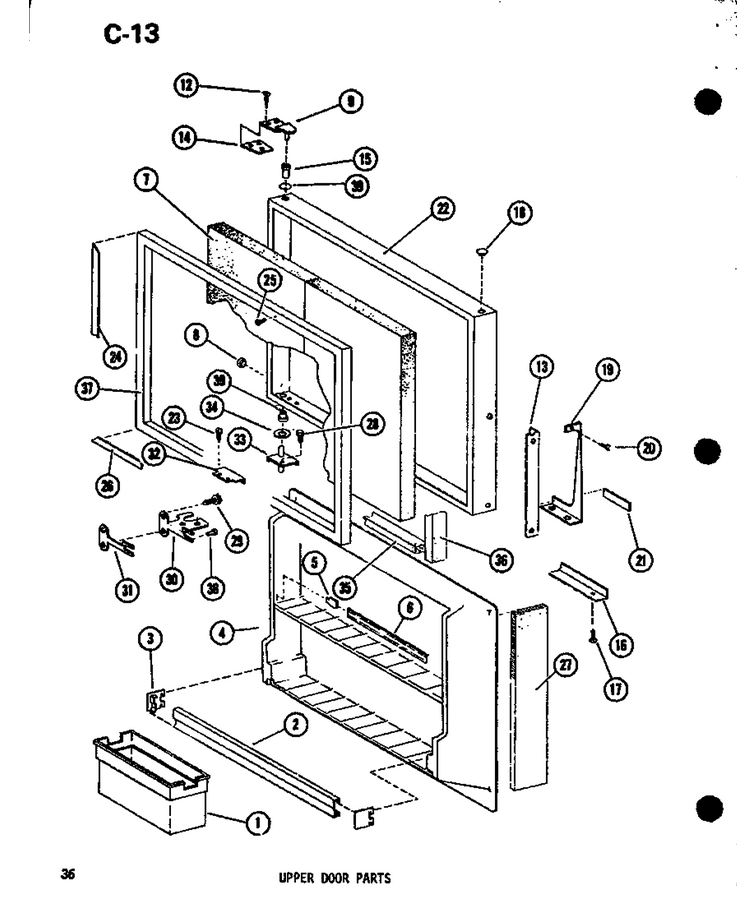

07 - Upper Door Parts

...
...
1
Ice Container WPL-D7442301
...
2
Retainer WPL-D7415706
...
3
Support WPL-C3680907
...
4
Inner Dr Panel WPL-D7213502
...
5
Support K WPL-B0530006
...
6
Retainer WPL-B8302603
...
7
Insulation WPL-B5612016
...
8
Plug WPL-M0310725
...
9
Hinge WPL-B5744301
...
12
Kit, Screw WPL-R9800670
...
13
Trim WPL-C8888503
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Bushing, Hinge Pin WPL-C3652901
...
16
Trim WPL-C8888401
...
17
Screw WPL-74009538
...
18
Plug WPL-M0310606
...
19
Handle K WPL-D7570201
...
20
Screw WPL-M0203458
...
21
Nameplate WPL-C8894203
...
22
Door Fr L-T-Td23f WPL-D7370626
...
23
Machine Screw WPL-M0205631
...
24
Retainer Gasket WPL-D3928113
...
25
Screw WPL-WP98165
...
26
Retainer Gasket WPL-D3928102
...
27
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
28
Screw K WPL-M0205441
...
29
Screw Phillips WPL-M0205731
...
30
Center Hinge Assy WPL-C8800201
...
31
Shim K WPL-A3143501
...
32
Door Stop WPL-C8894801
...
33
Center Hinge Assy WPL-B5750901
...
34
Washer Hinge K WPL-B5779601
...
35
Insulation WPL-B5629025
...
36
Insulation WPL-B5629026
...
37
Gasket WPL-D7431909Q
...
38
Kit, Screw WPL-R9800670
...
39
O Ring WPL-M0500902

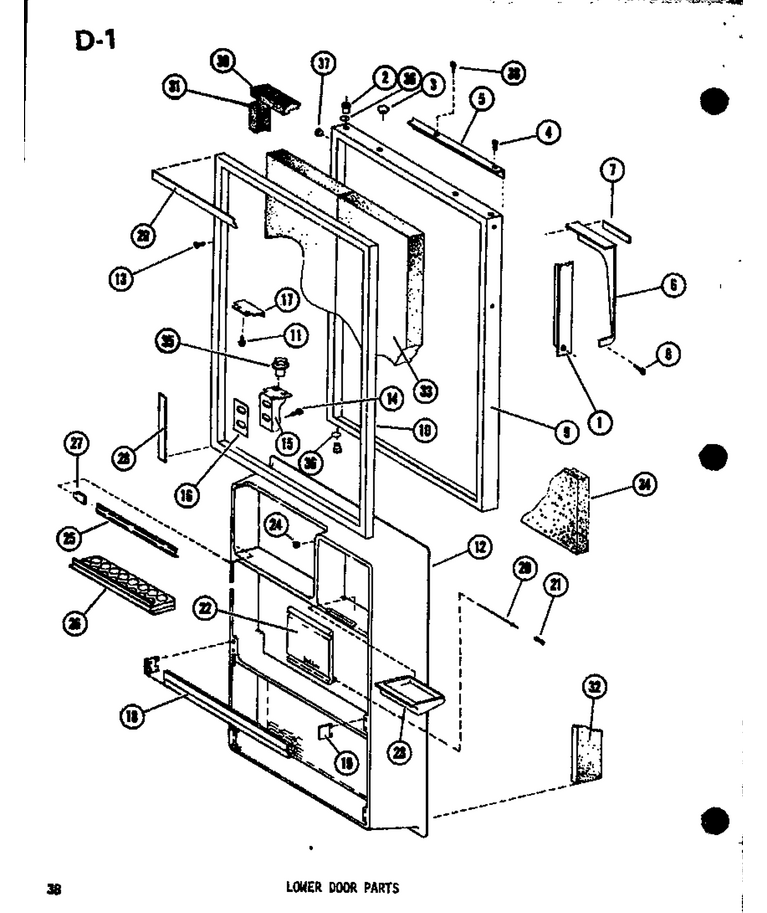

06 - Lower Door Parts

...
...
1
Trim WPL-C8888502
...
2
Bushing, Hinge Pin WPL-C3652901
...
3
Plug WPL-M0310713
...
4
Screw WPL-74009538
...
5
Trim WPL-C8888301
...
6
Handle K WPL-D7570202
...
7
Nameplate WPL-C8894301
...
8
Screw WPL-M0203458
...
9
Door Ref W-T-Td23f WPL-D7370628
...
10
Gasket, Door WPL-D3928228
...
11
Machine Screw WPL-M0205631
...
12
Inner Dr Panel WPL-D7213602
...
13
Screw WPL-WP98165
...
14
Screw WPL-WP67006715
...
15
Bracket Hinge K WPL-C8814804
...
16
Shim WPL-A3143601
...
17
Door Stop WPL-C8894801
...
18
Retainer WPL-D7415709
...
19
Support - Cream Lh WPL-B5631705
...
20
Hinge Rod K WPL-A3056207
...
21
Spring A/k WPL-A3065201
...
22
Butter Door K WPL-C8832803
...
23
Buttertray WPL-67004412A
...
24
Bumper WPL-A3059003
...
25
Retainer WPL-B8302604
...
26
Egg Tray WPL-D7466601
...
27
Support K WPL-B0530006
...
28
Retainer Gasket WPL-D3928107
...
29
Retainer Gasket WPL-D3928102
...
30
Sub To B5629044 WPL-B5629024
...
31
Insulation WPL-B5629025
...
32
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
33
Insulation WPL-B5612017
...
34
Insulation WPL-B5726102
...
35
Pin, Hinge K WPL-C8814901
...
36
O Ring WPL-M0500902
...
37
Plug WPL-M0310725
...
38
Screw WPL-M0203216
