Amana TD23D (BOM: P7466006W)

Model: TD23D (BOM: P7466006W)

Save Part Not Listed?
product name

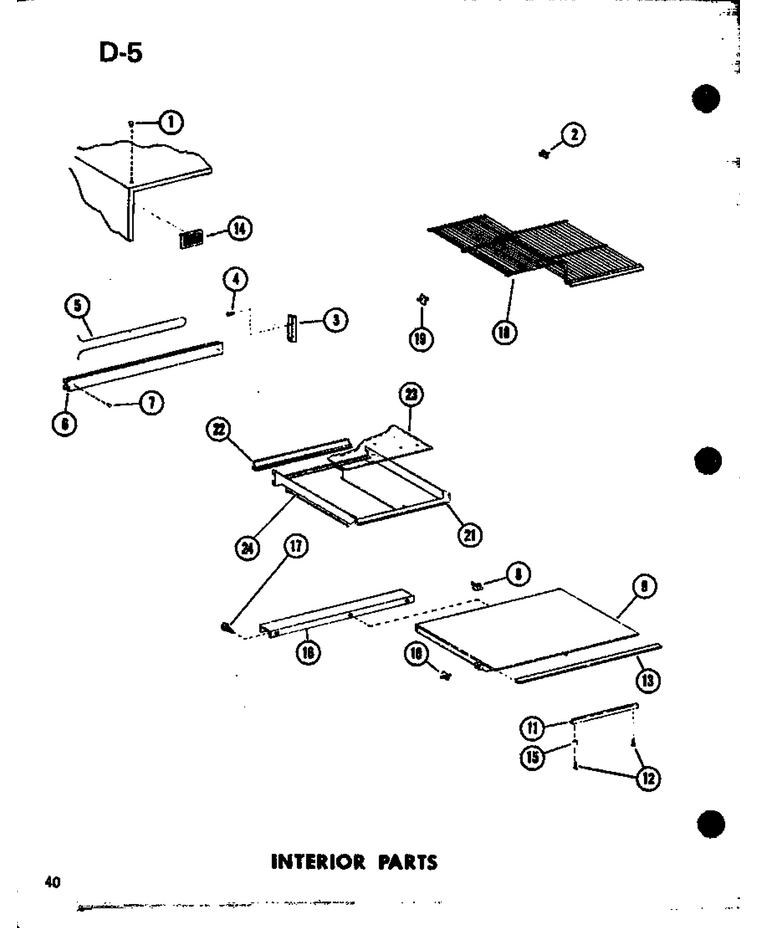

04 - Interior Parts

...
...
1
Grommet A WPL-M0580002
...
2
Back Plate WPL-D7160902
...
3
Control-Temp WPL-B0592303
...
4
Screw WPL-WP90767
...
5
Deflector WPL-D7417603
...
6
Knob WPL-D7009801
...
7
Net Tunnel, Ice Tray WPL-D7193001
...
8
Tray WPL-WP841180A
...
9
Hinge Pin WPL-A3214701
...
10
Door-Fast Freeze WPL-C8847603
...
11
Bulb-Light WPL-WPA3073101
...
12
Socket WPL-B5637601
...
13
Cap K WPL-C3617201
...
14
Top-Mt Kpr WPL-D7343603
...
15
Pan, Meat Keeper WPL-D7425301
...
16
Trim-Handle A WPL-C8831704
...
17
Pan, Crisper WPL-D7425603
...
18
Gasket (Per Foot) WPL-A3030313
...
20
Support WPL-B0571002
...
21
Support WPL-B0571201
...
22
Diode WPL-M0305301
...
23
Escutcheon WPL-D7350802
...
24
Switch WPL-M0341801
...
25
Grommet-Mt Kpr WPL-C8703301
...
26
Gasket Slide K WPL-A3258401
...
27
Slide-Control WPL-B5622804
...
28
Clip WPL-M0113004
...
29
Escutcheon, Control WPL-B5656706
...
30
Sleeve, Meat Keeper WPL-D7343702
...
31
Screw WPL-M0218116
...
32
Control, Damper WPL-C8876602
...
33
Back Plate WPL-D7058202
...
34
Gasket WPL-A3104502

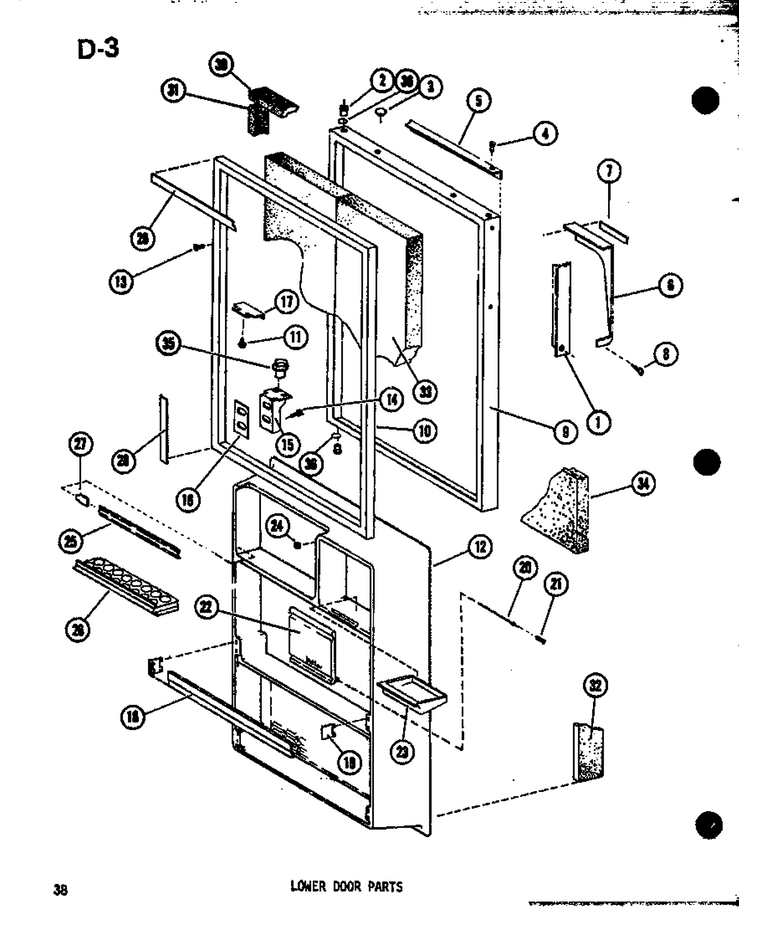

06 - Lower Door Parts

...
...
1
Trim WPL-B5640302
...
2
Bushing, Hinge Pin WPL-C3652901
...
3
Plug WPL-M0310713
...
4
Screw WPL-M0214028
...
5
Trim-Door WPL-D7056509
...
6
Handle K WPL-D7145802
...
7
Nameplate WPL-C8835901
...
8
Screw WPL-M0203458
...
9
Door Ref Av-T Td23c WPL-D7394519
...
10
Gasket WPL-D3928207
...
11
Machine Screw WPL-M0205631
...
12
Inner Dr Panel WPL-D7213602
...
13
Screw WPL-WP98165
...
14
Screw WPL-WP67006715
...
15
Bracket Hinge K WPL-C8814804
...
16
Shim WPL-A3143603
...
17
Stop Door WPL-A3139801
...
18
Retainer WPL-D7415709
...
19
Support - Cream Lh WPL-B5631705
...
20
Hinge Rod K WPL-A3056207
...
21
Spring A/k WPL-A3065201
...
22
Butter Door K WPL-C8832803
...
23
Buttertray WPL-67004412A
...
24
Bumper WPL-A3059003
...
25
Retainer WPL-B8302604
...
26
Egg Tray WPL-D7466601
...
27
Support K WPL-B0530006
...
28
Retainer Gasket WPL-D3928107
...
29
Retainer Gasket WPL-D3928102
...
30
Sub To B5629044 WPL-B5629024
...
31
Insulation WPL-B5629025
...
32
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
33
Insulation WPL-B5612017
...
34
Insulation WPL-B5726102
...
35
Pin, Hinge K WPL-C8814901
...
36
O Ring WPL-M0500902

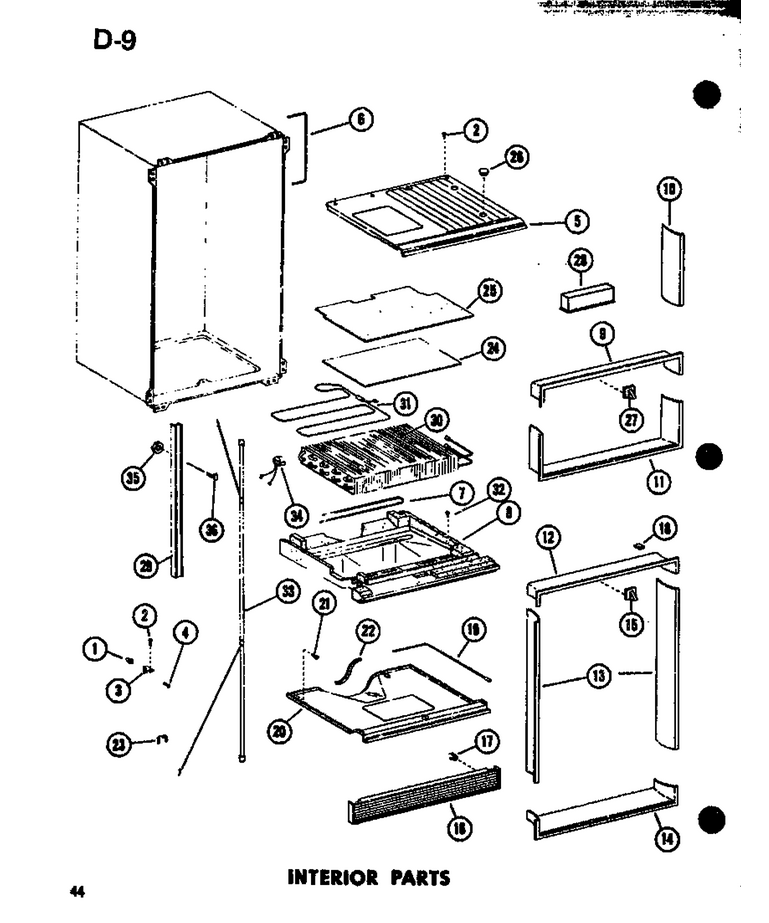

05 - Interior Parts

...
...
1
Grommet WPL-A0288701
...
2
Screw (3) WPL-67006425
...
3
Clip WPL-M0116901
...
4
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
5
Freezer Bottom WPL-D7199101
...
6
Heater-Fr Flange WPL-D7350401
...
7
Heater-Drip Tray WPL-C8708201
...
8
Drain Block, Evaporator WPL-D7439101
...
9
Frame-Breaker-Frt WPL-D7462901
...
10
Breaker Frame WPL-D7424103
...
11
Frame-Breaker-Rb WPL-D7463003
...
12
Frame-Breaker-Frt WPL-D7462901
...
13
Breaker Frame WPL-D7424102
...
14
Br Frame WPL-D7463101
...
15
Switch WPL-W11384469
...
16
Grille-Toe WPL-D7415402
...
17
Clip WPL-WPM0117303
...
18
Clip WPL-M0113401
...
19
Heater-Ref Top K WPL-D7347903
...
20
Ref Top WPL-D7244302
...
21
Screw WPL-WP489464
...
22
Gasket (Per Foot) WPL-A3030313
...
23
Clamp-Wiring WPL-A3195601
...
24
Barrier WPL-A3126001
...
25
Insulation WPL-B5682901
...
26
Plug WPL-A3069103
...
27
Switch WPL-C3680306
...
28
Cover-Switch WPL-B5743601
...
29
Ladder WPL-C8851801
...
30
Evaporator WPL-D7143121
...
31
Heater Def K WPL-C3660003
...
32
Screw WPL-W11233072
...
33
Heat Exchanger WPL-D7030302
...
34
Thermostat-Defrost WPL-C8731901
...
35
Nut WPL-WP486255
...
36
Stud WPL-M0258801

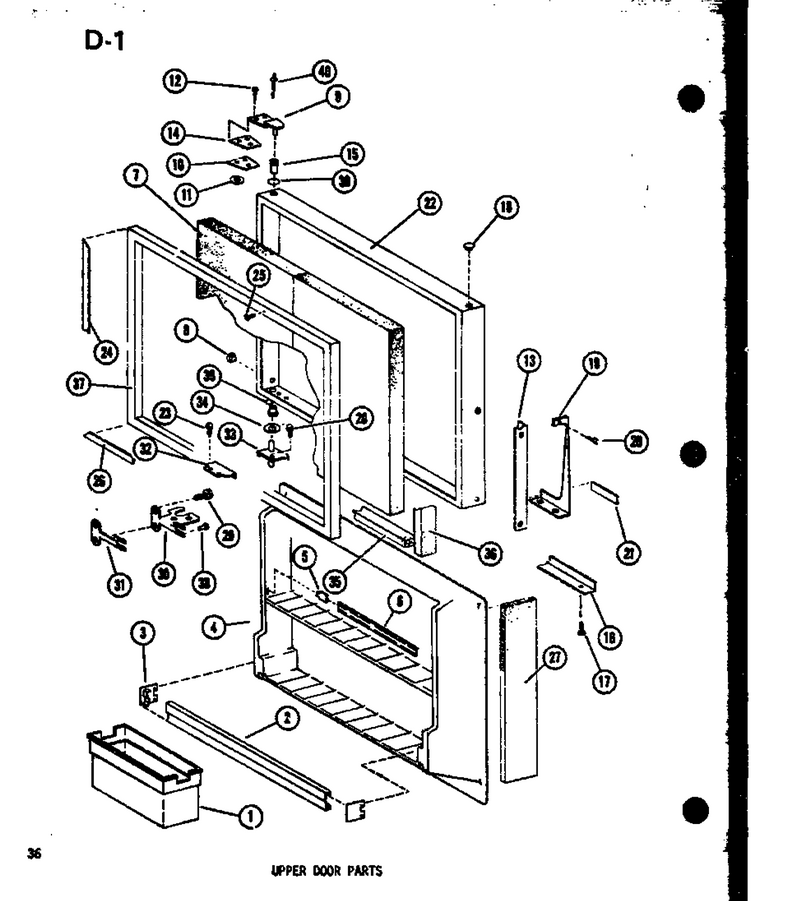

07 - Pupper Door Parts

...
...
1
Ice Container WPL-D7442301
...
2
Retainer WPL-D7415706
...
3
Support WPL-C3680908
...
4
Inner Dr Panel WPL-D7213502
...
5
Support K WPL-B0530006
...
6
Retainer WPL-B8302603
...
7
Insulation WPL-B5612016
...
8
Plug WPL-M0310713
...
9
Hinge WPL-B5744301
...
10
Tap Strip WPL-A3139701
...
11
Washer WPL-M0270502
...
12
Kit, Screw WPL-R9800670
...
13
Trim WPL-B5640304
...
14
Shim-Top Hinge K WPL-A3270302
...
15
Bushing, Hinge Pin WPL-C3652901
...
16
Trim WPL-D7056502
...
17
Screw WPL-M0214028
...
18
Plug WPL-M0310609
...
19
Handle K WPL-D7145801
...
20
Screw WPL-M0203458
...
21
Nameplate, Handle WPL-C8836803
...
22
Door-Fr A-T-Td23c WPL-D7394508
...
23
Machine Screw WPL-M0205631
...
24
Retainer Gasket WPL-D3928113
...
25
Screw WPL-WP98165
...
26
Retainer Gasket WPL-D3928102
...
27
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
28
Screw K WPL-M0205441
...
29
Screw Phillips WPL-M0205731
...
30
Center Hinge Assy WPL-C8800201
...
31
Shim K WPL-A3143503
...
32
Stop Door WPL-A3139801
...
33
Center Hinge Assy WPL-B5750901
...
34
Washer Hinge K WPL-B5779601
...
35
Insulation WPL-B5629025
...
36
Insulation WPL-B5629026
...
37
Gasket WPL-D7431907Q
...
38
Kit, Screw WPL-R9800670
...
39
O Ring WPL-M0500902
...
40
Rivet, Pop (Wht) WPL-B5642901

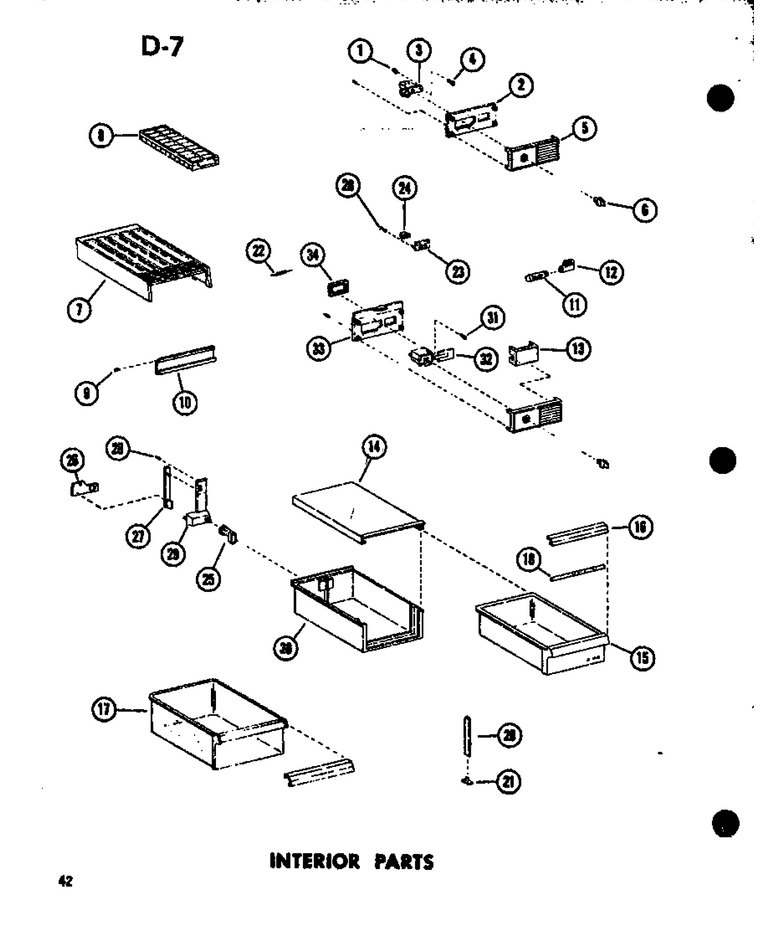

03 - Interior Parts

...
...
1
Plug WPL-M0310718
...
2
Shelf Support WPL-C3638101
...
3
Tap Strip-Hinge WPL-A3140702
...
4
Screw WPL-M0250531
...
5
Drier, Mullion WPL-B5636001
...
6
Ctr Mullion WPL-C8807502
...
7
Plug Button (Almond) WPL-M0310730
...
8
Support WPL-B5680001
...
9
Crisper Top WPL-D3984505
...
10
Support WPL-B0570501
...
11
Angle-Crisper Top WPL-C3697202
...
12
Screw WPL-M0230727
...
13
Trim A WPL-B0570904
...
14
Grille WPL-C3601801
...
15
Glide WPL-A3213401
...
16
Ext-Top WPL-D7199302
...
17
Screw K WPL-M0205441
...
18
Shelf WPL-D7387502
...
19
Support, Shelf WPL-12258501
...
21
Trim A WPL-C8835402
...
22
Trim-Shelf A WPL-D7415101
...
23
Glass Shelf WPL-D7421201
...
24
Frame WPL-D7420701

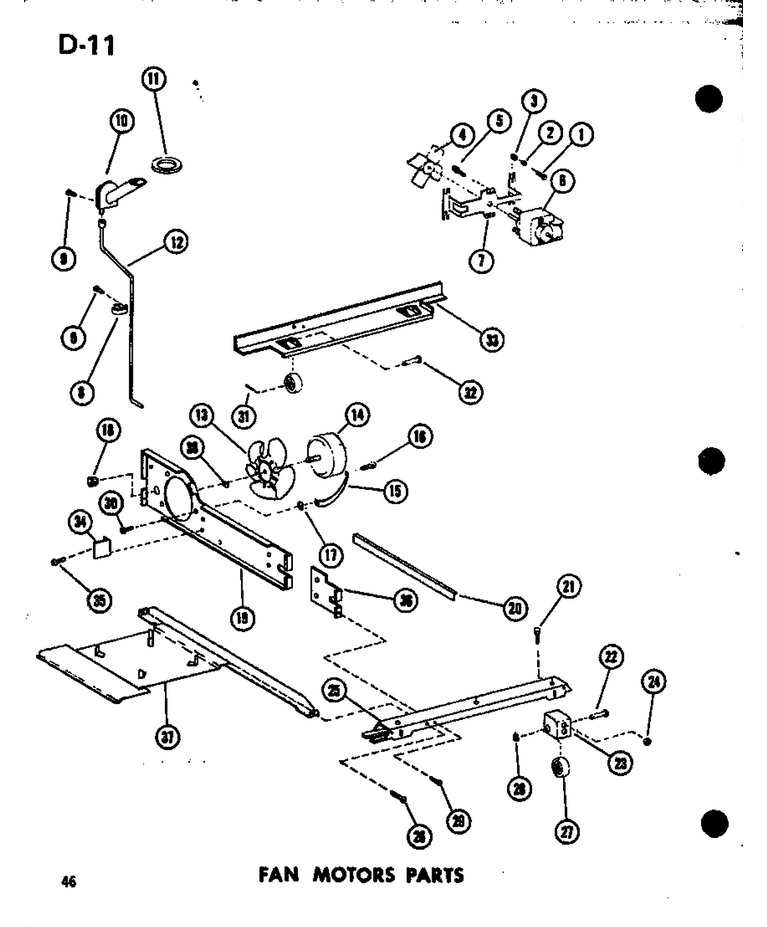

02 - Fan Motors Parts

...
...
1
Screw WPL-WP98165
...
2
Eyelet K WPL-A0381401
...
3
Clip, Waterline WPL-12454802
...
4
Fan Blade WPL-B5622101
...
5
Screw WPL-WP3400094
...
6
Motor WPL-D7256202
...
7
Bracket WPL-C3536203
...
8
Clamp WPL-M0102303
...
9
Screw WPL-M0210916
...
10
Elbow,drain Tube WPL-C3630901
...
11
Gasket WPL-A3132301
...
12
Tube-Drain K WPL-C8721202
...
13
Blade, Fan WPL-B5742603
...
14
Motor-Cond WPL-833697
...
15
Bracket, Cond Motor WPL-B0598701
...
16
Screw WPL-WPM0223816
...
17
Grommet K WPL-M0500107
...
18
Strain Relief WPL-A3245101
...
19
Shroud, Fan WPL-D7446701
...
20
Seal-Fan Shroud Q WPL-B8314102
...
21
Roller Bracket Kit WPL-M0222240
...
22
Rivet WPL-M1205302
...
23
Roller Kit WPL-C8836302
...
24
Nut, Self Thread WPL-M0283801
...
25
Front Rail WPL-C8820503
...
26
Screw WPL-M0294459
...
27
Roller WPL-M0520102
...
28
Fastener WPL-M0289401
...
29
Screw WPL-WP489464
...
30
Screw Shoulder WPL-M0238833
...
31
Cotter Pin K WPL-M1200001
...
32
Pivot Pin K WPL-M1210001
...
33
Rail, Rear WPL-C3611301
...
34
Stop,drain Pan WPL-A3125701
...
35
Screw WPL-WP12990527
...
36
Extension WPL-B5619802
...
37
Weld Comp Supt Pntd WPL-C8820402
...
38
Nut A WPL-M0286003

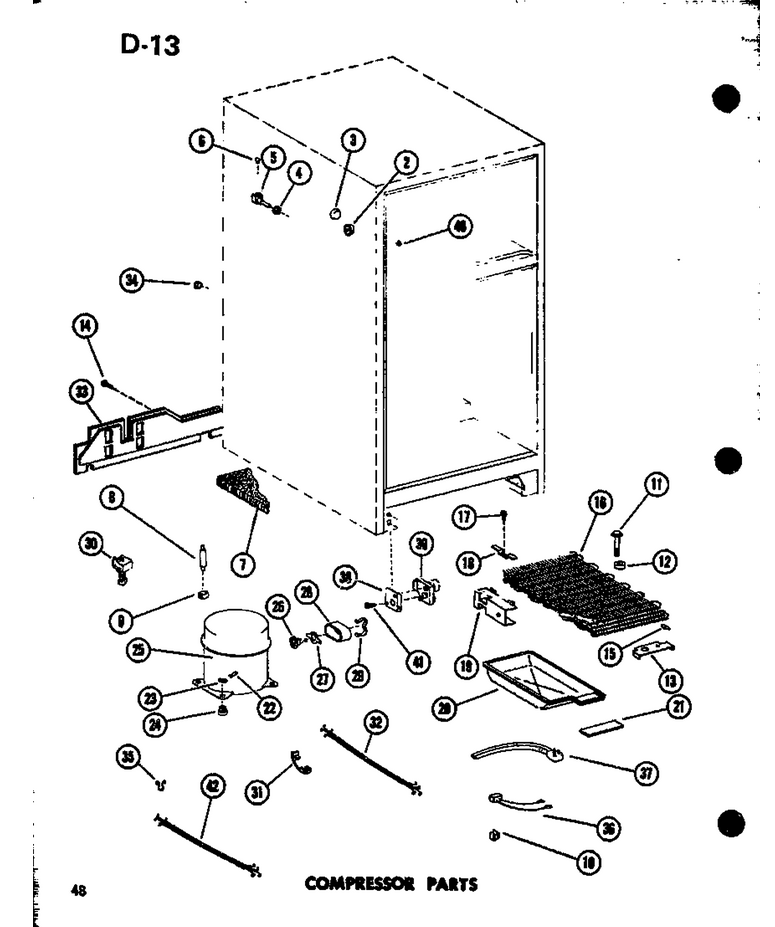

01 - Compressor Parts

...
...
NI
See Note Model Ic-2, Mfg No P36415-5w, Add On Ice-Maker Complete Assy -- (Available From Sales) (See Page 50) WPL-Y00000000
...
2
Cap WPL-B5636301
...
3
Cap Fill Tube WPL-B5631801
...
4
Grommet WPL-A3138301
...
5
Fill Tube WPL-R0182123
...
6
Plug WPL-M0310309
...
7
Insulation,sound WPL-D7121301
...
8
Drier WPL-WPB2150504
...
9
Clamp-Drier WPL-M0104002
...
10
Clip-Cable WPL-M0110505
...
11
Sems Fastner WPL-M0257039
...
12
Spacer WPL-A3013907
...
13
Bracket, Support WPL-A3085401
...
14
Screw-Sm WPL-M0241118
...
15
Nut A WPL-M0286003
...
16
Condenser Assy Pnt WPL-D7010701
...
17
Kit, Screw WPL-R9800670
...
18
Clip-Cond WPL-A3054502
...
19
Spacer WPL-B0544101
...
20
Pan, Drain WPL-D7001001
...
21
Pad A WPL-B5691701
...
22
Clip K WPL-A3140801
...
23
Washer, Nylon K WPL-M0590101
...
24
Grommet K WPL-A3026101
...
25
Compressor WPL-C3667102H
...
26
Overload WPL-C3689102
...
27
Spring K WPL-A3043601
...
28
Terminal Cover WPL-B0551801
...
29
Strap K WPL-A3041801
...
30
Relay WPL-C3689201
...
31
Grommet, Cord WPL-211881
...
32
Wiring Harn-Liner WPL-D7463401
...
33
Back, Mach Compt K WPL-C3655001
...
34
Plug, Button (Wht) WPL-A3080002
...
35
Lock, Purse WPL-74007369
...
36
Wiring Harness WPL-B5730802
...
37
Power Cord WPL-R0157154
...
38
Timer Bracket WPL-C3647902
...
39
Timer-Def WPL-R0131577
...
40
Button- Pl WPL-WP67001130
...
41
Screw WPL-WP489464
...
42
Wiring Harness WPL-D7512201
