Amana TD23B (BOM: P7350009W)

Model: TD23B (BOM: P7350009W)

Save Part Not Listed?
product name

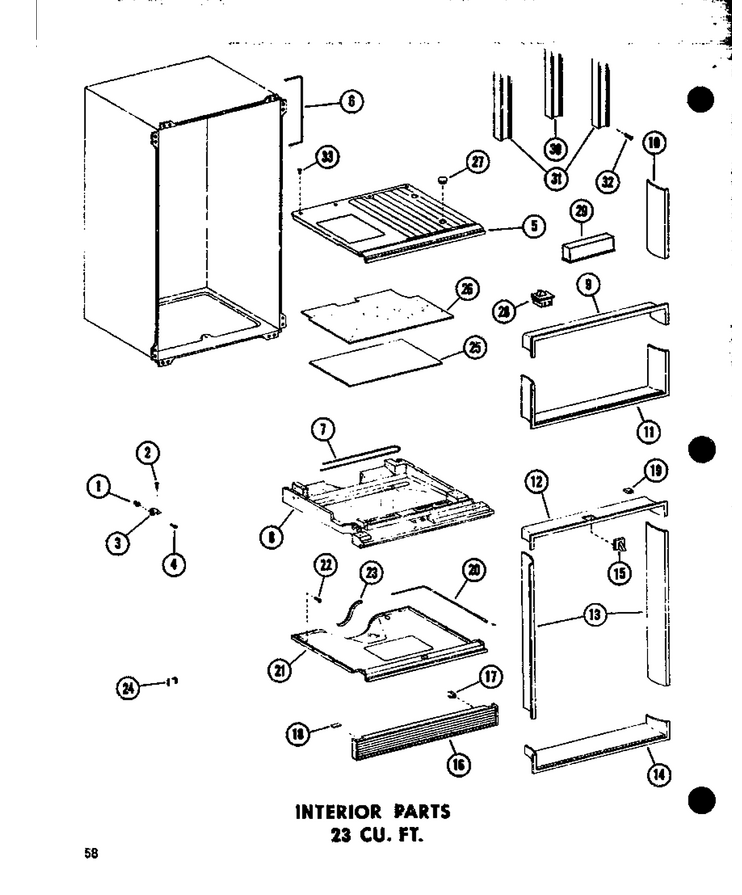

07 - Interior Parts 23 Cu. Ft.

...
...
1
Grommet WPL-A0288701
...
2
Screw (3) WPL-67006425
...
3
Clip WPL-M0116901
...
4
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
5
Freezer Bottom WPL-D7199101
...
6
Heater-Fr Flange WPL-D7350401
...
7
Heater-Drip Tray WPL-C8708201
...
8
Drain Block, Evaporator WPL-D7246401
...
9
Breaker Frame, Ref Top WPL-D7157201
...
10
Breaker Frame, Fz Sides WPL-D3951713
...
11
Breaker Frame, Fz Bottom WPL-D3981201
...
12
Breaker Frame, Ref Top WPL-D7157201
...
13
Breaker Frame WPL-D3951712
...
14
Breaker Frame, Ref Bottom WPL-C3980601
...
15
Switch, Light WPL-C3658601
...
16
Grille-Toe WPL-D7070211
...
17
Clip WPL-WPM0117303
...
18
Grille-Toe WPL-B5641301
...
19
Clip WPL-M0113401
...
20
Heater-Ref Top K WPL-D7347903
...
21
Ref Top WPL-D7244302
...
22
Screw WPL-WP489464
...
23
Gasket (Per Foot) WPL-A3030313
...
24
Clamp-Wiring WPL-A3195601
...
25
Barrier WPL-A3126001
...
26
Insulation WPL-B5682901
...
27
Plug WPL-A3069103
...
28
Switch WPL-C3680306
...
29
Cover-Switch WPL-B5743601
...
30
Ladder-Ctr WPL-C8852001
...
31
Ladder WPL-C3606101
...
32
Screw WPL-M0207632
...
33
Screw (3) WPL-67006425

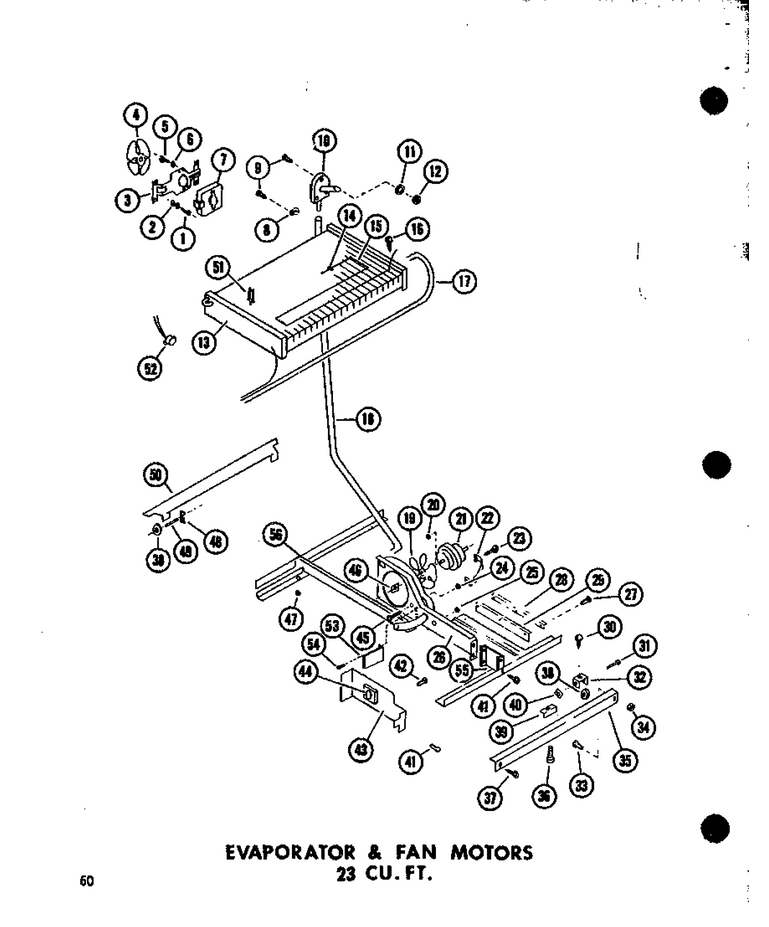

03 - Evap & Fan Motors 23 Cu. Ft.

...
...
1
Screw WPL-WP98165
...
2
Eyelet K WPL-A0381401
...
3
Bracket WPL-C3536203
...
4
Fan Blade WPL-B5622101
...
5
Screw WPL-M0202642
...
6
Washer WPL-M0272605
...
7
Motor WPL-D7256201
...
8
Clamp WPL-M0102303
...
9
Screw WPL-M0214618
...
10
Elbow,drain Tube WPL-C3630901
...
11
Gasket WPL-A3132301
...
12
Grommet WPL-A3128101
...
13
Evaporator WPL-D7143121
...
14
Clip WPL-M0110301
...
15
Heater Def K WPL-C3660003
...
16
Screw WPL-W11233072
...
17
Heat Exchanger WPL-D7030302
...
18
Tube-Drain K WPL-C8721202
...
19
Blade, Fan WPL-B5742603
...
20
Washer K WPL-M0274015
...
21
Motor-Cond WPL-833697
...
22
Bracket, Cond Motor WPL-B0598701
...
23
Screw WPL-WPM0223816
...
24
Grommet K WPL-M0500107
...
25
Grommet WPL-M0500102
...
26
Fan Shroud WPL-C3617602
...
27
Screw WPL-WP90767
...
28
Retainer WPL-B0599701
...
29
Seal WPL-B0599603
...
30
Screw WPL-M0267101
...
31
Rivet WPL-M1205302
...
32
Bracket K WPL-A3125201
...
33
Roller Bracket Kit WPL-M0222240
...
34
Nut, Self Thread WPL-M0283801
...
35
Front Rail WPL-B5627601
...
36
Foot-Levelling WPL-B1601601
...
37
Screw WPL-M0294459
...
38
Roller WPL-M0520102
...
39
Wing Nut WPL-A3122601
...
40
Fastener WPL-M0289401
...
41
Screw WPL-WP489464
...
42
Screw,tc WPL-M0230017
...
43
Timer Bracket WPL-C3647902
...
44
Timer-Def WPL-R0131577
...
45
Screw Shoulder WPL-M0238833
...
46
Nut WPL-WP486692
...
47
Washer WPL-M0274038
...
48
Cotter Pin K WPL-M1200001
...
49
Pivot Pin K WPL-M1210001
...
50
Rail, Rear WPL-C3611301
...
51
Clip,wire WPL-B5667401
...
52
Thermostat-Defrost WPL-C8731901
...
53
Stop,drain Pan WPL-A3125701
...
54
Screw WPL-WP12990527
...
55
Extension WPL-B5619802
...
56
Support, Comp. Weld WPL-C3688602

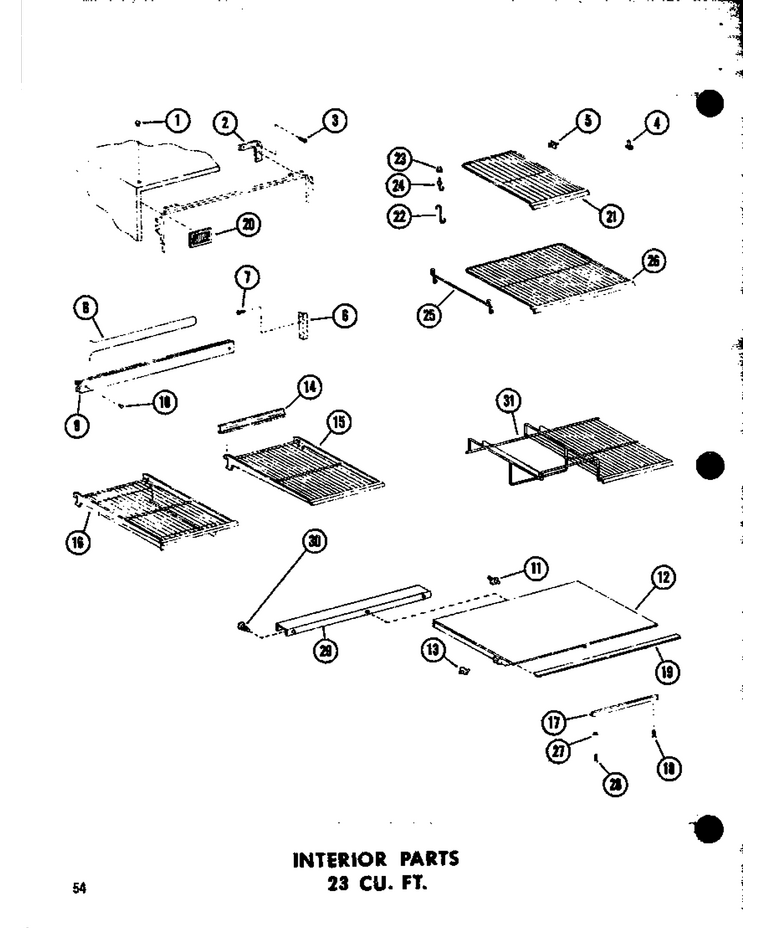

05 - Interior Parts 23 Cu. Ft.

...
...
1
Plug WPL-M0310718
...
2
Gussett WPL-B0598101
...
3
Screw WPL-M0211530
...
4
Hanger Liner WPL-B0593901
...
5
Shelf Support WPL-C3638101
...
6
Top Strip Hinge WPL-B8353401
...
7
Screw WPL-M0250531
...
8
Drier, Mullion WPL-B5636001
...
9
Ctr Mullion WPL-C8807501
...
10
Plug WPL-M0310722
...
11
Support WPL-B5680001
...
12
Crisper Top WPL-D3984503
...
13
Support WPL-B0570501
...
14
Trim, Cantilever Shelf WPL-D7344501
...
15
Shelf K WPL-D7345101
...
16
Shelf WPL-D7344801
...
17
Angle-Crisper Top WPL-C3697202
...
18
Screw WPL-M0230814
...
19
Trim A WPL-B0570904
...
20
Grille WPL-C3601801
...
21
Shelf-Freezer WPL-C3638406
...
22
Support WPL-A3147704
...
23
Support WPL-C3638501
...
24
Support WPL-B5647201
...
25
Support WPL-B5647102
...
26
Shelf-Freezer WPL-D7072504
...
27
Glide WPL-A3213401
...
28
Screw K WPL-M0213517
...
29
Ext-Top WPL-D7199302
...
30
Screw K WPL-M0205441
...
31
Shelf WPL-D7387502

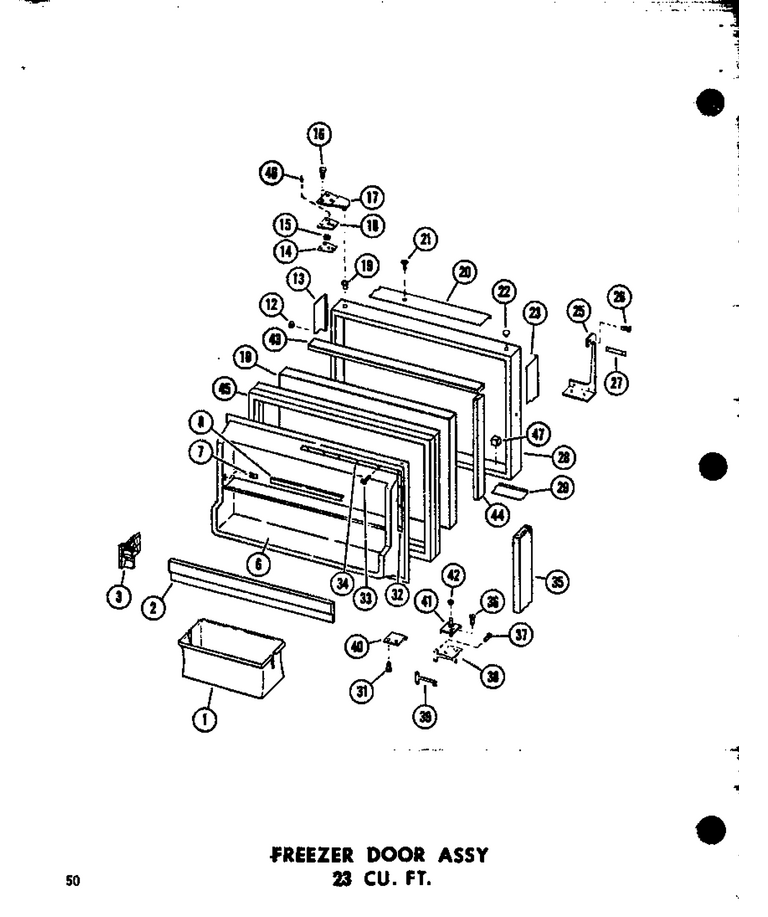

04 - Fz Door Assy 23 Cu. Ft.

...
...
1
Ice Container WPL-D3959403
...
2
Pkg Retainer K WPL-D3976719
...
3
Support K WPL-C3680904
...
6
Inner Dr Panel-Frz WPL-D7213501
...
7
Support K WPL-B0530004
...
8
Retainer WPL-B5632003
...
10
Insulation WPL-B5612016
...
12
Plug WPL-M0310713
...
13
Trim WPL-B5640304
...
14
Tap Strip WPL-A3139701
...
15
Washer WPL-M0270502
...
16
Kit, Screw WPL-R9800670
...
17
Hinge WPL-B5744301
...
18
Shim Kit WPL-A3270303
...
19
Bushing, Hinge Pin WPL-C3652901
...
20
Trim WPL-D7056501
...
21
Screw WPL-M0214028
...
22
Plug WPL-M0310607
...
23
Trim WPL-B5640303
...
25
Handle K WPL-D7145801
...
26
Screw WPL-M0203458
...
27
Nameplate K WPL-C3675307
...
28
Door Fr-A-P-Td23b WPL-D7370513
...
29
Trim WPL-D7056502
...
31
Machine Screw WPL-M0205631
...
32
Retainer Gasket WPL-D3928108
...
33
Screw WPL-WP98165
...
34
Retainer Gasket WPL-D3928102
...
35
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
36
Screw K WPL-M0205441
...
37
Screw Phillips WPL-M0205731
...
38
Center Hinge Assy WPL-C8800201
...
39
Shim K WPL-A3143501
...
40
Stop Door WPL-A3139801
...
41
Center Hinge Assy WPL-B5750901
...
42
Washer Hinge K WPL-B5779601
...
43
Insulation WPL-B5629025
...
44
Insulation WPL-B5629026
...
45
Gasket WPL-D7431907Q
...
46
Pop Rivet-C WPL-B5642911
...
47
Insulation WPL-A3257701

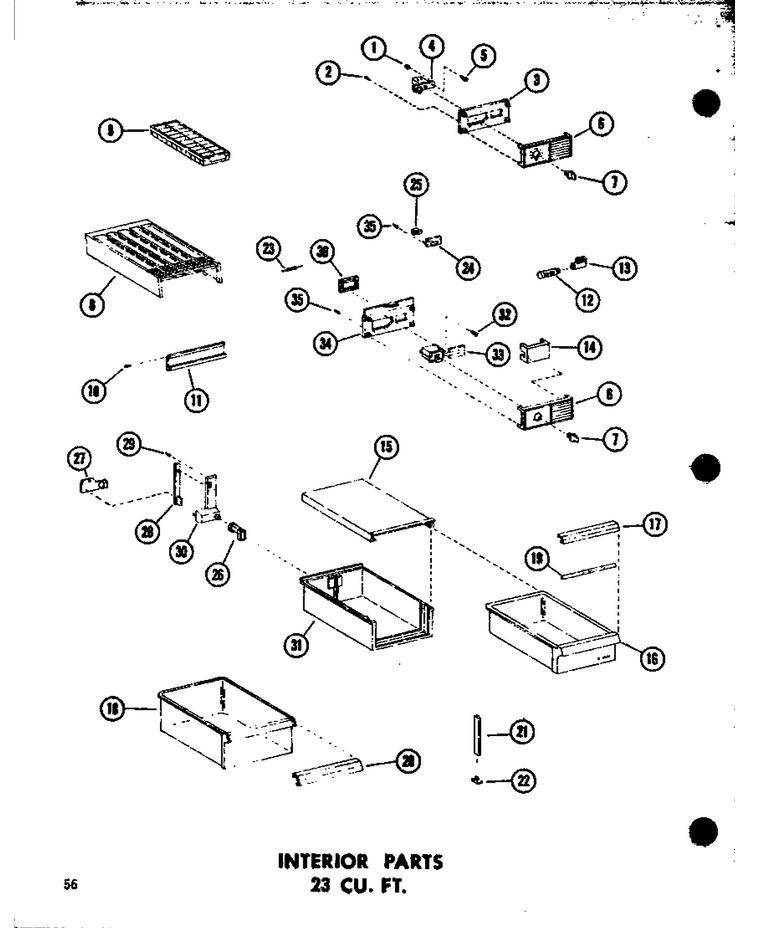

06 - Interior Parts 23 Cu. Ft.

...
...
1
Grommet A WPL-M0580002
...
2
Clip WPL-M0113004
...
3
Back Plate WPL-D7160901
...
4
Control-Temp WPL-B0592304
...
5
Screw WPL-WP90767
...
6
Deflector WPL-D7272503
...
7
Knob WPL-D7009801
...
8
Net Tunnel, Ice Tray WPL-D7193001
...
9
Tray WPL-WP841180A
...
10
Hinge Pin WPL-A3214701
...
11
Door, Tunnel WPL-C8706101
...
12
Bulb-Light WPL-WPA3073101
...
13
Socket WPL-B5637601
...
14
Cap K WPL-C3617201
...
15
Top, Meat Keeper WPL-D7001104
...
16
Pan, Meat Keeper WPL-D3975703
...
17
Trim, Handle WPL-C3623002
...
18
Pan, Crisper WPL-D7184201
...
19
Gasket (Per Foot) WPL-A3030313
...
20
Trim-Handle WPL-C3696501
...
21
Support WPL-B0571002
...
22
Support WPL-B0571201
...
23
Diode WPL-M0305301
...
24
Escutcheon WPL-D7350801
...
25
Switch WPL-M0341801
...
26
Grommet-Mt Kpr WPL-C8703301
...
27
Gasket Slide K WPL-A3258401
...
28
Slide-Mt Kpr WPL-B5622802
...
29
Clip WPL-M0113004
...
30
Escutcheon WPL-B5656704
...
31
Sleeve, Meat Keeper WPL-D7001302
...
32
Screw WPL-M0218116
...
33
Control, Damper WPL-C8876602
...
34
Backer Plate WPL-D7058201
...
35
Clip WPL-M0113004
...
36
Gasket WPL-A3104502

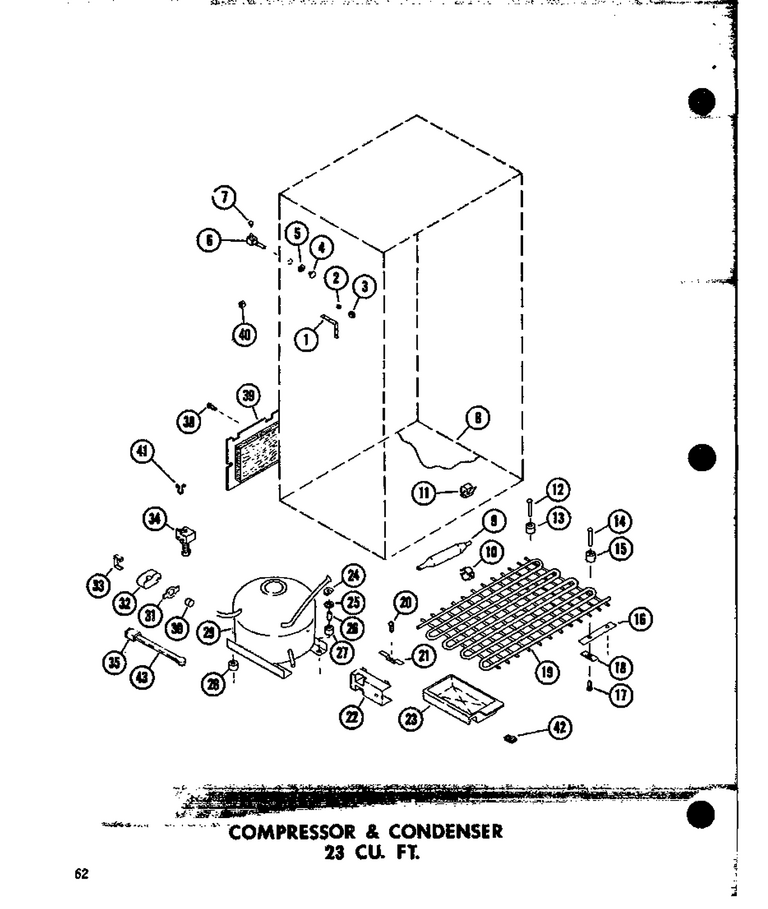

02 - Compressor & Condenser 23 Cu. Ft.

...
...
1
Tap Plate,i.m. WPL-B5639801
...
2
Button- Pl WPL-WP67001130
...
3
Cap WPL-B5636301
...
4
Cap Fill Tube WPL-B5631801
...
5
Grommet WPL-A3138301
...
6
Fill Tube WPL-R0182123
...
7
Plug Button WPL-A3243201
...
8
Insulation,sound WPL-D7121301
...
9
Drier WPL-WPB2150504
...
10
Clamp-Drier WPL-M0104002
...
11
Clip-Cable WPL-M0110505
...
12
Sems Fastner WPL-M0257037
...
13
Spacer WPL-A3013906
...
14
Sems Fastner WPL-M0257039
...
15
Spacer WPL-A3013907
...
16
Bracket, Support WPL-A3085401
...
17
Screw-Sm WPL-M0241118
...
18
Nut A WPL-M0286003
...
19
Condenser Assy Pnt WPL-D7010701
...
20
Kit, Screw WPL-R9800670
...
21
Clip-Cond WPL-A3054502
...
22
Spacer WPL-B0544101
...
23
Pan, Drain WPL-D7001001
...
24
Clip K WPL-A3140801
...
25
Washer, Nylon K WPL-M0590101
...
26
Sleeve K WPL-A3072001
...
27
Grommet K WPL-A3026101
...
28
Vinyl Sleeve WPL-A3164301
...
29
Compressor WPL-C3667101H
...
30
Overload WPL-C3689102
...
31
Spring K WPL-A3043601
...
32
Terminal Cover WPL-B0551801
...
33
Strap K WPL-A3041801
...
34
Relay WPL-C3689201
...
35
Grommet, Cord WPL-211881
...
38
Screw-Sm WPL-M0241118
...
39
Back, Mach Compt K WPL-C3655001
...
40
Plug, Button (Wht) WPL-A3080002
...
41
Lock, Purse WPL-74007369
...
42
Pad A WPL-B5691701
...
43
Wiring Harness WPL-B5730802

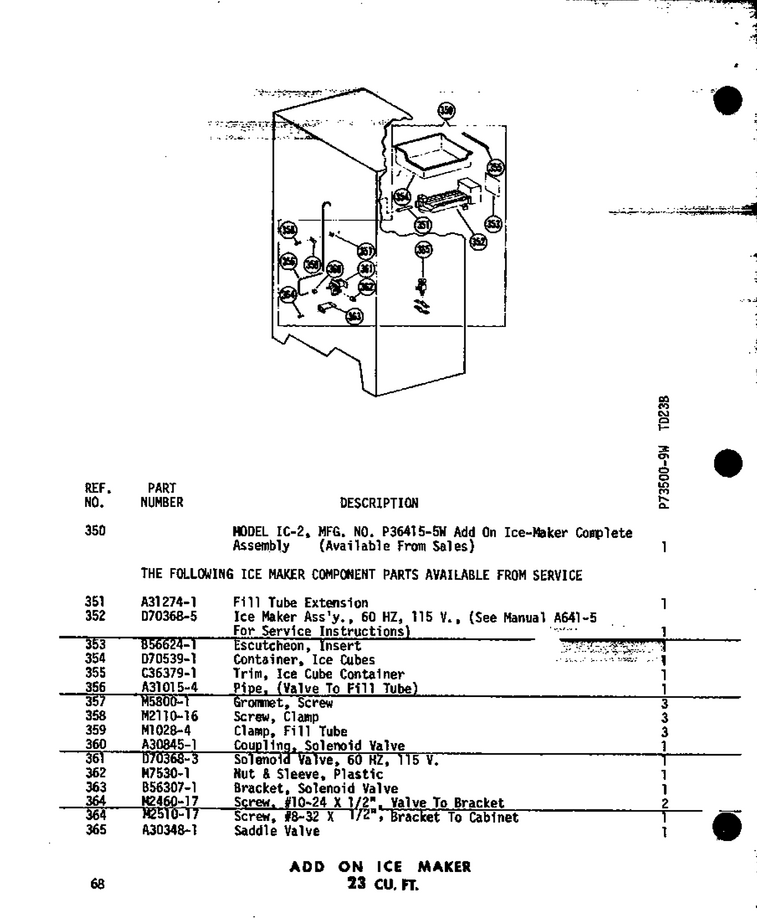

01 - Add On Ice Maker 23 Cu. Ft.

...
...
350
See Note Model Ic-2. Mfg. No. P36415-5w Add On Ice-Maker Completeassy -- (Available From Sales) WPL-Y00000000
...
351
Tube WPL-A3127404
...
352
Ic2-(Ice Maker) WPL-D7036805
...
353
Insert-Im WPL-B5662401
...
354
Pan-Ice WPL-WP67001255
...
355
Trim K WPL-C3637901
...
356
Pipe WPL-A3101504
...
357
Grommet, Screw WPL-M0580007
...
358
Screw WPL-WP90767
...
359
Clamp WPL-M0102804
...
360
Coupling, Solenoid Valve And H WPL-A3084501
...
361
Valve-Inlt WPL-4318047
...
362
Nut WPL-WP627018
...
363
Bracket WPL-B5630701
...
364
Screw WPL-M0246017
...
365
Saddle Valve WPL-A3034801

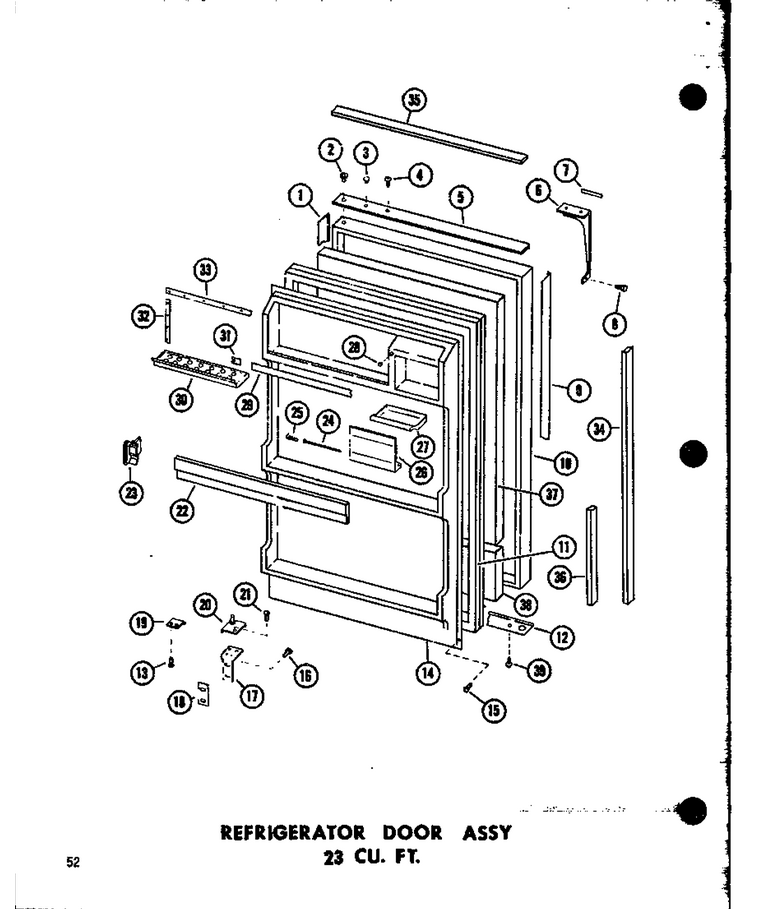

08 - Ref Door Assy 23 Cu. Ft.

...
...
1
Trim WPL-B5640302
...
2
Bushing, Hinge Pin WPL-C3652901
...
3
Plug WPL-M0310713
...
4
Fastner WPL-M0214116
...
5
Trim WPL-D7056501
...
6
Handle K WPL-D7145802
...
7
Nameplate K WPL-C3675306
...
8
Screw WPL-M0203458
...
9
Trim WPL-B5640301
...
10
Door Ref-A-P-Td23b WPL-D7370529
...
11
Gasket WPL-D3928207
...
12
Trim WPL-D7056502
...
13
Machine Screw WPL-M0205631
...
14
Inner Dr Panel-Ref WPL-D7213601
...
15
Screw WPL-WP98165
...
16
Screw WPL-WP67006715
...
17
Hinge Kit WPL-C8800401
...
18
Shim WPL-A3143603
...
19
Stop Door WPL-A3139801
...
20
Hinge Kit WPL-B5640902
...
21
Screw K WPL-M0205441
...
22
Pkg Retainer K WPL-D3976722
...
23
Support - Cream Lh WPL-B5631705
...
24
Hinge Rod K WPL-A3056207
...
25
Spring A/k WPL-A3065201
...
26
Butter Door K WPL-C3622103
...
27
Buttertray WPL-67004412A
...
28
Rubber Bumper WPL-A3059002
...
29
Retainer K WPL-B5632005
...
30
Egg WPL-D7025701
...
31
Support K WPL-B0530004
...
32
Retainer Gasket WPL-D3928106
...
33
Retainer Gasket WPL-D3928102
...
34
Sub To B5629044 WPL-B5629024
...
35
Insulation WPL-B5629025
...
36
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
37
Insulation WPL-B5612017
...
38
Insulation WPL-B5726102
...
39
Fastner WPL-M0205617
