Amana TC18N (BOM: P1106202W)

Model: TC18N (BOM: P1106202W)

Save Part Not Listed?
product name

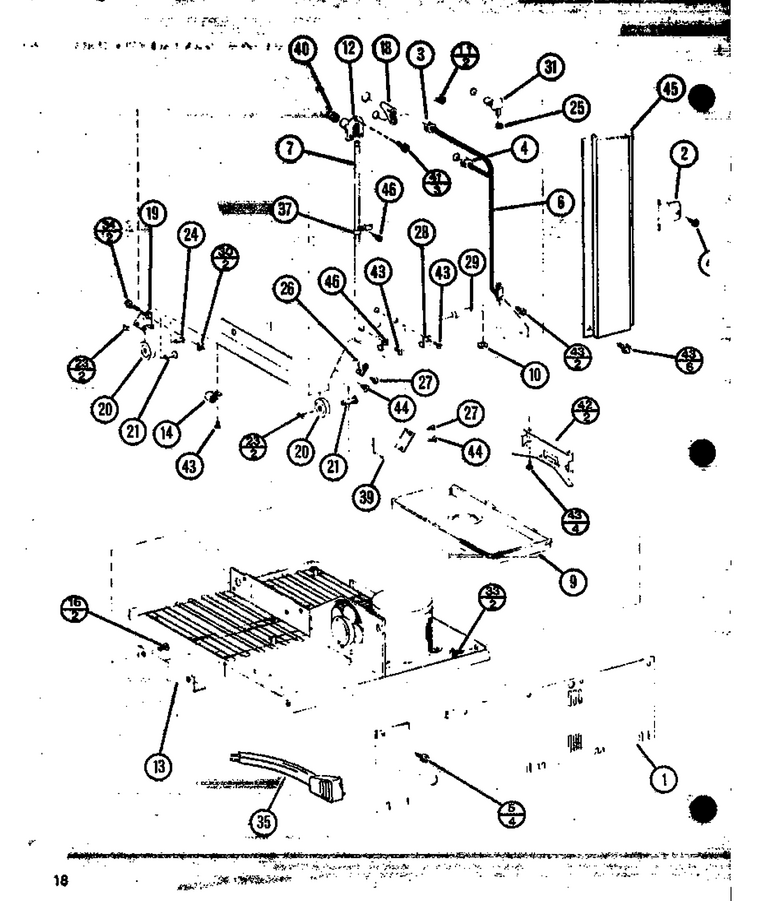

06 - Page 7

...
...
1
Mc Back Assy WPL-C8890206
...
2
Wire Cover WPL-10110202
...
3
Grommet WPL-10110601
...
4
Grommet WPL-10110701
...
5
Screw WPL-WP489464
...
6
Harness, Cabinet WPL-10104901
...
7
Drain Tube WPL-D7653906
...
9
Drain Pan WPL-D7790601
...
10
Plug, Button WPL-A3076901
...
11
Plug, Button (Blk) WPL-A3080001
...
12
Elbow,drain Tube WPL-C3630901
...
13
Support, Mc WPL-C8913701
...
14
Clamp, Tube WPL-M0102305
...
16
Screw WPL-M0211530
...
18
Tunnel-Heat Ex WPL-B5749501
...
19
Assy, Roller Bracket WPL-12452602Q
...
20
Roller WPL-M0520102
...
21
Pin K WPL-M1200202
...
23
Cotter Pin K WPL-M1200004
...
24
Rivet WPL-M1205302
...
25
Plug Button WPL-M0310319
...
26
Clamp WPL-M0103901
...
27
Screw WPL-WP90767
...
28
Clamp WPL-M0102325
...
29
Tubing Insul Q WPL-A0329818
...
30
Nut, Speed WPL-M0286708
...
31
Fill Tube WPL-R0182123
...
33
Screw WPL-M0294459
...
34
Screw, Mach WPL-M0206313
...
35
Power Cord WPL-R0157154
...
37
Clamp WPL-B8372901
...
39
Cover, Wiring WPL-D7663301
...
40
Gasket WPL-A3132301
...
41
Screw WPL-W11233072
...
42
Support Drain Pan WPL-D7790501
...
43
Screw WPL-WP489069
...
44
Screw WPL-M0253916
...
45
Heat Exchanger Cover WPL-D7539419
...
46
Clamp WPL-M0102303

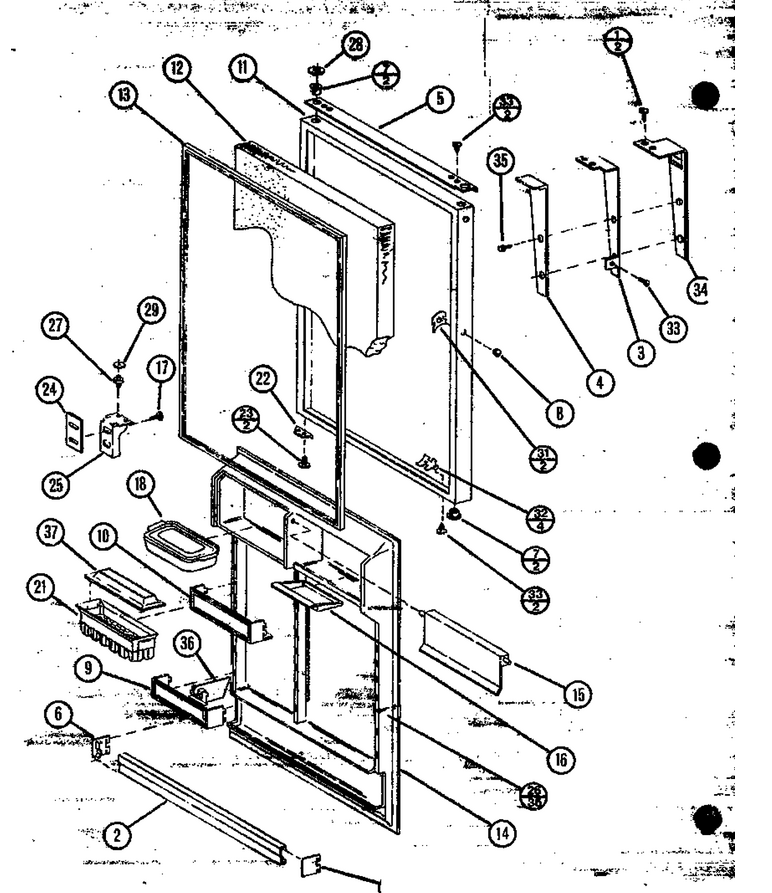

07 - Ref Door

...
...
1
Screw WPL-WPW10348409
...
2
Retainer, Pkg WPL-C8907222
...
3
Door Handle WPL-D7744802
...
4
Handle Pad Inner WPL-D7745008
...
5
Door Cap WPL-D3958304
...
6
Cap, Pkg Retainer End WPL-D7681803
...
7
Bearing, Hinge WPL-C8852202
...
8
Plug Button WPL-M0311302
...
9
Retainer- WPL-67003698
...
10
Door Shelf WPL-D7565406
...
11
Door Ref L Tr18 WPL-D7745303
...
12
Insulation WPL-B5683507
...
13
Gasket WPL-D7605107Q
...
14
Inner Door Liner Ref WPL-D7805605
...
15
Dairy Door WPL-D7805702
...
16
Butter Tray WPL-D3799802
...
17
Screw WPL-WP67006715
...
18
Container Sec. Ser. WPL-D7806404
...
21
Assy,egg Bkt W/ Lid WPL-12460016
...
22
Door Stop WPL-C8894802
...
23
Screw WPL-M0203458
...
24
Shim WPL-B5744803
...
25
Bracket Lower Hinge WPL-10163605
...
26
Screw WPL-WPM0219730
...
27
Pin, Hinge K WPL-C8814901
...
28
Washer WPL-M0274049
...
29
Washer WPL-M0274050
...
31
Nut WPL-B8361401
...
32
Nut WPL-B8363501
...
33
Screw WPL-WPW10348409
...
34
Outer Hand WPL-D7744928
...
35
Screw WPL-M0215116
...
36
Snugger Door Shelf WPL-D7806102
...
37
Cover, Egg Bucket WPL-D7805911

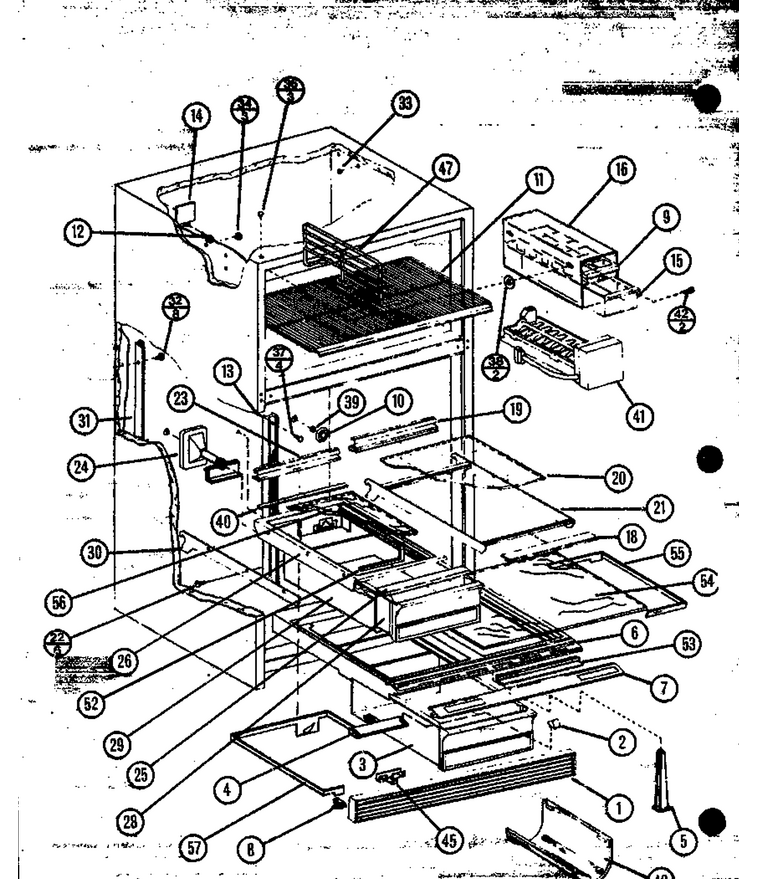

02 - Page 3

...
...
NI
Glass Crisper Top Assy WPL-R0179132
...
1
Grille-Toe L WPL-D7520514
...
2
Knob, Crisper Control WPL-10038401
...
3
Crisper Pan WPL-D7581024
...
4
Slide, Crisper Control WPL-D7860601
...
5
Crisper Support Post WPL-D7602202
...
6
Frame WPL-D7856501
...
7
Trim WPL-D7616636
...
8
Clip WPL-WPM0117303
...
9
Tray WPL-WP841180A
...
10
Plug WPL-M0310314
...
11
Shelf, Frz WPL-D7580706
...
12
Screw (3) WPL-67006425
...
13
Ladder, Center WPL-D7599002
...
14
Cover-Fl Tb/plug WPL-D7874402
...
15
Ice Bin WPL-D7620009
...
16
Rack, Ice Service WPL-D7620106
...
18
Trim, Shelf WPL-10049909
...
19
Trim, Shelf WPL-C8913601
...
20
Glass Shelf WPL-D7421276
...
21
Assy, Glass Shelf WPL-D7871001
...
22
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
23
Trim, Rear Shelf WPL-C8990401
...
24
Grommet M.k. WPL-D7859301
...
25
Trim, Shelf WPL-10049912
...
26
Frame, M.k WPL-D7853301
...
28
Meat Pan WPL-D7698314
...
29
Sleeve, Meat Keeper WPL-D7698105
...
30
Blank Side Rail WPL-D7862902
...
31
Ladder, Side WPL-D7599105
...
32
Screw (3) WPL-67006425
...
33
Plug Button WPL-M0311301
...
34
Button- Pl WPL-WP67001130
...
36
Plug WPL-M0310720
...
37
Screw-Sm WPL-M0238636
...
38
Washer WPL-M0270519
...
39
Insul. Mk Plug WPL-B8362502
...
40
Ext. Rear Glass WPL-10043101
...
41
See Note Add-On Ice Maker -- (Available From Sales) WPL-Y00000000
...
42
Screw Shoulder WPL-M0238833
...
45
Slide-Mk Control WPL-D7859401
...
47
Shelf Wire WPL-D7806001
...
48
Bottle Rack WPL-D7547604
...
52
Gasket WPL-A3030302
...
53
Seal Crisper WPL-D7718402
...
54
Glass Cris WPL-10036035
...
55
Band M.k. Control WPL-D7859604
...
56
Glass Shelf M.k WPL-D7421249
...
57
Band M.k. Control WPL-D7859503

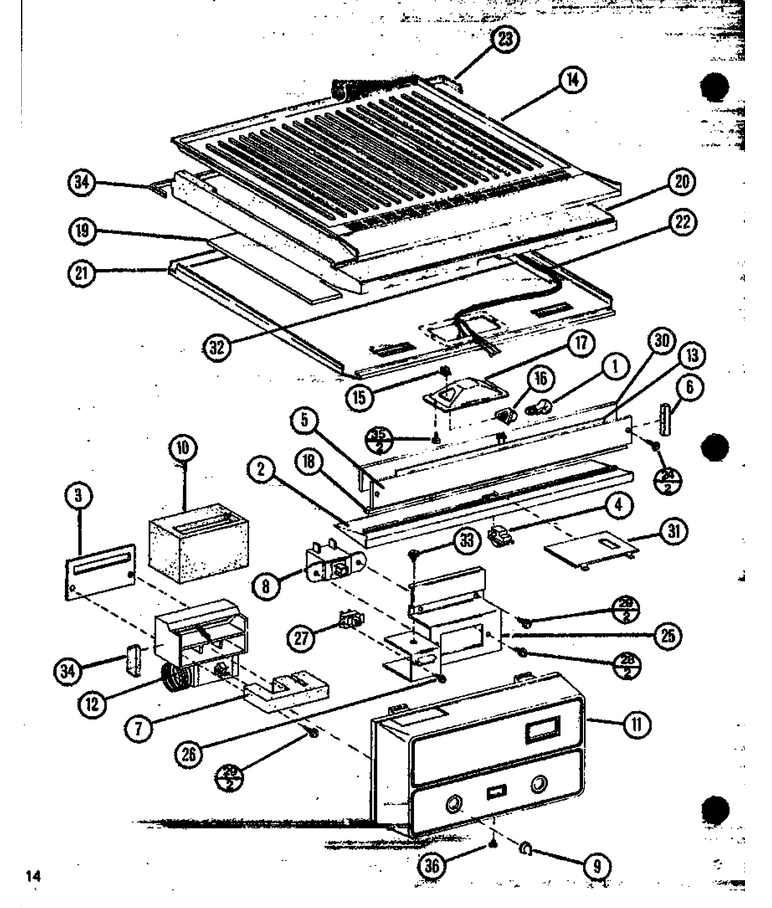

04 - Page 5

...
...
1
Light Bulb WPL-8009
...
2
Breaker, Ref Top V WPL-D7653003
...
3
Gasket, Damper WPL-B8345401
...
4
Switch WPL-W11384469
...
5
Center Mullion, Almond WPL-C8842505
...
6
Gasket, Sealing WPL-B5759626
...
7
Insert, Control WPL-C8902601
...
8
Cold Control WPL-C8907301
...
9
Knob WPL-D7009802
...
10
Insulation Damper WPL-D7543201
...
11
Cover, Control WPL-D7545017
...
12
Damper Control, Warm 26.5f, N WPL-D7547402
...
13
Heater, Mullion WPL-D7654504
...
14
Bottom; Freezer WPL-D7714704
...
15
Clip, Ground WPL-B5733302
...
16
Socket-Light WPL-D7714407
...
17
Shield, Light WPL-R0176034
...
18
Gasket, Foam WPL-B5759622
...
19
Insulation WPL-C8887902
...
20
Drain Block Kit WPL-D7816906
...
21
Top Ref. WPL-D7539308
...
22
Harness, Mullion WPL-10105001
...
23
Tape Per Roll A WPL-M0275117
...
24
Kit, Screw WPL-R9800670
...
25
Bracket, Control WPL-D7713802
...
26
Screw WPL-WP489349
...
27
Switch WPL-M0350101
...
28
Screw WPL-WP90767
...
29
Screw WPL-WP98165
...
30
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
31
Barrier Lt-Sw K WPL-C8932201
...
32
Insulation Per Ft. WPL-B0523584
...
33
Screw WPL-M0253916
...
34
Gasket-Per Ft WPL-A3263906
...
35
Screw WPL-WP90767
...
36
Screw (3) WPL-67006425

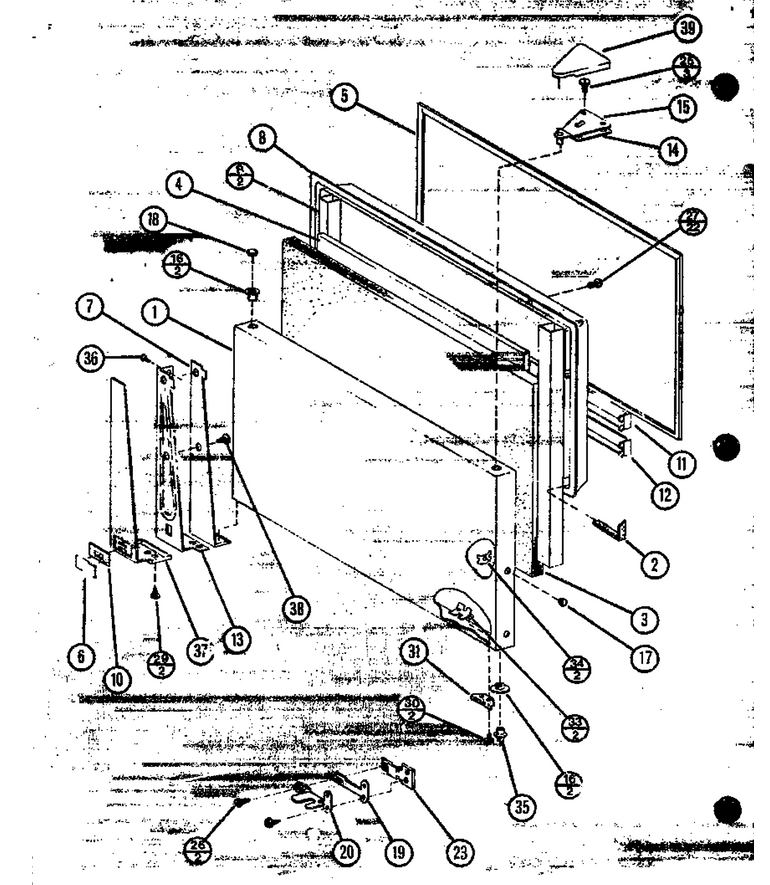

01 - Page 1

...
...
1
Upper Door Pan, White WPL-D7745201
...
2
Insulation Ft. K WPL-B0523563
...
3
Insulation WPL-B5683512
...
4
Insulation WPL-B5683514
...
5
Gasket WPL-D7605106
...
6
Pad Nameplate WPL-C8962701
...
7
Handle Pad Inner WPL-D7745009
...
8
Inner Door, Frz WPL-D7869601
...
9
Seal Door Dike WPL-C8987106
...
10
Nameplate WPL-C8962617
...
11
Shelf, Door WPL-D7869906
...
12
Retainer Cant. Door V WPL-D7869801
...
13
Door Handle WPL-D7744801
...
14
Shim, Top Hinge WPL-B8389007
...
15
Hinge WPL-B5744301
...
16
Bushing, Hinge Pin WPL-C3652901
...
17
Plug Button WPL-M0311301
...
18
Plug WPL-M0310606
...
19
Shim K WPL-B8351402
...
20
Center Hinge Bracket WPL-C8948601
...
23
Kit- Tap P WPL-R0194684
...
25
Kit, Screw WPL-R9800670
...
26
Screw WPL-M0226831
...
27
Screw WPL-WPM0219730
...
29
Screw WPL-WPW10348409
...
30
Screw WPL-M0203458
...
31
Door Stop WPL-C8894802
...
33
Nut WPL-B8363501
...
34
Nut WPL-B8361401
...
35
Center Pin Hinge WPL-B8373101
...
36
Screw WPL-WPW10348409
...
37
Pad WPL-D7744911
...
38
Screw WPL-M0215116
...
39
Cover Hinge WPL-D7872104

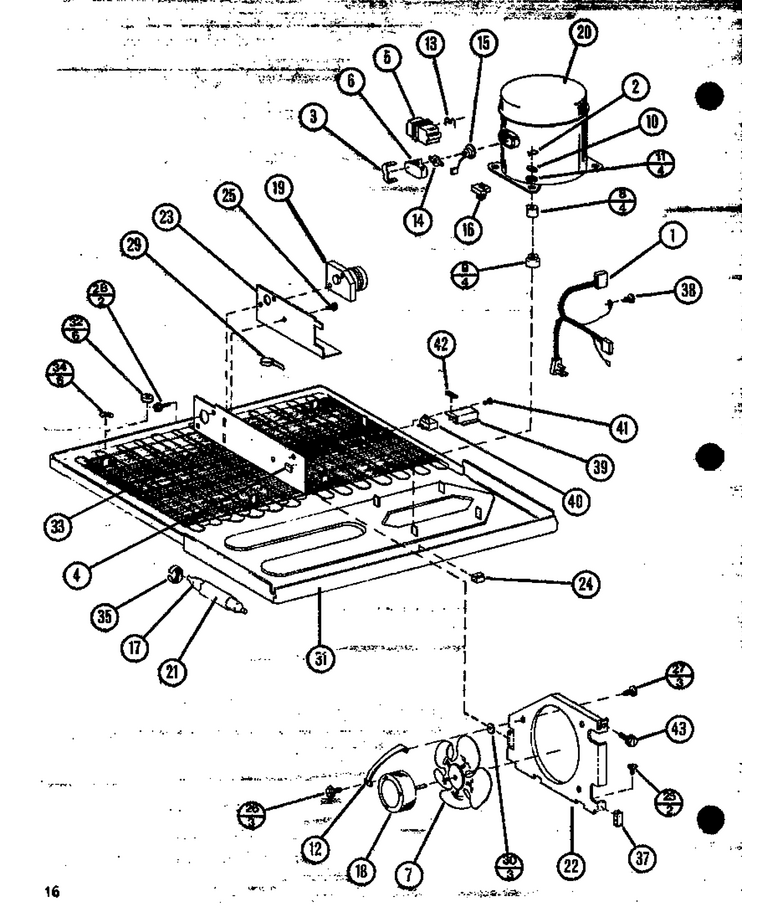

05 - Page 6

...
...
1
Harness M.c. WPL-10115901
...
2
Clip K WPL-A3140801
...
3
Strap K WPL-A3041801
...
4
Felt WPL-A9008301
...
6
Cover K WPL-B0559501
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Washer WPL-B8365302
...
12
Bracket, Cond Motor WPL-C8982101
...
14
Spring K WPL-C8916701
...
15
Overload WPL-C8866906
...
16
Relay WPL-C3553407
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-WP10129301
...
20
Compressor WPL-W10439652
...
21
Insulation, Batt Frz. Dr. WPL-B0523593
...
22
Cond. Fan Shrd WPL-D7691002
...
23
Bracket, Timer WPL-D7752701
...
24
Clip WPL-M0110508
...
25
Screw WPL-WP90767
...
26
Screw WPL-M0223803
...
27
Screw Shoulder WPL-M0238833
...
28
Screw WPL-M0218118
...
29
Tie-Wire WPL-WPW10339879
...
30
Grommet K WPL-M0500107
...
31
Base Pan - Ptd WPL-D7595411
...
32
Spacer Cond. WPL-B8346301
...
33
Condenser Pntd WPL-D7654301
...
34
Speednut WPL-M0293703
...
35
Clamp-Drier WPL-M0104002
...
37
Gasket WPL-B5759604
...
38
Screw WPL-M0253916
...
42
Screw WPL-WP489069

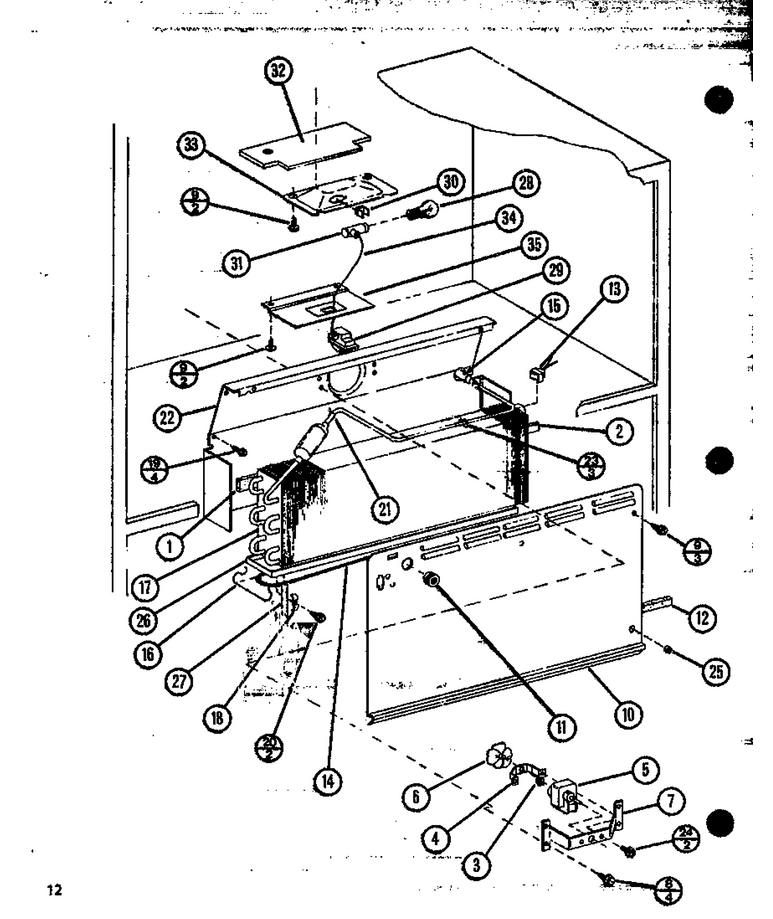

03 - Page 4

...
...
NI
Harness Frz Light WPL-10118701
...
1
Block Evap. Coil WPL-B8322902
...
2
Block Evap Coil WPL-B8361701
...
3
Grommet WPL-WP2264462
...
4
Brkt Evap Fan WPL-C8881301
...
5
Motor-Evap WPL-WPC8891605
...
6
Blade, Evap Fan WPL-C8927801
...
7
Brkt Evap Fan Shroud WPL-D7524501
...
8
Screw WPL-WP489464
...
9
Screw (3) WPL-67006425
...
10
Evap Cover WPL-D7874501
...
11
Grommet WPL-A3138301
...
12
Gasket, Bottom WPL-A3189394
...
13
Thermostat WPL-WP10442411
...
14
Heater Evap. WPL-D7549703
...
15
Assy, Heat Exch. WPL-D7759002
...
16
Clip WPL-C8952001
...
17
Evaporator Assembly WPL-R0170032
...
18
Clamp WPL-A3253803
...
19
Screw WPL-WP98165
...
20
Screw (3) WPL-67006425
...
21
Wire Tie WPL-M0321204
...
22
Evap Fan Shroud WPL-D7691110
...
23
Tie-Wire WPL-WPW10339879
...
24
Screw WPL-WP12990527
...
25
Plug, Button (Wht) WPL-M0310305
...
26
Tray, Drip Evap WPL-10067701
...
27
Tube Drip Tray WPL-10067801
...
28
Light Bulb WPL-8009
...
29
Switch WPL-W11384469
...
30
Clip, Ground WPL-B5733302
...
31
Socket-Light WPL-C8973401
...
32
Barrier WPL-C8976301
...
33
Housing, Fz Light WPL-D7760101
...
34
Jumper Wire WPL-B5781002
...
35
Cover Light WPL-10073201
