Amana TC10085W1 (BOM: PTC10085W1)

Model: TC10085W1 (BOM: PTC10085W1)

Save Part Not Listed?
product name

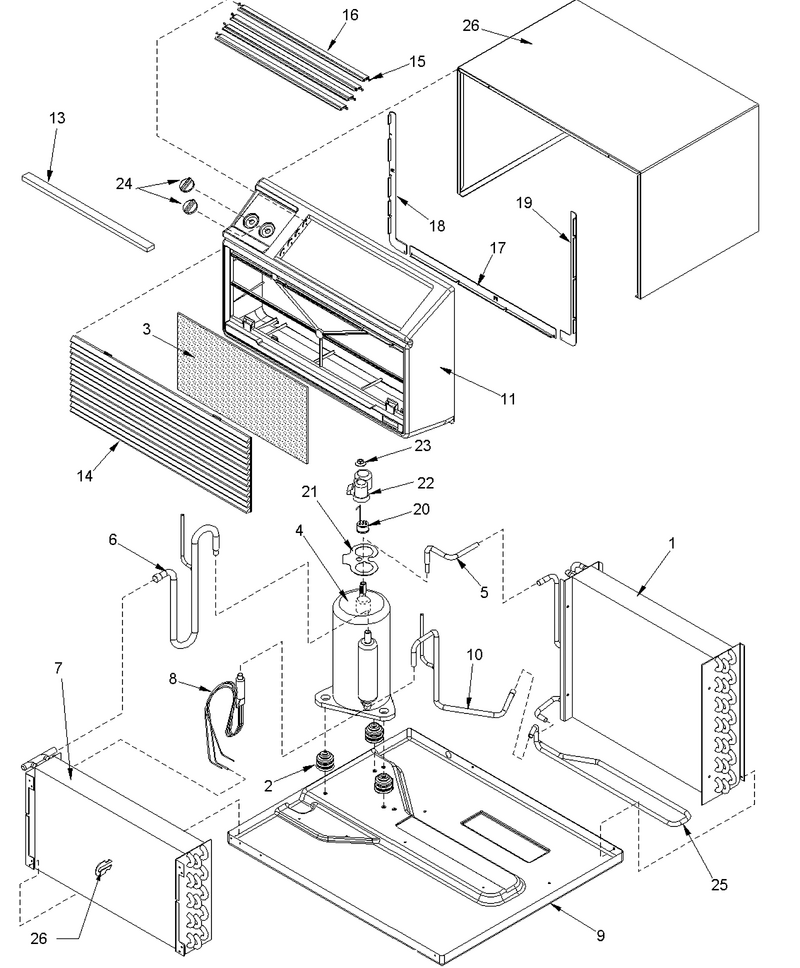

01 - Outer Case And Tubing

...
...
NI
Label, Control WPL-BT14933340
...
1
Assy, Cond Coil Tubing WPL-Y3396504
...
2
Grommet. Comp WPL-A3448601
...
3
Air Filter WPL-BT1369603
...
4
Comp-Tc Rka5510exa WPL-D9831808
...
6
Assy, Suction Line WPL-Y3393701
...
7
Assy, Tubing Evap Coil 10k WPL-3396001
...
8
Cap Weld - WPL-96001031
...
9
Basepan, Thru-Wall WPL-3300000P
...
10
Line, Liquid WPL-3393602
...
11
Frame-Ttw WPL-BT3375100
...
13
Gasket, Foam WPL-BT1392616
...
14
Grill Return Air WPL-BT3375200
...
15
O-Ring WPL-BT1392910
...
16
Blade, Vent WPL-BT3375500
...
17
Spacer, Bottom WPL-BT3375300
...
18
Spacer Right WPL-BT3375301
...
19
Spacer, Left WPL-BT3375302
...
20
Overload WPL-D6961655
...
21
Gasket, Compressor (tec) WPL-BT1392604
...
22
Cap Compressor WPL-BT3055500
...
23
Nut, (tecumseh) WPL-BT1393000
...
24
Knob- Rac WPL-WPBT3075631
...
25
Line, Liquid (lower) WPL-3393619
...
26
Assy, Sleeve WPL-SLV-26

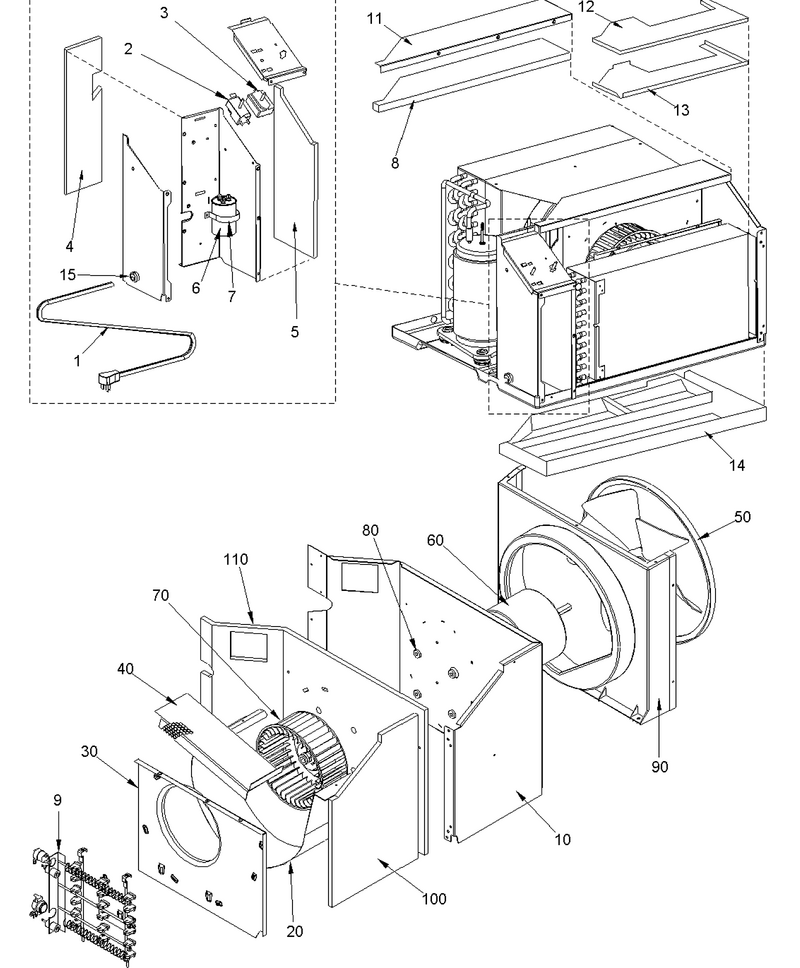

02 - Partition And Control Assy

...
...
1
Cord, Power WPL-Y20057501
...
2
Thermostat, Short Shaft (serv) WPL-BT1370801
...
3
Switch, Power (serv) WPL-BT1370803
...
4
Insulation WPL-BT3393005
...
5
Insul., Left Side WPL-BT3393000
...
6
Capacitor WPL-BT9457002
...
7
Strap, Capacitior WPL-3084801
...
8
Insulation, Cond. WPL-BT3393003
...
10
Center Partition WPL-3301000
...
11
Top Medium WPL-3301201
...
12
Insulation, Top, Large WPL-BT3393002
...
13
Top WPL-3301200
...
14
Pan, Drain (styrofoam) WPL-BT3305000
...
15
Strain Relief 14/3 WPL-BT1392101
...
20
Scroll, Blower WPL-3306000
...
30
Blower Partition WPL-330-6001
...
40
Blower Screen WPL-3306002
...
50
Blade, Fan WPL-BT1086703
...
60
Motor- 1 6 WPL-BT1340009S
...
70
Wheel, Blower WPL-BT1368005
...
80
Locknut, Nylon No.8-32 WPL-BT1393001
...
90
Shroud, Fan WPL-BT3311000
...
100
Insul., Right Side WPL-BT3393001
...
110
Insulation, Back WPL-BT3393004
