Amana TAA600 (BOM: P7575101W)

Model: TAA600 (BOM: P7575101W)

Save Part Not Listed?
product name

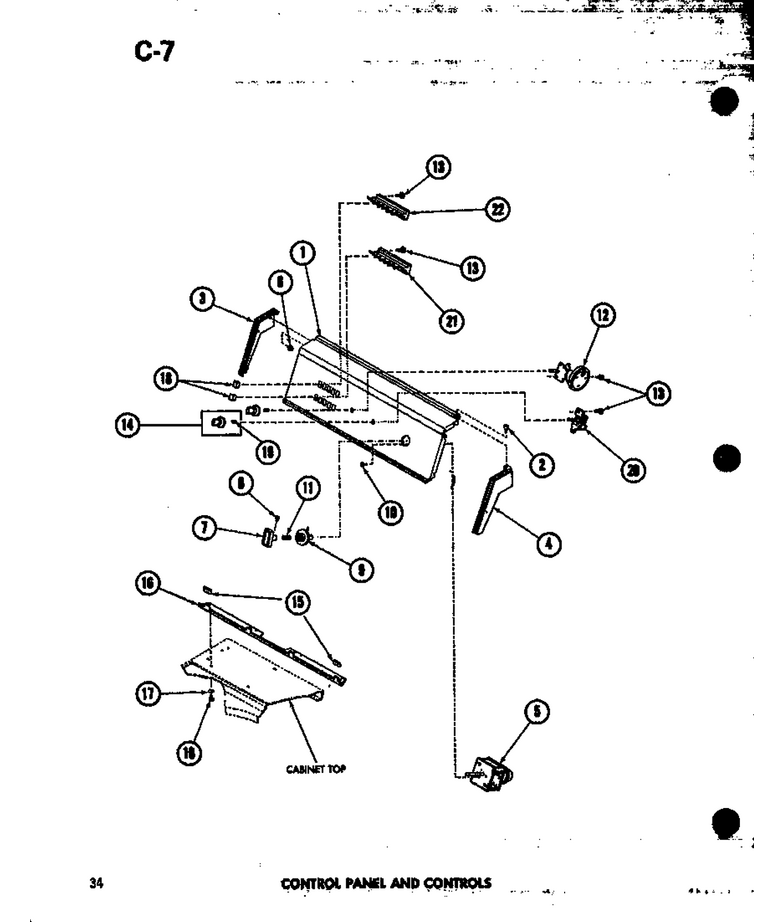

04 - Control Panel And Controls

...
...
1
Control Panel WPL-R0603002
...
2
Screw WPL-R0600002
...
3
End, Control Hood WPL-R0603005
...
4
Hood End Rh WPL-R0603004
...
5
Timer WPL-R0604001
...
6
Nut WPL-R0601001
...
7
Timer Knob WPL-R0603502
...
8
Set Screw WPL-R0600005
...
9
Indicator WPL-R0603505
...
10
Screw WPL-WP90767
...
11
Spring WPL-R0605501
...
12
Switch,pressure WPL-R0602501
...
13
Screw WPL-WP90767
...
14
Control Knob Assy WPL-R0603007
...
15
Sleeve WPL-R0605503
...
16
Panel Support WPL-R0603006
...
17
Fibre Washer WPL-R0600501
...
18
Switch Button WPL-R0603501
...
19
Clip WPL-R0601501
...
21
Switch, Selector WPL-R0602502
...
22
Selector Switch WPL-R0602505

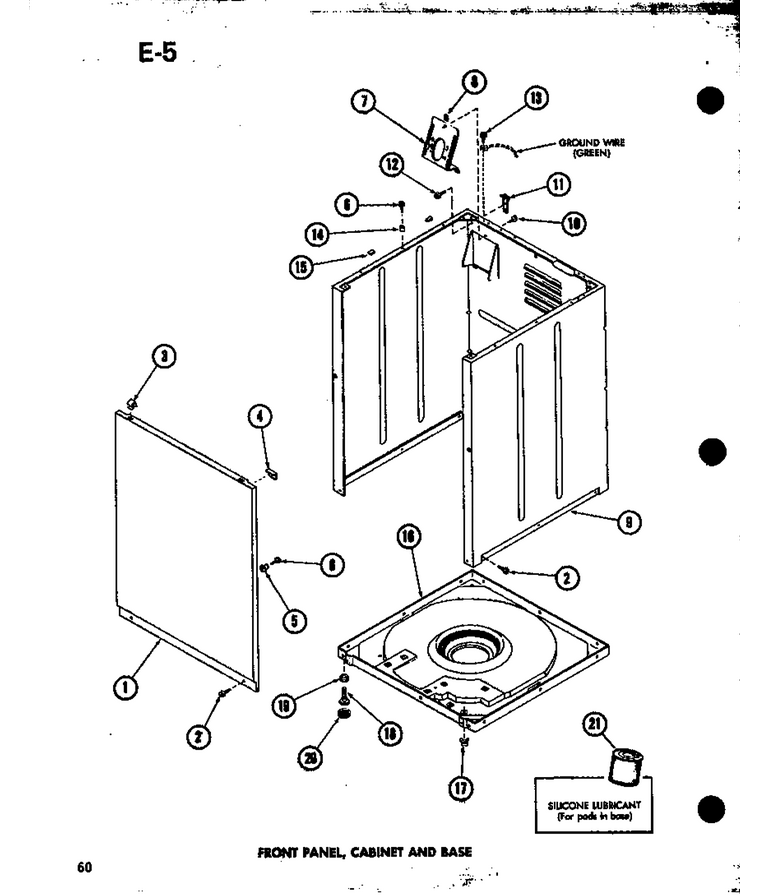

05 - Front Panel

...
...
1
Front Panel White WPL-R0603015
...
2
Screw WPL-WP27001200
...
3
Fastener- WPL-WP22001650
...
4
Protector WPL-R0603526
...
5
Locater Lug WPL-R0603525
...
6
Screw WPL-WPY014874
...
7
Bracket, Valve WPL-39407
...
8
Speed Nut WPL-R0601007
...
9
Kit-Servic WPL-38612WP
...
10
Screw WPL-R0600009
...
11
Hinge,hold-Down Lug WPL-Y27103
...
12
Screw WPL-WP3390631
...
13
Screw WPL-WP489464
...
14
Locator, Panel WPL-505187
...
15
Pad, Bumper WPL-Y56128
...
16
Assy,base-Complete-G90 WPL-31653P
...
17
Caged Nut WPL-R0601015
...
18
Leg, Adjustable (W/nut) WPL-22003428
...
19
Nut- Lock WPL-WP210385
...
20
Rubber Pad WPL-R0606518
...
21
Grease WPL-WP26594P

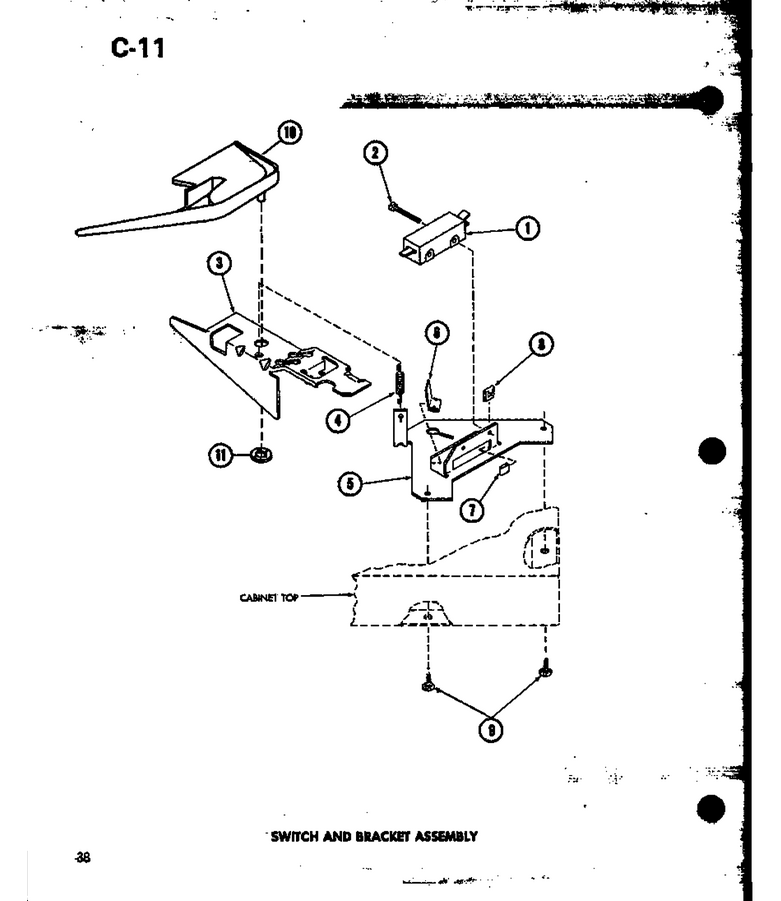

13 - Switch And Bracket Assy

...
...
1
Switch WPL-R0602507
...
2
Screw,6-32 X 1 Round H WPL-Q6516
...
3
Lever,out-Of-Bal Switc WPL-27602
...
4
Spring WPL-R0605506
...
5
Bracket WPL-R0605505
...
6
U-Clip WPL-R0601503
...
7
U-Clip WPL-R0601504
...
8
Nut WPL-R0601006
...
9
Screw WPL-WP489464
...
10
Switch Shield WPL-R0605671
...
11
Nut WPL-R0601032

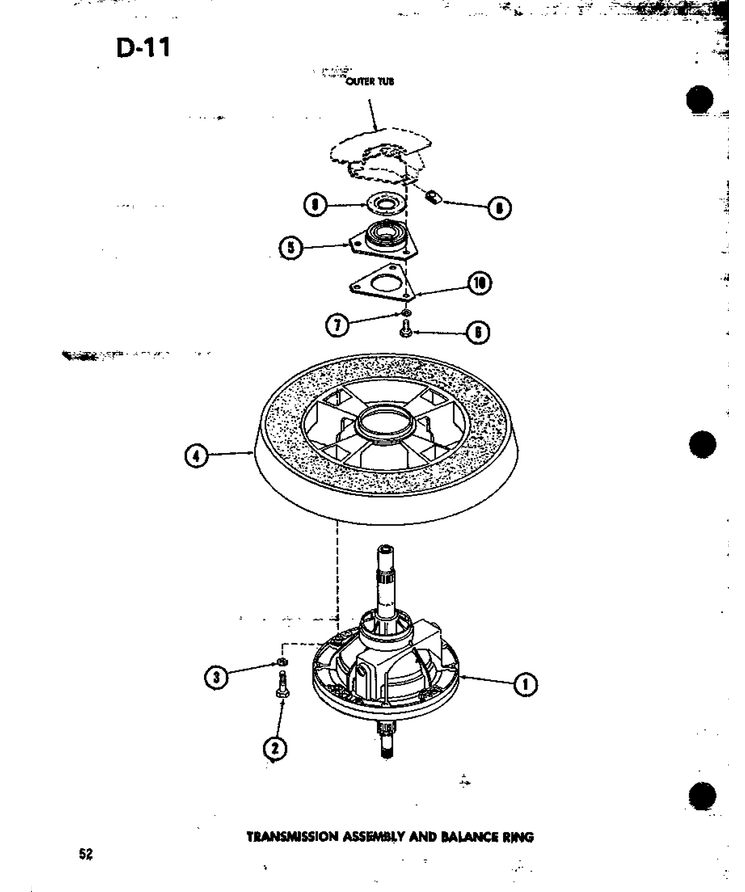

15 - Transmission Assy And Balance Ring

...
...
1
Transmission Assembly WPL-30946P
...
2
Screw WPL-R0600022
...
3
Lockwasher WPL-R0600520
...
4
Assy,balance Ring-Compl WPL-34731
...
5
Main Beari WPL-WP40004201P
...
6
Screw WPL-R0600021
...
7
Lockwasher WPL-R0600519
...
8
Nut WPL-R0601013
...
9
Flinger WPL-27187
...
10
Washer WPL-R0600518

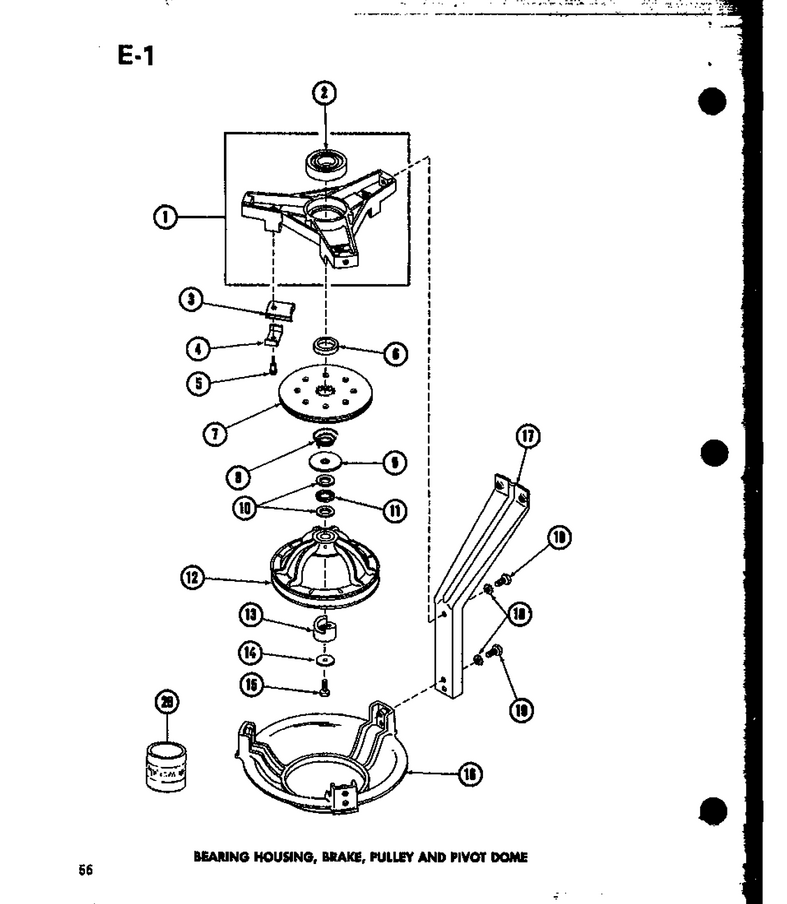

02 - Bearing Housing

...
...
1
Assy,bearing Housing-L WPL-35746
...
2
Bearing- M WPL-WP40004001
...
3
Pad-Brake WPL-R9900543
...
4
Brake Pad Shim WPL-R0605531
...
5
Screw,10-24 Shoulder WPL-26547
...
6
Spacer WPL-27176
...
7
Brake Assembly WPL-R9900474
...
8
Spring,conical WPL-33435
...
9
Washer WPL-R0600523
...
10
Bearing Race WPL-R0605533
...
11
Needle Bearing WPL-R0605534
...
12
Kit-Pulley WPL-34232P
...
13
Helix WPL-27018
...
14
Washer WPL-WP40041501
...
15
Screw WPL-WP40063401
...
16
Pivot Dome WPL-R0605526
...
17
Leg,support WPL-27090
...
18
Lockwasher WPL-R0600519
...
19
Screw WPL-R0600025
...
20
Lubricant WPL-R0608008

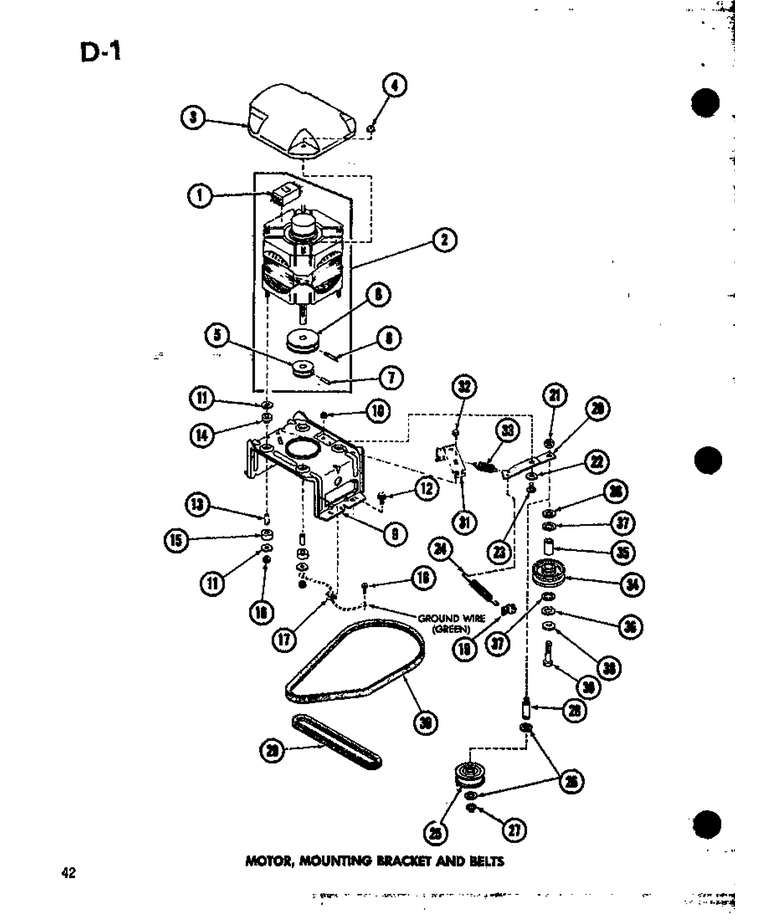

09 - Motor

...
...
1
Switch,motor WPL-Y24149
...
2
Assembly, Motor WPL-R0607001
...
3
Shield,motor WPL-27136
...
4
Locknut WPL-R0601008
...
5
Pulley,motor WPL-Y27104
...
6
Pulley, Motor WPL-R0609502
...
7
Roll Pin WPL-R0601508
...
8
Roll Pin WPL-R0601509
...
9
Bracket, Motor Mounting WPL-R0603012
...
10
Nut WPL-WPW10139757
...
11
Washer WPL-R0600510
...
12
Screw WPL-R0600018
...
13
Spacer WPL-R0603511
...
14
Rubber Mtg WPL-R0606509
...
15
Rubber Mtg WPL-R0606510
...
16
Nut,hex 10-32 Lock WPL-23604
...
17
Ground Clip WPL-R0601507
...
18
Screw WPL-R0600017
...
20
Idler Lever WPL-R0605517
...
21
Nut WPL-WP358160
...
22
Spacer WPL-R0600506
...
23
Screw, 1/4-20 WPL-40038901
...
29
Belt-Pump WPL-WP27155
...
30
Kit, Idler WPL-R9900487
...
31
Spring Arm WPL-R0605518
...
32
Screw WPL-WP27001200
...
33
Spring WPL-R0605516
...
34
Pulley, Idler WPL-R0609503
...
35
Bearing WPL-R0603512
...
36
Washer WPL-R0600507
...
37
Washer WPL-R0600508
...
38
Washer WPL-R0600509
...
39
Washer WPL-R0600515

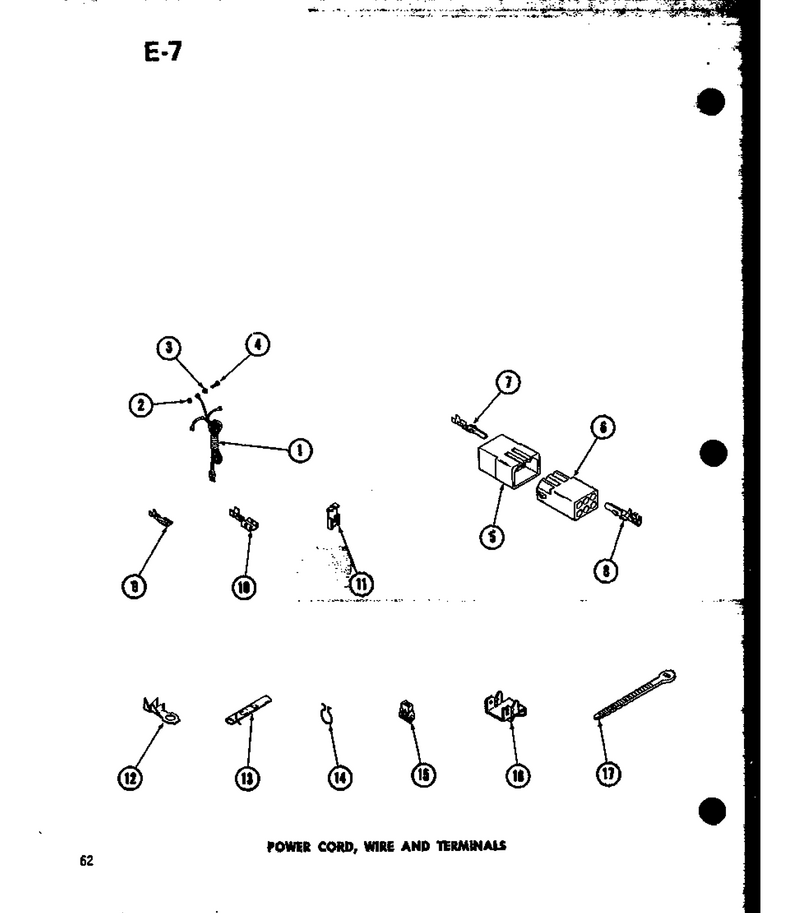

11 - Power Cord

...
...
NI
Wire Harness WPL-R0605016
...
1
Power Cord And Plug WPL-40095301
...
2
Nut WPL-R0601003
...
3
Lockwasher WPL-R0600503
...
4
Screw,10-24 X 3/8 Round WPL-20267
...
5
Plug WPL-R0605009
...
6
Receptacle,6 Circuit WPL-26708
...
7
Terminal WPL-R0605003
...
8
Terminal WPL-R0605004
...
9
Terminal,spade-3/16 Fe WPL-R0605002
...
10
Terminal WPL-M0320585
...
11
Terminal,flag-1/4 Fema WPL-Y00120
...
12
Terminal WPL-R0605007
...
13
Connector WPL-WP75614
...
14
Clip WPL-R0601522
...
15
Insulator, Pod K WPL-M0325501
...
16
Ground Clip WPL-R0601507
...
17
Wire Tie WPL-R0601521

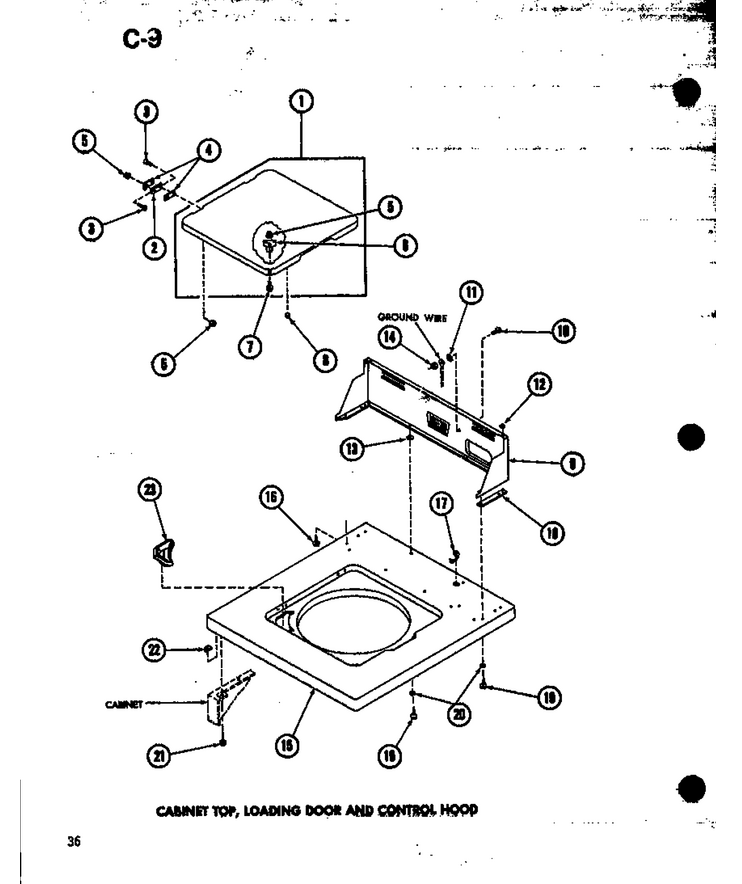

03 - Cabinet Top

...
...
1
Loading Door WPL-28728H
...
2
Door Hinge WPL-R0605502
...
3
Screw WPL-R0600007
...
4
Hinge Gasket WPL-R0604502
...
5
Nylon Nut WPL-R0601002
...
6
Actuator, Door Switch WPL-R0603504
...
7
Screw & Lockwasher WPL-R0600008
...
8
Bumper WPL-R0606501
...
9
Control Hood, Almond WPL-26820L
...
10
Screw,10-24 X 3/8 Round WPL-20267
...
11
Lockwasher WPL-R0600503
...
12
Speed Nut WPL-R0601004
...
13
Washer WPL-R0600502
...
14
Nut WPL-R0601003
...
15
Cabinet Top White WPL-R0603010
...
16
Screw WPL-R0600009
...
17
Grommet, Cord WPL-211881
...
18
End Gasket WPL-R0604501
...
19
Screw WPL-WP90767
...
20
Fibre Washer WPL-R0600501
...
21
Screw WPL-R0600010
...
22
Nut-10-24 WPL-36020
...
23
Dispenser,bleach WPL-34776

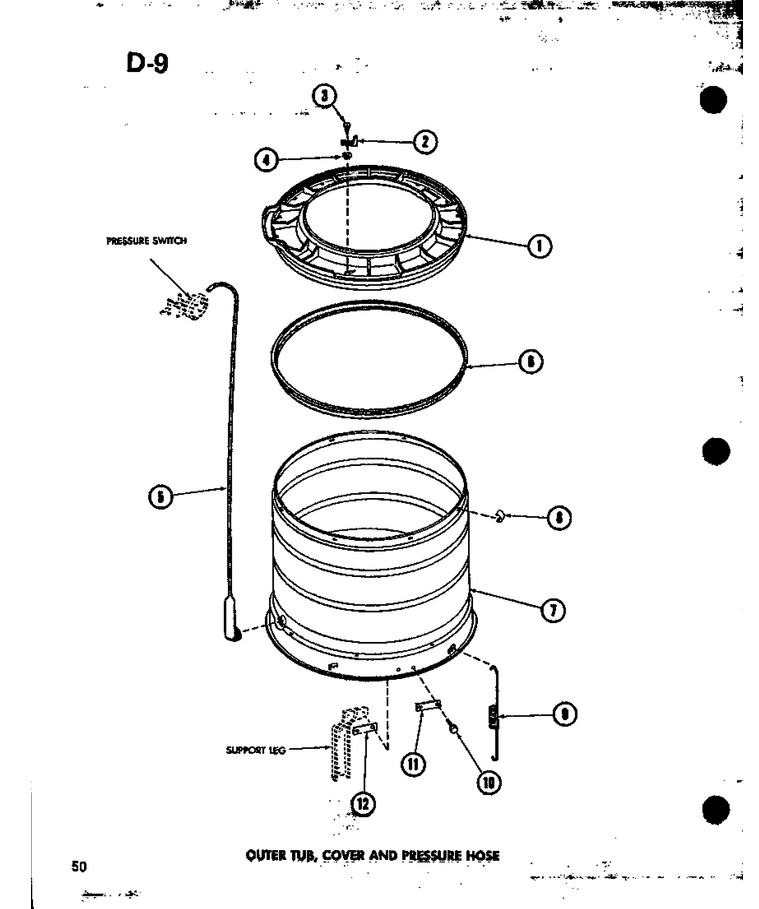

10 - Outer Tub

...
...
1
Cover Outer Tub WPL-R0603520
...
2
Trigger WPL-R0605520
...
3
Screw WPL-R0600017
...
4
Lockwasher WPL-R0600517
...
5
Hose, Pressure WPL-R0606511
...
6
Cover Gasket WPL-R0604506
...
7
Outer Tub WPL-R0603014
...
8
Clip,spring WPL-Y27017
...
9
Centering Spring WPL-R0605521
...
10
Screw WPL-W10856106
...
11
Plate,leg .063 WPL-27926
...
12
Leg Plate WPL-R0605523

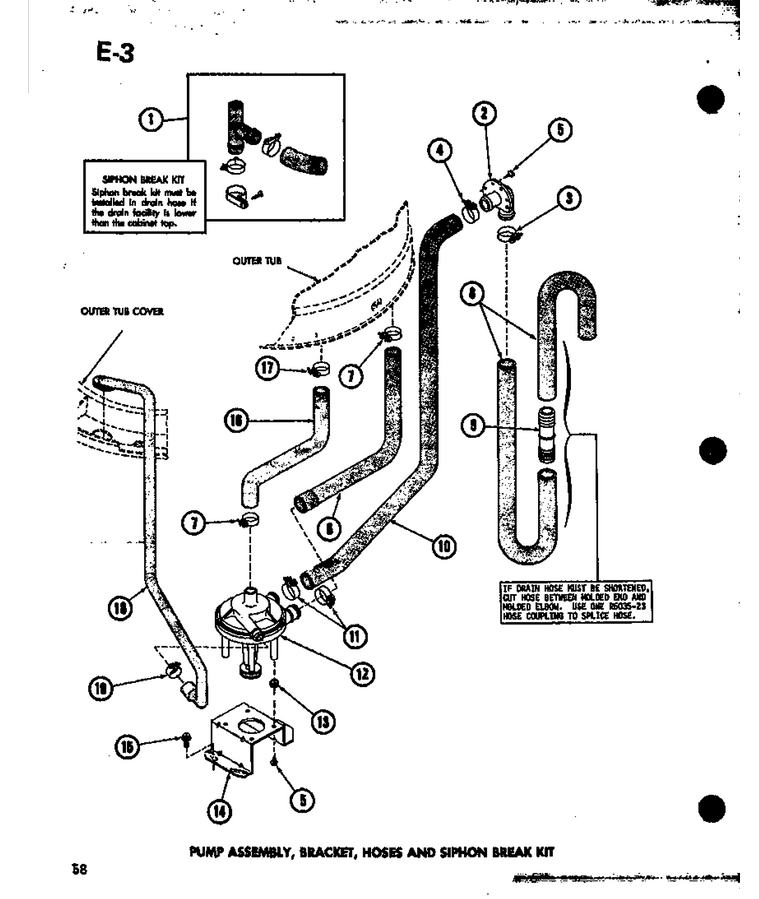

12 - Pump Assy

...
...
1
Break-Sphn WPL-76660
...
2
Elbow,drain Hose-Plast WPL-23553
...
3
Clamp WPL-WP285655
...
4
Clamp WPL-WP285655
...
5
Screw WPL-WP27001200
...
6
Hose,tub To Pump-Drain WPL-27160
...
7
Clamp WPL-WP285655
...
8
Drain Hose WPL-R0606516
...
9
Couplr-Hse WPL-WP16272
...
10
Pump-To-Ellow Hose WPL-R0606515
...
11
Clamp WPL-WP285655
...
12
Assy, Pump Na WPL-31968
...
13
Nut WPL-R0601014
...
14
Pump Mtg Bracket WPL-R0605524
...
15
Screw WPL-R0600018
...
16
Hose WPL-R0606513
...
17
Clamp WPL-WP285655
...
18
Recirculating Hose WPL-R0606512
...
19
Clamp WPL-WP285655

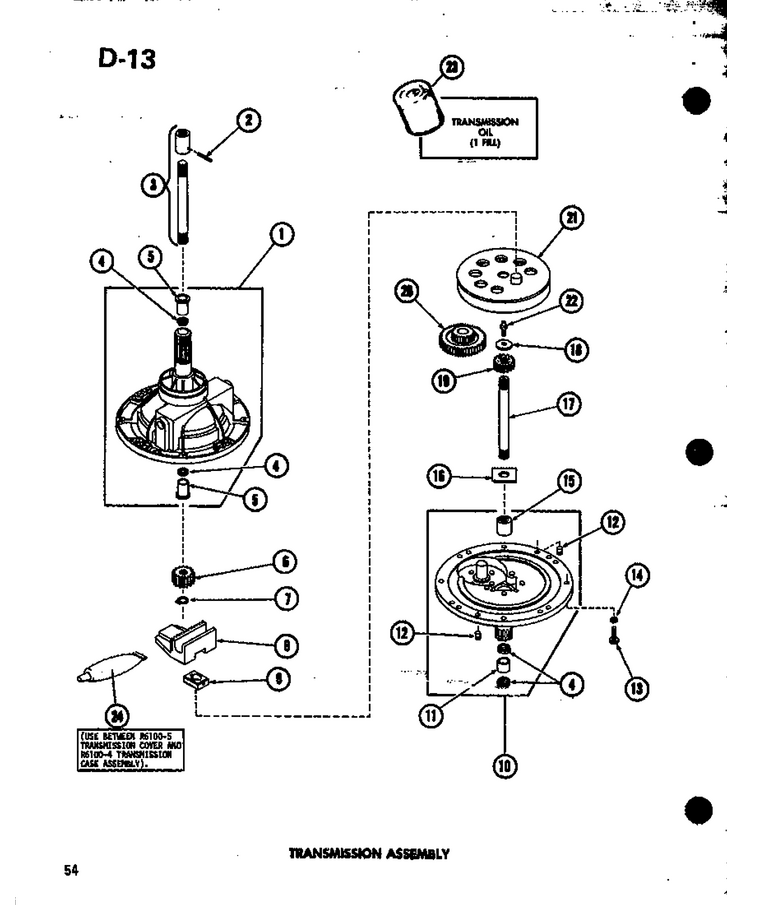

14 - Transmission Assy

...
...
1
Assy,transmission Case WPL-R0610004
...
2
Roll Pin WPL-R0601514
...
3
Kit, Shaft & Coupler WPL-R0610040
...
4
Seal- Oil WPL-WP40042701
...
5
Bearing WPL-R0605537
...
6
Ag Pinion WPL-R0605542
...
7
Ring,retaining WPL-27197
...
8
Rack WPL-R0605544
...
9
Slide WPL-26493
...
10
Transmission Cover Assembly WPL-38287P
...
11
Bearing WPL-27022
...
12
Pin WPL-R0605548
...
13
Screw,cap-1/4-20 X 1`` WPL-20253
...
14
Lockwasher WPL-R0600520
...
15
Transmission Cover Assembly WPL-38287P
...
16
Washer WPL-R0600522
...
17
Shaft WPL-R0065540
...
18
Washer WPL-WP40041501
...
19
Drive Pinion WPL-R0605543
...
20
Reduction Gear WPL-R0603521
...
21
Assy,gear & Stud WPL-26577
...
22
Screw WPL-R0600024
...
23
Oil,cw Transmission F- WPL-27243P
...
24
Sealant WPL-37577P

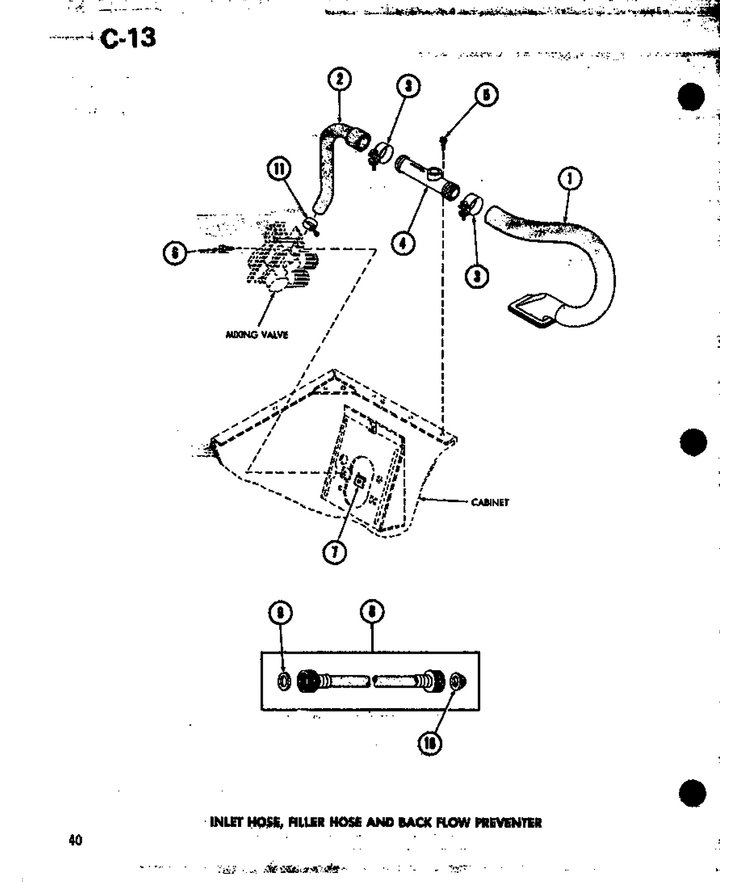

06 - Inlet Hose

...
...
1
Hose WPL-R0606502
...
2
Hose,mixing Valve WPL-27183
...
3
Clamp WPL-WP285655
...
4
Syphon Break WPL-R0605507
...
5
Screw WPL-WP90767
...
6
Screw WPL-R0600009
...
7
Speed Nut WPL-R0601007
...
8
Inlet Hose Assy. WPL-202860
...
9
Gasket- In WPL-WPY013783
...
10
Strainer- WPL-WP22002960
...
11
Clamp WPL-WP596669

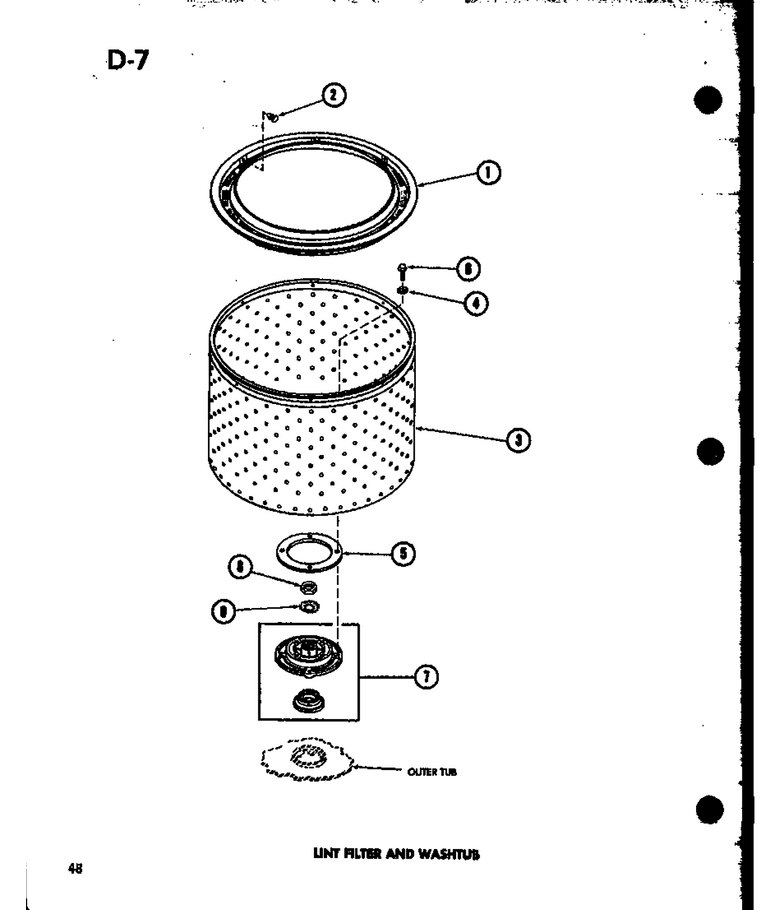

07 - Lint Filter And Washtub

...
...
1
Lint Filter WPL-33521
...
2
Fastener,lint Filter WPL-29474
...
3
Wash Tub WPL-39252P
...
4
Gasket WPL-WP28094
...
5
Gasket WPL-R0604505
...
6
Screw WPL-WP3400527
...
7
Kit,seal-Washer WPL-356P3
...
8
Nut, Lock WPL-R0601012
...
9
Lockwasher WPL-R0600516

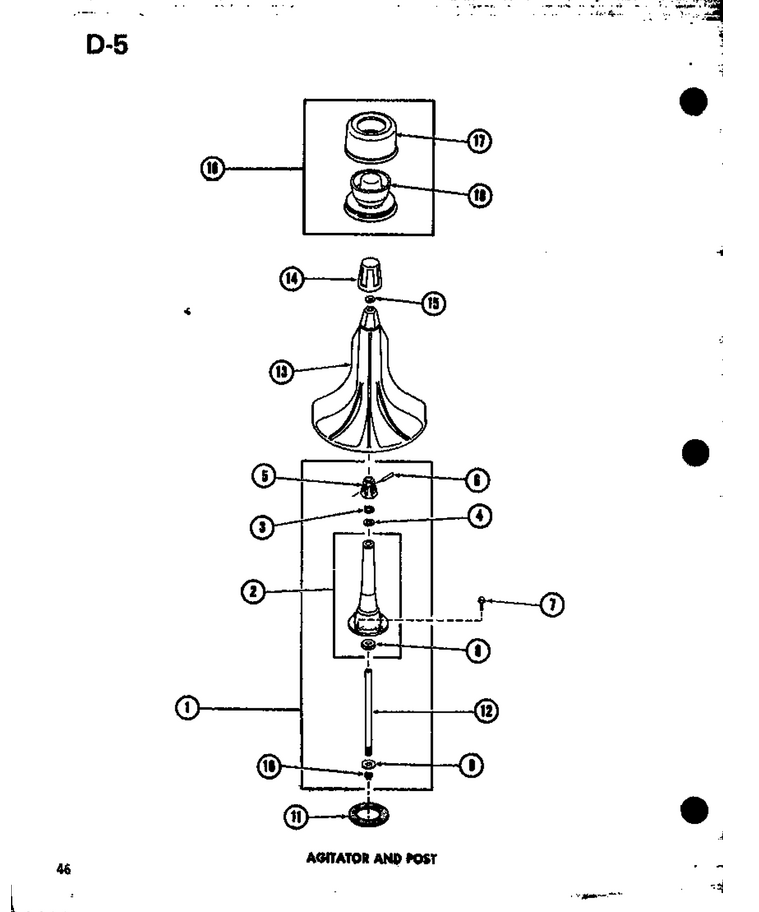

01 - Agitator And Post

...
...
1
Assembly, Agitator Post WPL-R0610001
...
2
Post, Agitator WPL-R0605519
...
3
Washer WPL-R0600511
...
4
Washer WPL-R0600512
...
5
Assy,agitator Shaft&dr WPL-28091
...
6
Taper Pin WPL-R0601510
...
7
Screw WPL-WP3400527
...
8
Thrust Washer WPL-R0600513
...
9
Washer WPL-R0600514
...
10
Ring,retaining WPL-27197
...
11
Gasket,center Column WPL-27020
...
12
Assy,agitator Shaft&dr WPL-28091
...
13
Agitator WPL-R0603513
...
14
Hold-Down Cap WPL-R0603514
...
15
Washer WPL-R0600515
...
16
Sales Item Only (Dispenser) WPL-R0603515
...
17
Top:see Note WPL-R0603517
...
18
Body, Dispenser WPL-R0603516

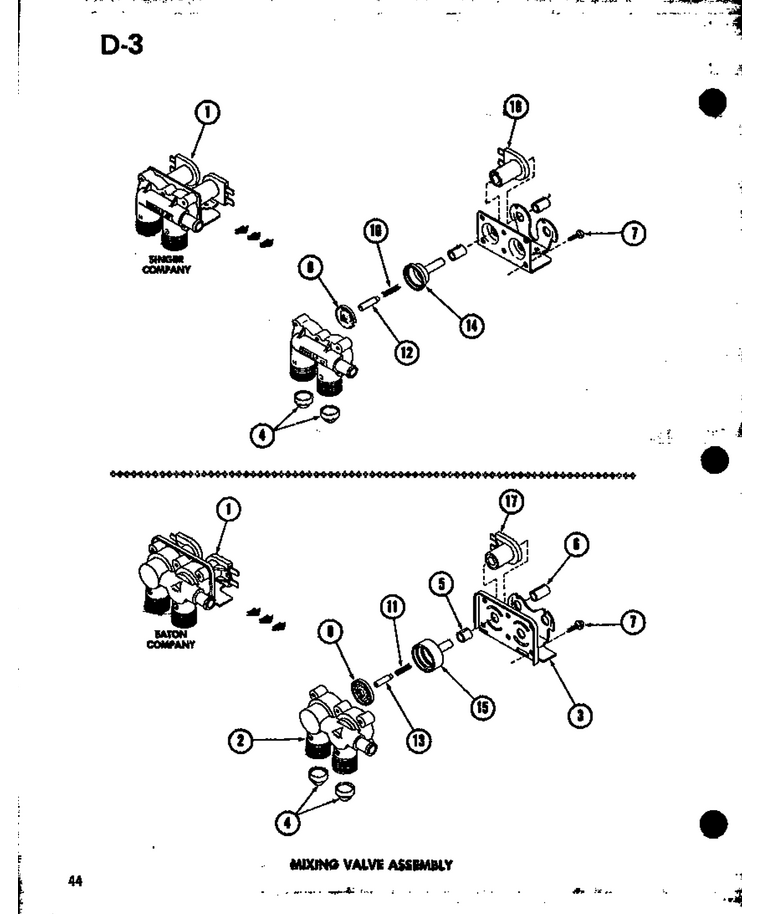

08 - Mixing Valve Assy

...
...
1
Mixing Valve WPL-R0606001
...
2
Valve Body WPL-R0606003
...
3
Valve,mixing WPL-R0605515
...
4
Strainer- WPL-WP22002960
...
5
Sleeve Short WPL-R0603508
...
6
Sleeve Long WPL-R0603510
...
7
Screw WPL-R0600013
...
8
Diaphram WPL-R0606505
...
9
Diaphram WPL-R0606506
...
10
Spring WPL-R0605508
...
11
Spring WPL-R0605509
...
12
Armature WPL-R0605510
...
13
Armature WPL-R0605511
...
14
Armature Guide WPL-25817F
...
15
Armature Guide WPL-R0605513
...
16
Valve,mixing WPL-R0609001
...
17
Solenoid WPL-R0609002
