Amana T16W (BOM: P6030306W)

Model: T16W (BOM: P6030306W)

Save Part Not Listed?
product name

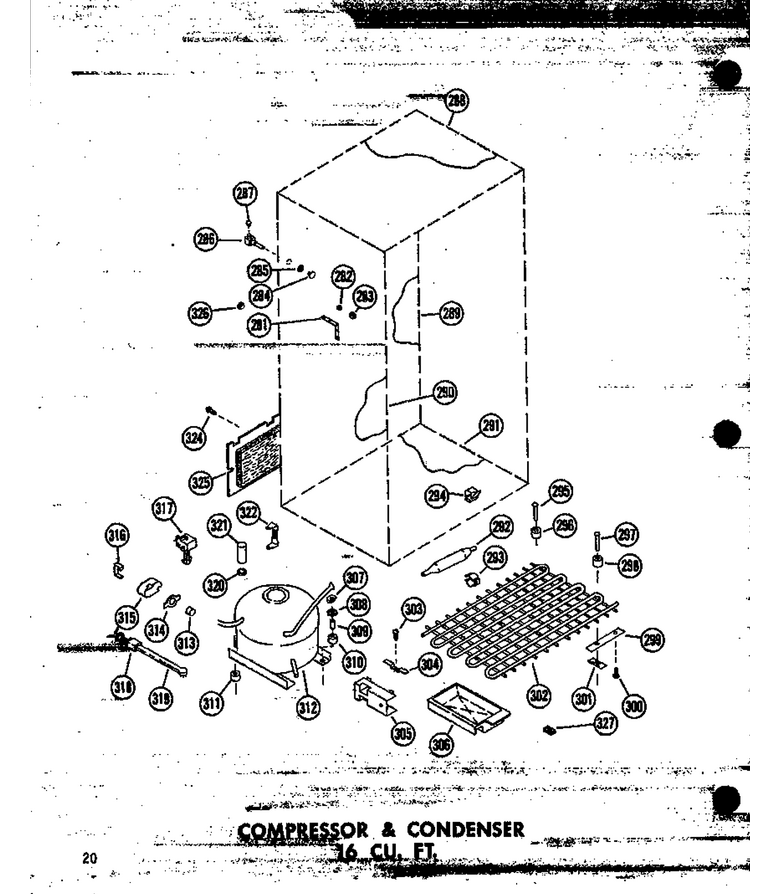

01 - Compressor & Condenser 16 Cu. Ft.

...
...
287
Plug WPL-M0310309
...
288
Insulation WPL-B0524011
...
289
Insulation, Back WPL-B5680801
...
290
Insulation, Side WPL-B5618702
...
291
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
292
Drier WPL-WPB2150504
...
293
Clamp-Drier WPL-M0104002
...
294
Clip WPL-M0110503
...
295
Sems Fastner WPL-M0257037
...
296
Spacer WPL-A3013906
...
297
Sems Fastner WPL-M0257039
...
298
Spacer WPL-A3013907
...
299
Bracket, Support WPL-A3085401
...
300
Screw WPL-M0241131
...
301
Nut A WPL-M0286003
...
302
Condenser Assy Pnt WPL-D7010701
...
303
Kit, Screw WPL-R9800670
...
304
Clip-Cond WPL-A3054502
...
305
Spacer WPL-B0544101
...
306
Pan, Drain WPL-D7001001
...
307
Clip K WPL-A3140801
...
308
Washer, Nylon K WPL-M0590101
...
309
Sleeve K WPL-A3072001
...
310
Grommet K WPL-A3026101
...
311
Vinyl Sleeve WPL-A3164301
...
312
Compressor-Ae1410a-1/4 WPL-D3871901
...
313
Overload WPL-C3678001
...
314
Spring K WPL-A3043601
...
315
Terminal Cover WPL-B0551801
...
316
Strap K WPL-A3041801
...
317
Relay WPL-C3553401
...
318
Strain Relief WPL-8536977
...
319
Wiring Harness And Power Cord WPL-D7098803
...
324
Screw-Sm WPL-M0241118
...
325
Back, Mach Compt K WPL-C3655001
...
326
Plug, Button (Blk) WPL-A3080001
...
327
Pad A WPL-B5691701

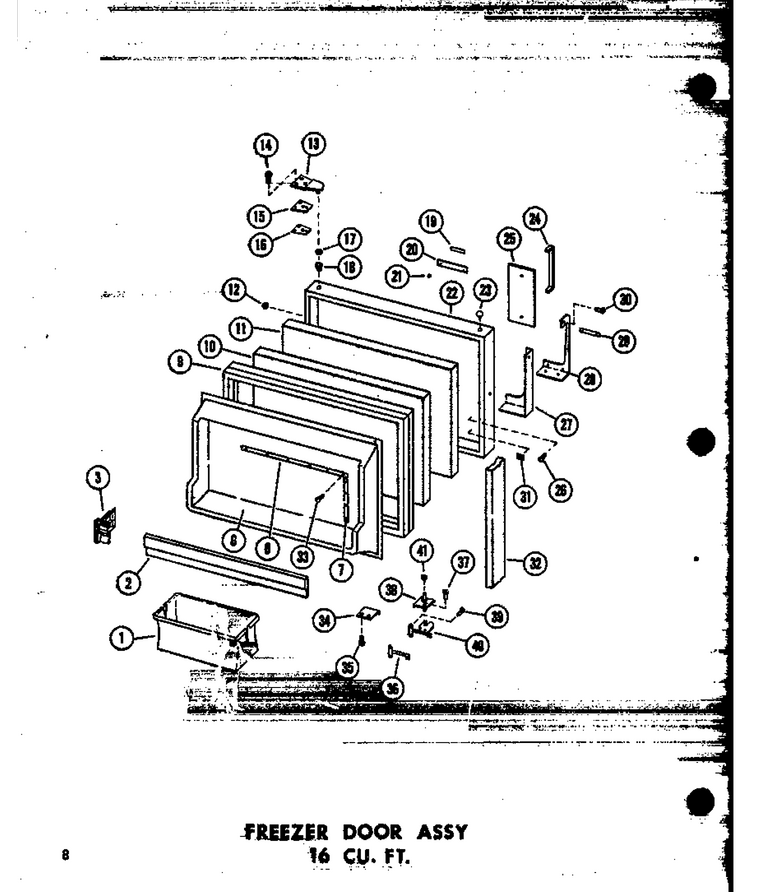

03 - Fz Door Assy 16 Cu. Ft.

...
...
2
Retainer K WPL-D3976725
...
3
Support K WPL-C3680902
...
6
Inner Dr Panel K WPL-D7165402
...
7
Retainer WPL-D3928101
...
8
Retainer Gasket WPL-D3928102
...
9
Gasket WPL-D3928206
...
10
Insulation, Batt WPL-A3073027
...
11
Insulation WPL-B0566707
...
13
Hinge, Top WPL-B5640704
...
14
Kit, Screw WPL-R9800670
...
15
Shim WPL-A3143701
...
16
Tap Strip WPL-A3139701
...
17
Washer WPL-M0270502
...
18
Bushing, Hinge Pin WPL-C3652901
...
19
Nameplate WPL-C3578002
...
20
Escutcheon WPL-C3577601
...
21
Stud WPL-M0550001
...
22
Door-Fr-C-T15f WPL-D7073203
...
24
Handle WPL-D7073901
...
25
Handle Pad Frz Door WPL-D7072801
...
26
Screw WPL-M0248218
...
31
Nut WPL-M0289802
...
32
Insulation Ft. K WPL-A3195002
...
33
Screw WPL-WP98165
...
36
Shim K WPL-A3143502
...
37
Screw K WPL-M0205441
...
38
Center Hinge Assy WPL-B5640402
...
39
Kit, Screw WPL-R9800670
...
40
Center Hinge Assy WPL-B5640502
...
41
Washer WPL-M0274049

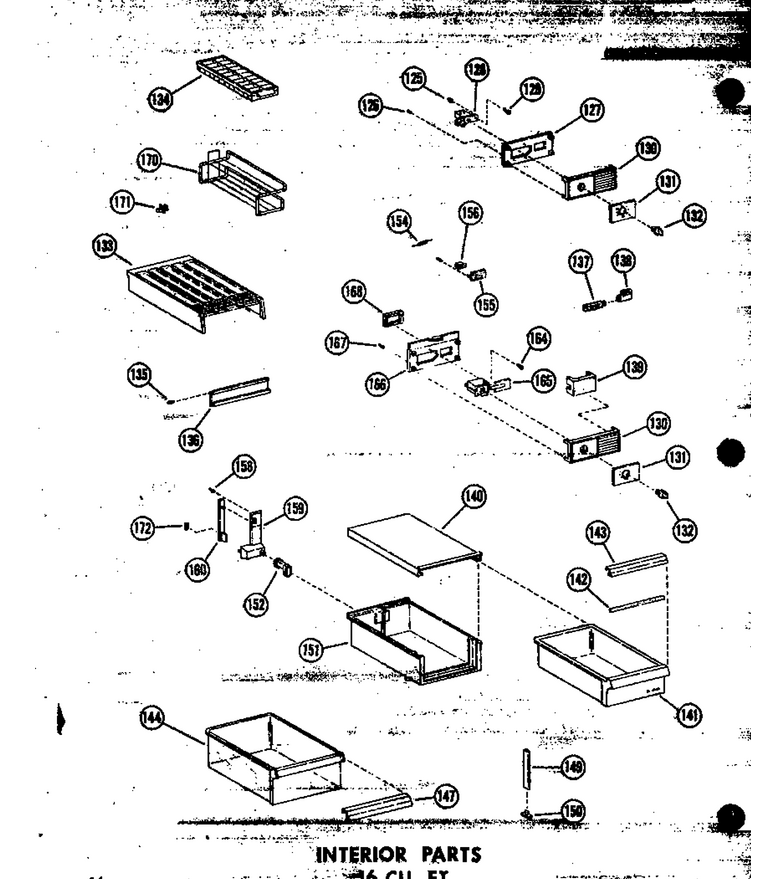

05 - Interior Parts 16 Cu. Ft.

...
...
125
Grommet, Screw WPL-M0580007
...
126
Clip WPL-M0113004
...
127
Back Plate WPL-D7160901
...
128
Control-Temp WPL-B0592304
...
129
Screw WPL-WP90767
...
130
Air Deflector, Fz & Ref WPL-D3953303
...
131
Thin Plate WPL-B5634501
...
132
Knob WPL-D7009801
...
134
Tray WPL-WP841180A
...
137
Light Bulb WPL-A0318001
...
138
Lamp Socket WPL-B5637201
...
139
Cap K WPL-C3617201
...
144
Pan, Crisper WPL-D7186701
...
147
Trim A WPL-C3696502
...
149
Support WPL-B0571005
...
150
Support WPL-B0571201
...
154
Diode WPL-M0305301
...
155
Escutcheon-Htr Sw WPL-C8705702
...
156
Switch WPL-M0341202
...
164
Screw WPL-M0218116
...
165
Control, Damper WPL-C8876602
...
166
Backer Plate WPL-D7058201
...
167
Clip WPL-M0113004
...
168
Gasket WPL-A3104502
...
170
Rack-Ice Tray WPL-D7179402
...
171
Support WPL-B5635501
...
172
Gasket WPL-A3030302

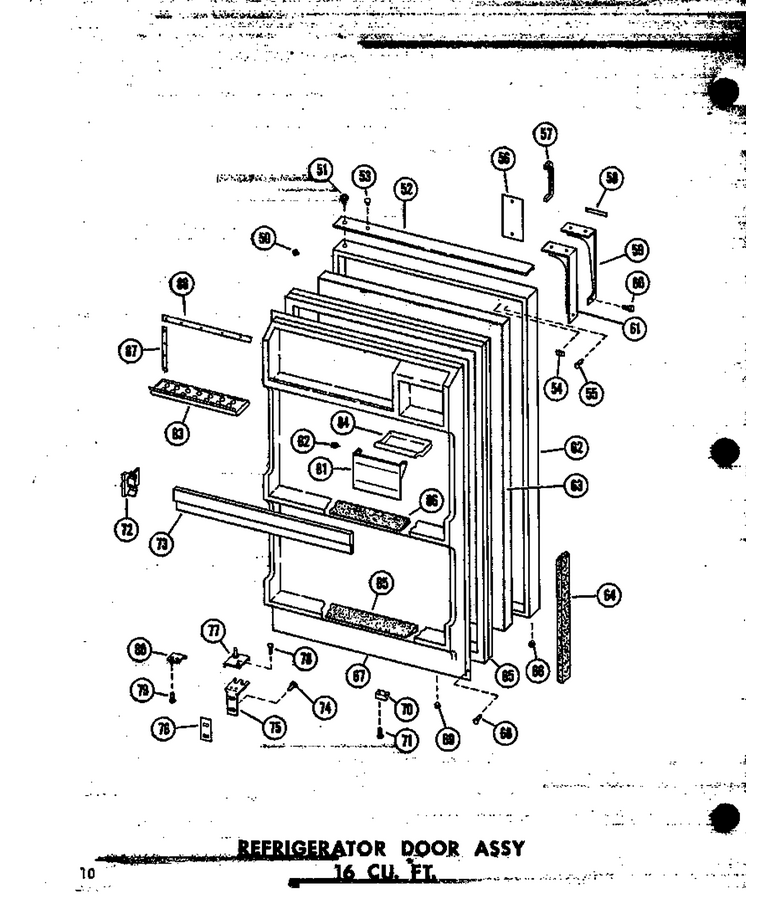

07 - Ref Door Assy 16 Cu. Ft.

...
...
51
Bushing, Hinge Pin WPL-C3652901
...
54
Nut WPL-M0289802
...
55
Screw WPL-M0248218
...
56
Handle Pad Frz Door WPL-D7072801
...
57
Handle WPL-D7073901
...
62
Door Ref-C-T16n WPL-D7057728
...
63
Insulation WPL-B5639606
...
64
Insulation (1 = 1ft.) WPL-A3195001
...
65
Gasket WPL-D3928205
...
67
Panel, Inner Door WPL-D7165502
...
68
Screw WPL-WP98165
...
70
Strike WPL-B5666401
...
71
Screw WPL-M0241205
...
72
Support- -Cream Rh WPL-B5631706
...
73
Pkg Retainer K WPL-D3976724
...
74
Screw WPL-WP67006715
...
75
Hinge Kit WPL-B5640201
...
76
Shim WPL-A3143603
...
77
Hinge Kit WPL-B5640902
...
78
Screw K WPL-M0205441
...
81
Butter Door WPL-D7026401
...
82
Pivot WPL-A3084701
...
84
Buttertray WPL-67004412A
...
86
Block, Shelf Support WPL-D7145101
...
87
Retainer Gasket WPL-D3928105
...
88
Retainer Gasket WPL-D3928102

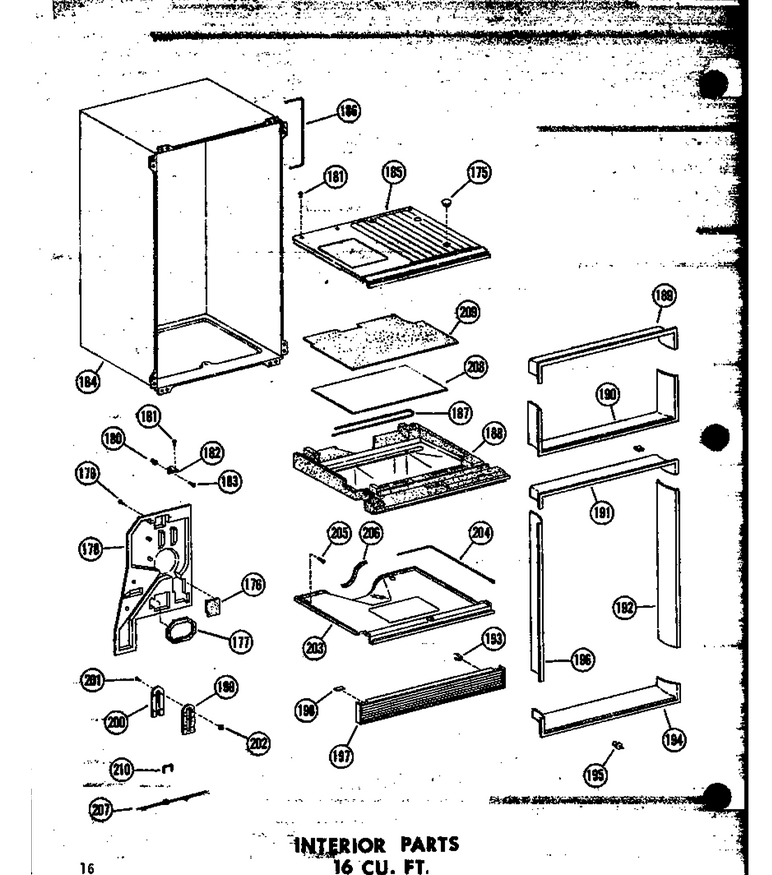

06 - Interior Parts 16 Cu. Ft.

...
...
175
Plug WPL-A3069101
...
176
Insulation WPL-B5609201
...
177
Gasket,air Duct WPL-B5668201
...
178
Air Duct WPL-D7166403
...
179
Screw WPL-W11233072
...
180
Grommet WPL-A0288701
...
181
Screw (3) WPL-67006425
...
182
Clip WPL-M0116901
...
183
Screw WPL-M0211530
...
184
X$x Liner Assy WPL-N6027406
...
185
Bottom-Fr WPL-D7143002
...
186
Heater WPL-C3661401
...
187
Heater-Drip Tray WPL-C8708201
...
188
Drain Block WPL-D7141001
...
189
Breaker Frame WPL-D3917001
...
190
Breaker Frame WPL-D3916801
...
191
Breaker Frame, Top Ref WPL-D3916701
...
192
Breaker Frame WPL-D3914515
...
193
Clip WPL-WPM0117303
...
194
Breaker Frame WPL-D3916301
...
195
Switch, Light WPL-C3658601
...
196
Breaker Frame WPL-D3914516
...
197
Grille-Toe WPL-D7070202
...
198
Grille-Toe WPL-B5641301
...
199
Gasket WPL-A0382801
...
200
Cover Plate WPL-A0382903
...
201
Screw WPL-WP90767
...
202
Grommet, Screw WPL-M0580007
...
203
Top, Ref WPL-D7142901
...
204
Heater-Ref Top K WPL-D7208101
...
205
Screw WPL-WP489464
...
206
Gasket (Per Foot) WPL-A3030313
...
207
Wiring Harness WPL-D7207803
...
208
Barrier WPL-A3126001
...
209
Insulation WPL-B5682901
...
210
Clamp-Wiring WPL-A3195601

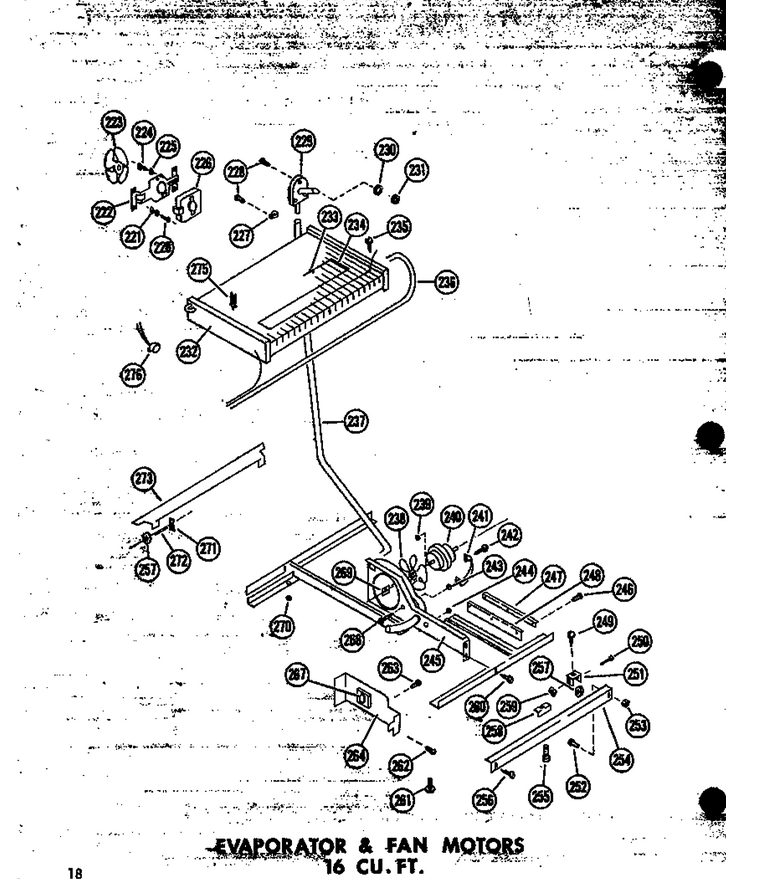

02 - Evap & Fan Motors 16 Cu. Ft.

...
...
220
Screw WPL-WP98165
...
221
Clip, Waterline WPL-12454802
...
222
Bracket WPL-C3536203
...
223
Fan Blade WPL-B5622101
...
224
Screw WPL-M0202642
...
225
Washer WPL-M0272605
...
226
Motor WPL-D7115703
...
227
Clamp, Drier WPL-M0102316
...
228
Screw WPL-M0214618
...
229
Elbow WPL-C3630902
...
230
Gasket WPL-A3132301
...
231
Grommet WPL-A3128101
...
232
Evaporator WPL-D7143120
...
233
Clip WPL-M0110301
...
234
Heater Def K WPL-C3660003
...
235
Screw WPL-W11233072
...
236
Heat Exchanger WPL-D7030302
...
237
Tube, Drain WPL-B5638801
...
238
Blade, Fan WPL-B5742603
...
239
Washer K WPL-M0274015
...
240
Motor-Cond WPL-833697
...
241
Bracket, Cond Motor WPL-B0598701
...
242
Screw WPL-WPM0223816
...
243
Grommet K WPL-M0500107
...
244
Grommet WPL-M0500102
...
245
Fan Shroud WPL-C3617602
...
246
Screw WPL-WP90767
...
247
Retainer WPL-B0599701
...
248
Seal WPL-B0599603
...
256
Screw WPL-M0294459
...
260
Screw WPL-WP489464
...
261
Glider Bolt WPL-M0266510
...
262
Screw WPL-WP489464
...
263
Screw,tc WPL-M0230017
...
264
Bracket, Timer WPL-C3647901
...
267
Timer, Defrost WPL-D7004106
...
268
Screw Shoulder WPL-M0238833
...
269
Nut WPL-WP486692
...
270
Washer WPL-M0274038
...
275
Clip,wire WPL-B5667401
...
276
Thermostat K WPL-C3686602

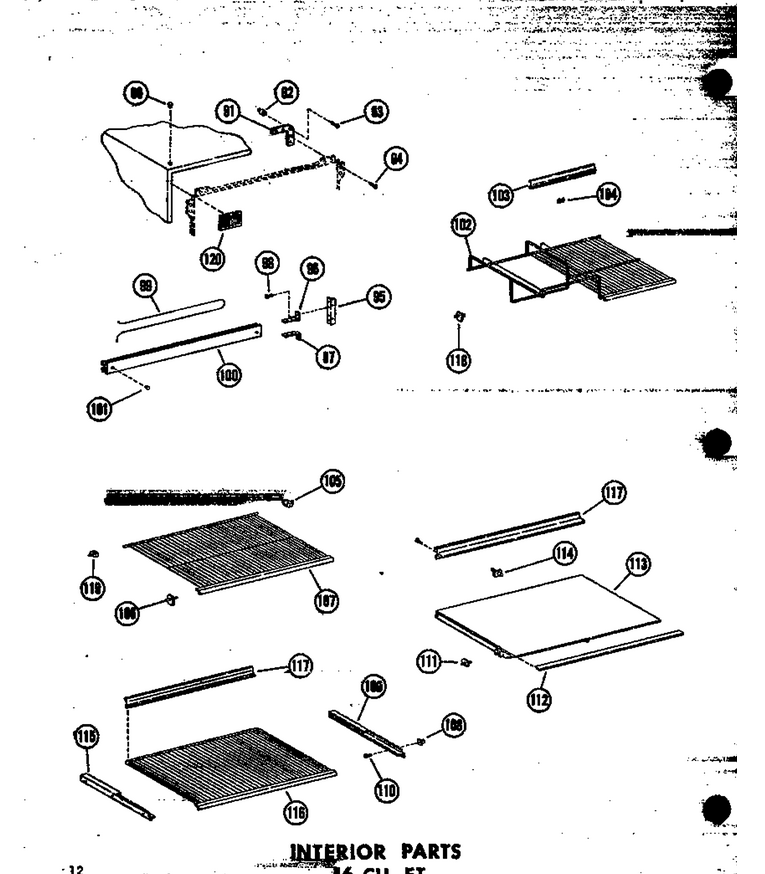

04 - Interior Parts 16 Cu. Ft.

...
...
91
Gusset WPL-C3576901
...
92
Grommet WPL-A0381801
...
93
Sems Fastner WPL-M0252047
...
94
Screw WPL-M0250531
...
95
Tap Strip-Hinge WPL-A3140702
...
96
Angle,center Mullion WPL-B5645601
...
97
Angle,center Mullion WPL-B5645602
...
98
Screw WPL-M0250531
...
99
Drier, Mullion WPL-B5636001
...
100
Center Mullion WPL-C3633505
...
101
Plug WPL-M0310704
...
105
Support WPL-B5633002
...
106
Shelf Support WPL-B5620401
...
107
Shelf WPL-D7141102
...
108
Grommet WPL-A0288701
...
109
Frame-Glide Out WPL-D3917304
...
110
Screw (3) WPL-67006425
...
111
Support WPL-B0570501
...
112
Trim WPL-B0570901
...
113
Crisper Top WPL-D3915103
...
114
Support WPL-B5680001
...
115
Frame-Glide Out WPL-D3917303
...
116
Shelf, Glide Out WPL-D7143402
...
119
Support WPL-B5633001
...
120
Grille WPL-C3601801
