Amana T-17LD-1 (BOM: T-17LD01)

Model: T-17LD-1 (BOM: T-17LD01)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

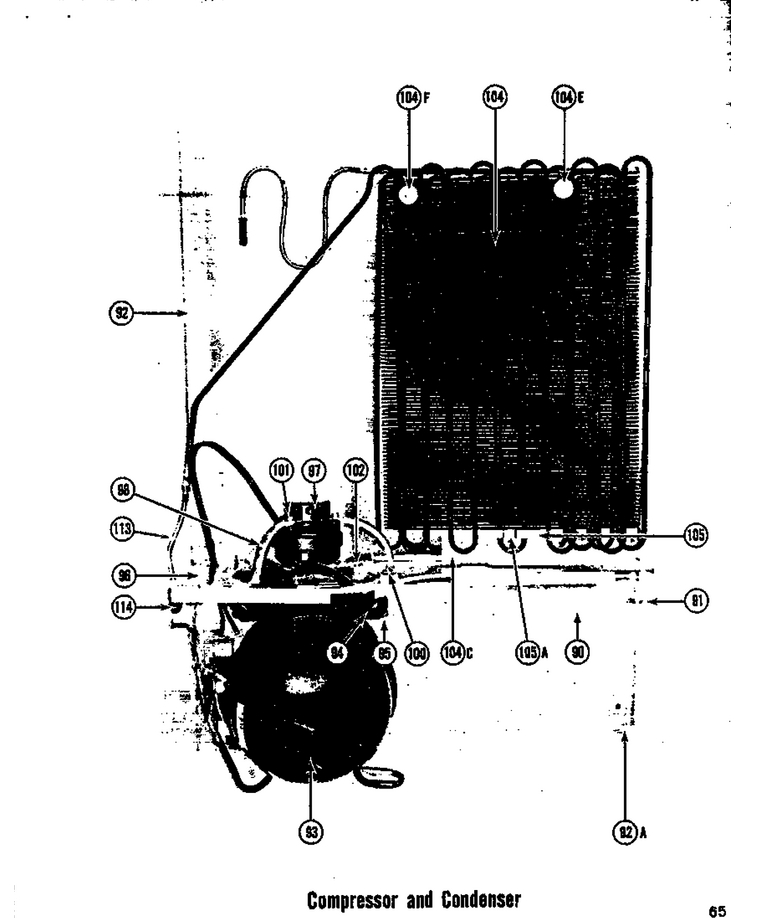

02 - Page 3

...
...
NI
Terminal Cover WPL-B0551801
...
90
Weldment, Compressor Support WPL-C3589901
...
92
Angle, Back WPL-C3603702
...
93
Compressor-Ae1410a-1/4 WPL-D3871901
...
94
Grommet K WPL-A3026101
...
96
Screw WPL-WP98165

01 - Machine Compartment Parts

...
...
NI
Clamp WPL-M0102315
...
91
Screw WPL-M0233643
...
94
Sleeve K WPL-A3072001
...
95
Clip WPL-M0114401
...
97
Motor-Cond WPL-833697
...
98
Bracket, Cond Motor WPL-B0598701
...
99
Clip, Waterline WPL-12454802
...
100
Screw WPL-M0221132
...
101
Screw WPL-WPM0223816
...
102
Blade, Fan WPL-B5742603
...
104
Condenser Assy Pnt WPL-D3967801
...
105
Kit, Screw WPL-R9800670
...
106
Screw WPL-WP98165
...
113
Discharge Line WPL-C3593701
...
114
Insul Tubing 1=12`` WPL-A0329806
