Amana SXD19N (BOM: P1168802W)

Model: SXD19N (BOM: P1168802W)

Save Part Not Listed?
product name

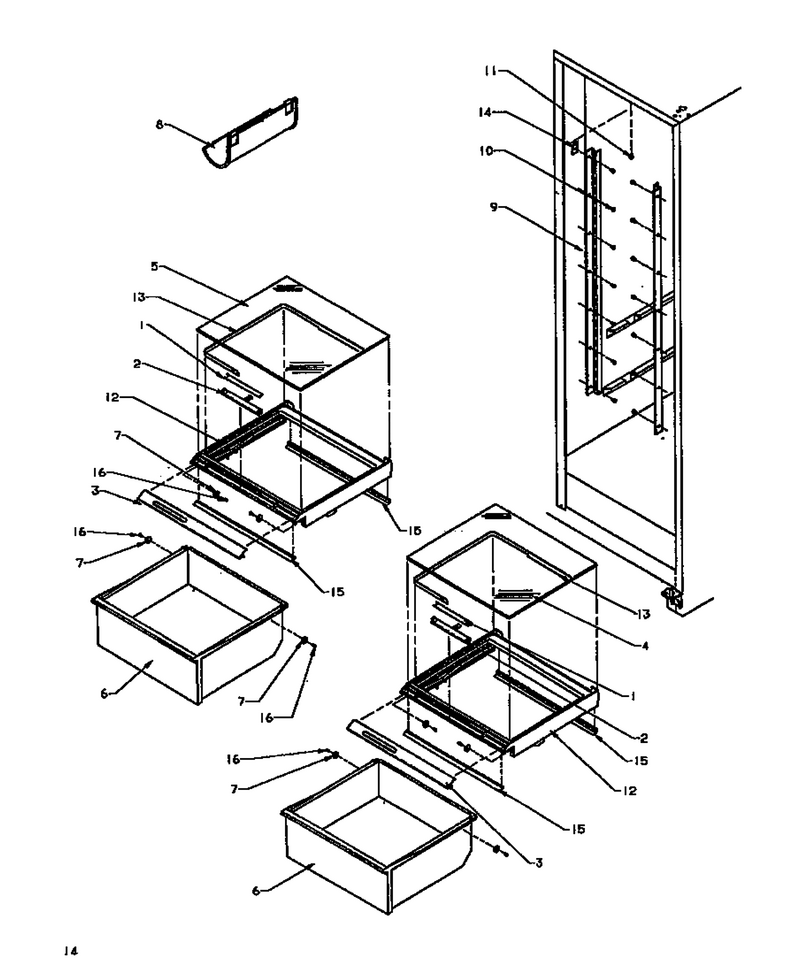

16 - Ref Shelving/drawers

...
...
NI
Assy,up Crisp Frm. WPL-10543735
...
1
Insert, Crisp Sl WPL-10199910
...
2
Slide Crisper Control WPL-10289908
...
3
Trim, Crisper Top Frt WPL-10524302
...
4
Glass, Shelf WPL-Y10370045
...
5
Glass, Shelf WPL-10370046
...
6
Pan-Crisper WPL-10471908
...
7
Roller, Pan WPL-10481001
...
8
Rack, Wine WPL-10448901
...
9
Ladder Cantilever WPL-D7789805
...
10
Screw WPL-WP90767
...
11
Grommet, Screw WPL-M0580007
...
12
Frame, Crisper WPL-10470102
...
13
Band, Crisper WPL-10519307
...
14
Brkt, Cont Cover WPL-12414701
...
15
Seal Crisper WPL-D7718402
...
16
Screw WPL-67006692

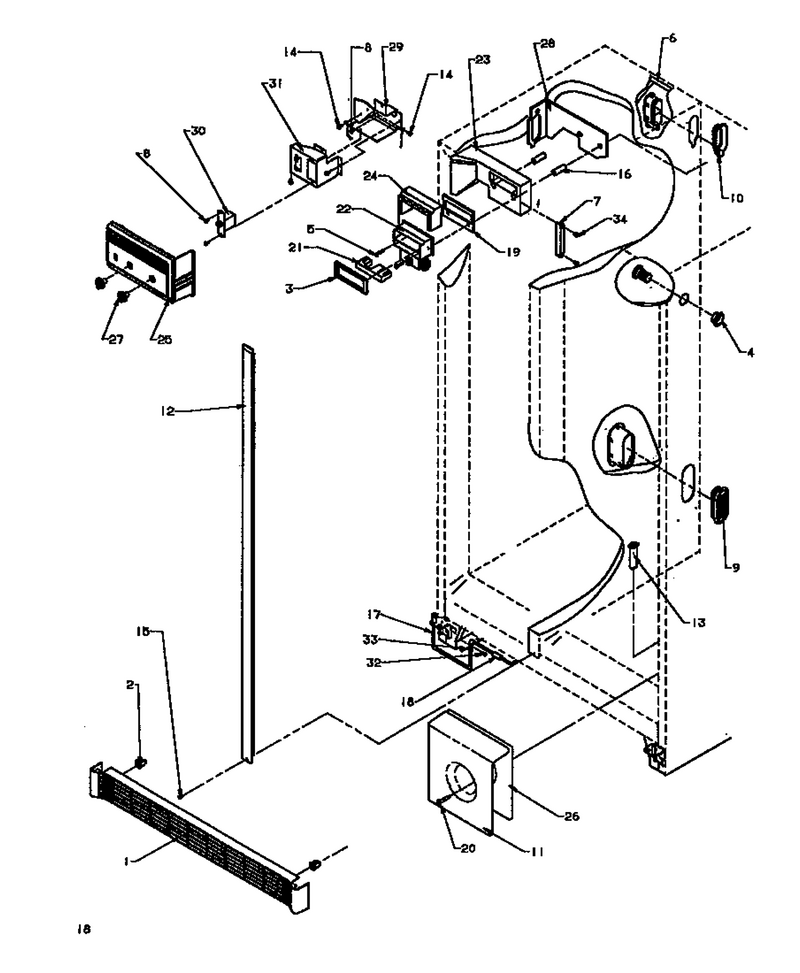

17 - Ref/fz Controls & Cabinet

...
...
1
Grille, Toe W WPL-12321802Q
...
2
Clip WPL-WPM0117303
...
3
Gasket, Damper WPL-10383201
...
4
Retainer WPL-A3187801
...
5
Screw WPL-M0216539
...
6
Tube-Plastic WPL-B8372601
...
7
Clamp WPL-C8977301
...
8
Screw WPL-WP489464
...
9
Grille-Rtn Air WPL-D7785401
...
10
Tunnel, Air Supply WPL-D7785501
...
11
Cover, Tank Insul. WPL-D7879302
...
12
See Note Vertical Mullion, White -- (Not Replaceable) (See Note) WPL-Y00000000
...
13
Grommet WPL-D7793501
...
14
Screw WPL-WP489399
...
15
Screw, Handle (Black) WPL-12991101
...
16
Spacer Damper WPL-A3044208
...
17
Tube, Plastic WPL-B5705322
...
18
Fitting WPL-WP4373559
...
19
Gasket, Damper WPL-B8345401
...
20
Clip K WPL-C6457701
...
21
Insert, Control WPL-C8902601
...
22
Control-Damper WPL-D7547411
...
23
D7749902q WPL-D7749902
...
24
Insulation WPL-D7788201
...
25
Cover, Cont. WPL-D7790330
...
26
Insulation Cut Tank WPL-D7793403
...
27
Knob, Control WPL-D7795822
...
28
Gasket Air Duct WPL-D7819101
...
29
Box, Control Btm WPL-D7822406
...
30
Assy, Control-Fz WPL-R0161092
...
31
Box, Control Top WPL-D7868606
...
32
Screw WPL-WP90767
...
33
Clamp WPL-M0102301
...
34
Screw WPL-WP489474

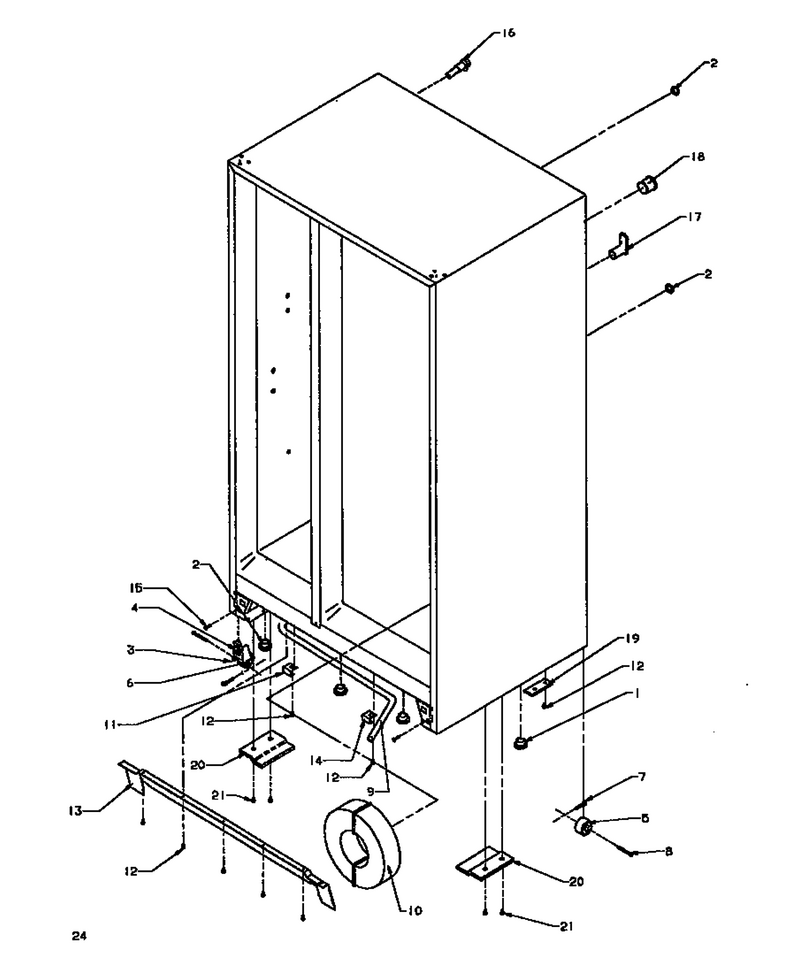

03 - Drain And Rollers

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (Blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-M0520102
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Tube, Drain WPL-10505101
...
10
Tank, Coil Water WPL-D7787805
...
11
Clamp WPL-M0102303
...
12
Screw WPL-WP489069
...
13
Baffle, Air WPL-10508102
...
14
Clip, Wire WPL-M0585206
...
15
Screw, Mach WPL-M0206313
...
16
Fill Tube WPL-R0182123
...
17
Tunnel, Heat Exchanger WPL-C8971903
...
18
Tunnel, Wire WPL-10703701
...
19
Clip-H V Box WPL-10505002
...
20
Support, Mach Comp. WPL-10508001
...
21
Screw WPL-WP3400094

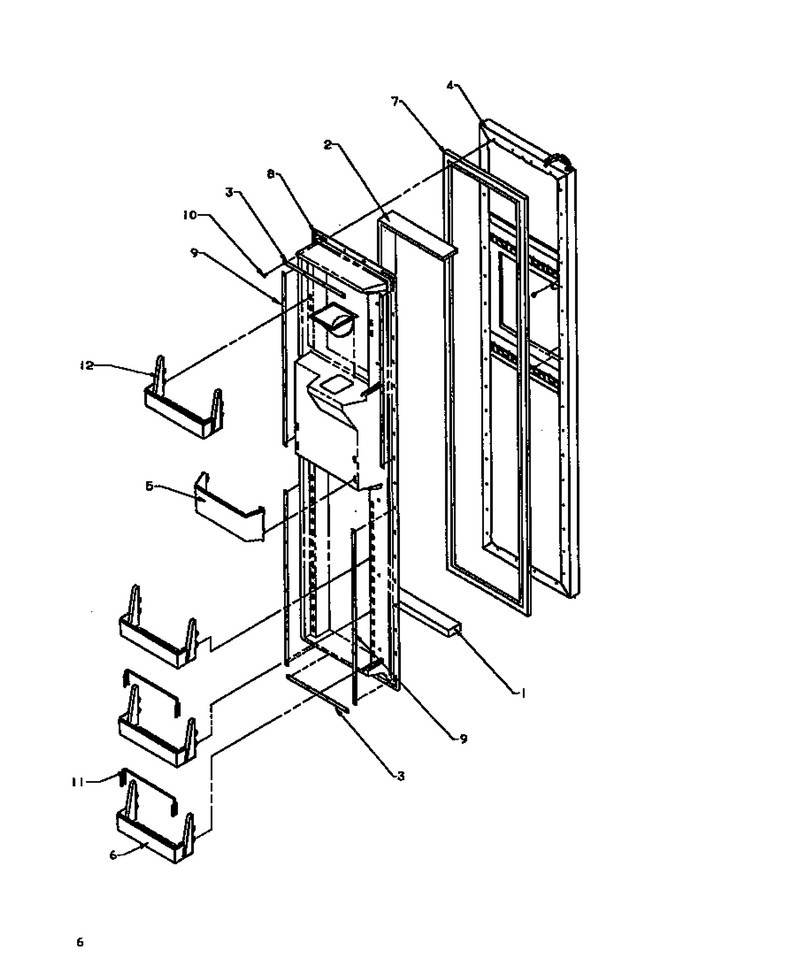

05 - Fz Door

...
...
1
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
2
Insul. By The Ft. WPL-B0523562
...
3
Retainer, Door Liner WPL-C8982801
...
4
Assy Frz Dr Fm Sxs WPL-10547601LQ
...
5
Shelf, Half Frz WPL-10534704
...
6
Bucket, Frz Dr WPL-10521710
...
7
Gasket W WPL-WP10359709Q
...
8
Liner, I/w Frz Dr WPL-10520501
...
9
Retainer, Door Liner WPL-D7828601
...
10
Screw WPL-WPM0219730
...
11
Retainer, Package WPL-10237602
...
12
Shelf, Frz Dr WPL-10525511

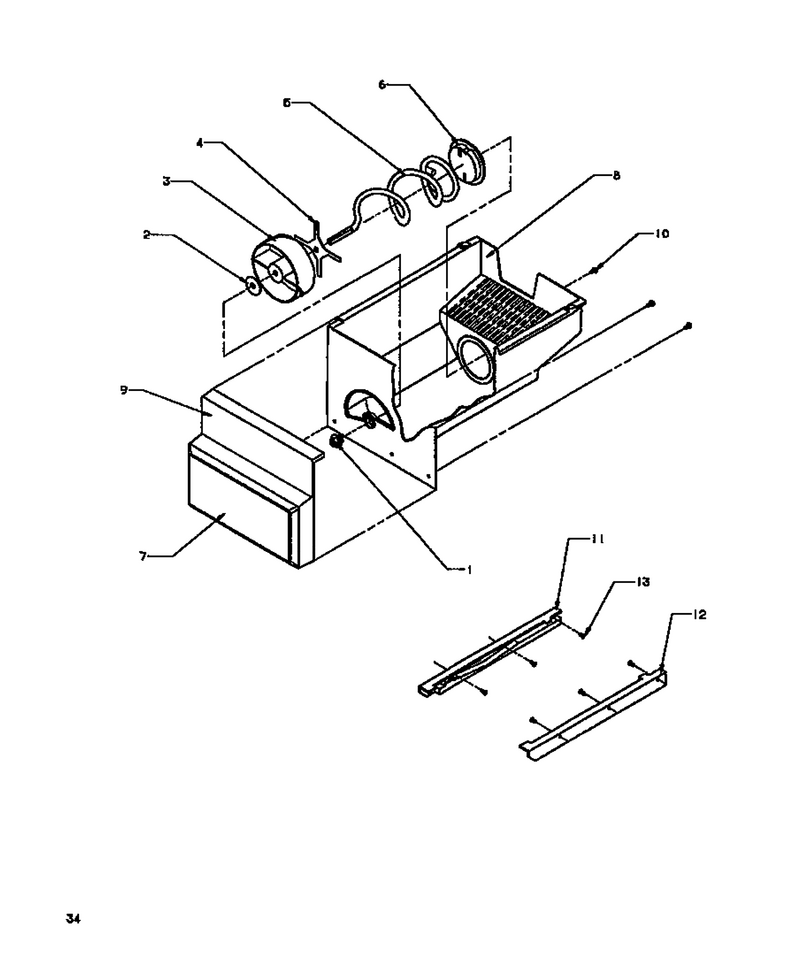

10 - Ice Bucket

...
...
1
Nut-Helix WPL-B8385101
...
2
Washer WPL-A1061701
...
3
Wheel Lift WPL-D7749601
...
4
Bar, Breaker WPL-C8964101
...
5
Helix WPL-D7749501
...
6
Cap- Helix WPL-WPD7749401
...
7
Insert, Bucket Frz. WPL-C8975325
...
8
Bucket, Ice V WPL-D7749707
...
9
Front, Bucket WPL-D7749802
...
10
Screw (3) WPL-67006425
...
11
Glide, Container (Left) WPL-67005375
...
12
Glide, Frz. (Rt) WPL-67004323
...
13
Screw, Handle WPL-67006529

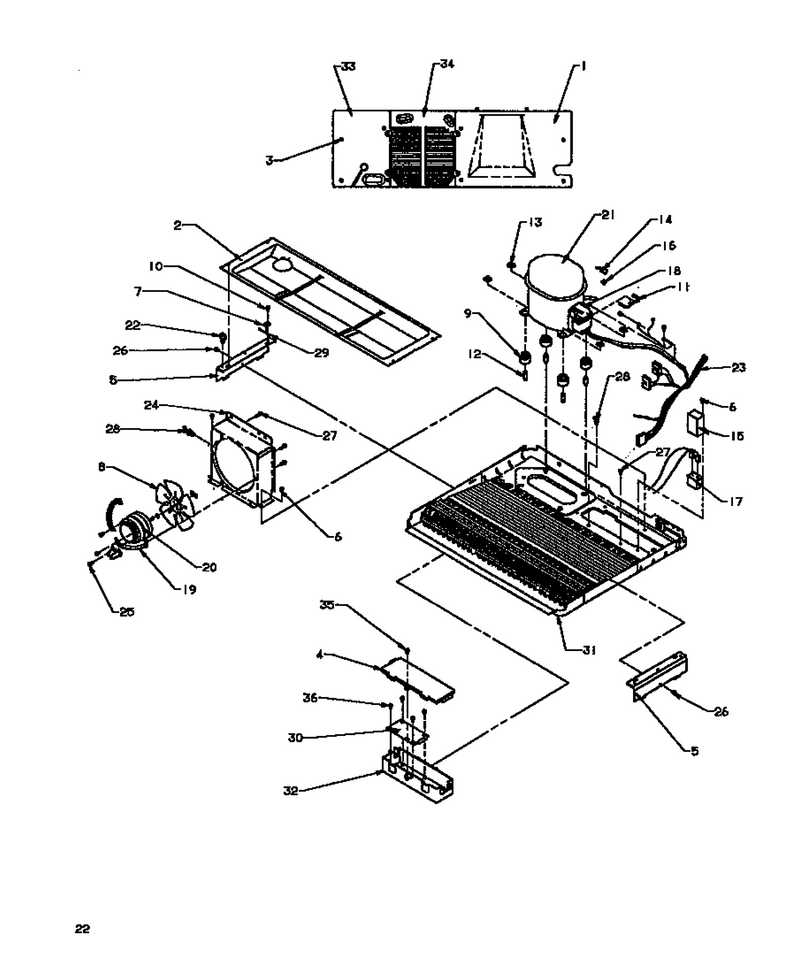

12 - Machine Compartment

...
...
1
Ass`y, Mach Comp Back (R) WPL-10578701
...
2
Pan, Drain WPL-10507904
...
3
Screw WPL-WP489464
...
4
Cover H.v. Box WPL-10497801
...
5
Brkt, Drain Pan Mtg. WPL-10495702
...
6
Screw WPL-WP90767
...
7
Tab, Wire Tie WPL-M0585601
...
8
Blade, Fan WPL-10518701
...
9
Grommet, Compressor WPL-67003493
...
10
Screw, Handle WPL-67006529
...
11
Bale Strap WPL-YB8358601
...
12
Pin, Comp. Mtg. WPL-B8384901
...
13
Clip, Comp. Mtg WPL-B8385001
...
14
Overload WPL-10377003
...
15
Shield, Capacitor WPL-10266402
...
16
Relay WPL-2154436
...
17
Capacitor WPL-WPW10662129
...
18
Term Cover WPL-C8960801
...
19
Kit-Shroud WPL-R0130014
...
20
Motor-Cond WPL-833697
...
21
Compressor WPL-W10439652
...
22
Clip, Guide WPL-M0118703
...
23
Harness, Mach Comp WPL-10704301
...
24
Kit-Shroud WPL-R0130014
...
25
Screw WPL-M0223803
...
26
Pop Rivet WPL-A4539603
...
27
Screw WPL-M0253916
...
28
Clamp, Purse Lock Standoff WPL-74006883
...
29
Tie-Wire WPL-WPW10339879
...
30
Cont, Adap. Defrost WPL-12050506
...
31
Ass`y, Cond/pan (E Coat) WPL-10580402
...
32
Box, H. V. WPL-10495901
...
33
Ass`y, L. Mc Back WPL-10578801
...
34
Mc Back-E Ct WPL-10470508
...
35
Screw-Sm/hex WPL-12990523
...
36
Screw WPL-WP489349

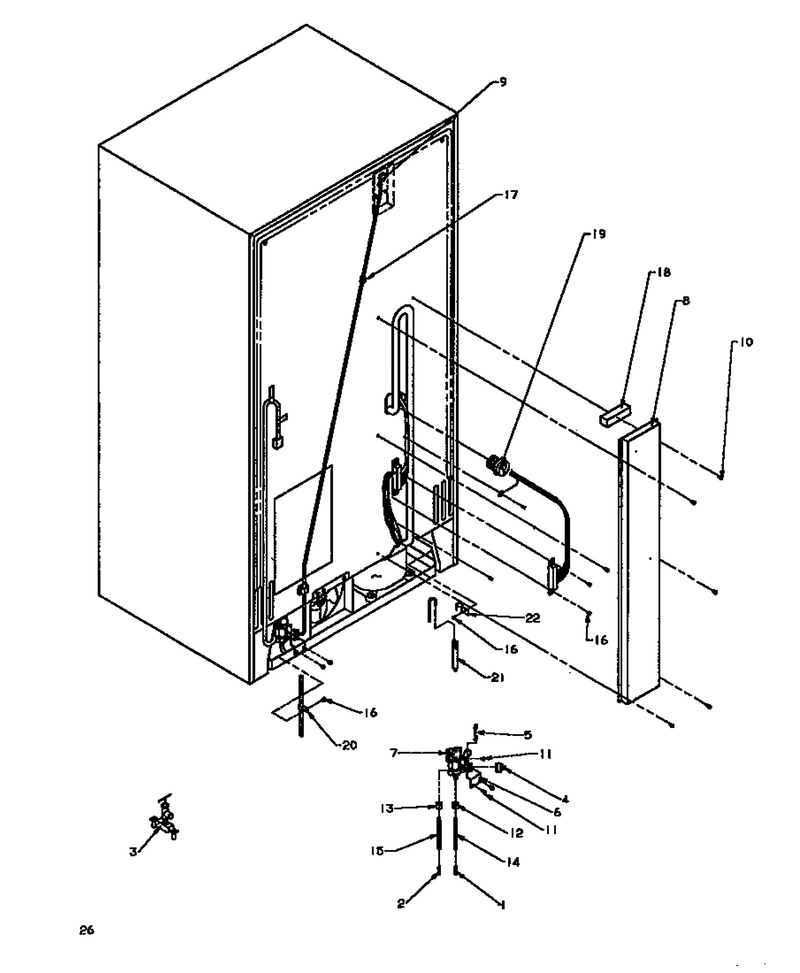

01 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
1
Spring WPL-WPA1055105
...
2
Spring, Anti-Kink WPL-A1055104
...
3
Saddle Valve WPL-A3034801
...
4
Coupling WPL-10244901
...
5
Clip, Water Valve WPL-10798001
...
6
Brkt, Water Val. WPL-10496301
...
7
Valve-Inlt WPL-WPW10245167
...
8
Cover, Ht Exch WPL-10581305
...
9
Clip- Spee WPL-WPM0114003
...
10
Screw WPL-WP489069
...
11
Screw, 8-32 X 3/8 WPL-681390
...
12
Nut WPL-WP627018
...
13
Nut WPL-8201513
...
14
Tube, Plastic WPL-B5705322
...
15
Tank, Coil Water WPL-D7787805
...
16
Screw WPL-WP489069
...
17
Clip WPL-WPM0104106
...
18
Gasket, Foam WPL-A3189357
...
19
Grommet WPL-10110601
...
20
Clamp, Speed WPL-M0103904
...
21
Drier WPL-WPB2150504
...
22
Clip, Drier WPL-10547001

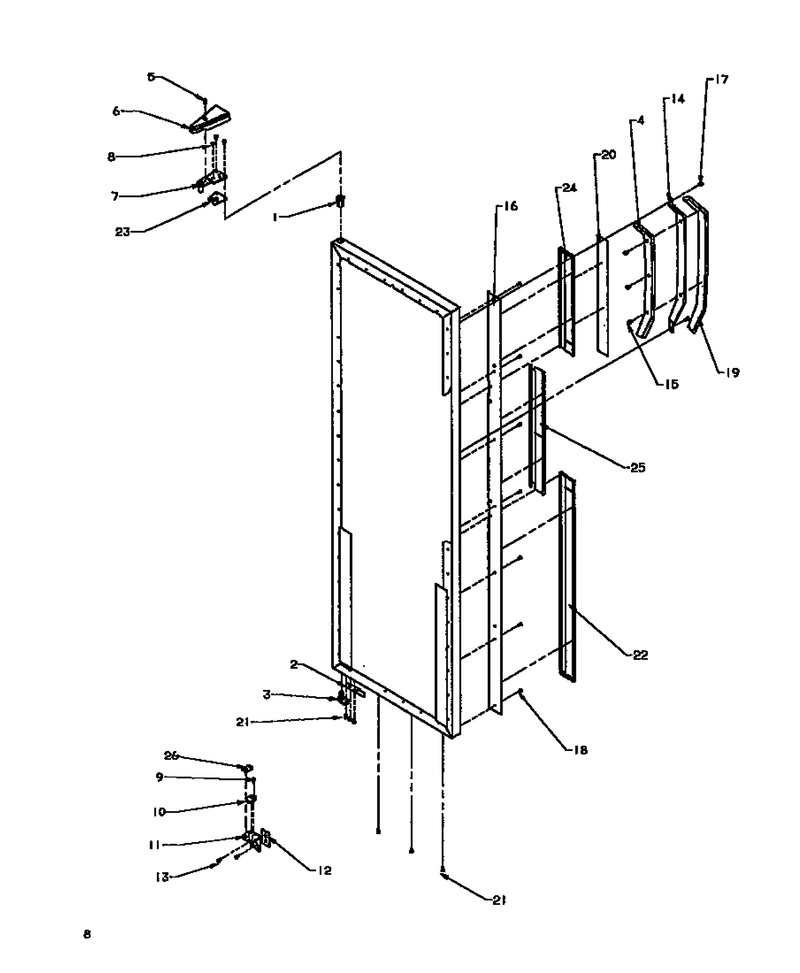

14 - Ref Door Hinge/trim

...
...
1
Bushing, Door (Wht) WPL-10393802
...
2
Stop, Door (Blk) WPL-12636401B
...
3
Kit,dr Closure WPL-R0181181
...
4
Pad, Handle Inner (Alm) WPL-D7863004
...
5
Screw WPL-WP8281196
...
6
Cover, Hinge (White) WPL-10504007
...
7
Hinge, Top (E-Ct) WPL-10495803
...
8
Kit, Screw WPL-R9800670
...
9
Screw WPL-WP489128
...
10
Kit,dr Closure WPL-R0181181
...
11
Kit,hinge Rh Btm(B) WPL-10496105
...
12
Kit,btm Hinge Shim WPL-10399501
...
13
Screw WPL-WP67006715
...
14
Handle WPL-D7826603
...
15
Screw WPL-M0215116
...
16
Ref. Trim, Retainer WPL-D7793202
...
17
Kit, Screw WPL-R9800670
...
18
Screw WPL-WP489349
...
19
Pad, Handle Outer (Alm) WPL-D7863104
...
20
Thinplate K WPL-C8984305
...
21
Screw WPL-WP98165
...
22
Trim Lwr Ref Door WPL-D7792805
...
23
Shim, Top Hinge WPL-B8389007
...
24
Trim WPL-D7852008
...
25
Trim Center Ref Dr WPL-D7853805
...
26
Shim, Door Closure WPL-B8387702

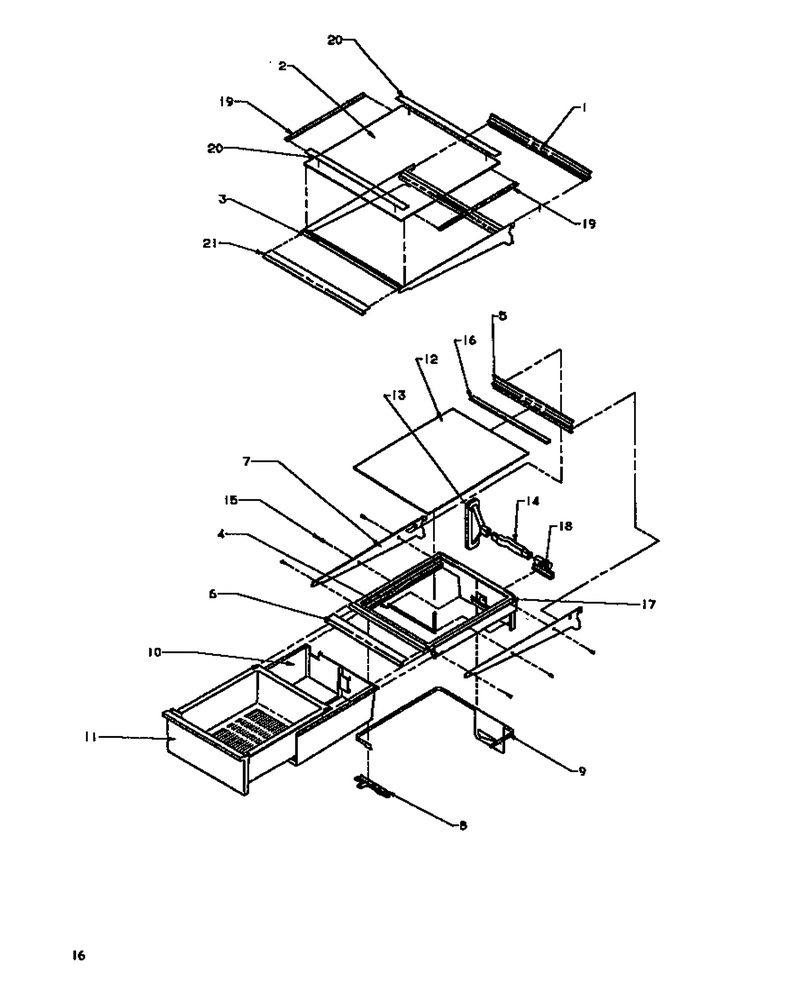

15 - Ref Shelves/drawers

...
...
NI
Ass`y, Split Shelf WPL-10582420
...
1
Trim, Glass Shelf WPL-C8913610
...
2
Glass, Shelf WPL-10370047
...
3
Frame, Cantilever Shelf WPL-10579111
...
4
Gasket WPL-A3030353
...
5
Trim M.k Top Rear WPL-C8990406
...
6
Trim, Shelf Front WPL-10049959
...
7
Rail, Blank Side WPL-D7862989
...
8
Slide-Mk C WPL-D7859404
...
9
Band M.k. Control WPL-D7859504
...
10
Sleeve M.k. V WPL-D7698112
...
11
Pan-Meatkeeper WPL-D7698342
...
12
Glass, Shelf (Mk Shelf) WPL-10370048
...
13
Grommet, Meat Keeper WPL-10546701
...
14
Xduct M.k. Air WPL-D7869001
...
15
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
16
Ext. Rear Glass WPL-10043101
...
17
Frame,meatkeeper WPL-D7853303
...
18
Ext. Air Duct WPL-D7869101
...
19
Extr., Glass Shelf WPL-10635802
...
20
Gasket, Foam WPL-A3189355
...
21
Trim, Shelf Front WPL-10049958

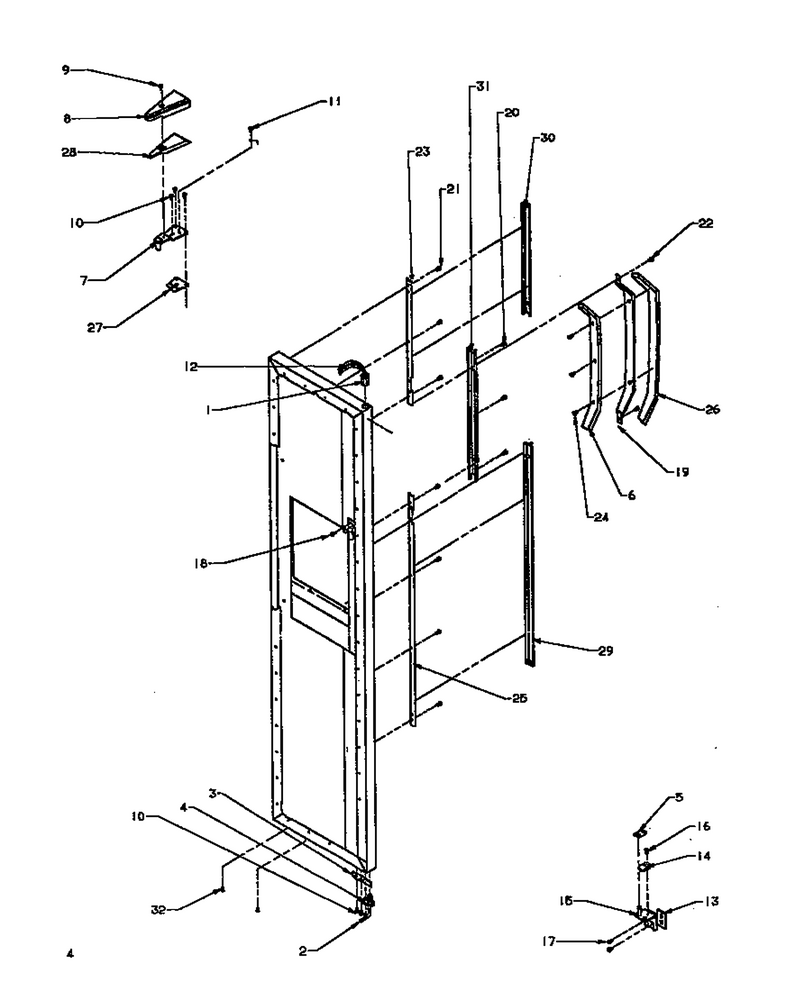

06 - Fz Door Hinge/trim

...
...
Note: The Foamed In Place Post Condenser Mullion Loop Which Replaces The Electric Mullion Heater On These Models Clip To The Back Side Of Mullion. Any Attempt WPL-NOTE:
...
1
Bushing- D WPL-WP67004977
...
2
Tube WPL-WPB5705307
...
3
Stop, Door (Blk) WPL-12636401B
...
4
Kit,dr Closure WPL-R0181181
...
5
Shim, Door Closure WPL-B8387701
...
6
Pad, Handle Inner (Alm) WPL-D7863004
...
7
Hinge, Top (E-Ct) WPL-10495803
...
8
Cover, Hinge (White) WPL-10504007
...
9
Screw WPL-WP8281196
...
10
Kit, Screw WPL-R9800670
...
11
Screw WPL-W11214483
...
12
Harness, Frz. Dr Wiring WPL-10339102
...
13
Kit,btm Hinge Shim WPL-10399501
...
14
Kit,dr Closure WPL-R0181181
...
15
Kit,hinge Lh Btm(B) WPL-10496104
...
16
Screw WPL-WP489128
...
17
Screw WPL-WP67006715
...
18
Screw WPL-WP489399
...
19
Handle WPL-D7826603
...
20
Screw-Sm/hex WPL-12990523
...
21
Screw WPL-WP489349
...
22
Kit, Screw WPL-R9800670
...
23
Retainer, Trim WPL-D7793002
...
24
Screw WPL-M0215116
...
25
Retainer, Trim WPL-D7793102
...
26
Pad, Handle Outer (Alm) WPL-D7863104
...
27
Shim, Top Hinge WPL-B8389007
...
28
Foil, Hinge Cover WPL-10126603
...
29
Trim, Lwr Frz Door (L) WPL-D7792705
...
30
Upper Trim Frz Dr (L) WPL-D7852105
...
31
Trim Center Frz (L) WPL-D7854005
...
32
Screw WPL-WP98165

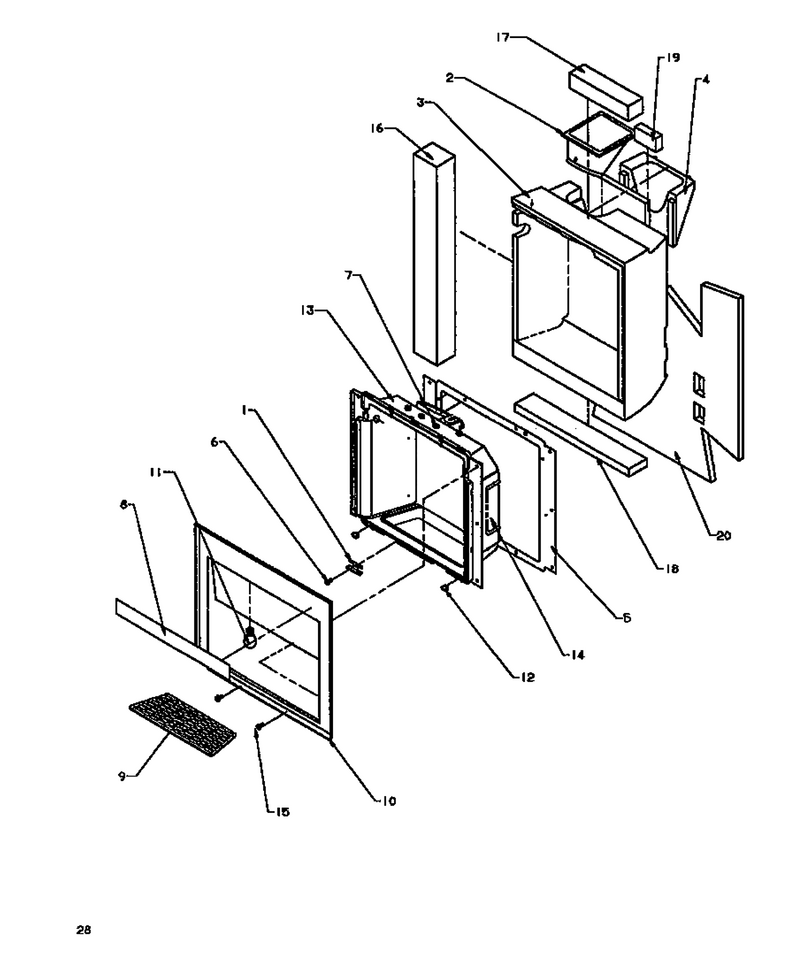

08 - Ice And Water Cavity

...
...
1
Clip WPL-C8992901
...
2
Chute- Ice WPL-10504103
...
3
Insul., I/w Cavity WPL-10506501
...
4
Insul., Ice Chute WPL-10504601
...
5
Gasket-Cav WPL-D7791004
...
6
Screw-Sm/hex WPL-12990523
...
7
Retainer, Ring WPL-M0274701
...
8
Membrane L Facade WPL-D7842232
...
9
Grille, Sump L WPL-D7750605
...
10
Facade, Dispenser (White) WPL-D7877524
...
11
Bulb-Light WPL-W10857122
...
12
Clip WPL-W10819546
...
13
Cavity, Dispenser WPL-D7750021
...
14
Heater-Cavity WPL-10176101
...
15
Screw WPL-M0219640
...
16
Insul, Batt WPL-10270907
...
17
Insul., Batt WPL-B5629061
...
18
Insulation Per Ft. WPL-B0523584
...
19
Insulation Batt WPL-B5629058
...
20
Insulation Batt WPL-10220201

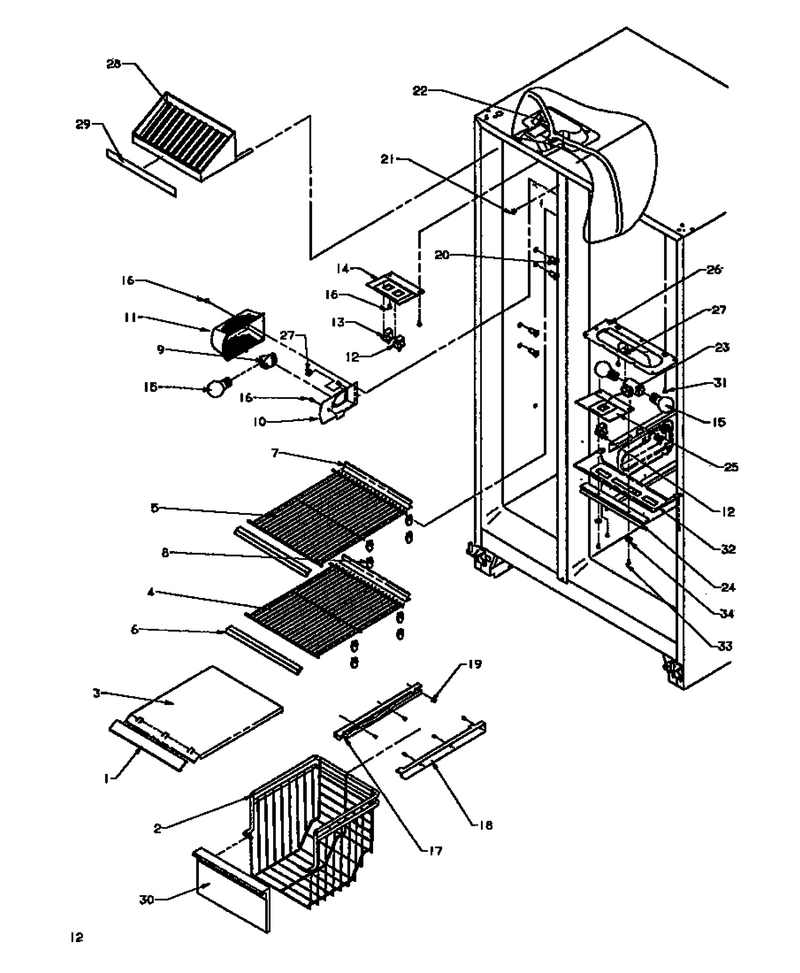

07 - Fz Shelfs/ref Light

...
...
1
Trim-Fz Shelf WPL-D7616690
...
2
Basket, Freezer WPL-D7820803
...
3
Freezer Shelf WPL-D7781502
...
4
Shelf, Fz Wire WPL-D7788312
...
5
Shelf, Frz WPL-D7788309
...
6
Trim, Shelf (Front) WPL-10049937
...
7
Trim WPL-C8913609
...
8
Support- F WPL-WPC8973801
...
9
Socket-Light WPL-D7714407
...
10
Plate-Light Socket WPL-D7753503
...
11
Shield, Light WPL-D7786603
...
12
Switch WPL-W11384469
...
13
Switch WPL-C3680306
...
14
Cover Light WPL-D7749002
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Glide, Frz. (Left) WPL-10619601
...
18
Glide, Frz. (Right) WPL-10619602
...
19
Screw WPL-WP98165
...
20
Plug, Frz Shelf Support WPL-C8973701
...
21
Grommet, Screw WPL-M0580007
...
22
Harness, Outer Liner WPL-10581501
...
23
Socket, Dual Lamp WPL-D7808602
...
24
Shield, Light WPL-10014717
...
25
Cover, Light Sw WPL-D7297604
...
26
Housing-Ref Light WPL-D7716409
...
27
Clip, Ground WPL-B5733302
...
28
Rack, Juice V WPL-D7839701
...
29
Insert, Juice Rack WPL-C8986119
...
30
Front,basket WPL-D7820712
...
31
Screw (3) WPL-67006425
...
32
Cover, Ref. Light WPL-10493201
...
33
Screw WPL-M0219546
...
34
Washer WPL-M0270519

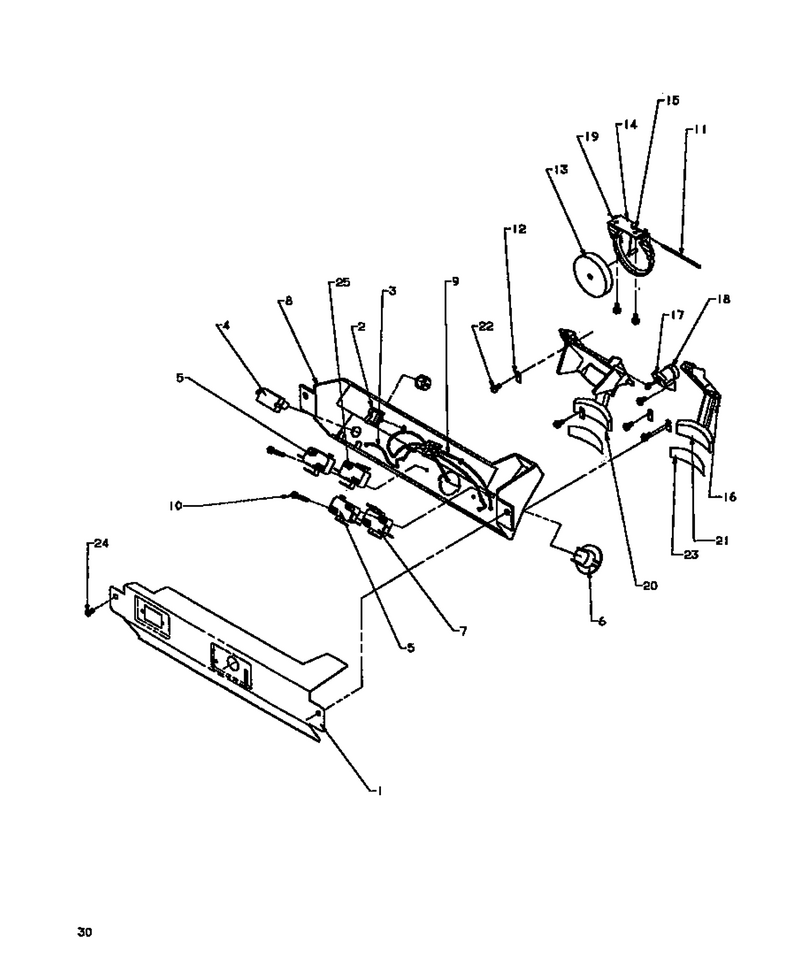

09 - Ice And Water Cavity

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
1
Cover Elect Brkt WPL-10131804
...
2
Wire Clip WPL-B5667304
...
3
Wire-Jumper WPL-D7726590
...
4
Switch-Light Cavity WPL-10166101
...
5
Switch- Li WPL-WP10533003
...
6
Socket, Light WPL-10131701
...
7
Switch, Limit (Water Disp) WPL-10533002
...
8
Bracket, Elec Mtg WPL-10323305
...
9
Wire, Jumper WPL-D7726597
...
10
Screw, T.f. WPL-M0237809
...
11
Pin, Chute Door WPL-A1061501
...
12
Retainer, Ice Arm WPL-A1061601
...
13
Insulation, Chute Door WPL-B8380701
...
14
Brkt-Chute Door WPL-B8380801
...
15
Spring,chute Door WPL-B8380901
...
16
Spring, Return WPL-B8385401
...
17
Retainer Door Delay WPL-C8972501
...
18
Delay, Door WPL-C8973601
...
19
Kit,chute Dr No.3 WPL-10246601
...
20
Arm-Dispsr WPL-12002642
...
21
Arm-Dispsr WPL-12002642
...
22
Screw WPL-WP90767
...
23
Pad, Actuating WPL-B8390201
...
24
Screw-Sm/hex WPL-12990523
...
25
Switch, Limit WPL-10533001

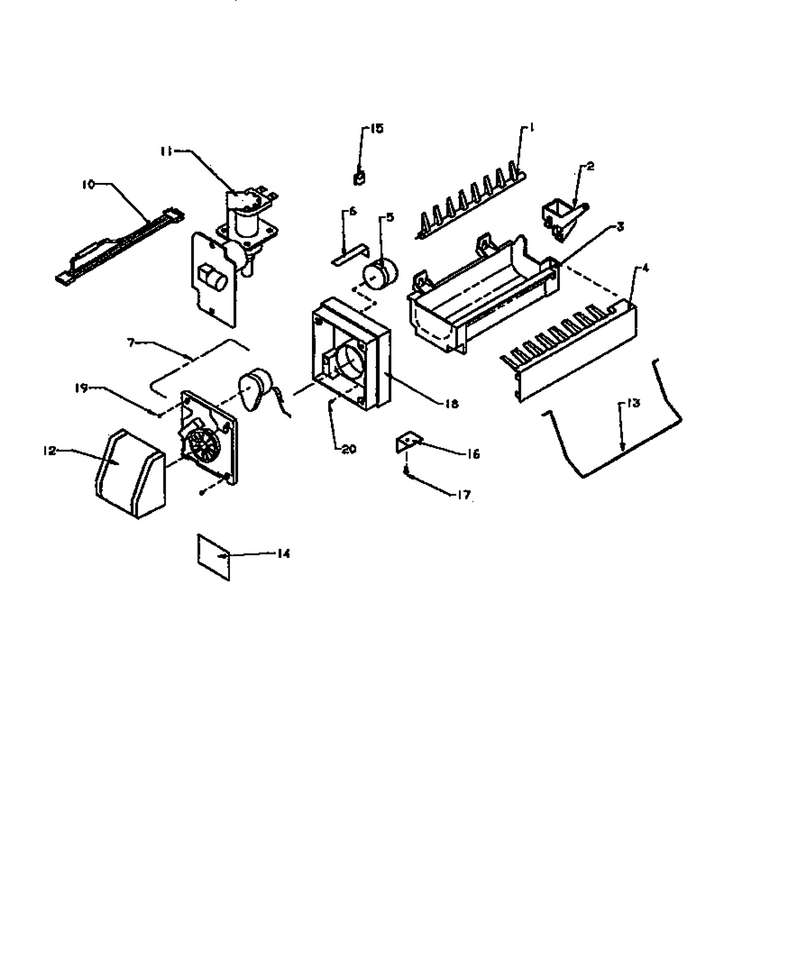

02 - D7824702-Compact Icemaker

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Ice Maker Assy. WPL-D7824706Q
...
4
Arm-Stripr WPL-WP2182124
...
5
Bimetl-Def WPL-WP627985
...
6
Clip WPL-WP2315522
...
7
Motor-Modl WPL-W10190935
...
10
Harns-Wire WPL-WPD7813010
...
11
Valve-Inlt WPL-W10833899
...
12
Cover-Frnt WPL-WPW10289690
...
13
Arm-Shut WPL-WP67004028
...
14
Label Diagnostic Im WPL-C8979501
...
15
Clip WPL-WP628379
...
16
Bracket, I/m WPL-B8391802
...
17
Screw WPL-WP90767
...
18
Housing-Im WPL-WP2195914
...
19
Screw WPL-R0186041
...
20
Screw WPL-R0186040

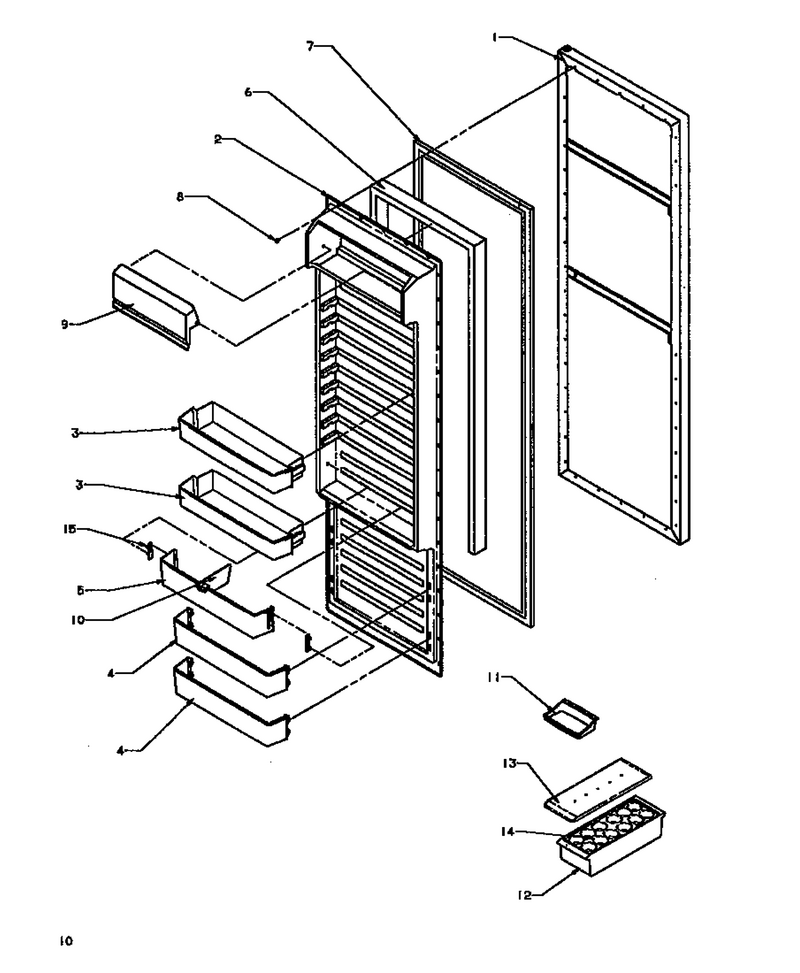

13 - Ref Door

...
...
1
Assy Ref Dr Fm WPL-10580901W
...
2
Liner, Refr Door WPL-10579901
...
3
Bucket, Refr Dr WPL-10580003
...
4
Shelf, Refr. Dr WPL-10580103
...
5
Shelf-Gallon WPL-10580303
...
6
Insulation Ft. K WPL-B0523563
...
7
Gasket- Do WPL-10359712Q
...
8
Screw WPL-WPM0219730
...
9
Door, Dairy WPL-10581005
...
10
Snugger, Shelf WPL-10169004
...
11
Tray, Butter WPL-10310901
...
12
Container WPL-WP10423131
...
13
Lid, Utility WPL-10436404
...
14
Tray, Egg WPL-10436504
...
15
Clip, Retainer WPL-10202001

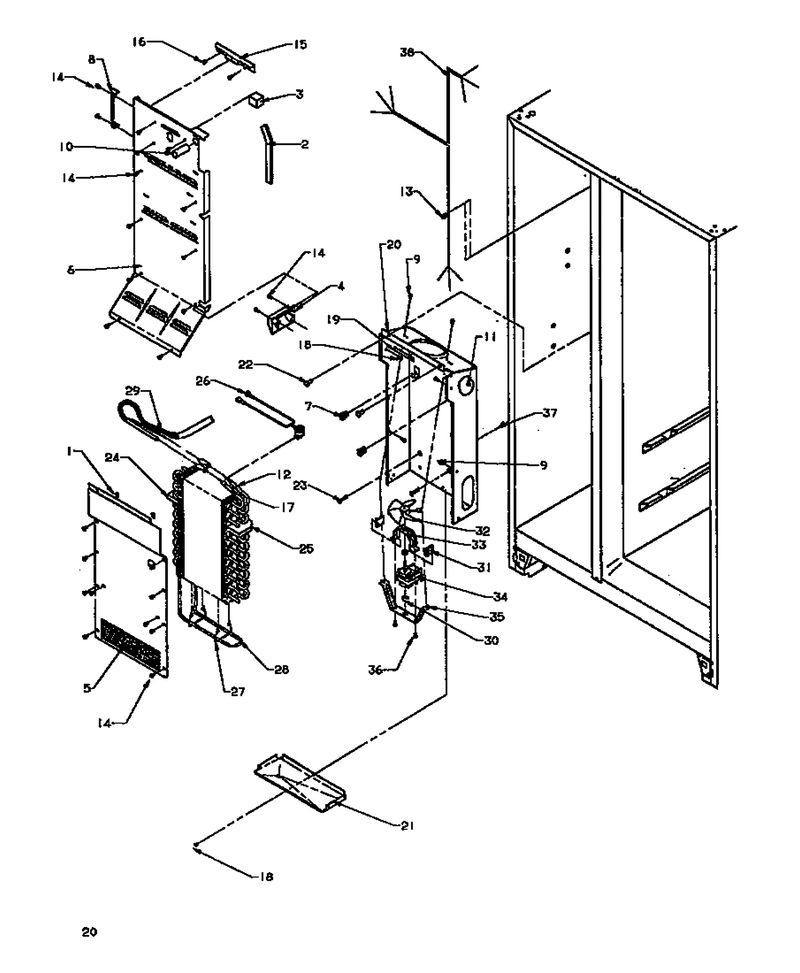

04 - Evap And Air Handling

...
...
NI
Sleeve, Vinyl WPL-M0321038
...
1
Clip Ground WPL-B8324801
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k Air WPL-D7786901
...
5
Cover, Evap. WPL-D7865914
...
6
Back, Inner Frz WPL-D7821101
...
7
Clip, Evaporator WPL-10623003
...
8
Cover, Supply Air WPL-D7838302
...
9
Screw WPL-WP12990527
...
10
Ext, Fill Tube WPL-A3127411
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Tie-Wire WPL-WPM0321209
...
18
Rivet WPL-10098801
...
19
Gasket, Foam WPL-A3189362
...
20
Evap. Shield WPL-D7865808
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Grommet WPL-M0580003
...
23
Clip, Evap WPL-10527401
...
24
Block, Air Coil (Left) WPL-10629601
...
25
Block, Air Coil (Right) WPL-10629001
...
26
Kit, Thermostat WPL-R0161087
...
27
Clip WPL-W11673433
...
28
Heater- Ev WPL-WP12049801
...
29
Assy,low Side WPL-R0170049
...
30
Grommet WPL-WP2264462
...
31
Shim WPL-A1047901
...
32
Fan-Evap WPL-C8795501
...
33
Brkt Evap Fan WPL-C8881301
...
34
Motor-Evap WPL-WPC8891605
...
35
Bracket-Motor/shroud WPL-D7767703
...
36
Screw WPL-WP12990527
...
37
Grommet A WPL-M0580002
...
38
Harness, Inner Liner WPL-10704101

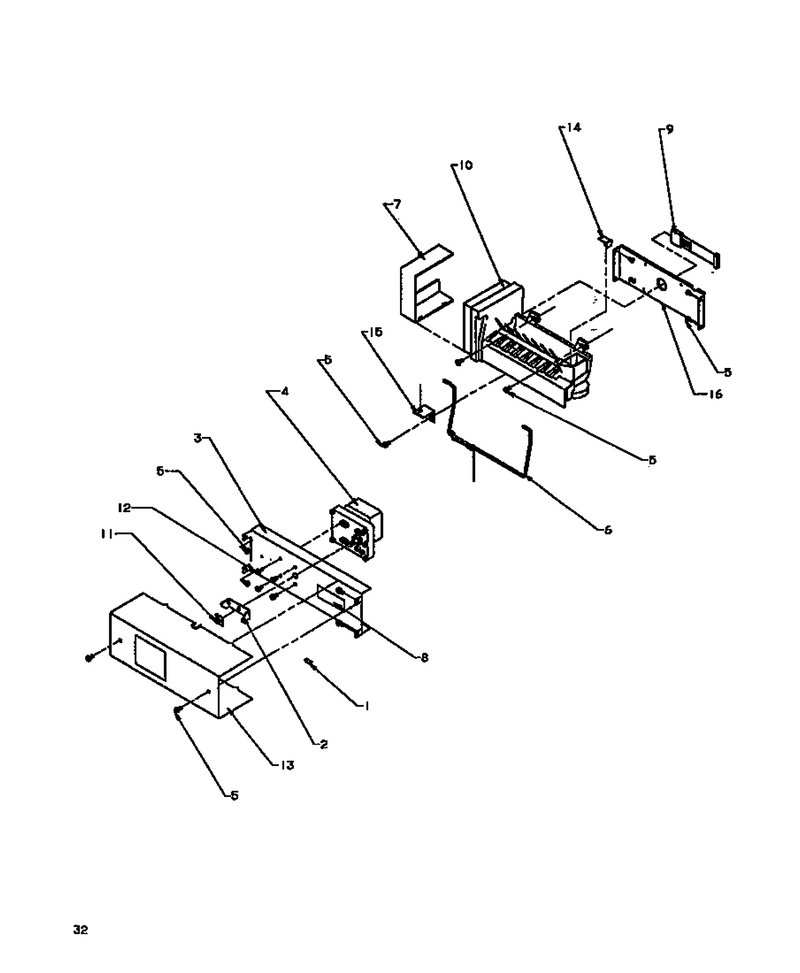

11 - Icemaker

...
...
1
Lock, Purse WPL-74007369
...
2
Driver WPL-D7849501
...
3
Support,auger Motor WPL-D7749207
...
4
Motor-Auger WPL-D7749302
...
5
Screw (3) WPL-67006425
...
6
Arm,ice Maker Shut Off WPL-D7877001
...
7
Cover Im WPL-D7820401
...
8
Gasket-Per Ft WPL-A3030305
...
9
Harness WPL-D7824601
...
10
Ice Maker Assy. WPL-D7824706Q
...
11
Nut WPL-M0120501
...
12
Screw WPL-WPW10139210
...
13
Sue D7788808 WPL-D7788828
...
14
Clip WPL-B5720301
...
15
Bracket, I/m WPL-B8391802
...
16
Support-Im WPL-D7821004
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
