Amana SX25SW (BOM: P1198902W W)

Model: SX25SW (BOM: P1198902W W)

Save Part Not Listed?
product name

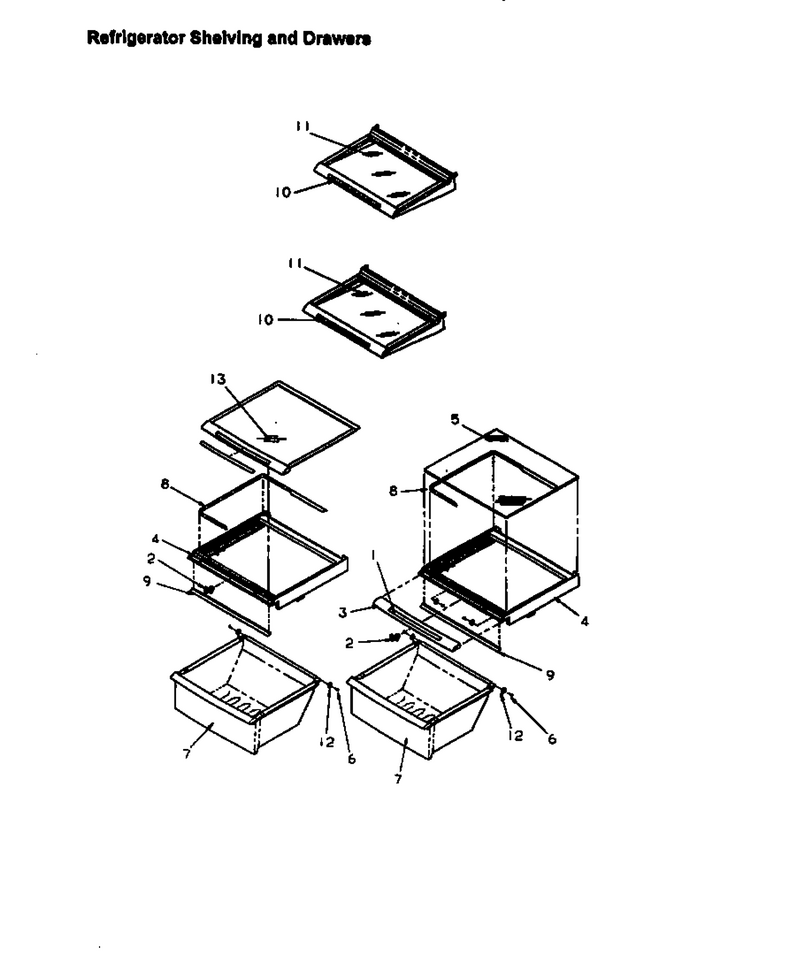

11 - Ref Shelving And Drawers

...
...
NI
Assy, Crisper Frame WPL-10882803
...
1
Insert, Shelf WPL-10954012
...
2
Slide, Crisper/deli WPL-10852501
...
3
Trim, Crisper Frt WPL-10872201
...
4
Frame-Cris WPL-10782902
...
5
Glass, Shelf WPL-Y10370066
...
6
Screw WPL-67006692
...
7
Pan,crisper WPL-10783201
...
8
Band, Crisper WPL-10882701
...
9
Seal-Crisp Front WPL-10968801
...
10
Insert, Shelf WPL-10954013
...
11
Shelf, Stationary WPL-67005092
...
12
Roller, Pan WPL-10481001
...
13
Shelf Top Crisper WPL-10783103

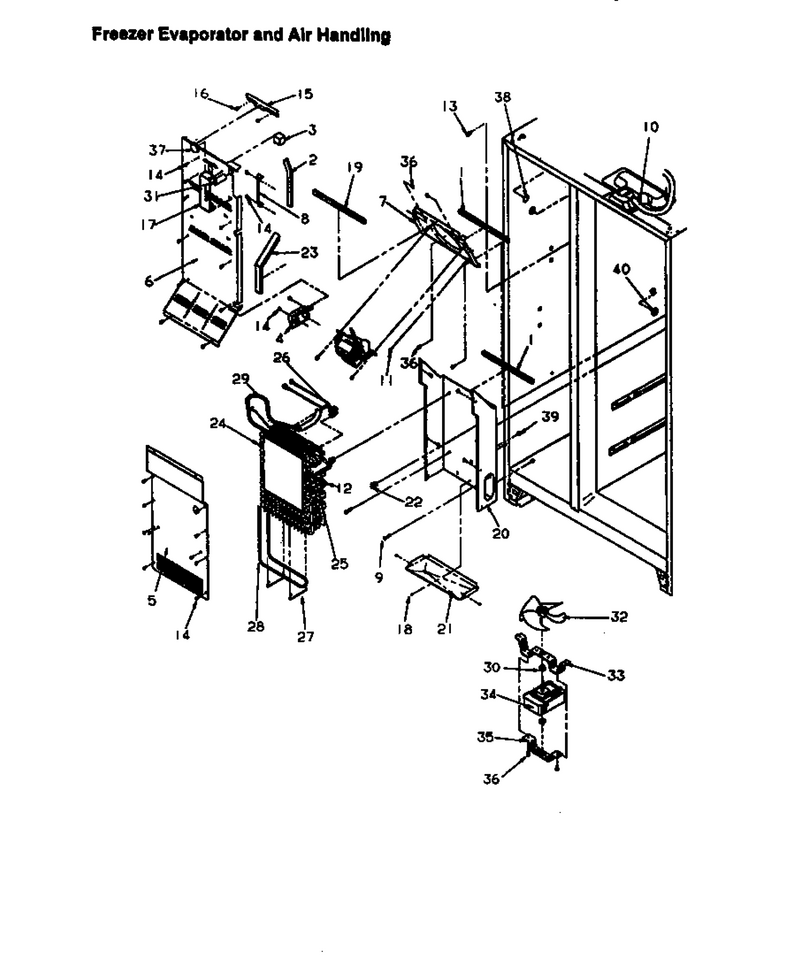

05 - Fz Evap And Air Handling

...
...
1
Gasket WPL-B8386608
...
2
Gasket WPL-B8386602
...
3
Gasket, Air Block WPL-C8976102
...
4
Cover, M.k. Air WPL-D7786902
...
5
Evap Cover- E Ct WPL-10655902
...
6
Back, Inner Frz WPL-D7821168
...
7
Evap Fan Shroud WPL-10890202
...
8
Cover, Supply Air WPL-D7838302
...
9
Clip, Evap WPL-10527401
...
10
Harness, Outer Liner WPL-10575901
...
11
Screw WPL-WP489399
...
12
Tie-Wire WPL-WPW10339879
...
13
Tie Wire WPL-WPM0322202
...
14
Screw (3) WPL-67006425
...
15
Clamp WPL-C8976201
...
16
Screw WPL-WP98165
...
17
Cover, Fill Tube WPL-D7827402
...
18
Rivet WPL-10098801
...
19
Gasket (1=1ft.) WPL-10839713
...
20
Shield, Evap WPL-10893803
...
21
Drip Tray Pnt. WPL-D7850202
...
22
Clip, Evaporator WPL-10623003
...
23
Gasket Foam WPL-A3189335
...
24
Block, Air Coil (Left) WPL-10629601
...
25
Block, Air Coil (Right) WPL-10629001
...
26
Kit, Thermostat WPL-R0161087
...
27
Clip WPL-W11673433
...
28
Heater- Ev WPL-WP12049801
...
29
Assy,low Side WPL-R0170057
...
30
Grommet WPL-WP2264462
...
32
Blade-Fan WPL-R0000199
...
33
Brkt Mtr WPL-10656101
...
34
Motor, Evap Fan WPL-10654206
...
35
Brk`t-Mtr Mt/lw WPL-10656001
...
36
Screw WPL-WP90767
...
37
Cap WPL-B5636301
...
38
Button- Pl WPL-WP67001130
...
39
Grommet A WPL-M0580002
...
40
Deflector, Air WPL-10033201

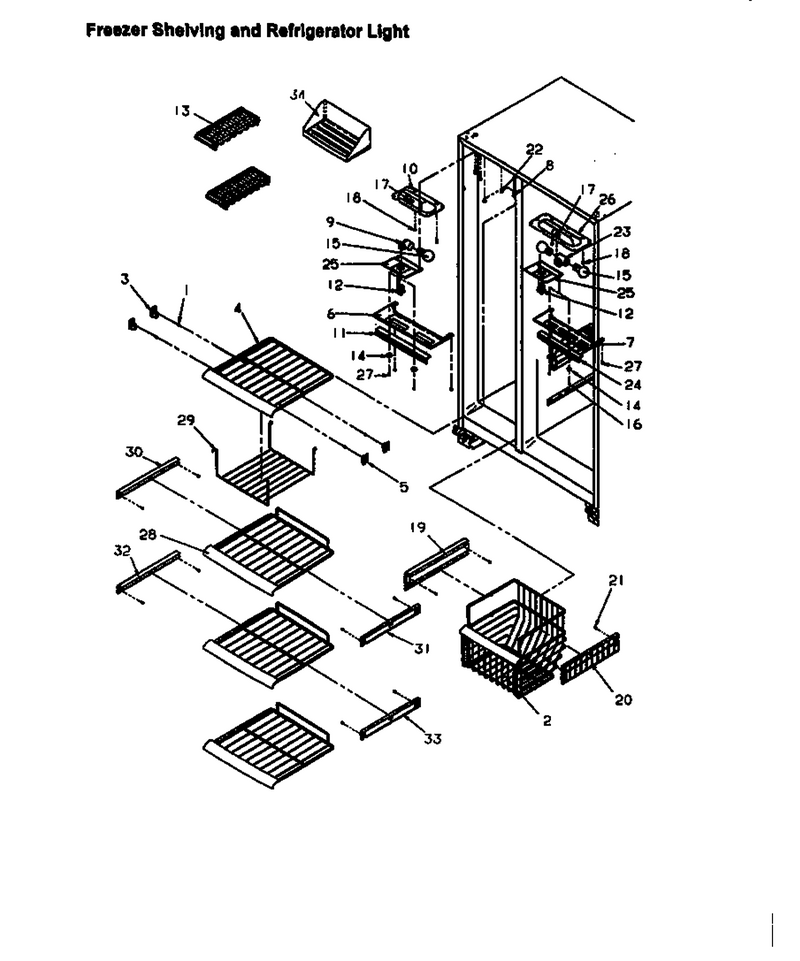

06 - Fz Shelving And Ref Light

...
...
2
Basket, 11`` Freezer WPL-12011903
...
4
Shelf, Stationary Frz WPL-12015501
...
5
Support- F WPL-WPC8973801
...
6
Cover, Frz Light WPL-10493302
...
7
Cover, Ref. Light WPL-10493202
...
8
Grommet, Screw WPL-M0581001
...
9
Socket-Light WPL-C8973404
...
10
Housing, Light WPL-D7760104
...
11
Shield, Light WPL-10014715
...
12
Switch WPL-W11384469
...
13
Tray WPL-WP841180A
...
14
Washer WPL-M0270519
...
15
Light Bulb WPL-8009
...
16
Screw (3) WPL-67006425
...
17
Clip, Ground WPL-B5733302
...
18
Screw WPL-WP90767
...
19
Rail, L. Dbl Shelf WPL-12013002
...
20
Rail- R Double WPL-10991802
...
21
Screw WPL-WP98165
...
22
Grommet, Screw WPL-M0580007
...
23
Socket, Dual Lamp WPL-10796001
...
24
Shield, Light WPL-10014716
...
25
Cover, Light Sw WPL-D7297604
...
26
Housing-Ref Light WPL-D7716409
...
27
Screw WPL-M0219546
...
28
Shelf, Sld. Freezer WPL-12012103
...
29
Rack, Freezer WPL-10729201
...
30
Rail, L. Dbl Shelf WPL-12012803
...
31
Rail-R Shelf WPL-10991403
...
32
Rail, L. Shelf WPL-12012802
...
33
Rail, R Shelf WPL-10991402

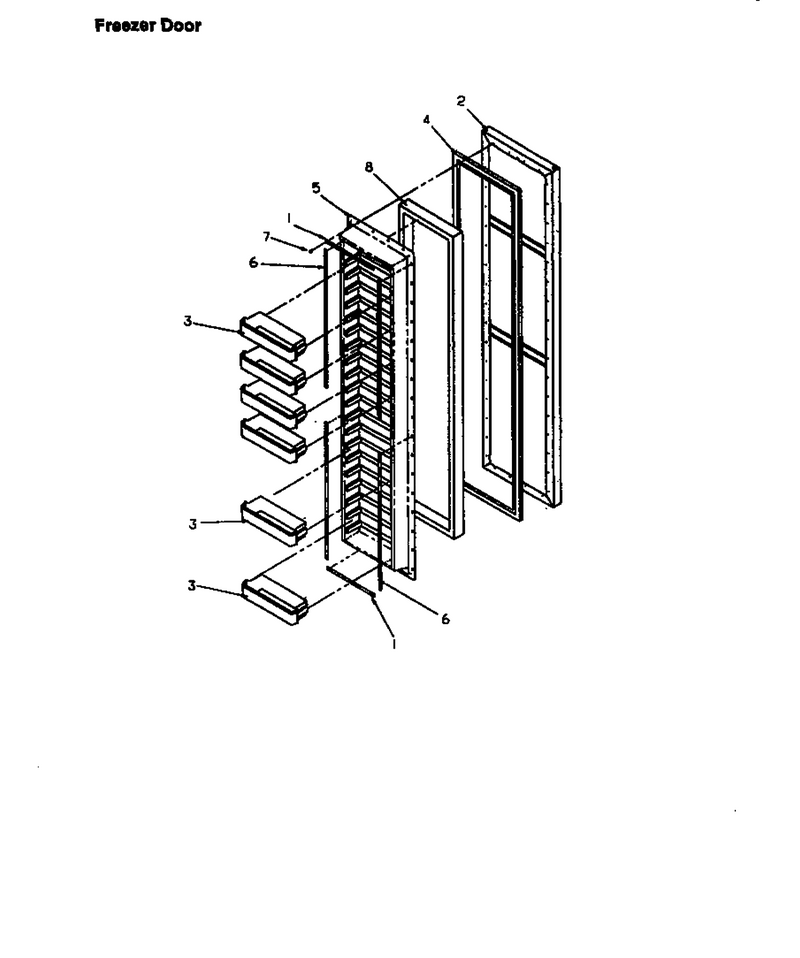

03 - Fz Door

...
...
1
Retainer, Door Liner WPL-C8982801
...
2
Assy Frz Dr Fm WPL-10881501W
...
3
Bucket-Fz Door WPL-10523907
...
4
Gasket W WPL-WP10359709Q
...
5
Liner, Frz Door (Conv.) WPL-10522001
...
6
Retainer, Door Liner WPL-D7828601
...
7
Screw WPL-WPM0219730
...
8
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370

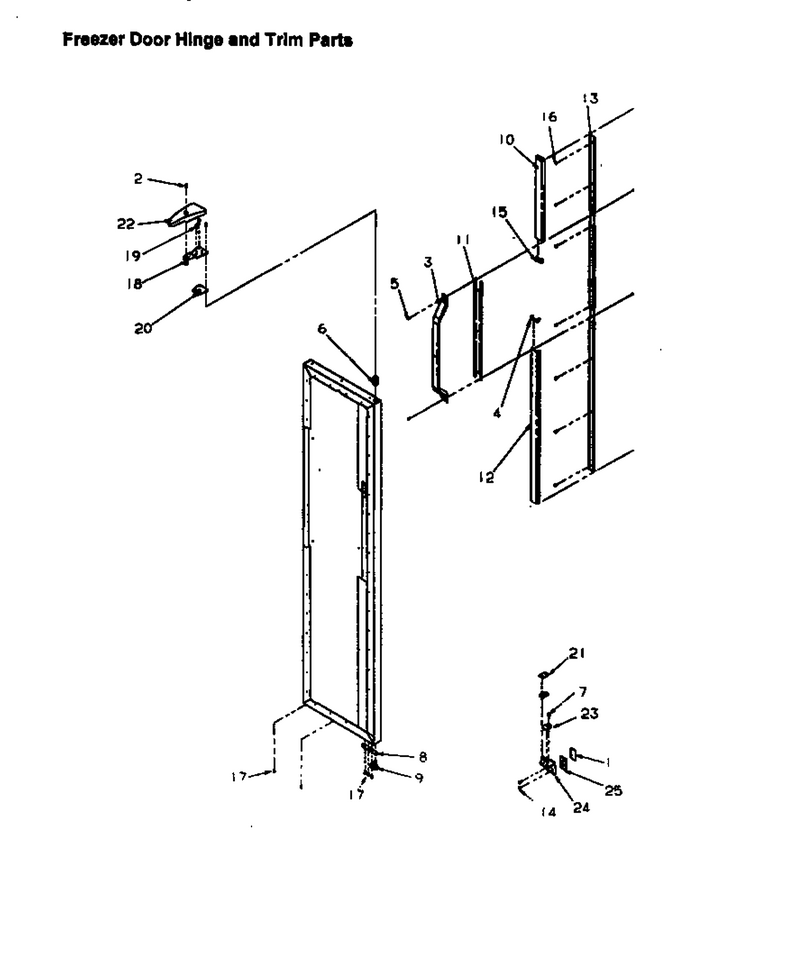

04 - Fz Door Hinge And Trim Parts

...
...
1
Kit, Bot.hinge Shim WPL-10860201
...
2
Screw WPL-WP8281196
...
3
Handle, Door (White) WPL-12139304
...
4
Insert, Trim (``b``) WPL-10953118
...
5
Kit, Screw WPL-R9800670
...
6
Bushing, Door (Wht) WPL-10393802
...
7
Screw, Lock Brake Mounting WPL-M0220418
...
8
Stop-W Door WPL-C8972405
...
9
Kit,dr Closure WPL-R0181181
...
10
Kit- Door WPL-R0150136
...
11
Trim-W Ctr Dr WPL-10810401
...
12
Trim, Bottom Door W Frz WPL-10810507
...
13
Retainer-Fz Trim WPL-10852213
...
14
Screw WPL-WP67006715
...
15
Insert, Door Trim(``a``) WPL-10953117
...
16
Screw WPL-WP489349
...
17
Screw WPL-WP98165
...
18
Hinge, Top (E-Ct) WPL-10495803
...
19
Kit, Screw WPL-R9800670
...
20
Shim, Top Hinge WPL-B8389007
...
21
Shim, Door Closure WPL-B8387702
...
22
Cover W Hinge WPL-10849401
...
23
Kit,dr Closure WPL-R0181181
...
24
Kit-Hinge WPL-R9900507
...
25
Kit,btm Hinge Shim WPL-10399501

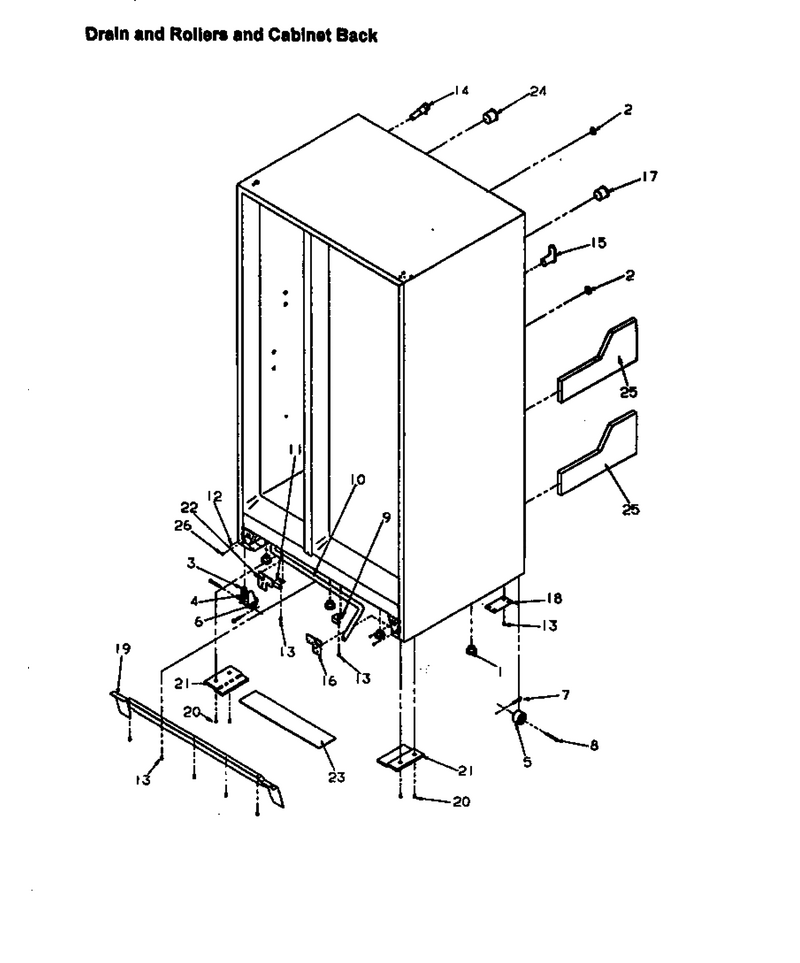

02 - Drain And Rollers And Cabinet Back

...
...
NI
Snap Bushing WPL-A4554806
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (Blk) WPL-A3080001
...
3
Assy, Roller Bracket WPL-12452602Q
...
4
Nut, Speed WPL-M0286708
...
5
Roller WPL-WP10450603
...
6
Rivet WPL-M1205302
...
7
Cotter Pin K WPL-M1200004
...
8
Pin K WPL-M1200202
...
9
Clip, Wire WPL-M0585206
...
10
Tube, Drain WPL-10505101
...
11
Clamp WPL-M0102303
...
12
Screw, Mach WPL-M0206313
...
13
Screw WPL-WP489069
...
14
Assy, Fill Tube WPL-12023401Q
...
15
Tunnel, Heat Ex. WPL-C8971902
...
16
Strip-Rh Bot Hinge WPL-12146601
...
17
Tunnel Wire WPL-10187501
...
18
Clip-H V Box WPL-10505003
...
19
Baffle, M.c. Air WPL-10508107
...
20
Screw WPL-WP3400094
...
21
Support, Mach Comp. WPL-10508001
...
22
Strip, Bot Hinge Tap WPL-10860102
...
23
Insulation, O.c.bottom WPL-10906502
...
24
Tunnel Wire WPL-10187601
...
25
Insulation, R Foot WPL-10906501

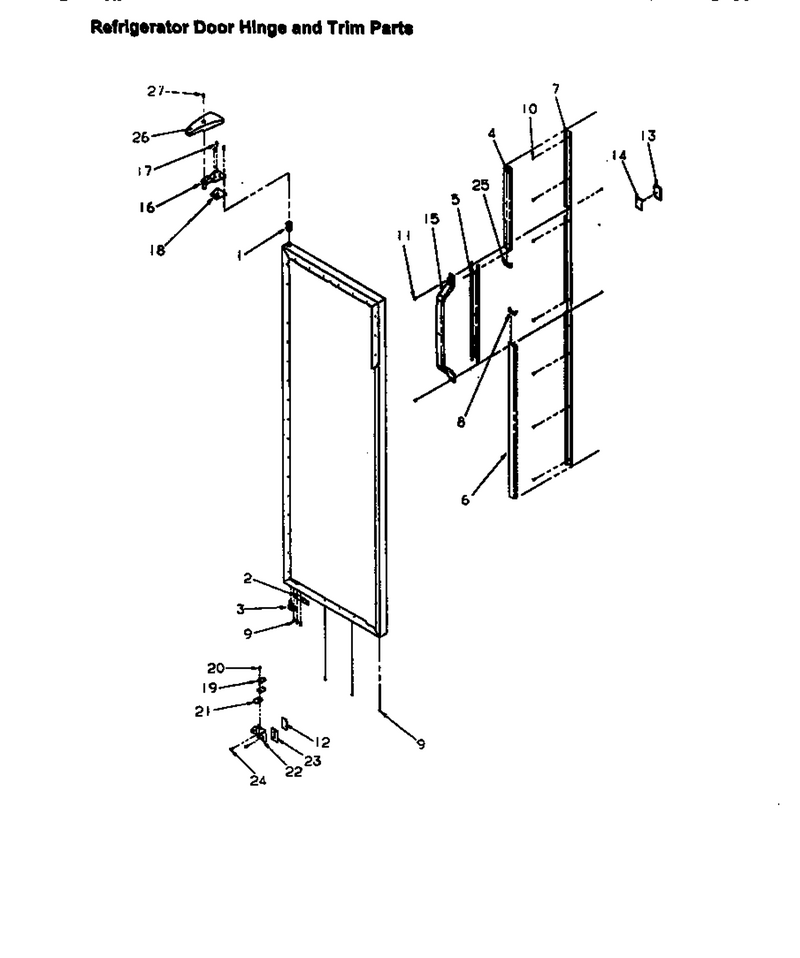

09 - Ref Door Hinge And Trim Parts

...
...
1
Bushing, Door (Wht) WPL-10393802
...
2
Stop-W Door WPL-C8972405
...
3
Kit,dr Closure WPL-R0181181
...
4
Kit- Door WPL-R0150136
...
5
Trim-W Ctr Dr WPL-10810401
...
6
Trim, Bottom Door W Ref WPL-10810508
...
7
Retainer-Ref Trim WPL-10852214
...
8
Insert, Door Trim(``a``) WPL-10953117
...
9
Screw WPL-WP98165
...
10
Screw WPL-WP489349
...
11
Kit, Screw WPL-R9800670
...
12
Kit, Bot.hinge Shim WPL-10860201
...
13
Base, Nameplate WPL-10992001
...
14
Insert, Nameplate WPL-10992101
...
15
Handle, Door (White) WPL-12139304
...
16
Hinge, Top (E-Ct) WPL-10495803
...
17
Kit, Screw WPL-R9800670
...
18
Shim, Top Hinge WPL-B8389007
...
19
Shim, Door Closure WPL-B8387702
...
20
Screw, Lock Brake Mounting WPL-M0220418
...
21
Kit,dr Closure WPL-R0181181
...
22
Kit-Hinge WPL-R9900509
...
23
Kit,btm Hinge Shim WPL-10399501
...
24
Screw WPL-WP67006715
...
25
Insert, Trim (``b``) WPL-10953118
...
26
Cover W Hinge WPL-10849401
...
27
Screw WPL-WP8281196

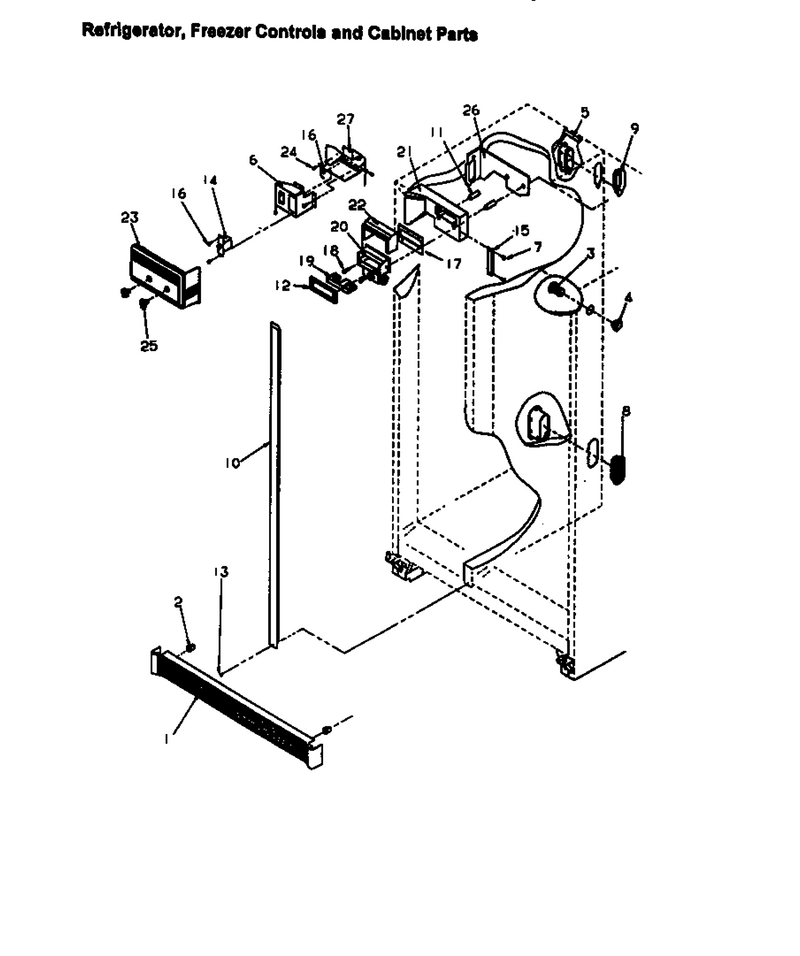

12 - Ref, Fz Controls And Cabinet Parts

...
...
1
Assy, Toe Grille (White) WPL-12321807Q
...
2
Clip WPL-WPM0117303
...
3
Tunnel, Air WPL-A3187703
...
4
Tunnel, Retainer WPL-10923101
...
5
Tube-Plastic WPL-B8372601
...
6
Box, Control Top WPL-D7868606
...
7
Screw WPL-WP489474
...
8
Grille-Rtn Air WPL-D7785401
...
9
Tunnel Air Supply WPL-10178001
...
10
See Note Vertical Mullion, White -- (M3, M6, M9, M12) WPL-Y00000000
...
11
Spacer Damper WPL-A3044208
...
12
Gasket, Damper WPL-10383201
...
13
Screw, Handle (Black) WPL-12991101
...
14
Assy, Control-Fz WPL-R0161092
...
15
Clamp WPL-C8977301
...
16
Screw WPL-WP489464
...
17
Gasket, Damper WPL-B8345401
...
18
Screw WPL-M0216539
...
19
Insert, Control WPL-C8902601
...
20
Control-Damper WPL-D7547412
...
21
Air Duct, Waxed WPL-10176602
...
22
Insulation WPL-D7788201
...
23
Cover-Control WPL-10862706
...
24
Screw WPL-WP489399
...
25
Knob White WPL-D7795825
...
26
Gasket, Air Duct WPL-10177901
...
27
Box, Bottom Control WPL-D7822404

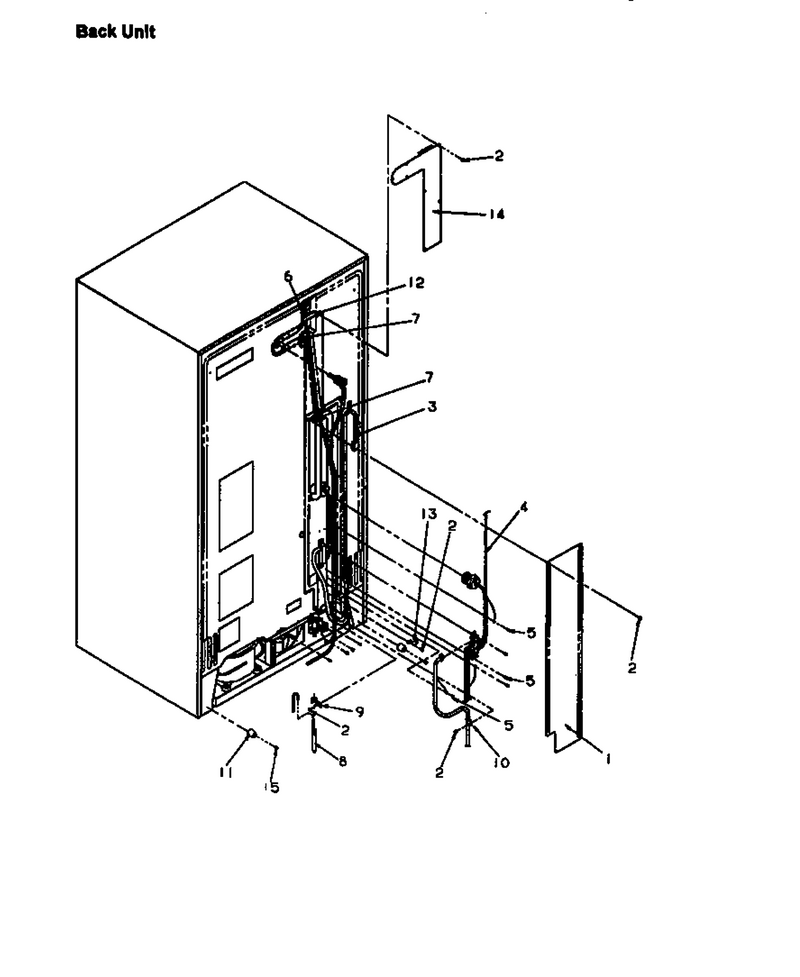

01 - Back Unit

...
...
1
Cover, O.c.back WPL-10178406
...
2
Screw WPL-WP489069
...
3
Cord-Power WPL-10916505
...
4
Harness, Cabinet WPL-10974001
...
5
Screw, Spextite WPL-M0232330
...
6
Plug Button WPL-M0310319
...
7
Clip WPL-WPM0104106
...
8
Drier WPL-WPB2150504
...
9
Clip, Drier WPL-10547001
...
10
Clamp, Speed WPL-M0103904
...
11
Foot, Outer Case WPL-C8960601
...
12
Gasket (Ft.) WPL-10839803
...
13
Clamp WPL-B5794201
...
14
Cover - Wire WPL-10178505
...
15
Screw WPL-WP489474

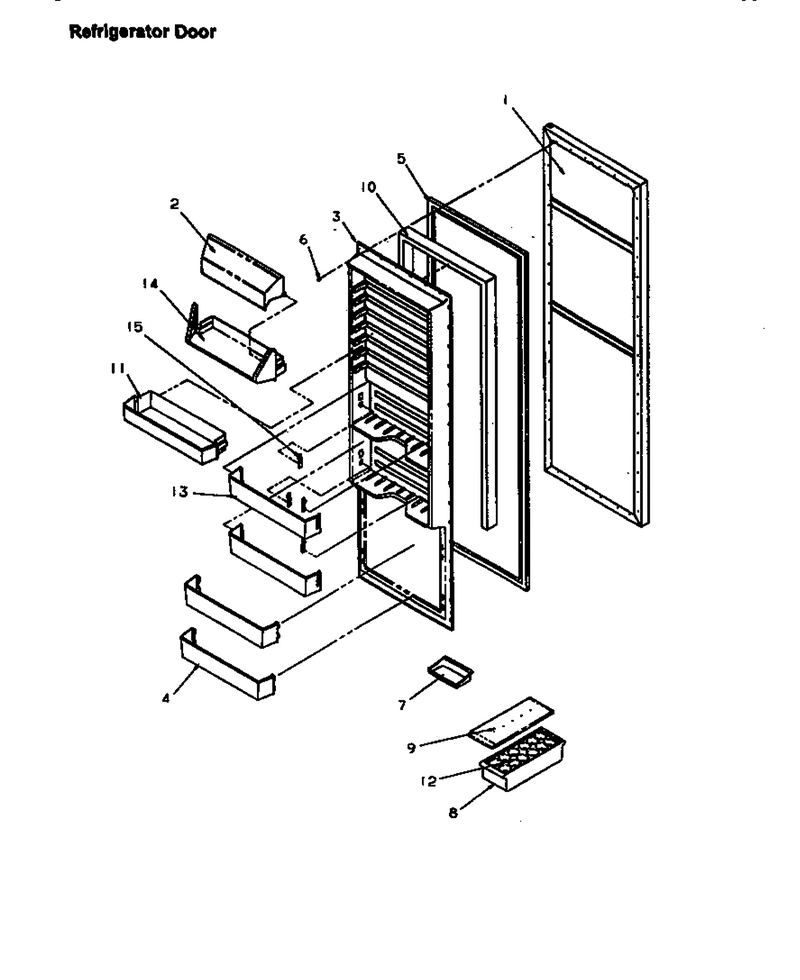

08 - Ref Door

...
...
1
Assy Ref. Door WPL-10881301W
...
2
Door, Dairy WPL-10527307
...
3
Liner-Ref Dr WPL-10866101
...
4
Shelf- Doo WPL-67003701
...
5
Gasket-Dr WPL-WP10359708Q
...
6
Screw WPL-WPM0219730
...
7
Tray, Butter WPL-10310901
...
8
Container WPL-WP10423131
...
9
Lid, Utility WPL-10436404
...
10
Insulation Ft. K WPL-B0523563
...
11
Bucket-Ref WPL-12083408
...
12
Tray, Egg WPL-10436505
...
13
Bin-Cntlvr WPL-WP10520405
...
14
Shelf, Dairy WPL-12083301
...
15
Clip, Retainer WPL-10202001

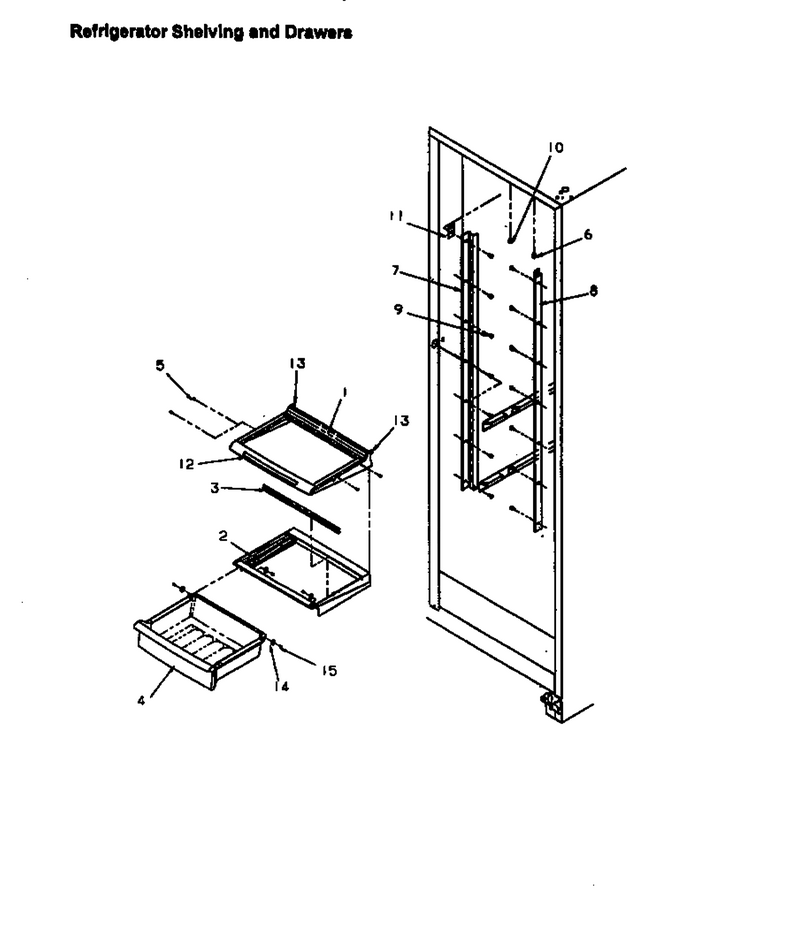

10 - Ref Shelving And Drawers

...
...
1
Shelf, Full Gli Out WPL-10809508
...
2
Frame, Deli WPL-10783803
...
3
Director-Deli WPL-10876302
...
4
Pan- Deli WPL-10784202
...
5
Screw WPL-W10856125
...
6
Grommet, Screw WPL-M0581001
...
7
Ladder, Cantilever WPL-D7789808
...
8
Ladder, Cantilever WPL-D7789809
...
9
Screw WPL-WP90767
...
10
Grommet, Screw WPL-M0580007
...
11
Brkt, Cont Cover WPL-12414701
...
12
Insert, Shelf WPL-12085709
...
13
Blank L.side Rail WPL-10846403
...
14
Roller, Pan WPL-10481001
...
15
Screw WPL-67006692

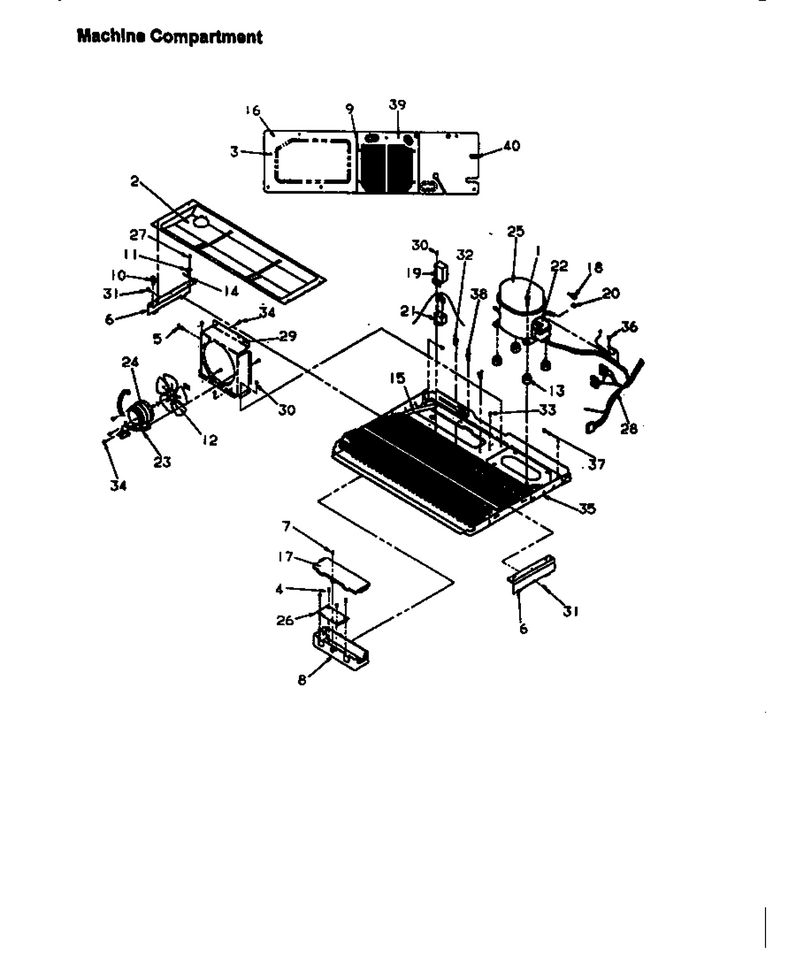

07 - Page 10

...
...
1
Screw, Shldr WPL-M0221523
...
2
Pan, Drain WPL-10507903
...
3
Screw WPL-WP489464
...
4
Screw WPL-WP489349
...
5
Tie Wire WPL-M0585403
...
6
Brkt, Drain Pan Mtg. WPL-10495702
...
7
Screw-Sm/hex WPL-12990523
...
8
Box, H. V. WPL-10495901
...
9
Screw, Sm WPL-M0227217
...
10
Clip, Guide WPL-M0118703
...
11
Tab, Wire Tie WPL-M0585601
...
12
Blade, Fan WPL-10518701
...
13
Grommet, Compressor WPL-67003493
...
14
Tie-Wire WPL-WPW10339879
...
15
Insulation, Tube WPL-10851302
...
16
Assy, Mc Back WPL-12041617
...
17
Cover H.v. Box WPL-10497801
...
18
Overload WPL-10377015
...
19
Shield, Capacitor WPL-10266402
...
20
Start-Dev WPL-WP10097202
...
21
Capacitor WPL-WP65889-4
...
22
Cover-Term WPL-4344043
...
23
Kit-Shroud WPL-R0130014
...
24
Motor-Cond WPL-833697
...
25
Compressor Kit (Contains Items 12, 17, 27, & 29) WPL-W10160407
...
26
Cont, Adap. Defrost WPL-12050506
...
27
Screw, Handle WPL-67006529
...
28
Harness-Mach WPL-10949202
...
29
Kit-Shroud WPL-R0130014
...
30
Screw WPL-WP90767
...
31
Rivet-Pop WPL-59002054
...
33
Screw WPL-WP489399
...
34
Screw WPL-M0223803
...
35
Assy,cond/pan-E Ct WPL-10544108
...
36
Screw WPL-12992301
...
37
Screw, Sm WPL-M0211357
...
38
Tie, Wire WPL-M0585401
...
39
Back, M.c. WPL-12039903
