Amana STD6502D (BOM: P1119908S)

Model: STD6502D (BOM: P1119908S)

Save Part Not Listed?
product name

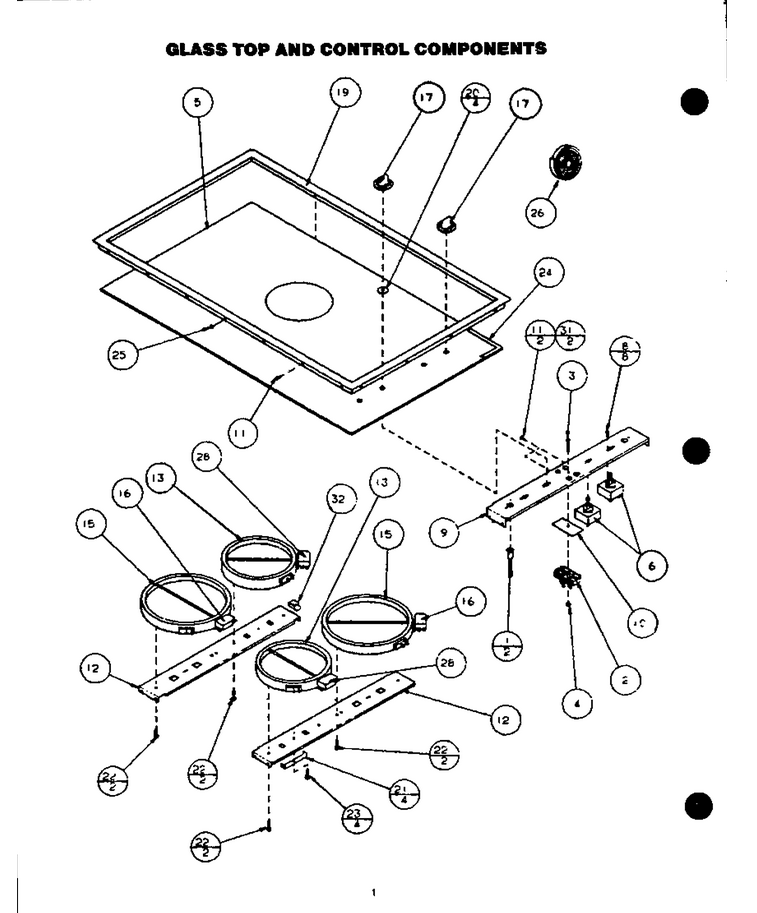

01 - Glass Top And Control Components

...
...
1
Light, Indicator WPL-Y0307458
...
2
Light, Indicator WPL-74007880
...
5
Net-Cooktop,ceramic WPL-0304022
...
6
Switch-Inf WPL-W11122012
...
8
Screw WPL-WP3400882
...
9
Control Mtg Bracket WPL-0312914
...
10
Insulation, Ind. Light WPL-0312900
...
11
Screw WPL-W11245710
...
12
Bracket, Mtg. Element WPL-D8596905
...
13
Elmnt-Surf WPL-W10823699
...
15
Elmnt-Surf WPL-W10823710
...
16
Limiter Temp WPL-0312937
...
17
Knob, Control WPL-0304042
...
19
Trim, Frame (Black) WPL-0312920
...
20
Cover, Control Hole K WPL-B5037602
...
21
Spring WPL-Y0312901
...
22
Screw, Shoulder WPL-0312321
...
23
Use M0217224 WPL-Y0312926
...
24
Tape Vinyl WPL-0312929
...
25
Lock Washer WPL-M0272803
...
26
Tape, Inch WPL-74007878
...
28
Limiter WPL-0312936
...
31
Screw WPL-M0211519
...
32
Clip WPL-0091085

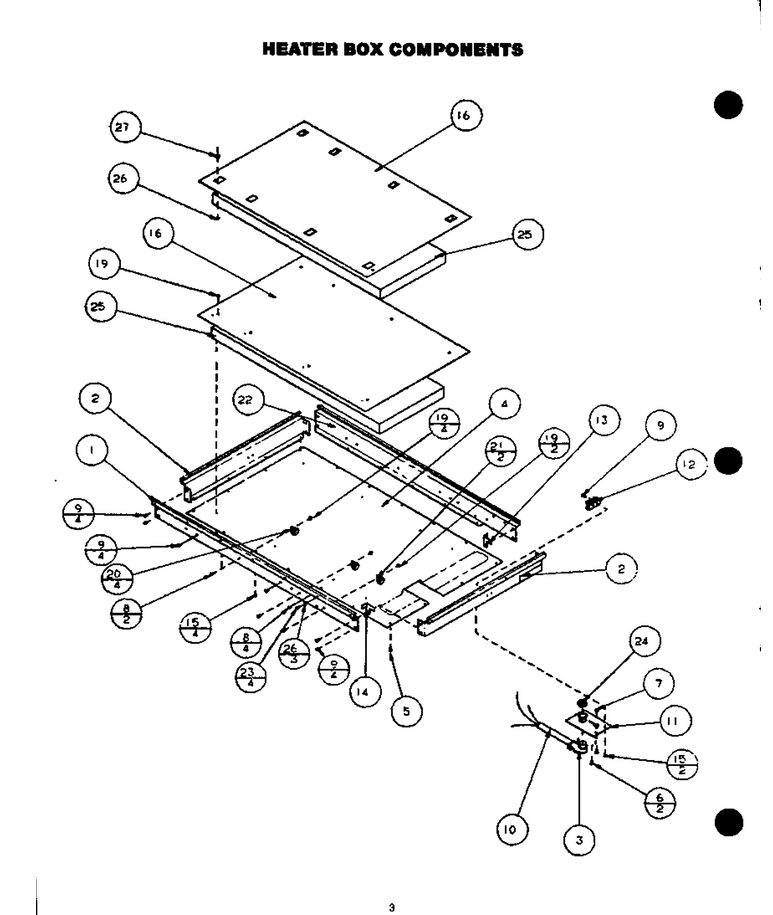

02 - Heater Box Components

...
...
1
Use D8596509 WPL-0312909
...
2
Use D8596703 WPL-0312913
...
3
Connector, Conduit WPL-312932
...
4
Use D8597005 WPL-0312916
...
5
Screw WPL-WP12990527
...
6
Screw WPL-WP12990527
...
7
Nut WPL-M0282009
...
8
Screw WPL-Y90338
...
9
Screw, S.m. WPL-90659
...
10
Harness, Conduit WPL-Y0312918
...
11
Plate, Conduit WPL-Y0307451
...
12
Terminal Block WPL-0091073
...
13
Use B5036901 WPL-0312903
...
14
Use B5036902 WPL-0312904
...
15
Screw WPL-M0227817
...
16
Baffle, Heater Box WPL-307490B
...
19
Nut K WPL-M0282005
...
20
Clamp, Wire WPL-54565
...
21
Clamp, Tube WPL-54566
...
22
Heat Box Side Pnt WPL-D8596511
...
23
Screw WPL-WP488234
...
24
Clip For Igniter, Right-Han WPL-312933
...
25
Use C2741706 WPL-0312908
...
26
Lock Washer WPL-M0272803
...
27
Sub 91858, Pop Rivet WPL-Y0312301
