Amana SRI22F (BOM: P7540005W)

Model: SRI22F (BOM: P7540005W)

Save Part Not Listed?
product name

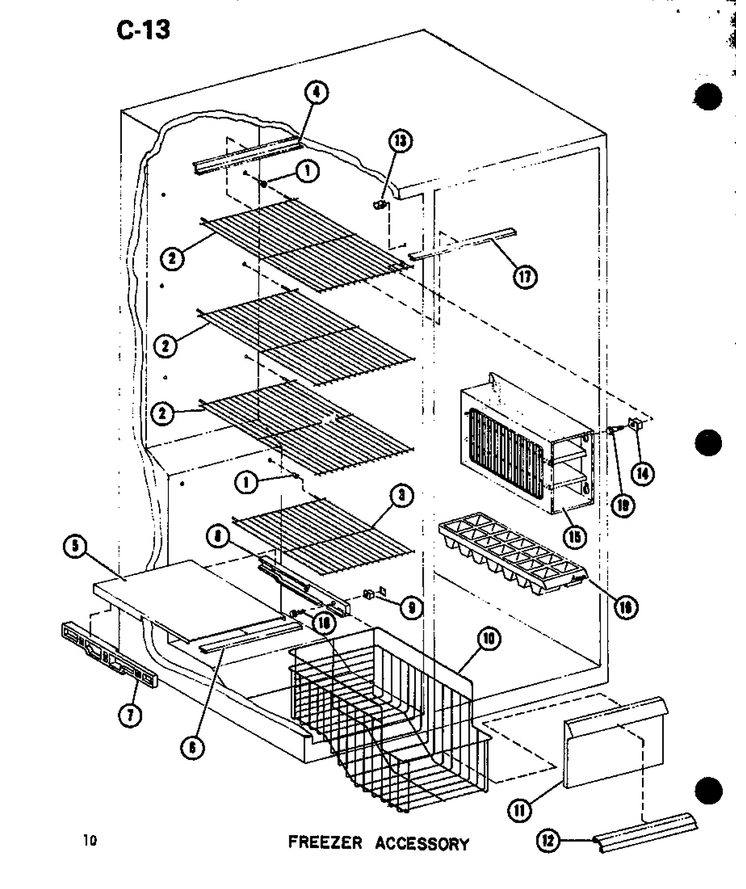

01 - Fz Accessory

...
...
NI
Ic2-(Ice Maker) WPL-D7036805
...
1
Plug WPL-A0387302
...
2
Shelf WPL-D7549802
...
3
Shelf WPL-D7549806
...
4
Trim WPL-D7415103
...
5
Shelf-Fr WPL-B8303801
...
6
Trim WPL-B0596602
...
7
Glide Basket-L K WPL-D7442901
...
8
Glide Basket-R K WPL-D7442902
...
9
Grommet K WPL-M0500107
...
10
Basket WPL-D7363601
...
11
Front-Fr Basket WPL-D7419601
...
12
Trim-Handle WPL-C8834901
...
13
Support WPL-B0595101
...
17
Trim Shelf K WPL-C8795201
...
18
Screw WPL-WP98165

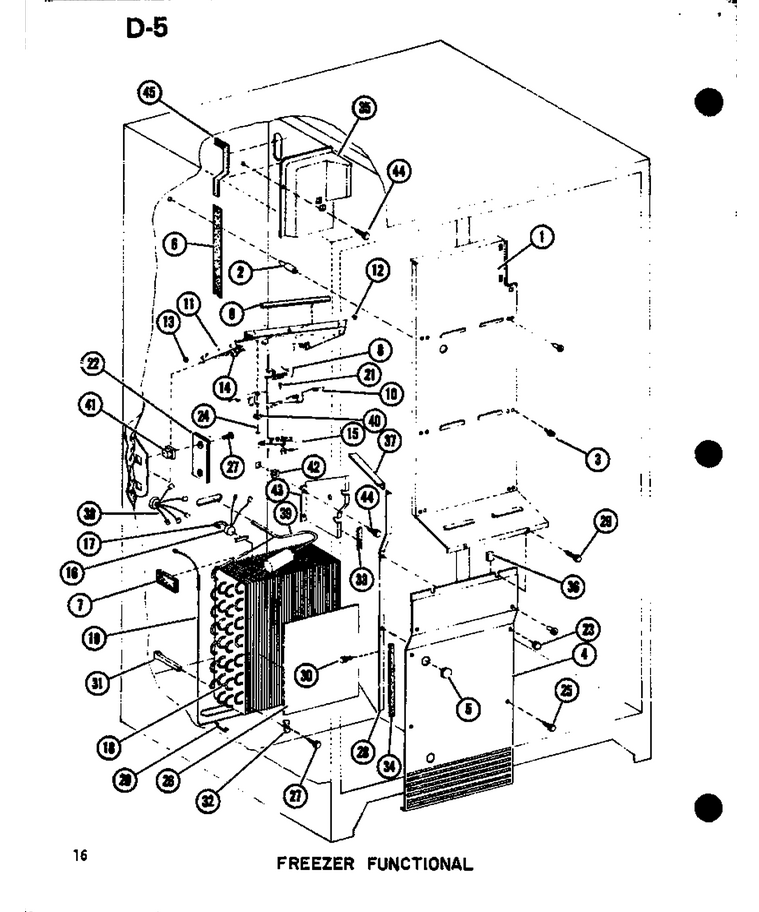

03 - Fz Functional

...
...
1
Baffle Fr Back WPL-D7482201
...
2
Spacer WPL-A3044202
...
3
Screw-Sm WPL-M0238636
...
4
Cover/gasket Assy WPL-D7484701
...
5
Plug WPL-A3069103
...
6
Gasket Baffle WPL-B8328101
...
7
Air Block WPL-B8314701
...
8
Fan-Evap WPL-C8795501
...
9
Gasket WPL-B5757702
...
10
Bracket-Evap Motor WPL-C8829701
...
11
Fan Plate Assy WPL-D7371502
...
12
Nut-Well WPL-M0292002
...
13
Clip, Waterline WPL-12454802
...
14
Eyelet K WPL-A0381401
...
15
Motor WPL-D7241412
...
16
Thermostat K WPL-C8871201
...
17
Clip Thermostat K WPL-B8325201
...
18
Evaporator Assy WPL-R0170012
...
19
Heater-Evap WPL-D7479703
...
20
Clip-Heater WPL-B8324701
...
21
Screw WPL-WP3400094
...
22
Term Board WPL-B8326801
...
23
Plug Button WPL-M0310316
...
24
Screw WPL-M0211020
...
25
Screw (3) WPL-67006425
...
26
Gasket, Evap. WPL-B8327901
...
27
Screw WPL-WP98165
...
28
Angle-Evap Cover WPL-D7393502
...
29
Screw WPL-M0226960
...
30
Kit, Screw WPL-R9800670
...
31
Grommet WPL-C8830701
...
32
Clip-Heater WPL-B5784101
...
33
Gasket WPL-B5759609
...
34
Gasket WPL-B5759608
...
35
Air Tunnel WPL-D7484901
...
36
Clip Ground WPL-B8324801
...
37
Angle-Fr Baffle WPL-B5795201
...
38
Wiring Harness WPL-D7565501
...
39
Heat Exchanger WPL-D7501501
...
40
Grommet WPL-A4573802
...
41
Grommet A WPL-M0580002
...
42
Grommet WPL-M0580009
...
43
Block Air Coil WPL-C8868301
...
44
Screw WPL-WP90767
...
45
Gasket Air Tunnel WPL-B8320501

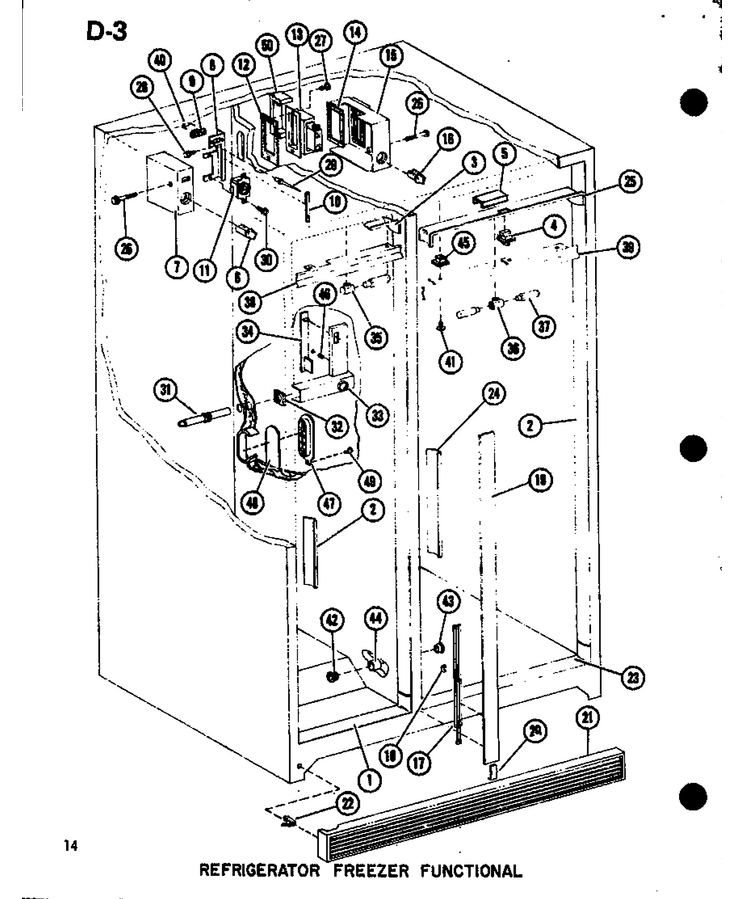

08 - Ref Fz Functional

...
...
NI
Return Air Assembly WPL-B8344901
...
1
Breaker Frame WPL-D3952402
...
2
Breaker Frame, Fz And Ref Hing WPL-D7510801
...
3
Br Frame WPL-D3953105
...
4
Switch WPL-W11384469
...
5
Cover-Switch WPL-B5743601
...
6
Knob WPL-D7009801
...
7
Escutcheon WPL-D7345503
...
8
Bracket WPL-C8850501
...
9
Switch WPL-M0341202
...
10
Gasket-Per Ft WPL-A30303-35
...
11
Control WPL-C3615018
...
12
Gasket-Damper WPL-B8315901
...
13
Control, Ref WPL-C3643115
...
14
Gasket Control WPL-A3113601
...
15
Escutcheon WPL-D7417301
...
16
Knob WPL-D7009802
...
17
Heater, Vertical Mullion WPL-C3628301
...
18
Clip WPL-M0113401
...
19
Mullion Vert.white) WPL-C8810401
...
20
Key WPL-A3120801
...
21
Grille WPL-D7415410
...
22
Clip WPL-WPM0117303
...
23
Breaker Frame WPL-D3952603
...
24
Breaker Frame WPL-D7510901
...
25
Breaker Frame WPL-D3952505
...
26
Screw WPL-M0230926
...
27
Screw (3) WPL-67006425
...
28
Screw WPL-WP489464
...
29
Rivet A WPL-M0010202
...
30
Screw WPL-WP90767
...
31
Air Tube WPL-C8785301
...
32
Gasket WPL-A3116601
...
33
Escutcheon, Meat Keeper WPL-B5656707
...
34
Slide-Control WPL-B5622804
...
35
Socket WPL-B5637601
...
36
Socket-Light WPL-12096901
...
37
Bulb-Light WPL-WPA3073101
...
38
Light Shield WPL-D3954208
...
39
Light Shield WPL-D3954210
...
40
Diode WPL-M0305301
...
41
Screw WPL-M0226960
...
42
Air Tunnel WPL-A3187701
...
43
Retainer WPL-A3187801
...
44
Sleeve-Air Tunnel WPL-A3189501
...
45
Grommet WPL-M0580009
...
46
Clip WPL-M0113004
...
47
Grille A WPL-C3588305
...
48
Damper Assy WPL-B8344401
...
49
Screw WPL-WP90767
...
50
Insulation-Damp Cnt WPL-C8860701

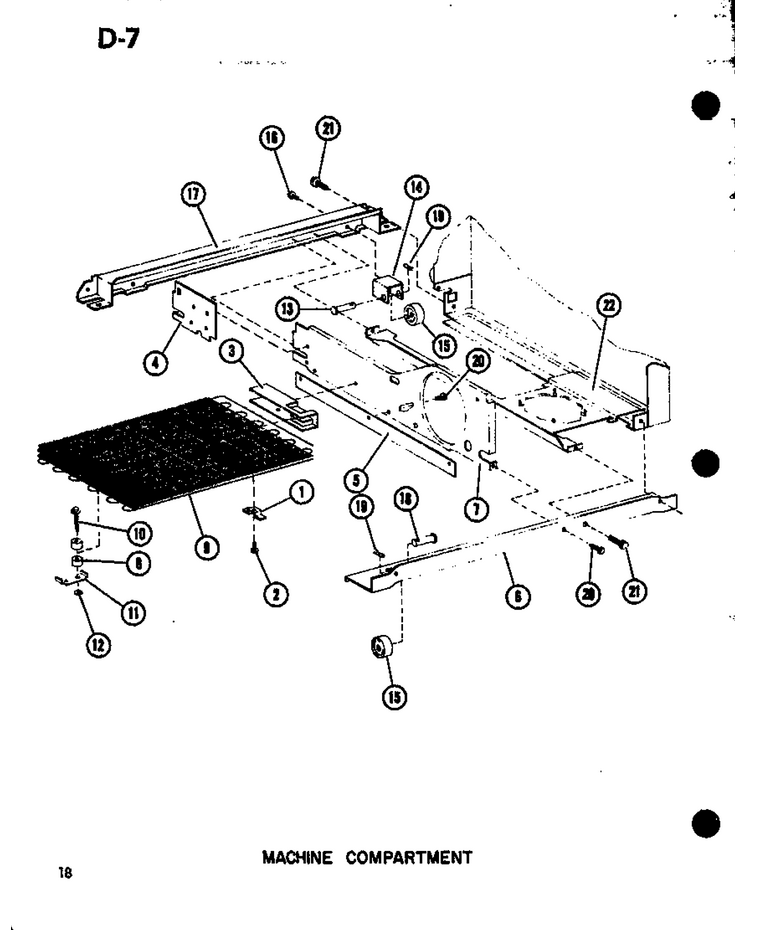

04 - Machine Compartment

...
...
1
Clip-Cond WPL-A3054502
...
2
Kit, Screw WPL-R9800670
...
3
Spacer WPL-B0544101
...
5
Seal-Fan Shroud Q WPL-B8314102
...
6
Rail Rear WPL-C8918602
...
7
Shroud, Fan WPL-D7446702
...
8
Spacer WPL-A3013907
...
9
Condenser Assy Pnt WPL-C8860802
...
10
Sems Fastner WPL-M0257039
...
11
Bracket, Support WPL-A3085401
...
12
Nut A WPL-M0286003
...
13
Rivet WPL-M1205302
...
14
Roller Kit WPL-C8836303
...
15
Roller WPL-M0520102
...
16
Screw K WPL-M0236230
...
17
Rail WPL-D7003306
...
18
Pivot Pin K WPL-M1210001
...
19
Cotter Pin K WPL-M1200001
...
20
Screw WPL-WP98165
...
21
Screw WPL-M0294459
...
22
Weld Comp Supt Pnt WPL-C8820412

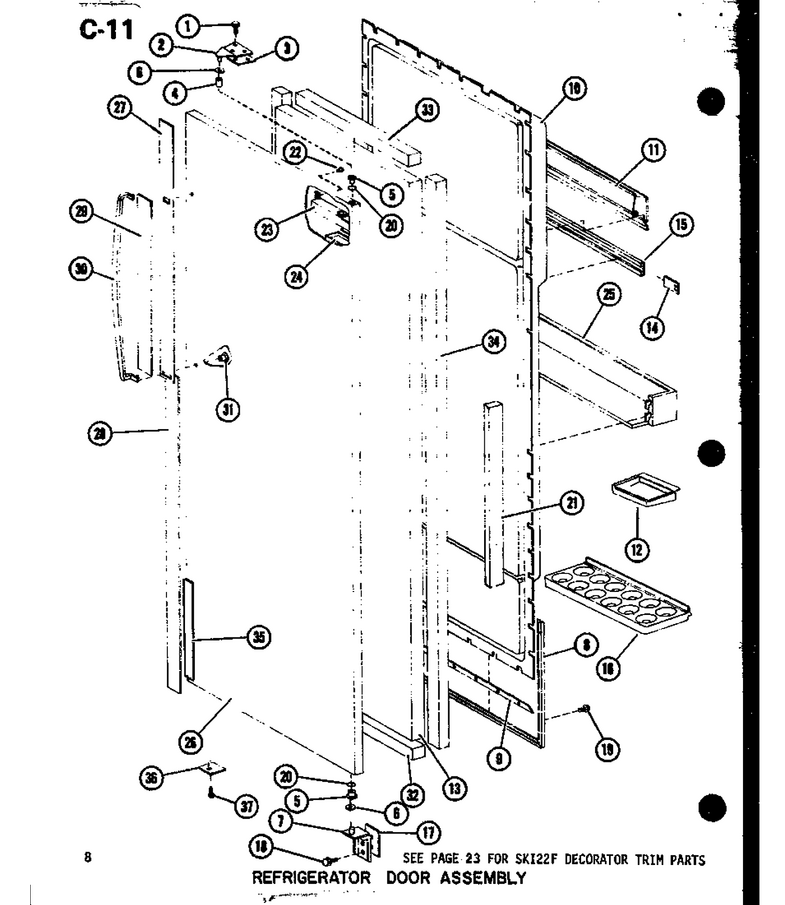

07 - Ref Door Assy

...
...
1
Kit, Screw WPL-R9800670
...
2
Hinge-Right WPL-C8816602
...
3
Shim Kit WPL-A3270303
...
4
Bushing WPL-A3132401
...
5
Bearing-Hinge WPL-C8852201
...
6
Washer K WPL-M0274014
...
7
Hinge WPL-D7250103
...
8
Gasket, Door WPL-D7092608
...
9
Retainer WPL-D7025101
...
10
Panel, Ref Door, Abs Plastic WPL-D7516601
...
11
Door Dairy WPL-D7511302
...
12
Buttertray WPL-67004412A
...
13
Insulation WPL-B5612005
...
14
Support K WPL-B0530006
...
15
Retainer, Egg Tray WPL-B8302601
...
16
Egg Tray WPL-D7466605
...
17
Shim WPL-A3143603
...
18
Screw WPL-WP67006715
...
19
Screw WPL-WP98165
...
20
O Ring WPL-M0500902
...
21
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
22
Screw WPL-M1252001
...
23
Door Closure WPL-D7022901
...
24
Cover WPL-B5644001
...
25
Shelf, Door WPL-D7511402
...
26
Door Ref-C-T-Sr25f WPL-D7409342
...
27
Pad Handle K WPL-D7557702
...
28
Pad, Handle WPL-D7557802
...
29
Nameplate WPL-C8864801
...
30
Handle WPL-D7096001
...
31
Nut WPL-M0289801
...
32
Insulation WPL-B5629008
...
33
Insulation WPL-B0534409
...
34
Insulation WPL-B5629002
...
35
Tape Kit WPL-R0195021

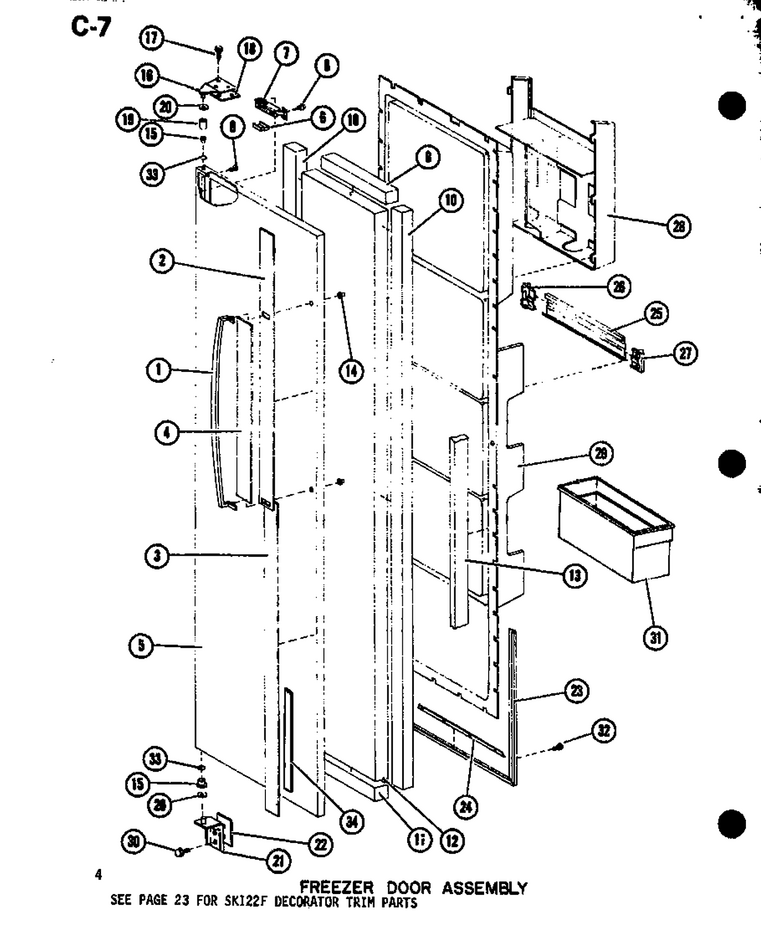

02 - Fz Door Assy

...
...
1
Handle WPL-D7096001
...
2
Pad Handle K WPL-D7557701
...
3
Pad Handle K WPL-D7557801
...
4
Nameplate WPL-C8867102
...
5
Door Fr L-T Sr22f WPL-D7409445
...
6
Cover WPL-B5644001
...
7
Door Closure WPL-D7022901
...
8
Screw WPL-M1252001
...
9
Insulation WPL-B5629006
...
10
Insulation WPL-B5629002
...
11
Insulation WPL-B5629003
...
12
Insulation WPL-B5612004
...
13
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
14
Nut WPL-M0289801
...
15
Bearing-Hinge WPL-C8852201
...
16
Hinge-Left WPL-C8816601
...
17
Kit, Screw WPL-R9800670
...
18
Shim Kit WPL-A3270303
...
19
Bushing WPL-A3132401
...
20
Washer K WPL-M0274014
...
21
Hinge WPL-D7250104
...
22
Shim WPL-A3143603
...
23
Gasket WPL-D7251020
...
24
Retainer Gasket WPL-D7025103
...
25
Retainer WPL-D7415703
...
26
Support - Cream Lh WPL-B5631705
...
27
Support- -Cream Rh WPL-B5631706
...
28
Juice Rack WPL-D7466202
...
29
Inner Dr Panel WPL-D7020604
...
30
Screw WPL-WP67006715
...
32
Screw-Sm WPL-M0241118
...
33
O Ring WPL-M0500902
...
34
Tape Kit WPL-R0195021

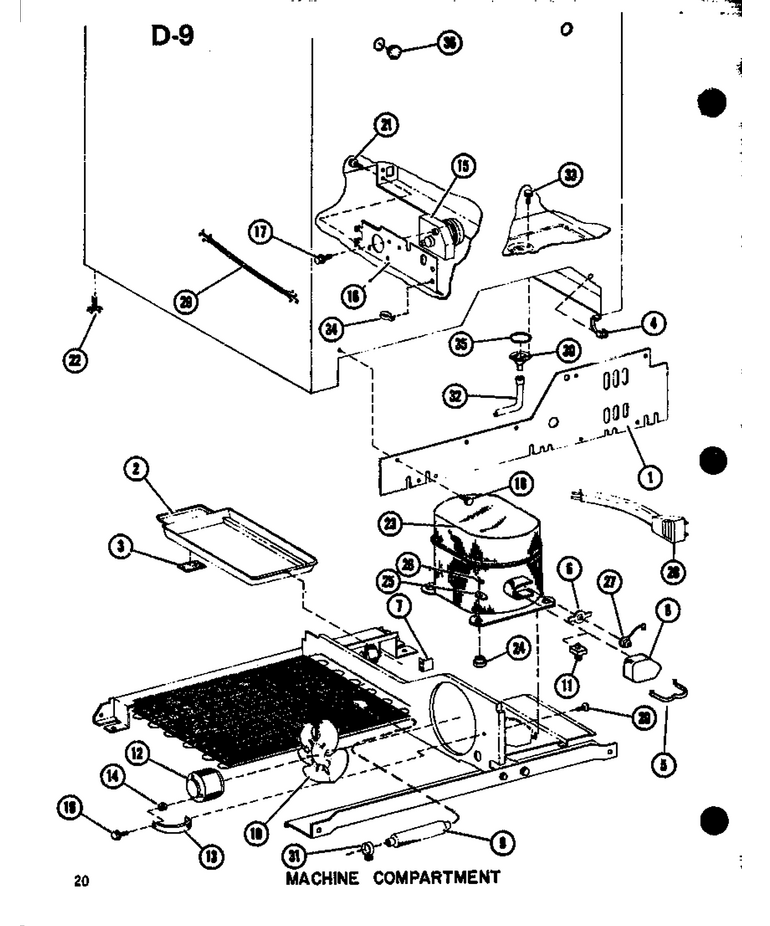

05 - Machine Compartment

...
...
1
Mc Back Assy WPL-C3655002
...
2
Pan, Drain WPL-D7001001
...
3
Pad A WPL-B5691701
...
4
Grommet, Cord WPL-211881
...
5
Strap K WPL-A3041801
...
6
Spring K WPL-A3043601
...
7
Stop,drain Pan WPL-A3125701
...
8
Terminal Cover WPL-B0551801
...
9
Drier WPL-WPB2150504
...
10
Blade, Fan WPL-B5742603
...
11
Relay K WPL-C3689202
...
12
Motor-Cond WPL-833697
...
13
Bracket, Cond Motor WPL-B0598701
...
14
Grommet K WPL-M0500107
...
15
Timer-Def WPL-W10822278
...
16
Timer Bracket WPL-C3647902
...
17
Screw WPL-8169474
...
18
Screw-Sm WPL-M0241118
...
19
Screw WPL-WPM0223816
...
20
Screw Shoulder WPL-M0238833
...
21
Screw WPL-M0211530
...
22
Glider Bolt WPL-M0266510
...
23
Compressor WPL-C3667102H
...
24
Grommet K WPL-A3026101
...
25
Washer, Nylon K WPL-M0590101
...
26
Clip K WPL-A3140801
...
27
Overload WPL-C3689105
...
28
Power Cord WPL-R0157154
...
29
Wiring Harness, Machine Compar WPL-D7528102
...
30
Drain Cup WPL-C8820601
...
31
Clamp-Drier WPL-M0104002
...
32
Drain Tube WPL-D7384701
...
33
Screw WPL-WP489464
...
34
Tie WPL-M0321401
...
35
Sealer WPL-M0275584
...
36
Grommet WPL-B5766402

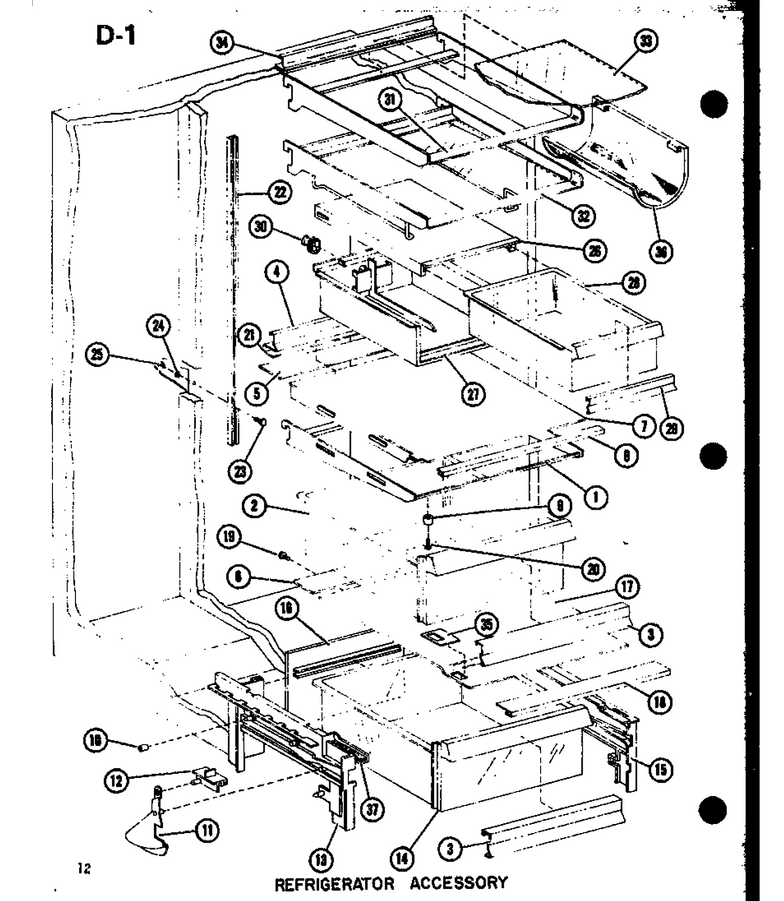

06 - Ref Accessory

...
...
NI
Glass Shelf Assy WPL-C8823409
...
1
Frame WPL-D7000601
...
2
Bin, Fruit, Glide Out WPL-D7298810
...
3
Trim, Handle WPL-C8831713
...
4
Trim-Rear WPL-C8831803
...
6
Ext-Top WPL-C3622305
...
7
Top Fruit Pan WPL-D3951406
...
8
Trim ,crisper Top A WPL-B0570902
...
9
Glide Pan WPL-A3213402
...
10
Clip,tubular WPL-M0117901
...
11
Air Damper Cont K WPL-C8705401
...
12
Slide WPL-B5632101
...
13
Rail Lh WPL-D7201204
...
14
Pan, Humidity Compartment WPL-D7425701
...
15
Side, Humidity Compartment, R. WPL-D7201303
...
16
Back Rac WPL-C8705501
...
17
Top-Humid Comp WPL-D7022202
...
18
Trim WPL-B0596603
...
20
Screw WPL-M0230727
...
21
Tape- Roll WPL-M0275160
...
22
Ladder WPL-D7103701
...
23
Stud WPL-M0258801
...
24
Washer WPL-M0270519
...
25
Nut WPL-WP486255
...
26
Top-Mt Kpr WPL-D7343603
...
27
Sleeve M.k. WPL-D7001305
...
28
Pan, Meat Keeper WPL-D7425301
...
29
Trim-Handle A WPL-C8831704
...
30
Air Tube WPL-C8785301
...
31
Frame Asy WPL-R0179057
...
32
Shelf Assy WPL-R0179059
...
33
Shelf, Glass WPL-B8303602
...
34
Trim WPL-C8831501
...
35
Escutcheon WPL-C3623501
...
36
Rack, Bottle WPL-D7547602
...
37
Insulation-Damp Cnt WPL-C8860701
