Amana SRI19E (BOM: P7487005W)

Model: SRI19E (BOM: P7487005W)

Save Part Not Listed?
product name

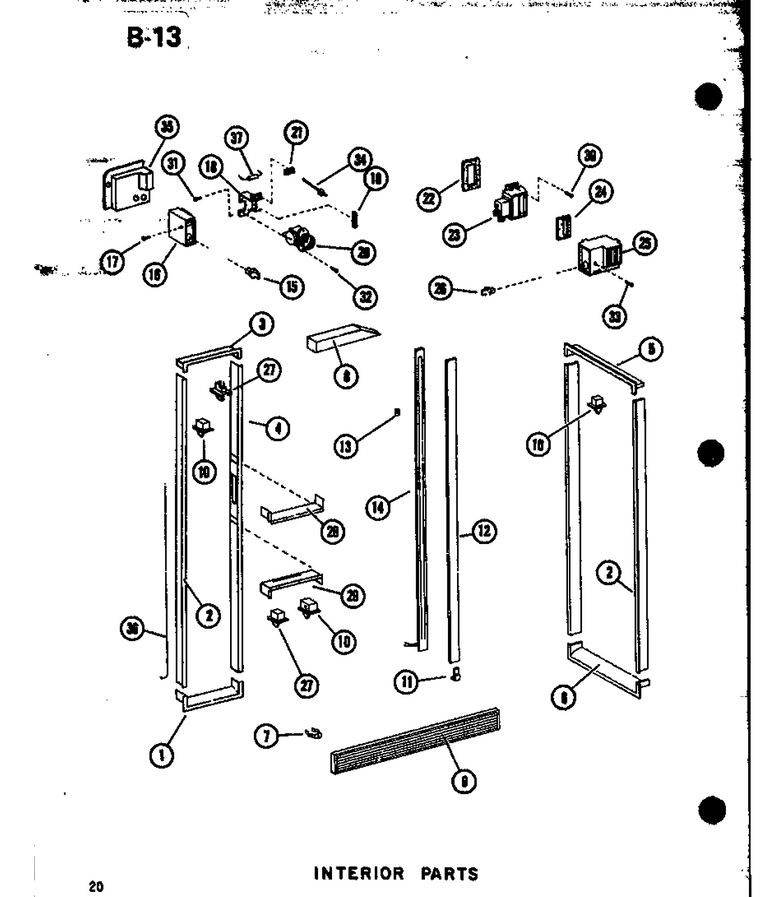

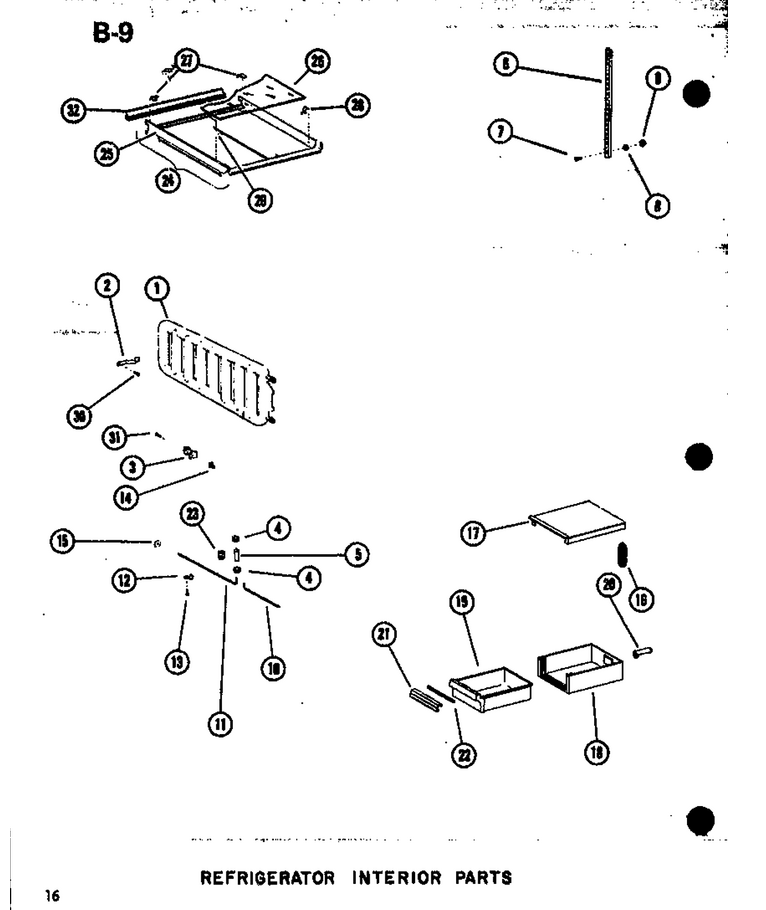

11 - Interior Parts

...
...
1
Breaker Frame WPL-D3952402
...
2
Brkr Frame WPL-D7180002
...
3
Breaker Frame WPL-D3953104
...
4
Breaker Frame WPL-D7423602
...
5
Breaker Frame WPL-D3952506
...
6
Breaker Frame WPL-D3952604
...
7
Clip WPL-WPM0117303
...
8
Cover-Switch WPL-B5743601
...
9
Grille-Toe WPL-D7415405
...
10
Switch WPL-W11384469
...
11
Key WPL-A3120801
...
12
Mullion Vert.white) WPL-C8810401
...
13
Clip WPL-M0115501
...
14
Drier, Center Mullion, 115 V., WPL-C3628304
...
15
Knob WPL-D7009801
...
16
Escutcheon WPL-D7345503
...
17
Screw WPL-M0230926
...
18
Bracket WPL-C8850501
...
19
Gasket-Per Ft WPL-A30303-35
...
20
Control WPL-C3615018
...
21
Switch WPL-M0341202
...
22
Gasket-Damper WPL-B8315901
...
23
Damper Control Kit WPL-C3643114
...
24
Gasket Control WPL-A3113601
...
25
Escutcheon WPL-D7417301
...
26
Knob WPL-D7009802
...
27
Switch WPL-C3680306
...
28
Breaker Frame WPL-D7424401
...
29
Breaker Frame WPL-D7424403
...
30
Screw WPL-WP489464
...
31
Screw WPL-WP98165
...
32
Screw WPL-WP90767
...
33
Screw WPL-M0230926
...
34
Rivet A WPL-M0010202
...
35
Tunnel, Air WPL-D7429501
...
36
Heater-Frz Flange WPL-C3628509
...
37
Diode WPL-M0305301

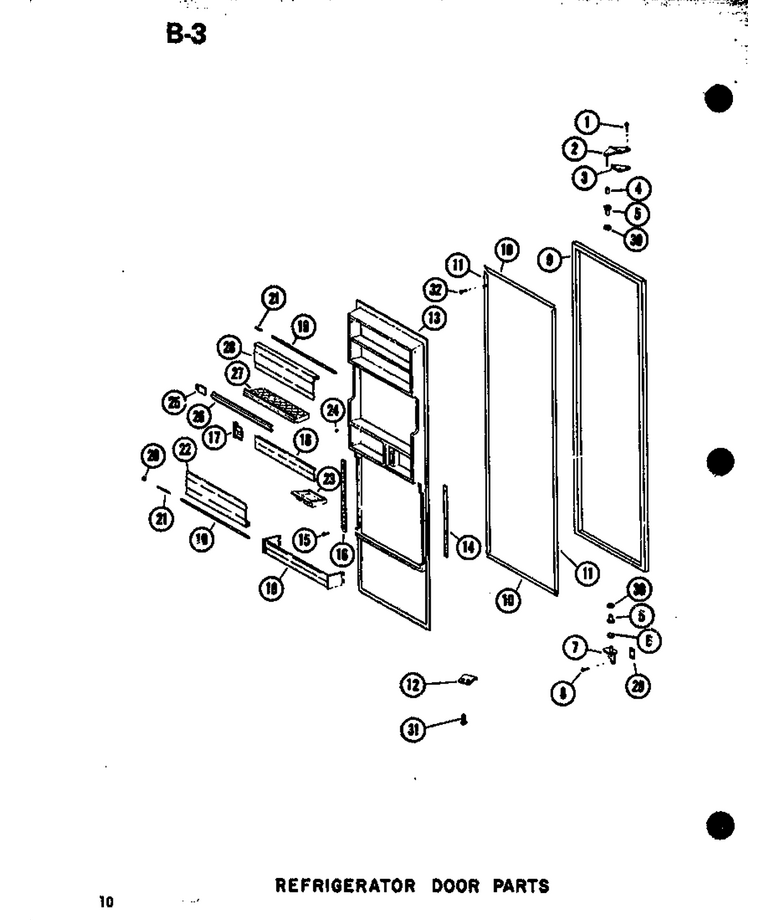

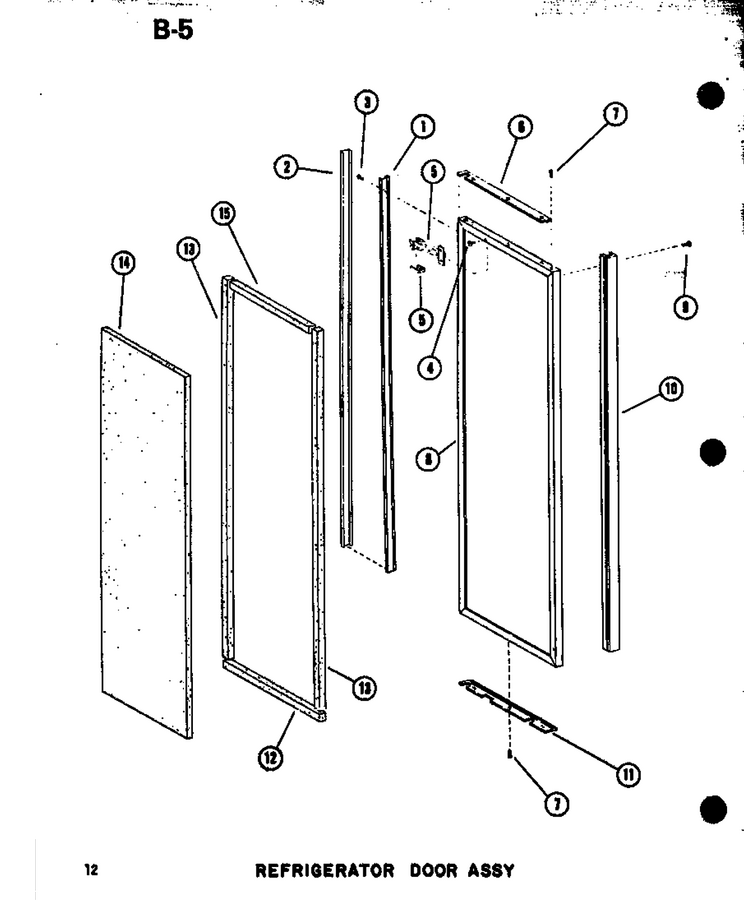

13 - Ref Door Parts

...
...
1
Screw WPL-M0254331
...
2
Hinge-Right WPL-C8816602
...
3
Shim, Top Hinge WPL-B8389007
...
4
Bushing WPL-A3132401
...
5
Bearing-Hinge WPL-C8852201
...
6
Washer K WPL-M0274014
...
7
Hinge WPL-D7250103
...
8
Screw WPL-WP67006715
...
9
Gasket WPL-D7092603
...
10
Retainer Gasket WPL-D7025105
...
11
Retainer WPL-D7025101
...
13
Inner Door Panel Ref. WPL-D7443501
...
17
Support - Cream Lh WPL-B5631705
...
18
Retainer WPL-D7415705
...
19
Rod WPL-A3056206
...
20
Spacer K WPL-A3057004
...
21
Spring A/k WPL-A3065201
...
22
Butter Door WPL-C8832802
...
23
Buttertray WPL-67004412A
...
24
Bumper WPL-A3059003
...
25
Support K WPL-B0530006
...
26
Package Ret WPL-B8302602
...
27
Egg Tray-Assy WPL-D7429602
...
28
Utility Door WPL-C8833502
...
29
Shim WPL-A3143601
...
30
O Ring WPL-M0500902
...
32
Screw WPL-WP98165

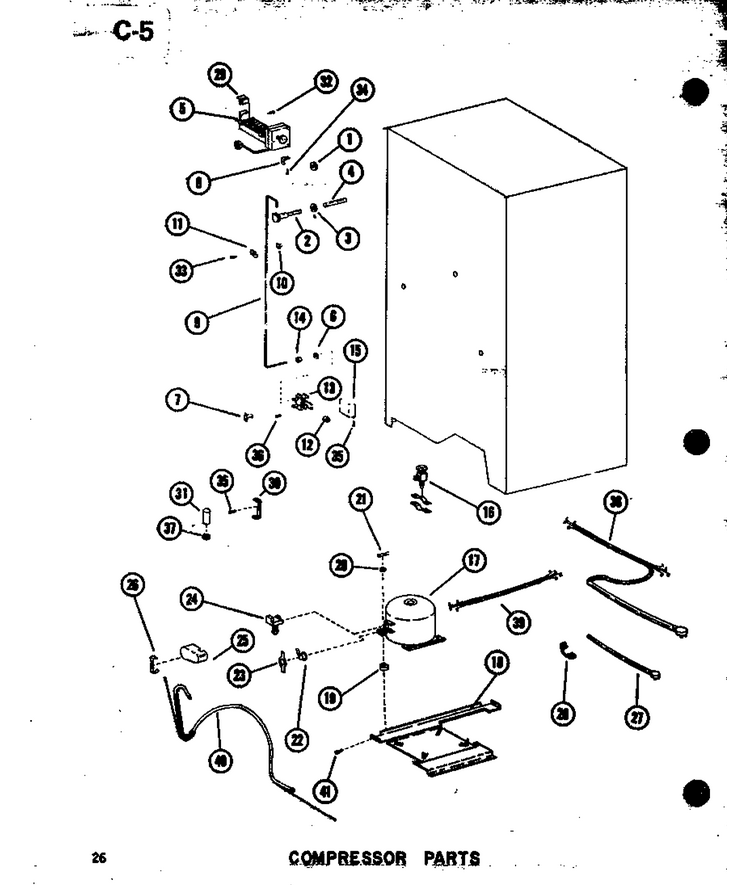

04 - Compressor Parts

...
...
1
Plug, Button (Wht) WPL-A3080002
...
2
Fill Tube WPL-R0182123
...
3
Plug Button WPL-A3091302
...
4
Ext-Fill Tube WPL-A3127402
...
5
Kit, Icemaker WPL-D7261601
...
6
O Ring K WPL-M0500702
...
7
Insert- Pl WPL-WPA3223101
...
8
Brkt-Ice Maker WPL-A3224501
...
9
Tube WPL-WPB5705307
...
10
Grommet, Screw WPL-M0580007
...
11
Clamp WPL-M0102804
...
12
Coupling, Solenoid Valve And H WPL-A3084501
...
13
Valve-Inlt WPL-R0175017
...
14
Nut, Sleeve WPL-M0282301
...
15
Bracket-Solenoid WPL-B5701401
...
16
Saddle Valve WPL-A3034801
...
17
Compressor Ae1413a WPL-C3667002
...
18
Weld Comp Supt Pnt WPL-C8820412
...
19
Grommet K WPL-A3026101
...
20
Washer, Nylon K WPL-M0590101
...
21
Clip K WPL-A3140801
...
22
Overload WPL-C3689105
...
23
Spring K WPL-A3043601
...
24
Relay K WPL-C3689202
...
25
Terminal Cover WPL-B0551801
...
26
Strap K WPL-A3041801
...
27
Power Cord WPL-R0157154
...
28
Grommet, Cord WPL-211881
...
29
Clip WPL-B5720302
...
32
Screw WPL-WP98165
...
33
Screw WPL-WP90767
...
34
Screw WPL-M0253916
...
35
Screw WPL-M0233104
...
36
Screw WPL-M0251017
...
38
Harn & Pwr Cord Kit WPL-D7450902
...
39
Wire Harness-Liner WPL-D7444401
...
40
Heat Exchanger WPL-D7487801
...
41
Screw WPL-M0294459

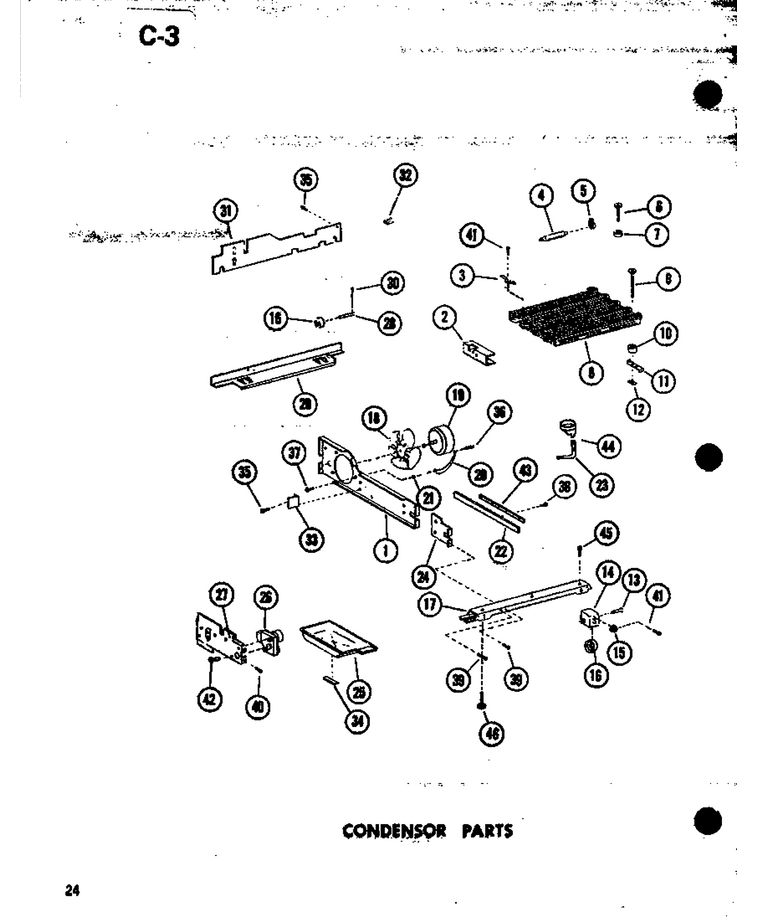

05 - Condensor Parts

...
...
1
Shroud, Fan WPL-D7446701
...
2
Spacer WPL-B0544101
...
3
Clip-Cond WPL-A3054502
...
4
Drier WPL-WPB2150504
...
5
Clamp-Drier WPL-M0104002
...
6
Sems Fastner WPL-M0257037
...
7
Spacer WPL-A3013906
...
8
Condenser Assy Pnt WPL-C8860803
...
9
Sems Fastner WPL-M0257039
...
10
Spacer WPL-A3013907
...
11
Bracket, Support WPL-A3085401
...
12
Nut A WPL-M0286003
...
13
Rivet WPL-M1205302
...
14
Roller Kit WPL-C8836302
...
15
Screw K WPL-M0236230
...
16
Roller WPL-M0520102
...
17
Front Rail WPL-C8820503
...
18
Blade, Fan WPL-B5742603
...
19
Motor-Cond WPL-833697
...
20
Bracket, Cond Motor WPL-B0598701
...
21
Grommet K WPL-M0500107
...
22
Seal-Fan Shroud Q WPL-B8314102
...
23
Drain Tube WPL-D7384701
...
25
Pan, Drain WPL-D7001001
...
26
Timer-Def WPL-W10822278
...
27
Timer Bracket WPL-C3647902
...
28
Pivot Pin K WPL-M1210001
...
29
Rail, Rear WPL-C3611301
...
30
Cotter Pin K WPL-M1200001
...
31
Back, Mach Compt K WPL-C3655001
...
32
Clip WPL-M0110502
...
33
Stop,drain Pan WPL-A3125701
...
34
Pad A WPL-B5691701
...
35
Screw-Sm WPL-M0241118
...
36
Screw WPL-WPM0223816
...
37
Screw Shoulder WPL-M0238833
...
38
Screw WPL-WP98165
...
39
Screw WPL-M0294459
...
40
Screw WPL-M0211530
...
41
Kit, Screw WPL-R9800670
...
42
Screw WPL-M0213815
...
43
Retainer-Seal WPL-B0599702
...
44
Drain Cup WPL-C8820601
...
45
Screw WPL-M0267101
...
46
Glider Bolt WPL-M0266510

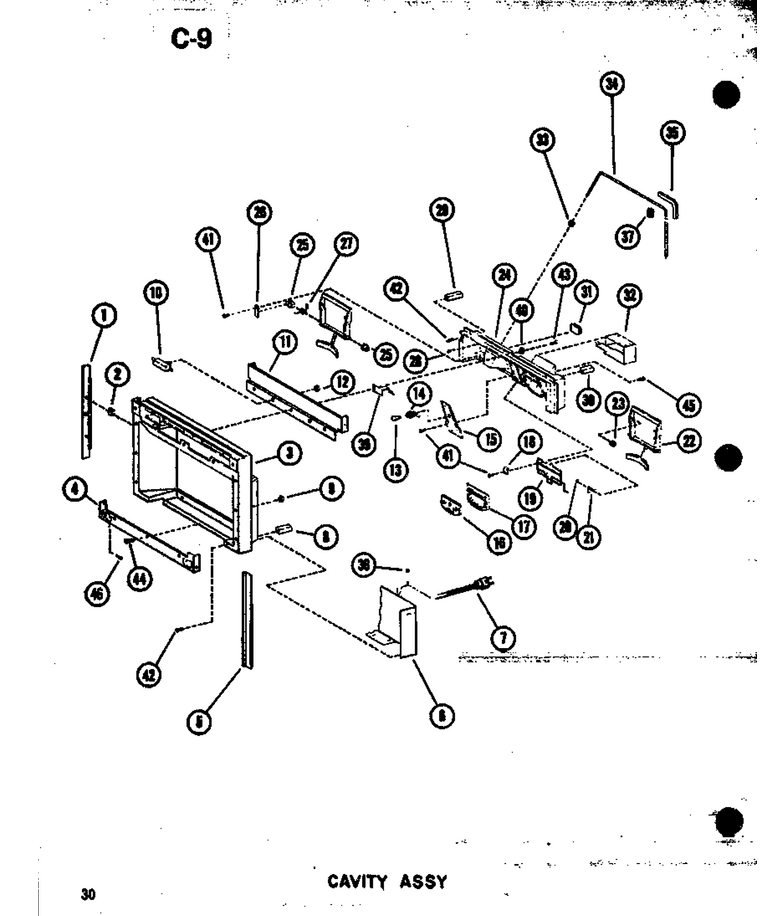

02 - Cavity Assy

...
...
1
Cover-Hinge WPL-B5760702
...
2
Clip WPL-A3267601
...
3
Cavity Dispenser K WPL-D7292502
...
4
Mullion-Lower L WPL-C8810205
...
5
Seal Strip WPL-B5701301
...
6
Heater, Cavity WPL-D7203901
...
7
Wire Harness A WPL-C8852301
...
8
Spacer WPL-A3211902
...
9
Nut WPL-M0288804
...
10
Switch A WPL-M0340702
...
11
Mullion, Upper, Coppertone WPL-C8810302
...
12
Hex Nut On Switch WPL-Y312706
...
13
Bulb-Light WPL-W10857122
...
14
Light Socket A WPL-B5708201
...
15
Mtg Plate-Socket WPL-A3214401
...
16
Door Chute A/ K WPL-B5695802
...
17
Gasket, Door WPL-B5697801
...
18
Holder Pivot Wire K / A WPL-A3211501
...
19
Pivot Wire WPL-B5695701
...
20
Speed Nut A- K WPL-M0287901
...
21
Spring Door Chute K A WPL-A3211001
...
22
Activating Arm Kit WPL-R0157308
...
23
Bushing-Pivot Wire WPL-B5698601
...
24
Top-Cavity WPL-D7182801
...
25
Bushing WPL-B5698502
...
26
Holder-Arm A WPL-A3211601
...
27
Spring Arm A WPL-B5700601
...
28
Rubber Bumper WPL-A3059002
...
29
Spacer WPL-A3211901
...
30
Spacer WPL-A3211903
...
31
Clip-Cable WPL-M0110505
...
32
Heater Chute Kit WPL-C8702501
...
33
Grommet A WPL-M0580401
...
34
Tube WPL-WPB5705307
...
35
Insul Tubing 1=12`` WPL-A0329806
...
37
Spring WPL-A3225902
...
38
Sleeve WPL-B5778701
...
39
Bracket WPL-B5716001
...
40
Washer WPL-M0272511
...
41
Screw A K WPL-M0253704
...
42
Screw-Handle WPL-M0253719
...
43
Screw WPL-M0233716
...
44
Screw WPL-M0244531
...
45
Screw WPL-WP90767
...
46
Screw WPL-M0227306

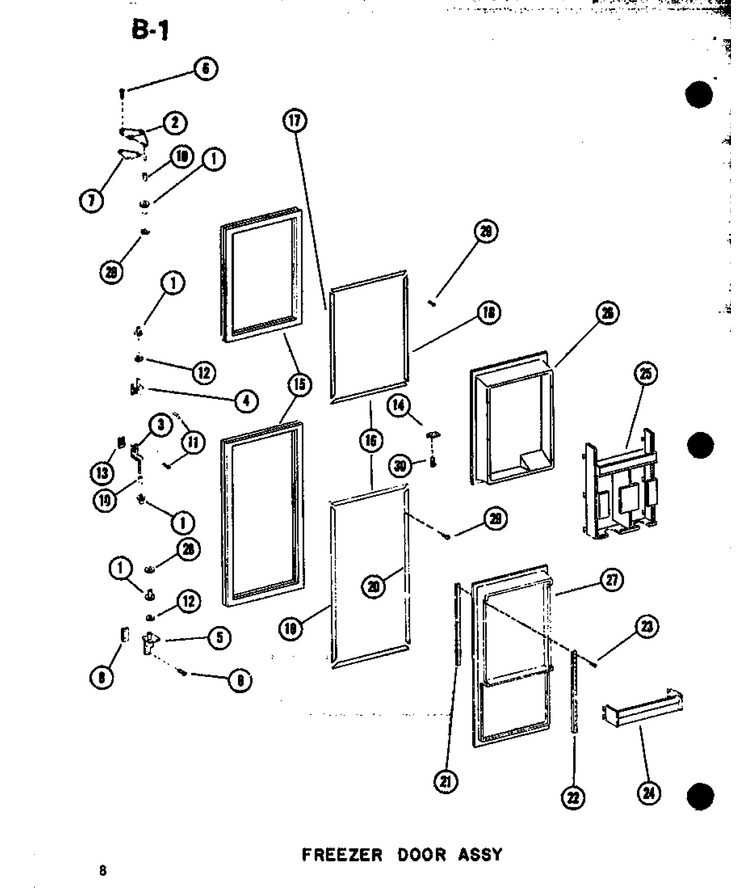

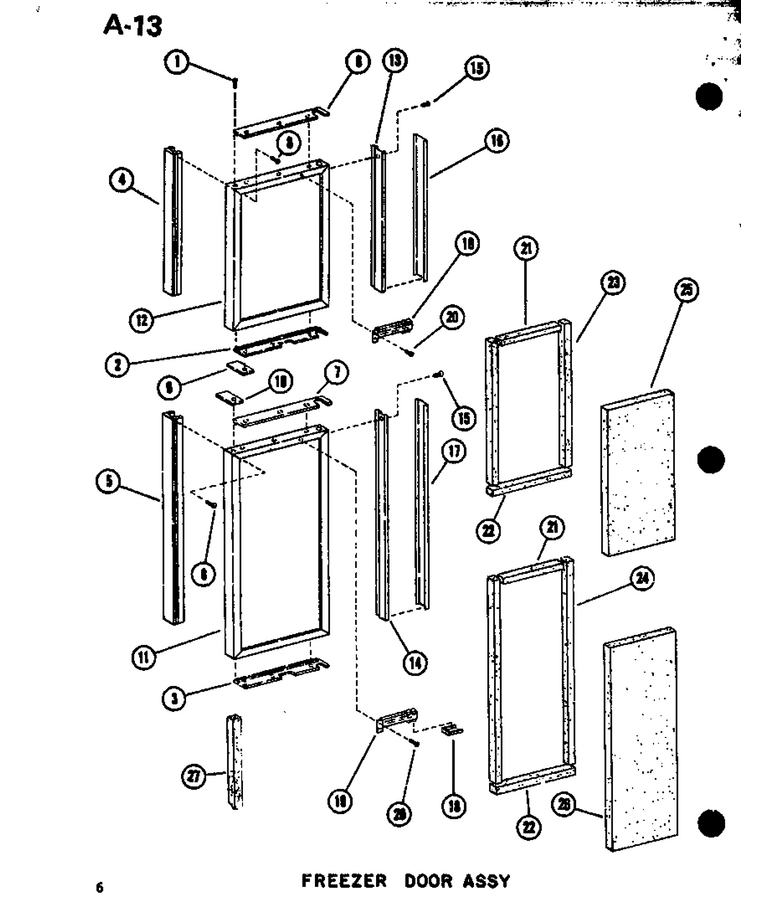

07 - Fz Door Assy

...
...
4
Handle WPL-C8833403
...
5
Handle WPL-C8833402
...
8
Screw WPL-M0254129
...
9
End Cap-Handle WPL-C3693202
...
10
End Cap-Handle WPL-C3693201
...
11
Door Lw Fr A-T-Sri19e WPL-D7409423
...
12
Door Up Fr W-T-Sri19e WPL-D7409426
...
18
Cover WPL-B5644001
...
19
Door Closure WPL-D7022901
...
20
Screw WPL-M1252001
...
21
Insulation WPL-B5629006
...
22
Insulation WPL-B5629003
...
23
Insulation WPL-B5629016
...
24
Insulation WPL-B5629022
...
25
Insulation WPL-B5612009
...
26
Insulation WPL-B5612010
...
27
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370

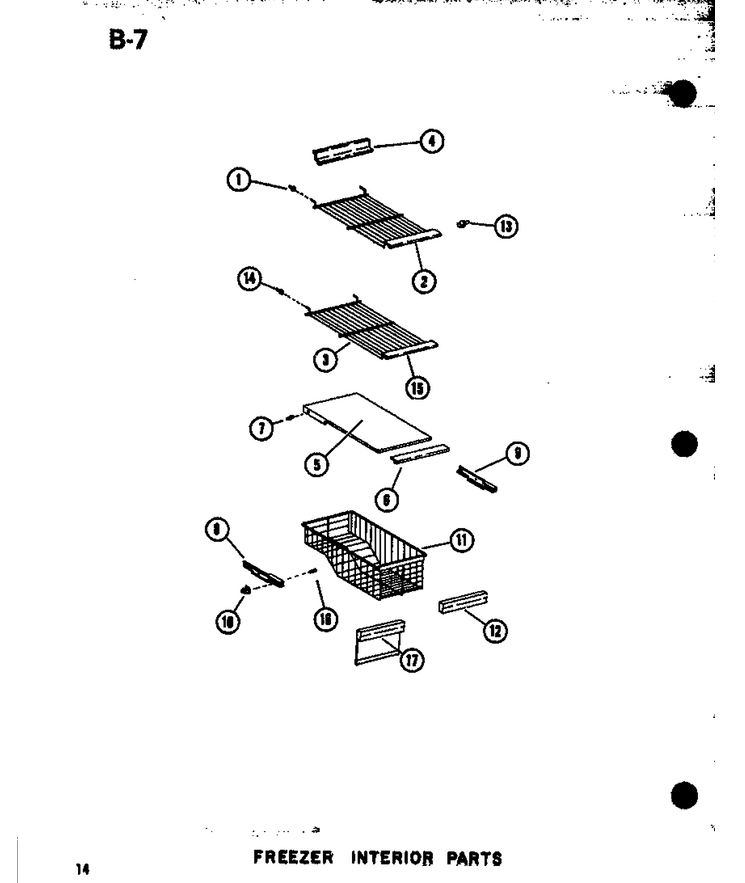

09 - Fz Interior Parts

...
...
1
Plug WPL-A0387302
...
2
Shelf WPL-D7419405
...
3
Shelf WPL-D7419409
...
4
Trim WPL-D7415103
...
5
Shelf-Fr WPL-B8303801
...
6
Trim WPL-B0596602
...
8
Glide Basket-L K WPL-D7442901
...
9
Glide Basket-R K WPL-D7442902
...
10
Grommet, Screw WPL-M0580007
...
11
Basket WPL-D7363601
...
12
Trim-Handle WPL-C8834901
...
13
Support WPL-B0595101
...
14
Support WPL-B5689501
...
15
Trim Shelf K WPL-C8795201
...
16
Screw WPL-WP98165
...
17
Front-Fr Basket WPL-D7419601

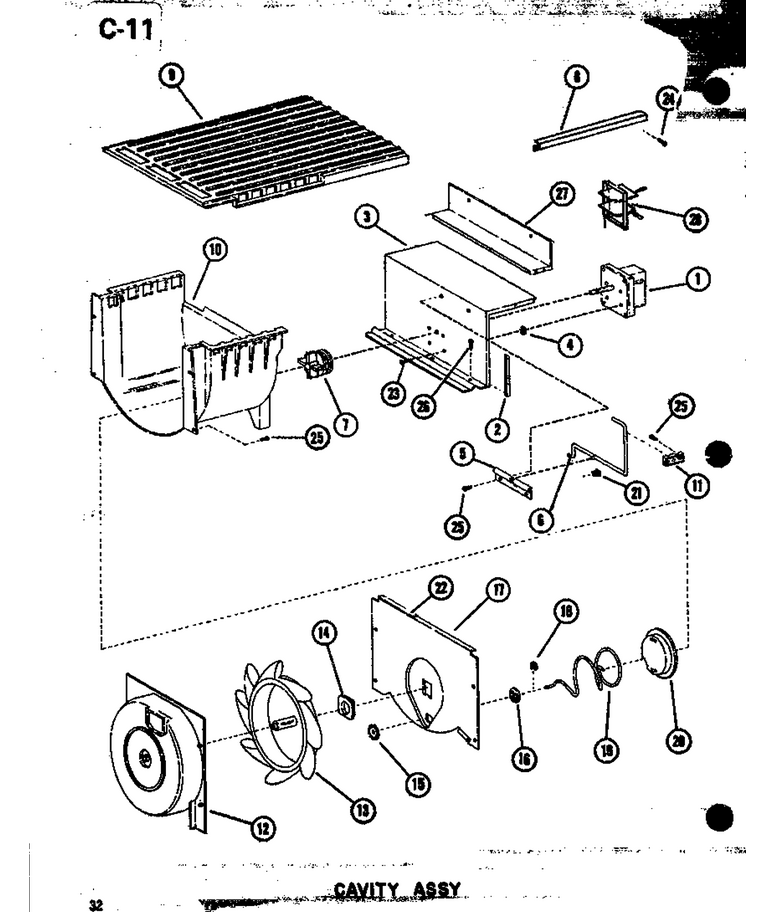

03 - Cavity Assy

...
...
1
Motor WPL-C8831001
...
2
Gasket WPL-A3030302
...
3
Rear Chassis WPL-D7393401
...
4
Washer WPL-M0272504
...
5
Holder-Shut Off Arm WPL-B5697602
...
6
Shut Off Arm WPL-C8824301
...
7
Drive Link WPL-C8810601
...
8
Rail, Chassis WPL-C8808401
...
9
Shelf WPL-D7645901
...
10
Ice Bucket A WPL-D7550301
...
11
Arm-Detent WPL-C8824401
...
12
Cover, Lift Wheel A WPL-D7192602
...
13
Wheel-Lift A WPL-D7192701
...
14
Bushing A WPL-B5698401
...
15
Helix & Pin-Kit WPL-R0157470
...
16
Bushing A WPL-B5700502
...
17
Partition Panel A WPL-D7182001
...
18
Ring-Retaining A WPL-M0274601
...
19
Helix & Pin-Kit WPL-R0157470
...
20
End Cap-Helix A WPL-C3692901
...
21
Grommet WPL-A0288701
...
22
Strip A WPL-A3221801
...
23
Screw WPL-M0202528
...
24
Screw WPL-M0253916
...
25
Screw WPL-WP98165
...
26
Screw WPL-WP3390631
...
27
I M Bracket WPL-C8839501
...
28
Drive Motor Heater WPL-C8830901

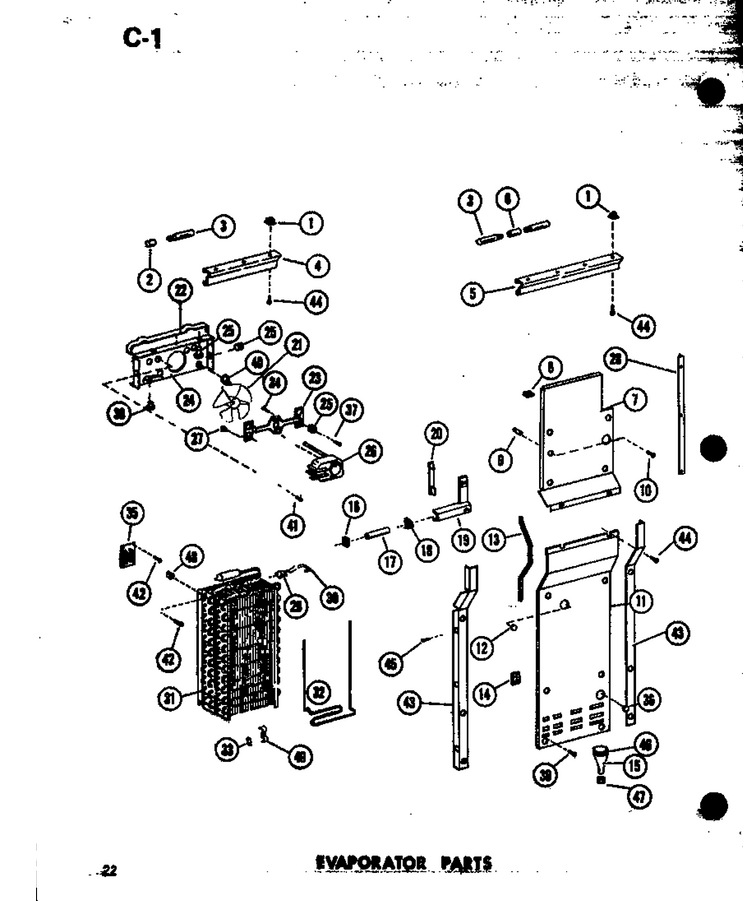

06 - Evap Parts

...
...
1
Grommet, Screw WPL-M0580007
...
2
Socket WPL-B5637601
...
3
Bulb-Light WPL-WPA3073101
...
4
Light Shield WPL-D3954208
...
5
Light Shield WPL-C3597606
...
6
Socket-Light WPL-12096901
...
7
Baffle, Fz Back WPL-D7393701
...
8
Gasket WPL-A4591108
...
9
Spacer WPL-A3044202
...
10
Screw-Sm WPL-M0238636
...
11
Cover-Evaporator WPL-D7348302
...
12
Plug WPL-A3069103
...
13
Gasket WPL-A3030302
...
14
Air Block WPL-B8314701
...
15
Tube Drain WPL-B5796101
...
16
Gasket WPL-A3116401
...
17
Air Tube WPL-C8785301
...
18
Gasket WPL-A3116601
...
19
Escutcheon, Meat Keeper WPL-B5656707
...
20
Slide-Control WPL-B5622804
...
21
Fan-Evap WPL-C8795501
...
22
Gasket WPL-B5757702
...
23
Bracket-Evap Motor WPL-C8829701
...
24
Fan Plate Assy WPL-D7371502
...
25
Grommet WPL-A4573802
...
26
Motor WPL-D7241412
...
27
Grommet WPL-A0288701
...
28
Angle-Fr Baffle WPL-B5795201
...
29
Thermostat K WPL-C8736603
...
30
Clip Thermostat K WPL-B8325201
...
31
Evaporator Assy WPL-R0170012
...
32
Heater-Evap WPL-D7479703
...
33
Clip-Heater WPL-B8324701
...
34
Screw WPL-WP3400094
...
35
Term Board WPL-B8326801
...
36
Plug WPL-M0310309
...
37
Screw WPL-M0232908
...
38
Screw (3) WPL-67006425
...
39
Nut-Well WPL-M0292002
...
40
Washer WPL-M0270301
...
41
Screw WPL-M0233104
...
42
Screw WPL-WP98165
...
43
Angle, Evaporator Cover, Left WPL-D7393501
...
44
Screw WPL-M0226960
...
45
Kit, Screw WPL-R9800670
...
46
Gasket-Dr Tube WPL-A3292302
...
47
Grommet WPL-B5766402
...
48
Grommet WPL-C8830701
...
49
Clip-Heater WPL-B5784101

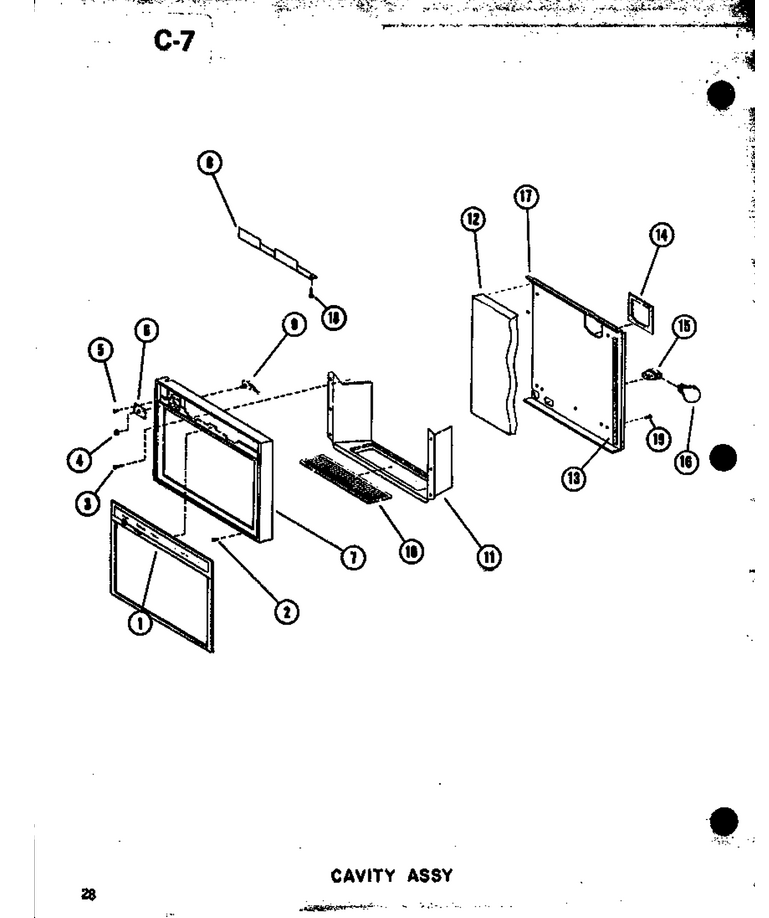

01 - Cavity Assy

...
...
1
Escutcheon WPL-D7416501
...
2
Screw WPL-M0244531
...
3
Screw WPL-WP3400886
...
4
Nut A WPL-M0281401
...
5
Screw WPL-W11084238
...
6
Mtg Plate-Switch WPL-A3221001
...
7
Bezel WPL-D7182601
...
8
Shield Switch WPL-B5716101
...
9
Switch-Light A WPL-M0340107
...
10
Grille WPL-B5698201
...
11
Insert WPL-D7230101
...
12
Insulation A WPL-C8701601
...
13
Insulation Block A WPL-A3219101
...
14
Gasket A WPL-A3212304
...
15
Socket Light A WPL-B5777701
...
16
Light Bulb WPL-8009
...
17
Front, Chassis WPL-D7344201
...
18
Screw WPL-M0233728
...
19
Screw WPL-M0254020

08 - Fz Door Assy

...
...
1
Bearing-Hinge WPL-C8852201
...
2
Hinge-Left WPL-C8816601
...
3
Hinge-Center WPL-C3694101
...
4
Hinge, Fz Door, Bottom, Upper WPL-B5698002
...
5
Hinge WPL-D7250104
...
6
Screw WPL-M0254331
...
7
Shim-Top Hinge K WPL-A3270302
...
8
Shim WPL-A3143603
...
9
Screw WPL-WP67006715
...
10
Bushing WPL-A3132401
...
11
Screw WPL-M0227306
...
12
Washer K WPL-M0274013
...
13
Shim WPL-A3225601
...
15
Gasket,lower Fz WPL-D7251004
...
16
Retainer Gasket WPL-D7025103
...
17
Retainer Gasket WPL-D7025107
...
18
Retainer Gasket WPL-D7025108
...
19
Retainer Gasket WPL-D7025109
...
20
Retainer Gasket WPL-D7025110
...
21
Tap Strip-Ladder WPL-A3212201
...
22
Ladder WPL-C3693001
...
23
Screw K WPL-M0213517
...
24
Retainer Assy WPL-R0181102
...
25
Juice Rack WPL-D7417501
...
26
Inner Dr Panel WPL-D7180804
...
27
Inner Dr Panel Frz WPL-D7180903
...
28
O Ring WPL-M0500902
...
29
Screw WPL-WP98165

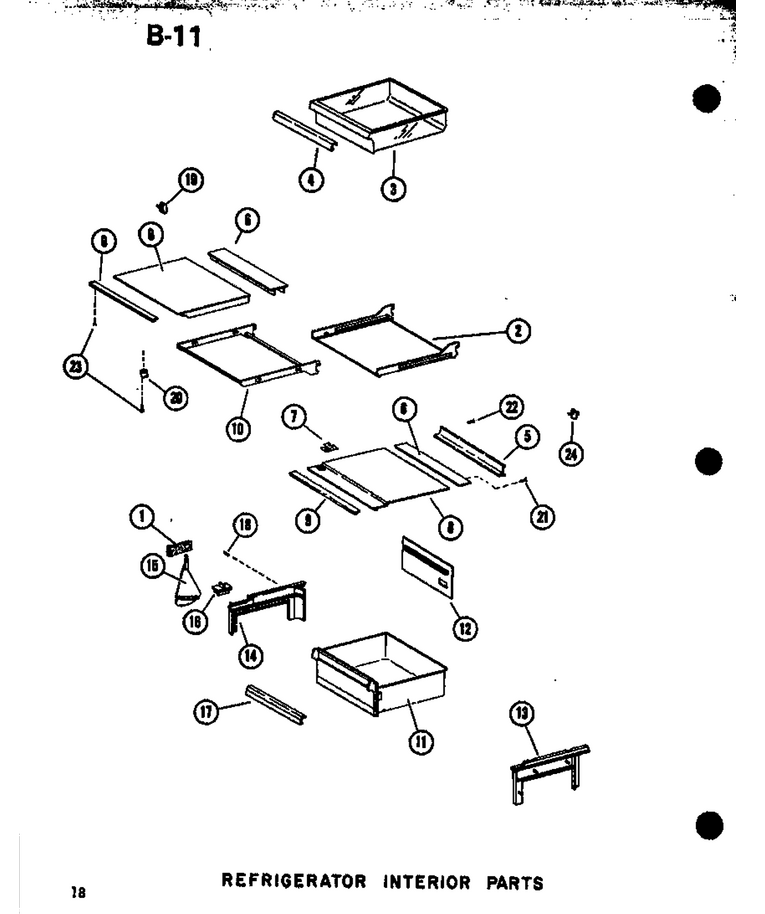

15 - Ref Interior Parts

...
...
1
Insulation-Damp Cnt WPL-C8860701
...
2
Frame, Crisper Top WPL-D7442801
...
3
Fruit Pan WPL-D7425503
...
4
Trim Crisper A WPL-C8831701
...
5
Trim-Rear WPL-C8831804
...
8
Top, Crisper And Top, Fruit Bi WPL-D3966704
...
9
Trim A WPL-B0570903
...
10
Frame, Crisper Top WPL-D7127803
...
11
Pan, Crisper Assembly WPL-D7219727
...
19
Support-Crisper WPL-D7190401
...
20
Glide WPL-A3213401
...
22
Screw WPL-M0211530
...
23
Screw WPL-M0230727

12 - Ref Door Assy

...
...
4
Screw WPL-M1252001
...
5
Cover WPL-B5644001
...
8
Door-Ref-A-T-Sri19e WPL-D7409323
...
9
Screw WPL-M0254129
...
10
Handle WPL-C8833401
...
12
Insulation WPL-B0534410
...
13
Insulation WPL-B5629002
...
14
Insulation WPL-B5612011
...
15
Insulation WPL-B5629018

14 - Ref Interior Parts

...
...
1
Water Tank WPL-D7222301
...
2
Spring Clip K WPL-B5725801
...
4
Grommet WPL-A3138301
...
5
Drain Tube WPL-A3224901
...
6
Ladder WPL-D7103701
...
7
Screw WPL-M0207632
...
8
Washer WPL-M0270519
...
9
Nut WPL-WP486255
...
10
Tube-Water WPL-W10823511
...
11
Tubing Plastic K WPL-B5705312
...
12
Clamp WPL-M0102804
...
13
Screw WPL-M0233716
...
15
Grommet, Tube WPL-A3207902
...
16
Air Grille WPL-C3588302
...
17
Top-Mt Kpr WPL-D7343603
...
18
Sleeve, Meat Keeper WPL-D7343702
...
19
Pan, Meat Keeper WPL-D7425301
...
20
Grommet WPL-C3614901
...
21
Trim-Handle A WPL-C8831704
...
22
Gasket (Per Foot) WPL-A3030313
...
23
Spring WPL-A3225902
...
24
Glass Shelf Assy WPL-C8823408
...
25
Shelf Assy WPL-R0179059
...
26
Glass Shelf A WPL-B8303601
...
27
Spacer Shelf A WPL-A3232201
...
28
Spacer Shelf A WPL-A3233901
...
29
Spacer Shelf A WPL-A3233902
...
30
Screw WPL-WP90767
...
31
Screw WPL-WP98165
...
32
Trim A WPL-C8831502

10 - Icemaker Parts

...
...
NI
Switch, S.p.d.t. WPL-625851
...
1
Valve-Inlt WPL-R0175017
...
2
Lever & Plate Assembly WPL-627248
...
3
Screw WPL-W11084238
...
5
Screw WPL-488361
...
12
Plate, Mounting WPL-627740
...
13
Gear WPL-WP628210
...
14
Screw, 8-18 X 1/2 WPL-488806
...
15
Screw WPL-WP488787
...
17
Motor WPL-R0154016
...
18
Spring WPL-627163
...
19
Plate, Valve Switch WPL-627024
...
20
Spacer WPL-WP625834
...
21
Cam WPL-625913
...
22
Insulator, Switch (2) WPL-984683
...
23
Switch, S.p.d.t. WPL-625851
...
24
Screw WPL-488361
...
25
Clamp WPL-625829
...
26
Screw WPL-488372
...
27
Screw, 4-40 X 3/4 WPL-488362
...
29
Screw WPL-488360
...
30
Thermostat WPL-R0161026
...
31
Switch, S.p.s.t. WPL-625947
...
32
Screw, Ground WPL-488542
...
33
Support WPL-625827
...
34
Screw, Shoulder WPL-627199
...
37
Shut Off Arm WPL-627441
...
38
Lever Arm WPL-625830
...
39
Spring-Arm WPL-480855
...
41
Ejector WPL-627375
...
43
Kit WPL-R0157335
...
44
Stripper, Ice WPL-625840
...
50
Screw WPL-R0186023
...
51
Assy, Mold & Heater WPL-R0161032
...
52
Inlet Kit WPL-833593
...
55
Harns-Wire WPL-627612
...
56
Connector, Wire WPL-227991
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
