Amana SRI19A (BOM: P6035006W)

Model: SRI19A (BOM: P6035006W)

Save Part Not Listed?
product name

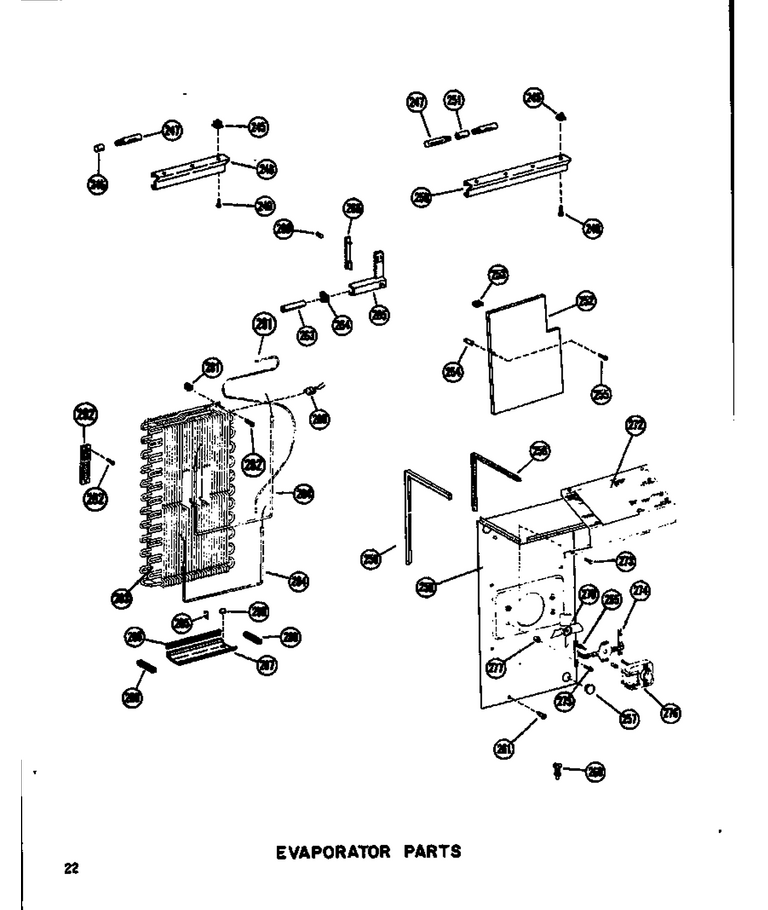

06 - Evap Parts

...
...
245
Grommet, Screw WPL-M0580007
...
246
Socket WPL-B5637601
...
247
Bulb-Light WPL-WPA3073101
...
248
Light Shield WPL-D3954208
...
249
Screw WPL-WP90767
...
250
Light Shield WPL-C3597604
...
251
Socket-Light WPL-12096901
...
252
Baffle-Fr Back WPL-C8722701
...
253
Gasket WPL-A4591108
...
254
Spacer WPL-A3044202
...
255
Screw-Sm WPL-M0238636
...
256
Cover-Evap WPL-D7233401
...
257
Plug WPL-A3069101
...
258
Gasket, Evap. Cover Sides WPL-A3189309
...
259
Gasket 1 WPL-10839714
...
260
Drain Tube WPL-C3607401
...
261
Screw (3) WPL-67006425
...
263
Tube-Meat Keeper WPL-C3615302
...
264
Gasket WPL-A3116601
...
265
Escutcheon WPL-B5656701
...
266
Slide-Mt Kpr WPL-B5622802
...
269
Clip WPL-M0113004
...
270
Fan Blade WPL-B5739301
...
272
Cover WPL-C8722801
...
273
Screw (3) WPL-67006425
...
274
Motor Mount WPL-C8722501
...
275
Screw WPL-M0211020
...
276
Motor WPL-D7241403
...
277
Grommet WPL-A0374201
...
280
Thermostat WPL-B5752501
...
281
Grommet WPL-M0580003
...
282
Screw WPL-WP98165
...
283
Evaporator WPL-D7240701
...
284
Heater WPL-C8725001
...
285
Clip WPL-M0110301
...
286
Gasket A-K WPL-A3077901
...
287
Drip Tray A-K WPL-C3597801
...
288
Gasket Drip Tray K WPL-A3098301
...
290
Drain Screen WPL-A3113701
...
291
Heat Exchanger WPL-D7003902
...
292
Terminal Board WPL-B5752601

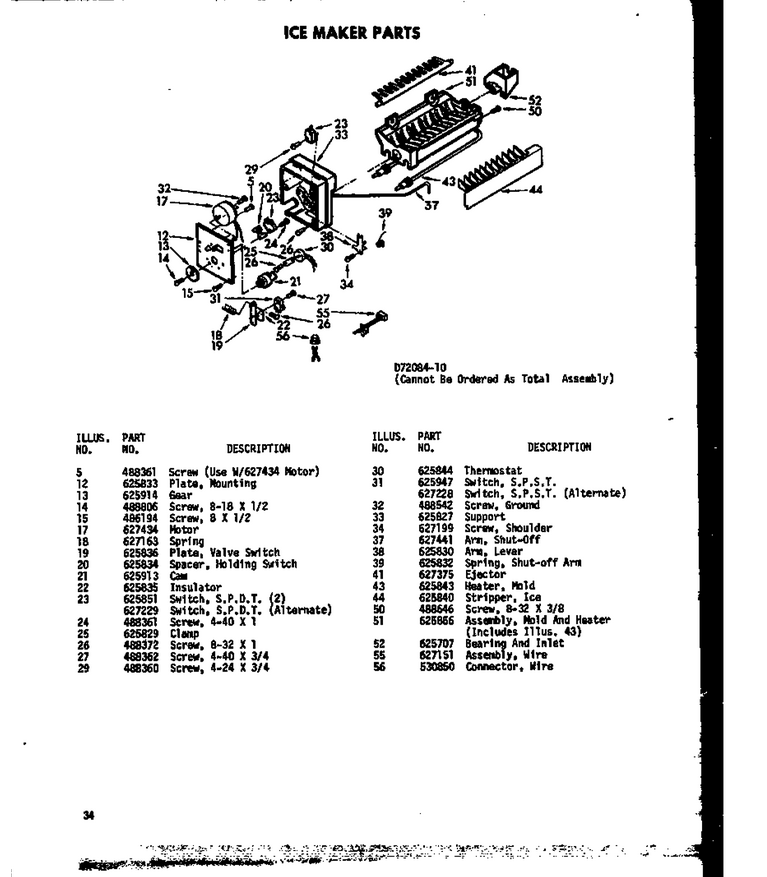

10 - Ice Maker Parts

...
...
5
Screw WPL-488361
...
12
Plate, Mounting WPL-627782
...
13
Gear WPL-WP628210
...
14
Screw, 8-18 X 1/2 WPL-488806
...
15
Screw WPL-W11624204
...
17
Motor WPL-R0154016
...
18
Spring WPL-627163
...
19
Plate, Valve Switch WPL-625836
...
20
Spacer WPL-WP625834
...
21
Cam WPL-625913
...
22
Insulator, Switch (2) WPL-984683
...
23
Switch, S.p.d.t. WPL-625851
...
24
Screw WPL-488361
...
25
Clamp WPL-625829
...
26
Screw WPL-488372
...
27
Screw, 4-40 X 3/4 WPL-488362
...
29
Screw WPL-488360
...
30
Thermostat (alternate) WPL-627180
...
31
Switch, S.p.d.t. WPL-625851
...
32
Screw, Ground WPL-488542
...
33
Support WPL-625827
...
34
Screw, Shoulder WPL-627199
...
37
Shut Off Arm WPL-627441

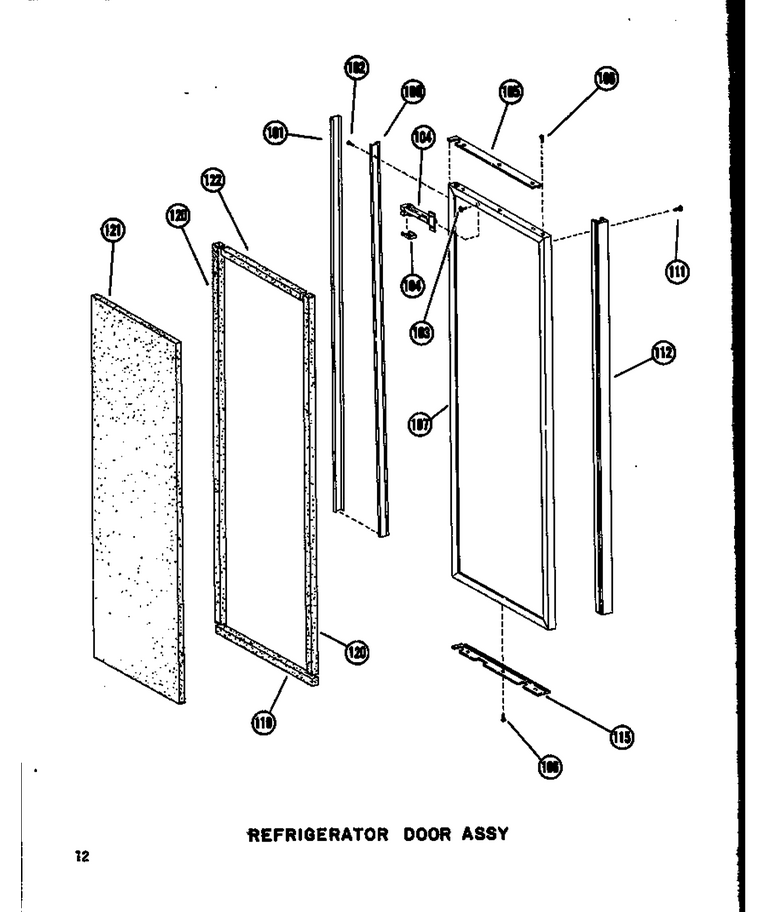

13 - Ref Door Assy

...
...
103
Screw WPL-M1252004
...
104
Cover WPL-B5644001
...
107
Door Ref-A WPL-D7189171
...
111
Screw WPL-M0254129
...
112
Handle WPL-B5720701
...
119
Insulation WPL-B0534410
...
120
Insulation WPL-B5629002
...
121
Insulation WPL-B5612011
...
122
Insulation WPL-B5629018

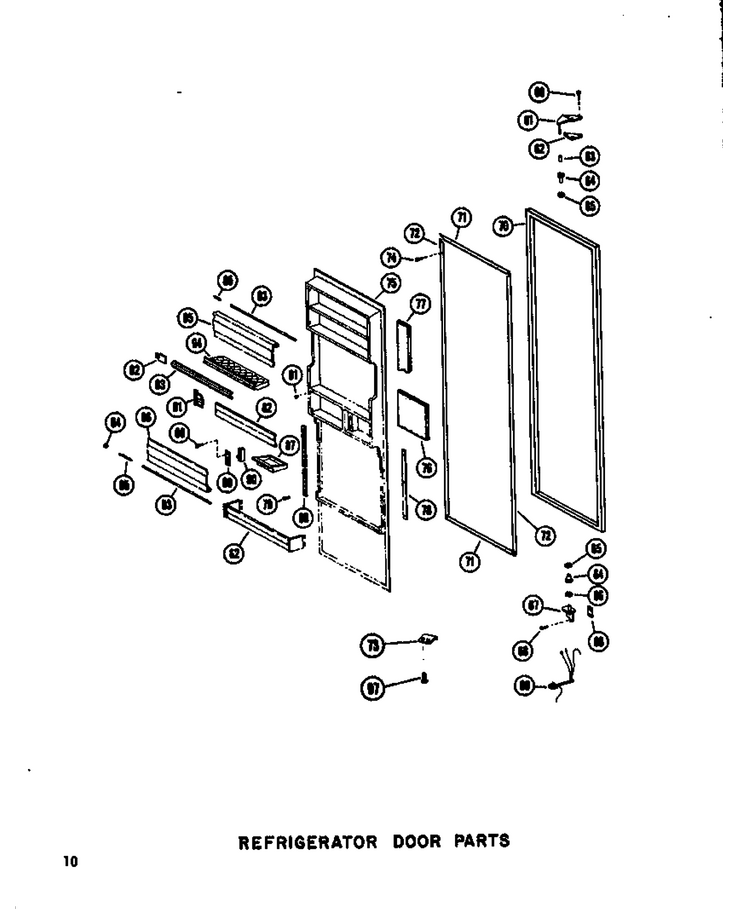

14 - Ref Door Parts

...
...
60
Screw WPL-M0254331
...
61
Hinge WPL-C3622601
...
62
Hinge Shim WPL-A3076401
...
63
Bushing WPL-A3132401
...
64
Flat Bearing (bottom Hinge) WPL-B0539807
...
65
Washer WPL-M0274027
...
66
Washer K WPL-M0274013
...
67
Hinge WPL-D7250101
...
68
Screw WPL-WP67006715
...
69
Wire WPL-C8726001
...
70
Gasket WPL-D7092603
...
71
Retainer Gasket WPL-D7025105
...
72
Retainer WPL-D7025101
...
74
Screw WPL-WP98165
...
75
Inner Dr Panel WPL-D7022703
...
76
Insulation, 1 X 3 WPL-B0523565
...
77
Insul., Batt WPL-B0523567
...
81
Support - Cream Lh WPL-B5631705
...
82
Package Ret WPL-D3976717
...
83
Rod WPL-A3056206
...
84
Spacer Butter Door WPL-A3057003
...
85
Spring K WPL-A3067001
...
86
Door, Butter WPL-C8720402
...
87
Buttertray WPL-67004412A
...
88
Screw K WPL-M0207403
...
89
Escutcheon K WPL-B5633701
...
90
Butter Heater WPL-C3643501
...
91
Rubber Bumper WPL-A3059002
...
92
Support K WPL-B0530004
...
93
Retainer WPL-B5632002
...
94
Egg Tray-Assy WPL-D7025801
...
95
Door-Utility WPL-C8720302
...
96
Shim WPL-A3061902

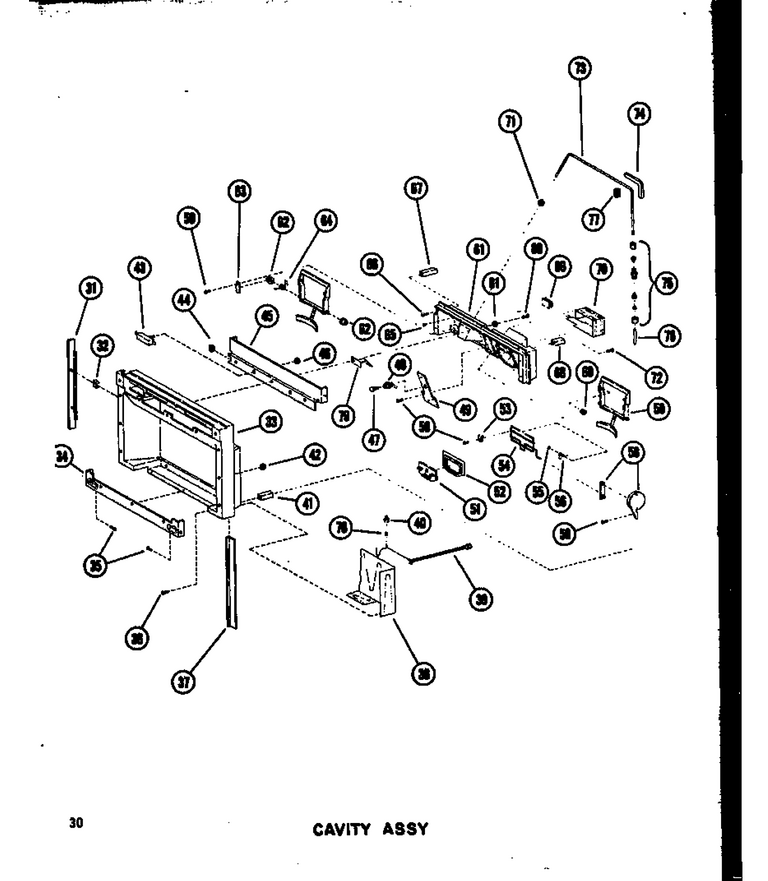

02 - Cavity Assy

...
...
31
Hinge Cover WPL-B5701501
...
32
Clip Spring K WPL-M0118601
...
33
Cavity, Dispenser WPL-D7182901
...
34
Mullion-Lower-Av WPL-C3693503
...
35
Screw WPL-M0211020
...
36
Screw-Handle WPL-M0253719
...
37
Seal Strip WPL-B5701301
...
38
Heater, Cavity WPL-D7203901
...
39
Wire Harness WPL-C8731801
...
40
Insulator WPL-M0323401
...
41
Spacer WPL-A3211902
...
42
Nut WPL-M0288804
...
43
Switch A WPL-M0340702
...
44
Grommet WPL-A4568702
...
45
Mullion-Upper-Av WPL-C3693403
...
46
Hex Nut On Switch WPL-Y312706
...
47
Bulb-Light WPL-W10857122
...
48
Light Socket A WPL-B5708201
...
49
Mtg Plate-Socket WPL-A3214401
...
50
Screw A K WPL-M0253704
...
51
Door Chute A/ K WPL-B5695802
...
52
Gasket, Door WPL-B5697801
...
53
Holder Pivot Wire K / A WPL-A3211501
...
54
Pivot Wire WPL-B5695701
...
55
Speed Nut A- K WPL-M0287901
...
56
Spring Door Chute K A WPL-A3211001
...
58
Delay Mechanism WPL-C8700301
...
59
Activating Arm Kit WPL-R0157308
...
60
Bushing-Pivot Wire WPL-B5698601
...
61
Top-Cavity WPL-D7182801
...
62
Bushing WPL-B5698502
...
63
Holder-Arm A WPL-A3211601
...
64
Spring Arm A WPL-B5700601
...
65
Rubber Bumper WPL-A3059002
...
66
Screw-Handle WPL-M0253719
...
67
Spacer WPL-A3211901
...
68
Spacer WPL-A3211903
...
69
Clip-Cable WPL-M0110505
...
70
Heater Chute Kit WPL-C8702501
...
71
Grommet A WPL-M0580401
...
72
Screw WPL-WP90767
...
73
Tube WPL-WPB5705307
...
74
Insul Tubing 1=12`` WPL-A0329806
...
75
Connector WPL-WP2198677
...
76
Tube WPL-WPB5705307
...
77
Spring WPL-A3225902
...
78
Sleeve WPL-M0323301
...
79
Bracket WPL-B5716001
...
80
Screw WPL-M0233716
...
81
Washer WPL-M0272504

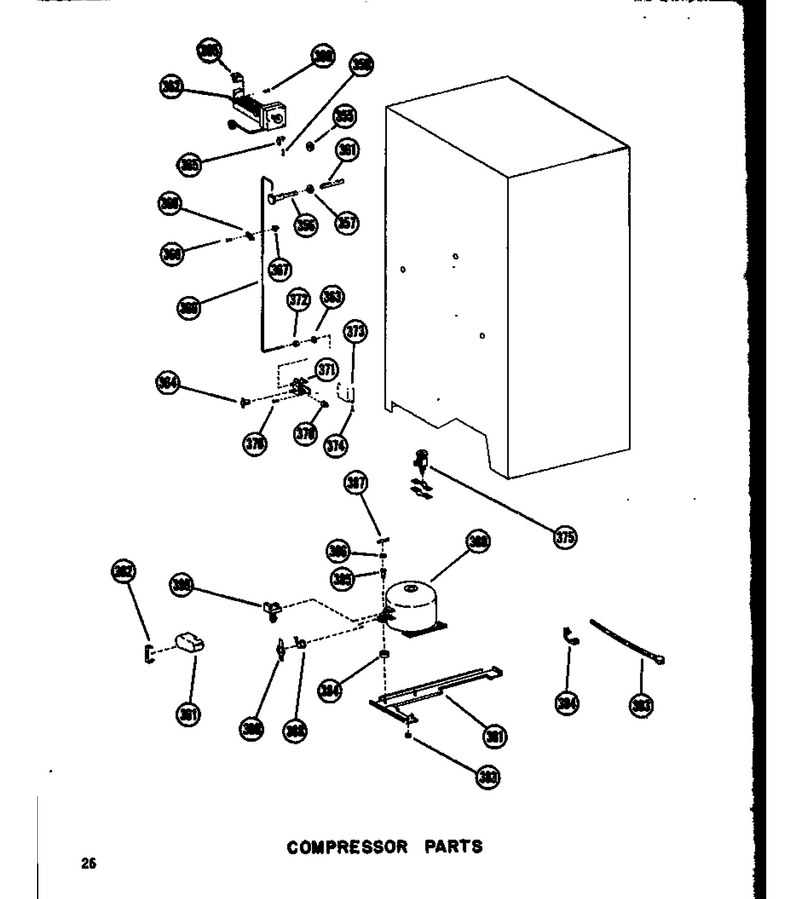

04 - Compressor Parts

...
...
355
Plug, Button (wht) WPL-A3080002
...
356
Fill Tube WPL-R0182123
...
357
Plug Button WPL-A3091301
...
359
Screw WPL-M0253916
...
360
Screw WPL-WP98165
...
361
Ext-Fill Tube WPL-A3127402
...
362
Kit, Icemaker WPL-D7208410
...
363
O Ring K WPL-M0500702
...
364
Insert- Pl WPL-WPA3223101
...
365
Brkt-Ice Maker WPL-A3224501
...
366
Tube WPL-WPB5705307
...
367
Grommet, Screw WPL-M0580007
...
368
Screw WPL-WP90767
...
369
Clamp WPL-M0102804
...
370
Coupling, Solenoid Valve And H WPL-A3084501
...
371
Valve-Inlt WPL-R0175017
...
372
Nut, Sleeve WPL-M0282301
...
373
Bracket-Solenoid WPL-B5701401
...
374
Screw WPL-M0251017
...
375
Saddle Valve WPL-A3034801
...
380
Compressor Ae1413a WPL-C3667002
...
381
Weld Comp Supt Pnt WPL-C8820412
...
384
Grommet K WPL-A3026101
...
385
Vinyl Sleeve WPL-A3164301
...
386
Washer WPL-M0270519
...
387
Clip K WPL-A3140801
...
388
Overload K WPL-C3689101
...
389
Spring K WPL-A3043601
...
390
Relay WPL-C3689201
...
391
Terminal Cover WPL-B0551801
...
392
Strap K WPL-A3041801
...
393
Power Cord WPL-R0157154
...
394
Grommet, Cord WPL-211881
...
395
Clip WPL-B5720302

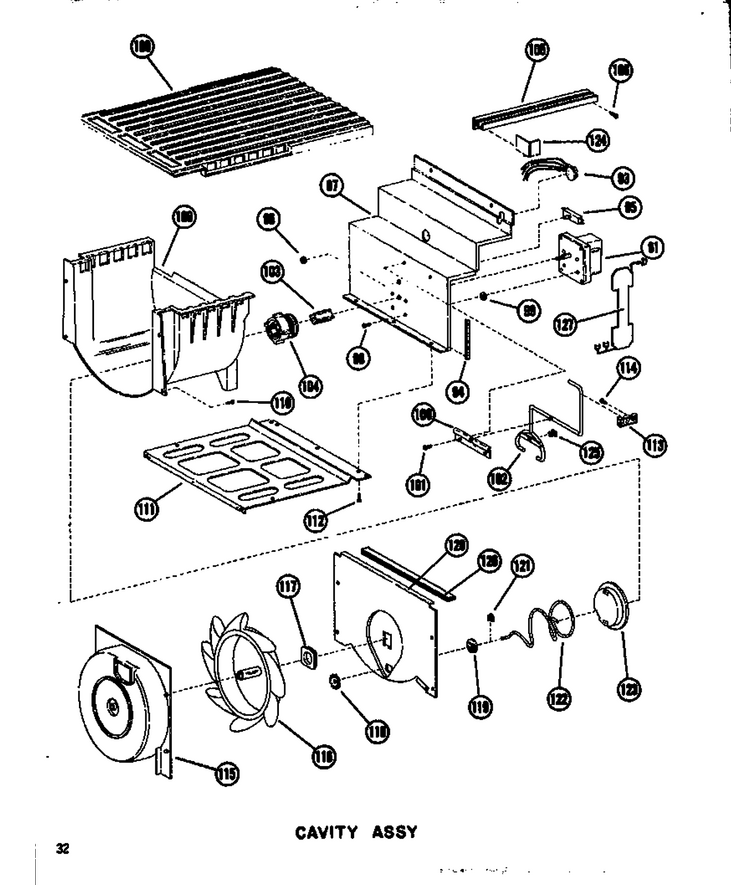

03 - Cavity Assy

...
...
91
Motor WPL-C8737001
...
93
Wiring Harness WPL-C8726901
...
94
Gasket (inch) WPL-A3030301
...
95
Switch-Sealed WPL-M0341501
...
96
Nut, Switch WPL-M0281404
...
97
Rear-Chassis WPL-D7181901
...
98
Screw WPL-M0202528
...
99
Washer WPL-M0272504
...
100
Holder-Shutoff Arm WPL-B5697601
...
101
Screw WPL-WP90767
...
102
Arm, Shut Off WPL-C3694001
...
103
Spline-Drive WPL-B5697701
...
104
Drive Link WPL-C3693601
...
105
Rail WPL-B5695901
...
106
Screw WPL-M0253916
...
108
Shelf WPL-D7645901
...
109
Ice Bucket A WPL-D7550301
...
110
Screw WPL-M0253714
...
111
Bottom-Chassis WPL-D7181701
...
112
Screw (3) WPL-67006425
...
113
Detent-Shut Off Arm WPL-C3694201
...
114
Screw WPL-WP98165
...
115
Cover, Lift Wheel WPL-D7192601
...
116
Wheel-Lift A WPL-D7192701
...
117
Bushing A WPL-B5698401
...
118
Gear Pinion A WPL-B5700401
...
119
Bushing A WPL-B5700502
...
120
Partition Panel A WPL-D7182001
...
121
Ring-Retaining A WPL-M0274601
...
122
Helix WPL-C3693901
...
123
End Cap-Helix A WPL-C3692901
...
124
Cover-Wiring WPL-B5714301
...
125
Grommet WPL-A0288701
...
126
Strip A WPL-A3221801
...
127
Heater, Motor WPL-C8741101

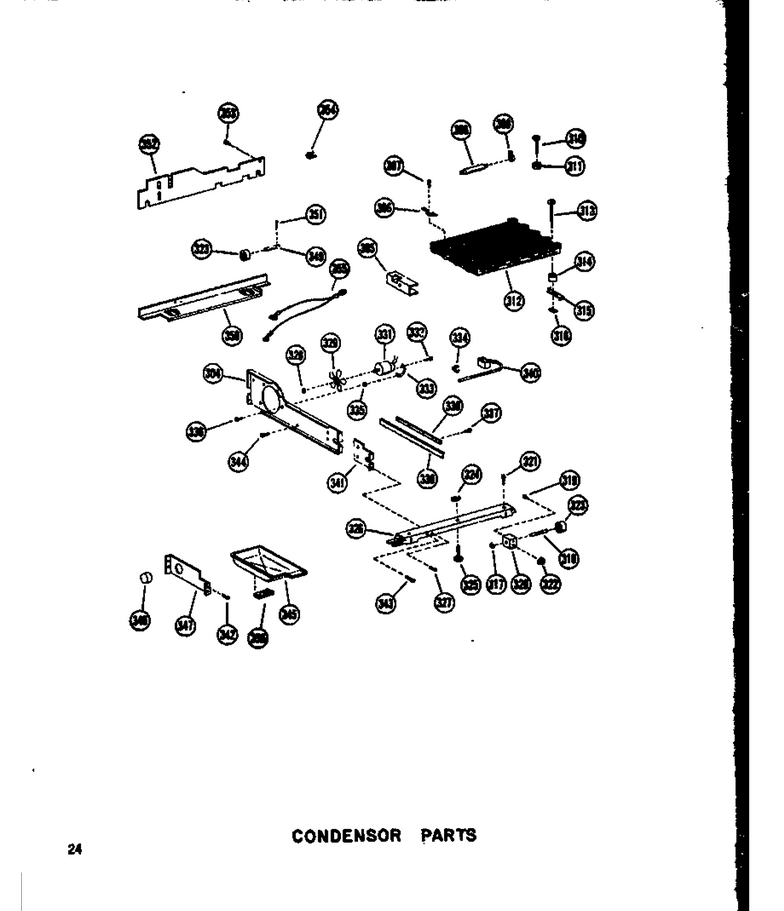

05 - Condensor Parts

...
...
304
Fan Shroud WPL-C3617602
...
305
Spacer WPL-B0544101
...
306
Clip-Cond WPL-A3054502
...
307
Kit, Screw WPL-R9800670
...
308
Drier WPL-WPB2150504
...
309
Clamp-Drier WPL-M0104002
...
310
Sems Fastner WPL-M0257037
...
311
Spacer WPL-A3013906
...
312
Condenser Assy Pnt WPL-D7010701
...
313
Sems Fastner WPL-M0257039
...
314
Spacer WPL-A3013907
...
315
Bracket, Support WPL-A3085401
...
316
Nut A WPL-M0286003
...
317
Fastener WPL-M0289401
...
318
Rivet WPL-M1205302
...
319
Roller Bracket Kit WPL-M0222240
...
320
Bracket K WPL-A3125201
...
321
Screw WPL-M0267101
...
322
Nut, Self Thread WPL-M0283801
...
323
Roller WPL-M0520102
...
324
Wing Nut WPL-A3122601
...
325
Foot-Levelling WPL-B1601601
...
326
Front Rail WPL-B5627601
...
327
Screw WPL-M0294459
...
328
Nut WPL-WP486692
...
329
Blade, Fan WPL-B5742603
...
331
Motor-Cond WPL-833697
...
332
Screw WPL-WPM0223816
...
333
Bracket, Cond Motor WPL-B0598701
...
334
Clip WPL-M0116401
...
335
Grommet K WPL-M0500107
...
336
Screw Shoulder WPL-M0238833
...
337
Screw WPL-WP98165
...
338
Retainer WPL-B0599701
...
339
Seal WPL-B0599603
...
340
Drain Tube Assy WPL-C3607201
...
342
Screw WPL-WP98165
...
343
Screw WPL-M0233643
...
344
Screw-Sm WPL-M0241118
...
345
Pan, Drain WPL-D7001001
...
346
Timer, Defrost WPL-D7004106
...
347
Timer Bracket WPL-C3647902
...
349
Pivot Pin K WPL-M1210001
...
350
Rail, Rear WPL-C3611301
...
351
Cotter Pin K WPL-M1200001
...
352
Back, Mach Compt K WPL-C3655001
...
353
Screw-Sm WPL-M0241118
...
354
Clip WPL-M0110502
...
355
Jumper Wire WPL-A3147402
...
356
Pad A WPL-B5691701

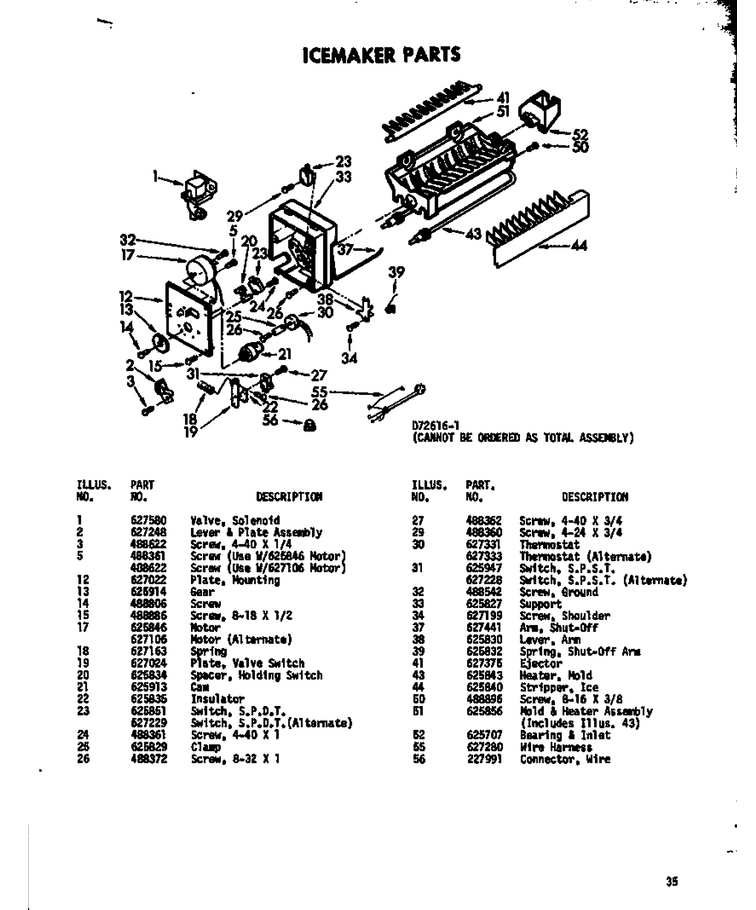

11 - Icemakerparts

...
...
38
Lever Arm WPL-625830
...
39
Spring-Arm WPL-480855
...
41
Ejector WPL-627375
...
43
Kit WPL-R0157335
...
44
Stripper, Ice WPL-625840
...
50
Screw WPL-WP489128
...
51
Assy, Mold & Heater WPL-R0161032
...
52
Inlet Kit WPL-833593
...
55
Harns-Wire WPL-627612
...
56
Connector, Wire WPL-227991

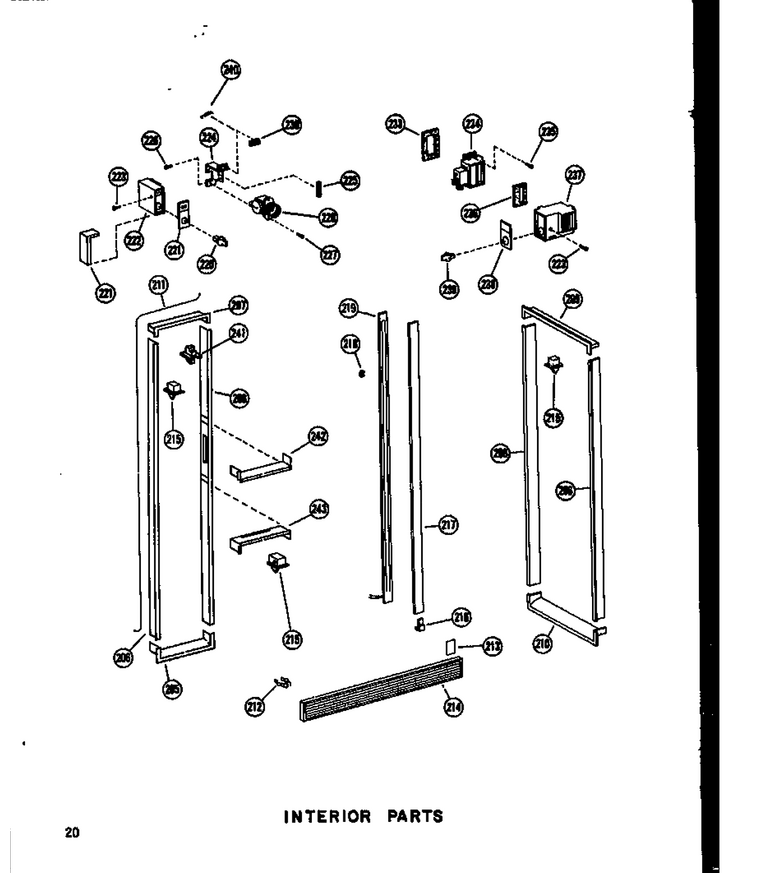

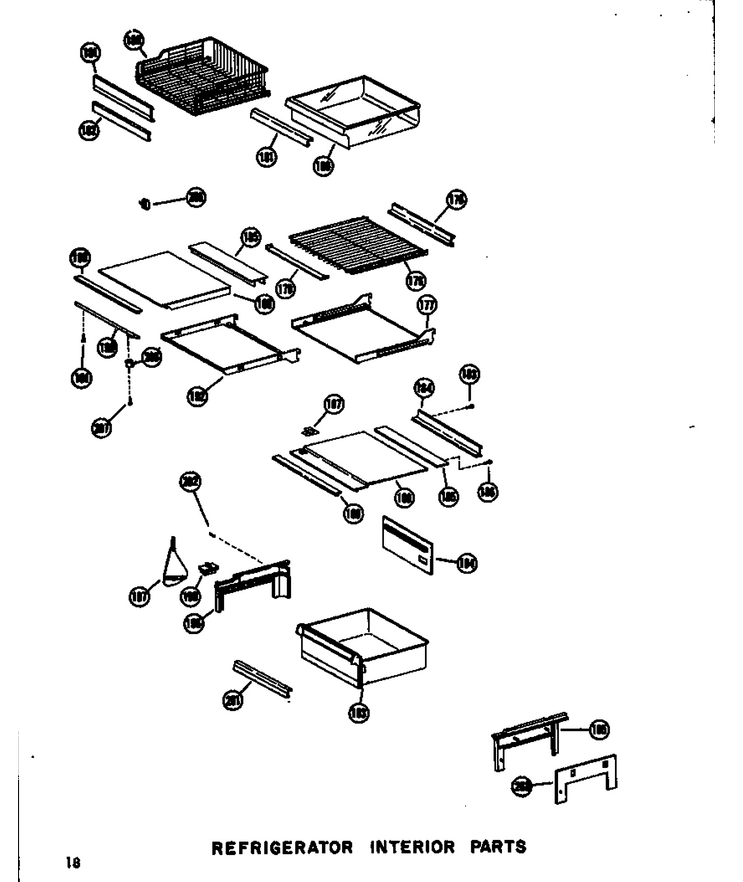

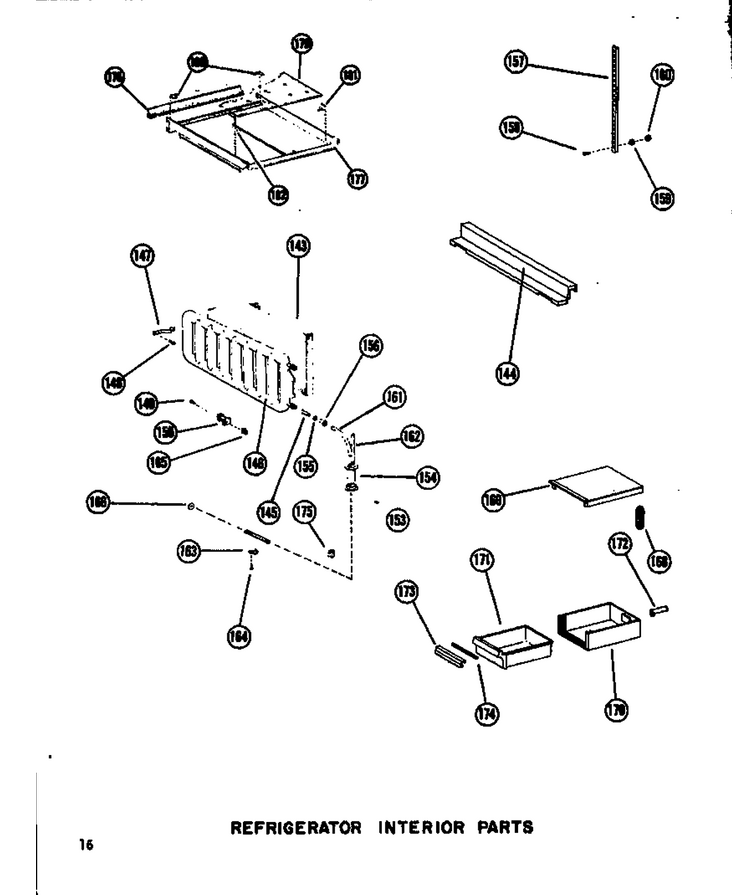

12 - Interior Parts

...
...
205
Breaker Frame WPL-D3952401
...
206
Breaker Frame WPL-D3951709
...
207
Breaker Frame, Fz Top WPL-D3953102
...
208
Breaker Frame WPL-D7180101
...
209
Breaker Frame WPL-D3952304
...
210
Breaker Frame WPL-D3952604
...
211
Heater WPL-C8733701
...
212
Clip WPL-WPM0117303
...
213
Barrier WPL-B5645801
...
214
Grille-Toe WPL-D7070202
...
215
Switch, Light WPL-C3680305
...
216
Key WPL-A3120801
...
217
Mullion Cap-Gold WPL-B0594615
...
218
Clip WPL-M0115501
...
219
Drier, Center Mullion, 115 V., WPL-C3628304
...
220
Knob WPL-D7009801
...
221
Thin Plate-Escut WPL-C8716301
...
222
Escutcheon WPL-D7204302
...
223
Screw WPL-M0230926
...
224
Bracket, Control WPL-C8702602
...
225
Gasket-Per Ft WPL-A30303-35
...
226
Screw WPL-WP98165
...
227
Screw WPL-WP90767
...
228
Cold Control K WPL-C3615002
...
230
Switch WPL-M0341202
...
233
Gasket-Damper WPL-B8315901
...
234
Damper Control Kit WPL-C3643102
...
235
Screw WPL-WP489464
...
236
Gasket Control WPL-A3113601
...
237
Escutcheon WPL-D7126703
...
238
Thin Plate WPL-C3624901
...
239
Knob WPL-D7009802
...
240
Diode WPL-M0305301
...
241
Switch WPL-C3680306
...
242
Breaker Frame WPL-C3690901
...
243
Breaker Frame WPL-C3690903

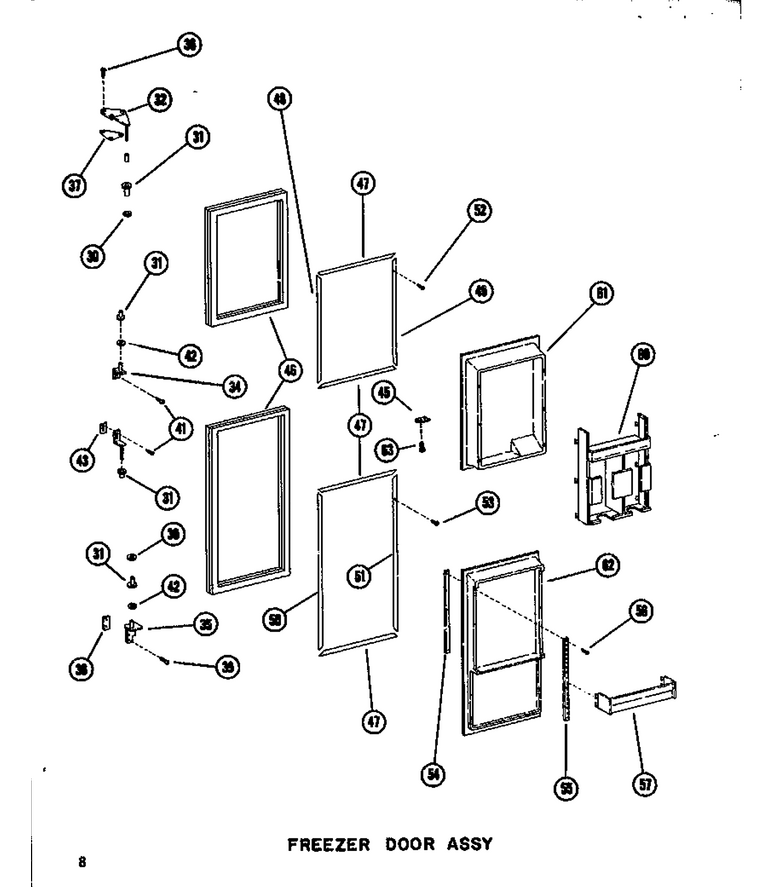

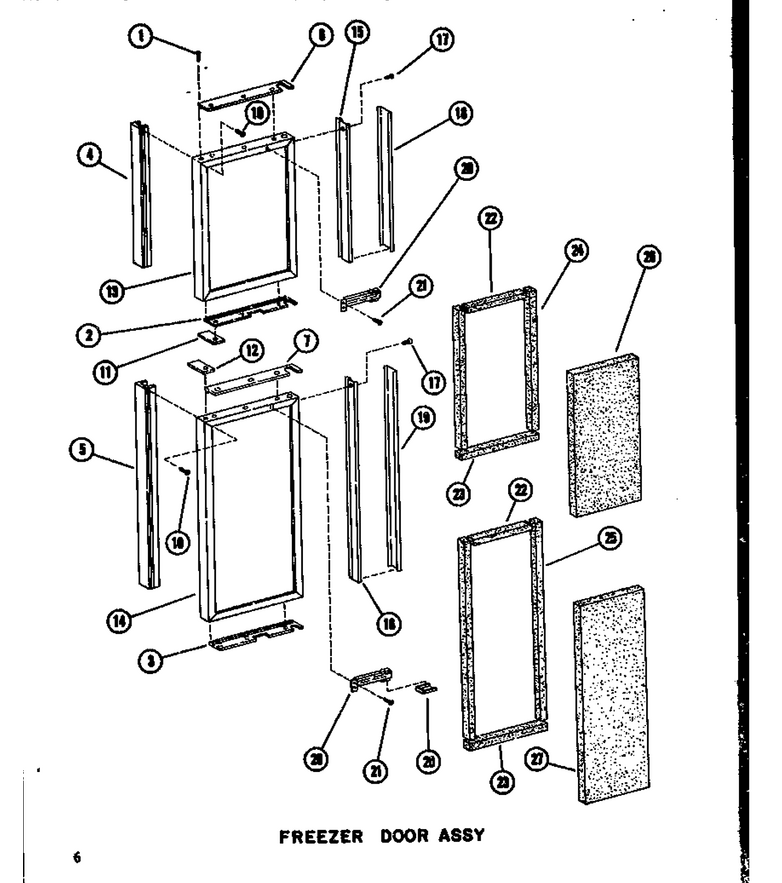

07 - Fz Door Assy

...
...
4
Handle WPL-B5720703
...
5
Handle WPL-B5720702
...
10
Screw WPL-M0254129
...
11
End Cap-Handle WPL-C3693202
...
12
End Cap-Handle WPL-C3693201
...
13
Door Up-Fr-G-Sri19 WPL-D7189152
...
14
Door Lr-Fr-C-Sri19 WPL-D7189154
...
20
Door Closure WPL-D7022901
...
21
Screw WPL-M1252004
...
22
Insulation WPL-B5629006
...
23
Insulation WPL-B5629003
...
24
Insulation WPL-B5629016
...
25
Insulation WPL-B5629022
...
26
Insulation WPL-B5612009
...
27
Insulation WPL-B5612010

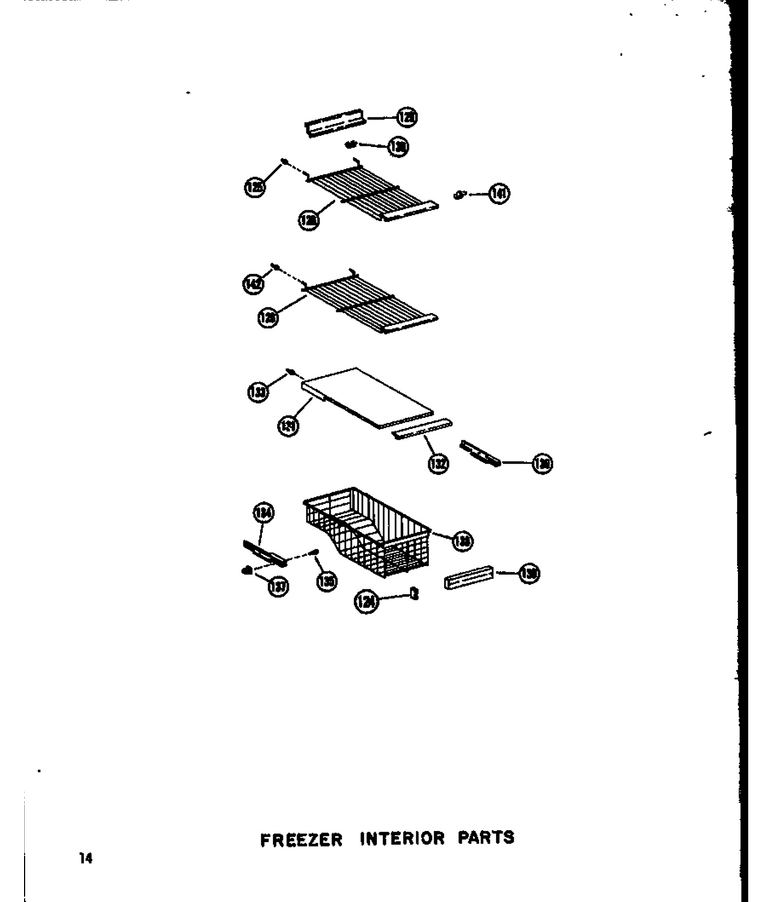

09 - Fz Interior Parts

...
...
124
End Cap WPL-B0590704
...
125
Plug WPL-A0387302
...
126
Shelf-Fr Bottom WPL-D7024213
...
128
Shelf-Fr Top WPL-D7024217
...
129
Trim Shelf WPL-C3622201
...
130
Clip A WPL-A3083401
...
131
Fr Shelf Cr WPL-C3623203
...
132
Trim WPL-B0596602
...
133
Support WPL-M0560002
...
134
Shim K WPL-B5622201
...
135
Screw WPL-WP98165
...
136
Shim K WPL-B5622201
...
137
Grommet, Screw WPL-M0580007
...
138
Basket-Fr WPL-D7419801
...
139
Trim WPL-C3623702
...
141
Support WPL-B0595101
...
142
Grommet WPL-A3066301

16 - Ref Interior Parts

...
...
177
Frame, Cantilever, Fruit Bin WPL-D7102401
...
180
Basket WPL-D7102701
...
181
Front WPL-C3650401
...
182
Trim,basket WPL-B5657001
...
188
Top WPL-D3966702
...
189
Trim A WPL-B0570903
...
192
Frame, Crisper Top WPL-D7127803
...
193
Pan, Crisper WPL-D7184201
...
201
Trim-Handle WPL-C3696501
...
205
Support-Crisper WPL-D7190401
...
206
Glide WPL-A3213401
...
207
Screw K WPL-M0213517

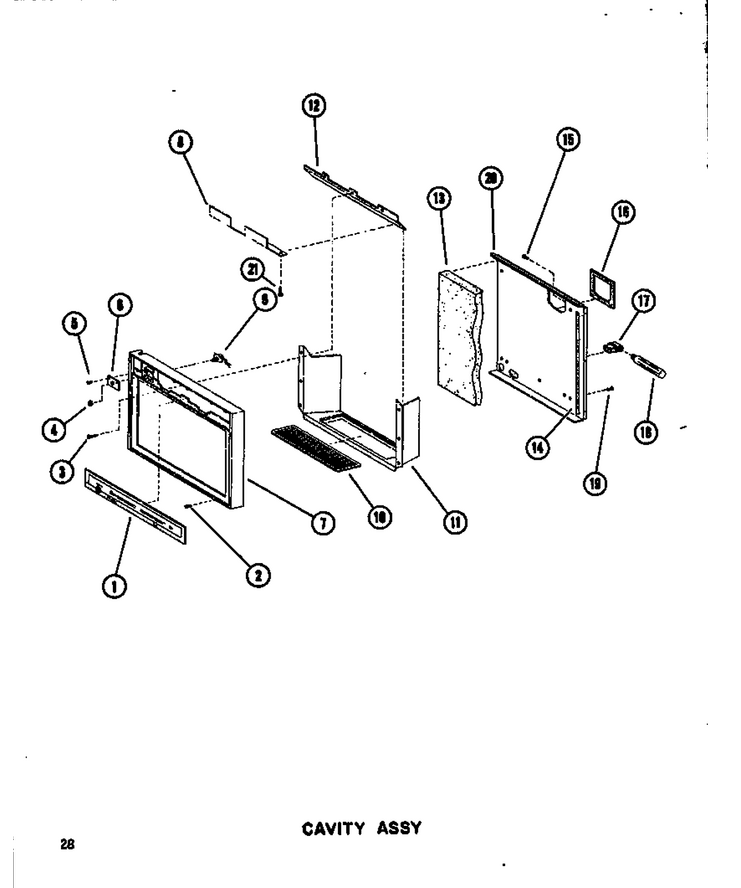

01 - Cavity Assy

...
...
1
Nameplate WPL-D7190003
...
2
Screw WPL-M0244531
...
3
Screw WPL-WP3400886
...
4
Nut A WPL-M0281401
...
5
Screw WPL-W11084238
...
6
Mtg Plate-Switch WPL-A3221001
...
7
Bezel WPL-D7182601
...
8
Shield Switch WPL-B5716101
...
9
Switch-Light A WPL-M0340107
...
10
Grille WPL-B5698201
...
11
Insert-Cavity WPL-D7182501
...
12
Trim-Cavity WPL-C3693101
...
13
Insulation A WPL-C8701601
...
14
Insulation Block A WPL-A3219101
...
15
Screw,sm WPL-M0233329
...
16
Gasket A WPL-A3212304
...
17
Socket WPL-B5637601
...
18
Bulb-Light WPL-WPA3073101
...
19
Screw WPL-M0254020
...
20
Front, Chassis WPL-D7181801
...
21
Screw WPL-M0233728

08 - Fz Door Assy

...
...
30
Washer WPL-M0274027
...
31
Bearing Flat (top Hinge) WPL-B0539806
...
32
Hinge WPL-C3622602
...
33
Hinge-Center WPL-C3694101
...
34
Hinge, Fz Door, Bottom, Upper WPL-B5698002
...
35
Hinge WPL-D7250104
...
36
Screw WPL-M0254331
...
37
Shim WPL-A3076402
...
38
Shim WPL-A3061901
...
39
Screw WPL-WP67006715
...
40
Bushing WPL-A3132401
...
41
Screw WPL-M0227303
...
42
Washer K WPL-M0274013
...
43
Shim-Center Hinge WPL-A3212102
...
46
Gasket,upper Fz WPL-D7251001
...
47
Retainer Gasket WPL-D7025103
...
48
Retainer Gasket WPL-D7025107
...
49
Retainer Gasket WPL-D7025108
...
50
Retainer Gasket WPL-D7025109
...
51
Retainer Gasket WPL-D7025110
...
52
Screw WPL-WP98165
...
53
Screw WPL-WP98165
...
54
Tap Strip-Ladder WPL-A3212201
...
55
Ladder WPL-C3693001
...
56
Screw K WPL-M0213517
...
57
Retainer Assy WPL-A0066202
...
60
Rack, Juice WPL-D7022401
...
61
Inner Dr Panel WPL-D7180802
...
62
Inner Door Panel WPL-D7180902

15 - Ref Interior Parts

...
...
144
Cover-Water Tank WPL-D7222401
...
145
Insert- Pl WPL-WPA3223101
...
146
Water Tank WPL-D7222301
...
147
Spring Clip K WPL-B5725801
...
153
Grommet WPL-A3138301
...
154
Drain Tube WPL-A3224901
...
155
O Ring K WPL-M0500702
...
156
Nut, Compression WPL-M0282201
...
157
Ladder WPL-D7103701
...
158
Screw WPL-M0207632
...
159
Washer WPL-M0270519
...
160
Nut WPL-WP486255
...
161
Tube WPL-WPB5705307
...
162
Tubing Plastic K WPL-B5705312
...
163
Clamp WPL-M0102802
...
164
Screw WPL-M0233716
...
166
Grommet, Tube WPL-A3207902
...
168
Return Air Grille WPL-C3588301
...
169
Top, Meat Keeper WPL-D7001104
...
170
Sleeve, Meat Keeper WPL-D7252301
...
171
Pan, Meat Keeper WPL-D3975703
...
172
Grommet WPL-C3614901
...
173
Trim, Handle WPL-C3623002
...
174
Gasket (per Foot) WPL-A3030313
...
175
Spring WPL-A3225902
...
177
Frame Cantilever, Meat Keeper WPL-D7215403
...
178
Trim-Shelf A WPL-C8716102
...
179
Glass Shelf A WPL-B5724103
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
