Amana SRDE522VW (BOM: P1320304W W)

Model: SRDE522VW (BOM: P1320304W W)

Save Part Not Listed?
product name

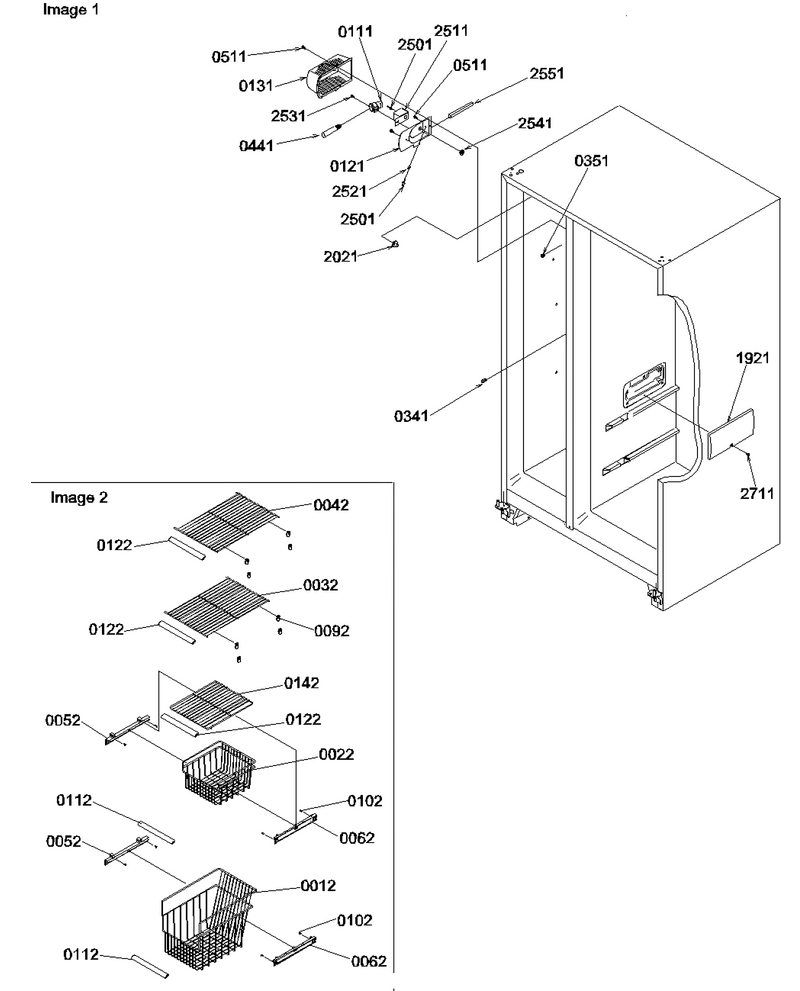

07 - Freezer Shelves And Lights

...
...
12
Basket, Frz 9`` WPL-12413601
...
22
Basket, Frz 7`` WPL-12413701
...
32
Shelf, Sta Freezer WPL-12363403
...
42
Shelf, Sta Frz WPL-12363404
...
52
Rail, Shelf (lt) WPL-12015101
...
62
Rail, Shelf (rt) WPL-10972801
...
92
Support- F WPL-WPC8973801
...
102
Screw WPL-WP98165
...
111
Socket, Light WPL-D7845103
...
112
Trim, Basket/shelf WPL-12314101
...
121
Plate - Lt Socket WPL-D7845204
...
122
Trim, Lwr Shelf WPL-67004181
...
131
Shield, Light WPL-D7786603
...
142
Shelf, Sta Freezer WPL-12353306
...
341
Tie Wire WPL-WPM0322202
...
351
Grommet, Screw WPL-M0580007
...
441
Light Bulb WPL-59002071
...
511
Screw (3) WPL-67006425
...
1921
Cover-Light WPL-Y10270101
...
2021
Support WPL-M0560005
...
2501
Pop Rivet WPL-A4539626
...
2511
Socket Cover WPL-D7844902
...
2521
Term WPL-M0320910
...
2531
Screw WPL-W10856125
...
2541
Snap Bushing WPL-A4554813
...
2551
Cover, Wire WPL-10250002
...
2711
Screw WPL-WP90767

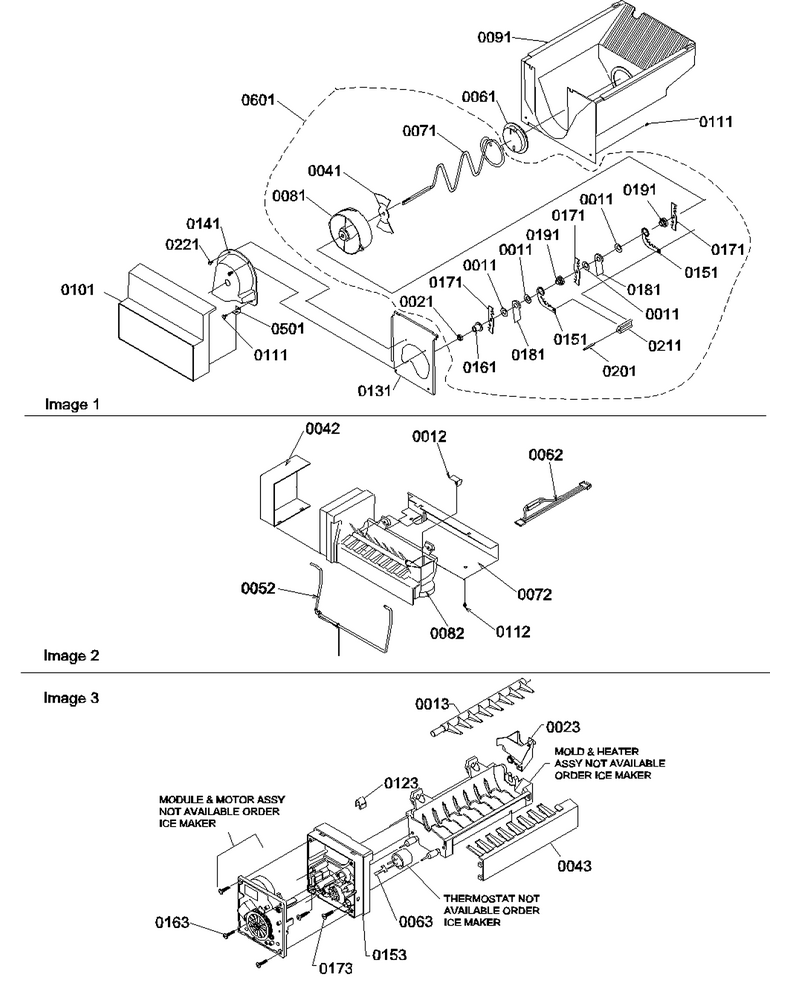

08 - Ice Bucket Auger And Ice Maker Parts

...
...
NI
Label, Im WPL-10834701
...
11
Washer, Waved WPL-10275101
...
12
Clip WPL-B5720301
...
13
Arm-Ejectr WPL-WP627843
...
21
Nut WPL-WPM0223101
...
23
Cup-Fill WPL-WP628356
...
41
Bar, Crsh Ice Bucket WPL-10113801
...
42
Cover Im WPL-D7820401
...
43
Arm-Stripr WPL-WP2182124
...
52
Arm,ice Maker Shut Off WPL-D7877001Q
...
61
Cap- Helix WPL-WPD7749401
...
62
Harness, Im WPL-D7843601
...
63
Clip WPL-WP2315522
...
71
Agitator, Ice WPL-10114401
...
72
Shield I M WPL-D7846202
...
81
Wheel- Crs WPL-WP67002052
...
82
Icemaker WPL-WPW10190972
...
91
Bucket- Cr WPL-WP10111905
...
101
Front-Ci Bucket WPL-10870904
...
111
Screw (3) WPL-67006425
...
112
Screw WPL-WP90767
...
123
Clip WPL-WP628379
...
131
Front, Ice Crusher WPL-10115001
...
141
Cover, Blade WPL-10114004
...
151
Blade, Static WPL-10114601
...
153
Housing-Im WPL-WP2195914
...
161
Spacer, Cover WPL-10113901
...
163
Screw WPL-R0186041
...
171
Blade, Rotating WPL-10114501
...
173
Screw WPL-R0186040
...
181
Damper, Ice WPL-10275201
...
191
Washer Stepped WPL-10114301
...
201
Pin, Roll WPL-M1200108
...
211
Anchor, Blade WPL-10114101
...
221
Screw, Tf WPL-M0231704
...
501
Brkt, Cover Mtg. WPL-10894901
...
601
Crushr-Mec WPL-WP12740302

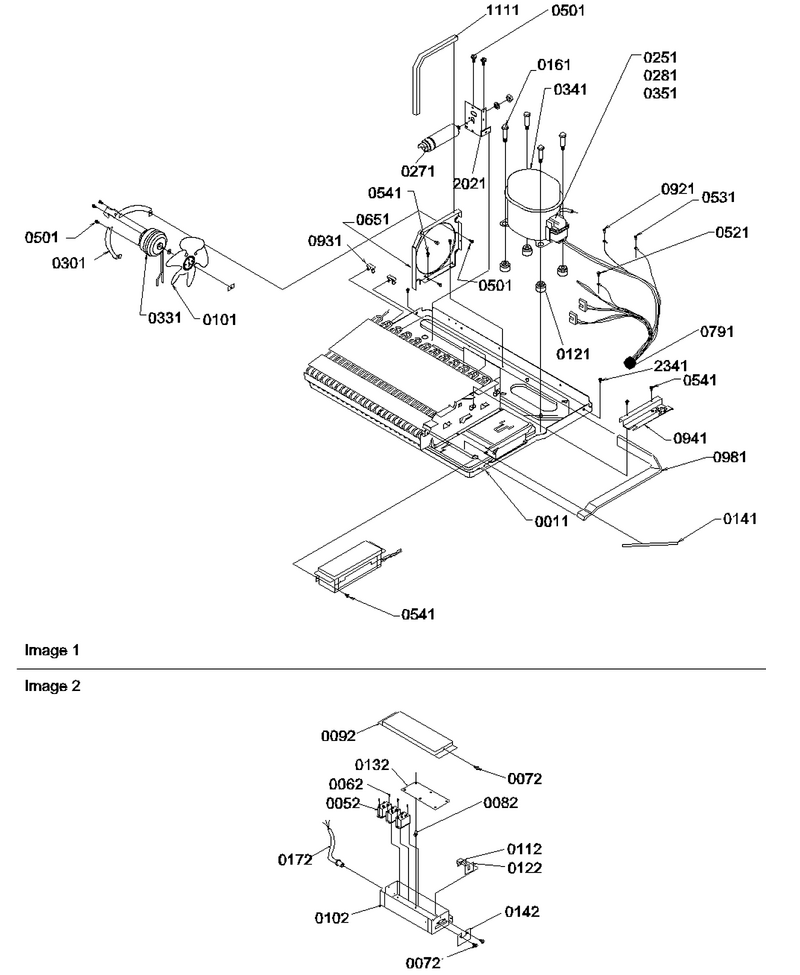

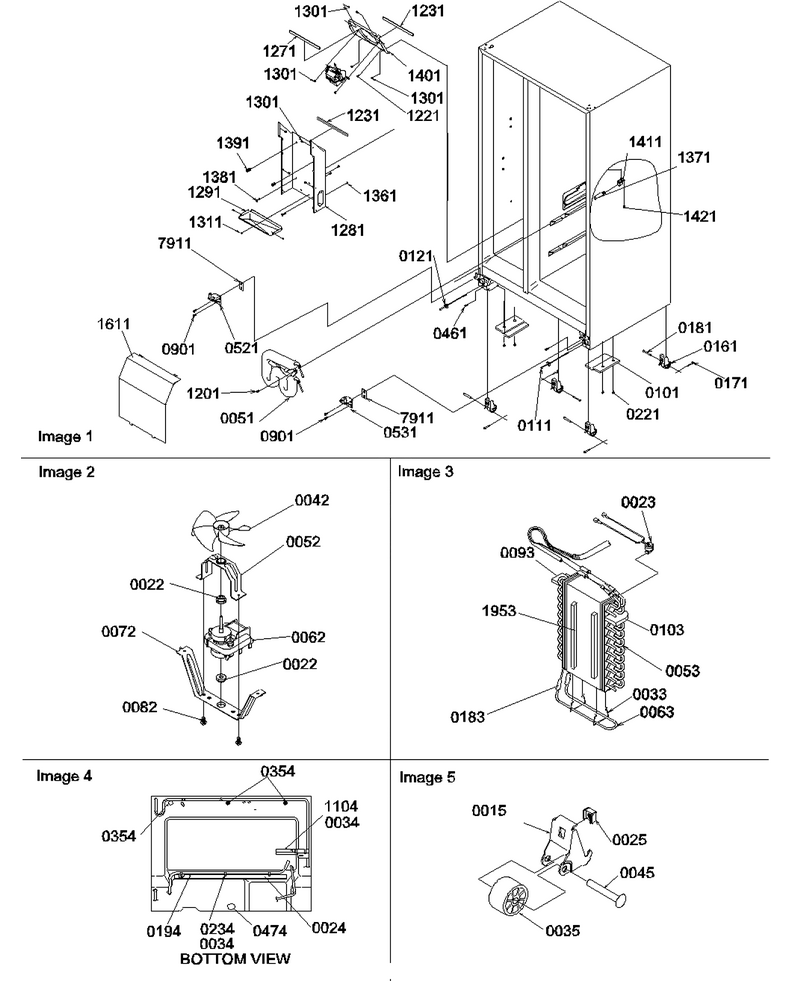

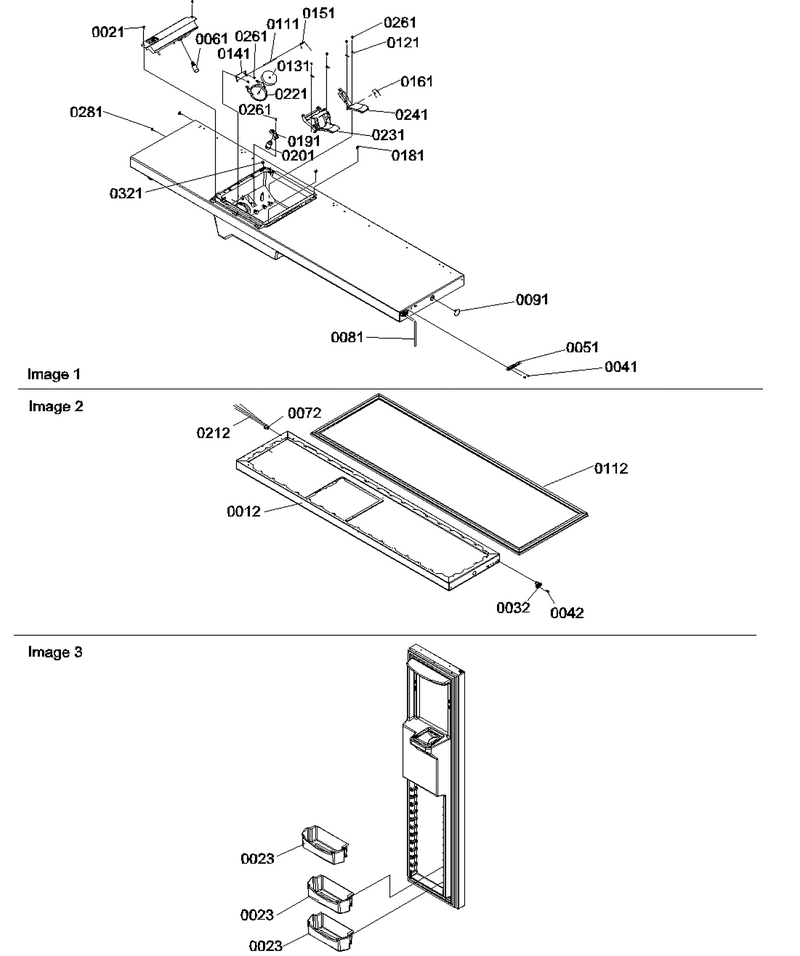

04 - Drain, Rollers, And Evap Assy

...
...
15
Assy, Roller Bracket WPL-12452602Q
...
22
Grommet WPL-WP2264462
...
23
Thermostat WPL-R0161090
...
24
Insul., Oc Bot WPL-10906506
...
25
Nut, Speed WPL-M0286708
...
33
Clip WPL-W11673433
...
34
Screw WPL-WP489069
...
35
Roller WPL-WP10450603
...
42
Blade-Fan WPL-WP12059901
...
45
Rivet WPL-M1205302
...
51
Reservoir WPL-R0181175
...
52
Brkt-Mtr Mt/up WPL-10656102
...
53
Assy,low Side(sxs 22) WPL-R0170055
...
62
Motor-Evap WPL-WP10513804
...
63
Heater- Ev WPL-WP10428406
...
72
Bracket WPL-WP10909401
...
82
Screw WPL-WP90767
...
93
Block, Air Coil (left) WPL-10629601
...
101
Support, Mc WPL-C8913701
...
103
Block, Air Coil (right) WPL-10629001
...
111
Kit- Machi WPL-R0000213
...
121
Washer, Nylon WPL-M0274067
...
161
Assy, Roller Bracket WPL-12452602Q
...
171
Cotter Pin K WPL-M1200004
...
181
Pin K WPL-M1200202
...
183
Harness Evap Heater WPL-12325101
...
194
Tube-Drain WPL-12142001
...
221
Screw WPL-W11233072
...
234
Clamp WPL-M0102303
...
354
Plug, Button (blk) WPL-A3080001
...
461
Screw, Mach WPL-M0206313
...
474
Plug, Button WPL-A3076901
...
521
Hinge, L Btm-Wh E Ct WPL-12431708
...
531
Hinge,elec Btm-Wh E Ct WPL-12431712
...
901
Screw WPL-WP67006715
...
1104
Baffle, Air WPL-12021201
...
1201
Screw WPL-WP98165
...
1221
Screw WPL-WP489399
...
1231
Gasket WPL-B8386608
...
1271
Gasket (1=1ft.) WPL-10839713
...
1281
Shield, Evap WPL-10893803
...
1291
Drip Tray Pnt. WPL-D7850202
...
1301
Screw WPL-WP90767
...
1311
Rivet WPL-10098801
...
1361
Grommet A WPL-M0580002
...
1371
Light Bulb WPL-59002071
...
1381
Clip, Evap WPL-10527401
...
1391
Clip, Evaporator WPL-10623003
...
1401
Evap Fan Shroud WPL-10890202
...
1411
Socket, Light WPL-D7845103
...
1421
Screw WPL-W10856125
...
1611
Cover-Water Tank WPL-10914202
...
1953
Gasket WPL-A3030357
...
7911
Shim, Bottom Hinge Metal WPL-12187603

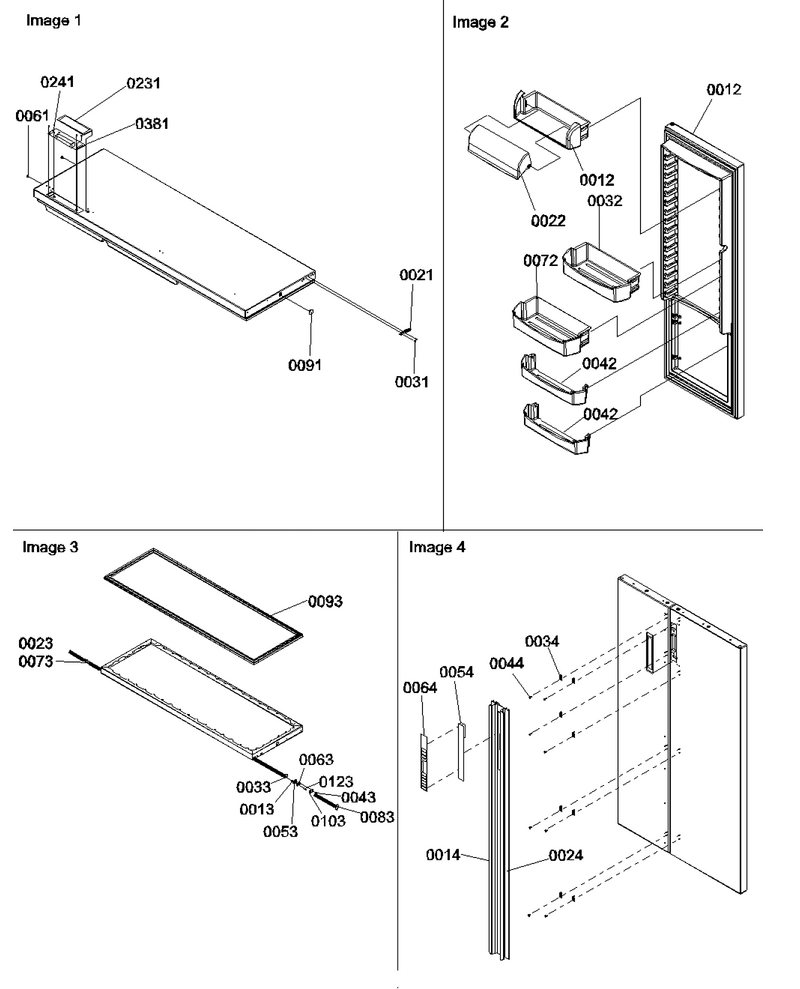

11 - Refrigerator Door, Trim And Handles

...
...
12
Assy- Ref WPL-12319702WQ
...
13
Grommet, Hinge Pin WPL-B8390602
...
14
Handle, Frz Door (white) WPL-12438905
...
21
Stop, Door (wht) WPL-C8972409
...
22
Door- Dair WPL-12308704
...
23
Grommet, Hinge Pin WPL-B8381402
...
24
Handle, Ref Door (white) WPL-12442601
...
31
Screw WPL-WP98165
...
32
Bucket, Ref Door WPL-12309510
...
33
Shim- Dr B WPL-WP10361803
...
34
Clip WPL-12315101
...
42
Shelf, Ref Door WPL-12311206
...
43
Screw WPL-WP98165
...
44
Screw WPL-WP489399
...
53
Closure, Door (wht) WPL-12113401
...
54
Assy, Keyboard WPL-10519401
...
61
Plug, Button (wht) WPL-M0311605
...
63
Closure, Door (wht) WPL-12113301
...
64
Faceplate-W Elect WPL-10603106
...
72
Bucket, Ref Door WPL-12309511
...
73
Bushing- D WPL-WP67004977
...
83
Connector-12 Pin WPL-M0335412
...
91
Plug, Button (blk) WPL-A3080001
...
93
Gasket-Dor WPL-R0000200
...
103
Shim- Dr B WPL-WP10361803
...
123
Assy, Hinge Pin WPL-10561601
...
231
Gasket, Control WPL-12414301
...
241
Screw WPL-WP59002061
...
381
Kit- Board WPL-12002770

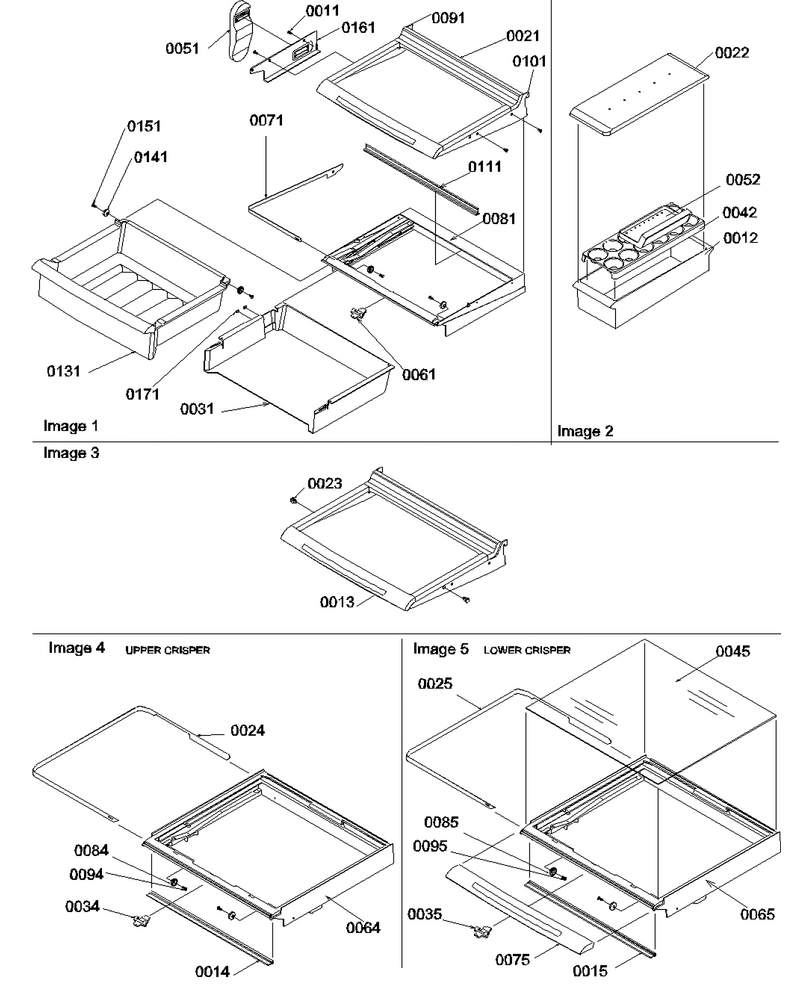

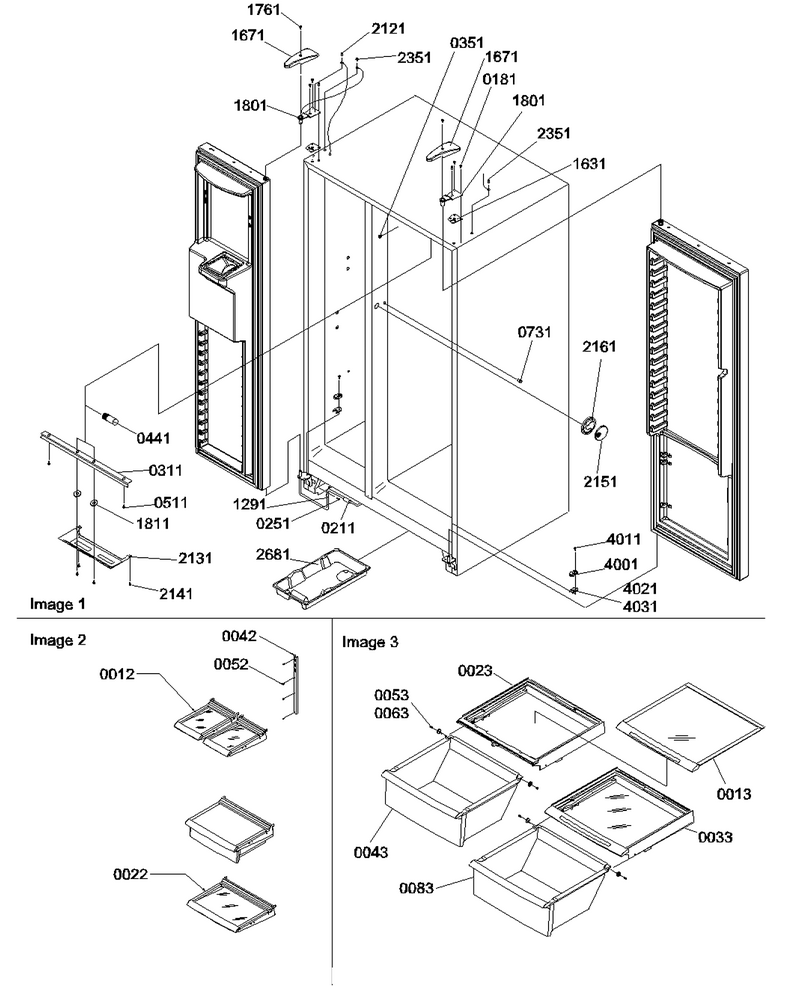

03 - Deli, Shelves, Crisper Assy

...
...
11
Screw WPL-W10856125
...
12
Container WPL-WP10423131
...
13
Shelf, Full Glide WPL-10809529
...
14
Seal-Crisp Front WPL-10968801
...
15
Seal-Crisp Front WPL-10968801
...
21
Shelf, Full Glide WPL-10809523
...
22
Lid, Utility WPL-10436404
...
23
Stop, Shelf WPL-10875101
...
24
Band, Crisper WPL-10882701
...
25
Band-Crisper WPL-10882702
...
31
Sleeve,deli WPL-10783902
...
34
Slide, Crisper/deli WPL-10852501
...
35
Slide, Crisper/deli WPL-10852501
...
42
Tray, Egg WPL-10436506
...
45
Glass-Shelf WPL-Y10370065
...
51
Gasket, Deli WPL-10872701
...
52
Tray, Butter WPL-10310901
...
61
Slide, Crisper/deli WPL-10852501
...
64
Frame-Cris WPL-10782902
...
65
Frame-Crisper WPL-10783001
...
71
Band-Deli WPL-10986402
...
75
Trim-Crisper Fr WPL-12113003
...
81
Frame, Deli WPL-10783702
...
84
Roller, Pan WPL-10481001
...
85
Roller, Pan WPL-10481001
...
91
Rail, L Blank Side WPL-10809915
...
94
Screw WPL-67006692
...
95
Screw WPL-67006692
...
101
Rail, R Blank Side WPL-10809916
...
111
Extrn.-Rear Deli WPL-10873801
...
131
Pan,deli WPL-10784101
...
141
Roller, Pan WPL-10481001
...
151
Screw WPL-67006692
...
161
Manifold, Deli WPL-10872601
...
171
Pad-Bumper WPL-M0051701

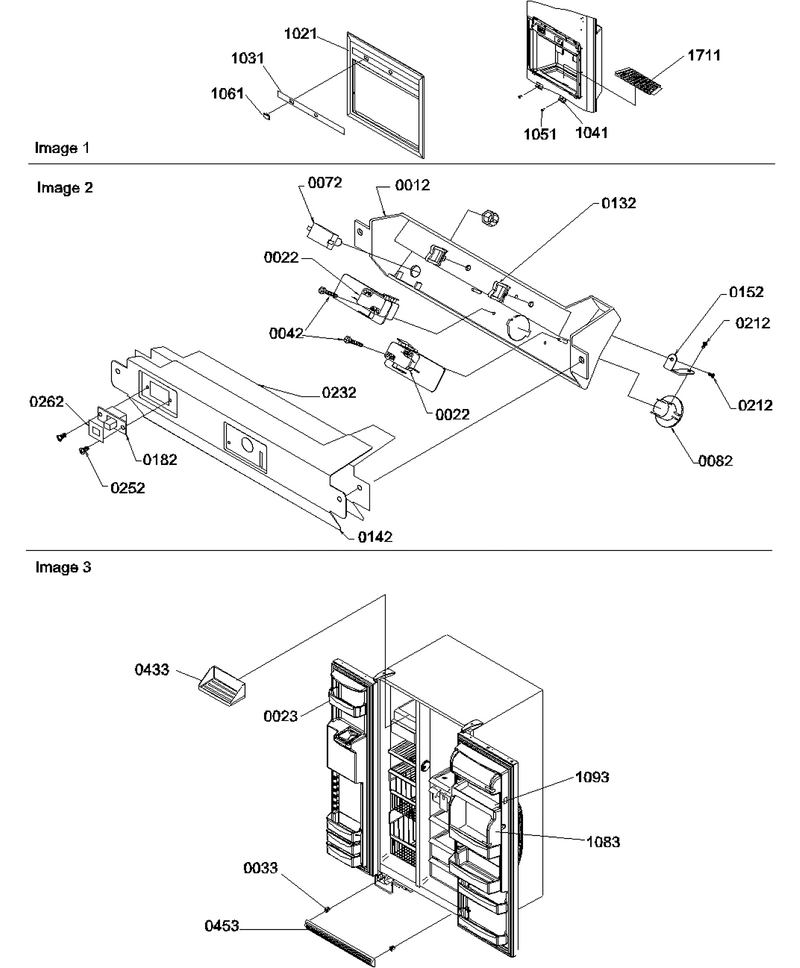

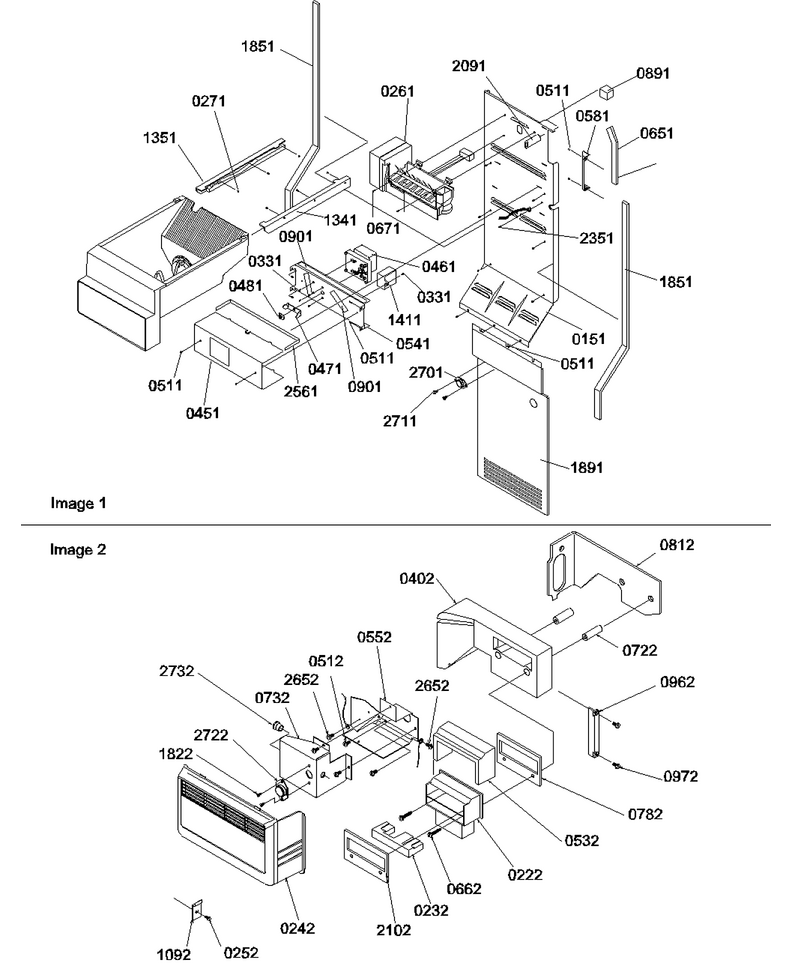

05 - Facade Dispenser Cover, Elec Brkt Assy

...
...
12
Bracket, Elec Mtg WPL-10323305
...
22
Switch, Limit WPL-12419601
...
23
Shelf, Frz Door WPL-12311804
...
33
Clip WPL-WPM0117303
...
42
Screw, T.f. WPL-M0237809
...
72
Switch-Light Cavity WPL-10166101
...
82
Socket, Light WPL-D7845103
...
132
Wire Clip WPL-B5667304
...
142
Cover, Electric Brkt WPL-10131809
...
152
Bracket, Socket Mtg WPL-10295701
...
182
Switch, Crushed/cube WPL-10492402
...
212
Screw WPL-M0230015
...
232
Insulation,disp Elec Brkt WPL-10419403
...
252
Screw WPL-W11084238
...
262
Cover-Switch WPL-10877104
...
433
Shelf, Ice Cream WPL-10870802
...
453
Assy, Toe Grille (white) WPL-12321807Q
...
1021
Facade-W Disp WPL-12023001
...
1031
Insert, Facade (white) WPL-12025207
...
1041
Clip-Facade Mtg WPL-C8973902
...
1051
Screw-Sm/hex WPL-12990523
...
1061
Cap-Switch Wh WPL-12036401
...
1083
Assy, Chiller WPL-12424302
...
1093
Shelf, Snack WPL-12309403
...
1711
Grille, Sump (white) WPL-D7750603

12 - Refrigerator/freezer Lights And Hinges

...
...
12
Shelf-Split Glide WPL-10883325Q
...
13
Shelf-Top Crisper WPL-10783108
...
22
Assy, Full Glide Shelf WPL-10883322
...
23
Assy, Crisper Frame WPL-10882801Q
...
33
Assy, Crisp Frame WPL-10882809Q
...
42
Ladder, Center WPL-12373101
...
43
Pan,crisper WPL-10783201
...
52
Screw-Sm WPL-M0238636
...
53
Roller, Pan WPL-10481001
...
63
Screw WPL-67006692
...
83
Pan, Crisper WPL-10783301
...
181
Screw WPL-WP489349
...
211
Fitting WPL-WP4373559
...
251
Screw WPL-WP90767
...
311
Shield, Light WPL-10014716
...
351
Grommet, Screw WPL-M0580007
...
441
Light Bulb WPL-59002071
...
511
Screw (3) WPL-67006425
...
731
Clip, Air Tunnel WPL-10426801
...
1291
Clamp WPL-W10833902
...
1631
Shim, Top Hinge WPL-B8389007
...
1671
Cover W Hinge WPL-10849406
...
1761
Screw WPL-WP8281196
...
1801
Hinge, Top (e-Ct) WPL-12426201
...
1811
Washer WPL-M0270519
...
2121
Screw WPL-W11214483
...
2131
Cover, Frz Light WPL-10493302
...
2141
Screw-Sm WPL-M0238846
...
2151
Grille, Control WPL-10164813
...
2161
Control-Air WPL-10164702
...
2351
Screw WPL-WP489399
...
2681
Pan, Drain WPL-10845602
...
4001
Kit,dr Closure WPL-R0181181
...
4011
Screw WPL-WP8281227
...
4021
Shim- Dr C WPL-WP10361805
...
4031
Shim- Dr B WPL-WP10361803

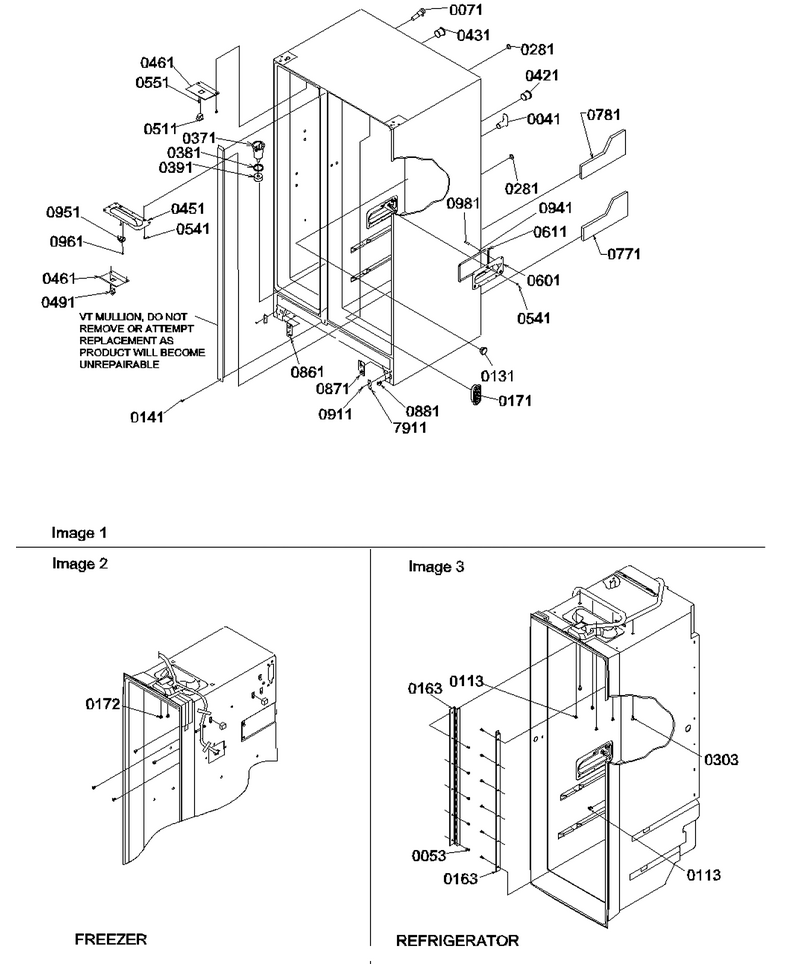

02 - Cabinet Parts

...
...
41
Tunnel, Heat Ex. WPL-C8971902
...
53
Screw (3) WPL-67006425
...
71
Assy, Fill Tube WPL-12023401Q
...
113
Grommet, Screw WPL-M0580007
...
131
Tunnel, Retainer WPL-10923101
...
141
Screw, Handle (black) WPL-12991101
...
163
Ladder, Cant. WPL-12614205
...
171
Grille-Rtn Air WPL-D7785402
...
172
Grommet, Screw WPL-M0580007
...
281
Plug, Button (blk) WPL-A3080001
...
303
Grommet, Screw WPL-M0581001
...
371
Funnel WPL-W10815413
...
381
Seal- O Ri WPL-WPM0500703
...
391
Gasket- Dr WPL-WPB8381501
...
421
Tunnel Wire WPL-10187501
...
431
Tunnel Wire WPL-10187601
...
451
Housing, Frz Light WPL-D7863904
...
461
Cover, Light Sw WPL-D7297604
...
491
Switch WPL-W11384469
...
511
Switch WPL-W11396033
...
541
Screw WPL-WP90767
...
551
Screw (3) WPL-67006425
...
601
Housing Light WPL-10270202
...
611
Gasket WPL-A3189337
...
771
Insulation, R Foot WPL-10906501
...
781
Insulation, L.foot WPL-10906503
...
861
Strip, L.h. Btm Hinge WPL-12146604
...
871
Strip, R.h. Btm Hinge WPL-12146603
...
881
Spacer, Btm Hinge WPL-12146803
...
911
Rivet, Pop (wht) WPL-B5642901
...
941
Terminal Ground A WPL-M0320905
...
951
Socket, Light WPL-D7845103
...
961
Screw WPL-W10856125
...
981
Pop Rivet WPL-A4539626
...
7911
Shim, Bottom Hinge Metal WPL-12187603

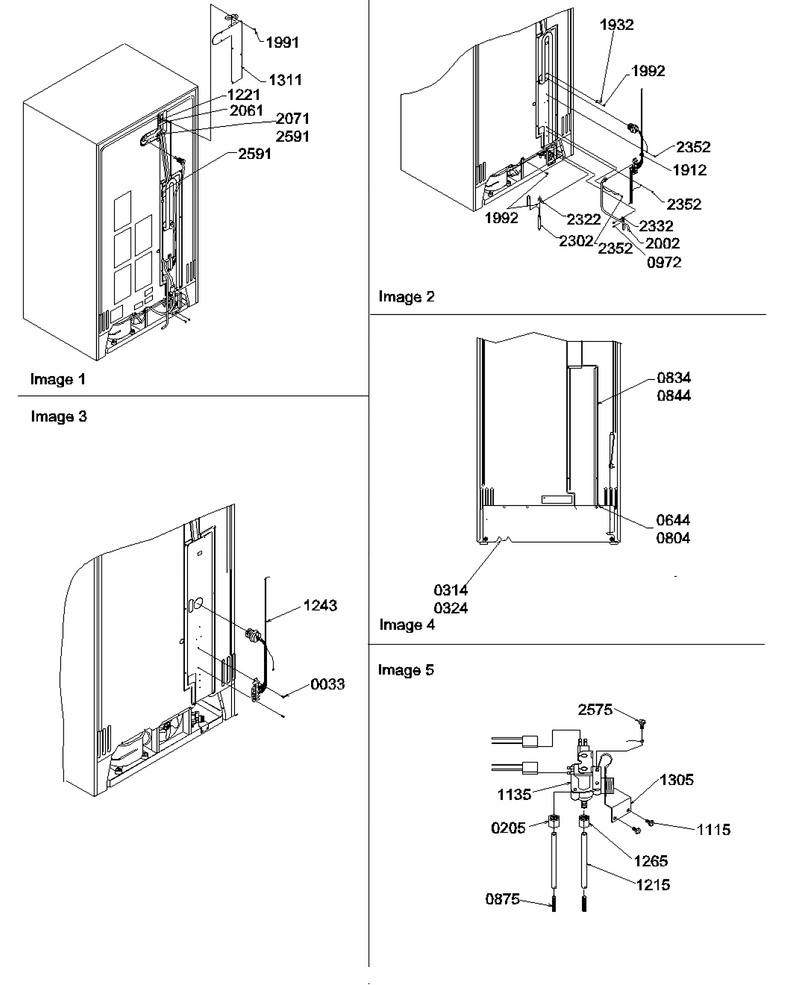

01 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
33
Screw WPL-WP489069
...
205
Nut, Sleeve WPL-M0753003
...
314
Assy,mc Back WPL-D7788914
...
324
Screw WPL-WP489464
...
644
Clamp, Tube WPL-M0108001
...
804
Screw, Sm WPL-M0227217
...
834
Cover, O.c.back WPL-10178406
...
844
Screw WPL-WP489069
...
875
Spring WPL-WPA1055105
...
972
Screw WPL-WP489474
...
1115
Screw, 8-32 X 3/8 WPL-681390
...
1135
Valve, Water (220/240 Vac, 50 WPL-D7827204
...
1215
Tube WPL-WPB5705307
...
1221
Clip- Spee WPL-WPM0114003
...
1243
Harness, Cab WPL-12356301
...
1265
Nut WPL-WP627018
...
1305
Brkt, Water Valve WPL-10496302
...
1311
Cover - Wire WPL-10178505
...
1912
Tie-Wire WPL-WPW10339879
...
1932
Clamp WPL-B5794201
...
1991
Screw WPL-WP489069
...
1992
Screw WPL-WP489069
...
2002
Cord, 106`` Power WPL-12356406
...
2061
Gasket (ft.) WPL-10839803
...
2071
Clip WPL-WPM0104106
...
2302
Drier WPL-WPB2150504
...
2322
Clip, Drier WPL-10547002
...
2332
Strain Relief WPL-Y10203701
...
2352
Screw WPL-WP489399
...
2575
Screw WPL-M0253504
...
2591
Clip, Cord WPL-M0104102

09 - Ice Maker/control Assy

...
...
151
Assy, Frzr Back WPL-D7846024Q
...
222
Damper, Control WPL-10271401
...
232
Insert, Control WPL-C8902601
...
242
Cover-Control WPL-10862702
...
252
Screw WPL-WP90767
...
261
Ice Maker WPL-D7812305
...
271
Screw, Handle WPL-67006529
...
331
Screw WPL-WPW10139210
...
402
Duct, Waxed Air WPL-10176608
...
451
Cover, Auger Mtr WPL-D7788820
...
461
Motor, Auger (230 Vac, 50hz) WPL-10525202
...
471
Coupling WPL-WP10114901
...
481
Nut WPL-WPM0223101
...
511
Screw (3) WPL-67006425
...
512
Screw (3) WPL-67006425
...
532
Insulation WPL-D7788201
...
541
Support,auger Motor WPL-D7749207
...
552
Box, Control Btm WPL-D7822406
...
581
Cover, Supply Air WPL-D7838302
...
651
Gasket WPL-B8386602
...
662
Screw WPL-M0216539
...
671
Screw WPL-WP98165
...
722
Spacer Damper WPL-A3044208
...
732
Top, Cont. Box WPL-D7832805
...
782
Gasket, Damper WPL-B8345401
...
812
Gasket, Air Duct WPL-10177901
...
891
Gasket, Air Block WPL-C8976102
...
901
Gasket-Per Ft WPL-A3030305
...
962
Clamp WPL-C8977301
...
972
Screw WPL-WP489474
...
1092
Brkt, Cont Cover WPL-12414701
...
1341
Glide, Frz. (rt) WPL-67004323
...
1351
Glide, Container (left) WPL-67005375
...
1411
Capacitor (420 Vac) WPL-C8931609
...
1822
Screw WPL-WP489349
...
1851
Gasket WPL-A3189346
...
1891
Evap Cover-E Ct WPL-10655904
...
2091
Ext. Fill Tube WPL-A3127412
...
2102
Gasket, Damper WPL-10383201
...
2351
Screw WPL-WP489399
...
2561
Gasket WPL-B8386606
...
2652
Screw (3) WPL-67006425
...
2701
Thermistor WPL-WPW10331672
...
2711
Screw WPL-WP90767
...
2722
Thermistor-Ref WPL-C8983702
...
2732
Snap Bushing WPL-A4554806

10 - Machine Compartment

...
...
11
Assy, Cond/pan E-Ct WPL-10883408
...
52
Relay WPL-10169902
...
62
Screw WPL-M0234114
...
72
Screw WPL-WP90767
...
82
Support-Pc Board WPL-M0585502
...
92
Top, Hv Box WPL-10276906
...
101
Blade-Fan WPL-10518703
...
102
Hv Box- E Ct WPL-10277020
...
112
Switch, Crushed/cube WPL-10492402
...
121
Grommet, Compressor WPL-67003493
...
122
Cover-Switch WPL-10877104
...
132
Board, H.v. Pc WPL-10898901
...
141
Gasket, Sealing WPL-B5759645
...
142
Flap, Protective WPL-10899002
...
161
Screw, Shldr WPL-M0221523
...
172
Harness, M.c. WPL-12007603
...
251
Overload- 4tm WPL-10377019
...
271
Capacitor WPL-10958303
...
281
Cover-Term WPL-4344043
...
301
Brkt,cond. Mtr WPL-C8982102
...
331
Motor-Condenser (230 Vac,50/60 WPL-D7846903
...
341
Compressor WPL-W10309997
...
351
Relay WPL-WP10097206
...
501
Screw WPL-WPM0223816
...
521
Screw WPL-M0253916
...
531
Screw WPL-WP489128
...
541
Screw WPL-WP90767
...
651
Cond. Fn Shrd WPL-10845505
...
791
Tie-Wire WPL-WPW10339879
...
921
Screw WPL-12992301
...
931
Clip-Cond. WPL-10874601
...
941
H.v. Box Shelf-E Ct WPL-10845302
...
981
Gasket-Foam WPL-A3189367
...
1111
Gasket WPL-A3030359
...
2021
Brkt, Line Filter WPL-B5696109
...
2341
Screw, Sm WPL-M0211357

06 - Freezer Door

...
...
NI
Retainer, Frz Bucket WPL-12310203
...
12
Assy- Frz WPL-12309904WQ
...
21
Screw-Sm/hex WPL-12990523
...
23
Bucket, Frz Door WPL-12311906
...
32
Kit,dr Closure WPL-R0181181
...
41
Screw WPL-WP98165
...
42
Screw WPL-WP8281227
...
51
Stop, Door (wht) WPL-C8972409
...
61
Bulb-Light WPL-WP61006109
...
72
Bushing- D WPL-WP67004977
...
81
Tube WPL-WPB5705307
...
91
Plug, Button (blk) WPL-A3080001
...
111
Pin, Chute Door WPL-A1061501
...
112
Gasket-Dor WPL-R0000201
...
121
Retainer, Ice Arm WPL-A1061601
...
131
Insulation, Chute Door WPL-B8380701
...
141
Chute-Drwr WPL-R0000447
...
151
Spring,chute Door WPL-B8380901
...
161
Spring, Return WPL-B8385401
...
181
Clip WPL-W10819546
...
191
Retainer Door Delay WPL-C8972501
...
201
Delay, Door WPL-C8973602
...
212
See Note Harness-Fz Foamed In Place. Includes Spare Pink Wire In Harness WPL-Y00000000
...
221
Kit,chute Dr No.3 WPL-R0156692
...
231
Arm-Dispsr WPL-12002642
...
241
Arm, Water Actuator WPL-10872107
...
261
Screw WPL-WP90767
...
281
Plug, Button (wht) WPL-M0311605
...
321
Clip, Waterline WPL-12454802
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
